Lamp Model.:Falcon/Jaguar
Lamp Power:10W-60W/30W-120W
LiFePO4 Lithium Battery Capacity:Up to 640Wh/Up to 1280Wh
Solar Panel:140W -640W

Product Description

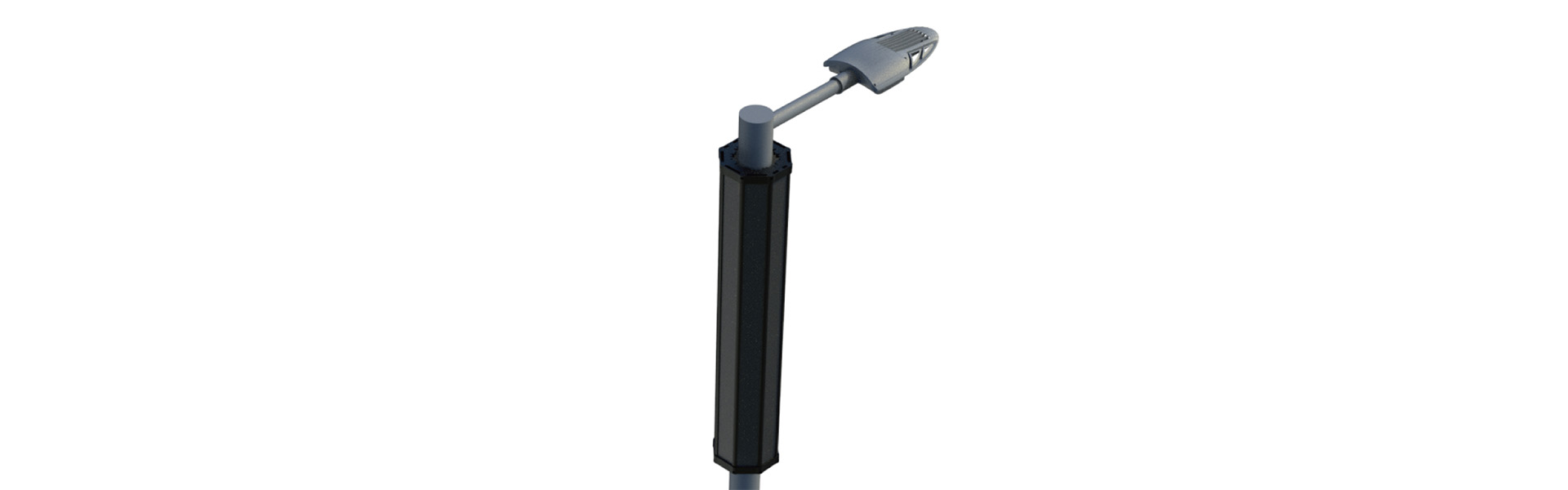

ARMOUR Solar Pole Light

ARMOUR Solar Pole Light is designed for Pathway and Main Street Lighting, with lithium battery and controller built inside the lamp.

Eight solar panels are fixed tightly on an octagon frame. It ensures 50% of solar panels will face to sunshine at any time.

The cylindrical solar panel design reduces the wind resistance area, which is especially adapted to very windy regions.

The solar panels vertically mounted on the pole is not easy to be covered by the dust or snow, which vastly reduces the requirements of solar panel cleaning.

Instead of mounting big solar panels on the top, the solar panels are vertically integrated with the pole, which makes The whole system very simple and modern looking.

Suitable for lamp posts with diameters of 50-175mm.


Lamp Model Falcon Jaguar
Lamp Power 10W-60W 30W-120W
LiFePO4 Lithium Battery Capacity Up to 640Wh Up to 1280Wh
Solar Panel 140W -640W
Mounting Height 3-12 Meters
System Life Span > 7 years
PIR Motion Sensor
Remote Control

Smart Lighting Mode

Various operating modes with different programs are available.

Working Time

up to 14 hours per night

Autonomy Days Backup

up to 7 days depending on lighting mode


Work at All Climates

With LiFePO4 battery’s high-temperature resistance, controller’s temperature compensated function and BMS’ temperature protection system, ARMOUR series is able to operate under extreme climate conditions.
