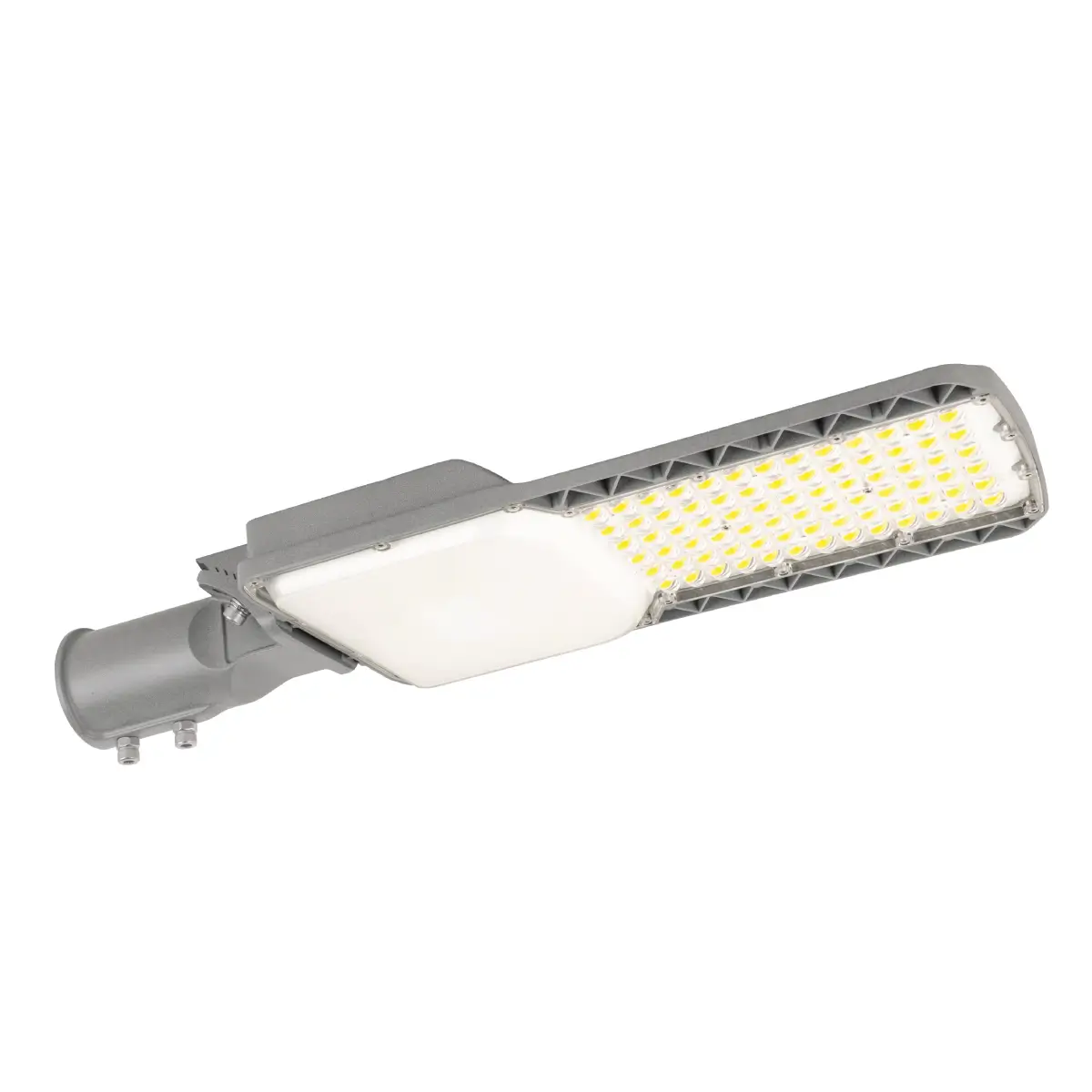

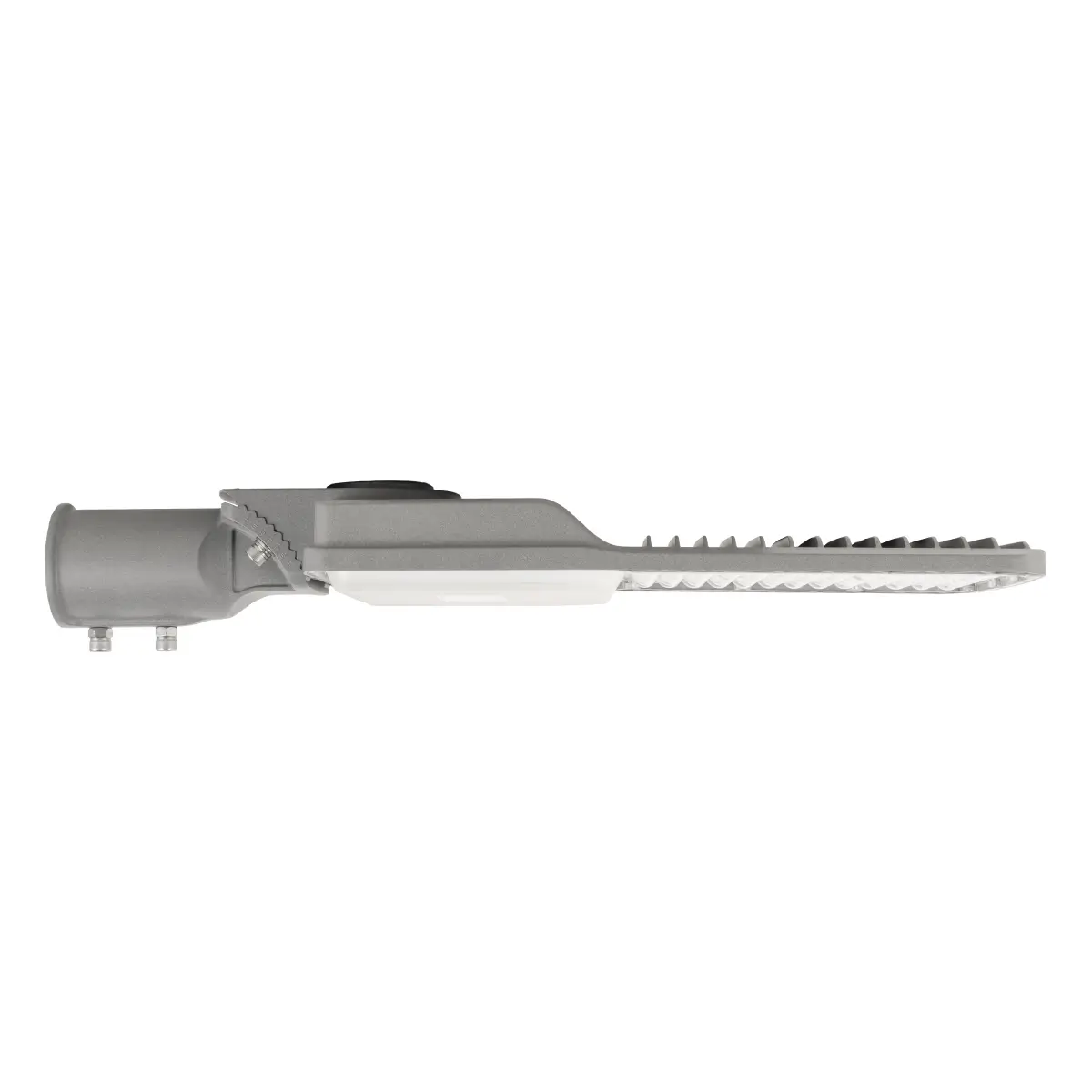

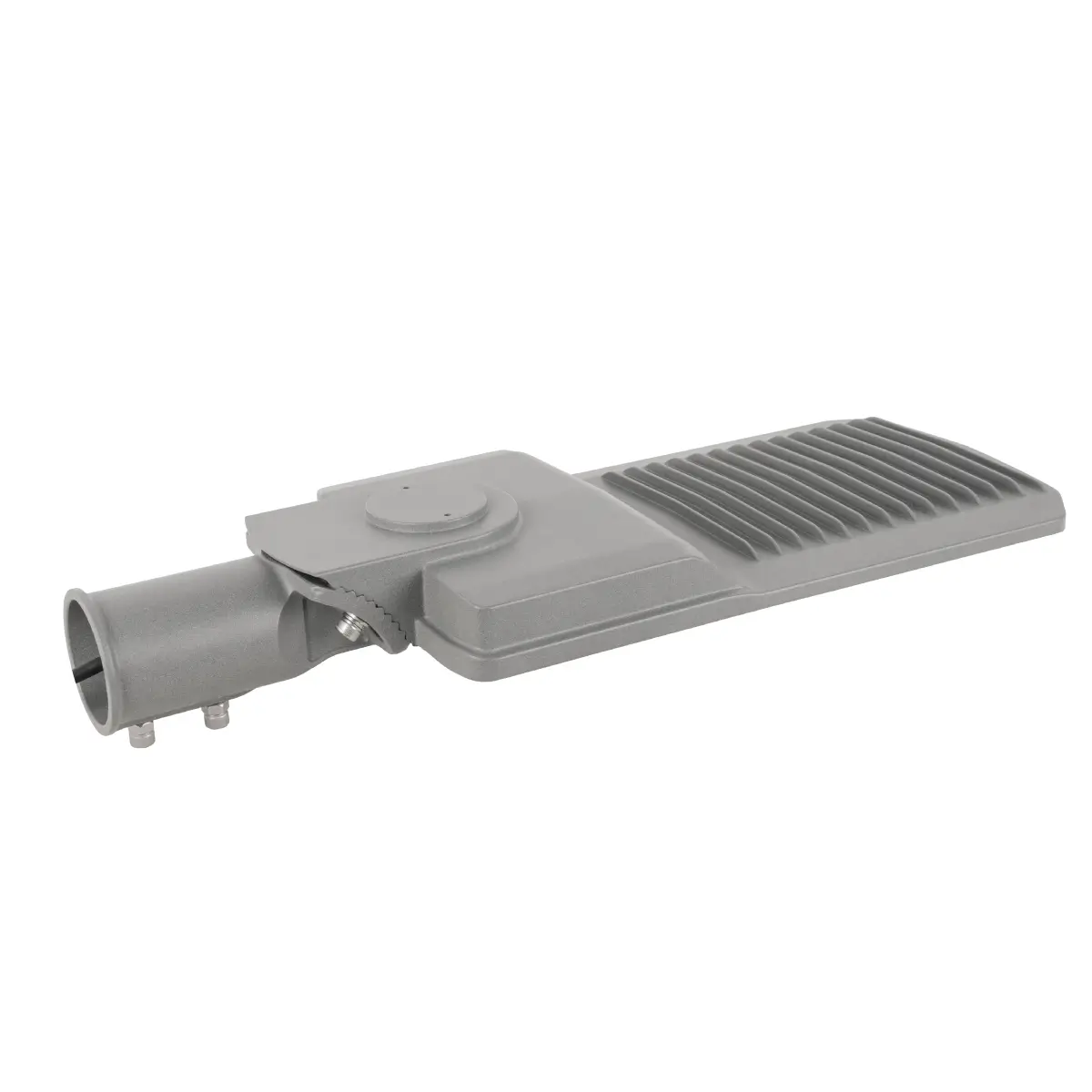

INL-LED23
LED Street Light
LED23 LED Street light is an economical and practical street light model, simple in shape but complete in function. By adopting super bright SMD 5050 LED chips and high transparent PC lens, it can achieve more than 190lm/w luminious effienciy and can meet the needs of various road lighting, with lamp power from 30W to 200W.
Applications：
- Highway
- Street
- Intersection
- Roundabout
- Parking Lot
- Business District
- Perimeter
- Industrial Zone
- Factory
- Residential Community
- Refugee Camp
Specifications
| Model | LED22-50W | LED22-80W | LED22-120W | LED22-180W | LED22-240W |
| Power | 50W | 80W | 120W | 180W | 240W |
| Power Supply | MEANWELL / PHILIPS / MOSO / INVENTRONICS | ||||
| Working Voltage | 90 - 305V AC, 50/60Hz | ||||
| Beam Angle | 70*140° | ||||
| CCT | 3000K - 6500K | ||||
| CRI | >70 (>80,>90 optional) | ||||
| LED Chip | SMD 5050 | ||||
| Luminous Efficiency | >190lm/w | ||||
| Luminous Flux | 5700lm | 15200lm | 22800lm | 34200lm | 45600lm |
| Housing Material | Die-casting Aluminum | ||||
| Lens Material | PC | ||||
| Product Dimension (mm) | 392*160*67 | 485*188*67 | 565*220*67 | 660*240*67 | 760*276*67 |
| IP/IK Rate | IP66 / IK09 | ||||
| Working Temperature | -40°C~50°C, 20%~90% RH | ||||
| Life Span | >50,000 Hours | ||||
Interior Structure
IP67 Extreme Bright LED Modules
Triangle Strong Designed Screws
Smart Solar Controller
Aluminum Die-casting Fixture
LiFePO4 Lithium Battery
Enhanced Strong Lamp Holder
How INL-LED23 Benefits Your Project
Extreme Bright 5050 LED Provides 40% Higher Brightness
INL-LED23 Series adopts first-class Extreme Bright 5050 LEDs with 260lm/w efficiency, providing 40% higher brightness than normal solar lights which use 3030 LEDs and 2835 LEDs by its much bigger LED chip size.
Patented Lighting Distribution provides higher uniformity and 30% larger coverage area
Specially designed light distribution and bigger beam angle enlarge illumination areas and improve lighting uniformity, suitable for rural roads, streets, highways, and residential areas.
Thermal Management
The structure is optimized with advanced Finite Element Analysis (FEA) technology, ensuring high performance and durability. It improves heat dissipation, extends lifespan, and maintains cost-efficiency. Using FEA, the design minimizes waste and enhances reliability for long-term applications in challenging environments.
Integrated gland design
The integrated gland design seamlessly combines functionality and durability, ensuring a secure, weatherproof seal for electrical components. This innovative approach simplifies installation, reduces maintenance, and enhances reliability, making it ideal for outdoor lighting systems exposed to harsh conditions, while maintaining a sleek, compact appearance.
Two installation methods
Solar street light installation is simple, with two methods: vertical, mounting the fixture upright on a pole for open spaces, and horizontal, positioning it parallel to the ground for wider light distribution. Both ensure easy setup, stability, and optimal performance for outdoor lighting.
Operable Under Harsh Environment
IP66 for the whole INL-LED23 system, which makes it adaptable for rainy areas. High-temperature resistant LiFePO4 battery with low current design significantly reduces internal heat when the system works. Among other things, the smart temperature adjustment function of the solar controller enables the system to operate normally under temperatures as high as 65°C.
Lighting Distribution
Our engineering team performs detailed DIALUX simulations to determine optimal lighting quantity and effects for your space, ensuring effectiveness and visual comfort. Please provide the room’s precise length, width, height, and its intended use. Understanding the application is crucial for tailored lighting. For easy technical integration, IES files containing photometric data are available upon request.
60x120 deg
70x140 deg
80x150 deg
Optional Functions
01
SPD（Surge Protective Device）
1
02
Photocell
2
03
Power Off Protection Connector
3
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, INLUX’s IOT Smart Monitoringl System enables intelligent management of our solar street lights by PC, PAD and Mobile.
GPS Map
Failure Warning
Historical Data Record
Remote Management of Lighting Modes
Authority Management
Remote ON/OFF Switch
Working Condition Monitoring
Dimensions
A
B
C
D
E
Installation Methods
Our LED Street Light offer multiple installation options. Whether on roads, walls, fences, or other locations, we provide stable and reliable mounting solutions tailored to your needs.
1
Secure the lamp housing with the fixture head
2
Secure the fixture with the pole
3
Tighten the fixing screws
4
Secure the lamp housing with the fixture head
5
Secure the fixture with the pole support arm
6
Tighten the fixing screws
