INL-FLD20
Flood Light
FLD20 LED flood light is a versatile outdoor luminaire for sports, industrial, and open-area lighting. With an aerodynamic design, the luminaire allows airflow around the body for improved heat dissipation. It also includes a respirator to prevent condensation and high-quality components. It has angle-adjustable knobs at 10° intervals and double protection with a PC lens and smooth, self-cleaning tempered glass cover.
Applications：
- Highway
- Street
- Intersection
- Roundabout
- Parking Lot
- Business District
- Perimeter
- Industrial Zone
- Factory
- Residential Community
- Refugee Camp
Specifications
| Model | FLD20-50W | FLD20-100W | FLD20-150W | FLD20-200W |
| Power | 50W | 100W | 150W | 200W |
| Power Supply | MEANWELL / PHILIPS / MOSO / INVENTRONICS | |||
| Working Voltage | 90 - 305V AC, 50/60Hz | |||
| Beam Angle | 30°,60°,90°,120° | |||
| CCT | 3000K - 6500K | |||
| CRI | >70 (>80,>90 optional) | |||
| LED Chip | SMD 3030 / SMD 5050 | |||
| Luminous Efficiency | >110lm/w (SMD 3030) / >160lm/w (SMD 5050) | |||
| Luminous Flux | 5500lm (SMD 3030) | 11000lm (SMD 3030) | 16500lm (SMD 3030) | 22000lm (SMD 3030) |
| 8000lm (SMD 5050) | 16000lm (SMD 5050) | 24000lm (SMD 5050) | 32000lm (SMD 5050) | |
| Housing Material | Die-casting Aluminum | |||
| Lens Material | PC + tempered glass | |||
| Product Dimension (mm) | 216*66*312 | 270*72*370 | 332*82*455 | 477*85*638 |
| N.W.(KG) | 1.6 | 2.1 | 4.1 | 7.3 |
| IP/IK Rate | IP66 / IK08 | |||
| Working Temperature | -40°C~50°C, 20%~90% RH | |||
| Life Span | >50,000 Hours | |||
Interior Structure
IP67 Extreme Bright LED Modules
Triangle Strong Designed Screws
Smart Solar Controller
Aluminum Die-casting Fixture
LiFePO4 Lithium Battery
Enhanced Strong Lamp Holder
How INL-FLD20 Benefits Your Project
Extreme Bright 5050 LED Provides 40% Higher Brightness
INL-FLD20 Series adopts first-class Extreme Bright 5050 LEDs with 260lm/w efficiency, providing 40% higher brightness than normal solar lights which use 3030 LEDs and 2835 LEDs by its much bigger LED chip size.
Patented Lighting Distribution provides higher uniformity and 30% larger coverage area
Specially designed light distribution and bigger beam angle enlarge illumination areas and improve lighting uniformity, suitable for rural roads, streets, highways, and residential areas.
Thermal Management
The structure is optimized with advanced Finite Element Analysis (FEA) technology, ensuring high performance and durability. It improves heat dissipation, extends lifespan, and maintains cost-efficiency. Using FEA, the design minimizes waste and enhances reliability for long-term applications in challenging environments.
Integrated gland design
The integrated gland design seamlessly combines functionality and durability, ensuring a secure, weatherproof seal for electrical components. This innovative approach simplifies installation, reduces maintenance, and enhances reliability, making it ideal for outdoor lighting systems exposed to harsh conditions, while maintaining a sleek, compact appearance.
Operable Under Harsh Environment
IP66 for the whole INL-LED24 system, which makes it adaptable for rainy areas. High-temperature resistant LiFePO4 battery with low current design significantly reduces internal heat when the system works. Among other things, the smart temperature adjustment function of the solar controller enables the system to operate normally under temperatures as high as 65°C.

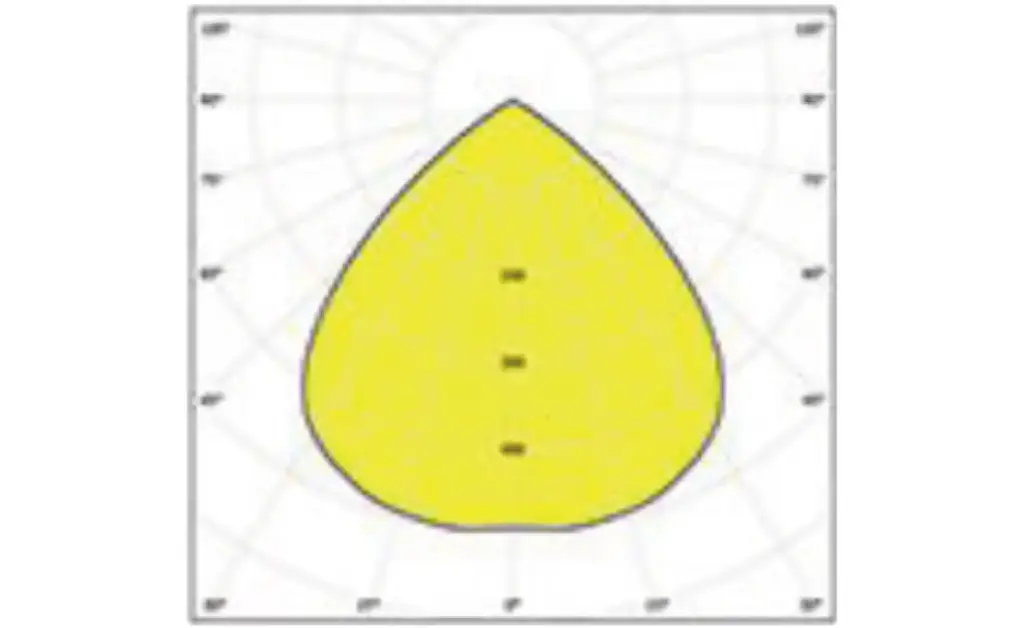

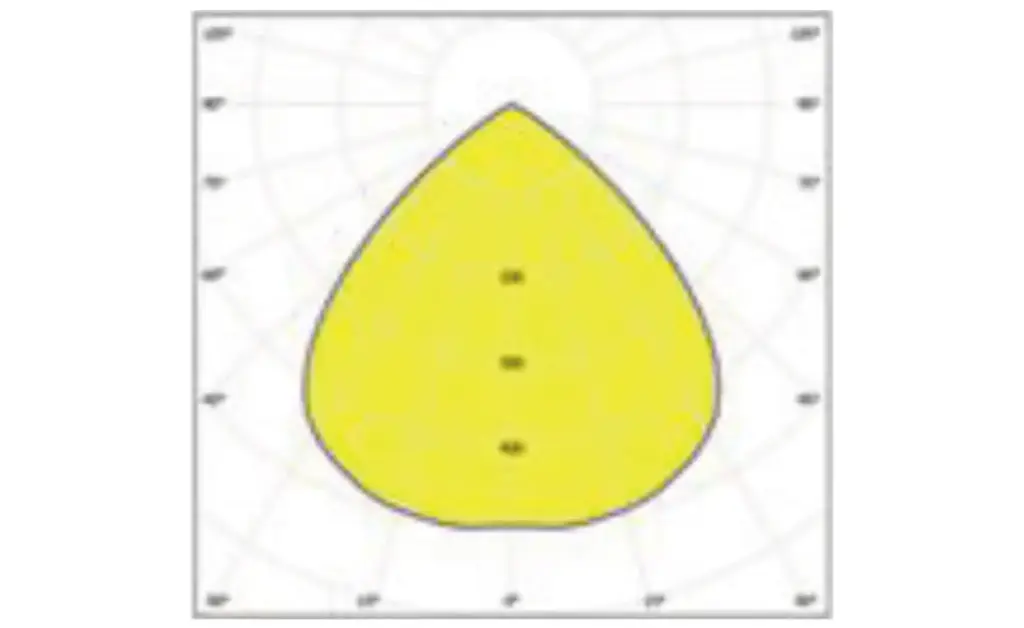

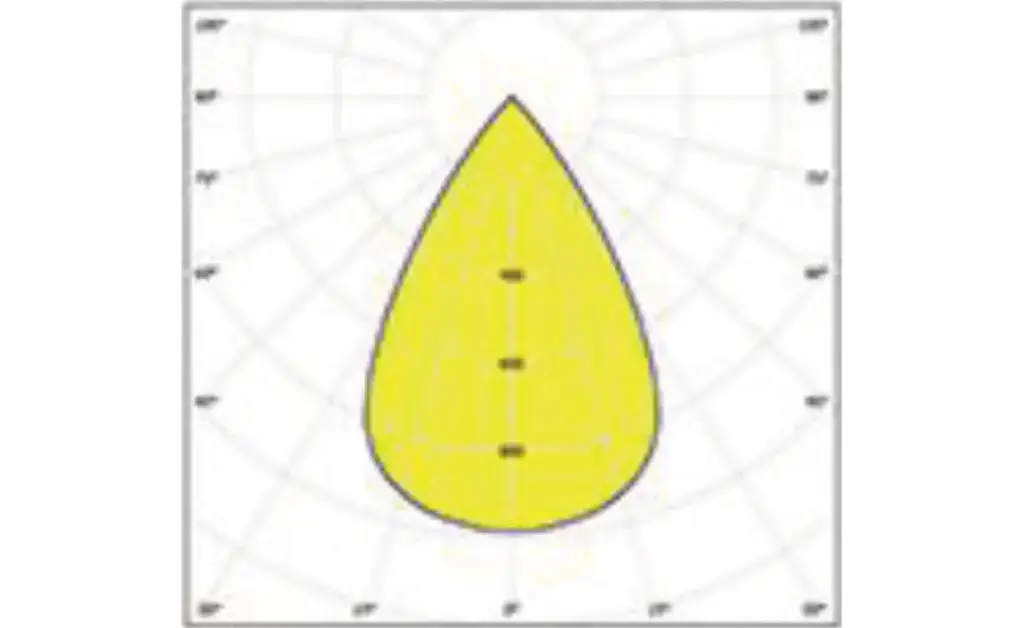

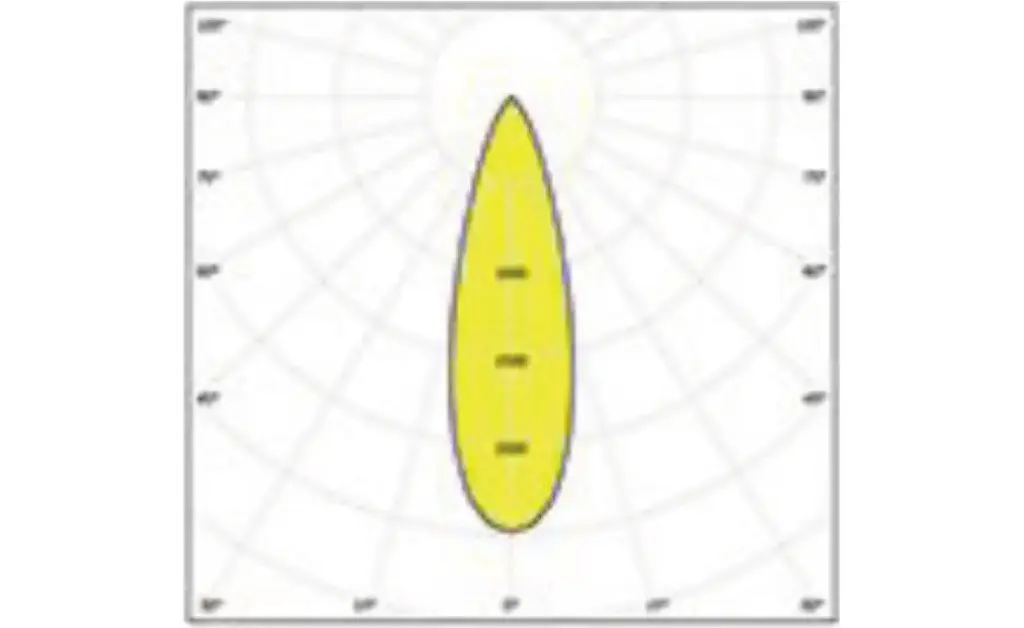

Lighting Distribution
Our engineering team performs detailed DIALUX simulations to determine optimal lighting quantity and effects for your space, ensuring effectiveness and visual comfort. Please provide the room’s precise length, width, height, and its intended use. Understanding the application is crucial for tailored lighting. For easy technical integration, IES files containing photometric data are available upon request.
40℃
60℃
90℃
120℃
Dimensions
A
B
D
