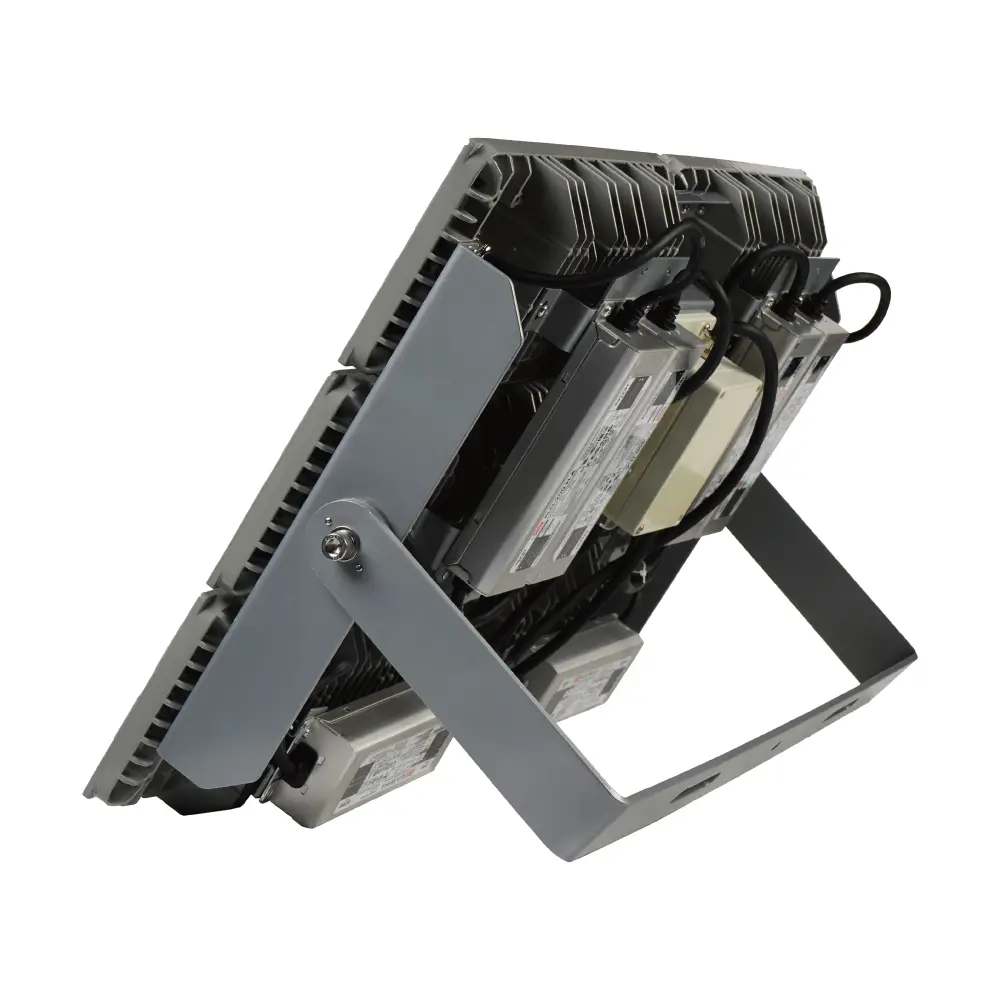

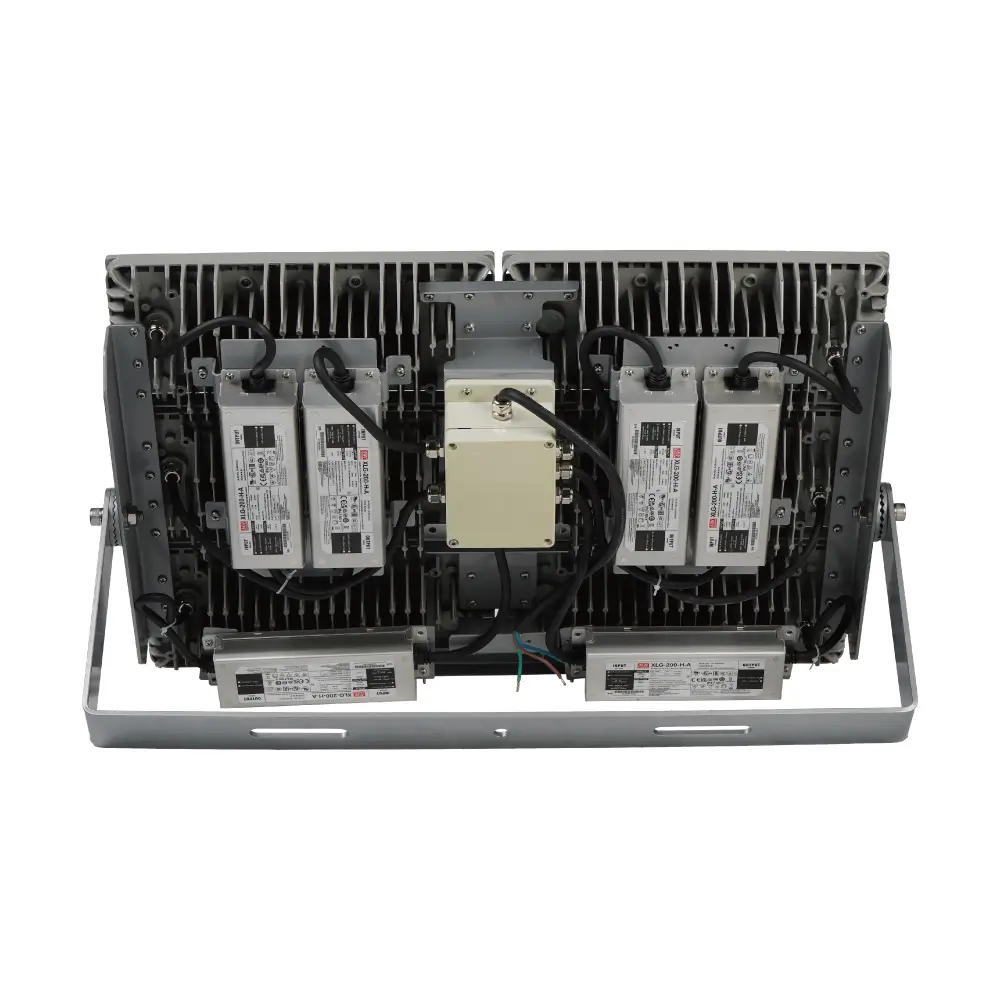

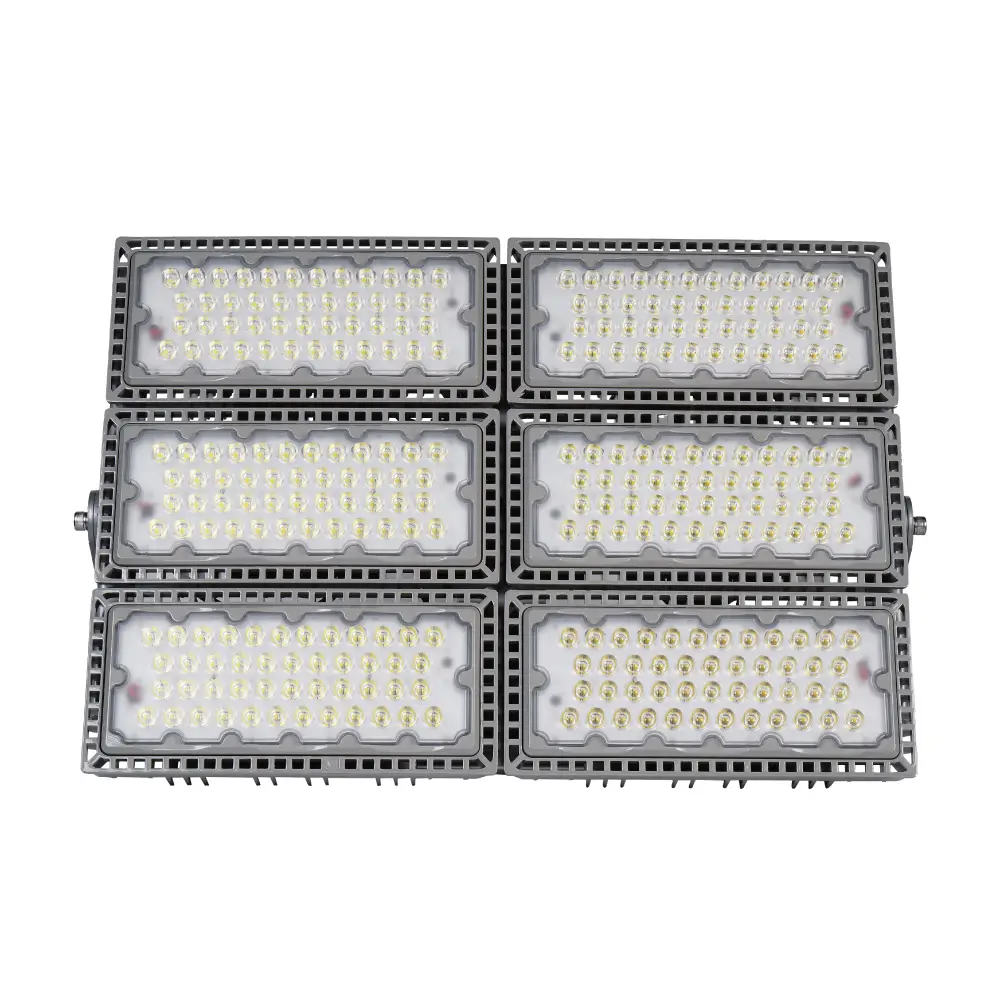

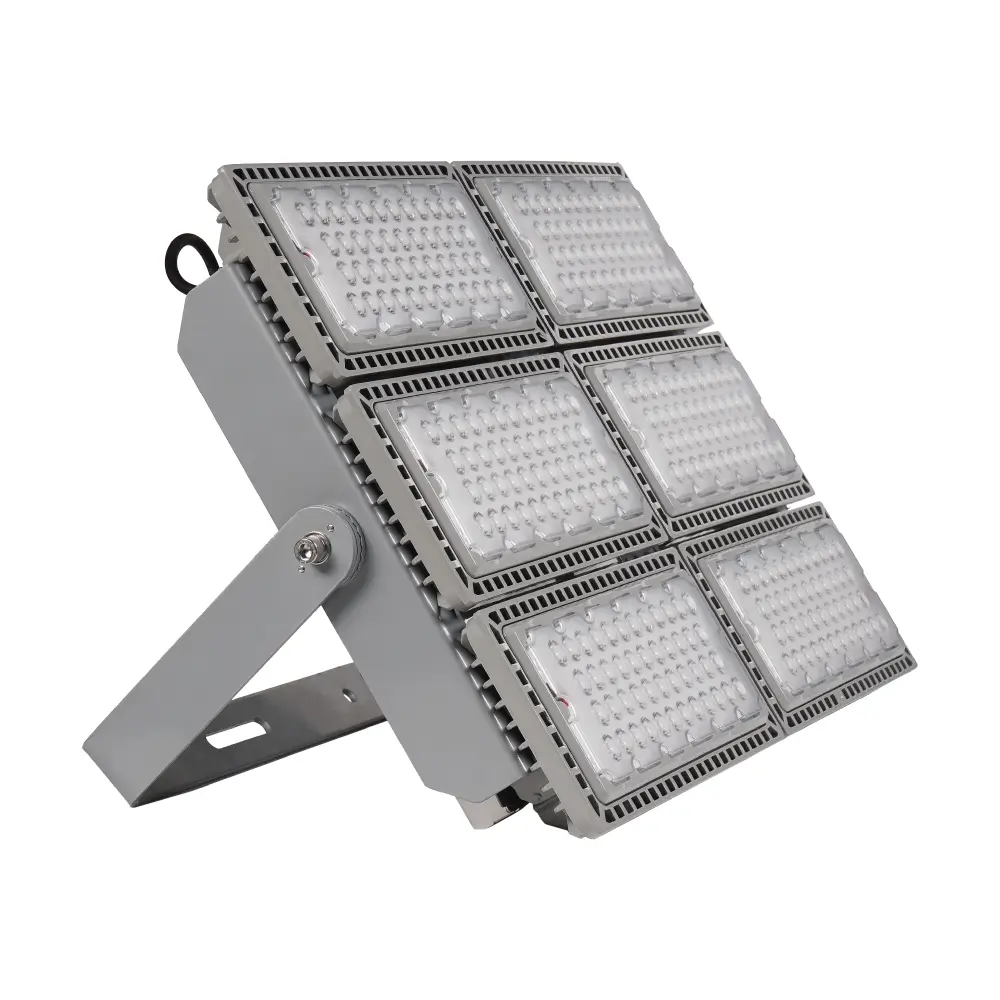

INL-FLD23
LED Flood Light
FLD23 LED flood light is a professional LED flood light with up to 120W per module, with linkable modules, profes.
sional beam distribution, and an adjustable mounting bracket, Modular linking design for easy local production.
sional beam distribution, and an adjustable mounting bracket, Modular linking design for easy local production.
Applications：
- Highway
- Street
- Intersection
- Roundabout
- Parking Lot
- Business District
- Perimeter
- Industrial Zone
- Factory
- Residential Community
- Refugee Camp
Specifications
| Model | FLD23-200W | FLD23-400W | FLD23-600W | FLD23-800W | FLD23-1200W |
| Power | 200W | 400W | 600W | 800W | 1200W |
| Power Supply | MEANWELL / PHILIPS / MOSO / INVENTRONICS | ||||
| Working Voltage | 90 - 305V AC, 50/60Hz | ||||
| Beam Angle | 8°,20°,40°,60°,90°,100° | ||||
| CCT | 3000K - 6500K | ||||
| CRI | >70 (>80,>90 optional) | ||||
| LED Chip | SMD 3030 / SMD 5050 | ||||
| Luminous Efficiency | >125lm/w (SMD 3030) / >175lm/w (SMD 5050) | ||||
| Luminous Flux | 25000lm (SMD 3030) | 50000lm (SMD 3030) | 750000lm (SMD 3030) | 100000lm (SMD 3030) | 1500000lm (SMD 3030) |
| 35000lm (SMD 5050) | 70000lm (SMD 5050) | 105000lm (SMD 5050) | 150000lm (SMD 5050) | 2100000lm (SMD 5050) | |
| Housing Material | Die-casting Aluminum | ||||
| Lens Material | PC | ||||
| Product Dimension (mm) | 365*210*121 | 367*375*133 | 535*375*133 | 701*367*138 | 702*535*138 |
| N.W.(KG) | 3.1 | 6.7 | 9.8 | 12.5 | 17.7 |
| IP/IK Rate | IP66 / IK09 | ||||
| Working Temperature | -40°C~50°C, 20%~90% RH | ||||
| Life Span | >50,000 Hours | ||||
How INL-FLD23 Benefits Your Project
Extreme Bright 5050 LED Provides 40% Higher Brightness
INL-FLD23 Series adopts first-class Extreme Bright 5050 LEDs with 260lm/w efficiency, providing 40% higher brightness than normal solar lights which use 3030 LEDs and 2835 LEDs by its much bigger LED chip size.
Patented Lighting Distribution provides higher uniformity and 30% larger coverage area
Specially designed light distribution and bigger beam angle enlarge illumination areas and improve lighting uniformity, suitable for rural roads, streets, highways, and residential areas.
Thermal Management
The structure is optimized with advanced Finite Element Analysis (FEA) technology, ensuring high performance and durability. It improves heat dissipation, extends lifespan, and maintains cost-efficiency. Using FEA, the design minimizes waste and enhances reliability for long-term applications in challenging environments.
First-class Lighting Solutions
Various LED modules with excellent lighting distribution solutions cater to diverse needs, providing tailored illumination for streets, highways, parks, and industrial areas. They ensure optimal brightness, enhancing visibility and efficiency while offering customization to suit specific environments and improve lighting performance.
Operable Under Harsh Environment
IP66 for the whole INL-LED24 system, which makes it adaptable for rainy areas. High-temperature resistant LiFePO4 battery with low current design significantly reduces internal heat when the system works. Among other things, the smart temperature adjustment function of the solar controller enables the system to operate normally under temperatures as high as 65°C.
Lighting Distribution
Our engineering team performs detailed DIALUX simulations to determine optimal lighting quantity and effects for your space, ensuring effectiveness and visual comfort. Please provide the room’s precise length, width, height, and its intended use. Understanding the application is crucial for tailored lighting. For easy technical integration, IES files containing photometric data are available upon request.
40℃
60℃
90℃
120℃

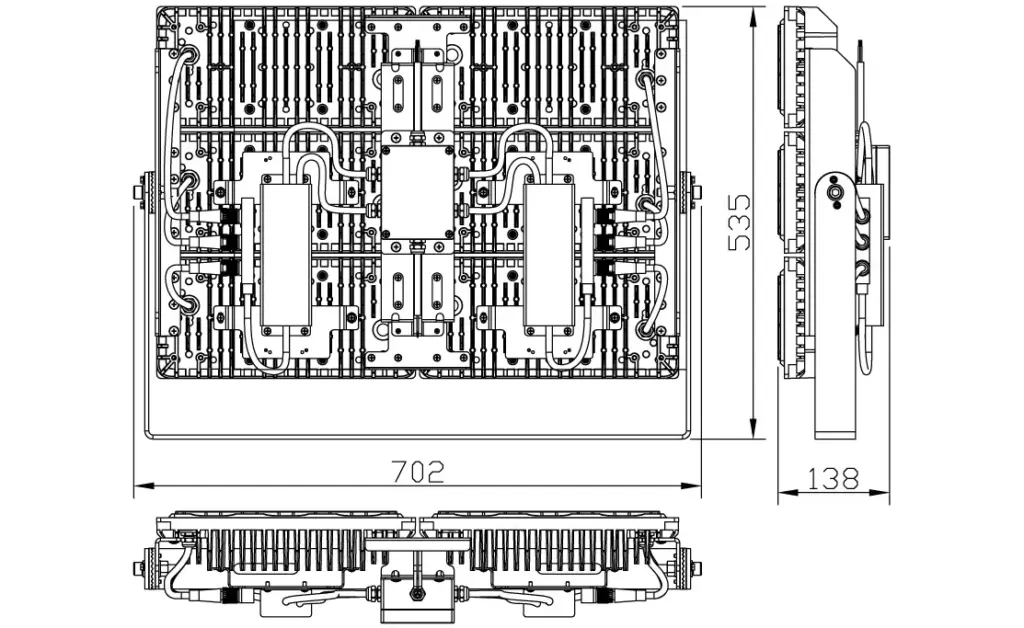

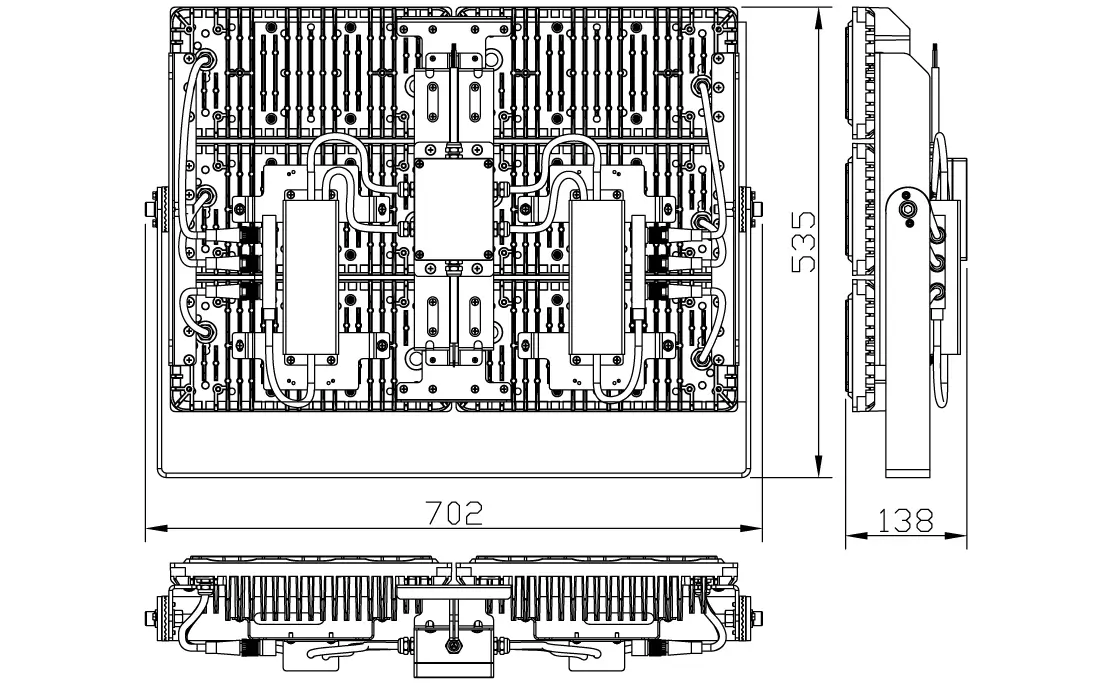

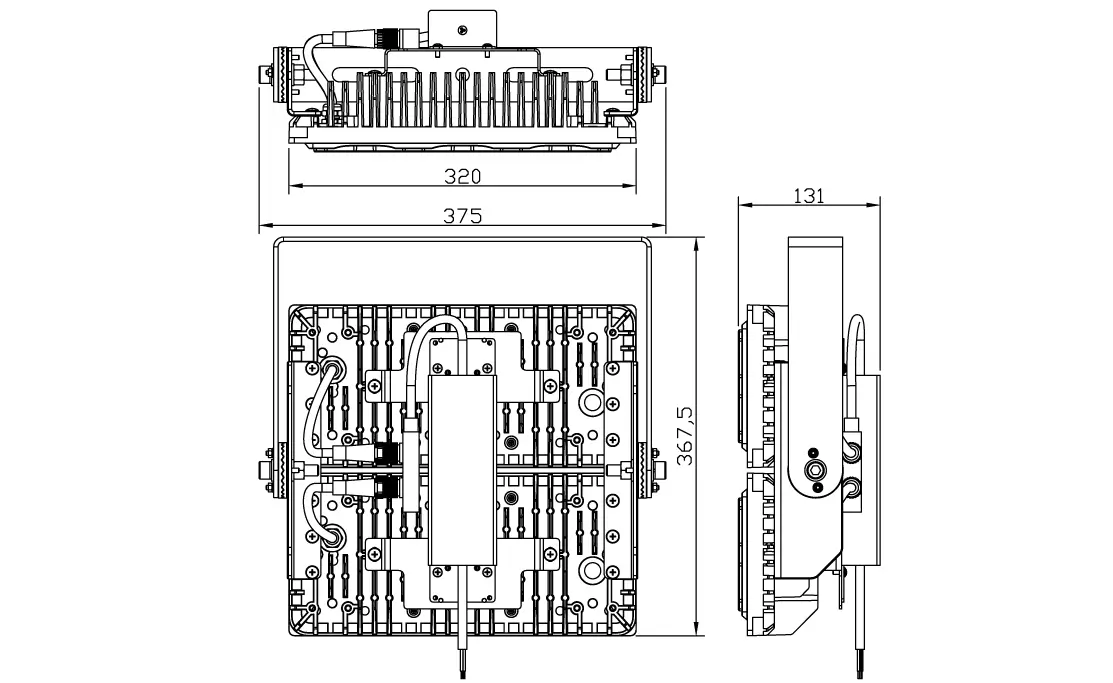

Dimensions

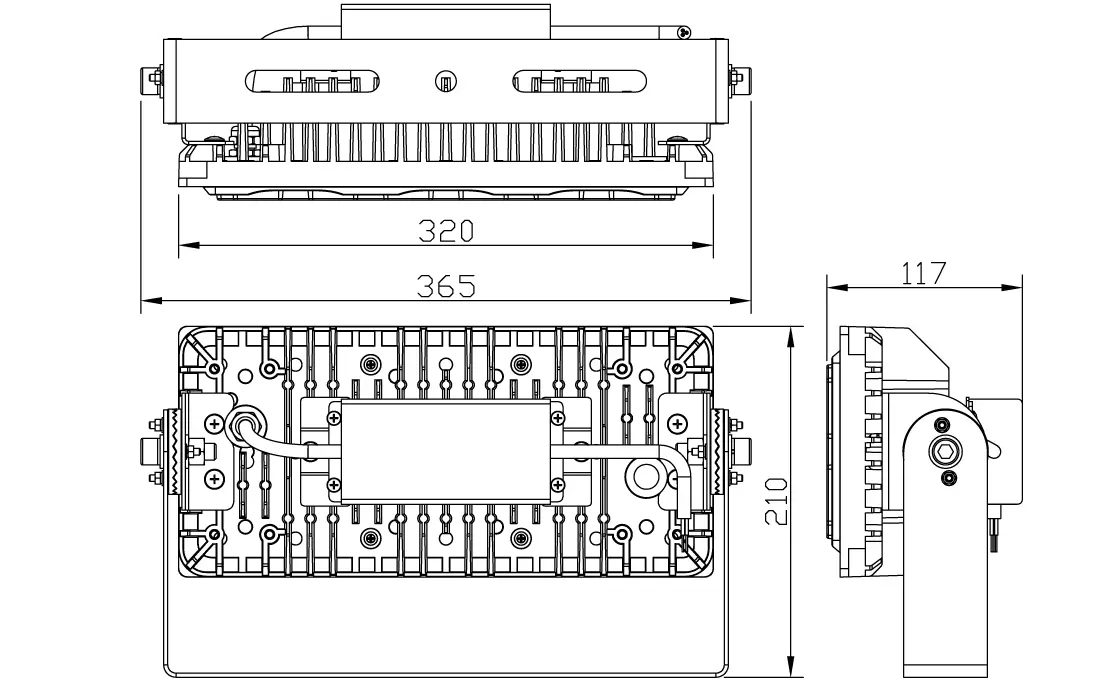

FLD23-200W
FLD23-400W

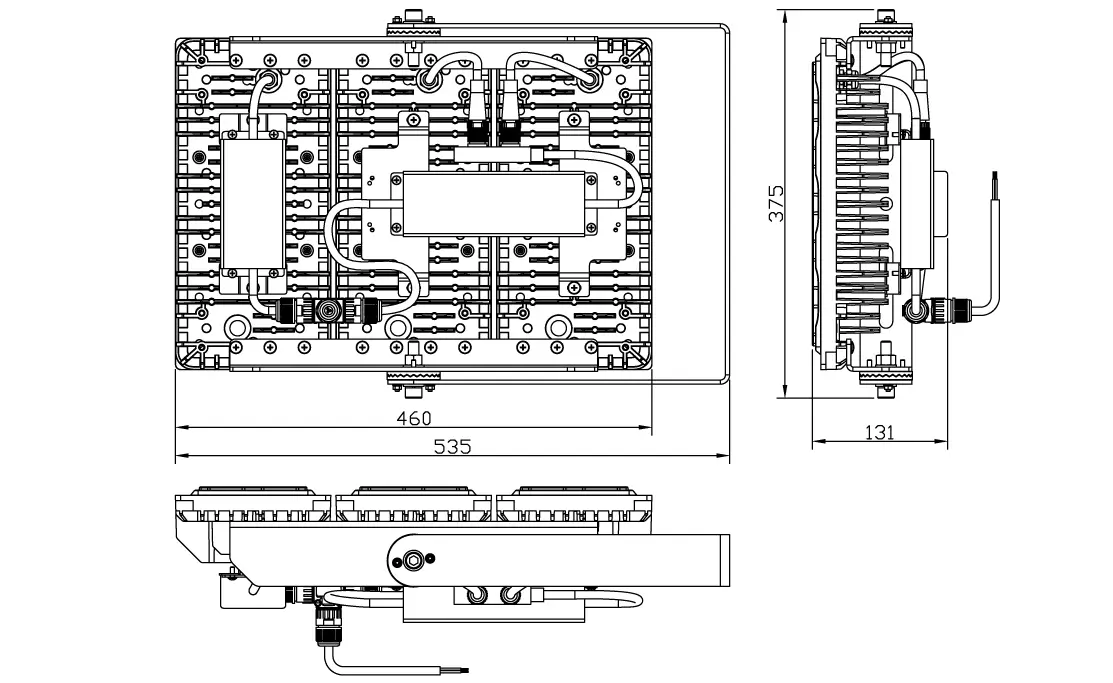

FLD23-600W

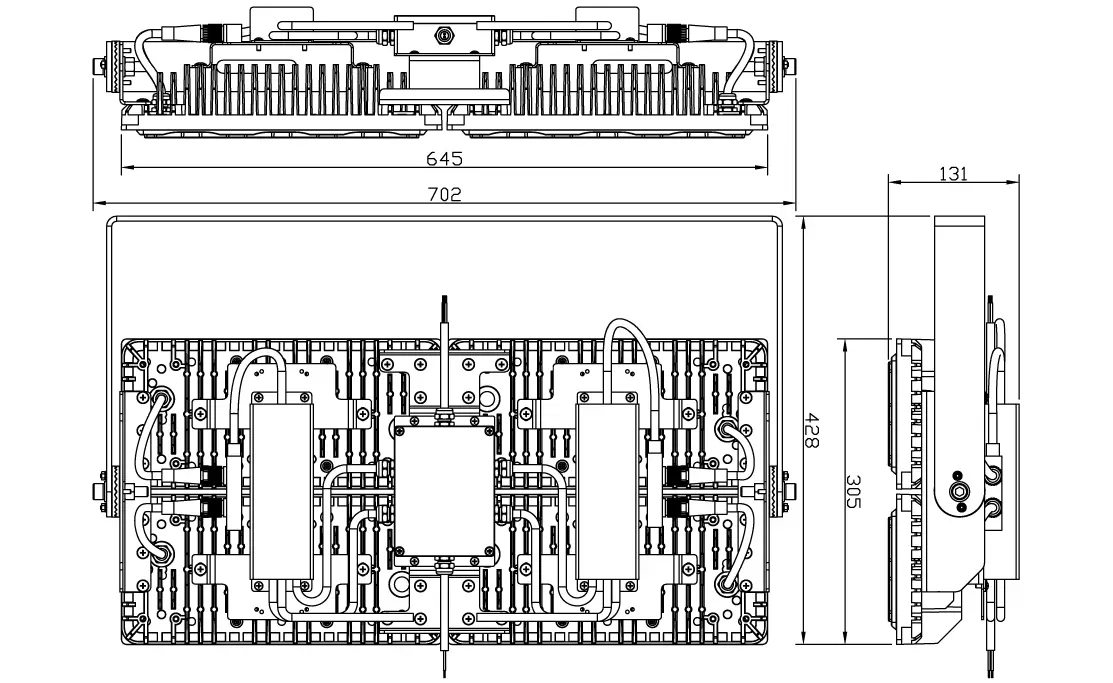

FLD23-800W
