Stadium & Sports Lighting
Stadium and sports lighting starts with the sport, level of play, field or court dimensions, pole locations and operating schedule. Review the lighting target, uniformity, glare, flicker and any broadcast requirements for the actual venue before selecting equipment. Compare grid-powered flood lighting for the playing area with solar mast or pole options for suitable courts, perimeters, paths and remote parking. Send your sports-site plan and project brief for a layout and supply-scope review.
Key Considerations
Class & Uniformity First
Design to class-appropriate average and uniformity so players, referees, and spectators see clearly without hotspots.
Glare & Spill Control (BUG/TM-15)
Use optics, visors, and tilt limits to cap backlight, uplight, and glare into seating and neighborhoods.
Vertical Illuminance
Provide recognition-grade vertical/semicylindrical illuminance for faces, numbers, and cameras in player tunnels and concourses.
Flicker-Safe Drivers
Specify driver/LED systems with low flicker for slow-motion capture and athlete comfort.
Color Quality Policy
Target CRI ≥80 (higher for broadcast tasks) with neutral white CCT to balance clarity and comfort.
Wind, Vibration & Corrosion
Poles, brackets, and fixtures rated for site wind/EPA; IP66/IK09+ and hot-dip galvanizing where needed.
Controls & Curfews
Scene presets for training, match, egress; late-night dimming with instant override for events and security.
CCTV Integration (IES G-1)
Keep veiling luminance low around cameras; ensure vertical light and consistent aiming in corridors.
Access & Parking (EN 13201 / RP-8)
Treat approach roads and lots as roadway/area lighting with safe uniformity and TI limits.
Solar on the Campus Edge
Use solar mini/regular mast or tower lights for fence lines, walkways, and remote parking where trenching is costly.
Design Principles
Even Sightlines
Pole heights, optics, and aiming keep luminance gradients smooth across the field and stands.
Keep Light on Task
Type-specific distributions and visor kits put light on play surfaces, not into seating or sky.
No-Tilt or Low-Tilt Aiming
Limit upward tilt to reduce glare/ULOR while maintaining TV-friendly vertical light.
Robust Mounting
Brackets with anti-vibration hardware and safety chains protect optics alignment over time.
Scene-Based Controls
Presets for warm-up/match/TV/egress; schedule + sensor logic to cut OPEX.
Serviceability
Modular flood engines, clear cable routing, winch or lowering systems on high masts.
Campus-Wide Plan
Unify field, concourse, gates, parking, and perimeter into one photometric/control package.
Future-Proof
Reserve capacity for cameras, Wi-Fi, and façade accents without re-aiming core floods.
Solutions by Scenario
Solar Lighting for Tennis Courts and Recreation Areas
For off-grid or difficult-to-trench sites, solar sports lighting can be assessed for tennis courts, multi-use courts, playgrounds and other recreation areas. The project brief should define the activity area, pole locations outside play and fall zones, operating hours, glare-control needs, lighting targets, maintenance access and battery reserve. A site-specific photometric layout should confirm equipment placement before a solar mast or pole system is selected. Final equipment selection depends on site conditions and applicable local requirements.
Field of Play
High-mast flood arrays for uniform play-surface illuminance and controlled glare to athletes and spectators.
Training Pitches
Leaner scenes with re-aimed floods and curfew dimming for daily practice.
Athletics Track & Infield
Balanced horizontal and vertical light for multi-event visibility and safety.
Grandstands & Seating
Soft vertical light to aid movement and recognition without dazzling seated viewers.
Concourse & Concessions
Comfortable vertical light for queues, signage, and wayfinding under canopies.
Entry Gates & Turnstiles
Recognition-grade vertical light with capped spill toward residents.
Camera Corridors & TV Platforms
Manage veiling luminance and avoid direct view of emitters in FOV.
Perimeter & Fences
Cut-off distributions for detection without spill beyond property lines.
Parking & Bus Bays
EN 13201/RP-8-driven layouts with clear pedestrian paths and low glare.
Scoreboard & Facades
Accent floods with visor kits; prevent skyglow and driver distraction.
What You Get
- Stadium lighting layout package with average/maximum/vertical illuminance, uniformity, and glare checks (EN 12464-2 / EN 13201 / IES RP-8 / BUG TM-15 / IES G-1 mapping).
- Aiming & pole schedule（mounting heights, brackets, EPA/wind, foundations, winch/lowering systems）。
- Controls matrix（scene presets, curfews, sensor & emergency overrides）。
- CCTV corridors review（vertical light & veiling luminance controls）。
- BOM & submittals（datasheets, IES files, wiring, warranties）。
- Compliance notes to local authority/broadcast requirements.
Recommended Solar Street Light Products
Solar Mini Mast Light
Solar-powered mini masts for lots and campuses. 6–14 m poles with multiple floodlights, tailored optics (30°/60°/90°/120°), LiFePO4 autonomy sized to site PSH, optional lowering device.
Solar Mast Light
Split-type solar high mast for large areas. 15–30 m poles, ring or directional carriages, high-efficacy flood arrays, PV + LiFePO4 sized to latitude and nights-of-backup.
Integrated Solar Mast Light
All-in-one solar luminaires paired with high masts for simplified wiring. 15–30 m pole options, engineered optics and autonomy, with wind-load checks and optional lowering system.
Solar Tower Light
Solar-powered tower lighting for remote or temporary sites, with telescopic mast and modular flood arrays. Designed for quick deployment and maintenance.
Grid-Powered Sports Lighting Equipment
Review the mast structures and flood-light options below against the venue layout. Confirm the selected luminaires, aiming arrangement, mounting interfaces, power supply and maintenance access in the quoted sports-lighting package.

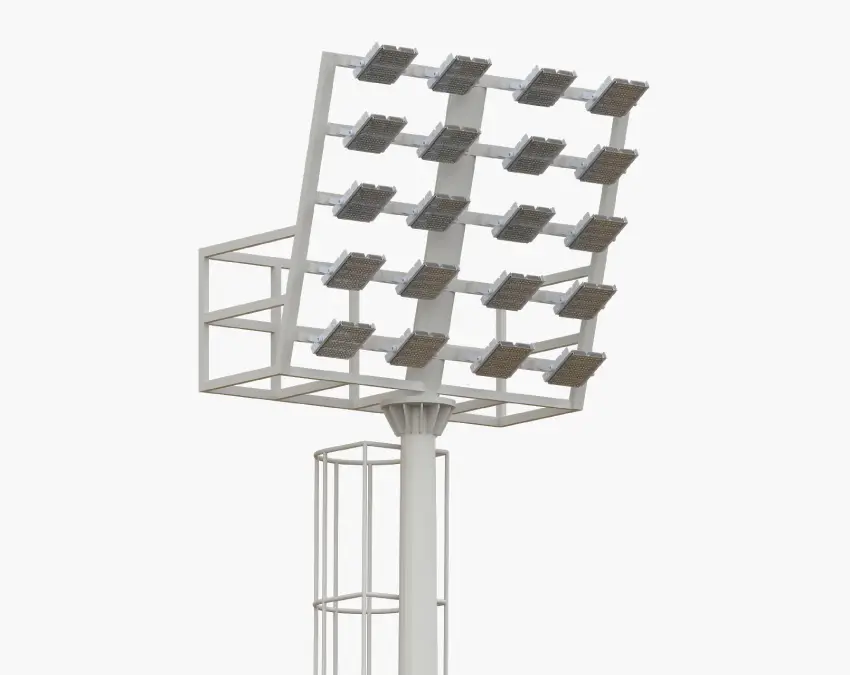

Stadium Mast Light Pole
15–45 m mast optimized for bowl-type uniformity and multi-luminaire carriage, EN40 construction.
Mini Mast Light
Mid-height masts for lots and campuses with multiple luminaires and tailored optics; engineered AC controls and easy maintenance.
High Mast Lamp
Modular flood arrays for ring or directional mounting; 200–1200W per lamp, >125/175 lm/W packages, 90–305V AC, 30°/60°/90°/120° beam options.
INL-FLD23 — LED Flood Light
High-output modular platform with up to 120 W per module and precise optics for long-throw applications.
