Footbal Field Light

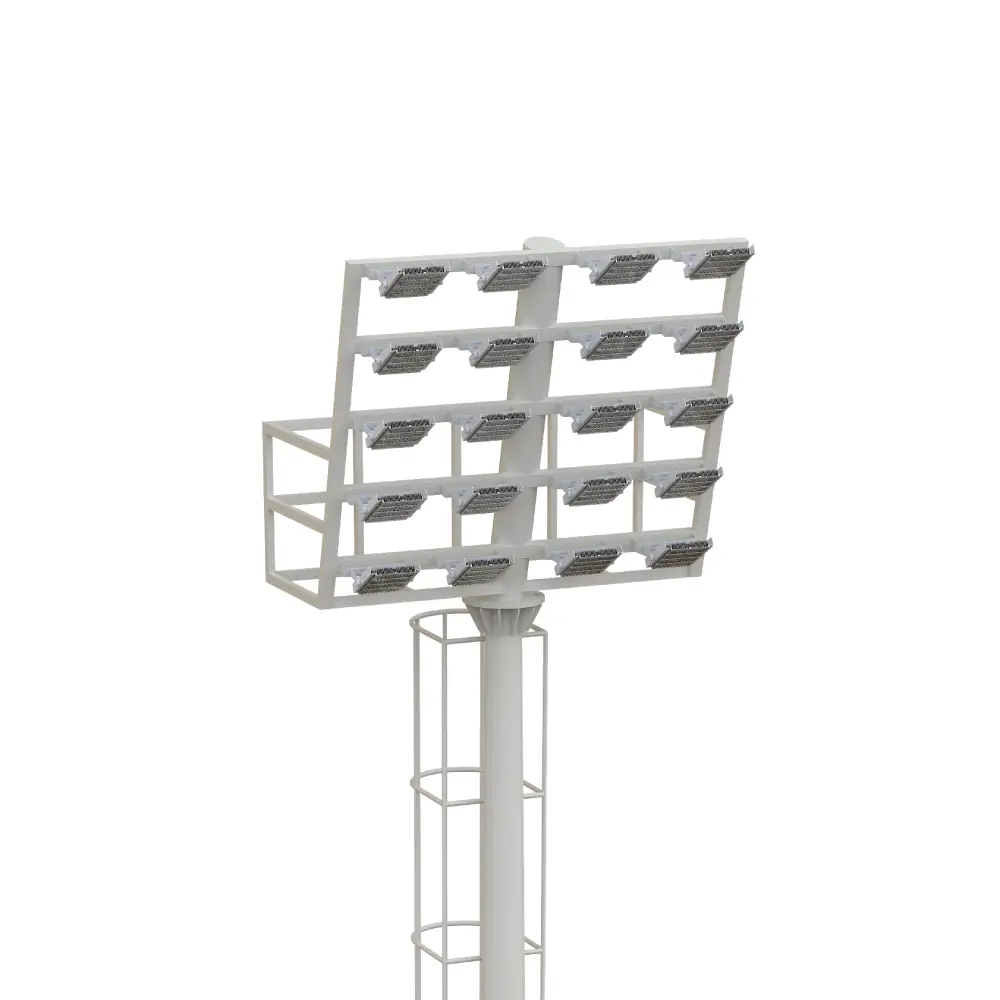

Stadium Mast Light
Applications:
- Highway
- Street
- Intersection
- Roundabout
- Parking Lot
- Business District
- Perimeter
- Industrial Zone
- Factory
- Residential Community
- Refugee Camp
Specifications
LED Flood Lamp | LED Power per Lamp | 200-1000W |
Lamp Qty | Customziable | |
Luminous Efficiency | >125lm/w (SMD 3030) / >175lm/w (SMD 5050) | |
Color Temperature | 5000K - 6500K | |
Beam Angle | 30°,60°,90°,120° | |
Power Supply | MEANWELL / PHILIPS / MOSO / INVENTRONICS | |
Working Voltage | 90 - 305V AC, 50/60Hz | |
Housing Material | Die-casting Aluminum | |
Lens Material | PC / PC + tempered glass | |
Mast Pole | Pole Height | 25-30 Meters |
Section Shape | Polygonal | |
Joint of Mast Poles | Insert Mode, Inner Flange Mode, Face To Face Joint Mode | |
Material & Finishing | galvanized steel with powder coated (OPTIONAL) | |
Climbing Ladder | Included | |
Accessories | Foundation Kits, Lighting Rod and Rain Cover | |
System | Working Temperature | -20 - 65℃ |
Protection Levels | IP65 - IP66 / IK09 | |
Wind Resistance | >120km/h | |
Life Span | LED Flood Lamp: > 20years | |
Mast Pole: > 30years | ||
Warranty | 5 years |

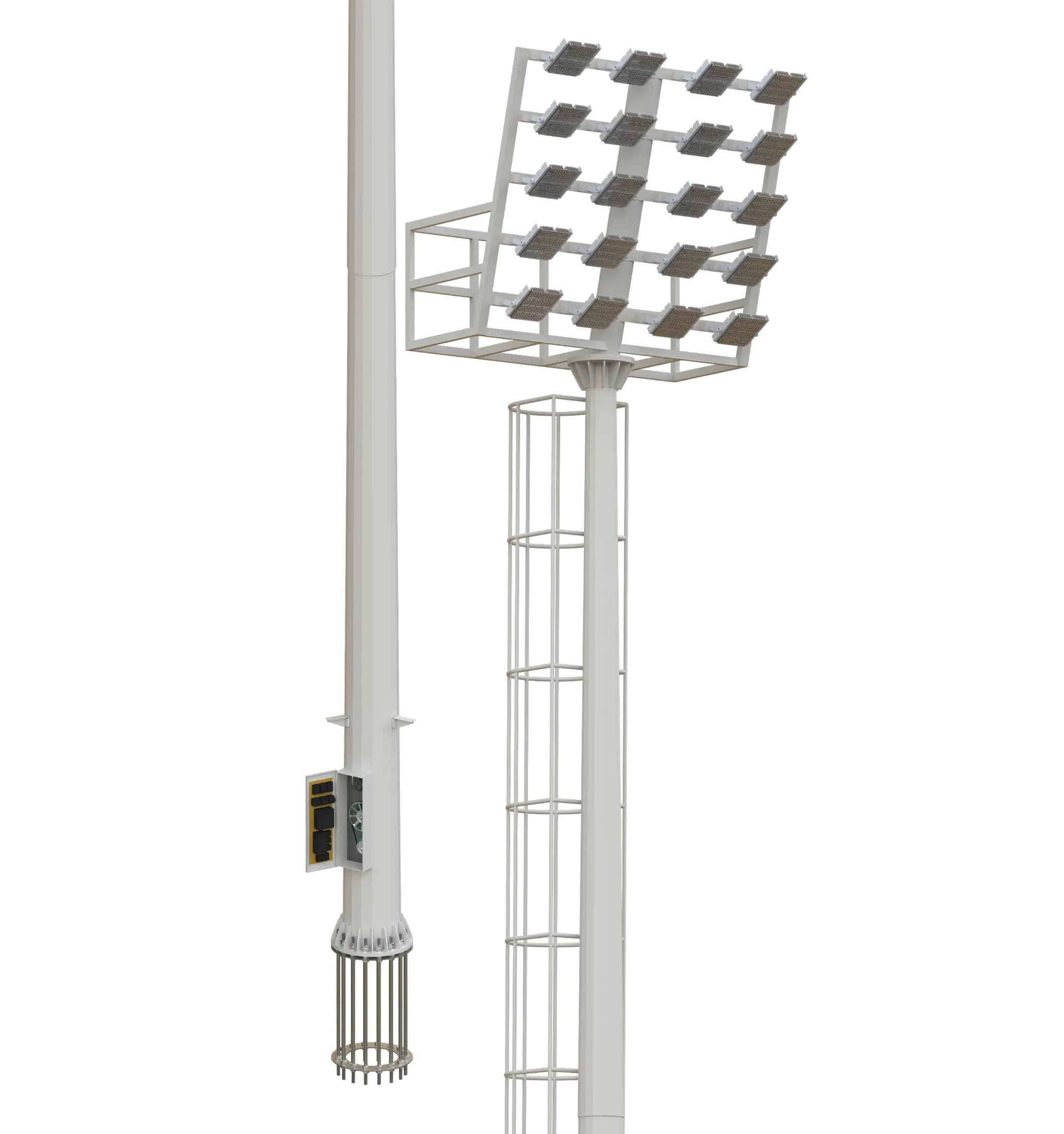

Interior Structure

LED Flood Light
This cutting-edge outdoor lighting solution, powered by LED technology, is renowned for its superior brightness...
This cutting-edge outdoor lighting solution, powered by LED technology, is renowned for its superior brightness, energy efficiency, and longevity. Ideal for large-scale illumination needs in settings like stadiums, parking lots, and construction sites, it boasts a waterproof and durable design. Easy to mount on poles, walls, or the ground, this light ensures even and powerful lighting for any outdoor space.

LED driver
This is a vital electronic component that manages the power supply for light-emitting diodes, ensuring...
This is a vital electronic component that manages the power supply for light-emitting diodes, ensuring efficient performance and a longer lifespan. It offers current and voltage regulation while protecting against electrical issues like overcurrent, overvoltage, and overheating. Depending on specific needs, it can be either constant current or constant voltage. This component is widely used in urban street lighting, indoor fixtures, and automotive lighting solutions.

Polygonal Mast Pole
This is a tall, multi-sided vertical structure used to support outdoor lighting fixtures, flags, or signage...
This is a tall, multi-sided vertical structure used to support outdoor lighting fixtures, flags, or signage, commonly found in urban streets, highways, or large public spaces. It is typically constructed from sturdy materials like galvanized steel or aluminum to resist corrosion and endure harsh weather conditions, ensuring long-term durability. The polygonal shape provides enhanced structural strength while offering a sleek, modern appearance. Available in various heights, it can be customized to meet specific lighting or visibility needs, with a base designed for secure ground installation.

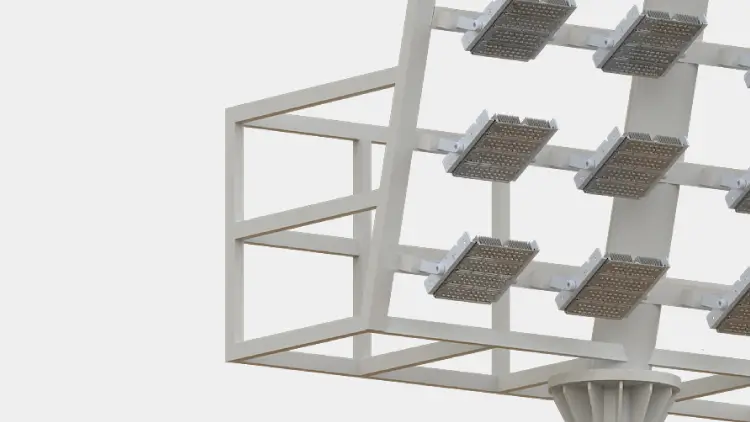

Maintenance platform
This is a sturdy, elevated structure attached to tall lighting poles or masts, designed to...
This is a sturdy, elevated structure attached to tall lighting poles or masts, designed to provide a secure working area for technicians performing maintenance tasks. It offers a stable surface at height, allowing workers to safely access and service lighting fixtures, wiring, or other components. Typically made from durable materials like steel or aluminum, it withstands outdoor conditions and often includes safety features such as guardrails or non-slip surfaces. It is commonly used in applications like street lighting or high-mast systems to facilitate efficient and safe upkeep.

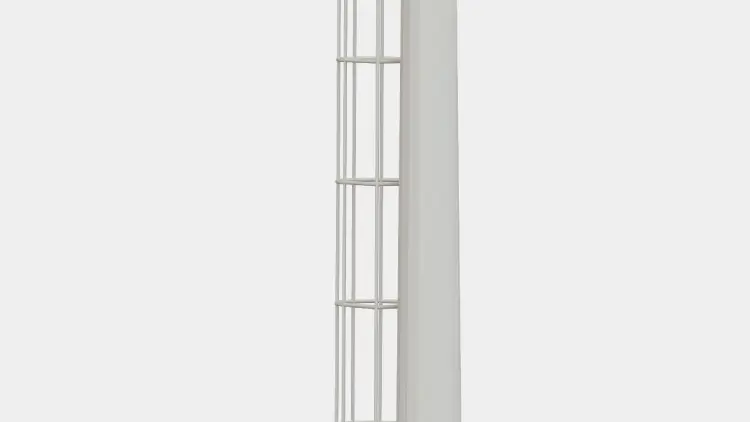

Climbing Ladder
This is a fixed vertical structure attached to tall outdoor installations, such as light poles or masts, designed to...
This is a fixed vertical structure attached to tall outdoor installations, such as light poles or masts, designed to provide safe and convenient access for maintenance workers. It is typically made of durable, weather-resistant materials like steel or aluminum to withstand harsh outdoor conditions while ensuring stability and safety. The design often includes rungs or steps spaced evenly for easy climbing, and it may feature safety elements like handrails or anti-slip surfaces to protect workers during use.

Foundation Kits
This is a set of ground base components designed for installing outdoor lighting equipment. It typically...
This is a set of ground base components designed for installing outdoor lighting equipment. It typically includes anchors, bolts, concrete pads, and other hardware to ensure that light poles or masts are securely fixed to the ground, making it suitable for a variety of terrains and soil conditions.
Optional Functions
01
Lightning arrester

This is a protective device used in electrical and communication systems to prevent damage...
This is a protective device used in electrical and communication systems to prevent damage from lightning strikes and power surges. It functions by offering a low-resistance path that directs the high-voltage current safely to the ground, thus shielding the system's components from harm. Typically installed near vulnerable equipment, such as in outdoor lighting systems or electrical substations, it ensures the longevity and reliability of the infrastructure.
1
02
LED Aviation light

This is a specialized safety device installed on tall structures like masts, towers, or buildings...
This is a specialized safety device installed on tall structures like masts, towers, or buildings to enhance visibility for aircraft and prevent collisions. It emits a bright, steady, or flashing light, typically in red or white, ensuring it can be seen from a distance in various weather conditions. Using energy-efficient LED technology, it offers long-lasting performance with minimal power consumption, making it ideal for continuous operation. It is often weatherproof and durable, designed to withstand harsh environmental conditions while maintaining reliable functionality.
2
03
Camera

The system can integrate a solar-powered CCTV camera, providing a sustainable...
The system can integrate a solar-powered CCTV camera, providing a sustainable and eco-friendly surveillance solution. By harnessing the power of the sun, these cameras operate independently of traditional power sources, ensuring continuous monitoring without the need for wiring or external electricity. The integration of a solar-powered CCTV camera enhances security for solar panel installations, protecting them from theft or vandalism. These cameras are designed to function efficiently in outdoor environments, with weatherproof housing and motion detection features, offering a reliable surveillance system while reducing energy costs and carbon footprint.
3
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, INLUX’s IOT Smart Monitoringl System enables intelligent management of our solar street lights by PC, PAD and Mobile.

GPS Map
Failure Warning
Historical Data Record
Remote Management of Lighting Modes
Authority Management
Remote ON/OFF Switch
Working Condition Monitoring
See JAGUAR’s Performance Across These Projects
