INL-LED22

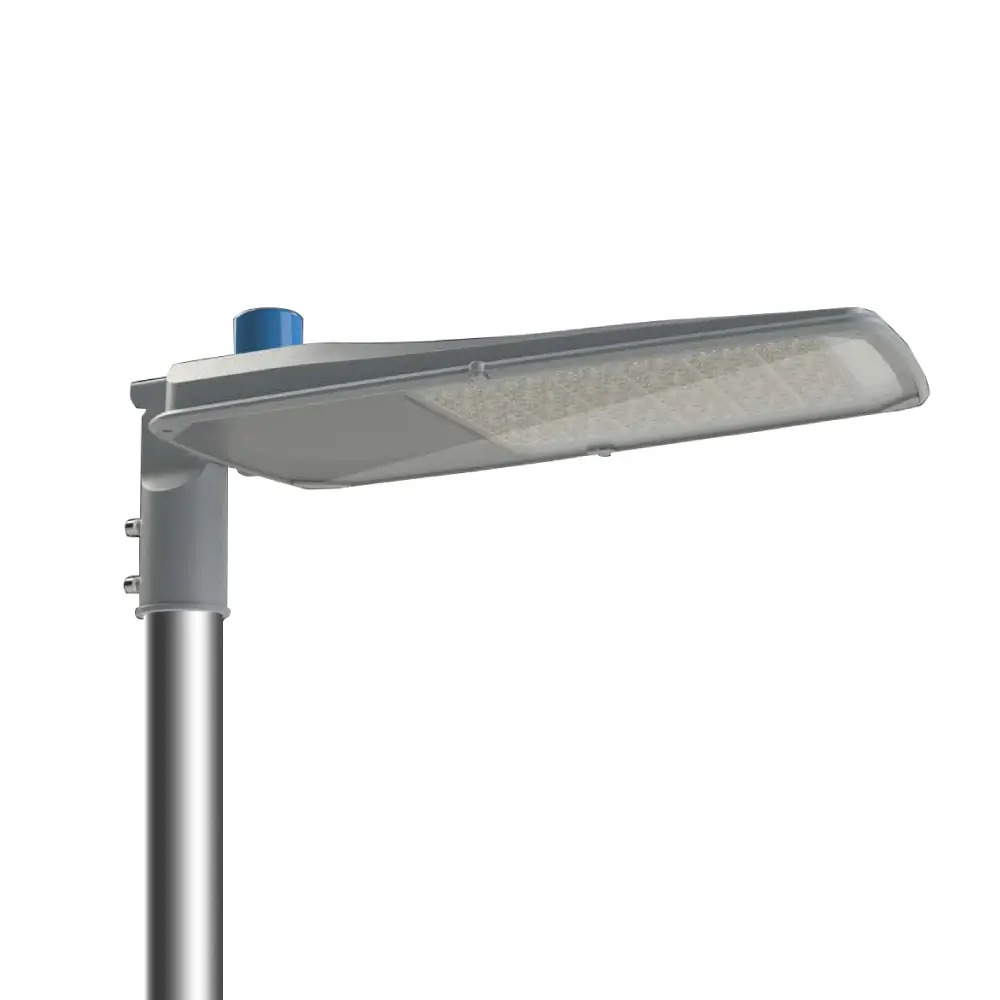

LED Street Light
Applications:
- Highway
- Street
- Intersection
- Roundabout
- Parking Lot
- Business District
- Perimeter
- Industrial Zone
- Factory
- Residential Community
- Refugee Camp
Specifications
Model | LED22-60W | LED22-100W | LED22-150W | LED22-200W |
Power | 60W | 100W | 150W | 200W |
Power Supply | MEANWELL / PHILIPS / MOSO / INVENTRONICS | |||
Working Voltage | 90 - 305V AC, 50/60Hz | |||
Beam Angle | 60*120°,70*140°,80*150° | |||
CCT | 3000K - 6500K | |||
CRI | >70 (>80,>90 optional) | |||
LED Chip | SMD 3030 / SMD 5050 | |||
Luminous Efficiency | >110lm/w (SMD 3030) / >160lm/w (SMD 5050) | |||
Luminous Flux | 6600lm (SMD 3030) | 11000lm (SMD 3030) | 16500lm (SMD 3030) | 22000lm (SMD 3030) |
9600lm (SMD 5050) | 16000lm (SMD 5050) | 24000lm (SMD 5050) | 32000lm (SMD 5050) | |
Housing Material | Die-casting Aluminum | |||
Lens Material | PC + Tempered glass | |||

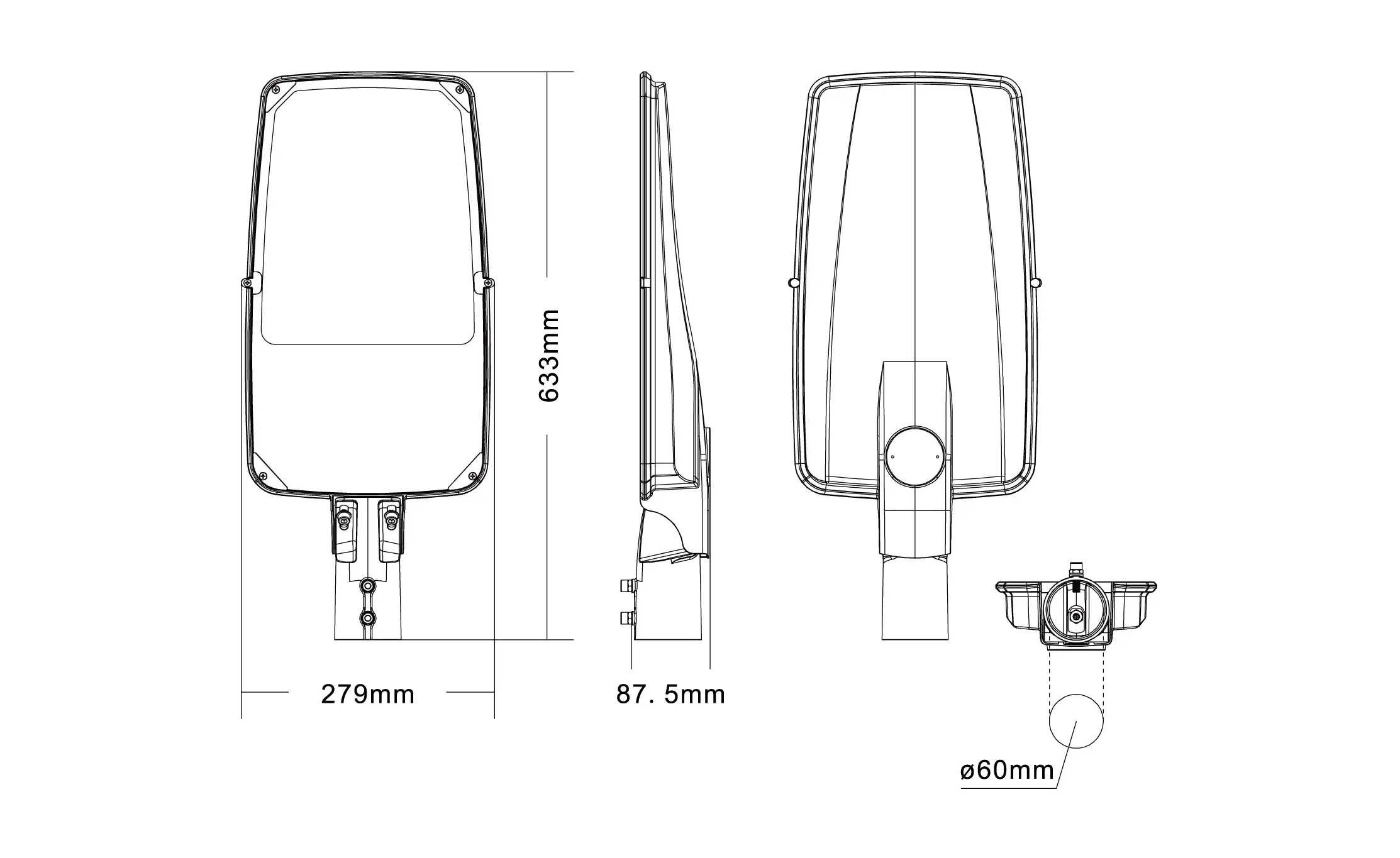

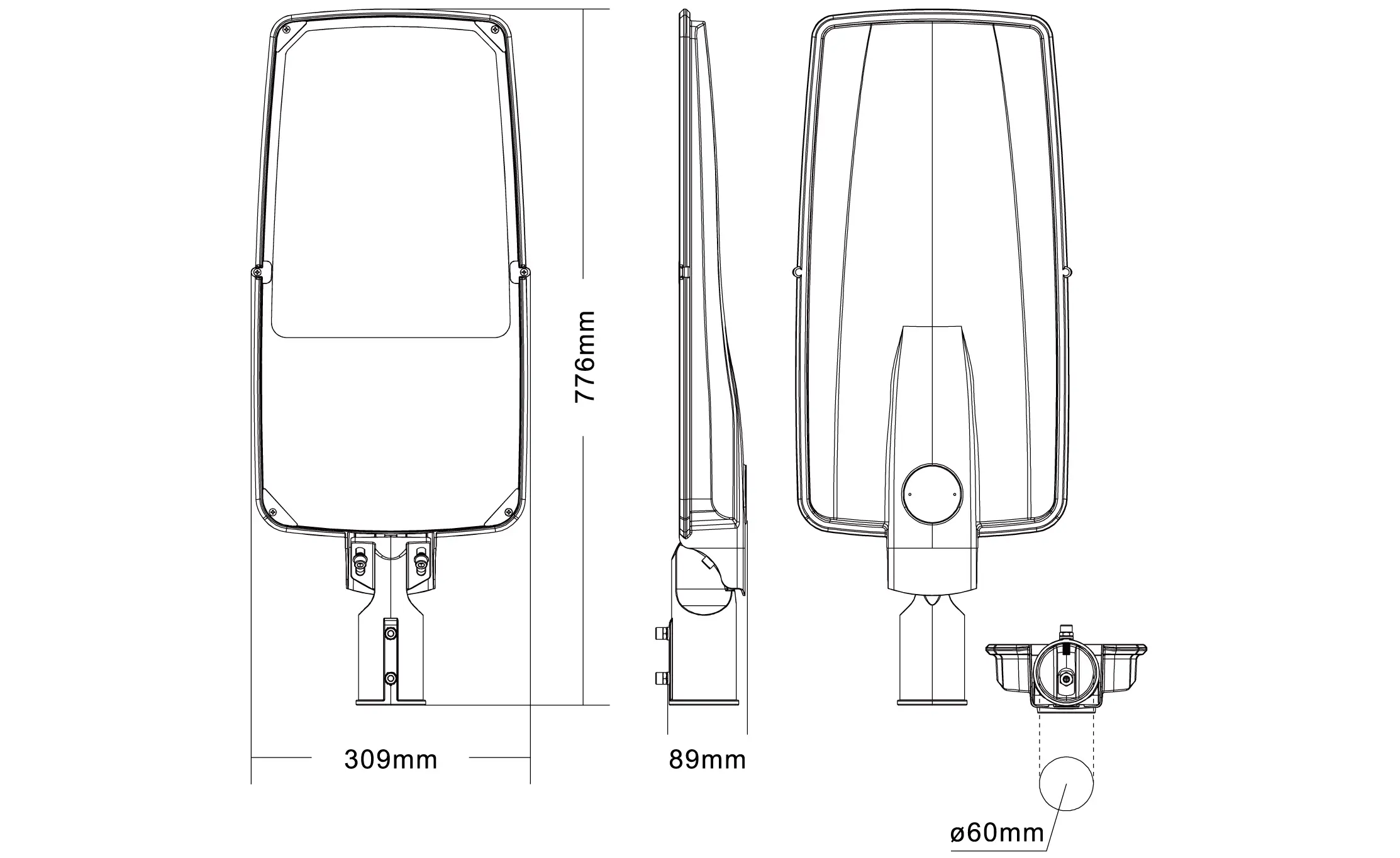

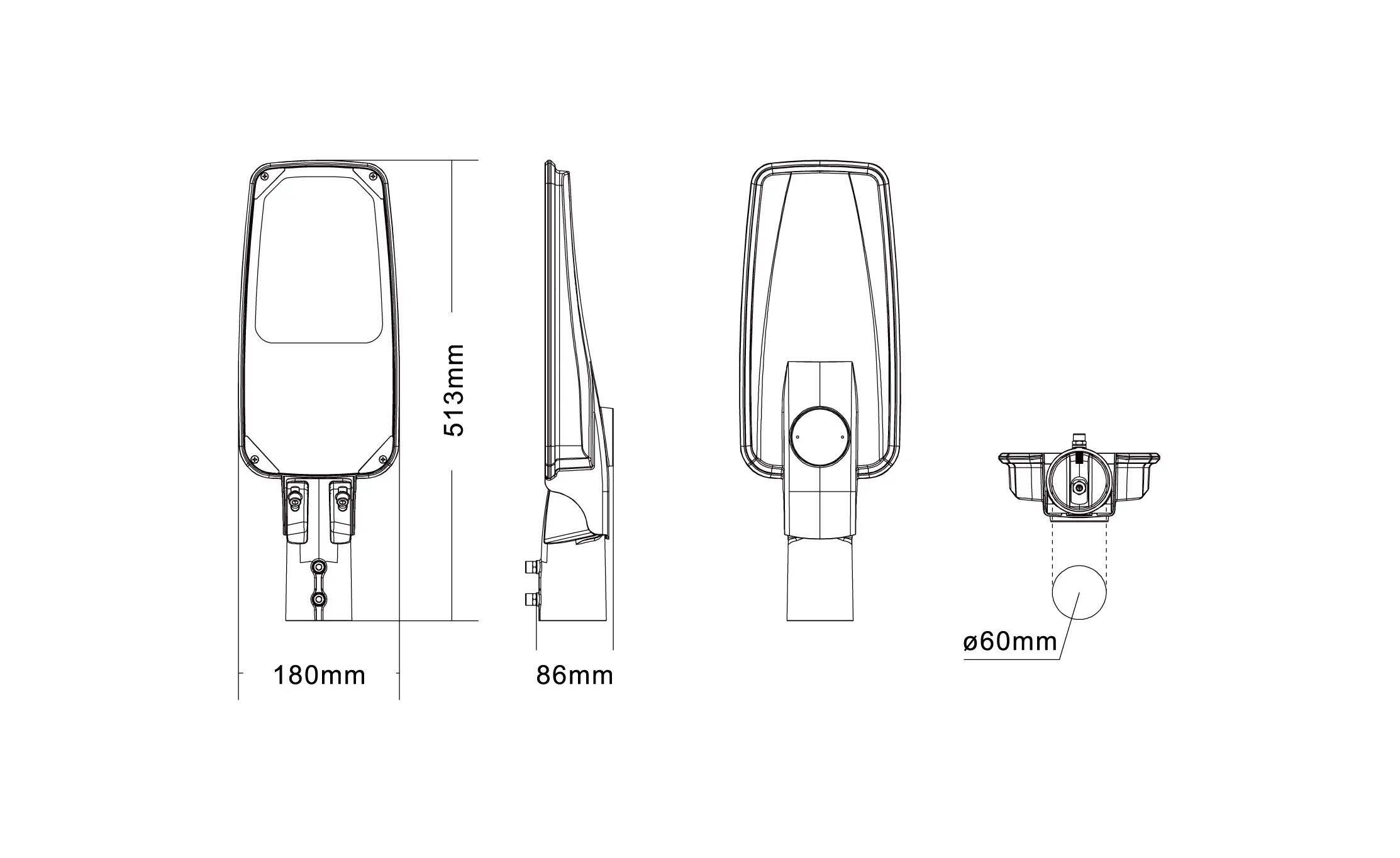

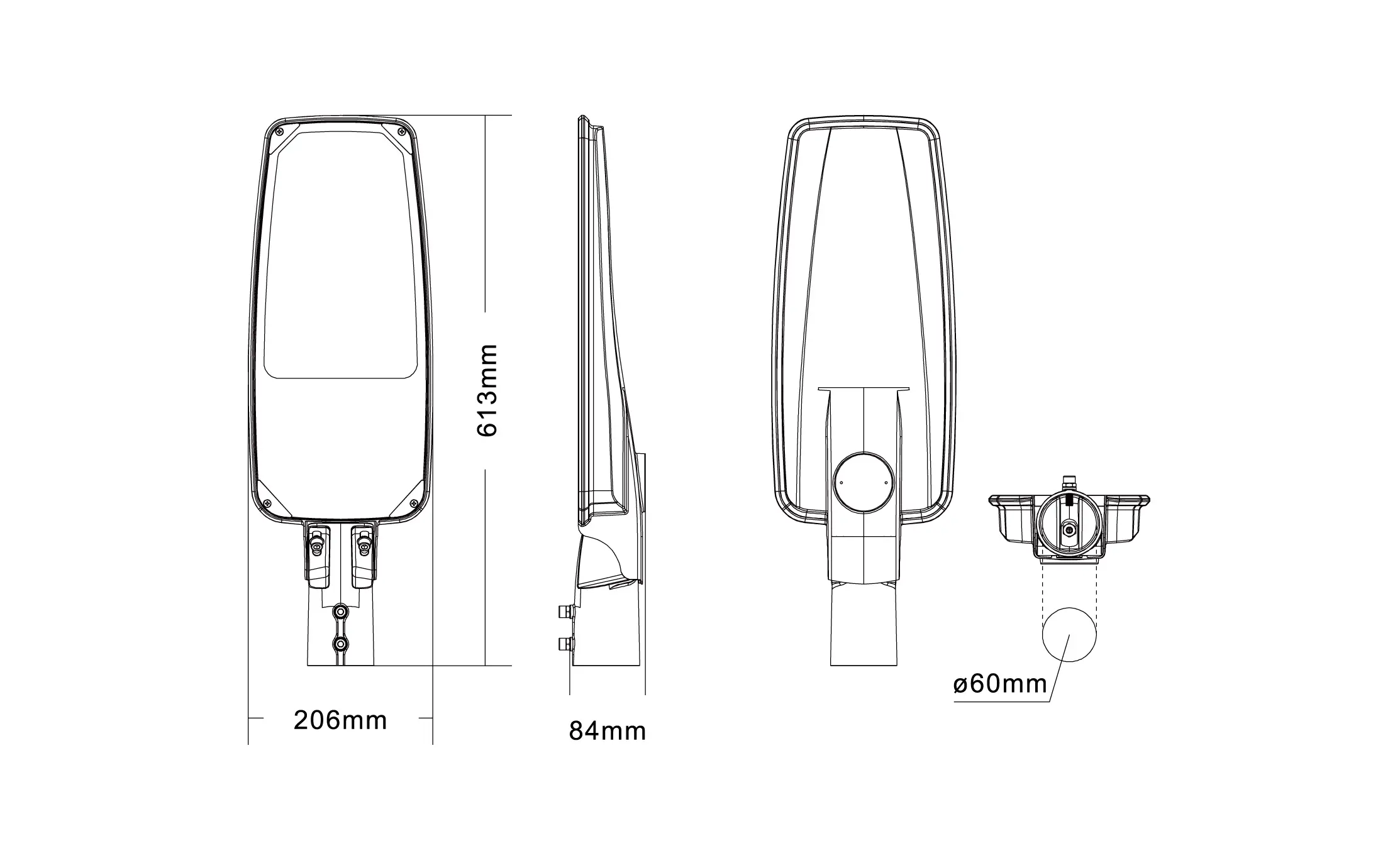

Product Dimension (mm) | 513*180*85 | 613*206*85 | 633*279*85 | 776*309*89 |
IP/IK Rate | IP65 / IK08 | |||
Working Temperature | -40°C~50°C, 20%~90% RH | |||
Life Span | >50,000 Hours |

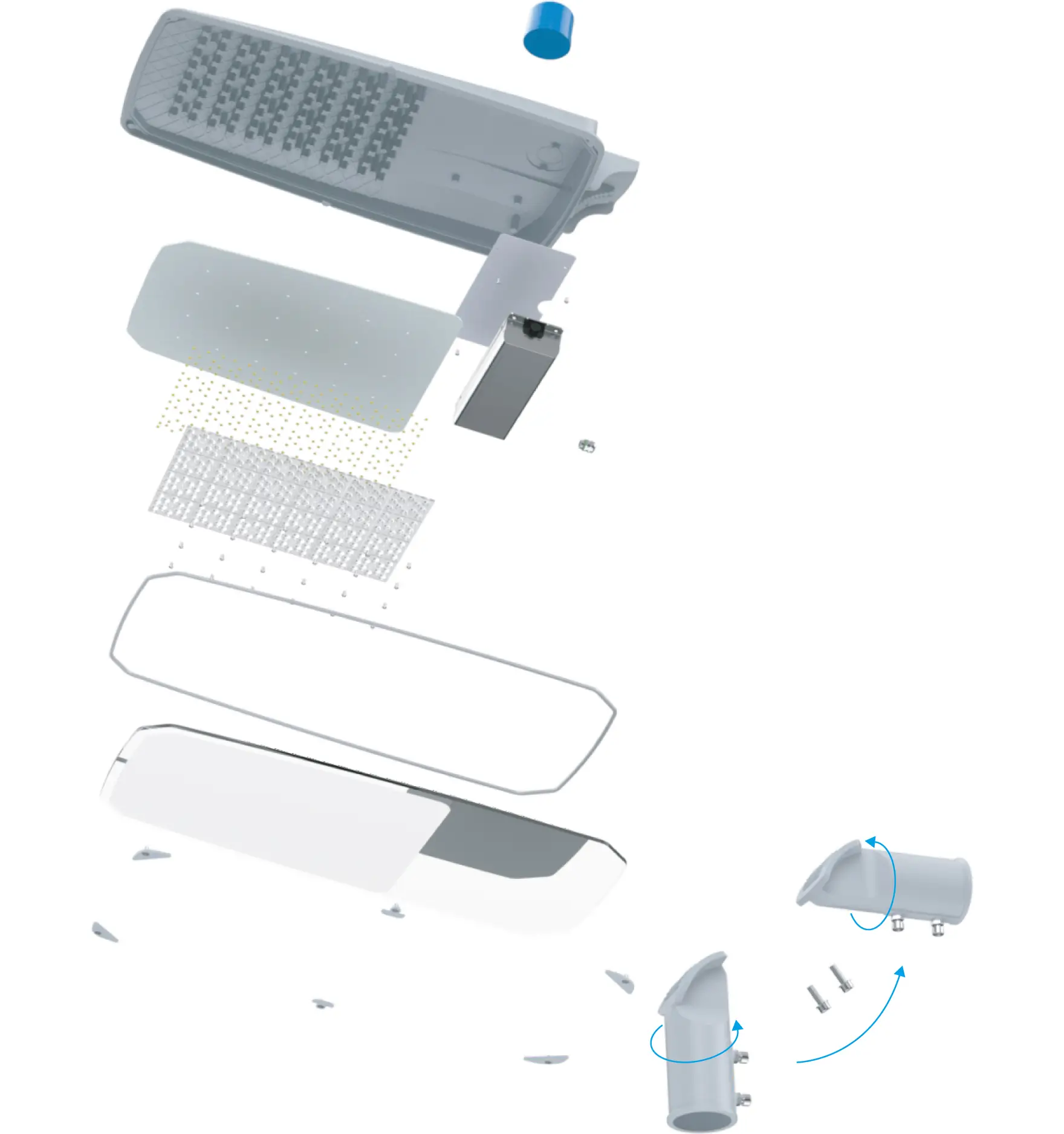

Interior Structure

IP67 Extreme Bright LED Modules
Featuring advanced 5050 LED chips with an impressive efficiency of up to 220lm/w...
Featuring advanced 5050 LED chips with an impressive efficiency of up to 220lm/w, this lighting solution delivers extreme brightness and reliable performance. Designed with high-temperature resistance and low thermal resistance, it ensures a longer LED lifespan. The thick aluminum heat sink, combined with a fast heat dissipation module, guarantees optimal performance and durability, while the easy-maintenance design simplifies upkeep.

Triangle Strong Designed Screws
The fixture is equipped with triangle strong-designed screws that provide a secure...
The fixture is equipped with triangle strong-designed screws that provide a secure and reliable installation. These specially designed screws prevent the fixture from rotating once mounted, ensuring it remains fixed in place. The triangular shape enhances the grip, offering better torque resistance and stability, even in environments with vibrations or movement. This feature guarantees the long-term safety and proper alignment of the fixture, preventing any accidental shifts or misalignment.

Smart Solar Controller
The Smart Solar Controller offers high efficiency with a smart power-saving mode that...
The Smart Solar Controller offers high efficiency with a smart power-saving mode that optimizes energy use. It operates with constant current and an IP68 rating, ensuring reliable performance even in harsh environmental conditions. This advanced design significantly reduces the light failure rate, providing consistent brightness over time. Additionally, the controller includes multiple protection features that effectively safeguard the battery, enhancing its longevity and ensuring the system's overall durability and safety.

Aluminum Die-casting Fixture
The fixture features a complete die-casting aluminum construction, ensuring...
The fixture features a complete die-casting aluminum construction, ensuring durability and superior heat dissipation. With an IP67 protection rating, it is fully sealed by a waterproof ring, making it resistant to dust and water ingress. This design provides reliable performance even in harsh outdoor environments, ensuring the fixture remains functional and protected from moisture and debris. The robust aluminum housing enhances the fixture’s lifespan and performance, making it an ideal choice for a wide range of applications.

LiFePO4 Lithium Battery
The fixture is equipped with a LiFePO4 lithium battery, known for its impressive lifespan...
The fixture is equipped with a LiFePO4 lithium battery, known for its impressive lifespan of over 10 years. This battery offers excellent high-temperature resistance and exceptional safety performance, ensuring reliable power delivery and enhanced durability. With its long service life, it reduces the need for frequent replacements and provides peace of mind, making it an ideal choice for both residential and commercial applications.

Enhanced Strong Lamp Holder
The fixture features an enhanced strong lamp holder with an IP67 protection rating, sealed by...
The fixture features an enhanced strong lamp holder with an IP67 protection rating, sealed by a waterproof ring to prevent dust and water ingress. Additionally, it is equipped with IK09 impact protection, ensuring resistance to strong impacts and mechanical stresses. This combination of features makes the lamp holder highly durable and ideal for use in harsh environments, providing long-lasting performance and protection against both water and physical damage.
How INL-LED22 Benefits Your Project
Extreme Bright 5050 LED Provides 40% Higher Brightness
Thermal Management

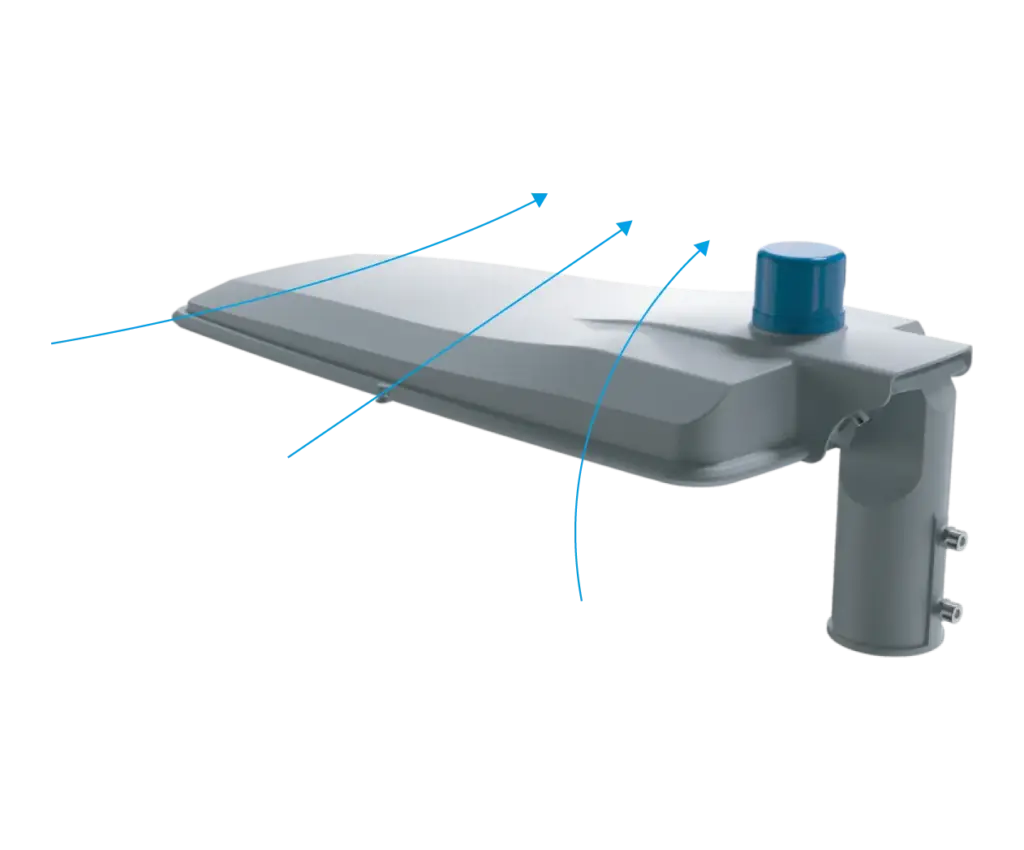

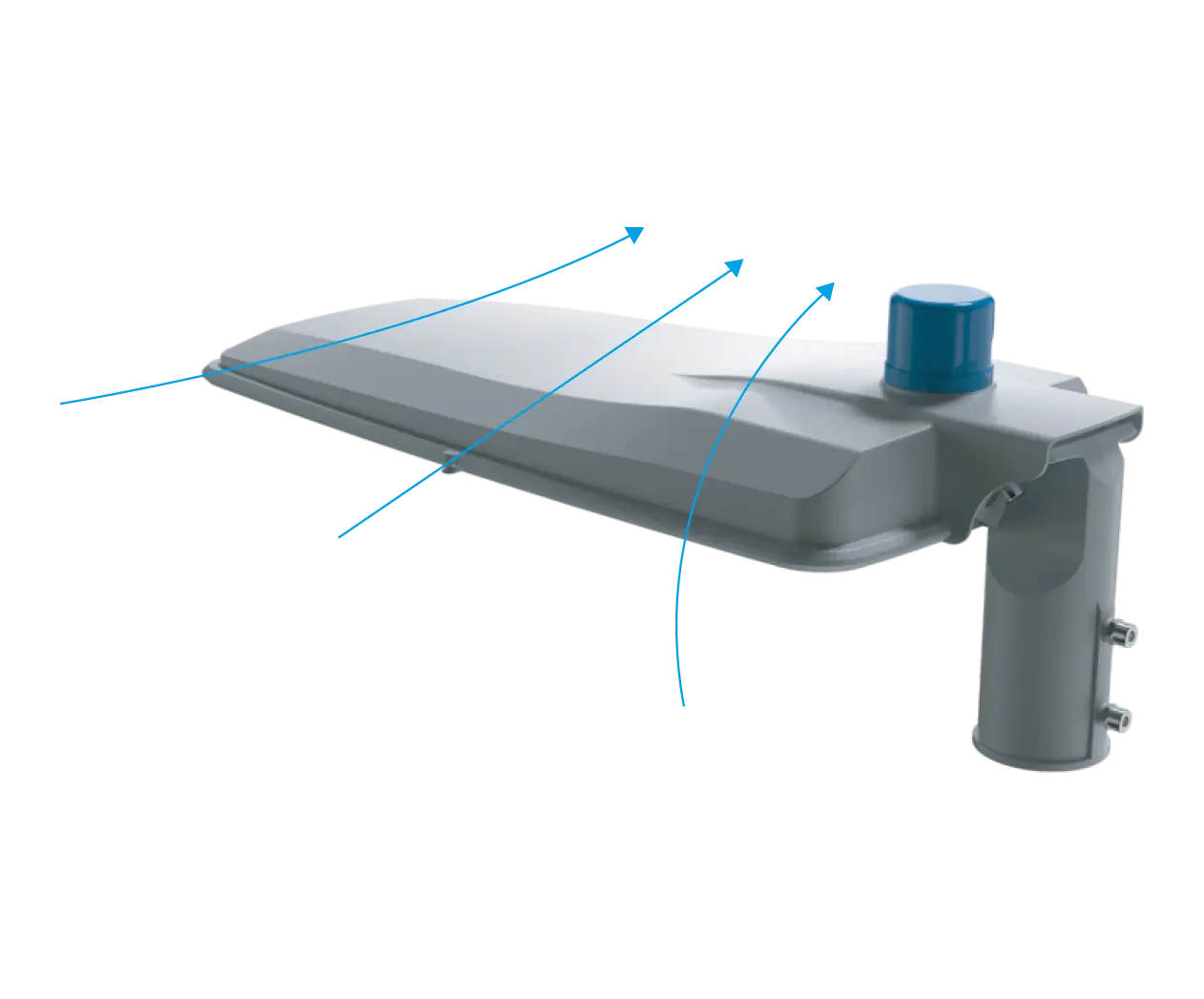

Streamline Shape Wind-proof Design

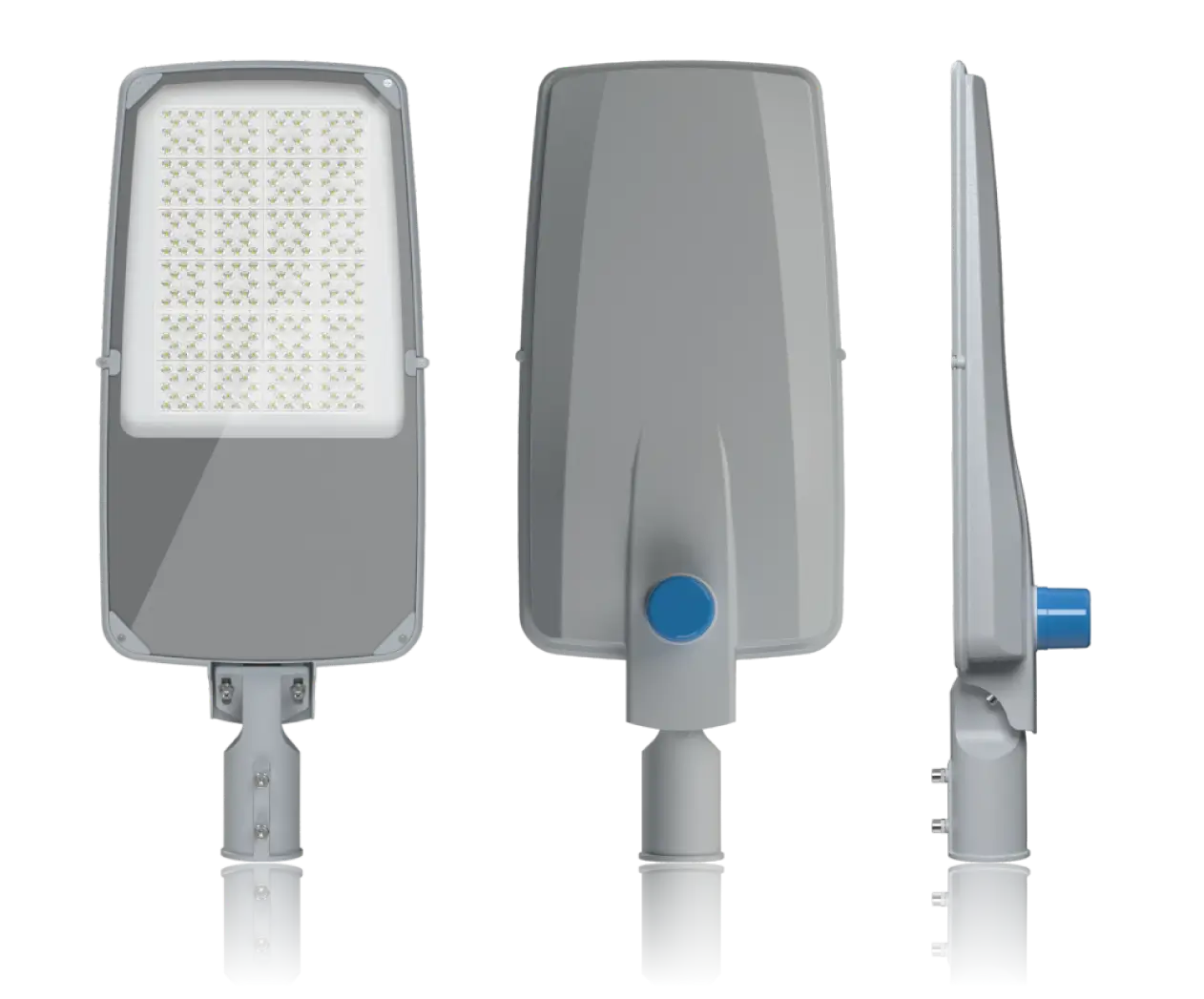

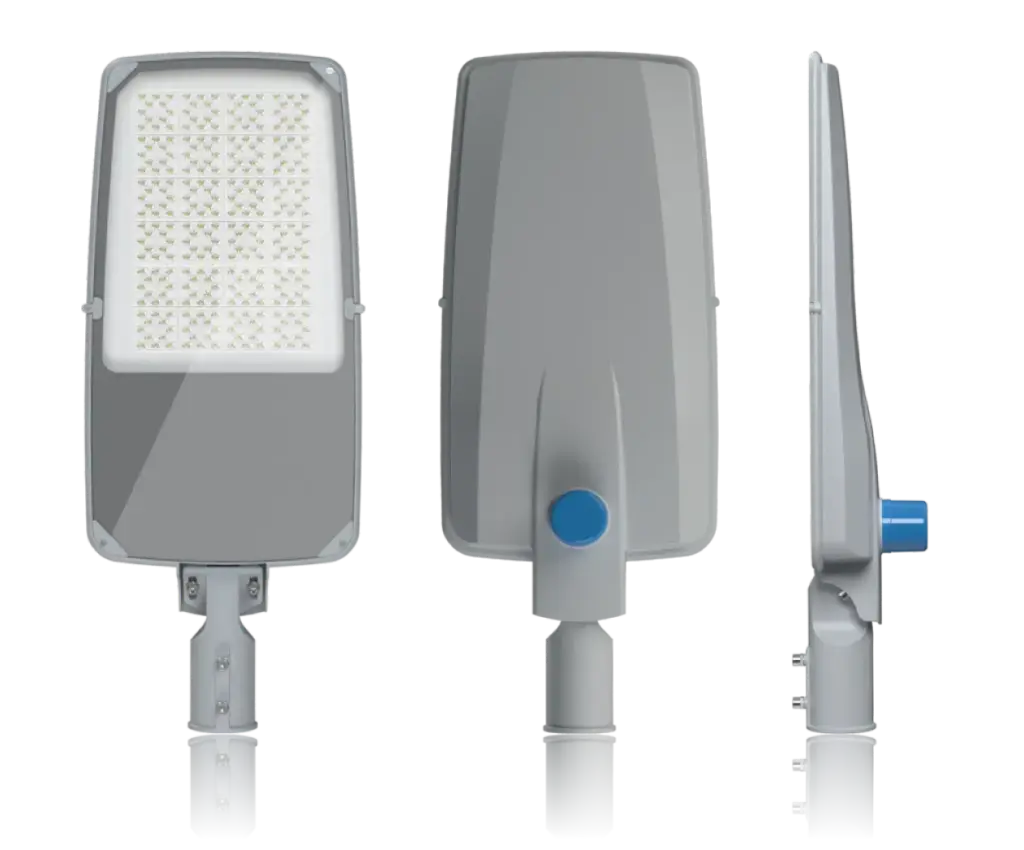

Minimal design

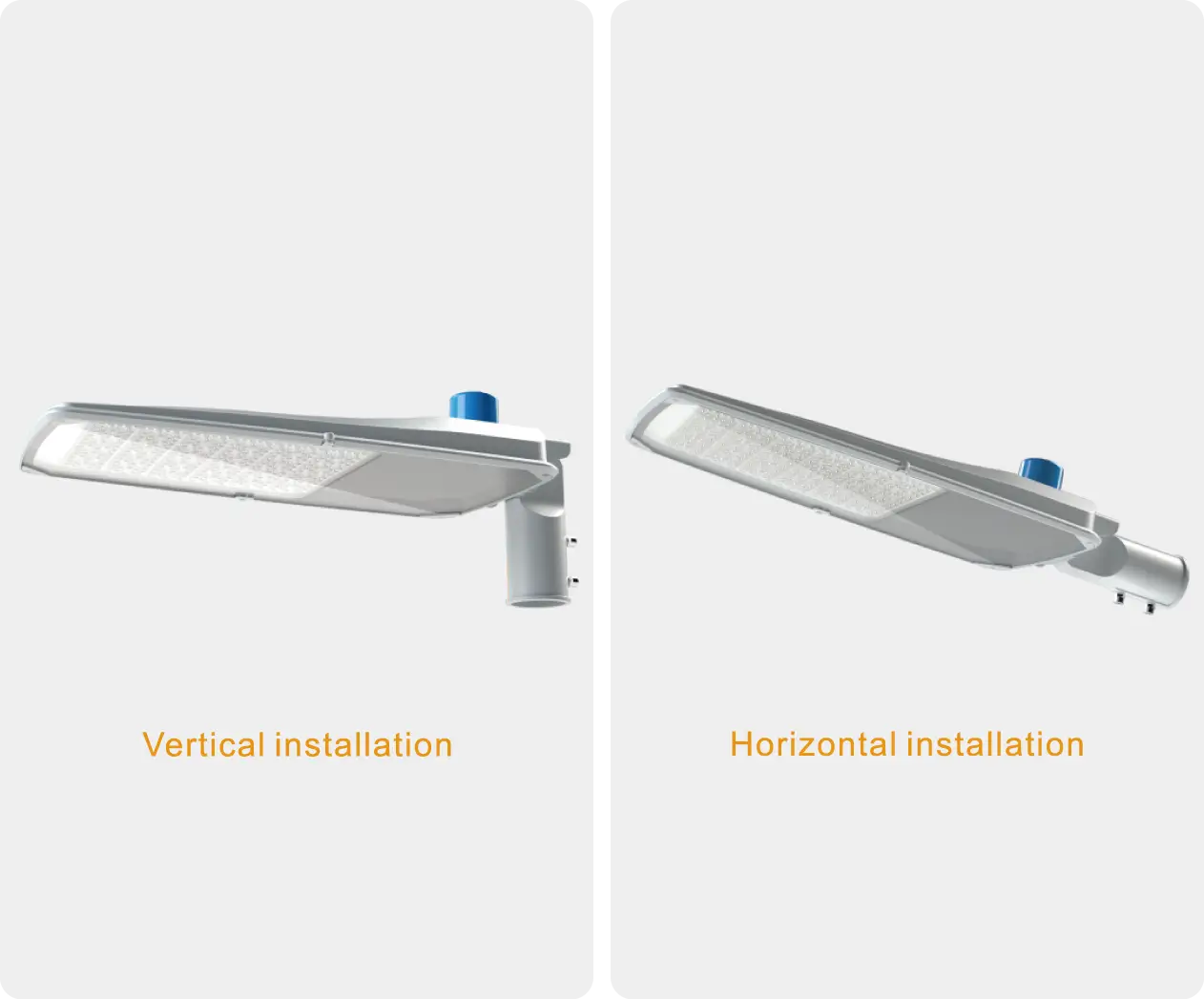

Two installation methods
Operable Under Harsh Environment
Lighting Distribution

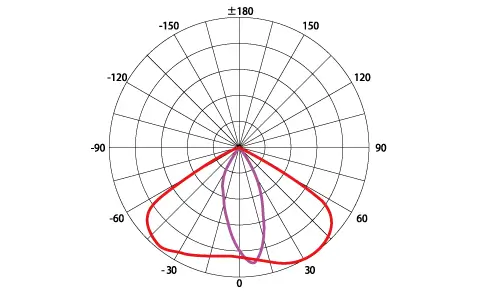

60x120 deg

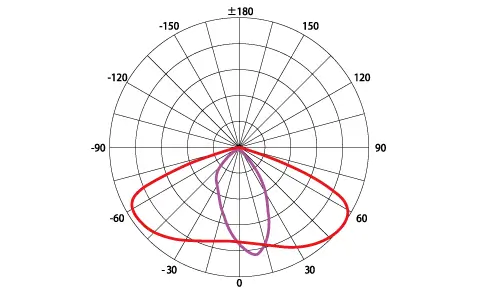

70x140 deg

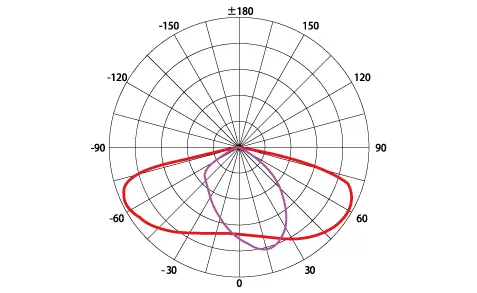

80x150 deg

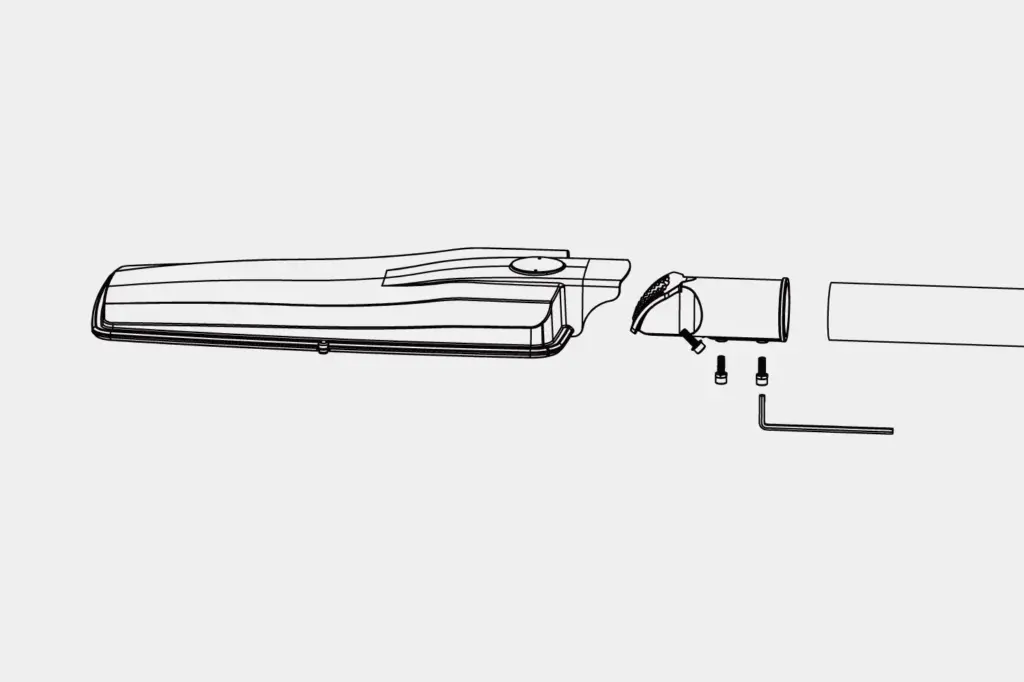

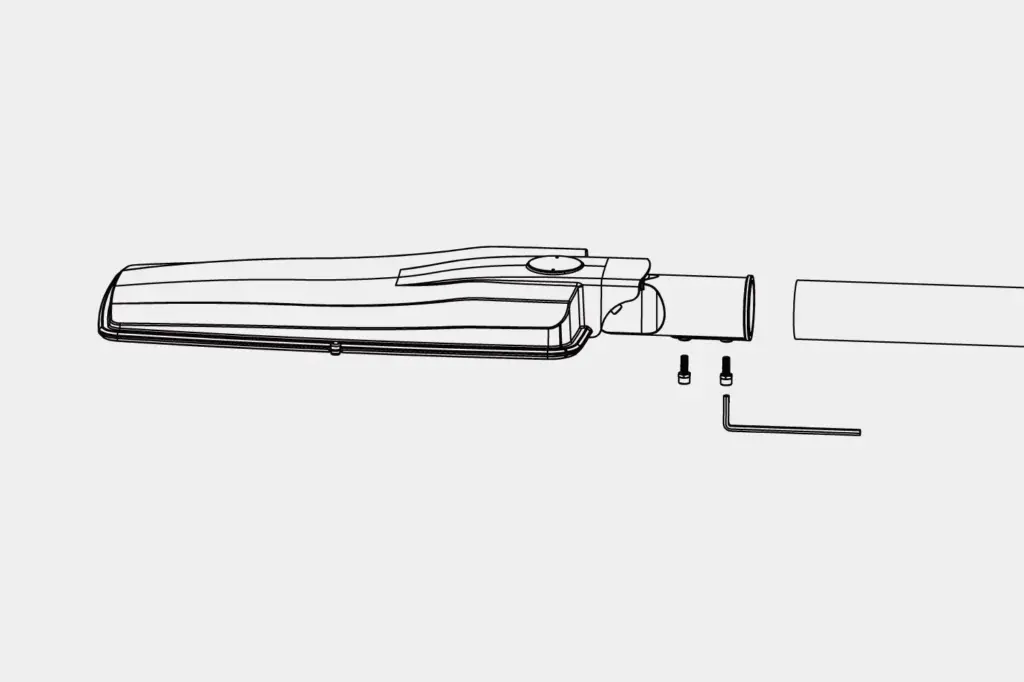

Installation Methods

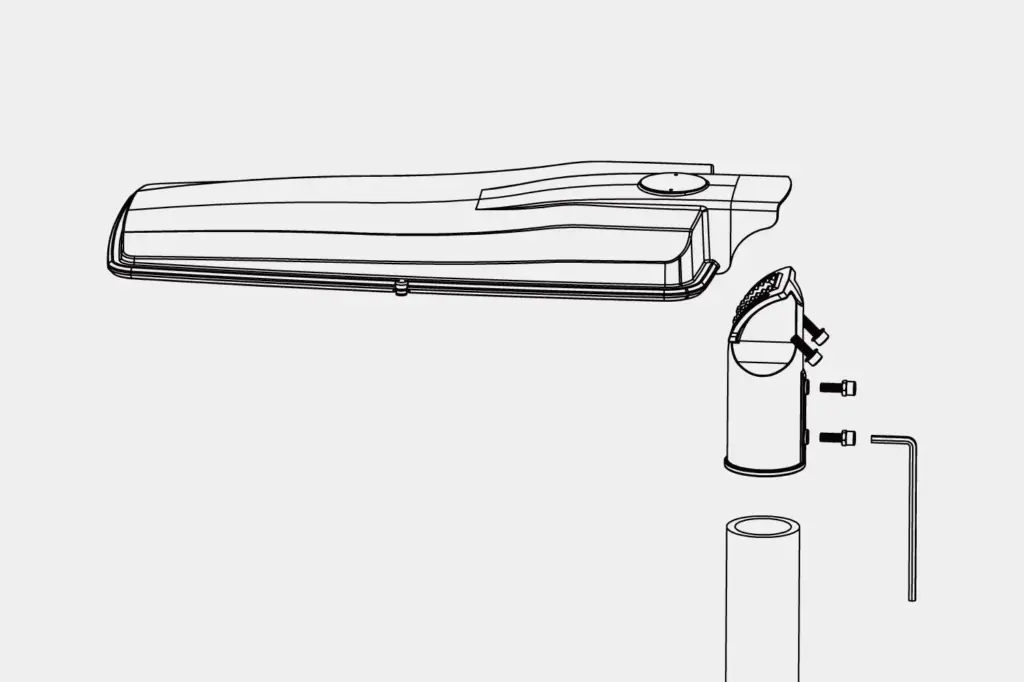

1
Secure the lamp housing with the fixture head

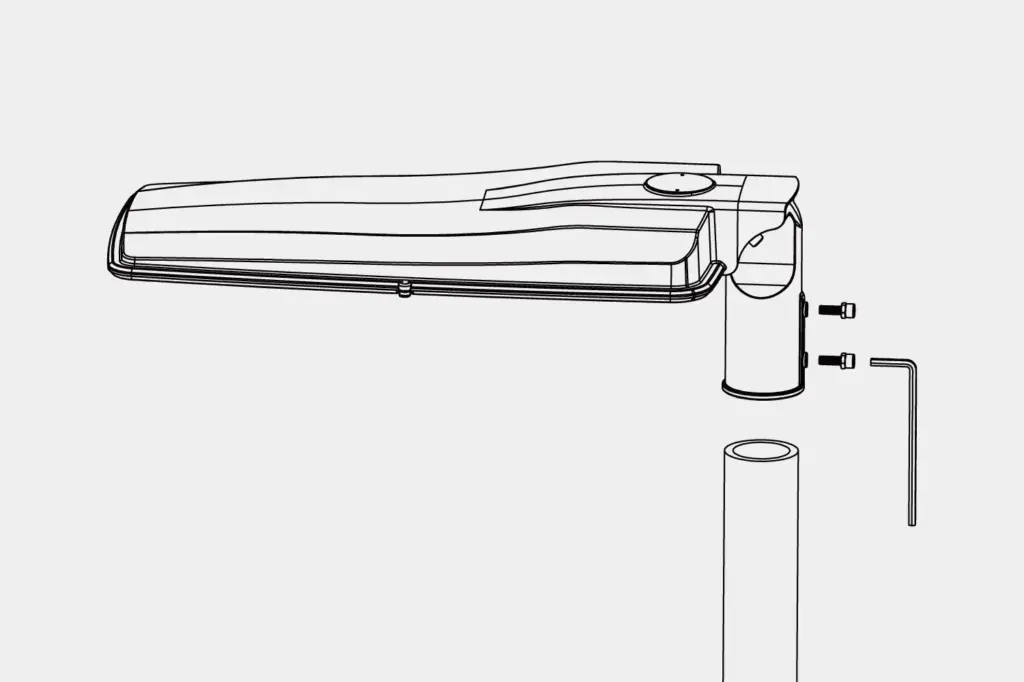

2
Secure the fixture with the pole

3
Tighten the fixing screws

4
Secure the lamp housing with the fixture head

5

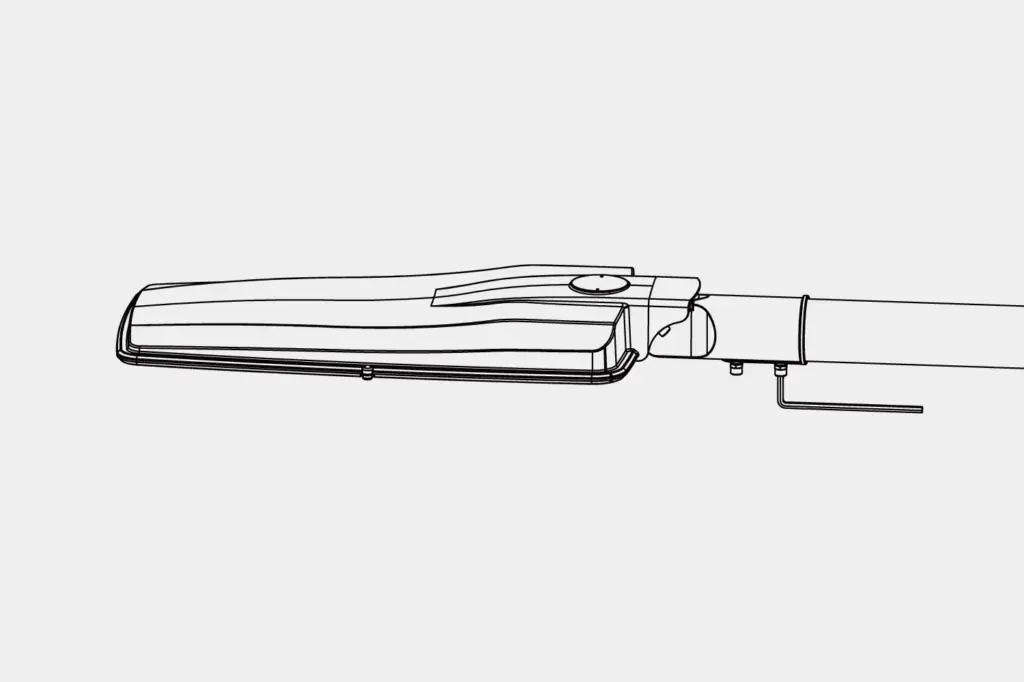

Secure the fixture with the pole support arm

6
Tighten the fixing screws
