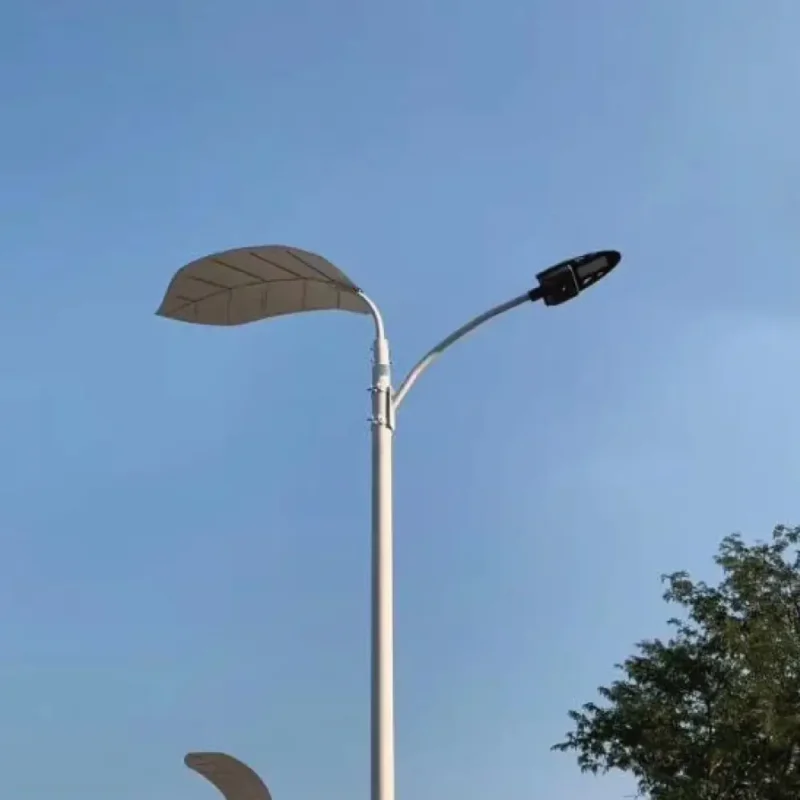

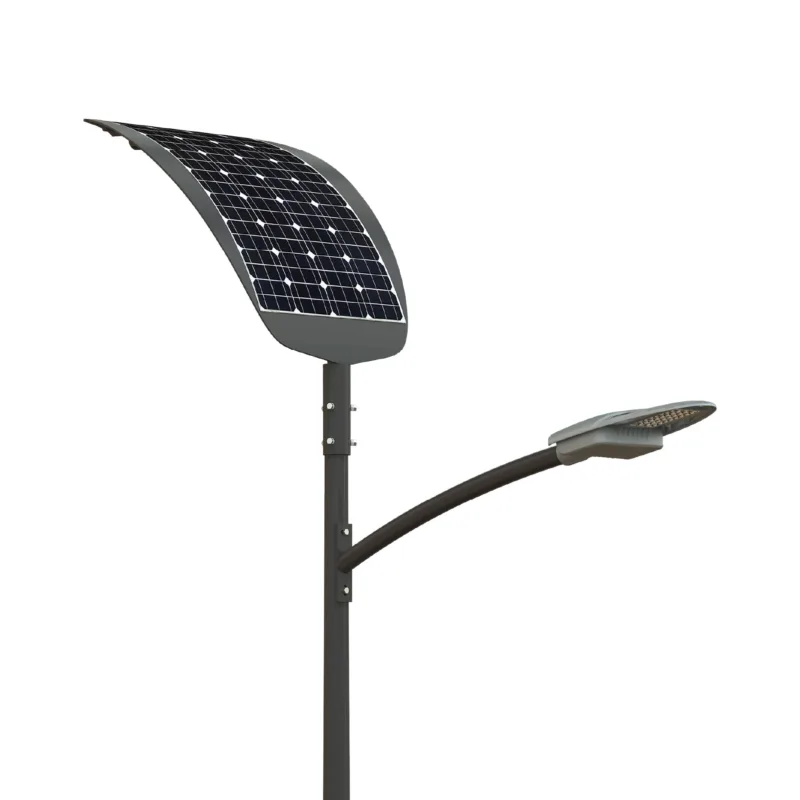

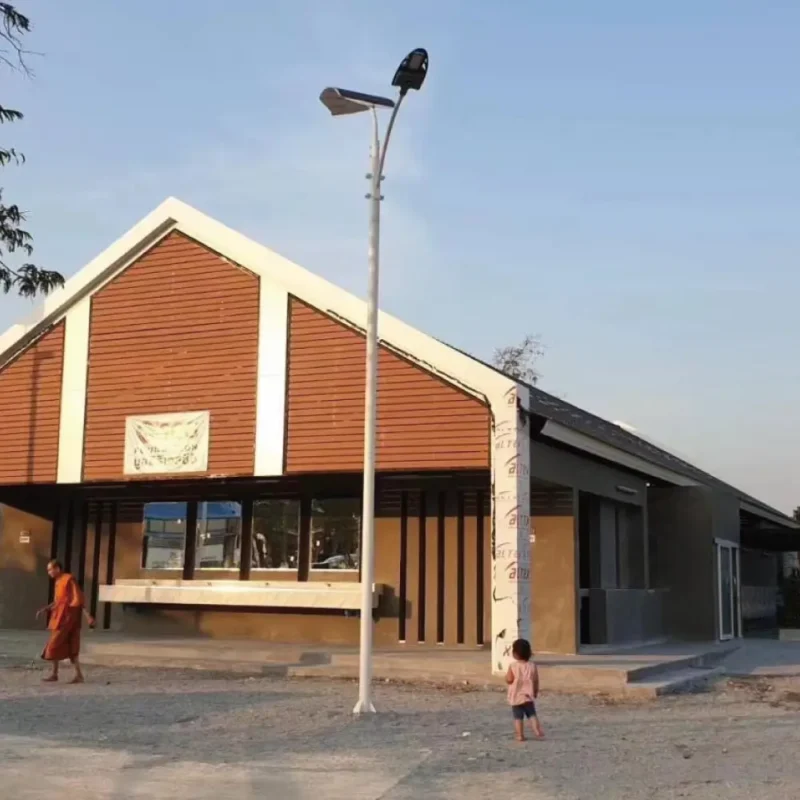

AKSO Decorative Solar Street Light
AKSO Decorative Solar Street Light pairs classical styling with a flexible, curved solar panel that creates a distinctive streetscape look while delivering dependable, off-grid lighting for streets, parks, residential communities and business districts.
Description

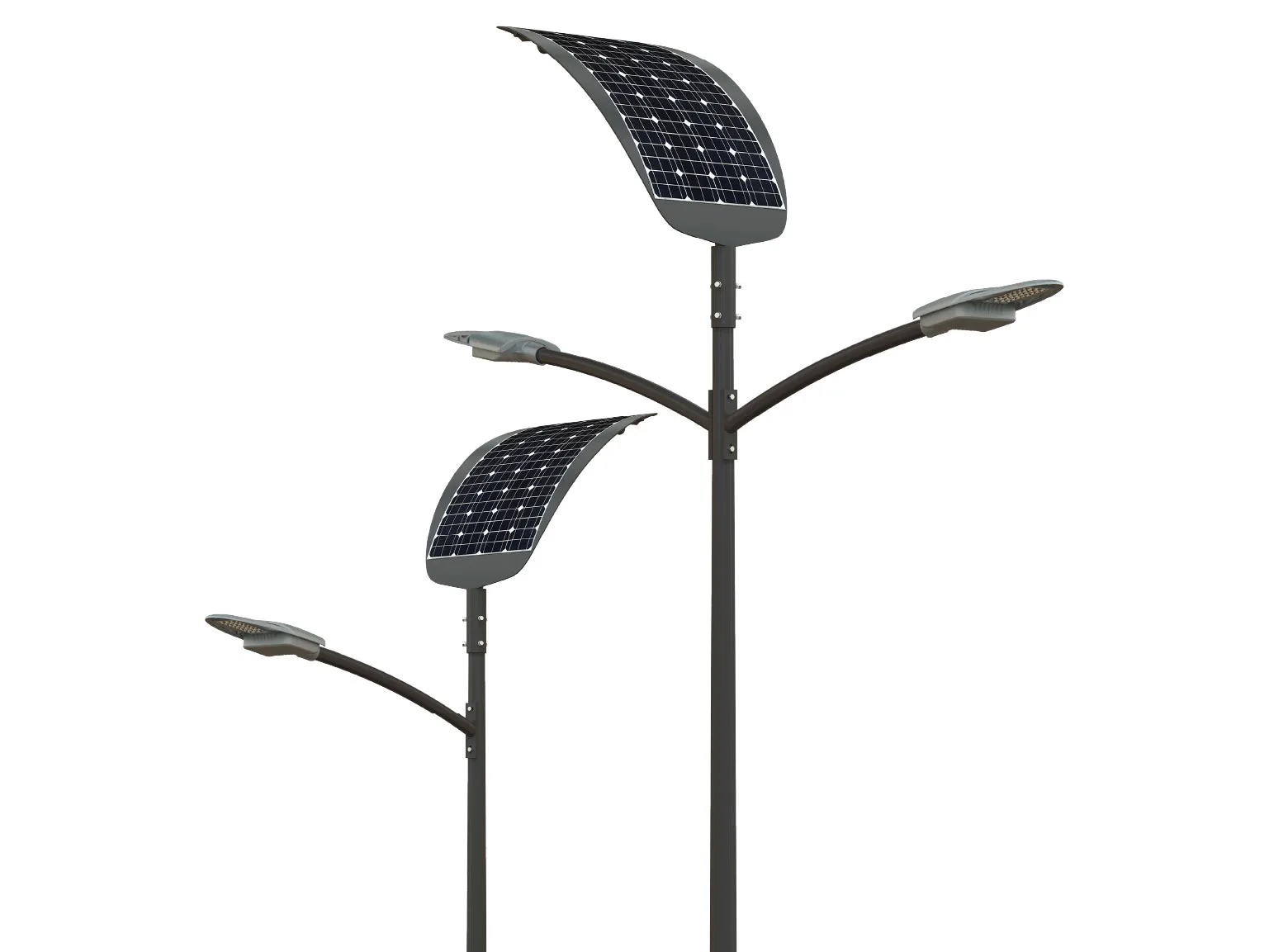

Features
The AKSO Decorative Solar Street Light turns infrastructure into a statement. Its flexible solar panel can be formed into graceful curves, creating a unique visual signature while delivering dependable illumination. Designed for prominent streets, parks, residential communities, and commercial districts, AKSO combines 20–150W high-efficiency LED packages, long-life LiFePO4 batteries, and IP66/IK09 durability with Type II/III distributions and multiple pole styles. By day, it’s a striking landscape feature; by night, it provides safe, energy-saving light for modern cities.
Flexible Solar Panel
Independent solar panel design makes high-power panels possible, and 15% higher charging efficiency can be realized by adjusting direction of solar panel. Therefore, high-power LED lamps are able to operate at high brightness all night.

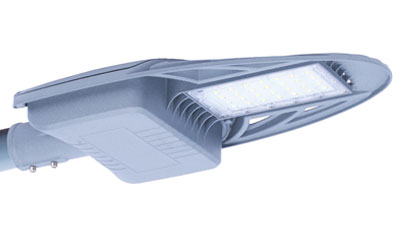

Extreme Bright 5050 LED Provides 40% Higher Brightness
AKSO Series adopts first-class Extreme Bright 5050 LEDs with 260lm/w efficiency, providing 40% higher brightness than normal solar lights which use 3030 LEDs and 2835 LEDs by its much bigger LED chip size.
15% higher uniformity and 30% larger coverage area
Specially designed light distribution and bigger beam angle enlarge illumination areas and improve lighting uniformity, suitable for rural roads, streets, highways, and residential areas.
10+ Years Lifespan Lithium Battery
By adopting unique pouch-type lithium battery cells, the LiFePO4 battery has been specially engineered to deliver a 4000-cycle life under deep DOD with excellent stable performance. Along with multi-protection applied by the BMS unit and solar controller contributes to maintaining the battery’s perfect operation under various extreme climates.
Operable Under Harsh Environment
IP66 for the whole AKSO system, which makes it adaptable for rainy areas. High-temperature resistant LiFePO4 battery with low current design significantly reduces internal heat when the system works. Among other things, the smart temperature adjustment function of the solar controller enables the system to operate normally under temperatures as high as 65°C.
IP66 aluminum battery box can “breath”
By adopting a breathing valve (water molecules cannot enter, but the air can be exchanged), The air pressure inside and outside the box will be the same, which can achieve better heat dissipation and waterproofing.
Technical Specifications
| LED Lamp | LED Power | 20 – 150W | Solar Controller | Capacity | 10A – 40A |
| Luminous Efficiency | ＞180 lm/W | Light Pole | Suggested Height | 3-15 Meters | |
| Luminous Flux | 3600 – 27000 lumens | Section Shape | Conical / Octagonal | ||
| Color Temperature | 3000K – 6000K | Material & Finishing | Galvanized Steel / Aluminum With Powder Coated | ||
| Lighting Distribution | Type II, Type III | System | Working Temperature | -20 – 65℃ | |
| Lithium Battery | Battery Type | Pouch Type Lithium Iron Phosphate (LiFePO4) | Protection Levels | IP66 / IK09 | |
| Rated Capacity | Customizable | Wind Resistance | >120km/h | ||
| BMS Unit | Provide Multiple Protections For Battery | Life Span | LED lamp: > 20years | ||
| Battery Location | Built inside the lamp fixture | Battery: > 10years | |||
| Battery Box | IP66, Aluminum Material | Solar Controller:> 20years | |||
| Solar Panel | Silicon Type | Mono-Crystalline | Solar Panel: > 25years | ||
| Power | Customizable | Light Pole: > 30years |
Interior Structure
01
02
03
04
05
06
All-In-Two Solar Street Light
A high-efficiency split design that maximizes solar energy capture. With robust construction and strong weather resistance, it delivers reliable outdoor lighting for roads, campuses, and public areas.

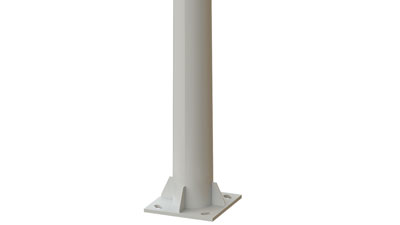

Strong Lighting Pole
The strong lighting pole is constructed from Grade A hot-dip galvanized steel, ensuring exceptional durability and anti-corrosion performance. Made from a single piece of steel sheet, it features a seamless design with a powder coating for enhanced rust resistance. Withstanding wind speeds of over 120 km/h, this pole is built for stability in extreme weather conditions. Its robust construction guarantees a lifespan of over 25 years, making it an ideal choice for long-term outdoor applications.
Smart Solar Controller
The Smart Solar Controller offers high efficiency with a smart power-saving mode that optimizes energy use. It operates with constant current and an IP68 rating, ensuring reliable performance even in harsh environmental conditions. This advanced design significantly reduces the light failure rate, providing consistent brightness over time. Additionally, the controller includes multiple protection features that effectively safeguard the battery, enhancing its longevity and ensuring the system’s overall durability and safety.

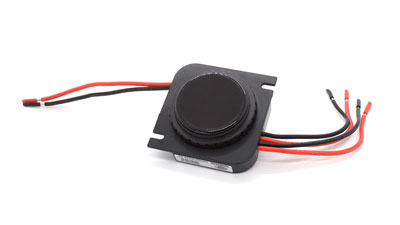

Motion Sensor (optional)
Detects movement to automatically adjust lighting, enhancing energy efficiency and providing security by illuminating only when needed.
LiFePO4 Lithium Battery
The fixture is equipped with a LiFePO4 lithium battery, known for its impressive lifespan of over 10 years. This battery offers excellent high-temperature resistance and exceptional safety performance, ensuring reliable power delivery and enhanced durability. With its long service life, it reduces the need for frequent replacements and provides peace of mind, making it an ideal choice for both residential and commercial applications.
Solar Panel
The enhanced strong lamp holder is designed for maximum durability and performance, ensuring resistance to strong impacts and mechanical stress, providing robust reliability in challenging environments.
Optional Features & Add-ons
01
Motion Sensor
The motion sensor automatically reduces brightness by 30% when inactivity is detected, saving energy. Upon detection of presence, brightness returns to 100%, ensuring optimal visibility while minimizing distractions. This feature strikes a balance between power efficiency and user comfort.
02
Adjustable Solar Panel Bracket
The adjustable bracket optimizes panel positioning for maximum sunlight capture. It allows users to adjust the tilt angle for optimal solar energy collection, regardless of geographic location or seasonal changes, ensuring high performance even in harsh weather conditions.
03
Anti-theft Components
Anti-theft screws and spikes are designed to secure solar panels against theft. The unique tamper-resistant design makes removal nearly impossible without specialized tools, while anti-climbing spikes prevent unauthorized access, ensuring durability and security in exposed environments.
04
Anti-bird Spike
Anti-bird spikes offer a humane and effective solution to prevent birds from perching on solar panels, rooftops, and fences. Made from durable stainless steel or plastic, these sharp, angled prongs discourage birds without harming them. Easy to install, these spikes provide a low-maintenance way to protect solar panels from bird-related damage, ensuring optimal performance.
05
Camera
The system integrates a solar-powered CCTV camera, offering a sustainable and eco-friendly surveillance solution. These cameras operate independently of traditional power sources, ensuring continuous monitoring without external electricity. With waterproof housing and motion detection features, they enhance security for solar panels while reducing energy costs.
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, Inlux Solar’s IOT Smart Monitoring System enables intelligent management of our AKSO Decorative Solar Street Light Series by PC, PAD and Mobile.

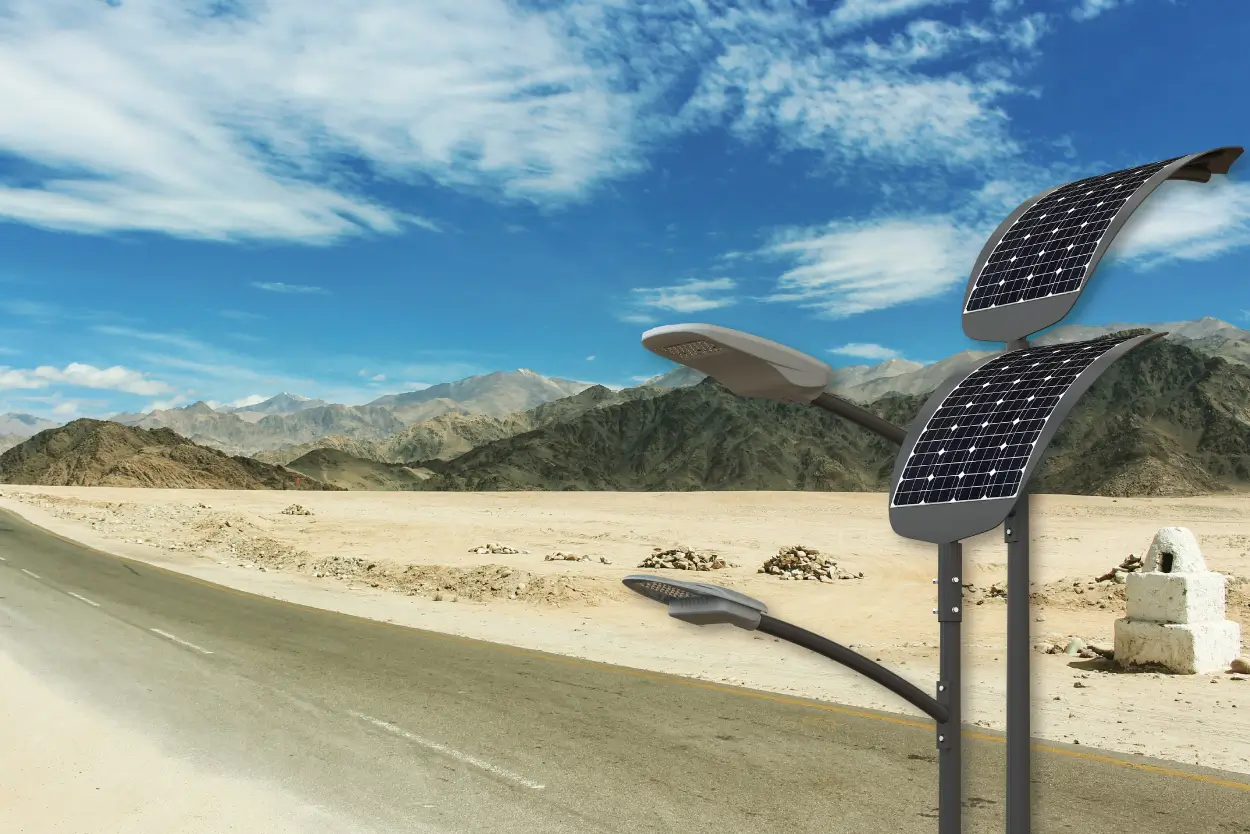

Compatible Pole Designs
Our AKSO decorative solar street lights can be customized with various pole shapes and materials. Check out some of our pole designs, and feel free to share your ideas with us if you have additional customization needs.

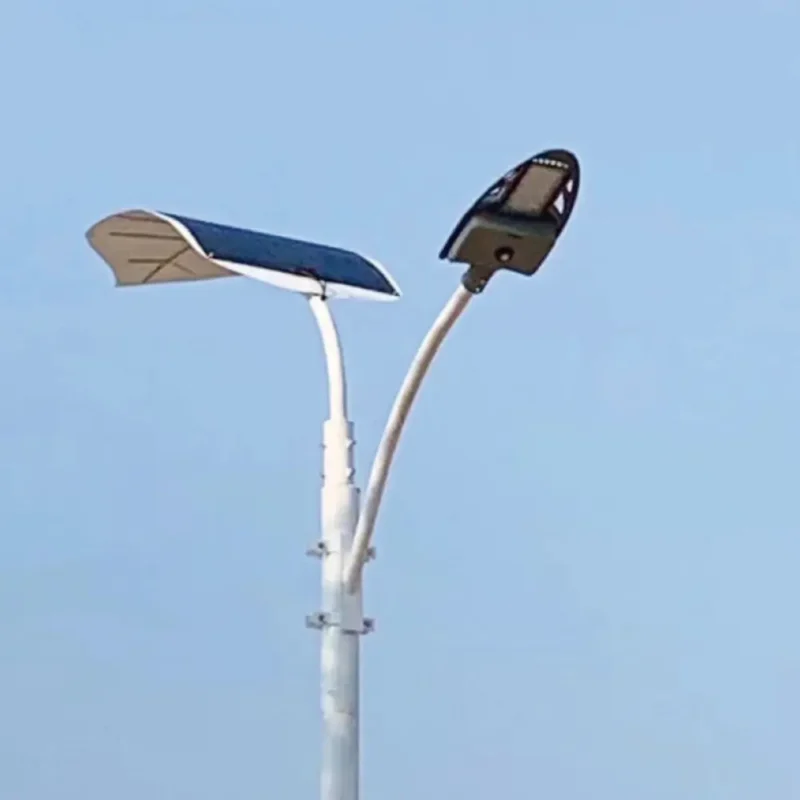

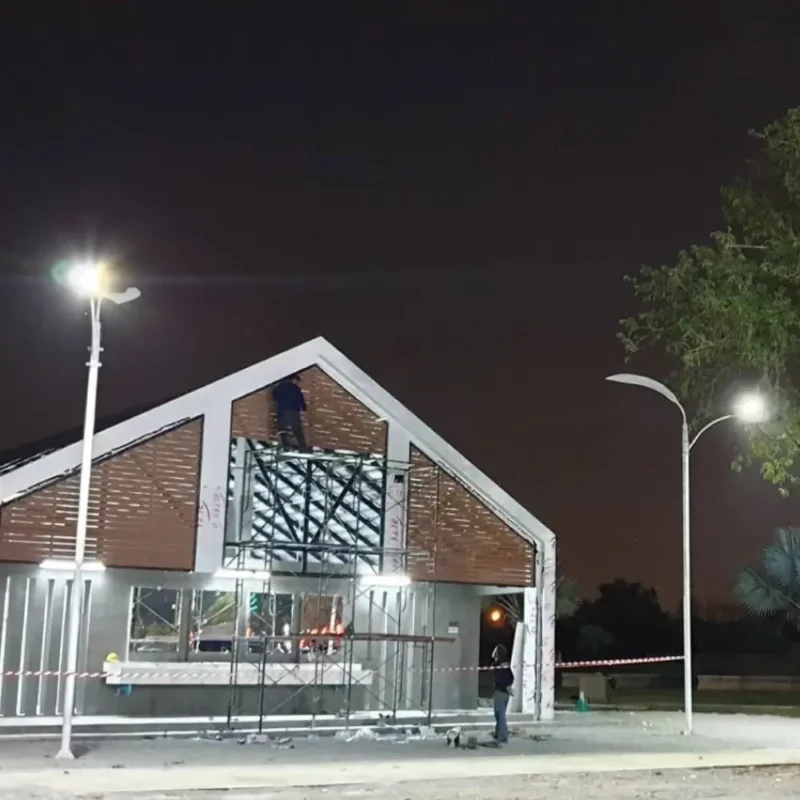

See AKSO’s Performance Across These Projects
Review AKSO as a Complete Streetscape
The curved-panel profile is part of the AKSO design brief, not a substitute for site review. Confirm the proposed panel position, lamp-head choice, arm arrangement and finish on a configuration drawing. Include nearby trees or buildings, the road or path layout and the nightly schedule. Ask for the quoted system’s lighting and energy assumptions, component access and supply list.
