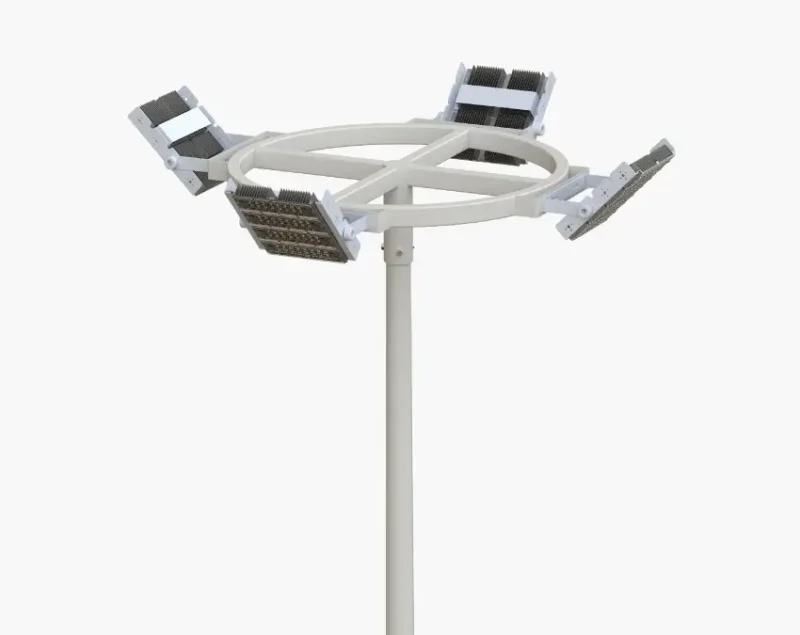

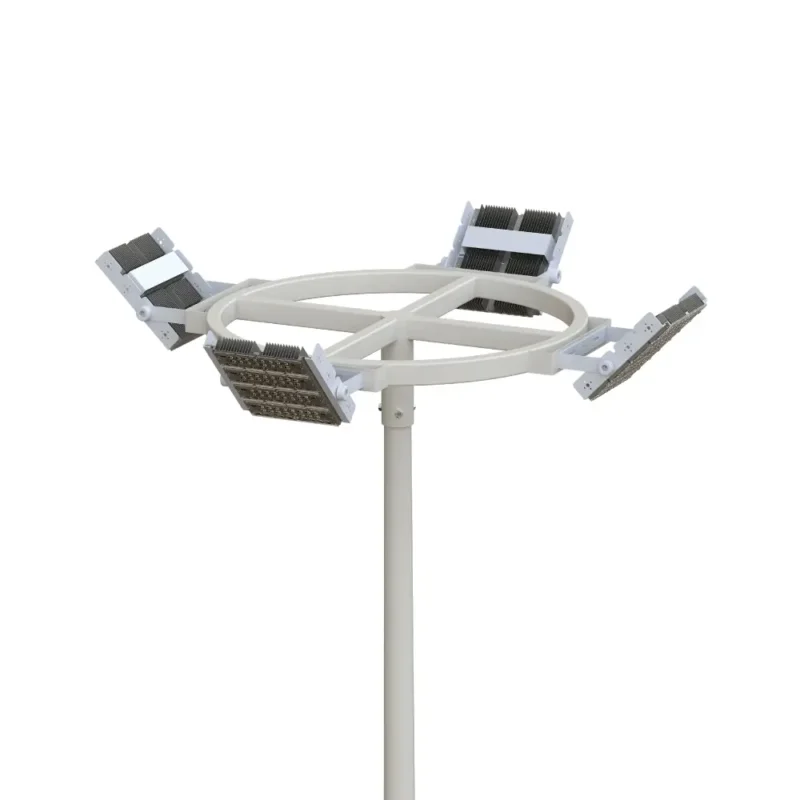

Mini Mast Light
Mini Mast Light designed for medium-scale sites. Typically 10–12 m poles with a ring of fixtures provide wide, uniform coverage for transportation yards, storage areas, parking lots, and pedestrian safety.
Description
Quick Specs — Mini Mast Light (AC)
Recommended: 10–12 m for most yards/parking. Custom range: 6–18 m (foundation + wind load/EPA to be confirmed in design).
| System type | AC mini mast (grid-powered) |
|---|---|
| LED power per lamp | 60–800 W |
| Luminous efficiency | >125 lm/W (SMD 3030) / >175 lm/W (SMD 5050) |
| Input voltage | 90–305 V AC, 50/60 Hz |
| Pole height | 6–18 m (recommended 10–12 m for typical projects) |
| Protection | IP65–IP66 / IK09 |
| Wind resistance | >120 km/h |
| Working temperature | -20 to 65 ℃ |
| Options | Raising & lowering system (optional) · Climbing ladder (optional) |
| Warranty | 5 years |
Request photometrics + BOM + drawings Layout inputs (pole height & spacing) IES/LDT checklist Wind load & EPA inputs
Note: “10–12 m” is the most common configuration. “6–18 m” is the customization envelope—final selection should be validated by photometrics + EPA/wind load and foundation design.
Where This Product Fits (Tender-Ready)
- System type: AC High Mast Lighting (Series)→ Mini Mast Light (Subcategory)
- Bundles: Buyer’s Guide (Bundles)
- Templates: Project Input Sheet · RFQ/BOQ Kit
Most relevant guides:
Choose AC or Solar — same footprint, different power architecture
AC Mini Mast Light (This page)
Best for sites with stable grid power and higher lumen demand per mast. For a project quotation, share mast height, luminaire count and wattage, site layout, controls, delivery destination, and which party will handle foundations and installation.
- Pole height: 6–18 m (recommended 10–12 m typical)
- LED power per lamp: 60–800 W
- Efficiency: >125 lm/W (SMD 3030) / >175 lm/W (SMD 5050)
- Input: 90–305 V AC, 50/60 Hz
- Protection: IP65–IP66 / IK09
- Wind: >120 km/h
- Options: Raising & lowering system · Climbing ladder
Solar Mini Mast Light
Best for off-grid / high electricity cost / fast-deploy projects. Solar sizing is climate-dependent (worst-month method).
- Pole height: 6–14 m
- LED power per lamp: 60–200 W
- Efficiency: >175 lm/W (SMD 5050)
- Working time: From dusk to dawn (customizable)
- Protection: IP65–IP66 / IK09
- Wind: >120 km/h
- Options: Raising & lowering system · Climbing ladder
*Tip for spec writers: keep AC and Solar on separate pages (as above). Use internal links to guide users based on power availability, target lux/uniformity, and maintenance preference.
Features
The Mini Mast Light bridges the gap between conventional poles and full high-mast systems. Mounted at 10–12 meters, its ring-mounted luminaires spread light uniformly across transport yards, storage zones, and parking areas to enhance visibility and safety for vehicles and pedestrians. Compact structure, simpler foundations, and easier maintenance make Mini Mast ideal for retrofits and fast-track projects.
Mini Mast Light Technical Specifications
| LED Flood Lamp | LED Power per Lamp | 60-800W |
| Lamp Qty | Customizable | |
| Luminous Efficiency | >125lm/w (SMD 3030) / >175lm/w (SMD 5050) | |
| Color Temperature | 3000K – 6500K | |
| Beam Angle | 30°,60°,90°,120° | |
| Power Supply | MEANWELL / PHILIPS / MOSO / INVENTRONICS | |
| Working Voltage | 90 – 305V AC, 50/60Hz | |
| Housing Material | Die-casting Aluminum | |
| Lens Material | PC / PC + tempered glass | |
| Mast Pole | Pole Height | 6-18 Meters |
| Section Shape | Polygonal | |
| Material & Finishing | galvanized steel with powder coated (OPTIONAL) | |
| Raising & Lowering System | OPTIONAL | |
| Climbing Ladder | OPTIONAL | |
| Accessories | Foundation Kits, Lighting Rod and Rain Cover | |
| System | Working Temperature | -20 – 65℃ |
| Protection Levels | IP65 – IP66 / IK09 | |
| Wind Resistance | >120km/h | |
| Life Span | LED Flood Lamp: > 20years | |
| Mast Pole: > 30years | ||
| Warranty | 5 years | |
Interior Structure
See what’s inside the Mini Mast Light.
01
02
03
04
05
06

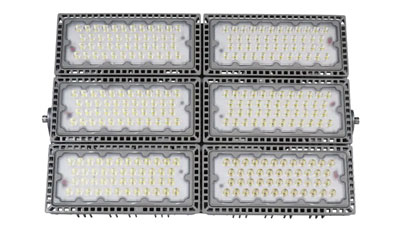

LED Flood Light
This cutting-edge outdoor lighting solution, powered by LED technology, is renowned for its superior brightness, energy efficiency, and longevity. Ideal for large-scale illumination needs in settings like stadiums, parking lots, and construction sites, it boasts a waterproof and durable design. Easy to mount on poles, walls, or the ground, this light ensures even and powerful lighting for any outdoor space.

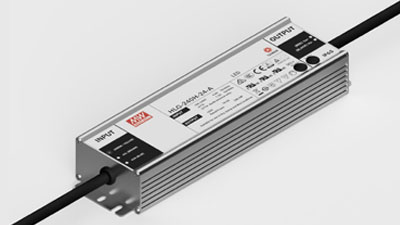

LED driver
This is a vital electronic component that manages the power supply for light-emitting diodes, ensuring efficient performance and a longer lifespan. It offers current and voltage regulation while protecting against electrical issues like overcurrent, overvoltage, and overheating. Depending on specific needs, it can be either constant current or constant voltage. This component is widely used in urban street lighting, indoor fixtures, and automotive lighting solutions.

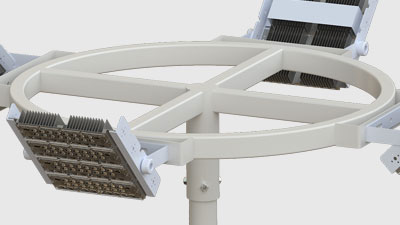

Lamp Carriage
This is a sturdy support structure designed for outdoor lighting fixtures, such as streetlights, floodlights, or high-mast lights. It is typically made from corrosion-resistant metals like aluminum alloy or stainless steel, ensuring stability and durability in various weather conditions. The design allows for easy installation and light adjustment to cover the desired area, while also simplifying maintenance and light source replacement. It often includes an adjustable bracket that can be mounted on poles or walls, offering versatile installation options. This structure is widely used in urban lighting, parking lots, and industrial areas, providing dependable support for large-scale illumination.

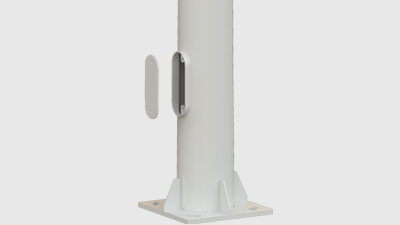

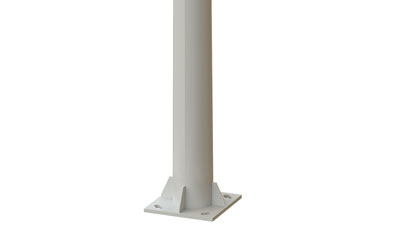

Light Pole
This is a vertical support structure designed for outdoor lighting, typically used to hold streetlights, floodlights, or other illumination devices. It is generally made of steel, aluminum, or other corrosion-resistant materials, with heights customizable from a few meters to tens of meters based on lighting needs. The surface is treated to resist rust, enabling it to withstand harsh weather conditions like strong winds and rain, ensuring long-term stability. Featuring a fixed base at the bottom, it is easy to install on the ground or a pre-built foundation, making it widely used in urban streets, plazas, and highways for safe and reliable lighting support.
Electrical Control Panel
This is a central device for managing outdoor lighting systems, handling power distribution, switching operations, and brightness adjustments. It incorporates circuit protection components like breakers and fuses to prevent overloads or short circuits, ensuring safe operation. The enclosure is typically waterproof and dustproof, designed for outdoor use and capable of withstanding rain and wind. With organized internal wiring, it supports remote monitoring and smart control features, making it ideal for lighting management in urban areas, industrial parks, and large public spaces.
Foundation Kits
This is a set of ground base components designed for installing outdoor lighting equipment. It typically includes anchors, bolts, concrete pads, and other hardware to ensure that light poles or masts are securely fixed to the ground, making it suitable for a variety of terrains and soil conditions.
Optional Features & Add-ons
01
Lightning arrester
This is a protective device used in electrical and communication systems to prevent damage from lightning strikes and power surges. It functions by offering a low-resistance path that directs the high-voltage current safely to the ground, thus shielding the system’s components from harm. Typically installed near vulnerable equipment, such as in outdoor lighting systems or electrical substations, it ensures the longevity and reliability of the infrastructure.
02
LED Aviation light
This is a specialized safety device installed on tall structures like masts, towers, or buildings to enhance visibility for aircraft and prevent collisions. It emits a bright, steady, or flashing light, typically in red or white, ensuring it can be seen from a distance in various weather conditions. Using energy-efficient LED technology, it offers long-lasting performance with minimal power consumption, making it ideal for continuous operation. It is often weatherproof and durable, designed to withstand harsh environmental conditions while maintaining reliable functionality.
03
Climbing Ladder
This is a fixed vertical structure attached to tall outdoor installations, such as light poles or masts, designed to provide safe and convenient access for maintenance workers. It is typically made of durable, weather-resistant materials like steel or aluminum to withstand harsh outdoor conditions while ensuring stability and safety. The design often includes rungs or steps spaced evenly for easy climbing, and it may feature safety elements like handrails or anti-slip surfaces to protect workers during use.
04
Camera
The system integrates a solar-powered CCTV camera, offering a sustainable and eco-friendly surveillance solution. These cameras operate independently of traditional power sources, ensuring continuous monitoring without external electricity. With waterproof housing and motion detection features, they enhance security for solar panels while reducing energy costs.
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, Inlux Solar’s IOT Smart Monitoring System enables intelligent management of our Mini Mast Light by PC, PAD and Mobile.

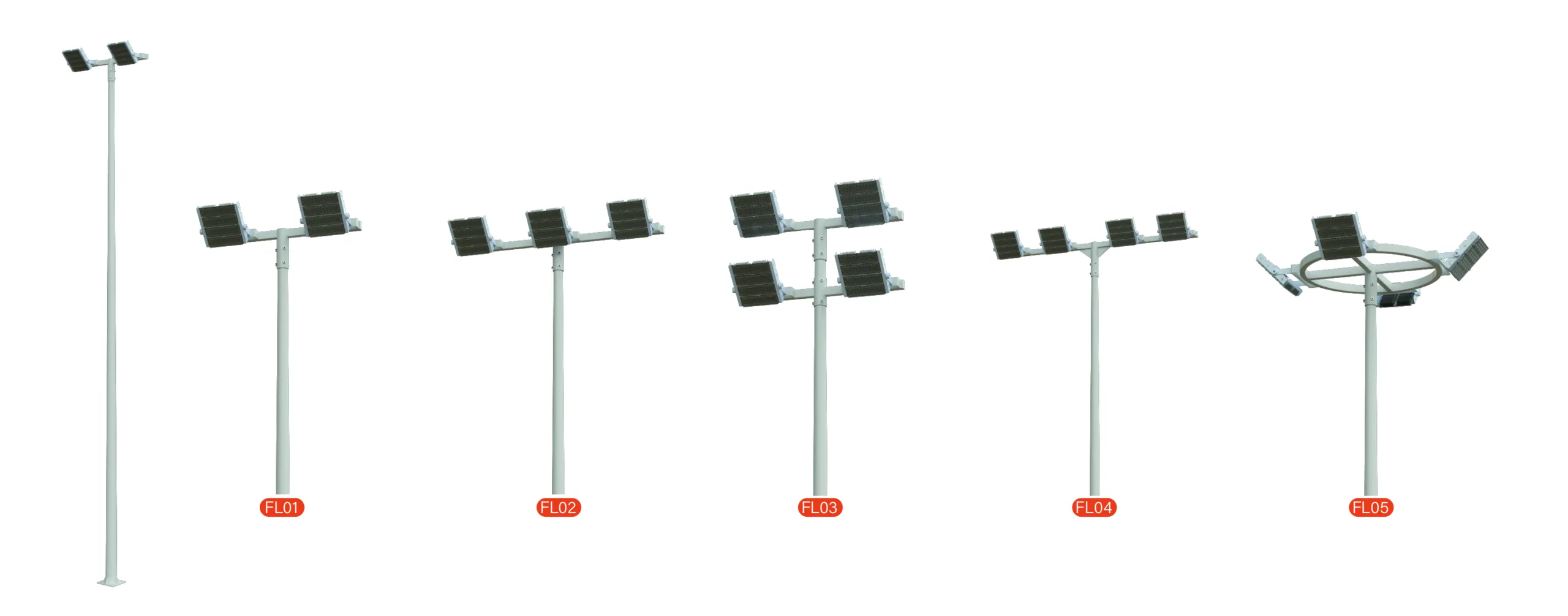

Compatible Pole Designs
Our flood light poles can be customized with various pole shapes and materials. Check out some of our pole designs, and feel free to share your ideas with us if you have additional customization needs.
