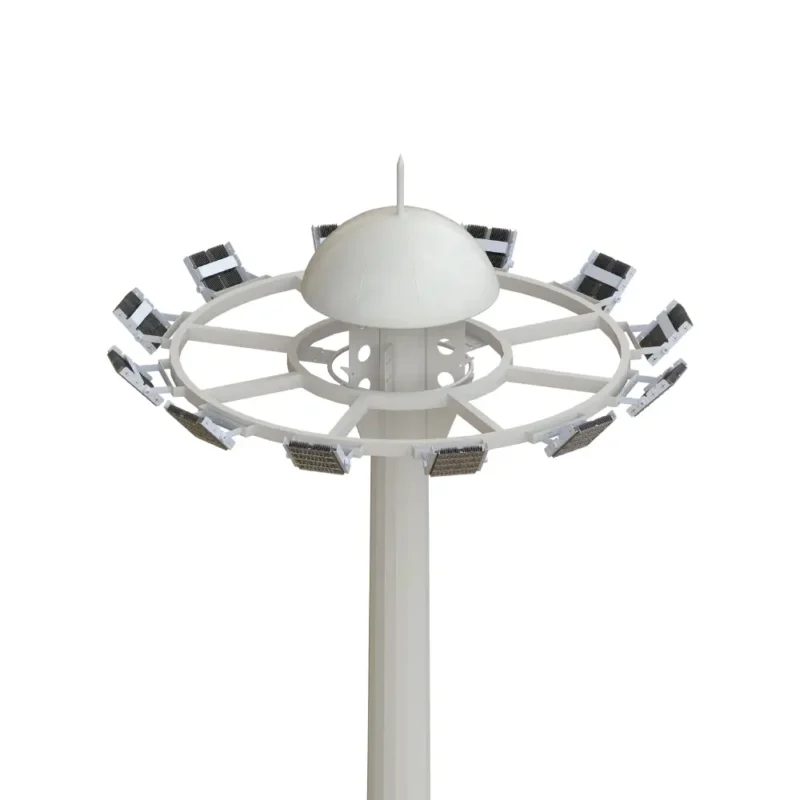

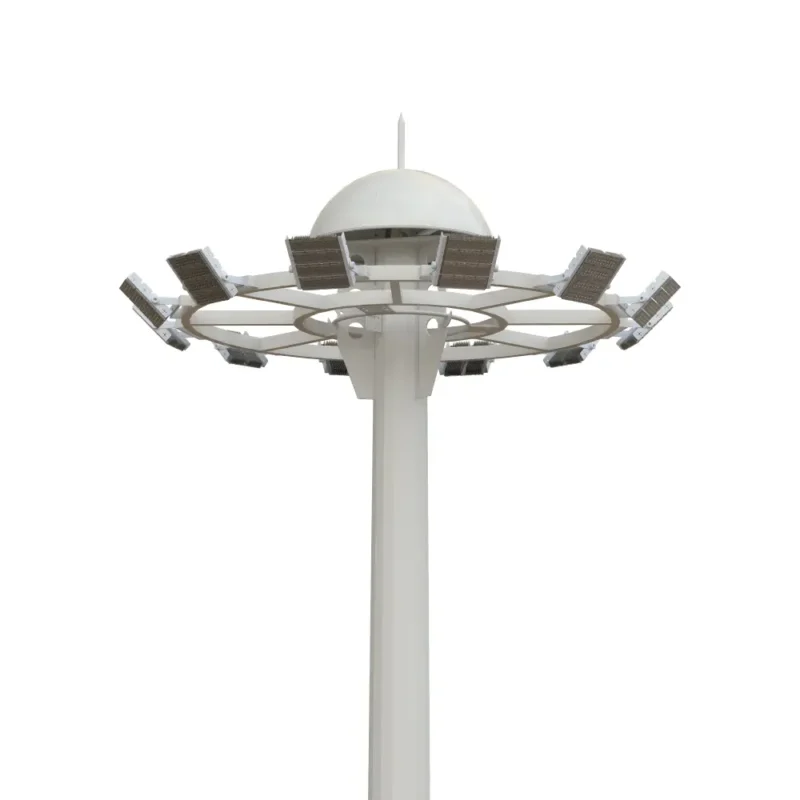

High Mast Lamp
High Mast Lamp engineered for large-area illumination at highways, airports, ports, and plazas. Typical poles range from 15–50 m and support multi-fixture headframes, with an optional raising & lowering system for safer ground-level maintenance.
Description
Where This Product Fits (Tender-Ready)
- System type: AC High Mast Light
- Bundles: Buyer’s Guide (Bundles)
- Templates: Spec Definitions · Quality & Evidence
Most relevant guides:
Features
The High Mast Lamp is built to light expansive sites with fewer poles and lower lifecycle cost. Typical 15–50 m structures carry multiple luminaires to deliver uniform coverage for highways, airports, ports, and large plazas. For serviceability, systems can include a raising & lowering device so luminaires are maintained at ground level without heavy equipment—ideal for safety-critical facilities that demand reliability and fast turnaround.
Part of our AC high mast lighting range — request a DIALux layout and tender pack for your site.
High Mast Lamp Technical Specifications
| LED Flood Lamp | LED Power per Lamp | 200-1600W |
| Lamp Qty | Customziable | |
| Luminous Efficiency | >125lm/w (SMD 3030) / >175lm/w (SMD 5050) | |
| Color Temperature | 3000K – 6500K | |
| Beam Angle | 30°,60°,90°,120° | |
| Power Supply | MEANWELL / PHILIPS / MOSO / INVENTRONICS | |
| Working Voltage | 90 – 305V AC, 50/60Hz | |
| Housing Material | Die-casting Aluminum | |
| Lens Material | PC / PC + tempered glass | |
| Mast Pole | Pole Height | 25-30 Meters |
| Section Shape | Polygonal | |
| Joint of Mast Poles | Insert Mode, Inner Flange Mode, Face To Face Joint Mode | |
| Material & Finishing | galvanized steel with powder coated (OPTIONAL) | |
| Raising & Lowering System | OPTIONAL | |
| Climbing Ladder | OPTIONAL | |
| Accessories | Foundation Kits, Lighting Rod and Rain Cover | |
| System | Working Temperature | -20 – 65℃ |
| Protection Levels | IP65 – IP66 / IK09 | |
| Wind Resistance | >120km/h | |
| Life Span | LED Flood Lamp: > 20years | |
| Mast Pole: > 30years | ||
| Warranty | 5 years | |
Interior Structure
See what’s inside the High Mast Lamp.
01
02
03
04
05
06

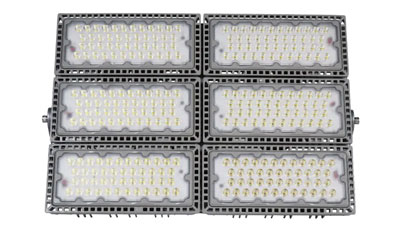

Super Bright LED Lamp
This cutting-edge outdoor lighting solution, powered by LED technology, is renowned for its superior brightness, energy efficiency, and longevity. Ideal for large-scale illumination needs in settings like stadiums, parking lots, and construction sites, it boasts a waterproof and durable design. Easy to mount on poles, walls, or the ground, this light ensures even and powerful lighting for any outdoor space.
Lamp Carriage
This is a robust mounting structure used to support outdoor lighting fixtures, such as streetlights or floodlights, ensuring they are securely attached to poles or walls. It is generally crafted from corrosion-resistant materials like aluminum or stainless steel to endure harsh weather conditions while maintaining stability. The design facilitates easy installation and allows for adjusting the angle of the light to optimize coverage, also simplifying maintenance and replacement tasks. It is widely used in urban lighting, parking lots, and industrial areas for effective illumination support.
Polygonal Mast Pole
This is a tall, multi-sided vertical structure used to support outdoor lighting fixtures, flags, or signage, commonly found in urban streets, highways, or large public spaces. It is typically constructed from sturdy materials like galvanized steel or aluminum to resist corrosion and endure harsh weather conditions, ensuring long-term durability. The polygonal shape provides enhanced structural strength while offering a sleek, modern appearance. Available in various heights, it can be customized to meet specific lighting or visibility needs, with a base designed for secure ground installation.

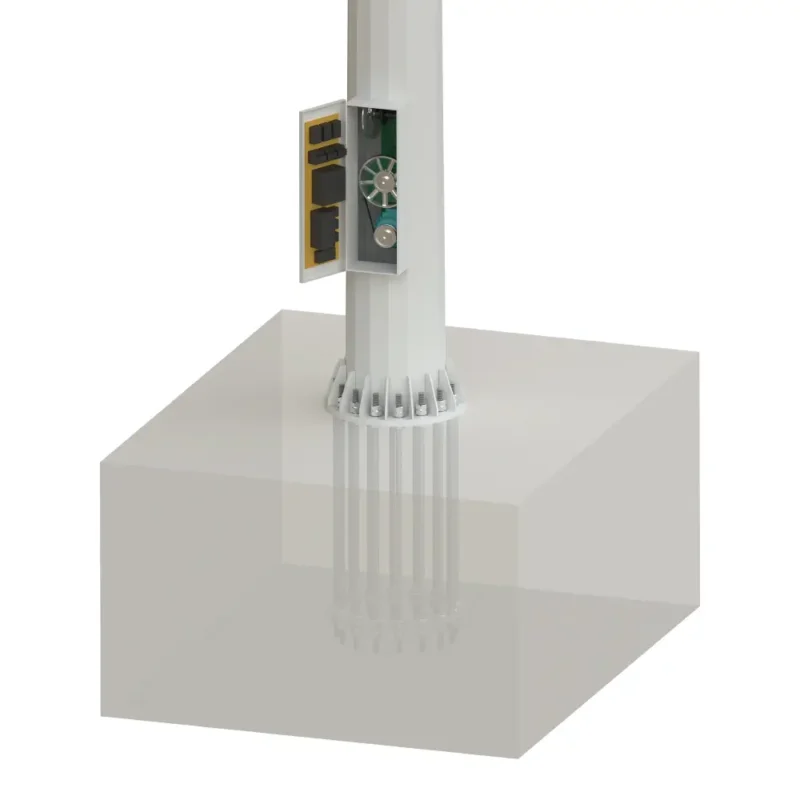

Electrical Control Panel
IP66 cabinet hosting MPPT solar controller (≥98% tracking efficiency), DC protection (MCB/fuse), and surge protection. Optional remote monitoring (RS-485/Modbus, 4G/NB-IoT/LoRa) for alarms, SOC, and dimming profiles. Clean wiring with ferrules and labels for faster maintenance. Conformal-coated PCBs for high-humidity regions.
Durable Hoist Cable
Robust cable system for high-mast lights, enabling safe and smooth raising and lowering of the luminaire for easy maintenance and long-term reliability.
Foundation Kits
Galvanized J-bolt anchors (M24/M30) with leveling nuts and template. Foundation recommendation provided by pole height and soil class (e.g., C25/30 concrete). Cable ducts and earthing rod included. Detailed CAD for bolt circle, projection length, and grout thickness.
Optional Features & Add-ons
01
Lightning arrester
This is a protective device used in electrical and communication systems to prevent damage from lightning strikes and power surges. It functions by offering a low-resistance path that directs the high-voltage current safely to the ground, thus shielding the system’s components from harm. Typically installed near vulnerable equipment, such as in outdoor lighting systems or electrical substations, it ensures the longevity and reliability of the infrastructure.
02
LED Aviation light
This is a specialized safety device installed on tall structures like masts, towers, or buildings to enhance visibility for aircraft and prevent collisions. It emits a bright, steady, or flashing light, typically in red or white, ensuring it can be seen from a distance in various weather conditions. Using energy-efficient LED technology, it offers long-lasting performance with minimal power consumption, making it ideal for continuous operation. It is often weatherproof and durable, designed to withstand harsh environmental conditions while maintaining reliable functionality.
03
Camera
The system integrates a solar-powered CCTV camera, offering a sustainable and eco-friendly surveillance solution. These cameras operate independently of traditional power sources, ensuring continuous monitoring without external electricity. With waterproof housing and motion detection features, they enhance security for solar panels while reducing energy costs.
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, Inlux Solar’s IOT Smart Monitoring System enables intelligent management of our High Mast Lamp by PC, PAD and Mobile.
