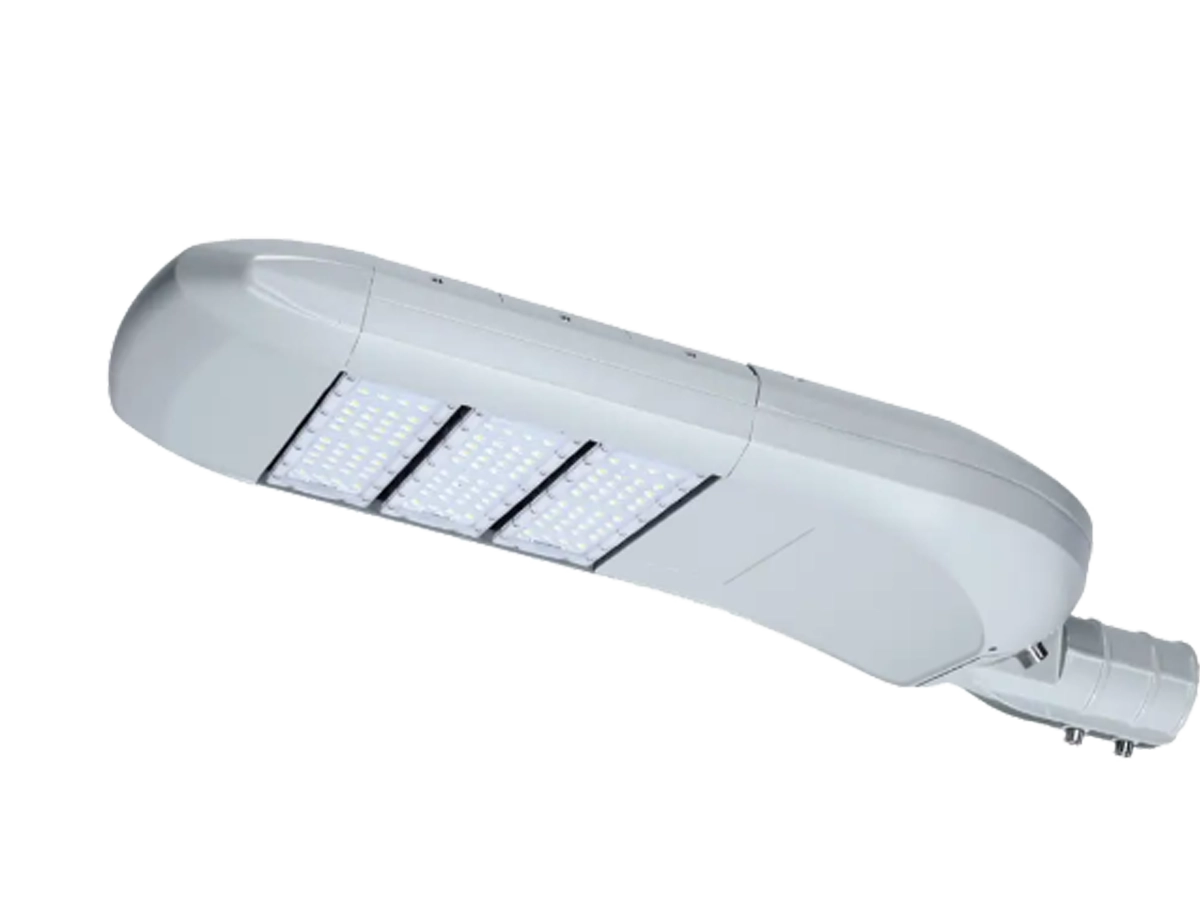

INL-LED13 LED Street Light
INL-LED13 LED Street Light is a practical, project-ready roadway fixture with four sizes and 60–200W power options. Choose 60×120°, 70×140°, or 80×150° optics to match highways, urban streets, intersections, and parking areas. High-efficiency SMD 3030/5050 LEDs with branded drivers deliver up to 160 lm/W, while the die-cast aluminum body, PC + tempered-glass optics, IP65/IK08 protection, and -40–50°C operating range support long service life.
Description
Features
The INL-LED13 LED Street Light combines practical design with project-grade performance. Power classes from 60 to 200 watts pair with 60×120°, 70×140°, and 80×150° distributions to achieve uniform coverage on highways, city streets, intersections, roundabouts, and parking lots. The luminaire uses SMD 3030/5050 packages driven by reputable brands to reach up to 160 lm/W. A die-cast aluminum housing, PC + tempered-glass lens, IP65/IK08 protection, and an −40–50°C operating window ensure dependable service life for public-area lighting.
INL-LED13 Technical Specifications
| Model | LED13-60W | LED13-100W | LED13-150W | LED13-200W |
| Power | 60W | 100W | 150W | 200W |
| Power Supply | MEANWELL / PHILIPS / MOSO / INVENTRONICS | |||
| Working Voltage | 90 – 305V AC, 50/60Hz | |||
| Beam Angle | 60*120°,70*140°,80*150° | |||
| CCT | 3000K – 6500K | |||
| CRI | >70 (>80,>90 optional) | |||
| LED Chip | SMD 3030 / SMD 5050 | |||
| Luminous Efficiency | >110lm/w (SMD 3030) / >160lm/w (SMD 5050) | |||
| Luminous Flux | 6600lm (SMD 3030) | 11000lm (SMD 3030) | 16500lm (SMD 3030) | 22000lm (SMD 3030) |
| 9600lm (SMD 5050) | 16000lm (SMD 5050) | 24000lm (SMD 5050) | 32000lm (SMD 5050) | |
| Housing Material | Die-casting Aluminum | |||
| Lens Material | PC + Tempered glass | |||
| Product Dimension (mm) | 513*180*85 | 613*206*85 | 633*279*85 | 776*309*89 |
| IP/IK Rate | IP65 / IK08 | |||
| Working Temperature | -40°C~50°C, 20%~90% RH | |||
| Life Span | >50,000 Hours | |||
Plan Your INL-LED13 Street Lighting Order

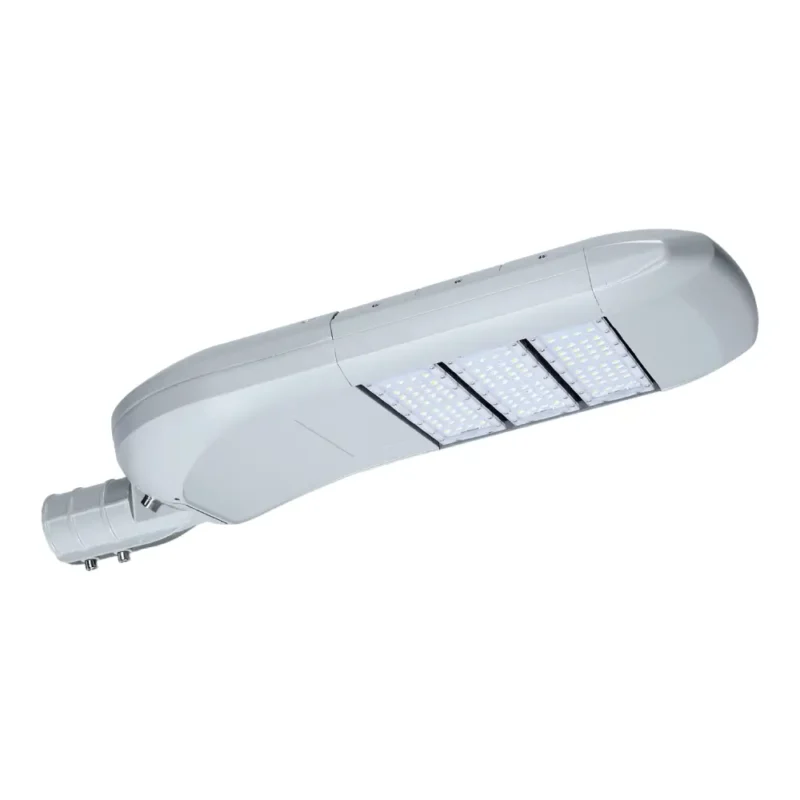

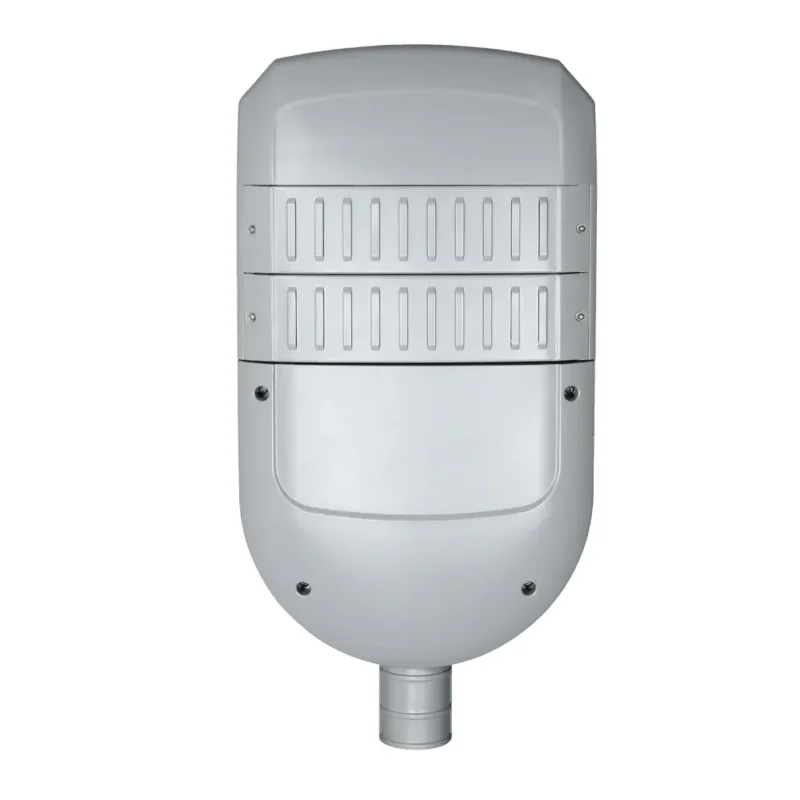

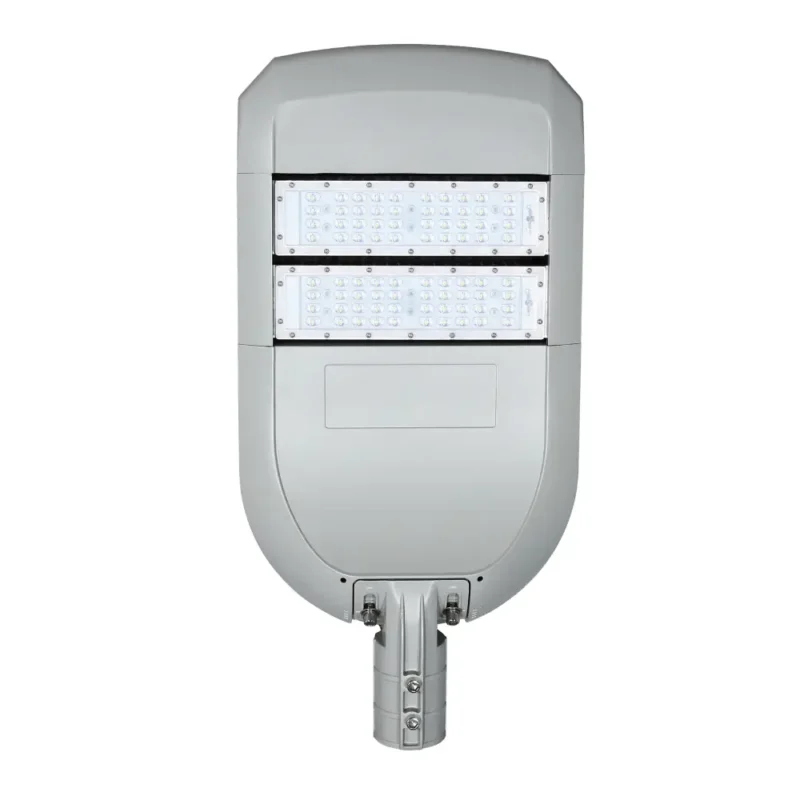

For a municipal or contractor quotation, send the road layout, mounting height, pole-arm dimensions, supply voltage and required lighting level. The gallery shows the luminaire body, optical face and rear housing; request the installation drawing to confirm the interface for your poles. Ask for the photometric file, control options and replacement-parts scope for the exact configuration being supplied.
Compare LED street light models or request an INL-LED13 project quote.
