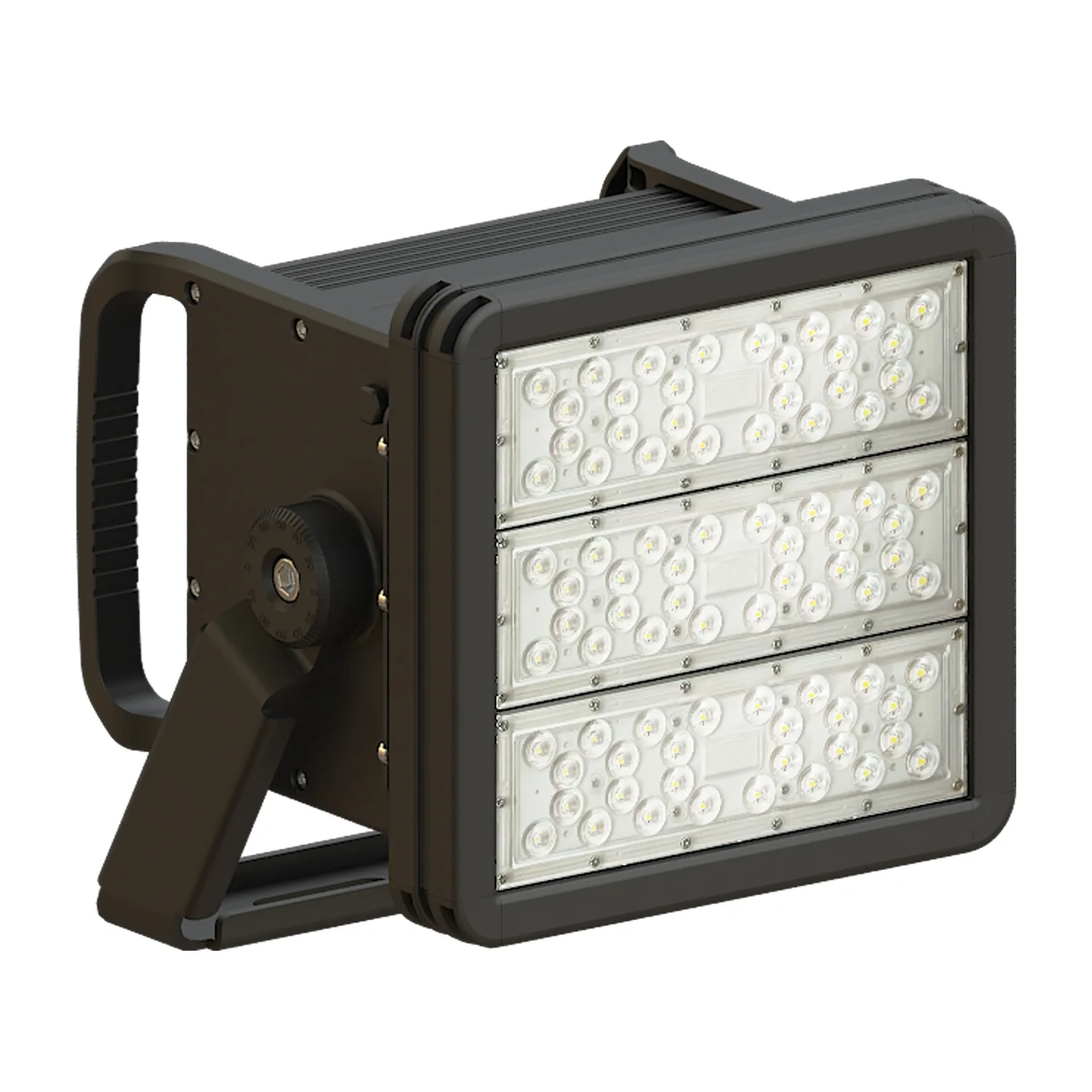

Solar Flood Light – Torch
High-power Solar Flood Light TORCH Series delivers >190 lm/W ultra-efficient lighting with large-capacity LiFePO4 battery and customizable solar system. Designed for large-area applications, it ensures reliable, maintenance-free operation with zero electricity cost.
Applications：
Certified Quality for Global Projects
Description
Features

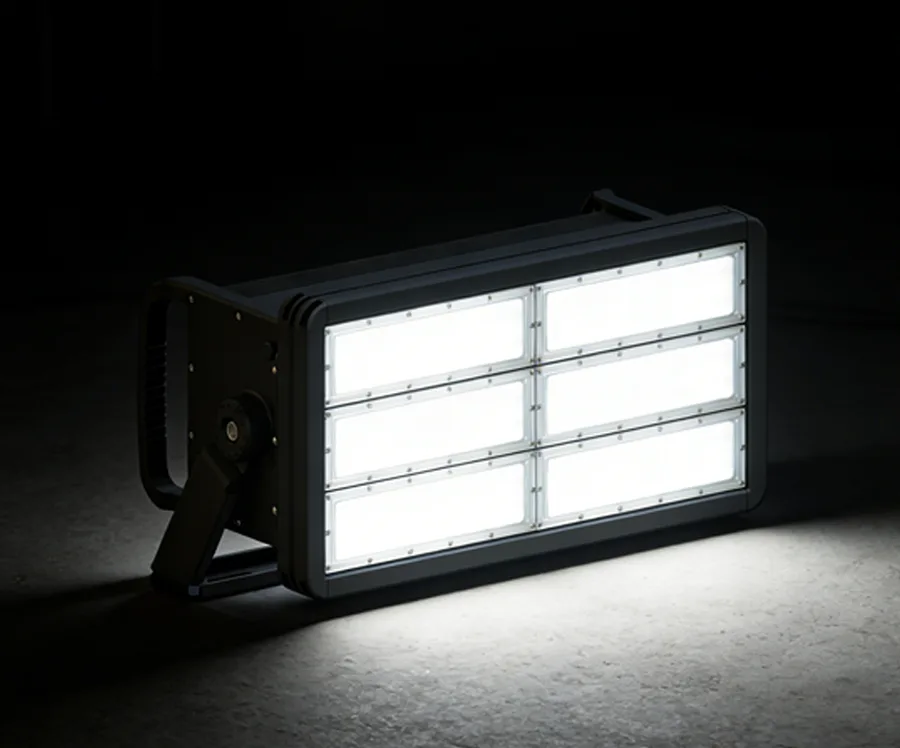

TORCH is a semi-integrated solar flood light for open-area lighting. Its separate solar panel connects to a luminaire that houses the LiFePO4 battery and solar controller. This layout allows the panel and light to serve different tasks: collecting solar energy and aiming light at the working area. Optional sensing and monitoring equipment must be specified for the selected configuration.
Semi-integrated Design
The solar controller and lithium battery are fully integrated inside the floodlight fixture, creating a compact semi-integrated design. This integration reduces external wiring, simplifies installation, improves waterproof performance, and enhances overall system reliability while lowering maintenance requirements.

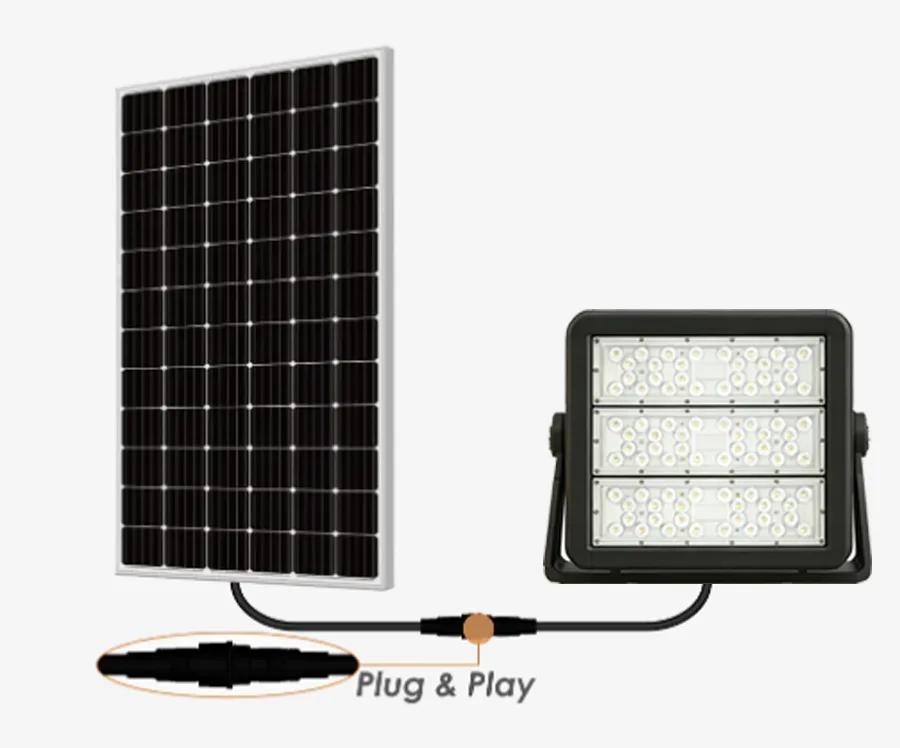

Plug & Play Fast Installation
LED lighting source, solar controller, and battery are all integrated inside the lamp fixture, once we plug the cable of the lamp fixture inside the solar panel cable, the system will start immediately
7070 Super Bright LED Chips
The TORCH series uses premium 7070 LED chips instead of 3030 or 5050 chips, offering higher brightness, better performance in high temperatures, and a longer lifespan.
10+ Years Lifespan Lithium Battery
The fixture is equipped with a LiFePO4 lithium battery, known for its impressive lifespan of over 10 years. This battery offers excellent high-temperature resistance and exceptional safety performance, ensuring reliable power delivery and enhanced durability. With its long service life, it reduces the need for frequent replacements and provides peace of mind, making it an ideal choice for both residential and commercial applications.
Operable Under Harsh Environment
IP66 for the whole TORCH system, which makes it adaptable for rainy areas. High-temperature resistant LiFePO4 battery with low current design significantly reduces internal heat when the system works. Among other things, the smart temperature adjustment function of the solar controller enables the system to operate normally under temperatures as high as 65°C.

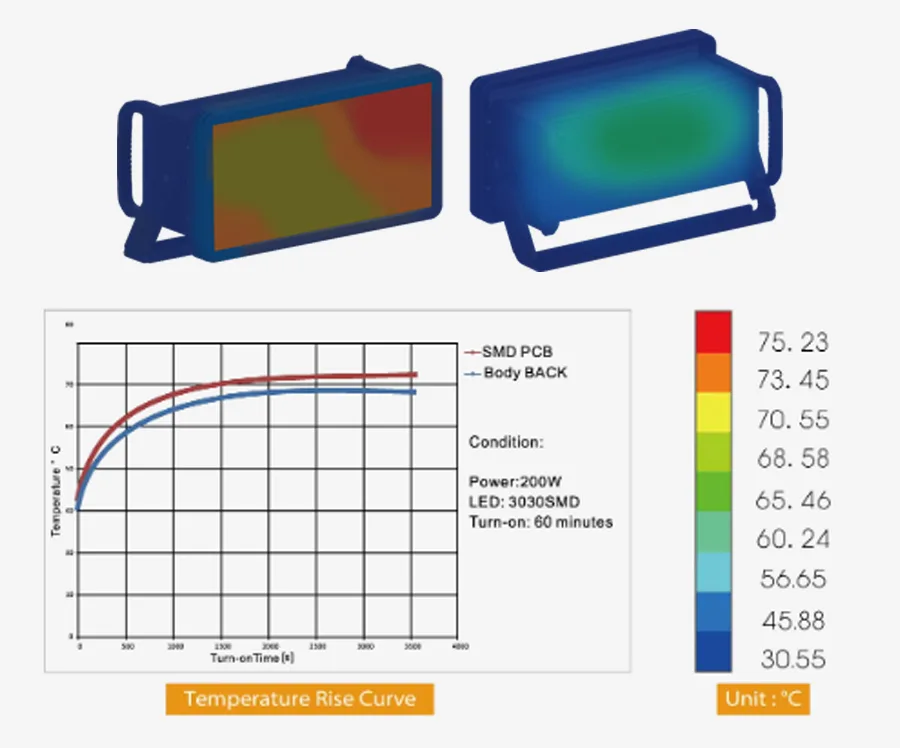

Thermal Management

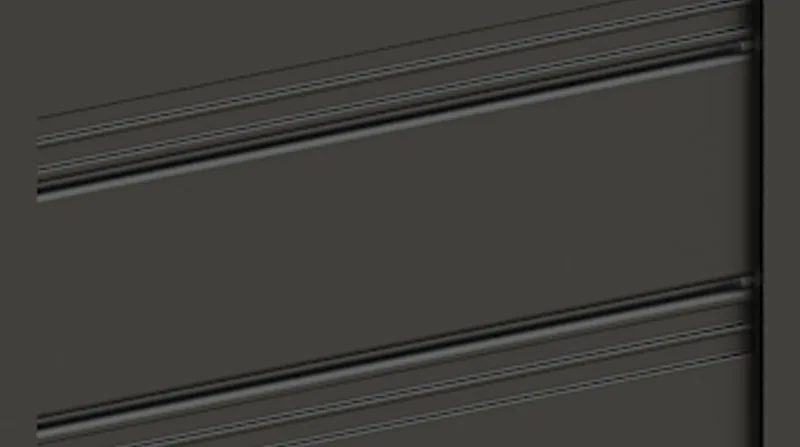

The structure is optimized with advanced Finite Element Analysis (FEA) technology, ensuring high performance and durability. It improves heat dissipation, extends lifespan, and maintains cost-efficiency. Using FEA, the design minimizes waste and enhances reliability for long-term applications in challenging environments.
Technical Specifications

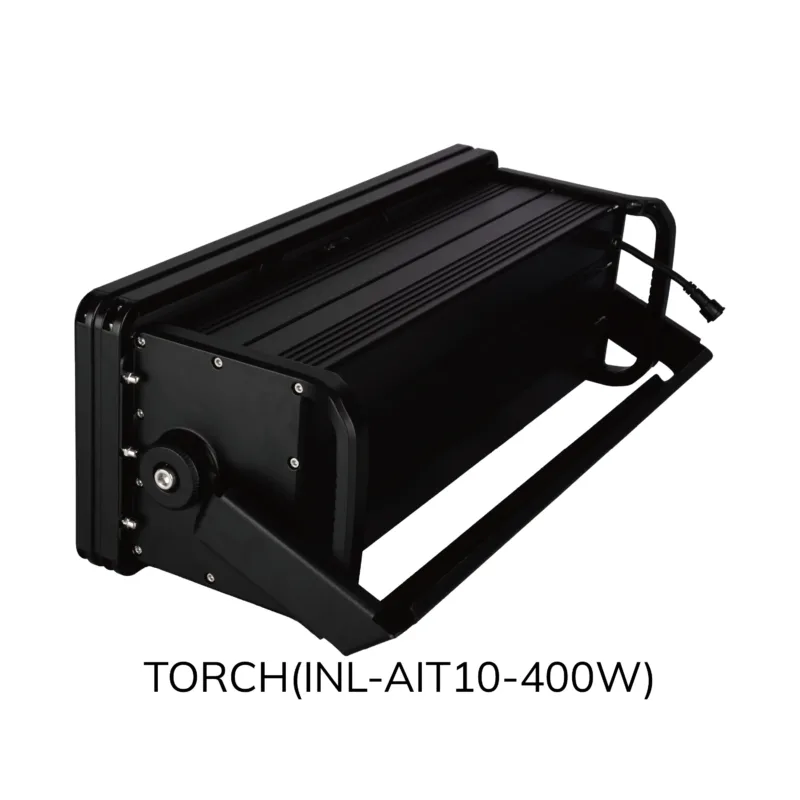

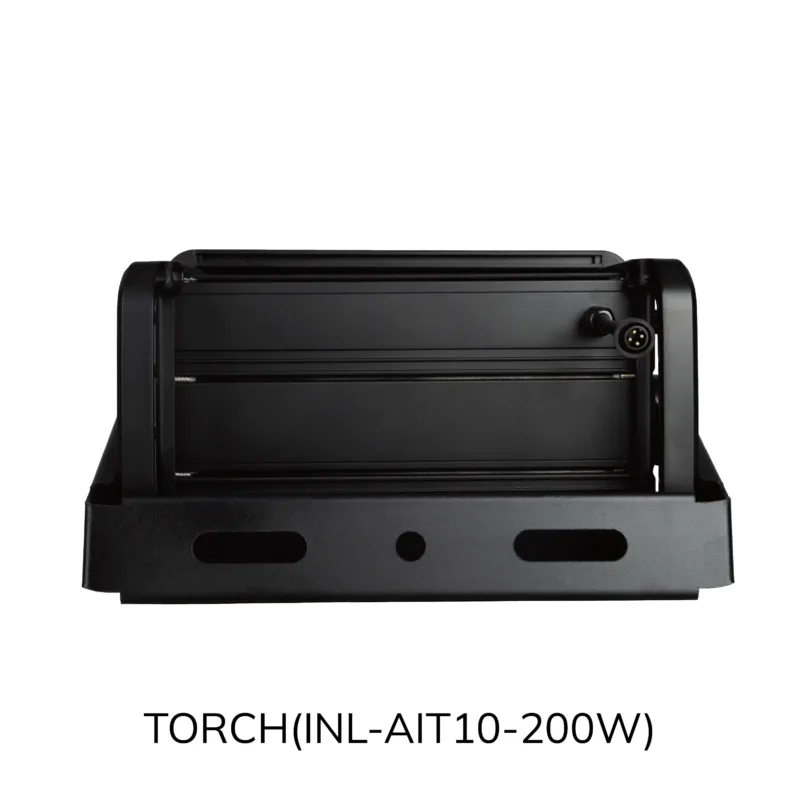

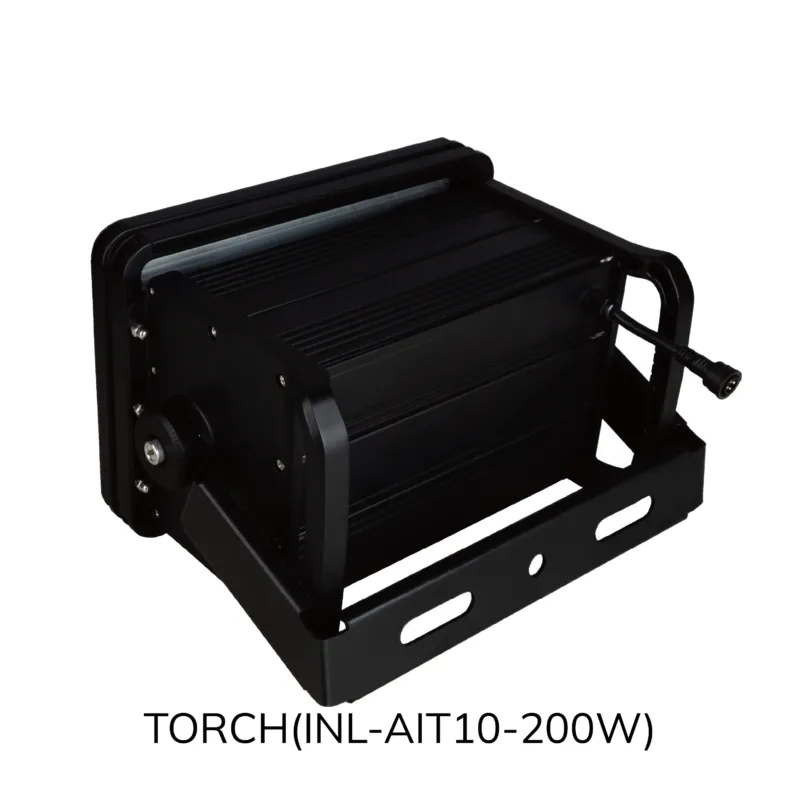

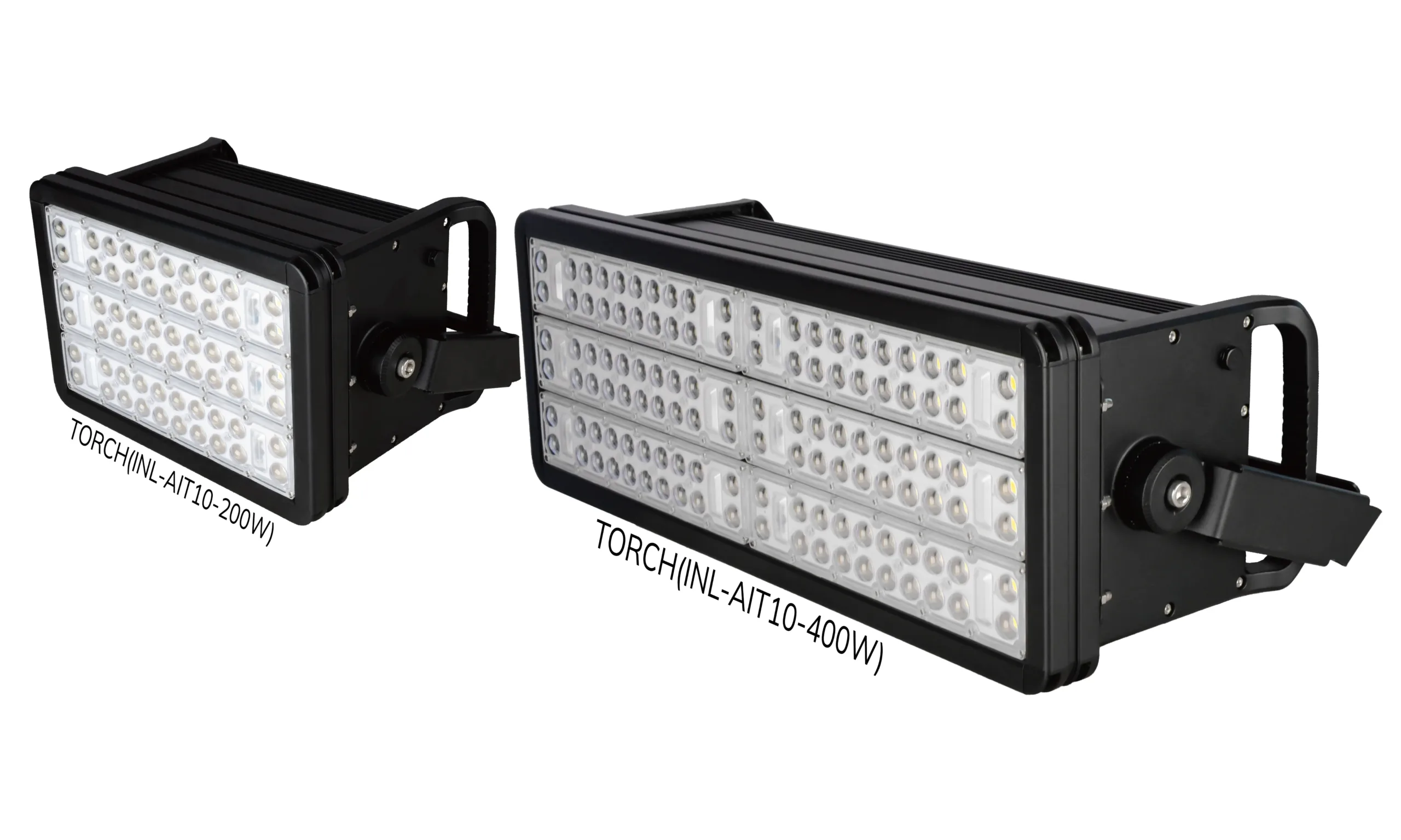

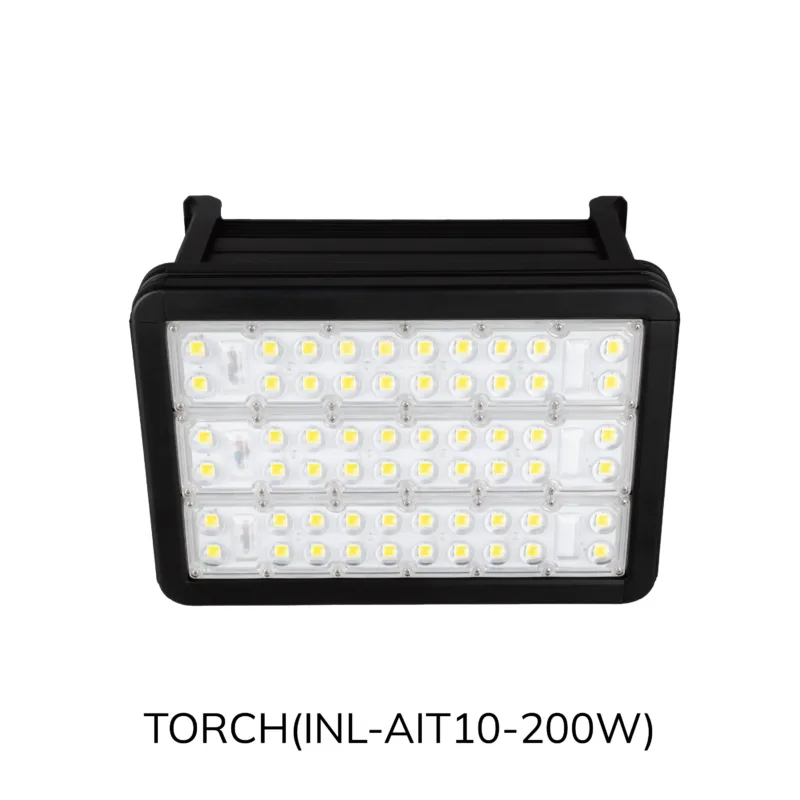

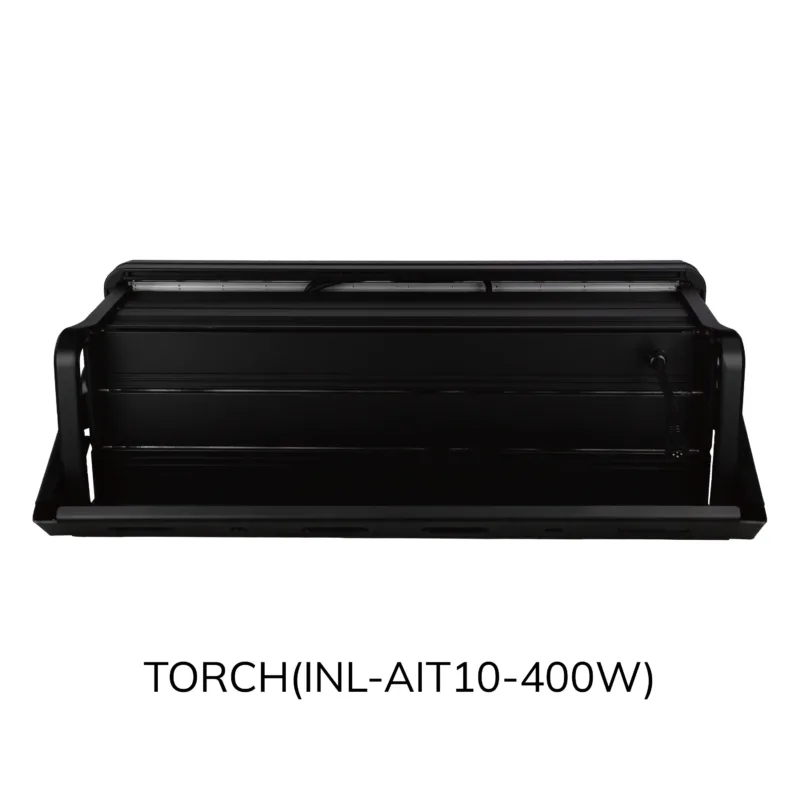

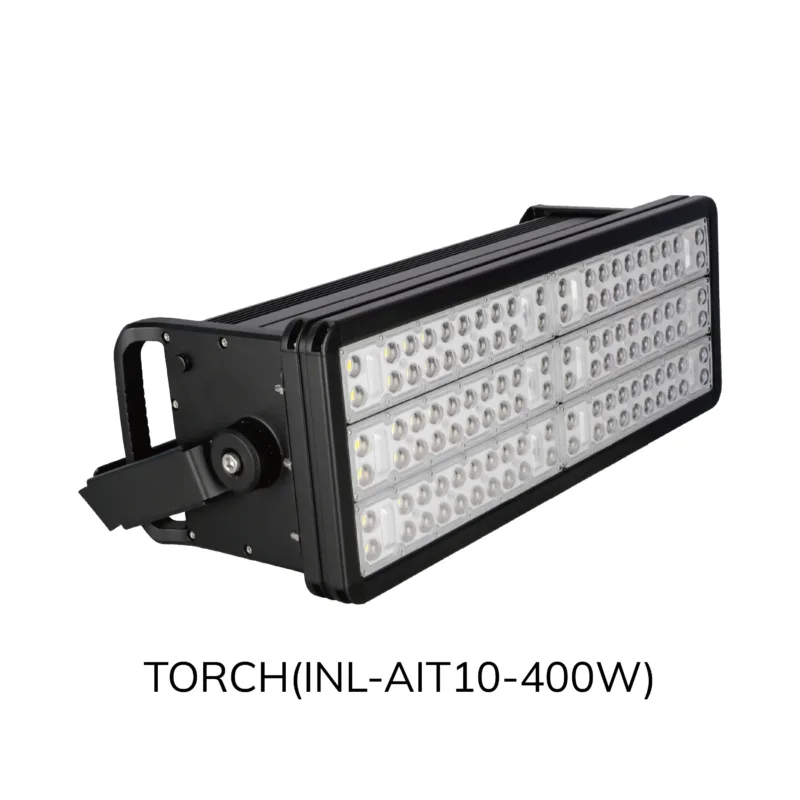

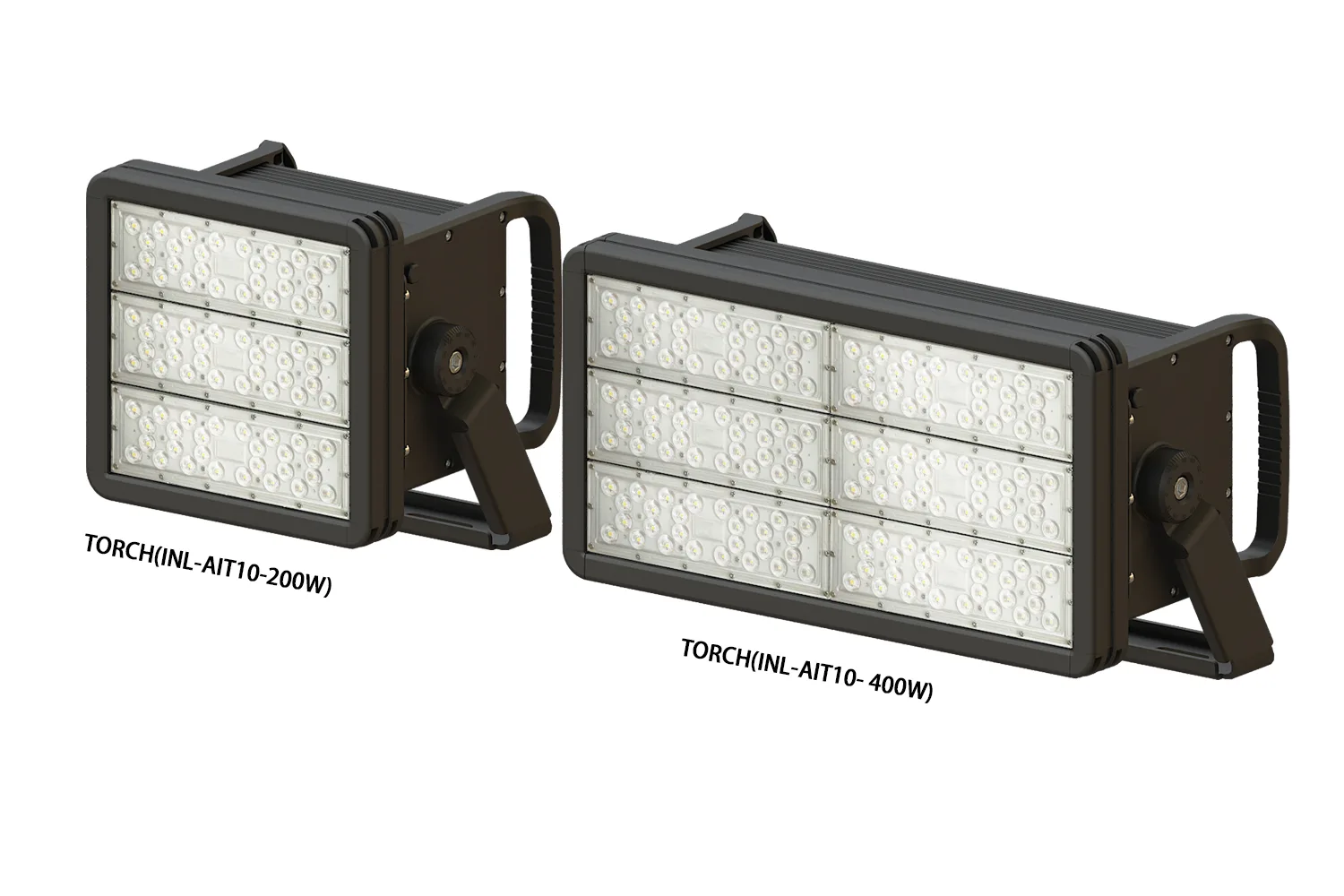

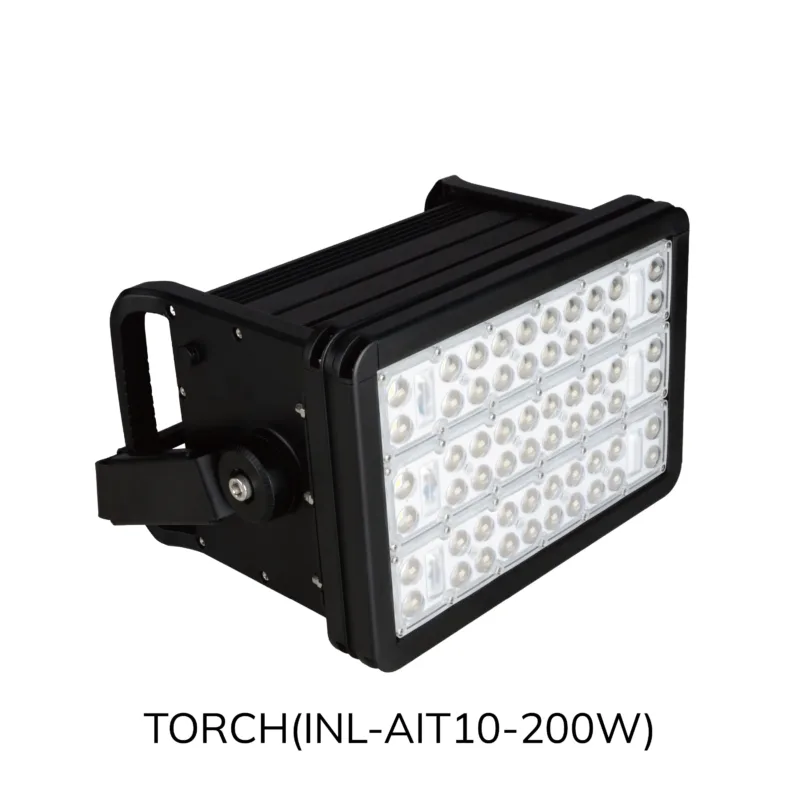

| Model Number | TORCH(INL-AIT10-200W) / TORCH(INL-AIT10-400W) | ||
| LED Lamp | LED Power | 50 – 200W | 250 – 400W |
| LED Chip | 7070 / 5050 super bright LEDs | ||
| Luminous Efficiency | >190 lm/W | ||
| Luminous Flux | 9,500-38,000 lumens | 47,500-76,000 lumens | |
| Color Temperature | 3,000K-6,000K | ||
| Lighting Distribution | 90°, 150° | ||
| Material | Die-cast Aluminum | ||
| Product | 400×275×310mm | 720×275×310mm | |
| Lithium Battery | Battery Type | Pouch-Type Lithium Iron Phosphate (LiFePO4) | |
| Rated Capacity | Maximum 1920Wh | Maximum 3840Wh | |
| BMS Unit | Provides multiple protections for battery | ||
| Battery Location | Built inside the lamp fixture | ||
| Solar Controller | Solar Controller Capacity | 10A-30A | |
| Solar Panel | Silicon Type | Mono-crystalline / Poly-crystalline | |
| Power | 150W-720W | ||
| Light Pole | Suggested Height | 6-15 meters | 15-30 meters |
| System | Working Temperature | -20°C-65°C | |
| Protection Levels | IP66 / IK09 | ||
| Wind Resistance | >120 km/h | ||
| Life Span |
LED Lamp: >20 years / Battery: >10 years / Solar Controller: >20 years / Solar Panel: >25 years / Light Pole: >30 years |
||
| Warranty | 3 / 5 years | ||

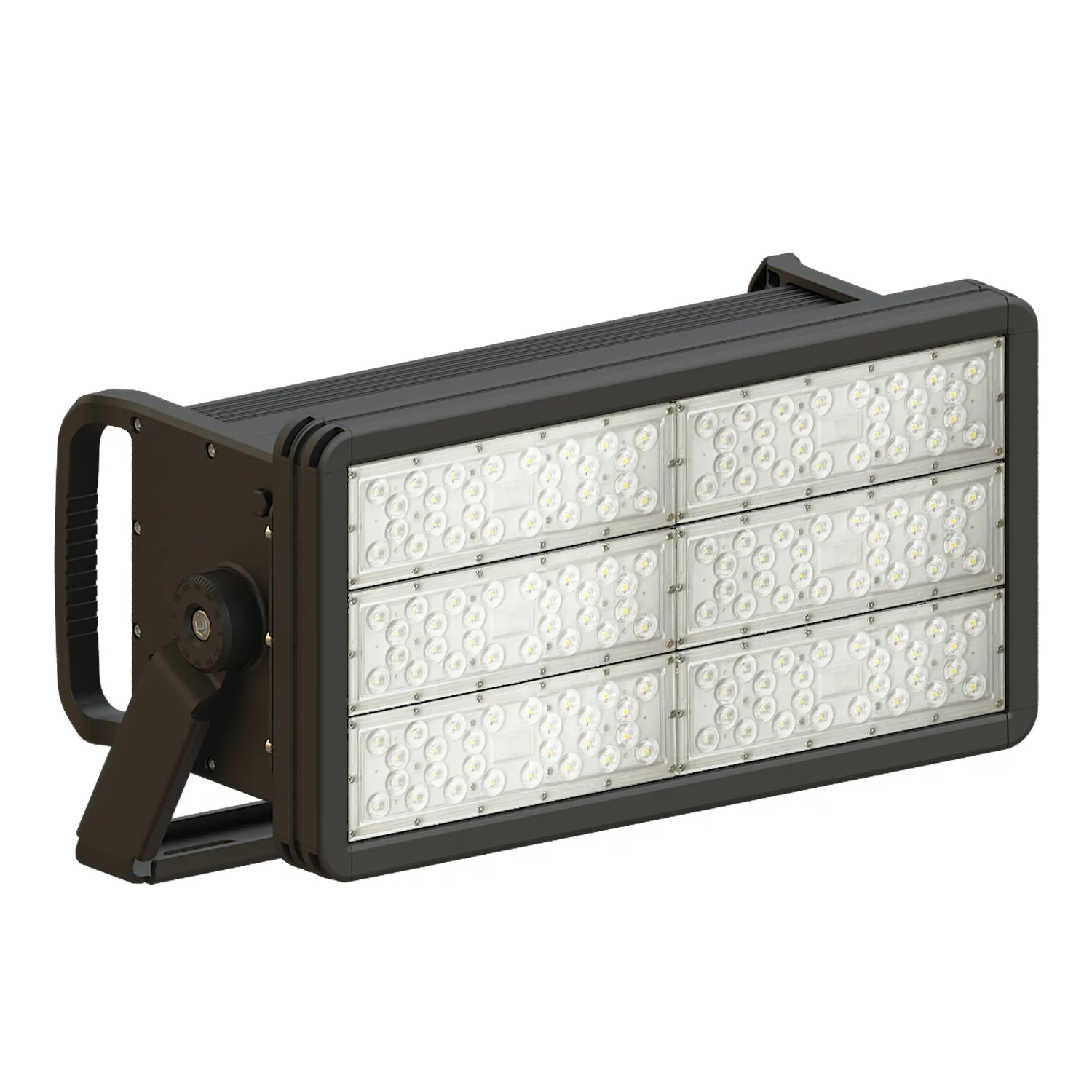

Interior Structure
See what’s inside the Solar Flood Light TORCH.
01
02
03
04
05
06

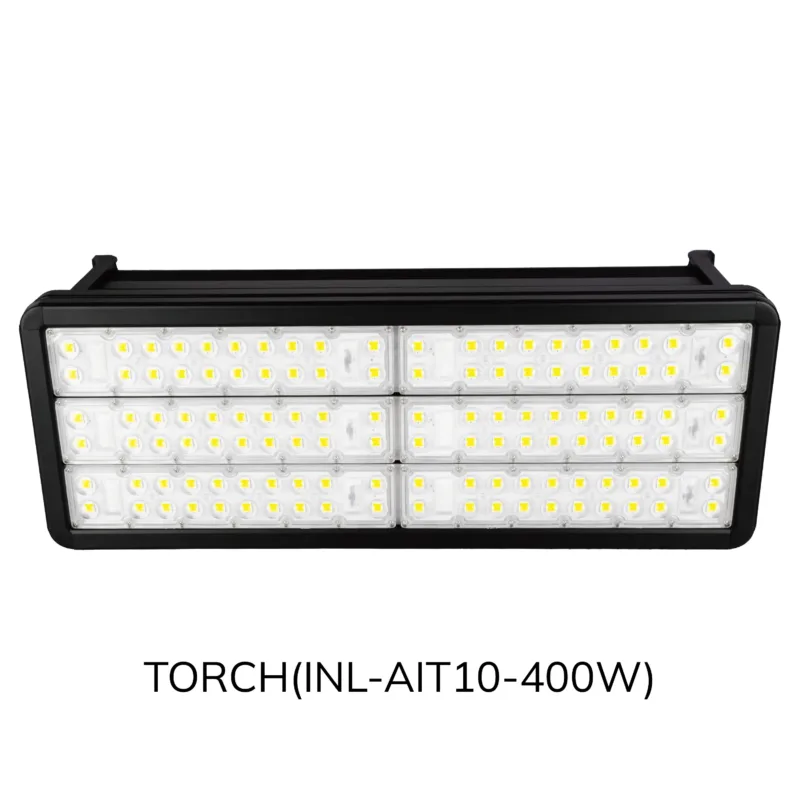

IP67 Extreme Bright LED Modules
Featuring advanced 7070LED chips with an impressive efficiency of up to 260lm/w, this lighting solution delivers extreme brightness and reliable performance. Designed with high-temperature resistance and low thermal resistance, it ensures a longer LED lifespan. The thick aluminum heat sink, combined with a fast heat dissipation module, guarantees optimal performance and durability, while the easy-maintenance design simplifies upkeep.

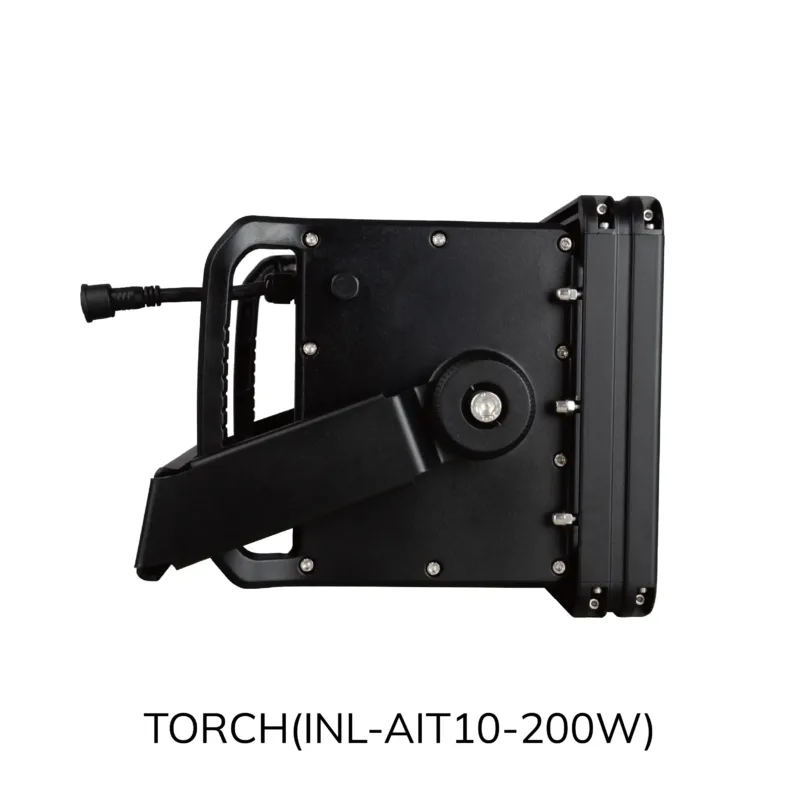

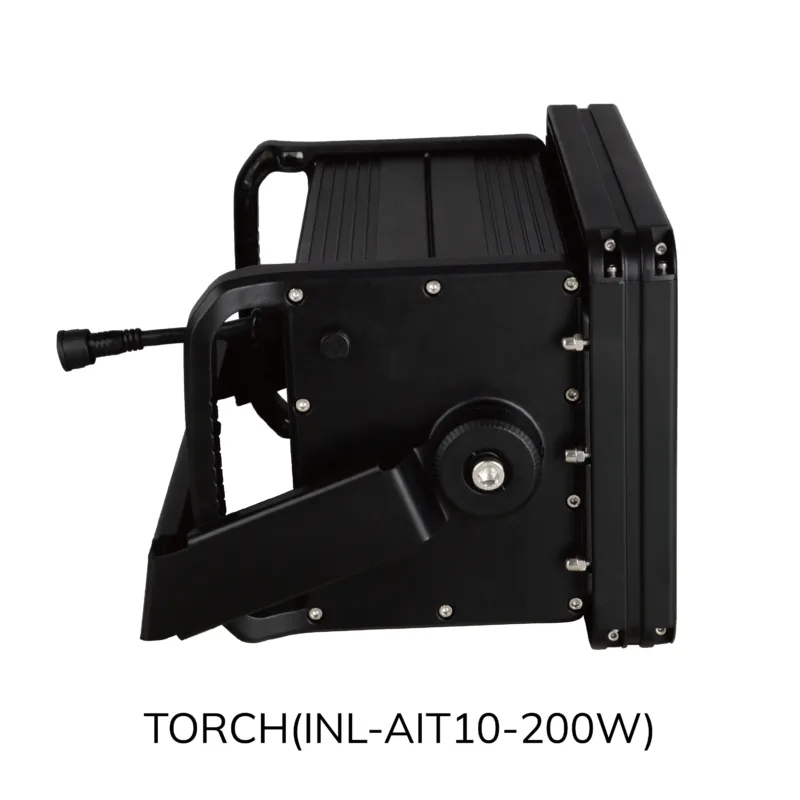

180° Tilt Adjustment
The floodlight features a 180° adjustable mounting bracket, allowing flexible angle positioning to achieve optimal light distribution for different installation scenarios. This design ensures precise beam direction, improves lighting efficiency.

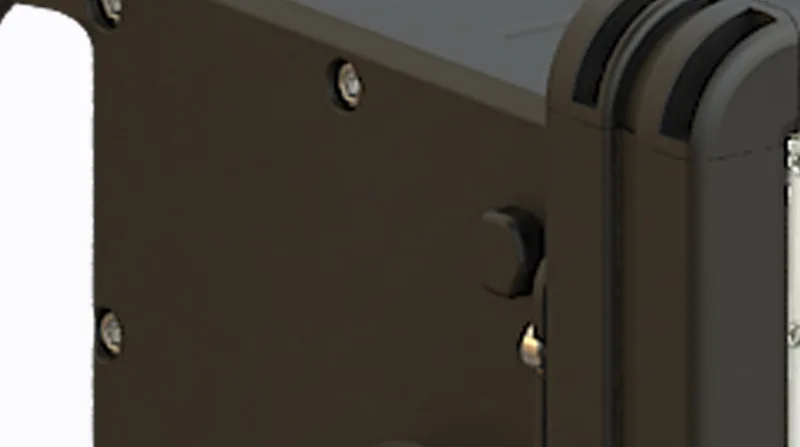

Breather Valve Design
Equipped with a professional breather valve, the fixture automatically balances internal and external pressure while preventing moisture buildup. This effectively reduces condensation, protects internal components, and ensures long-term waterproof reliability and stable performance in harsh outdoor environments.
Aluminum Alloy Lamp fixture
The lamp head is constructed from high-quality aluminum alloy, offering excellent heat dissipation to ensure stable LED performance and longer lifespan. Its corrosion-resistant and weatherproof properties make it ideal for harsh outdoor environments
LiFePO4 Lithium Battery
The LiFePO4 battery is housed inside the TORCH luminaire. It stores solar energy for night-time lighting; the solar controller manages charging and the operating profile. The specification table lists maximum battery capacities, not the pack included in every order. Match the configured battery to the LED load and nightly schedule before accepting a runtime claim.
Smart Solar Controller
The Smart Solar Controller offers high efficiency with a smart power-saving mode that optimizes energy use. It operates with constant current and an IP68 rating, ensuring reliable performance even in harsh environmental conditions. This advanced design significantly reduces the light failure rate, providing consistent brightness over time. Additionally, the controller includes multiple protection features that effectively safeguard the battery, enhancing its longevity and ensuring the system’s overall durability and safety.
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, Inlux Solar’s IOT Smart Monitoring System enables intelligent management of our solar flood light TORCH by PC, PAD and Mobile.

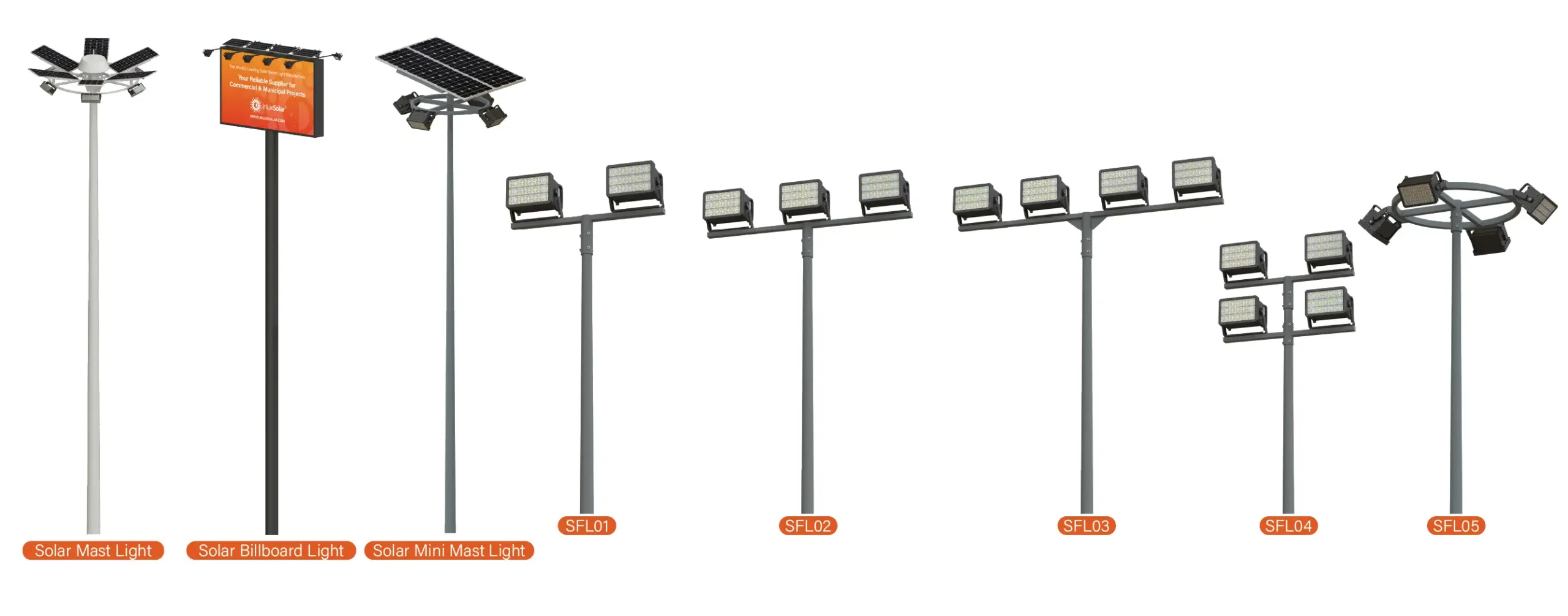

Compatible Pole Designs
Our flood light poles can be customized with various pole shapes and materials. Check out some of our pole designs, and feel free to share your ideas with us if you have additional customization needs.
Plan the TORCH Lighting Package
Send the area layout, mounting positions and heights, required lighting levels, nightly schedule, site location and shading information. Ask for a lighting layout and energy budget for the quoted TORCH configuration, not a selection based on wattage alone. Record the selected luminaire, PV module, battery, controller, mounting hardware and any communications equipment in the supply list. Confirm access for aiming, inspection and replacement before ordering.
Review commercial solar flood-light selection · Specify the flood-light pole. Send the TORCH project brief for a configuration and supply-scope review.
