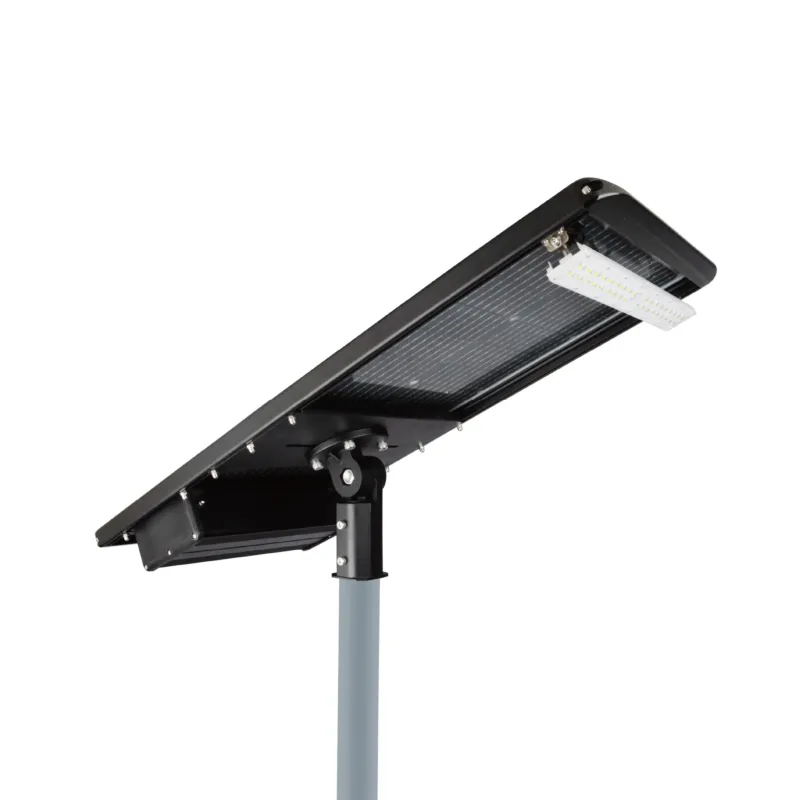

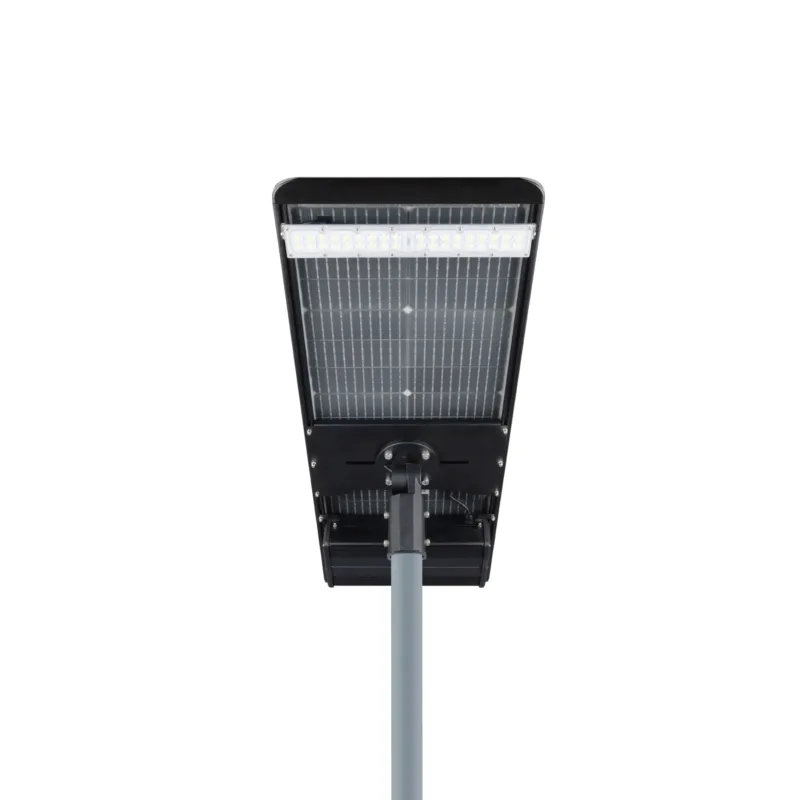

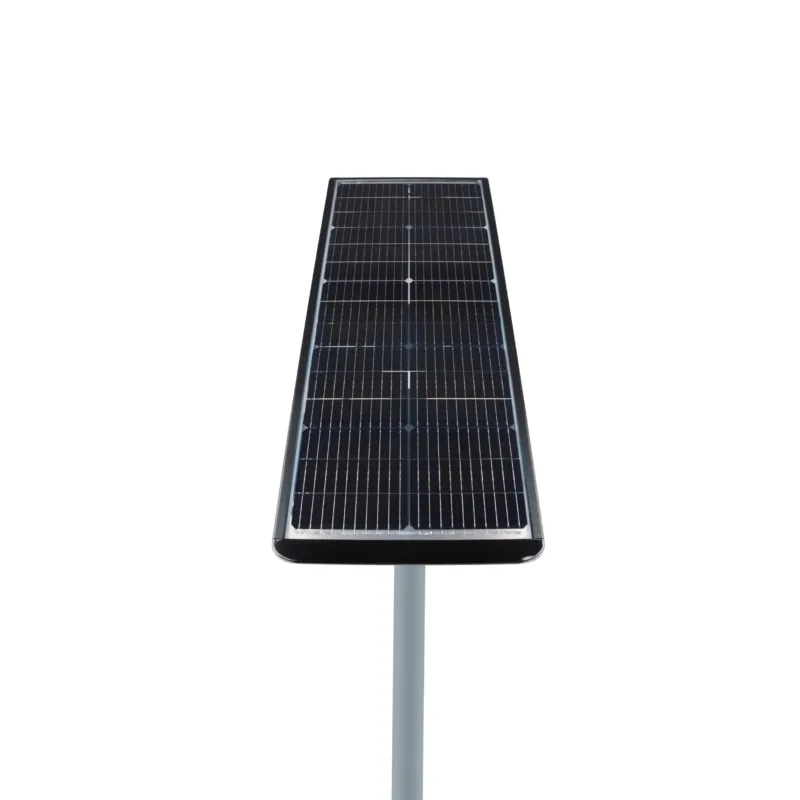

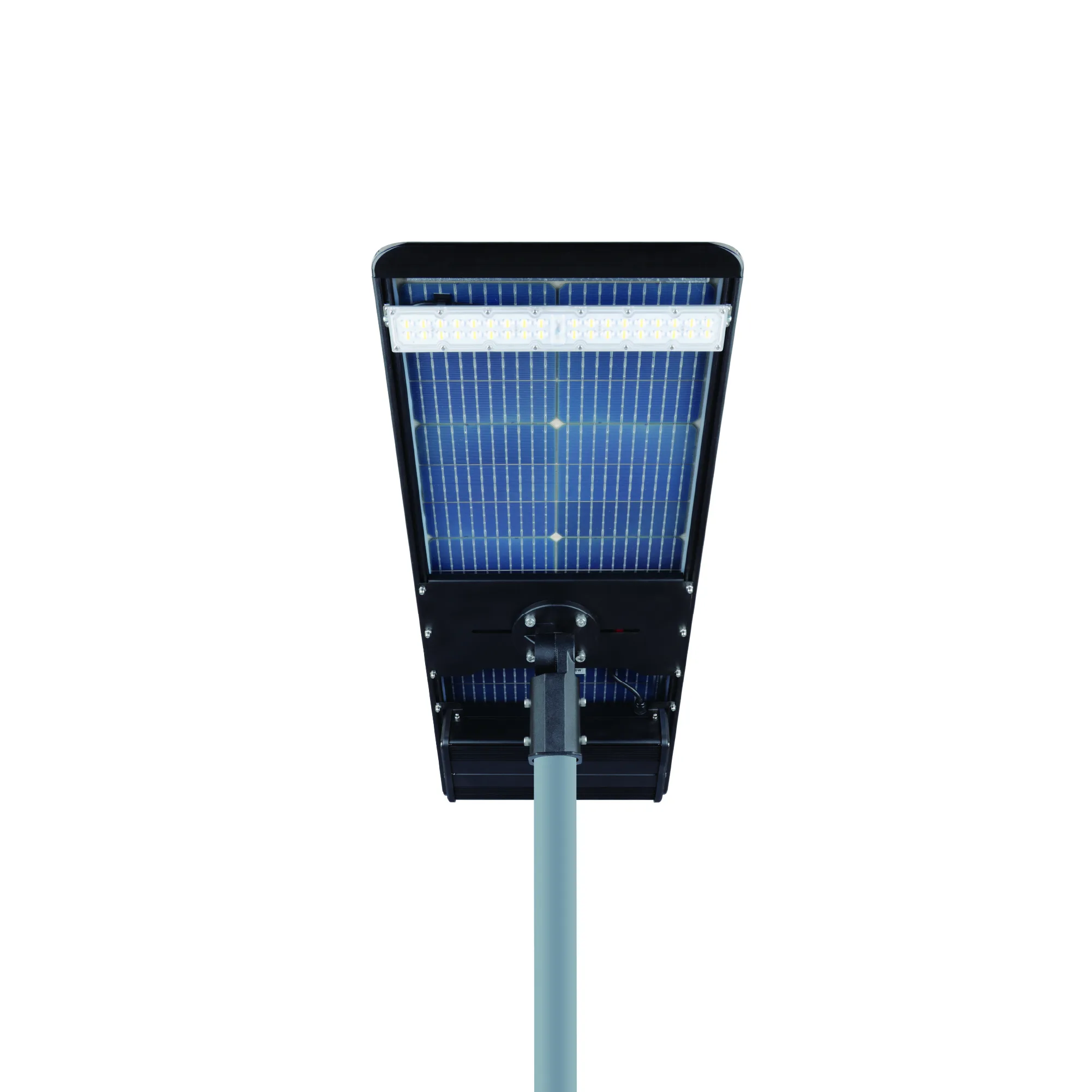

Cost-Optimized All-in-One Solar Street Light – GALAXY Series
The GALAXY Series is a cost-optimized all-in-one solar street light designed for rural roads, village streets, secondary roads, community projects, and practical off-grid roadway applications. It combines adjustable solar panels and lighting modules, ultra-bright 7070 LED technology, a long-life LiFePO4 battery, an intelligent MPPT controller, and efficient solar charging in one integrated system.

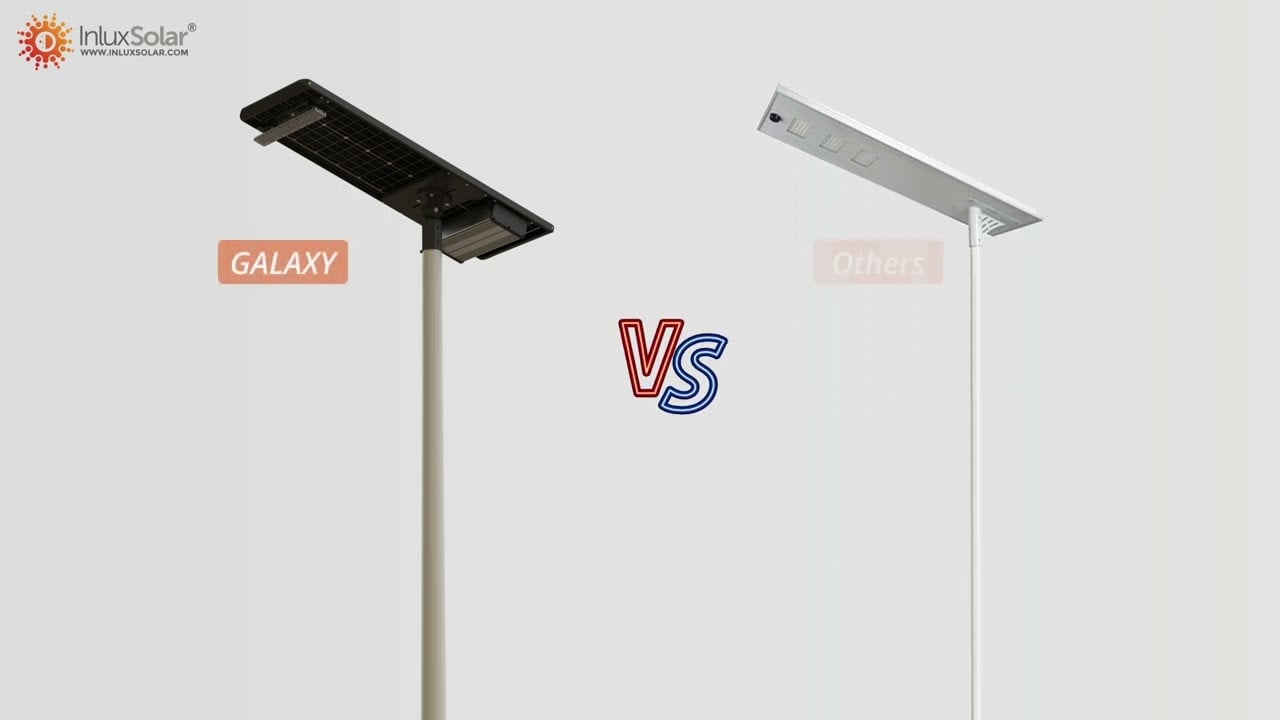

Compared with conventional fixed-angle all-in-one designs, GALAXY is built to improve charging performance, simplify installation, and deliver more flexible light distribution for real project conditions.
- Best for: rural roads, village streets, secondary roads, community roads, and cost-sensitive off-grid projects
- Key advantages: adjustable solar panel angle, adjustable LED module direction, LiFePO4 battery, optional motion sensor, optional smart monitoring
- Project support: request datasheets, IES/LDT files, layout guidance, and RFQ support
Applications：
Certified Quality for Global Projects
Description
Core Technologies of GALAXY Integrated Solar Light
The GALAXY Series is designed for medium-small LED output applications where practical cost control, stable autonomy, and easy deployment are priorities. Its adjustable lighting source and adjustable solar panel holder help the system balance accurate road illumination with stronger solar charging performance.
GALAXY integrates ultra-bright 7070 LED lighting modules, a durable LiFePO4 lithium battery, an intelligent MPPT solar controller, and a high-efficiency solar panel into one compact structure. Optional upgrades can include a self-cleaning system, motion sensor, CCTV camera, and intelligent monitoring system depending on project needs.
For a different output class, compare GALAXY with SIRIUS. Use the all-in-one solar street light series comparison to check application fit before requesting a configuration-specific datasheet.

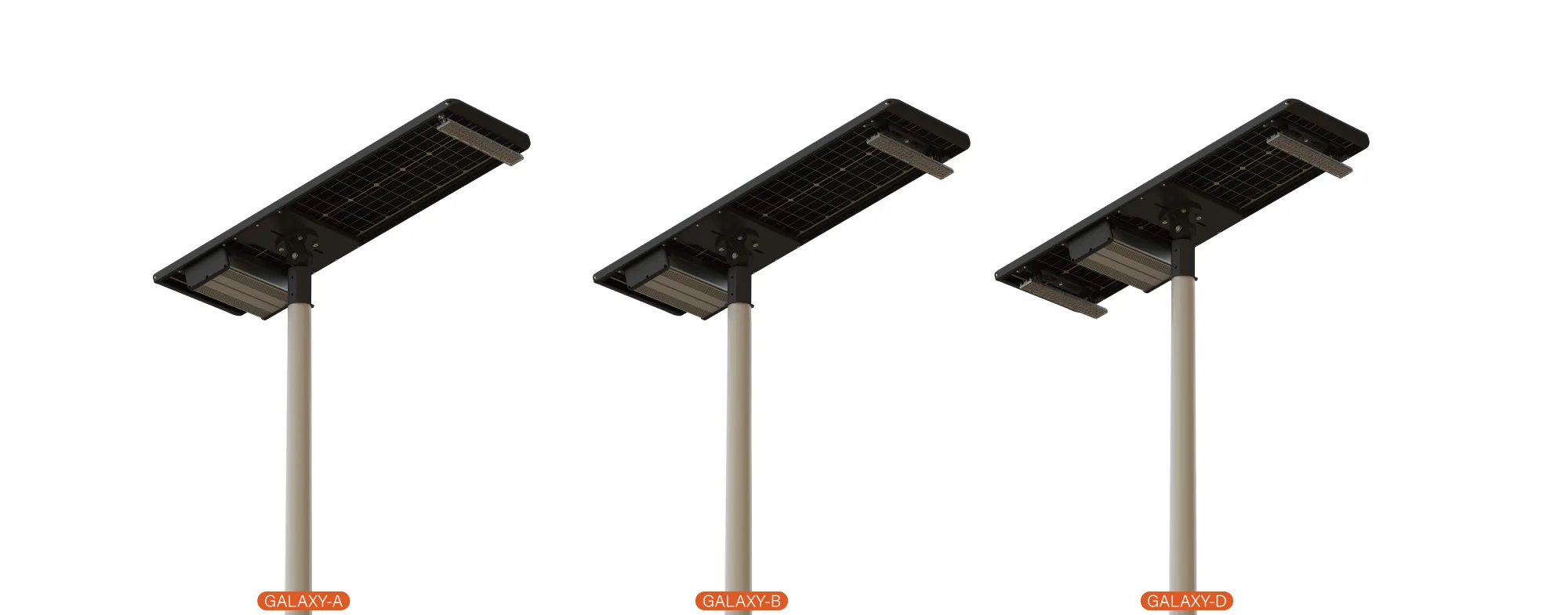

Choose the Right All-In-One Solar Street Light GALAXY Model for Your Project

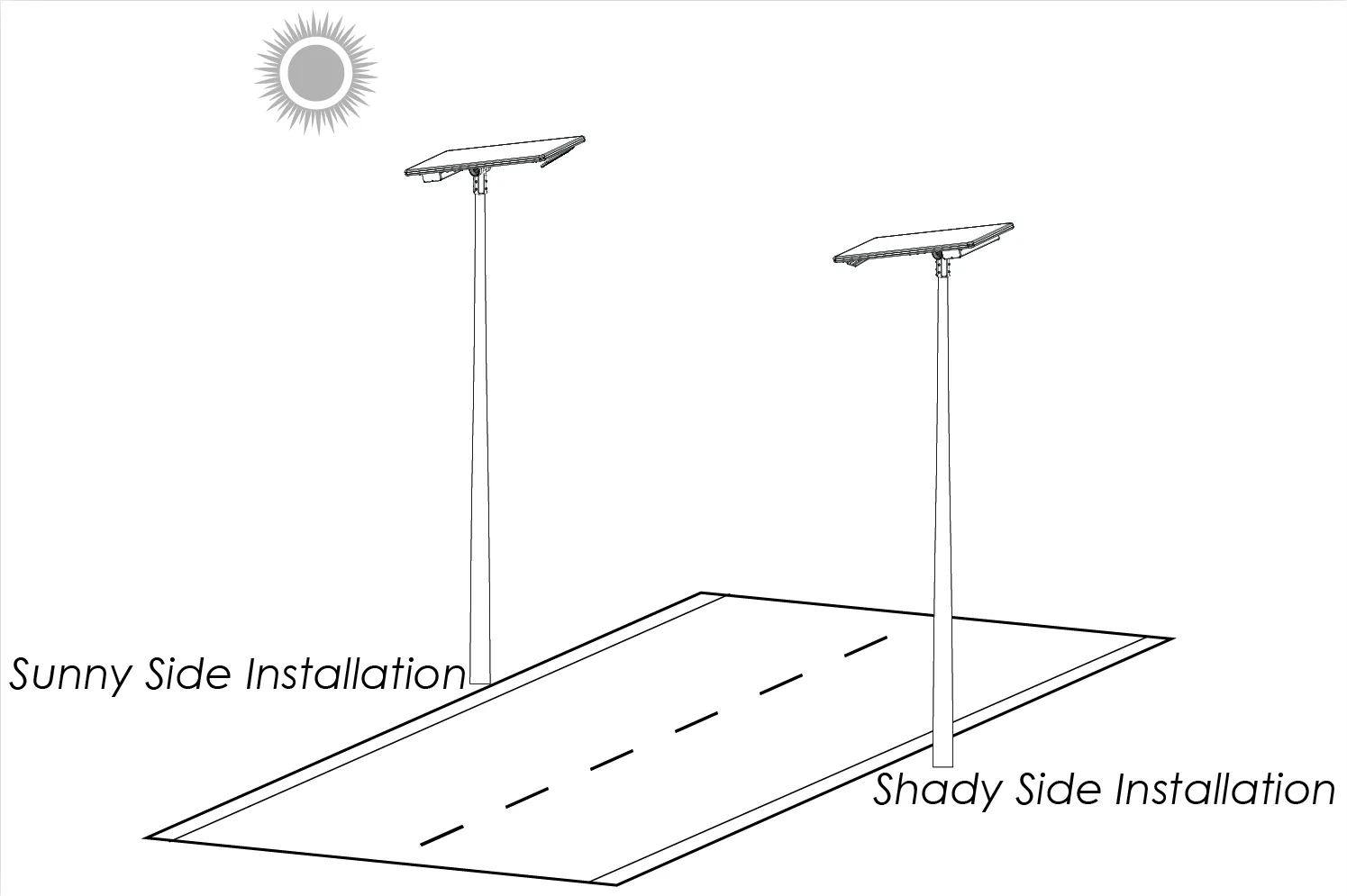

Choose GALAXY-A, GALAXY-B or GALAXY-D by the lighting layout and adjustment requirements shown below. For a pole set back from the road, check whether the LED direction can cover the target area while the panel remains correctly oriented. Confirm the selected version against the site layout.
| Model Name | GALAXY-A | GALAXY-B | GALAXY-D |
| Lighting Source | Single Side | Single Side | Dual Side |
| Lighting Source horizontal adjustable | × | √ | √ |
| Lighting Source Vertical adjustable | √ | √ | √ |
| Application scenarios | Regions within ±10° latitude | All regions | All regions requiring two-way lighting |
Technical Specifications
| Model Number | INL-AIO6 | ||||||
| Luminous Flux & Power | 2280 lm (20W) | 3800 lm (30W) | 4750 lm (40W) | 5700 lm (50W) | 6270 lm (60W) | 7220 lm (70W) | 8500 lm (80W) |
| Color Temperature | 3000K – 6500K | ||||||
| Lighting Distribution | Type II | ||||||
| Solar Panel | 50W / 18V | 60W / 18V | 70W / 18V | 80W / 18V | 90W / 18V | 100W / 18V | 120W / 18V |
| LiFePO4 Lithium Battery | 10AH / 12.8V | 20AH / 12.8V | 20AH / 12.8V | 30AH / 12.8V | 30AH / 12.8V | 40AH / 12.8V | 40AH / 12.8V |
| Solar Controller | 10A – 20A, MPPT Type | ||||||
| Motion Sensor | Optional | ||||||
| Working Mode | Up to 15 hours per night (Automatic Time Control Mode / Motion Sensor Control Mode) | ||||||
| Rainy Days Backup | Up to 7 days | ||||||
| Suggested Mounting Height | 4-5Meters | 5Meters | 5-6Meters | 6Meters | 6-7Meters | 7Meters | 8Meters |
| Lamp Fixture Material | Extruded aluminum, anti-corrosion | ||||||
| Working Temperature | -20 – 65°C | ||||||
| Protection Levels | IP66 / IK09 | ||||||
| Wind Resistance | >120km/h | ||||||
| Life Span | >10 years | ||||||
Why GALAXY Works for Cost-Sensitive Road Projects

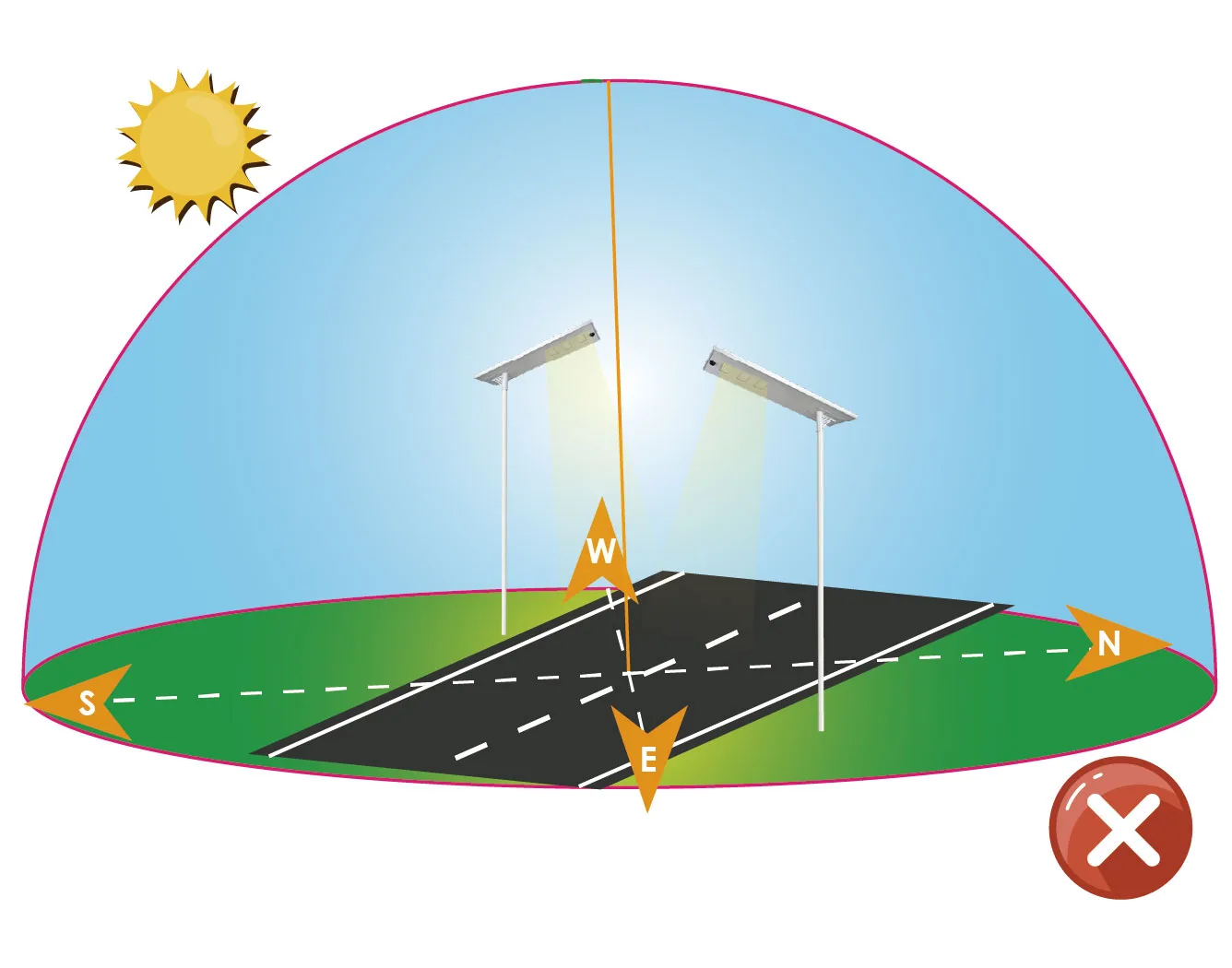

GALAXY is designed to solve a common problem in all-in-one solar street lighting: fixed structures often limit charging efficiency and reduce flexibility in real road conditions. The GALAXY Series improves both solar harvesting and light positioning through a more adjustable architecture.
40% More Annual Solar Power Generation
By combining a solar panel orientation selected for the project location, a transparent solar panel, and an MPPT controller, GALAXY is designed to generate more solar power annually than conventional fixed-angle all-in-one systems, helping improve winter performance and high-latitude reliability.

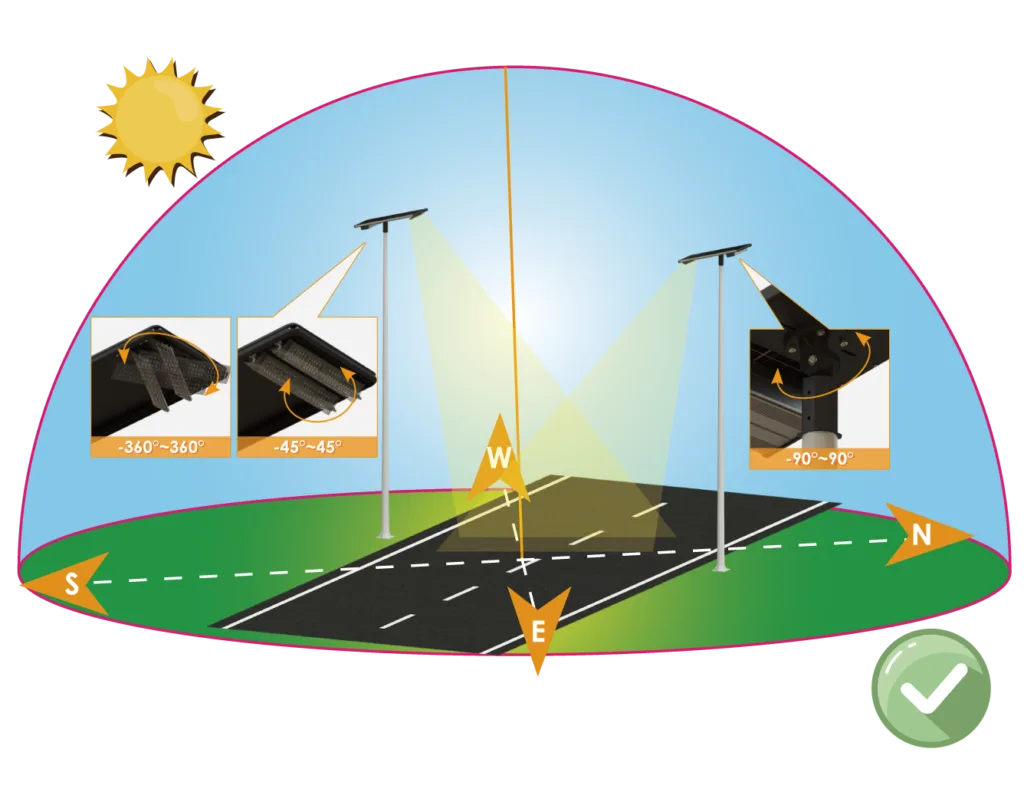

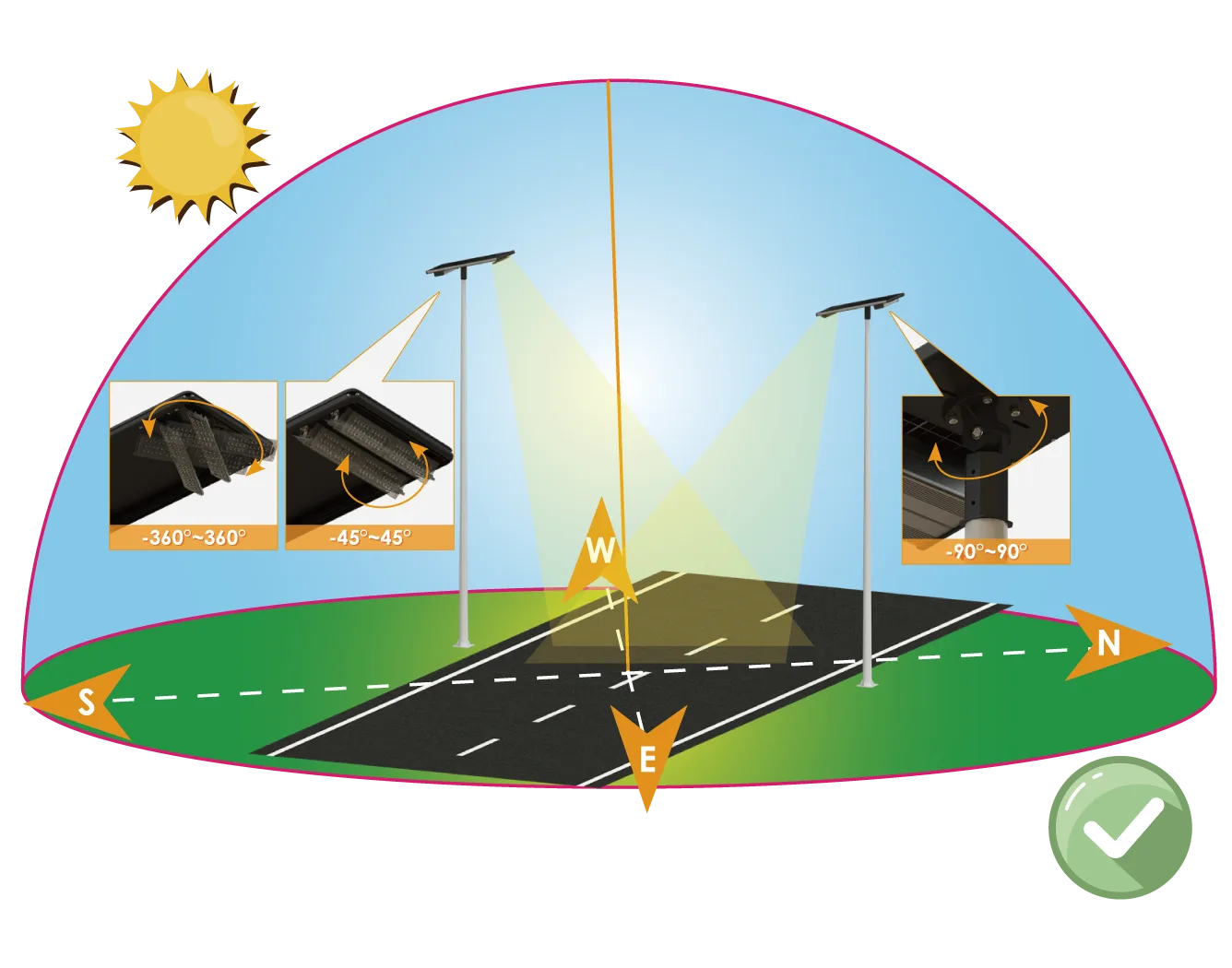

Lighting with Better Solar Orientation
The LED module and lamp holder can be adjusted vertically and horizontally so the solar panel can face the best charging direction while the lighting source continues to target the roadway more precisely.

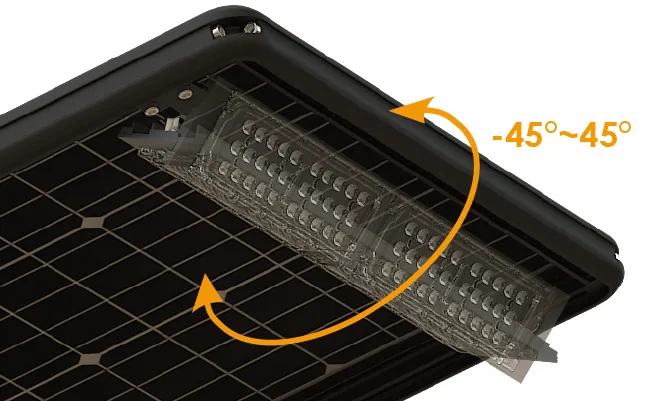

LED vertical adjustable
The lamp can be adjusted vertically within a range of -45° to 45°, allowing more accurate directional lighting and better adaptation to different installation conditions.

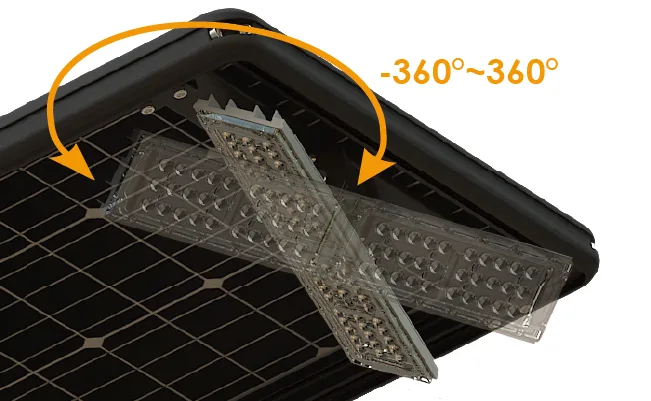

LED horizontal adjustable
The lamp can be adjusted horizontally within a range of -360° to 360°, making it easier to fine-tune light positioning for road edges, intersections, side roads, and other practical site layouts.

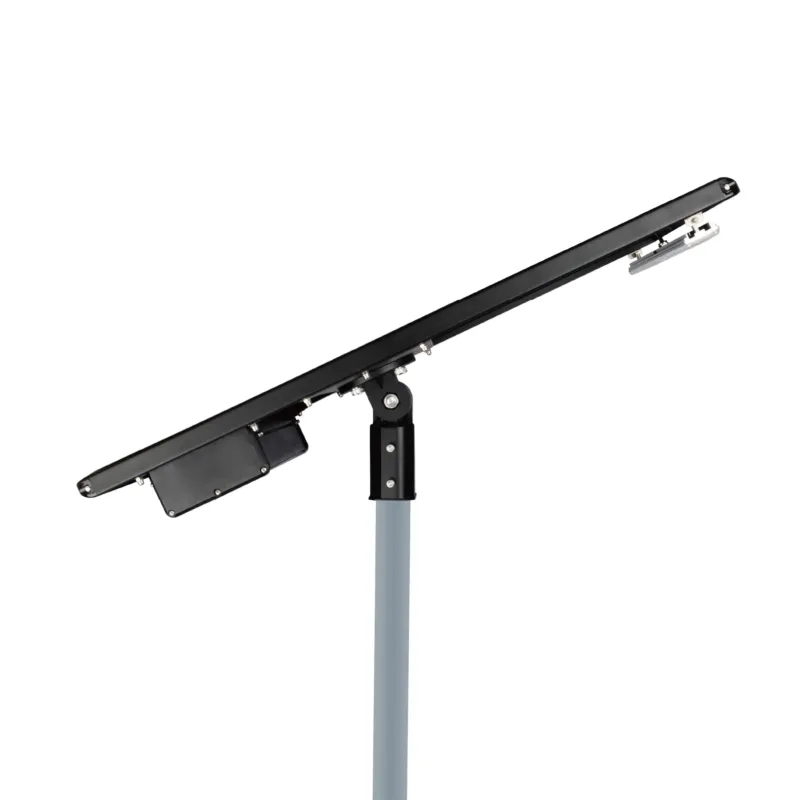

Adjustable Lamp Holder
The adjustable lamp holder supports ±45° vertical adjustment, enabling the solar panel angle to be tuned for local latitude and seasonal sunlight conditions, which helps increase charging efficiency.
7070 Super Bright LED Chips
GALAXY uses high-efficiency 7070 LED technology to deliver practical roadway illumination for medium-small output applications while keeping the system cost-effective and deployment-friendly.

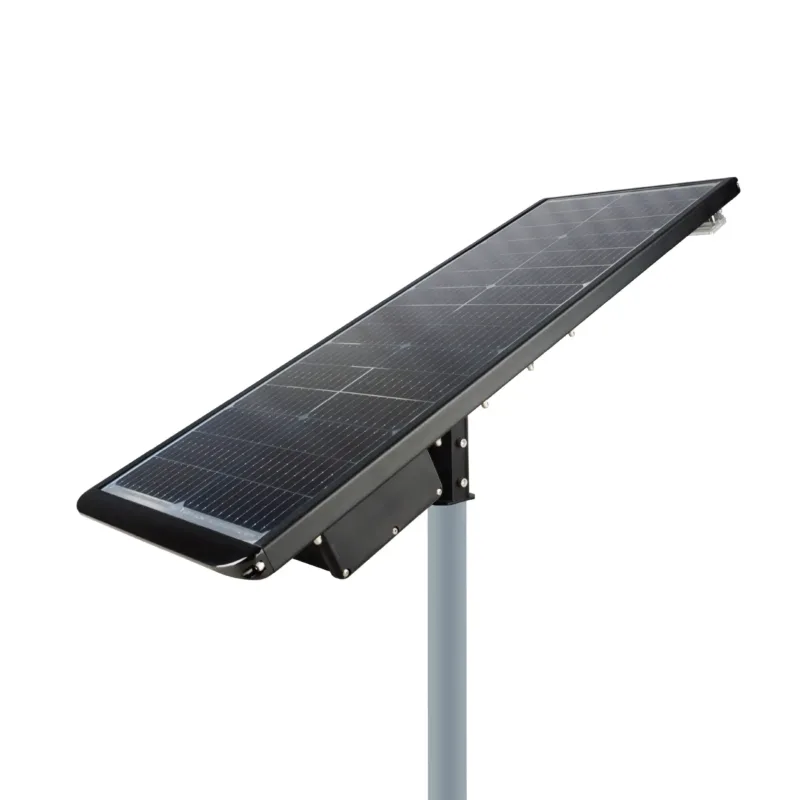

Transparent Solar Panel
The transparent solar panel captures sunlight on both sides to improve charging efficiency and support more stable energy harvesting under changing outdoor conditions.

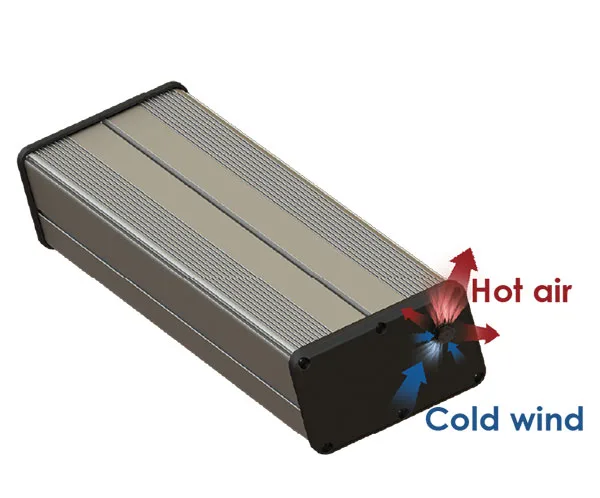

Breathable IP66 Battery Box
A one-way ventilation design helps release heat while blocking rainwater and dust, improving thermal management and protecting the battery system in outdoor operation.

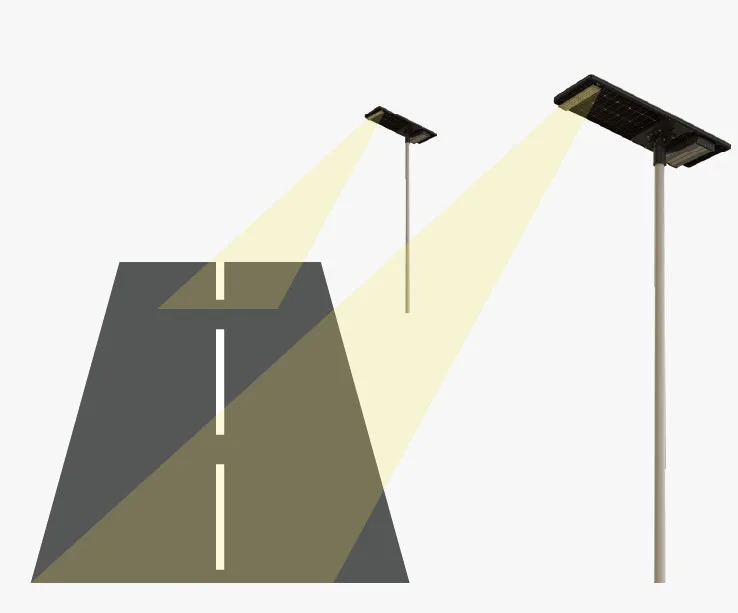

Cover Wider Road
The adjustable lighting source can be tuned to illuminate a wider roadway area, making GALAXY more flexible for village roads, secondary roads, and other variable-width road applications.
Innovative Two-way Street Lighting Solution
The GALAXY-D model is suitable for projects that require two-way lighting layouts, helping improve road coverage in specific roadway and traffic conditions.

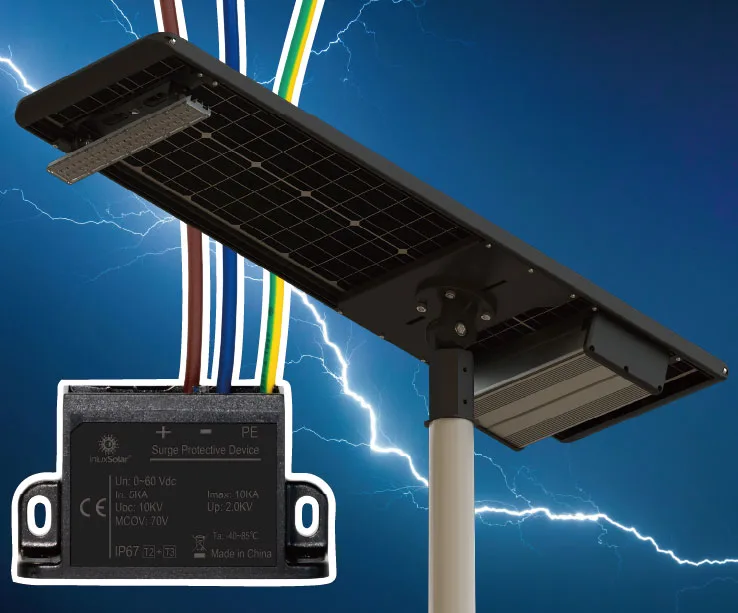

10kV Thunder Protection with SPD Device
With an added SPD module, GALAXY can support stronger lightning protection for projects deployed in storm-prone regions or infrastructure environments with higher surge risk.

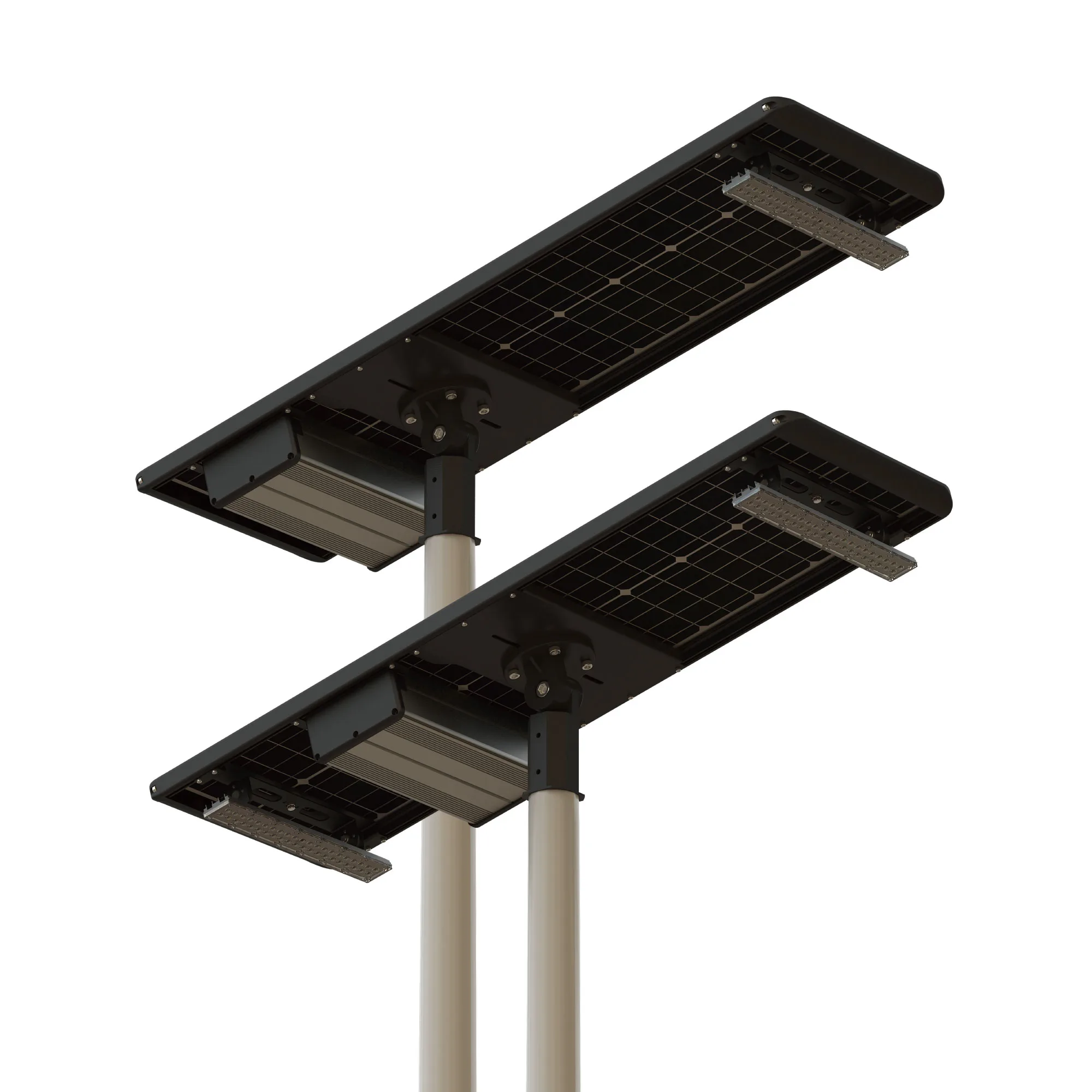

Interior Structure
See what is inside the GALAXY all-in-one solar street light and how each major component supports long-term performance.
01
02
03
04
05
06
IP67 Super Bright LED Module
The LED module uses top-brand 7070 chips, high-efficiency optics, and a strong polycarbonate lens, paired with an aluminum heat sink for fast heat dissipation and long operating life.
Adjustable LED Module Bracket
The bracket system supports precise vertical and horizontal adjustment so the light can be aimed accurately while the panel angle is optimized for charging.
Transparent High Efficiency Solar Panel
The transparent monocrystalline panel supports dual-sided light capture and helps improve power generation performance for year-round operation.
Smart MPPT Solar Controller
The MPPT controller supports smart lighting modes, multiple protection functions, intelligent temperature control, and stable outdoor operation in wet or dusty environments.
LiFePO4 Lithium Battery
The system uses a LiFePO4 battery with a dedicated BMS to improve safety, lifecycle stability, and high-temperature performance for demanding outdoor projects.

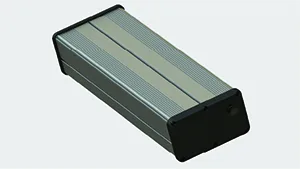

IP66 Waterproof Aluminum Battery Box
The battery box uses durable anti-corrosion aluminum construction and integrated heat-dissipation design to protect internal components and improve long-term reliability.
Optional Features & Add-ons
01
Motion Sensor
The motion sensor automatically reduces brightness by 30% when inactivity is detected, saving energy. Upon detection of presence, brightness returns to 100%, ensuring optimal visibility while minimizing distractions. This feature strikes a balance between power efficiency and user comfort.
02
Anti-theft Components
Anti-theft screws and spikes are designed to secure solar panels against theft. The unique tamper-resistant design makes removal nearly impossible without specialized tools, while anti-climbing spikes prevent unauthorized access, ensuring durability and security in exposed environments.
03
Anti-bird Spike
Anti-bird spikes offer a humane and effective solution to prevent birds from perching on solar panels, rooftops, and fences. Made from durable stainless steel or plastic, these sharp, angled prongs discourage birds without harming them. Easy to install, these spikes provide a low-maintenance way to protect solar panels from bird-related damage, ensuring optimal performance.
04
Camera
The system integrates a solar-powered CCTV camera, offering a sustainable and eco-friendly surveillance solution. These cameras operate independently of traditional power sources, ensuring continuous monitoring without external electricity. With waterproof housing and motion detection features, they enhance security for solar panels while reducing energy costs.
IoT Smart Monitoring System
GALAXY can be equipped with an intelligent monitoring system for projects that require remote management, fault visibility, and operational reporting.

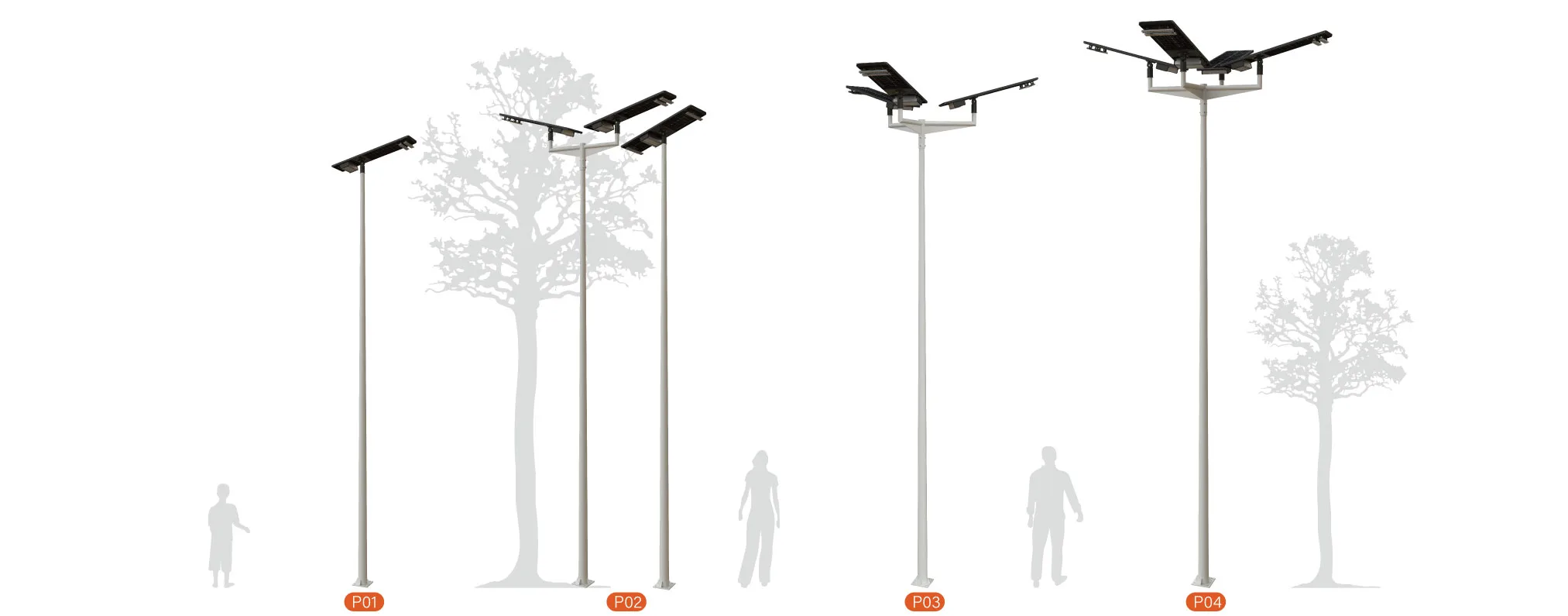

Compatible Pole Designs
GALAXY can be matched with different pole styles for roadway, village, community, and project-specific lighting layouts. If you already have a preferred pole concept, feel free to share your design idea or tender requirement with our team.

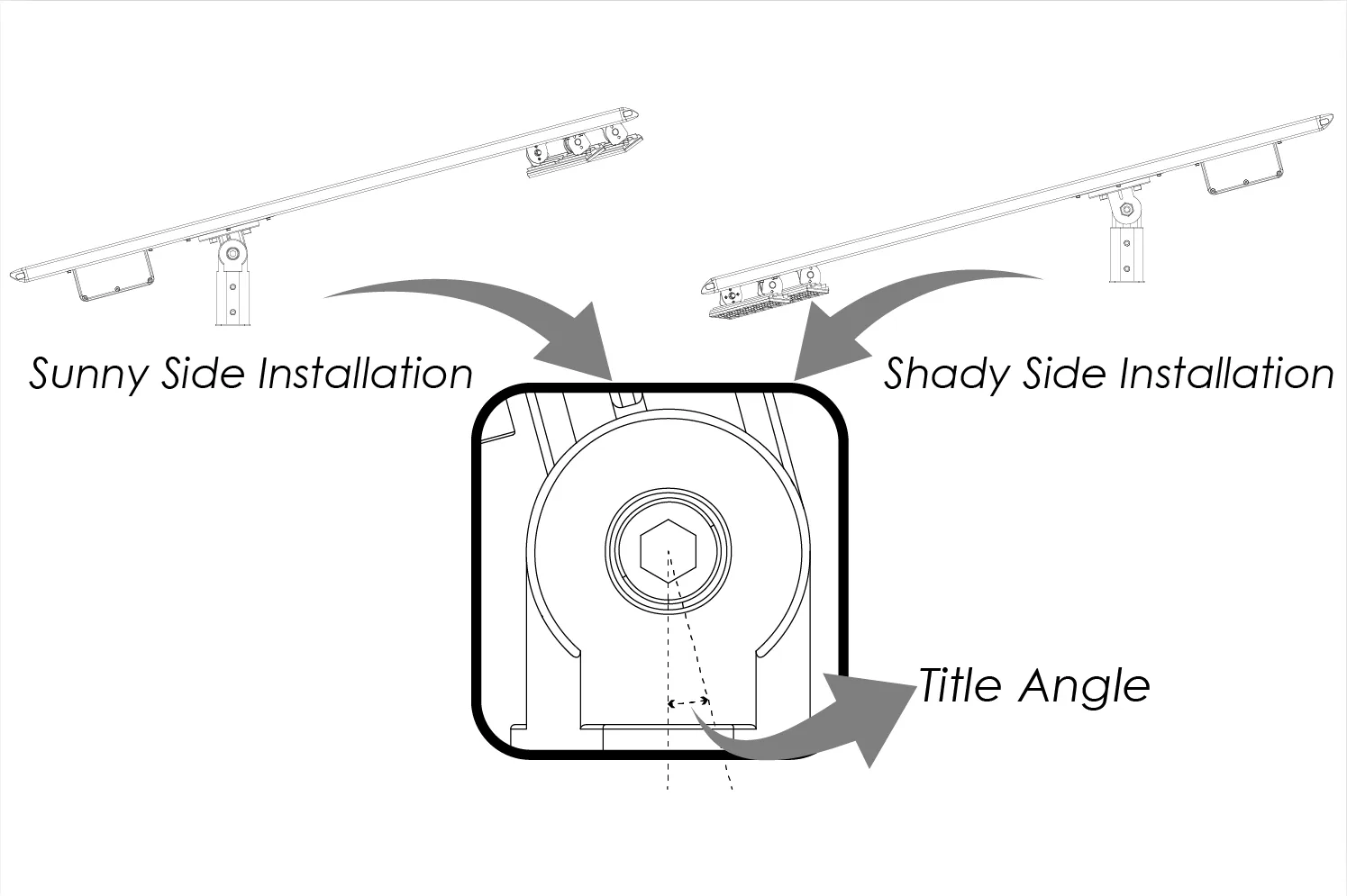

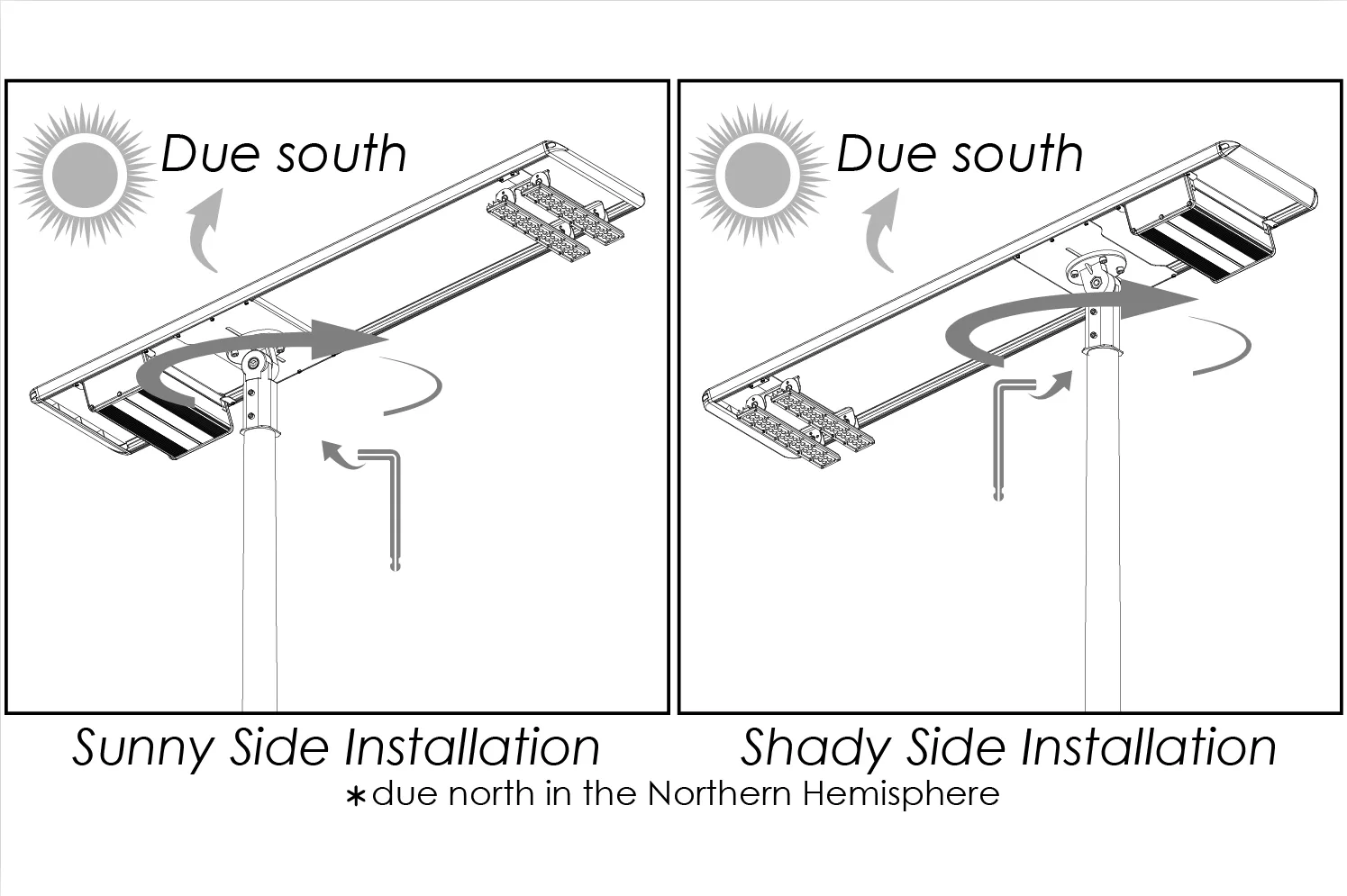

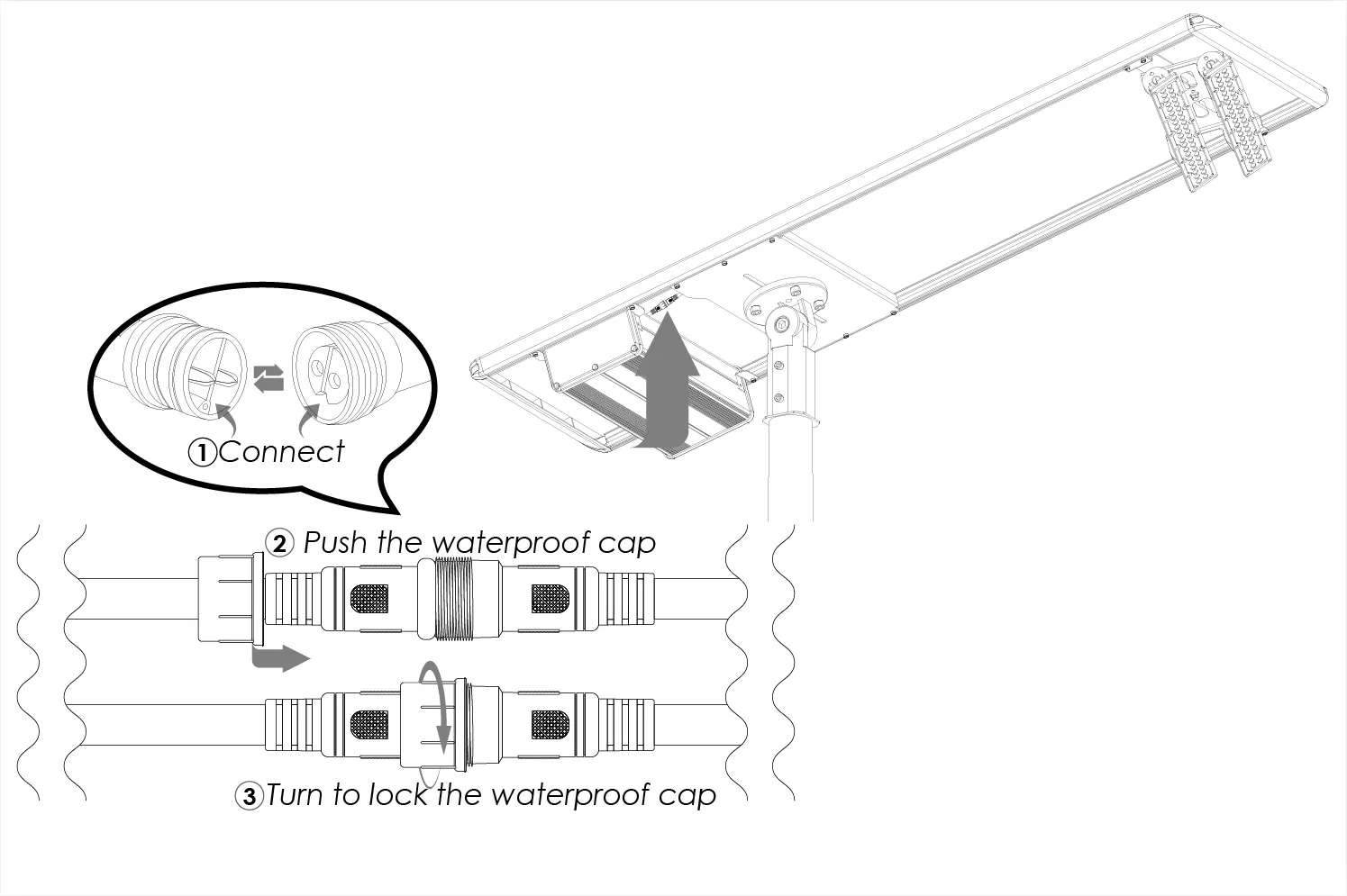

Installation Methods
Installation instructions video
1.Prepare the foundation and verify the installation position.
2.Install the light pole and ensure structural stability.
3.Install the GALAXY solar lamp onto the pole bracket securely.

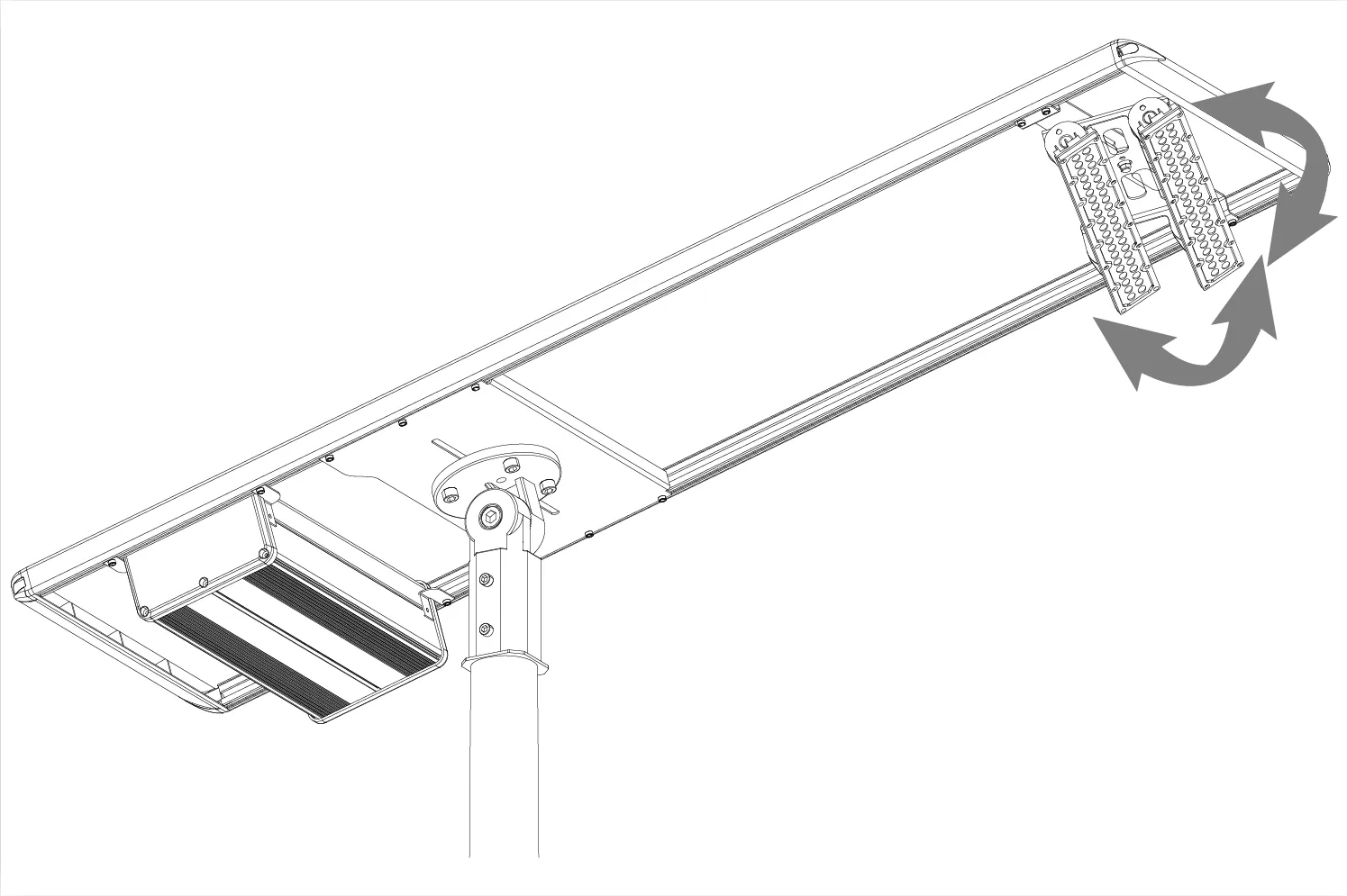

4.Adjust the solar panel angle and LED module direction according to the site layout.
5.Complete commissioning and verify charging, lighting mode, and motion-sensor settings if included.
For project orders, we can also support installation guidance and configuration recommendations based on pole height, road width, and spacing.
Proven in Real Projects
GALAXY / INL-AIO6: Traceable Project Records
For a product-specific reference, follow the published model identification—not just a similar-looking fixture in a portfolio image. These two project pages identify GALAXY or AIO6 and link back to this product.

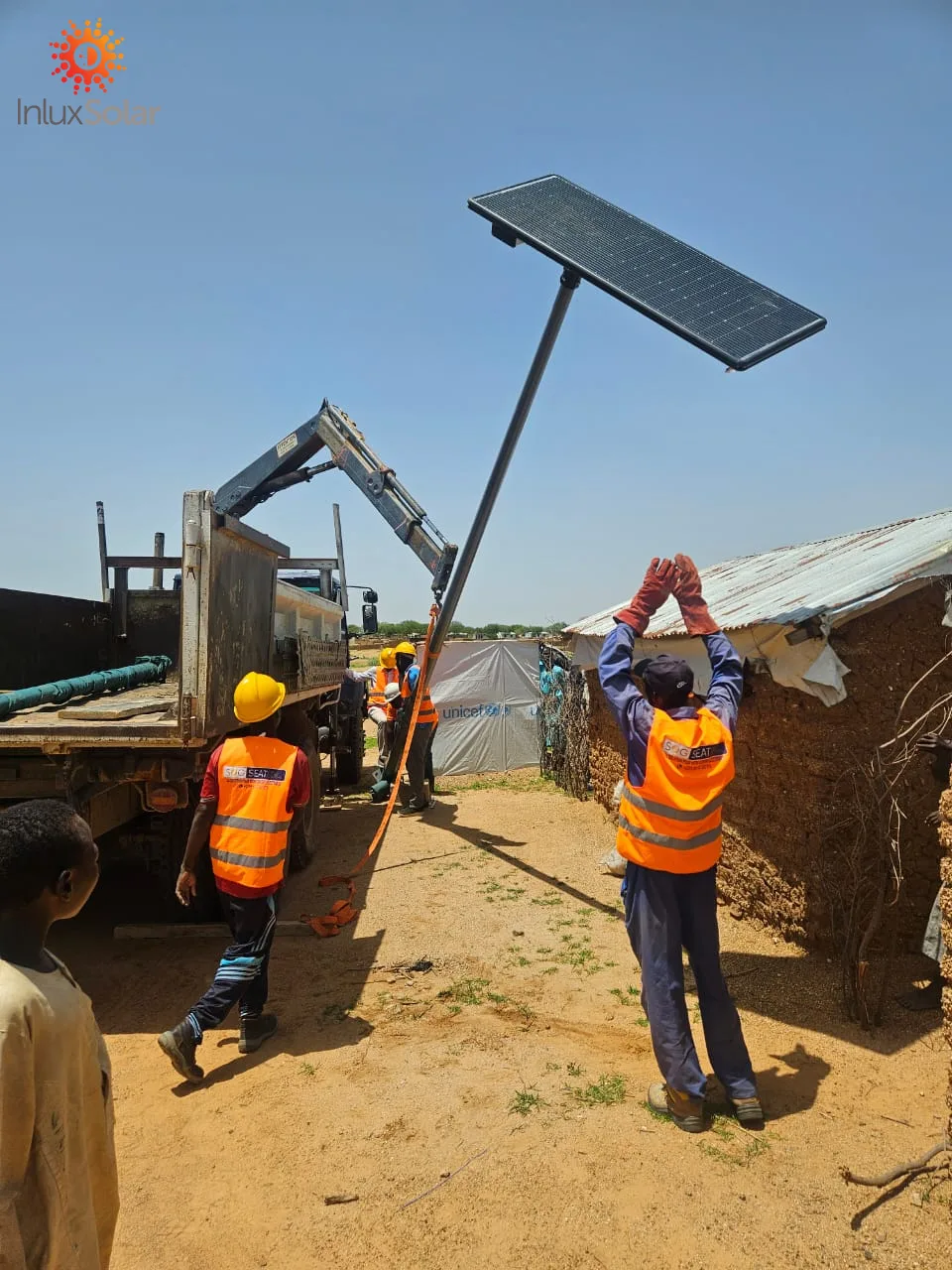

Abéché: AIO6 equipment on site
Original Abéché project photograph; it documents the work, not a photometric test.

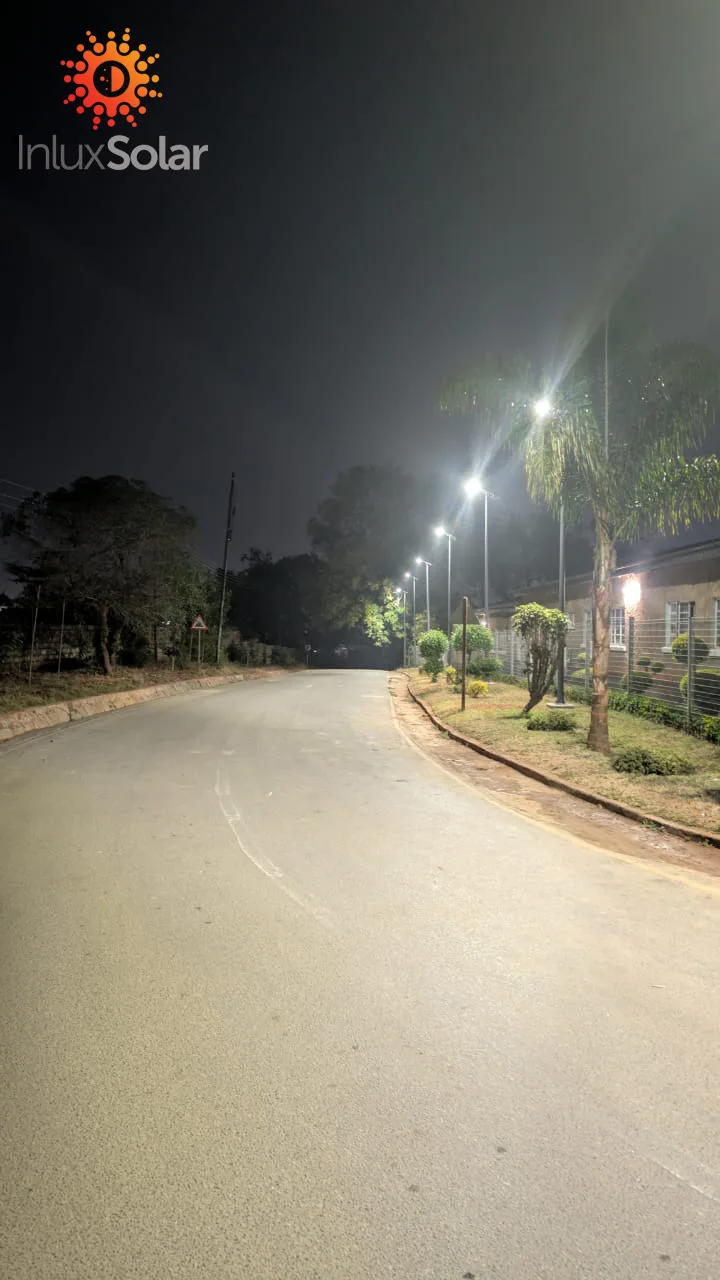

Zambia: GALAXY road-lighting reference
Original Zambia project photograph; the visible night scene is not a measured lighting result.
| Project | Published model record | Original source |
|---|---|---|
| Abéché, Chad | 165 AIO6 all-in-one solar street light sets for an off-grid rural route. | AIO6 project record and original gallery |
| Zambia | 50 GALAXY all-in-one solar street lights for a small-town road project. | GALAXY project record and original gallery |
The records establish a delivery reference for the product family. They do not certify the output, autonomy or lifetime of a new order. Historical electrical configurations belong to their own project records; use the dated configuration sheet and lighting assessment for the equipment you are evaluating.
The carousel below is a broader Inlux Solar project portfolio. It does not identify every pictured fixture as GALAXY; check the named model in each project record before using it as evidence for this product.
