ATHENA Decorative Solar Street Light
The ATHENA Decorative Solar Street Light series infuses a sense of classic style into the world of modern solar lighting. The decorative pole-base and classically styled light fixtures complement the surrounding landscape while providing the safe illumination for essential streets, parks, residential neighbourhoods, and commercial zones. Designed as a project product, ATHENA features your choice of high-efficiency LED package 20–150W and LiFePO4 battery with up to 10 years of service life, all with a robust IP66/IK09 housing, and several pole-shape options to fit the site. By day, ATHENA adds character, while by night, it provides a safe, energy-saving light source.
Description
Features
The ATHENA Decorative Solar Street Light series adds a classic touch to modern solar lighting. The decorative pole base and stylish light fixtures enhance the landscape while ensuring safe lighting for streets, parks, residential areas, and commercial spaces. Designed for projects, ATHENA offers a choice of high-efficiency LED packages ranging from 20 to 150W, and a LiFePO4 battery that lasts up to 10 years. It features a strong IP66/IK09 housing and several pole shapes to match the site. During the day, ATHENA brings character; at night, it offers a safe, energy-saving light source.
Decorative LED Lamp
Independent solar panel design makes high-power panels possible, and 15% higher charging efficiency can be realized by adjusting direction of solar panel. Therefore, high-power LED lamps are able to operate at high brightness all night.
Extreme Bright 5050 LED Provides 40% Higher Brightness
ATHENA Series adopts first-class Extreme Bright 5050 LEDs with 260lm/w efficiency, providing 40% higher brightness than normal solar lights which use 3030 LEDs and 2835 LEDs by its much bigger LED chip size.
15% higher uniformity and 30% larger coverage area
Specially designed light distribution and bigger beam angle enlarge illumination areas and improve lighting uniformity, suitable for rural roads, streets, highways, and residential areas.
IP66 aluminum battery box can “breath”
By adopting a breathing valve (water molecules cannot enter, but the air can be exchanged), The air pressure inside and outside the box will be the same, which can achieve better heat dissipation and waterproofing.
10+ Years Lifespan Lithium Battery
By adopting unique pouch-type lithium battery cells, the LiFePO4 battery has been specially engineered to deliver a 4000-cycle life under deep DOD with excellent stable performance. Along with multi-protection applied by the BMS unit and solar controller contributes to maintaining the battery’s perfect operation under various extreme climates.
Operable Under Harsh Environment
IP66 for the whole ATHENA system, which makes it adaptable for rainy areas. High-temperature resistant LiFePO4 battery with low current design significantly reduces internal heat when the system works. Among other things, the smart temperature adjustment function of the solar controller enables the system to operate normally under temperatures as high as 65°C.
Technical Specifications
| LED Lamp | LED Power | 20 – 150W | Solar Controller | Capacity | 10A – 40A |
| Luminous Efficiency | ＞180 lm/W | Light Pole | Suggested Height | 3-15 Meters | |
| Luminous Flux | 3600 – 27000 lumens | Section Shape | Conical / Octagonal | ||
| Color Temperature | 3000K – 6000K | Material & Finishing | Galvanized Steel / Aluminum With Powder Coated | ||
| Lighting Distribution | Type II, Type III | System | Working Temperature | -20 – 65℃ | |
| Lithium Battery | Battery Type | Pouch Type Lithium Iron Phosphate (LiFePO4) | Protection Levels | IP66 / IK09 | |
| Rated Capacity | Customizable | Wind Resistance | >120km/h | ||
| BMS Unit | Provide Multiple Protections For Battery | Life Span | LED lamp: > 20years | ||
| Battery Location | Under The Solar Panel | Battery: > 10years | |||
| Battery Box | IP66, Aluminum Material | Solar Controller:> 20years | |||
| Solar Panel | Silicon Type | Mono-Crystalline | Solar Panel: > 25years | ||
| Power | Customizable | Light Pole: > 30years |
Interior Structure
See what’s inside the All-In-Two Solar Street Light ATHENA.
01
02
03
04
05
06

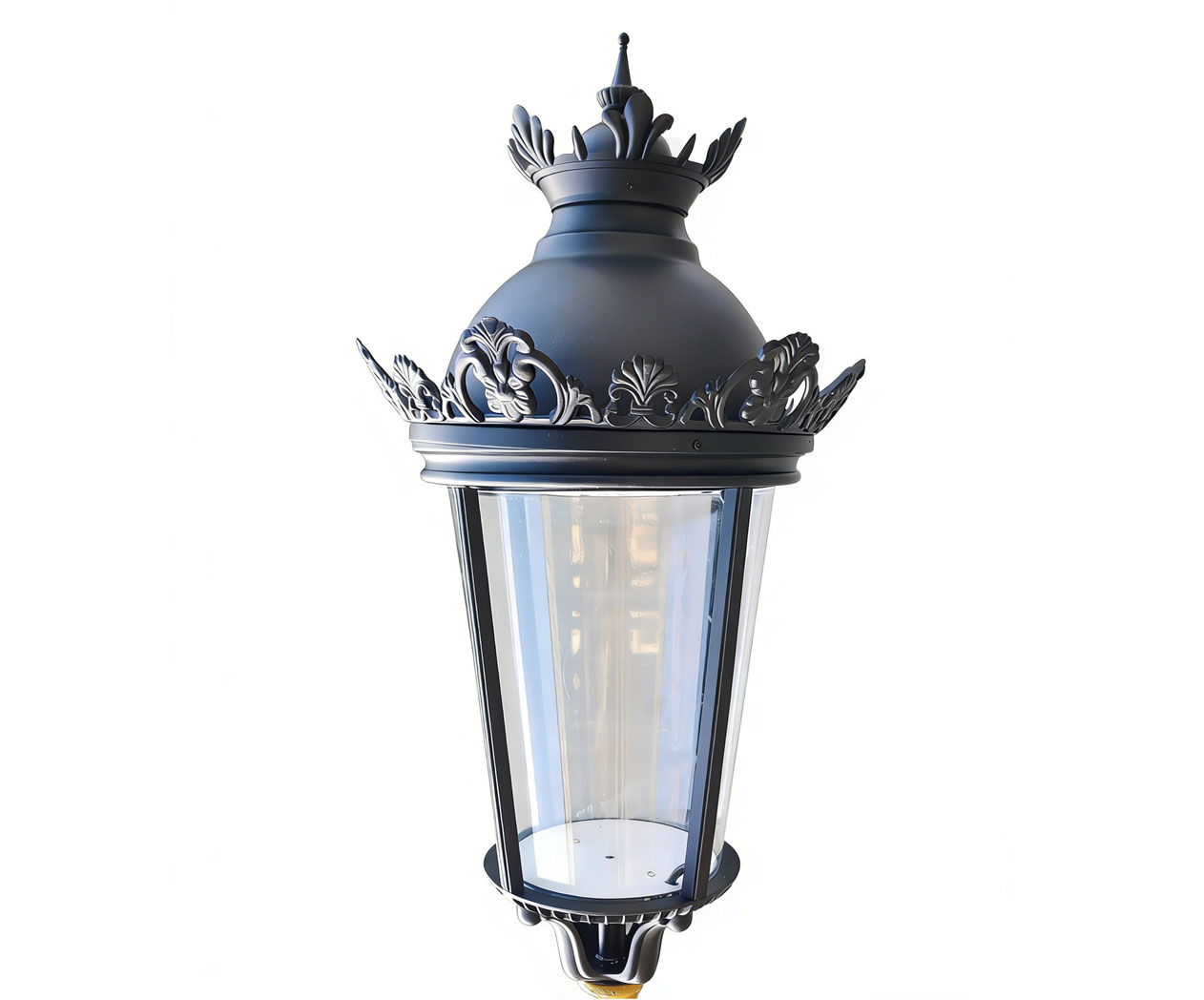

Decorative LED Lamp
Featuring advanced 5050 LED chips with an impressive efficiency of up to 220lm/w, this lighting solution delivers extreme brightness and reliable performance. Designed with high-temperature resistance and low thermal resistance, it ensures a longer LED lifespan. The thick aluminum heat sink, combined with a fast heat dissipation module, guarantees optimal performance and durability, while the easy-maintenance design simplifies upkeep.

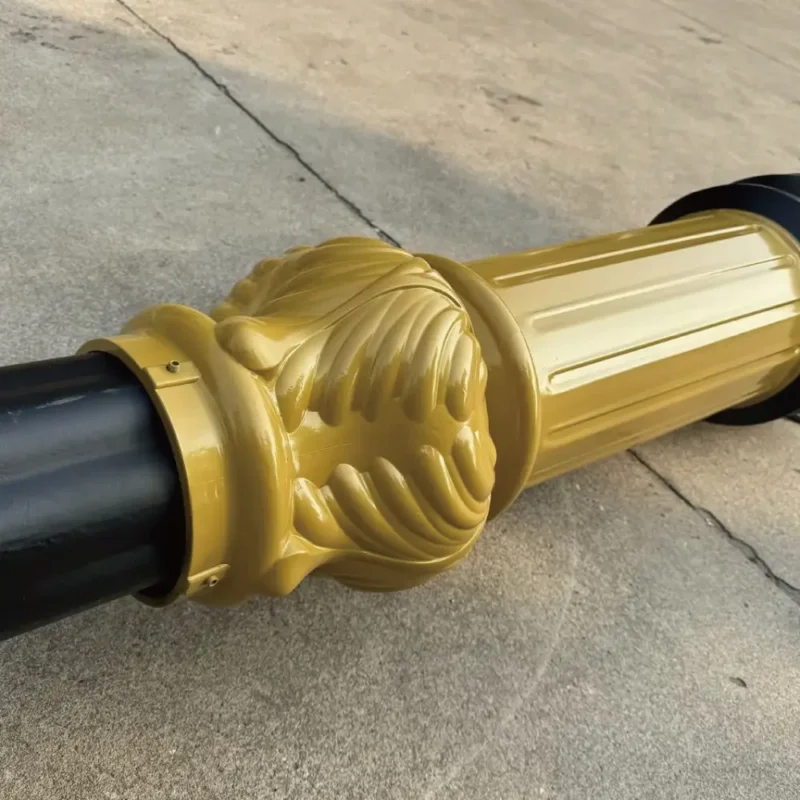

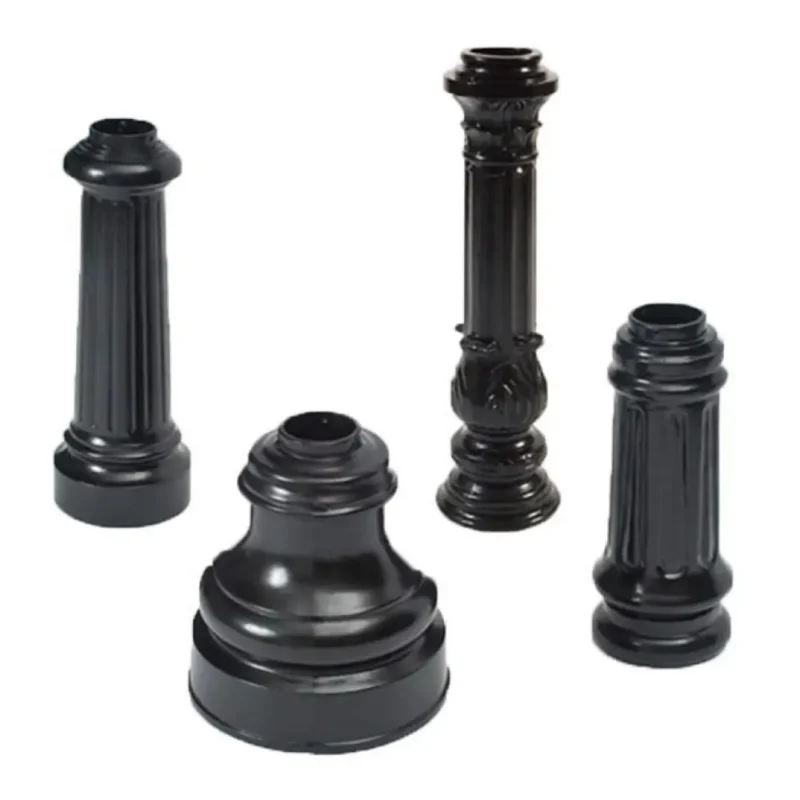

Cast Aluminum Accessories
The cast aluminum accessories are made from high-quality aluminum material, offering durability and resistance to corrosion. These accessories come in a variety of designs and color options, providing flexibility to meet diverse aesthetic and functional requirements. Their robust construction and customizable features make them ideal for enhancing both the appearance and performance of fixtures.
Smart Solar Controller
The Smart Solar Controller offers high efficiency with a smart power-saving mode that optimizes energy use. It operates with constant current and an IP68 rating, ensuring reliable performance even in harsh environmental conditions. This advanced design significantly reduces the light failure rate, providing consistent brightness over time. Additionally, the controller includes multiple protection features that effectively safeguard the battery, enhancing its longevity and ensuring the system’s overall durability and safety.
Strong Lighting Pole
The strong lighting pole is constructed from Grade A hot-dip galvanized steel, ensuring exceptional durability and anti-corrosion performance. Made from a single piece of steel sheet, it features a seamless design with a powder coating for enhanced rust resistance. Withstanding wind speeds of over 120 km/h, this pole is built for stability in extreme weather conditions. Its robust construction guarantees a lifespan of over 25 years, making it an ideal choice for long-term outdoor applications.
LiFePO4 Lithium Battery
Durable LiFePO4 Lithium Battery
Solar Panel
The enhanced strong lamp holder is designed for maximum durability and performance, ensuring resistance to strong impacts and mechanical stress, providing robust reliability in challenging environments.
Optional Features & Add-ons
01
Motion Sensor
The motion sensor automatically reduces brightness by 30% when inactivity is detected, saving energy. Upon detection of presence, brightness returns to 100%, ensuring optimal visibility while minimizing distractions. This feature strikes a balance between power efficiency and user comfort.
02
Adjustable Solar Panel Bracket
The adjustable bracket optimizes panel positioning for maximum sunlight capture. It allows users to adjust the tilt angle for optimal solar energy collection, regardless of geographic location or seasonal changes, ensuring high performance even in harsh weather conditions.
03
Anti-theft Components
Anti-theft screws and spikes are designed to secure solar panels against theft. The unique tamper-resistant design makes removal nearly impossible without specialized tools, while anti-climbing spikes prevent unauthorized access, ensuring durability and security in exposed environments.
04
Anti-bird Spike
Anti-bird spikes offer a humane and effective solution to prevent birds from perching on solar panels, rooftops, and fences. Made from durable stainless steel or plastic, these sharp, angled prongs discourage birds without harming them. Easy to install, these spikes provide a low-maintenance way to protect solar panels from bird-related damage, ensuring optimal performance.
05
Camera
The system integrates a solar-powered CCTV camera, offering a sustainable and eco-friendly surveillance solution. These cameras operate independently of traditional power sources, ensuring continuous monitoring without external electricity. With waterproof housing and motion detection features, they enhance security for solar panels while reducing energy costs.
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, Inlux Solar’s IOT Smart Monitoring System enables intelligent management of our ATHENA Decorative Solar Street Light by PC, PAD and Mobile.

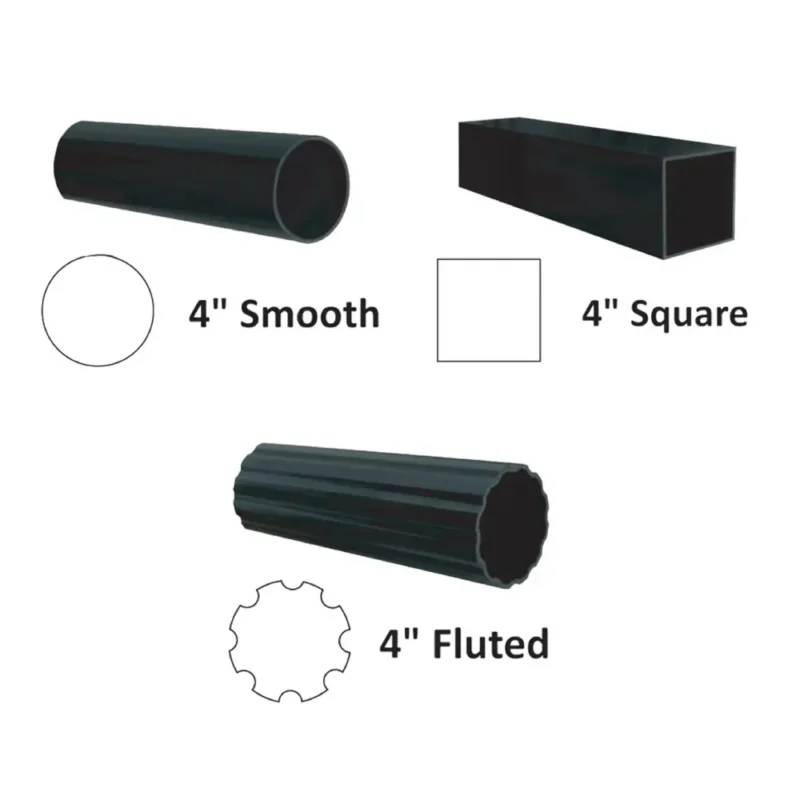

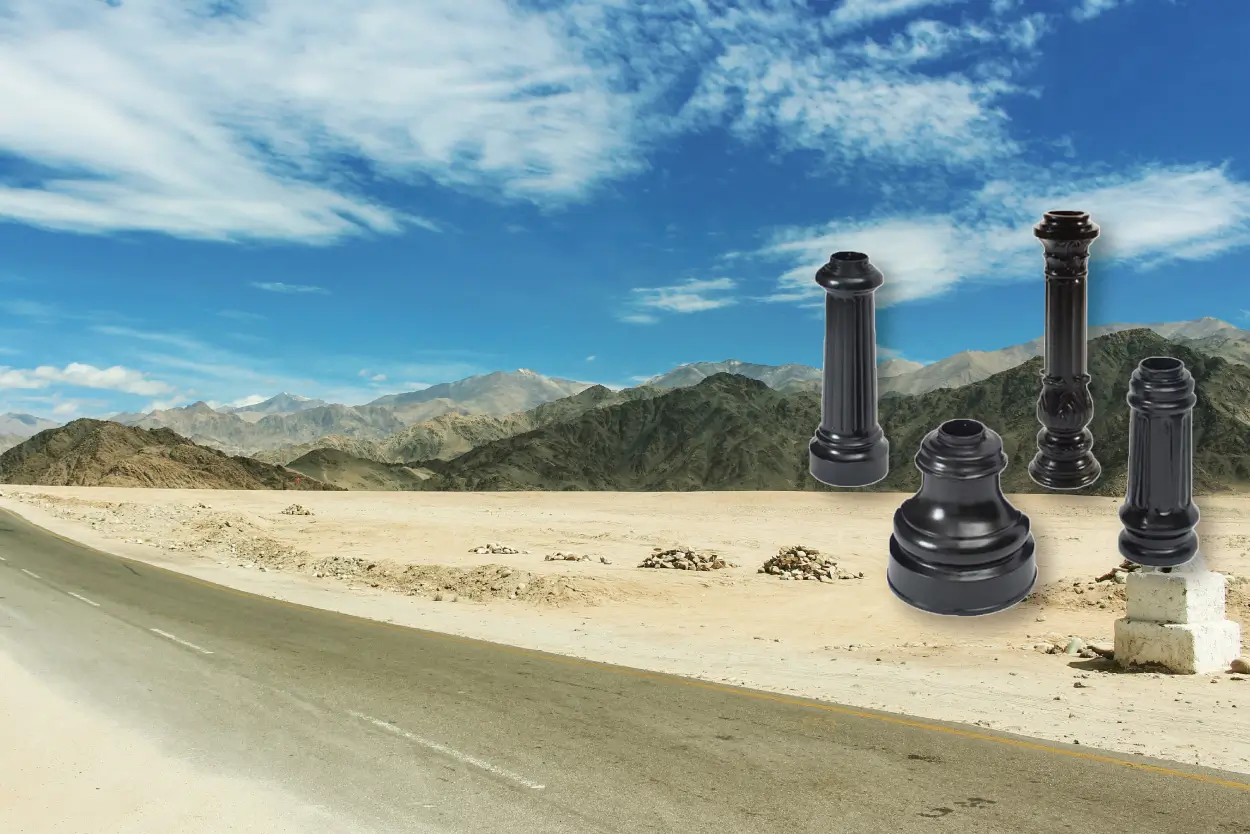

Compatible Pole Designs
Our All-In-Three solar street lights can be customized with various pole shapes and materials. Check out some of our pole designs, and feel free to share your ideas with us if you have additional customization needs.

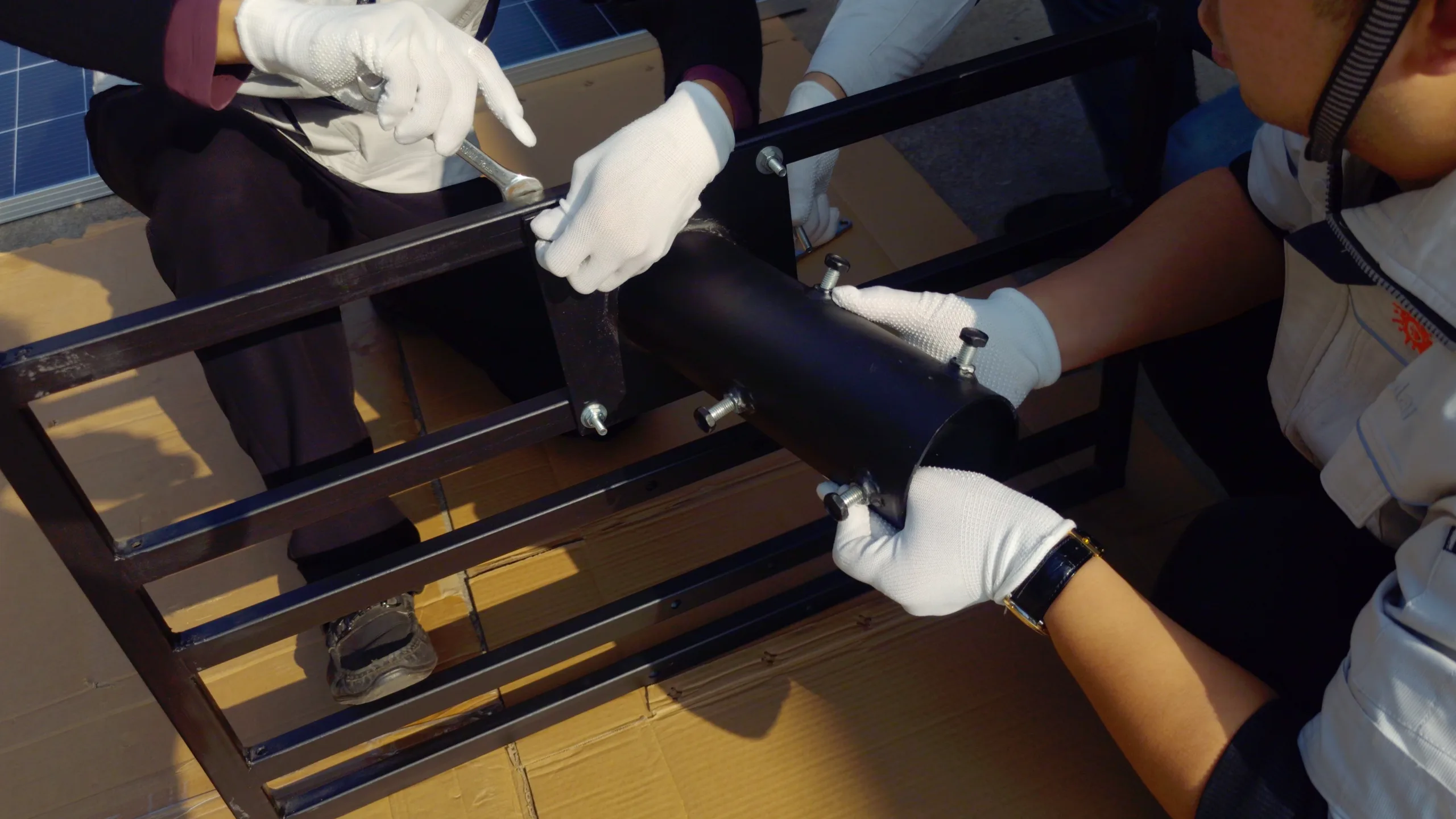

ATHENA Installation Methods

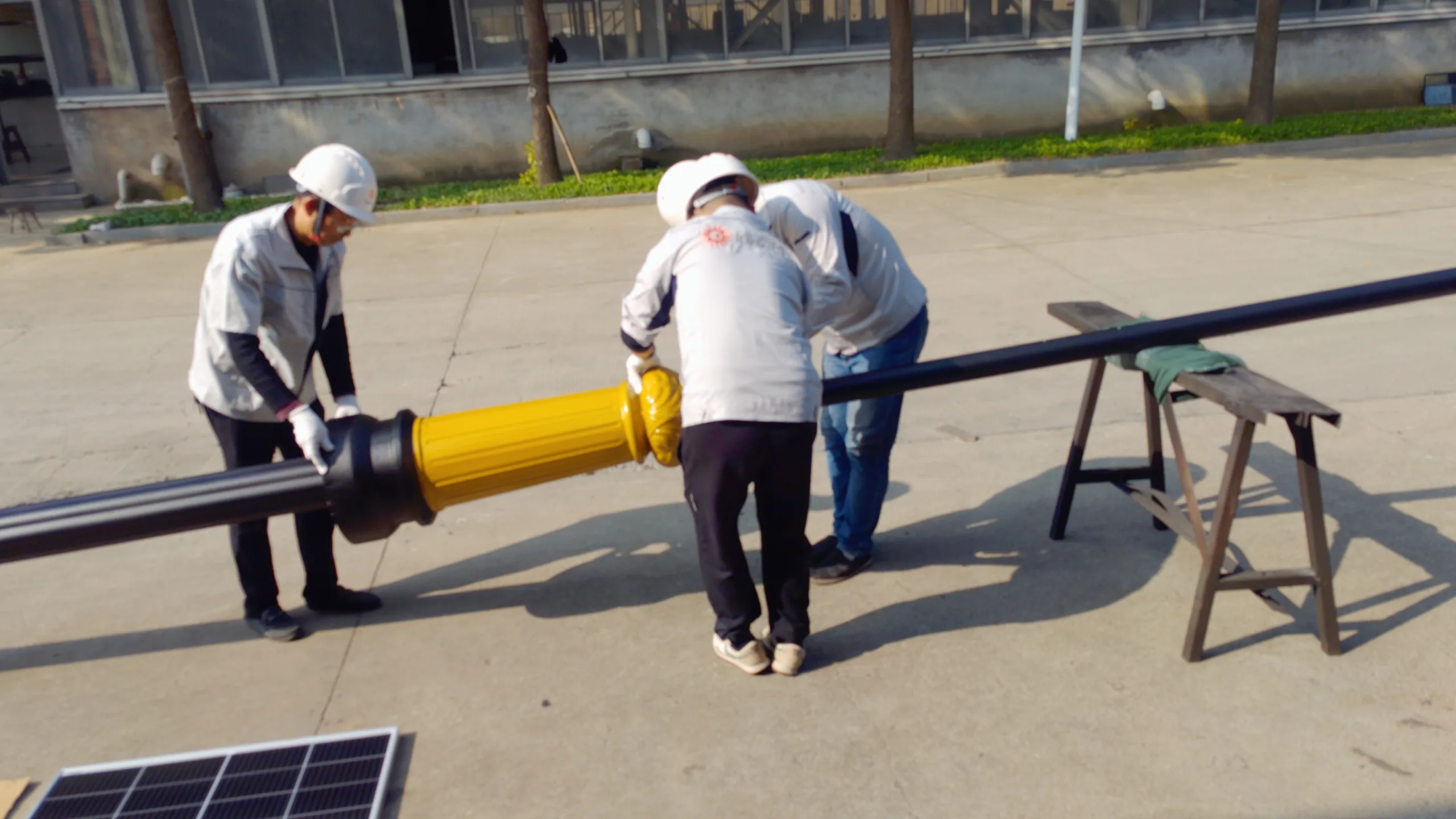

1. Base Installation
Install the cast aluminum accessories onto the base and secure the light pole.
2. Pole Assembly:
Assemble the lighting arm, lamp holder, and solar panel bracket.

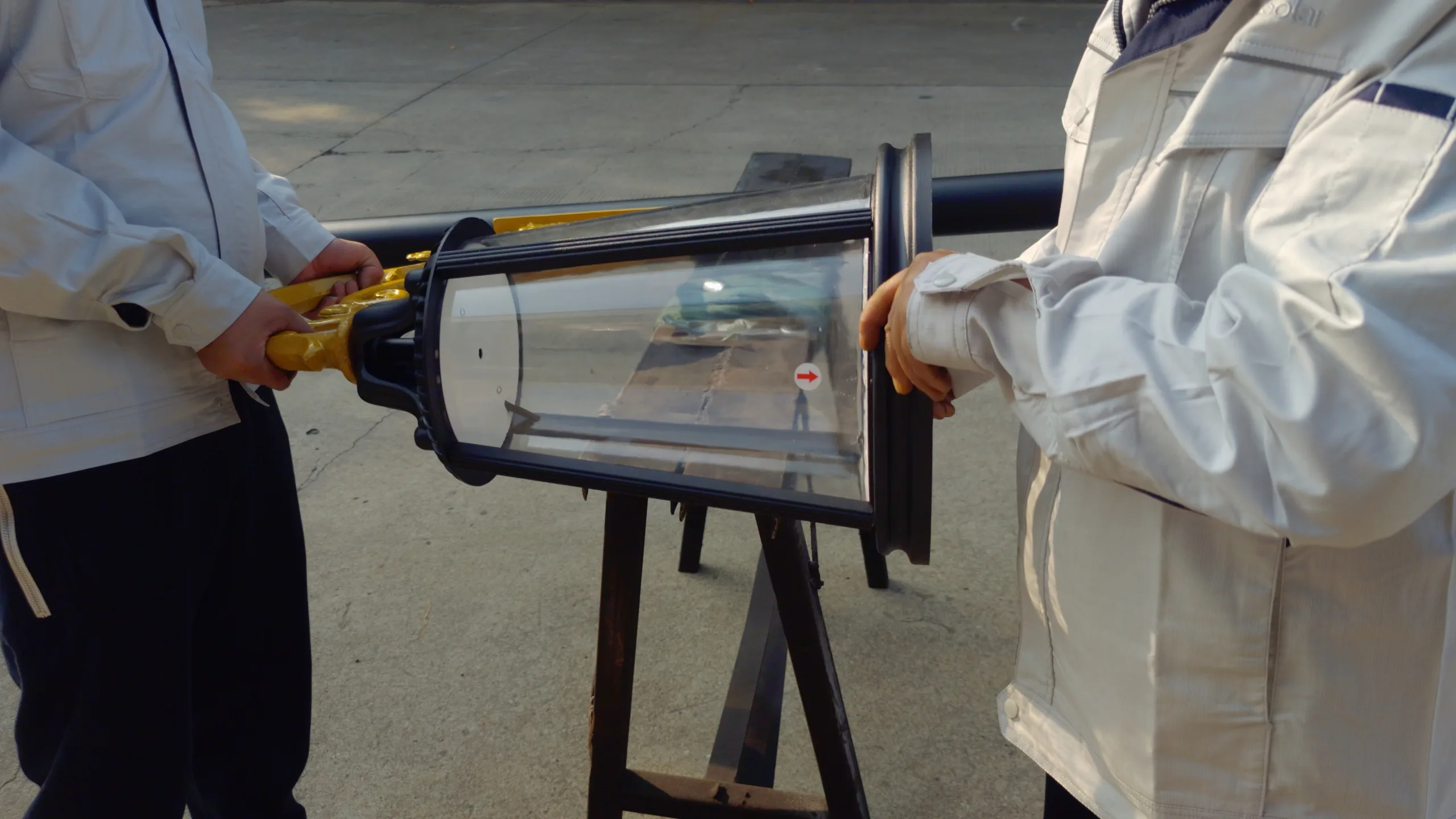

3. Battery and Lamp Installation:
Install the lithium iron phosphate battery and lamp onto the solar panel bracket.

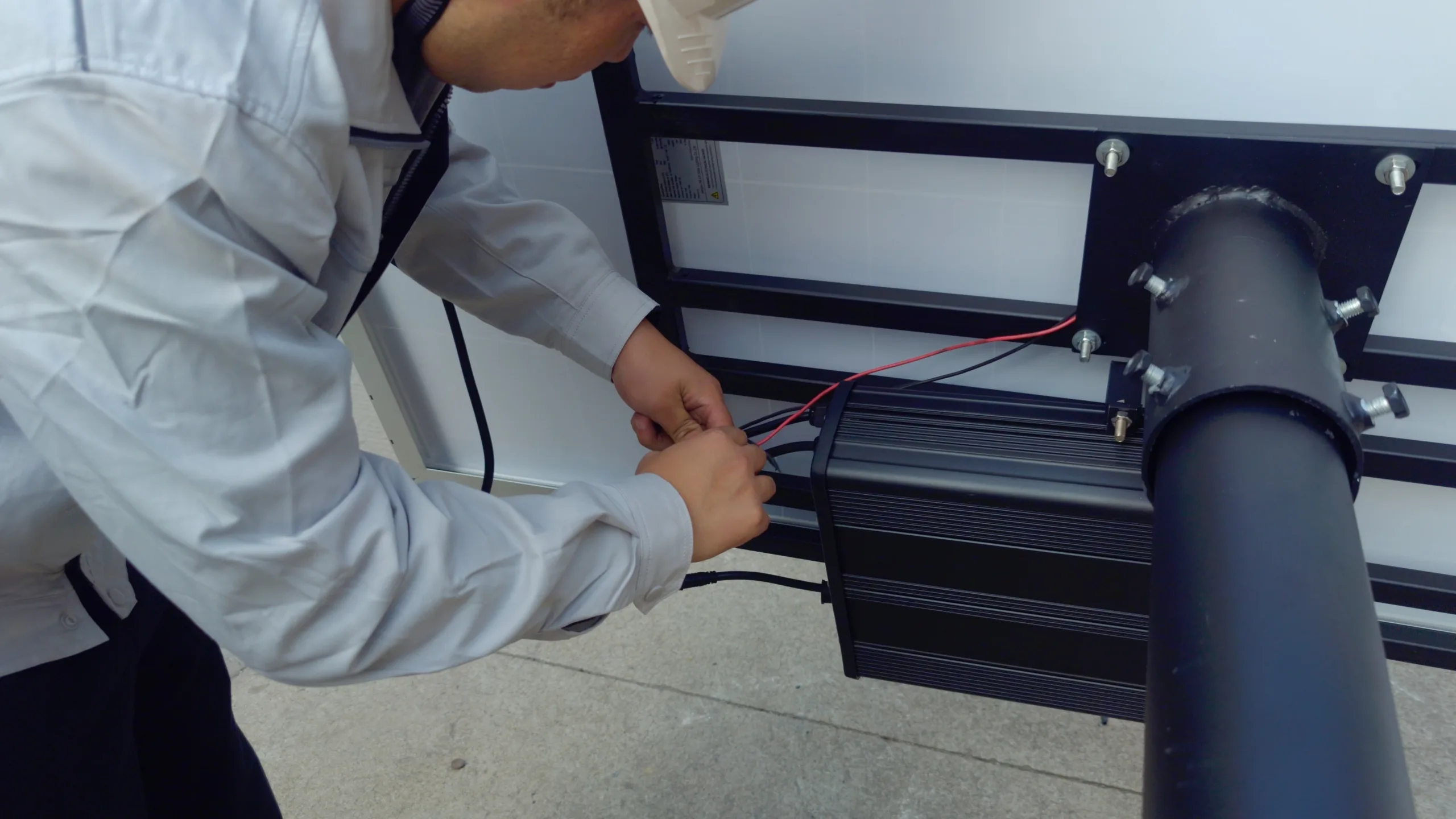

4. Wiring Connections:
Route and connect the cables between the lamp, battery, and solar panel through the light pole.

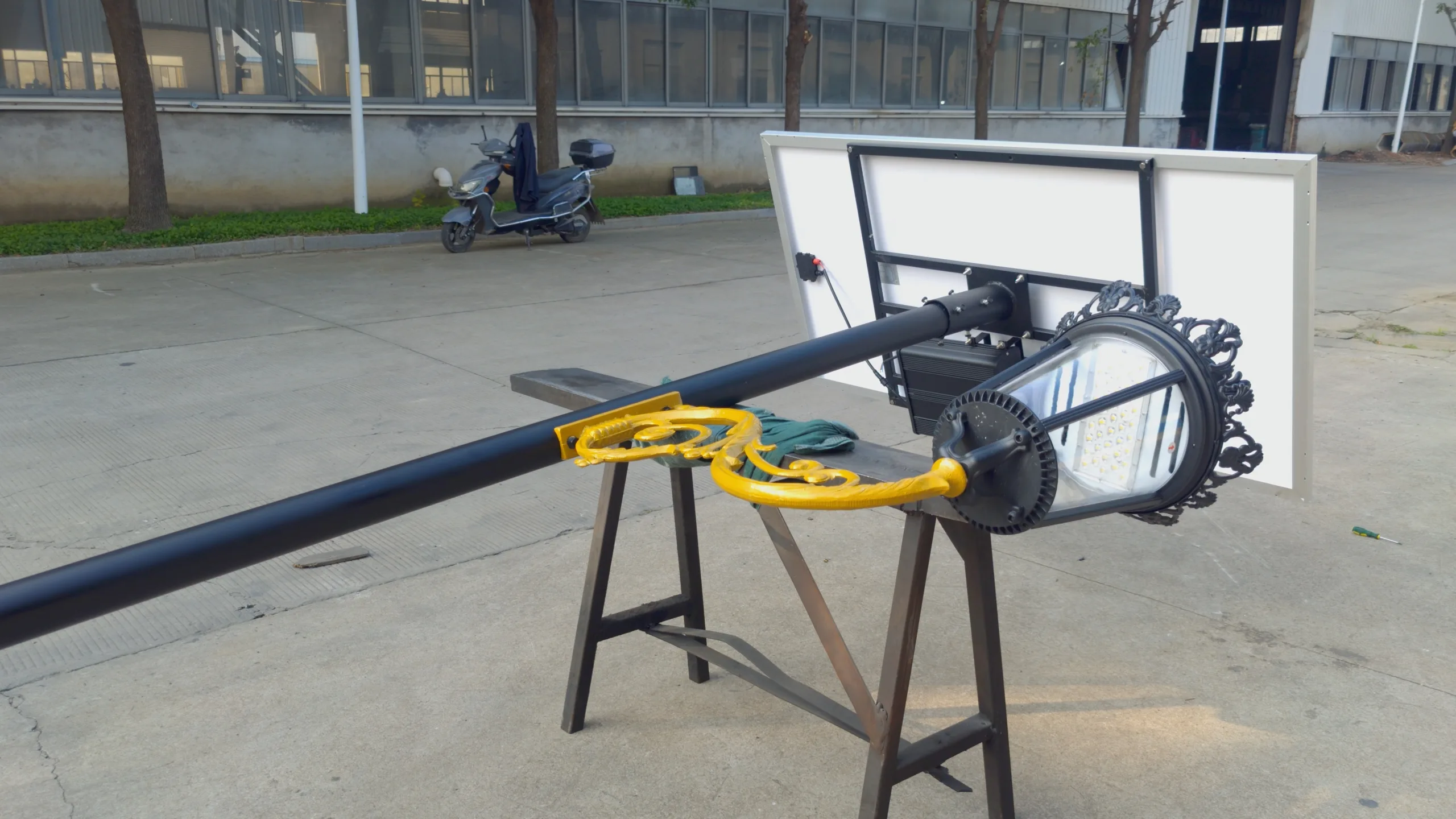

5. Final Fixing:
Secure the lamp and lighting arm to the light pole, check all connections, and complete the installation.
Keep the ATHENA Details in the Order

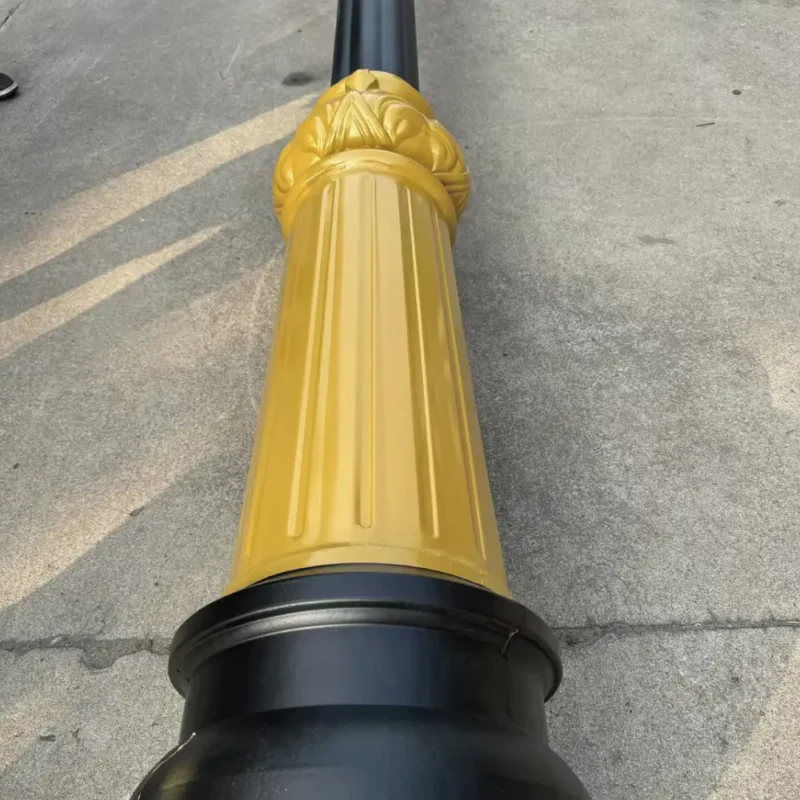

For a heritage or civic streetscape, include the preferred lantern, base and pole profile in the design brief. The gallery shows ornamental base details and different pole forms; identify the actual combination in the quotation. Send the site layout, finish reference, shading and nightly lighting requirement so appearance, photometric review and the solar configuration are considered together.
Compare the decorative solar families or send the project brief for a quotation.
