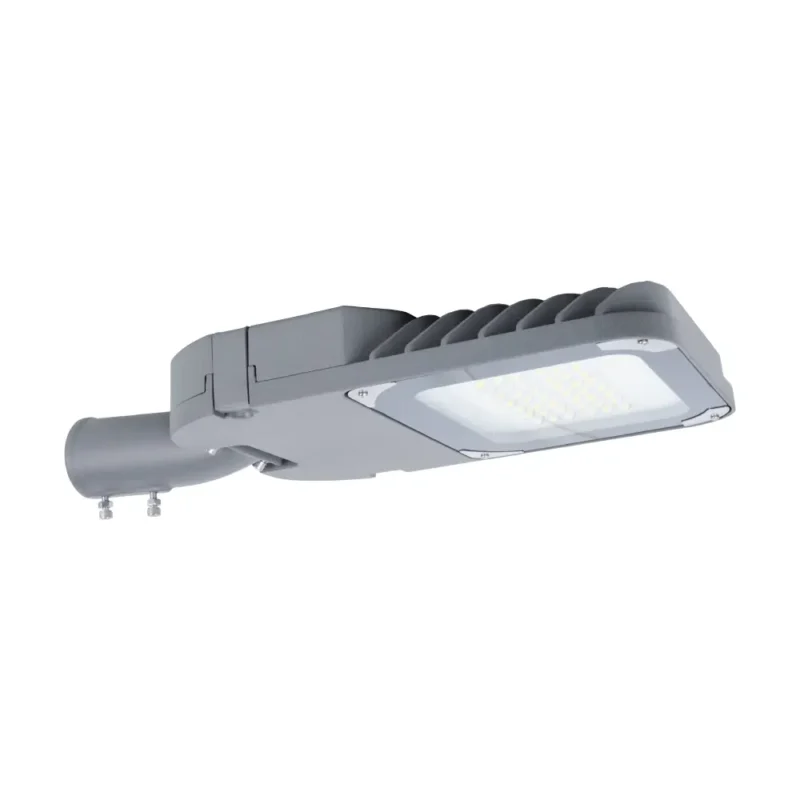

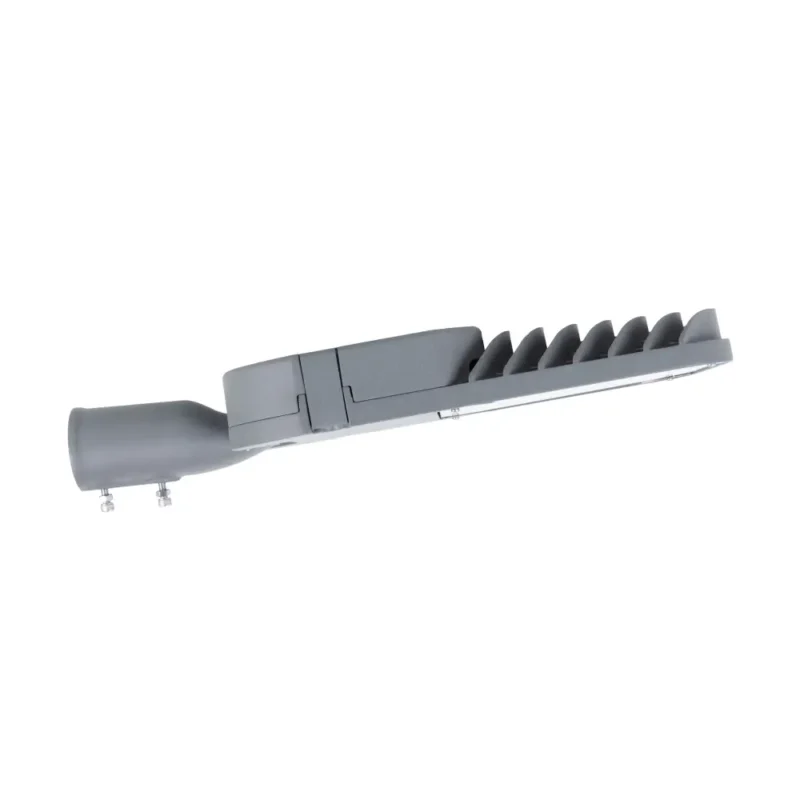

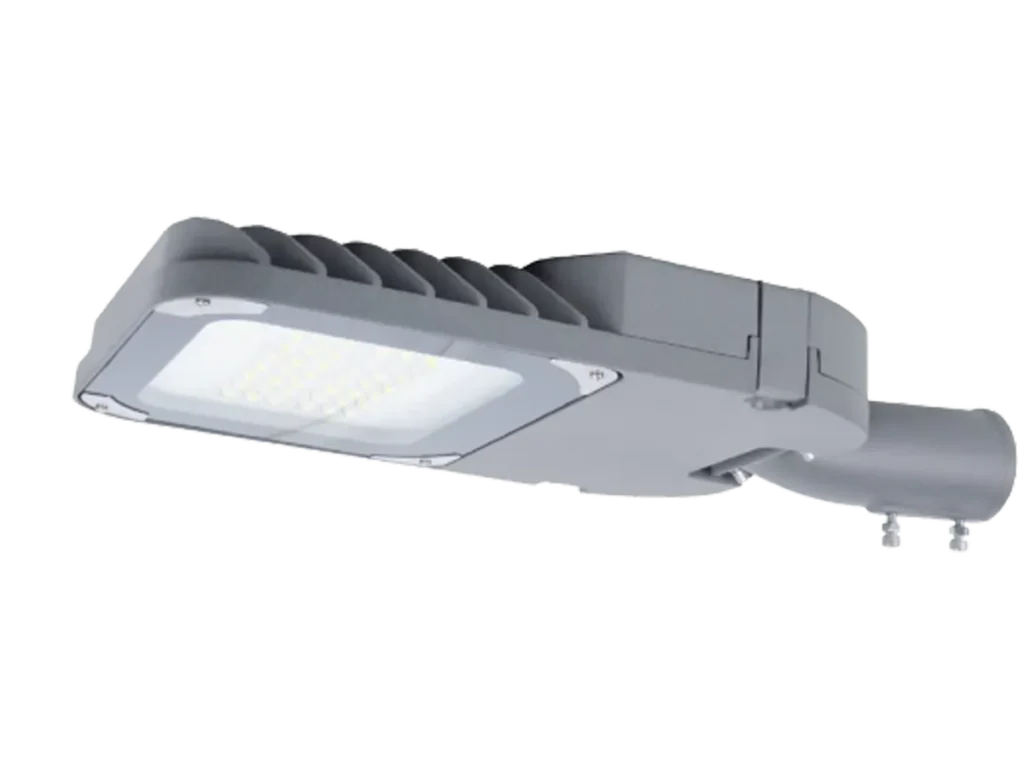

INL-LED25 LED Street Light
INL-LED25 LED Street Light delivers project-ready performance with 100/150/200W options and three beam patterns—60×120°, 70×140°, 80×150°—for highways, city streets, intersections, and parking areas. It pairs SMD 3030/5050 LEDs with branded drivers to reach up to 160 lm/W, inside a die-cast aluminum body rated IP65/IK08 for -40–50°C environments. Tool-free access and a self-cleaning shell help streamline maintenance.
Description
Features
The INL-LED25 LED Street Light is built for everyday road projects that demand reliable output and low upkeep. Power classes of 100, 150, and 200 watts combine with 60×120°, 70×140°, and 80×150° optics to achieve uniform coverage on highways, urban streets, intersections, and parking lots. High-efficiency SMD 3030/5050 packages with branded drivers deliver up to 160 lm/W, while the die-cast aluminum housing, PC + tempered-glass optics, IP65/IK08 protection, and -40–50°C operating range support long service life. Tool-free access and a self-cleaning shell simplify routine maintenance.
How This INL-LED25 LED Street Light Benefits Your Project
High-Efficiency 5050 LEDs, Up to 160 lm/W
INL-LED25 pairs SMD 5050 LED packages with PC + tempered-glass optics to reach up to 160 lm/W luminaire efficacy—balancing efficiency, output, and value for mainstream road projects.
Thermal Management
An FEA-informed die-cast aluminum body improves heat transfer, helping maintain output and extend service life in continuous-use applications.
Flexible Optics for Real-World Roads
Select 60×120°, 70×140°, or 80×150° beam patterns to achieve uniform coverage on highways, urban streets, intersections, and parking areas while minimizing glare and spill.
Low-Maintenance Construction
A robust housing with IP65 / IK08 protection and PC + tempered-glass lens resists water, dust, and impacts—simplifying routine cleaning and upkeep over time.
Two Mounting Methods (Side-Entry / Upright)
Mount side-entry on a bracket/arm or upright on top of the pole. Both options support quick alignment of the selected beam pattern for consistent on-site results.
Built for Real-World Conditions
Rated for -40°C to 50°C operation with IP65 / IK08 protection, INL-LED25 is engineered to perform across a wide range of climates and sites.
INL-LED25 Technical Specifications
| Model | FLD20-100W | FLD20-150W | FLD20-200W |
| Power | 100W | 150W | 200W |
| Power Supply | MEANWELL / PHILIPS / MOSO / INVENTRONICS | ||
| Working Voltage | 90 – 305V AC, 50/60Hz | ||
| Beam Angle | 60*120°,70*140°,80*150° | ||
| CCT | 3000K – 6500K | ||
| CRI | >70 (>80,>90 optional) | ||
| LED Chip | SMD 3030 / SMD 5050 | ||
| Luminous Efficiency | >110lm/w (SMD 3030) / >160lm/w (SMD 5050) | ||
| Luminous Flux | 11000lm (SMD 3030) | 16500lm (SMD 3030) | 22000lm (SMD 3030) |
| 16000lm (SMD 5050) | 24000lm (SMD 5050) | 32000lm (SMD 5050) | |
| Housing Material | Die-casting Aluminum | ||
| Lens Material | PC + Tempered glass | ||
| Product Dimension (mm) | 610*317*73 | ||
| N.W.(KG) | 2.7 | ||
| IP/IK Rate | IP65 / IK08 | ||
| Working Temperature | -40°C~50°C, 20%~90% RH | ||
| Life Span | >50,000 Hours | ||
Lighting Distribution
Use the IES/LDT file for the quoted INL-LED25 version in a road or site layout. Provide road width, pole positions, mounting height, spacing and the required lighting class; include pedestrian areas and boundary constraints where relevant. Evaluate maintained lighting levels, uniformity and glare for the selected optic and output package. Keep the file identifier and fixture configuration matched in the submittal.
TII-S
TII-M
TIII-S
TIII-M
Optional Features & Add-ons
01
SPD（Surge Protective Device）
An SPD (Surge Protective Device) safeguards electronic equipment from voltage spikes caused by lightning or power surges. It uses components like varistors or gas discharge tubes to divert excess energy to the ground, maintaining safe voltage levels. Essential for protecting sensitive devices in homes, offices, and industrial settings, it enhances durability and prevents costly damage, ensuring reliable operation in diverse environments.
02
Photocell
A photocell, also known as a photoresistor or light-dependent resistor (LDR), is a sensor that detects light intensity and converts it into an electrical signal. It operates by changing resistance based on light exposure, making it ideal for automatic lighting control in outdoor settings like streetlights. Simple, cost-effective, and reliable, it adjusts illumination based on ambient light levels, enhancing energy efficiency and convenience.
03
Power Off Protection Connector
A Power Off Protection Connector ensures electrical safety by automatically disconnecting power during faults or outages, preventing damage to devices. It protects circuits from overvoltage, short circuits, or sudden shutdowns, enhancing system reliability. Ideal for solar street lights, it maintains functionality in unstable power conditions, extending equipment lifespan.
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, Inlux Solar’s IOT Smart Monitoring System enables intelligent management of our INL-LED25 LED Street Light by PC, PAD and Mobile.
Dimensions
INL–LED25
Installation Methods
Our LED Street Light offer multiple installation options. Whether on roads, walls, fences, or other locations, we provide stable and reliable mounting solutions tailored to your needs.

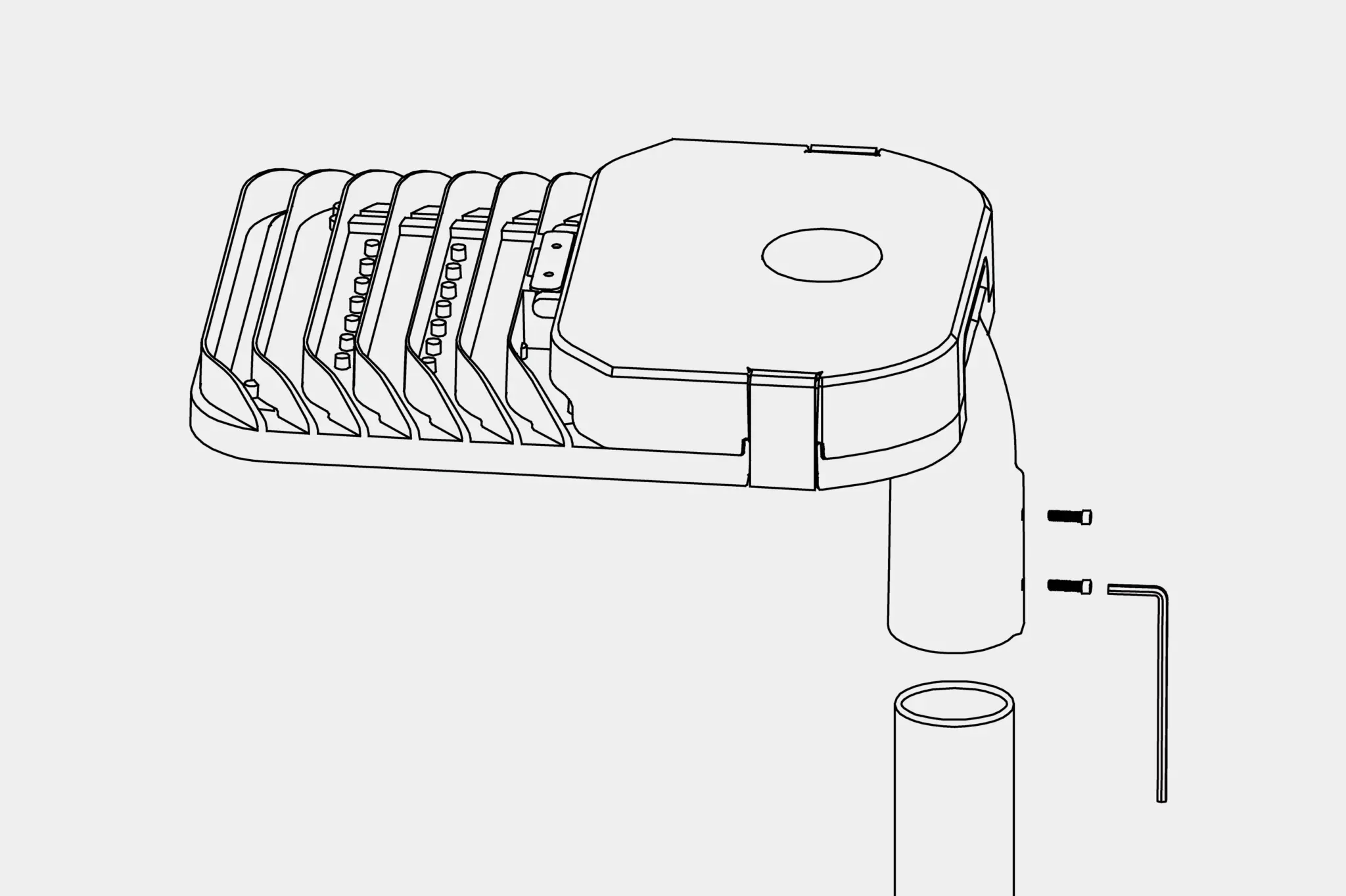

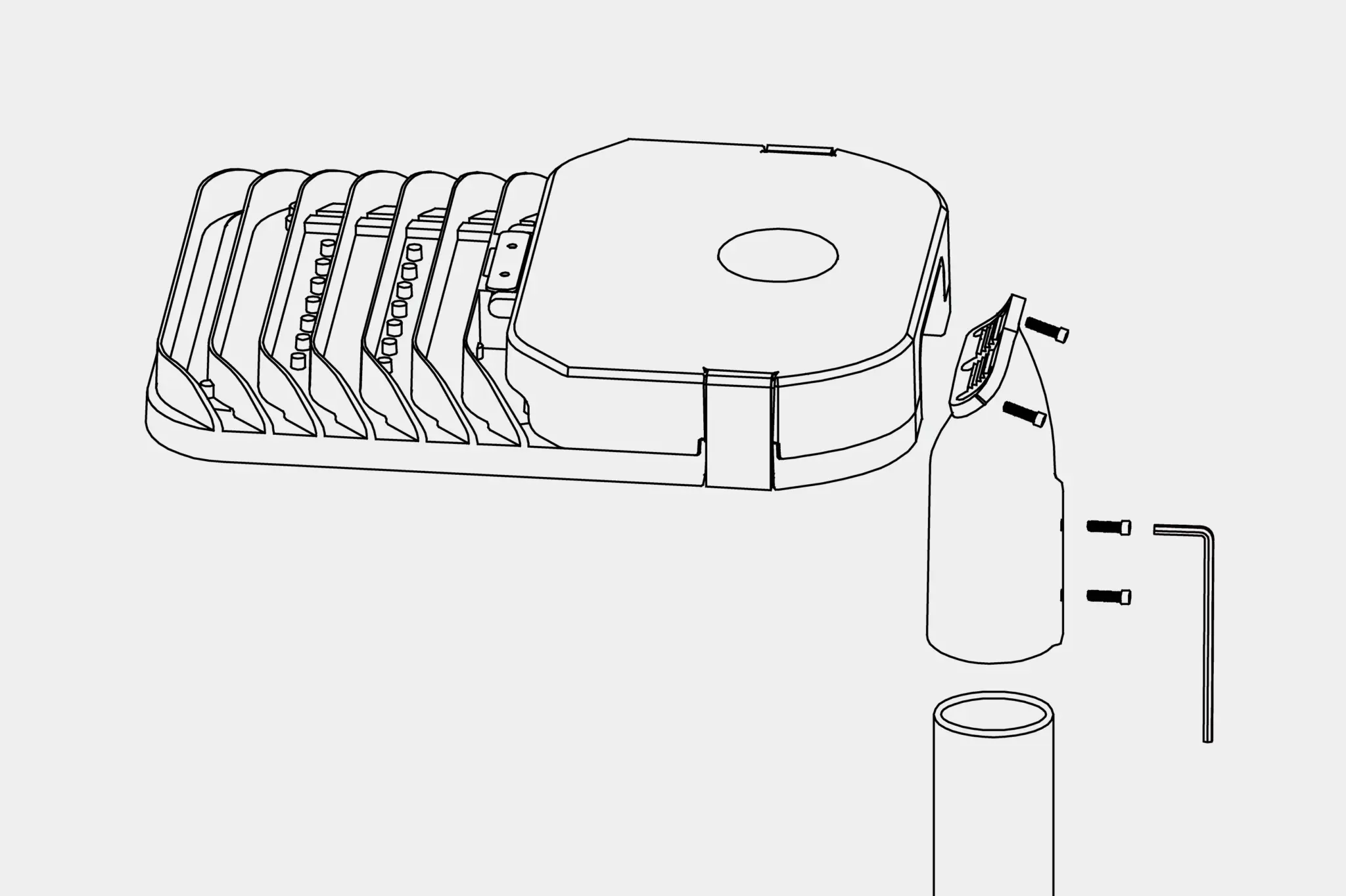

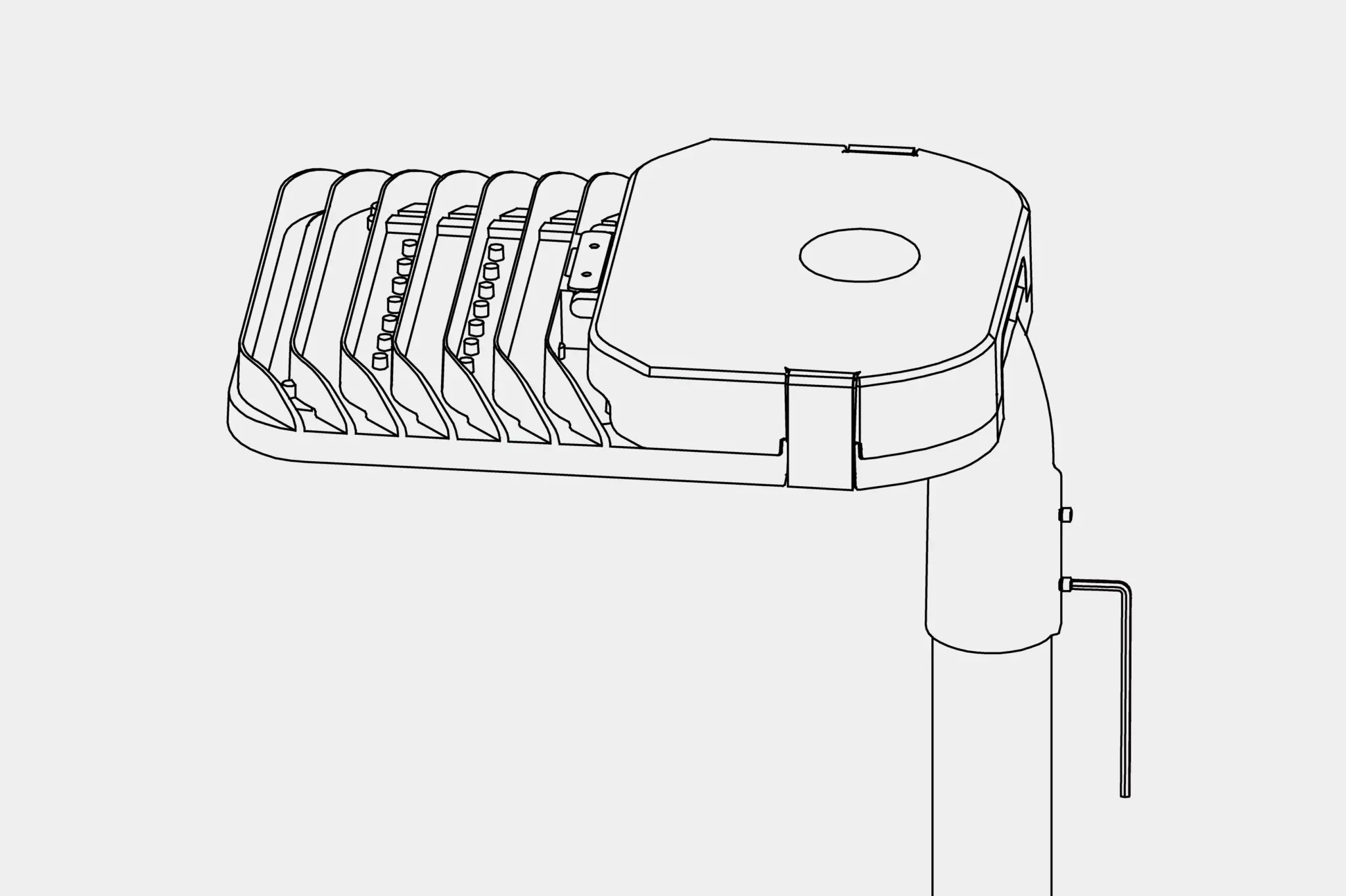

Vertical Installation
1. Secure the lamp housing with the fixture head
2.Secure the fixture with the pole
3.Tighten the fixing screws

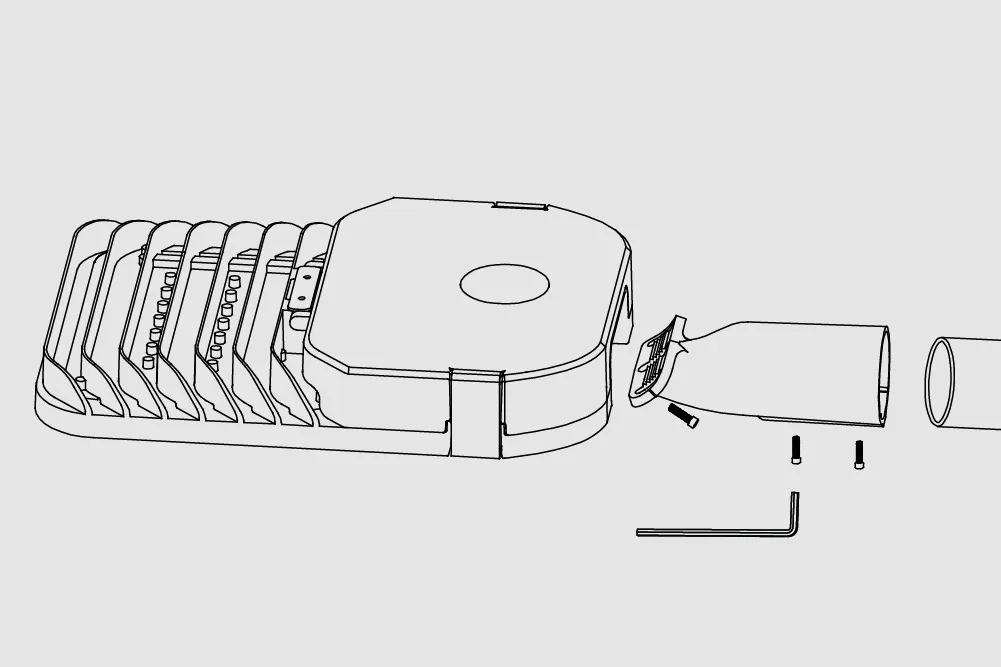

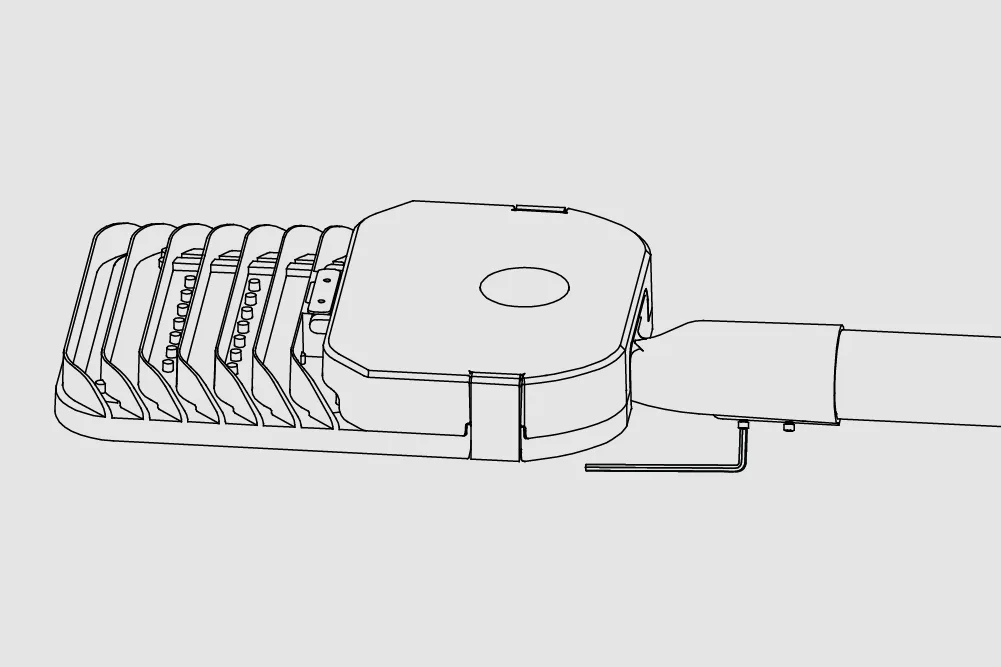

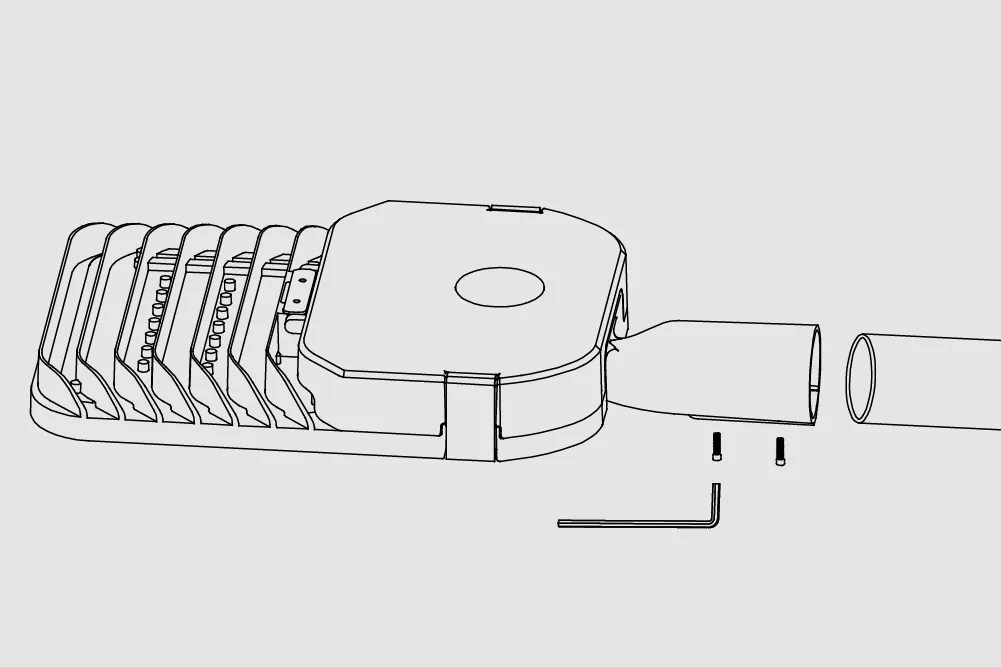

Horizontal Installation
1. Secure the lamp housing with the fixture head
2. Secure the fixture with the pole support arm
3. Tighten the fixing screws
Plan Your INL-LED25 Street Lighting Order

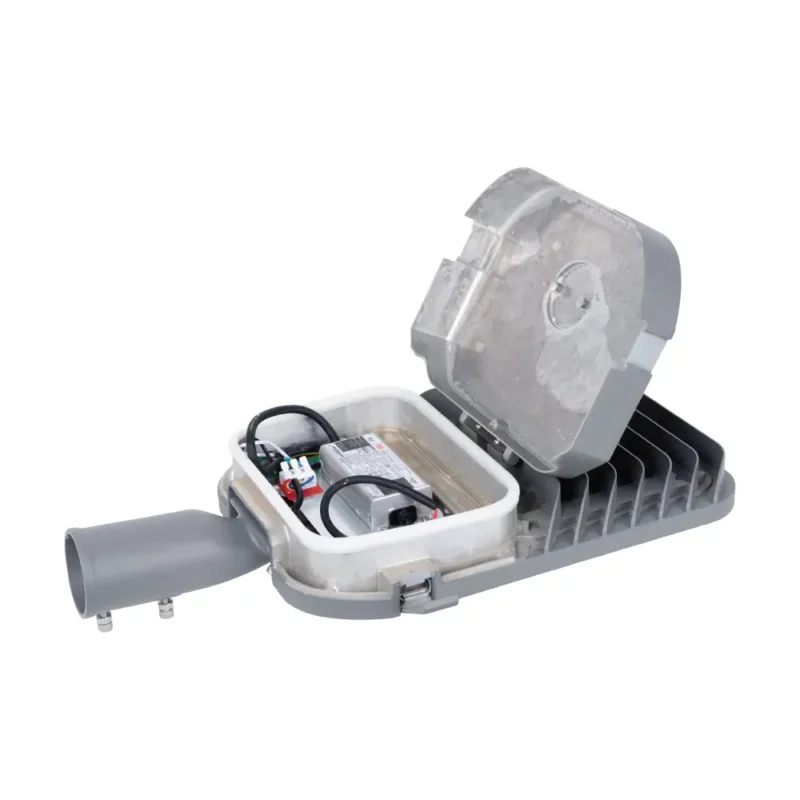

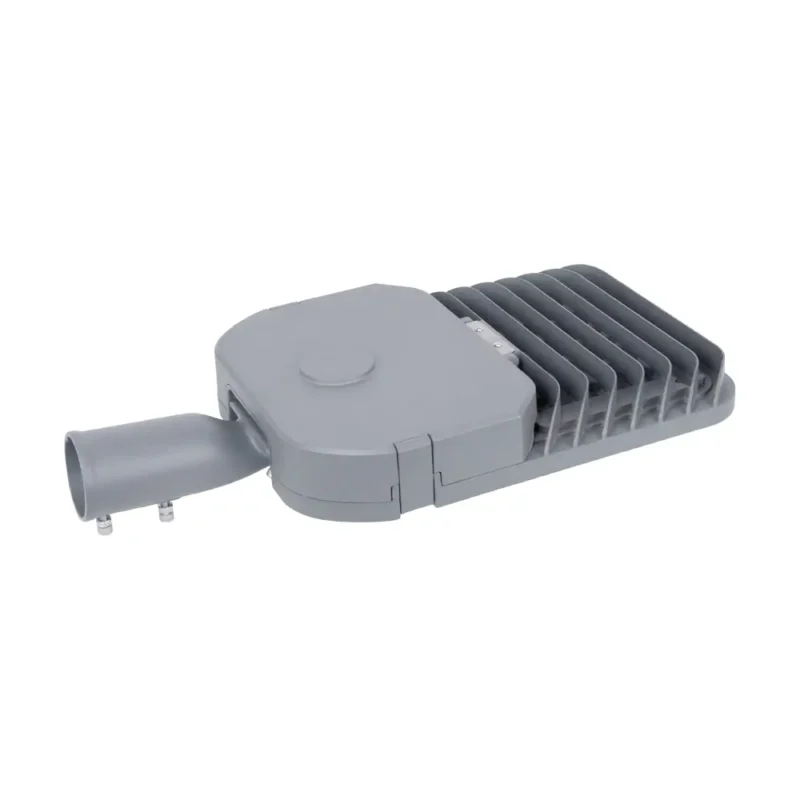

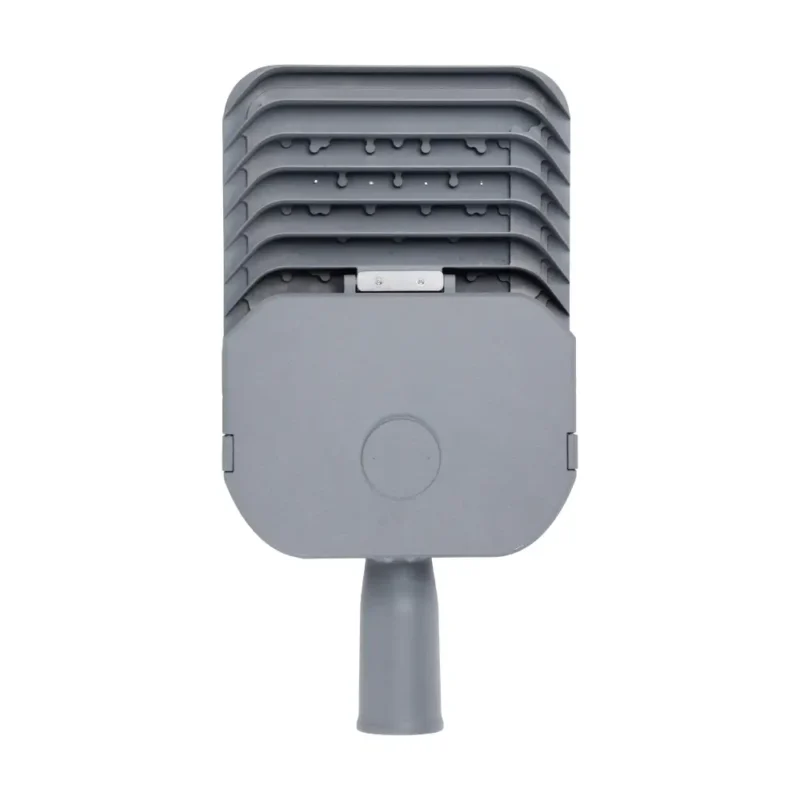

For replacement projects, send the existing pole-arm dimensions, supply voltage, road layout and required lighting level. The gallery shows the housing, mounting interface and open service compartment; ask for the selected configuration drawing to check installation clearance and service access. Include the control requirement and quantity so the quotation identifies the actual luminaire and accessories, not just its wattage.
