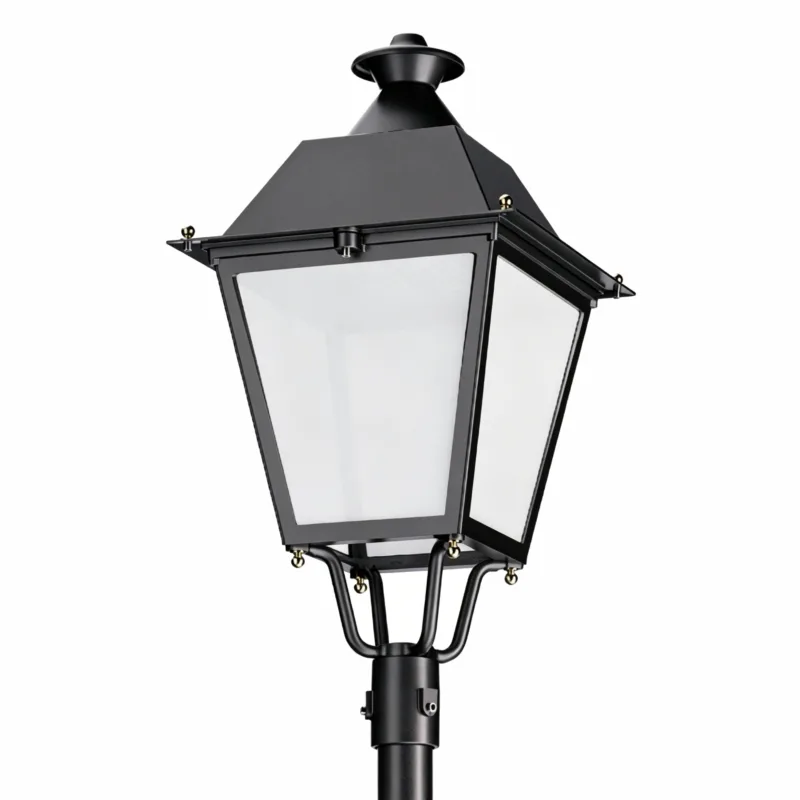

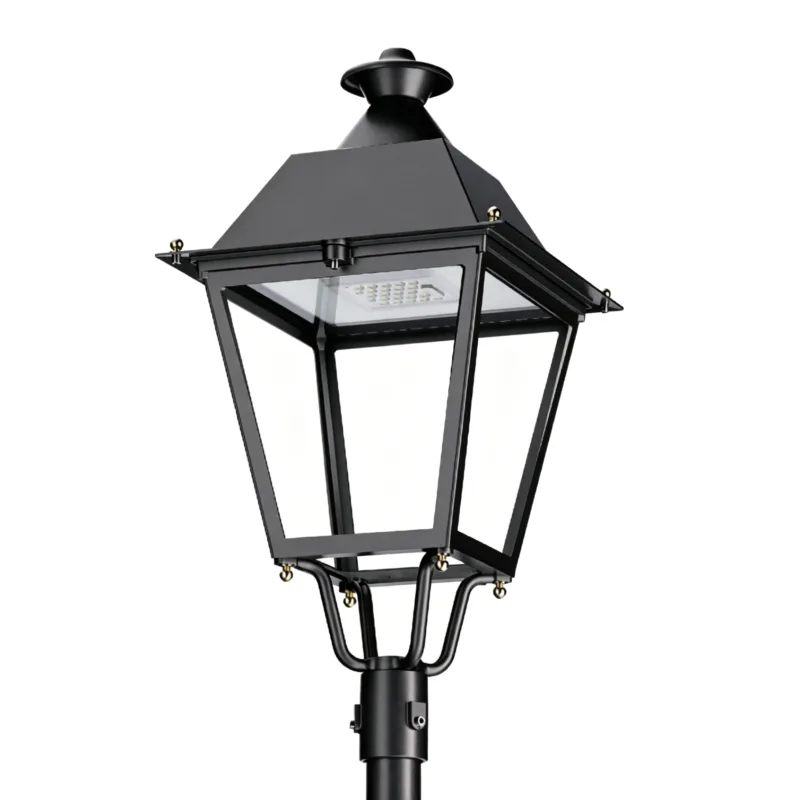

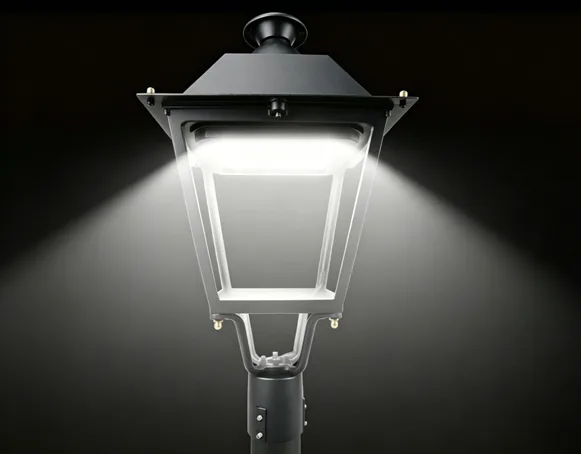

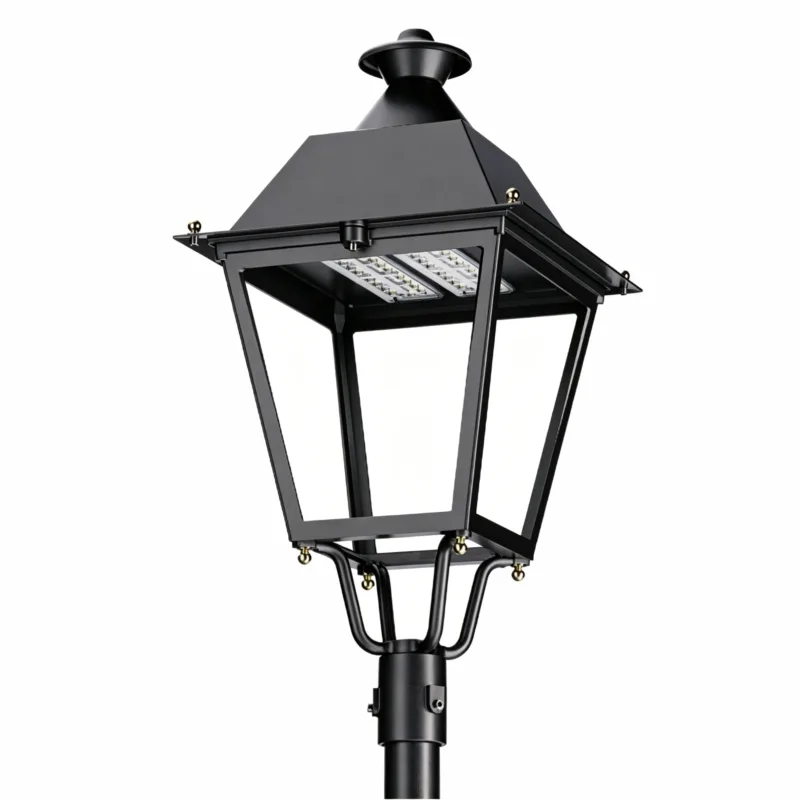

LED Park Light – INL-DSL05
The INL-DSL05 LED luminaire is a classic and elegant outdoor garden lighting solution, combining heritage lantern aesthetics with advanced LED technology. Built on Everlite’s patented E-light engine system, it delivers high efficiency, excellent
optical performance, and long-term reliability. Constructed with a full die-cast aluminum main frame, canopy, and chimney structure, the luminaire ensures superior durability, heat dissipation, and weather resistance. With flexible arm options and post-top mounting compatibility, it is ideal for parks, villas, pathways, and landscape lighting applications.
Description
Features
- Full die-cast aluminum structure (main frame, canopy, chimney, and light engine holder) for enhanced strength and thermal management
- High-efficiency LED module (up to 120 lm/W) with premium chip options: LUMILEDS / CREE / SAN’AN
- Reliable branded drivers (PHILIPS / INVENTRONICS / SOSEN) with PF >0.95 and 10KV/20KV surge protection
- PC optical lenses with multiple light distribution types (Type I / II / IV / V) for uniform illumination and high visual comfort
- Adjustable CCT (2700K–6500K) to meet different lighting requirements
- IP66 waterproof and IK08 impact resistance, suitable for harsh outdoor environments
- Long lifespan >50,000 hours with stable performance from -35°C to +50°C

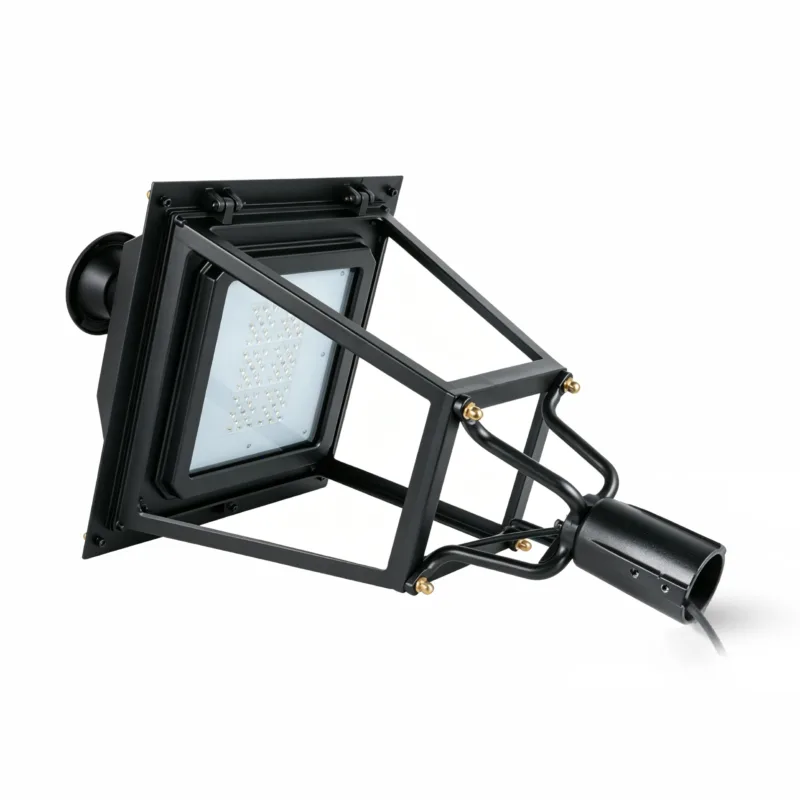

- Multiple arm designs (6 options) for flexible architectural integration

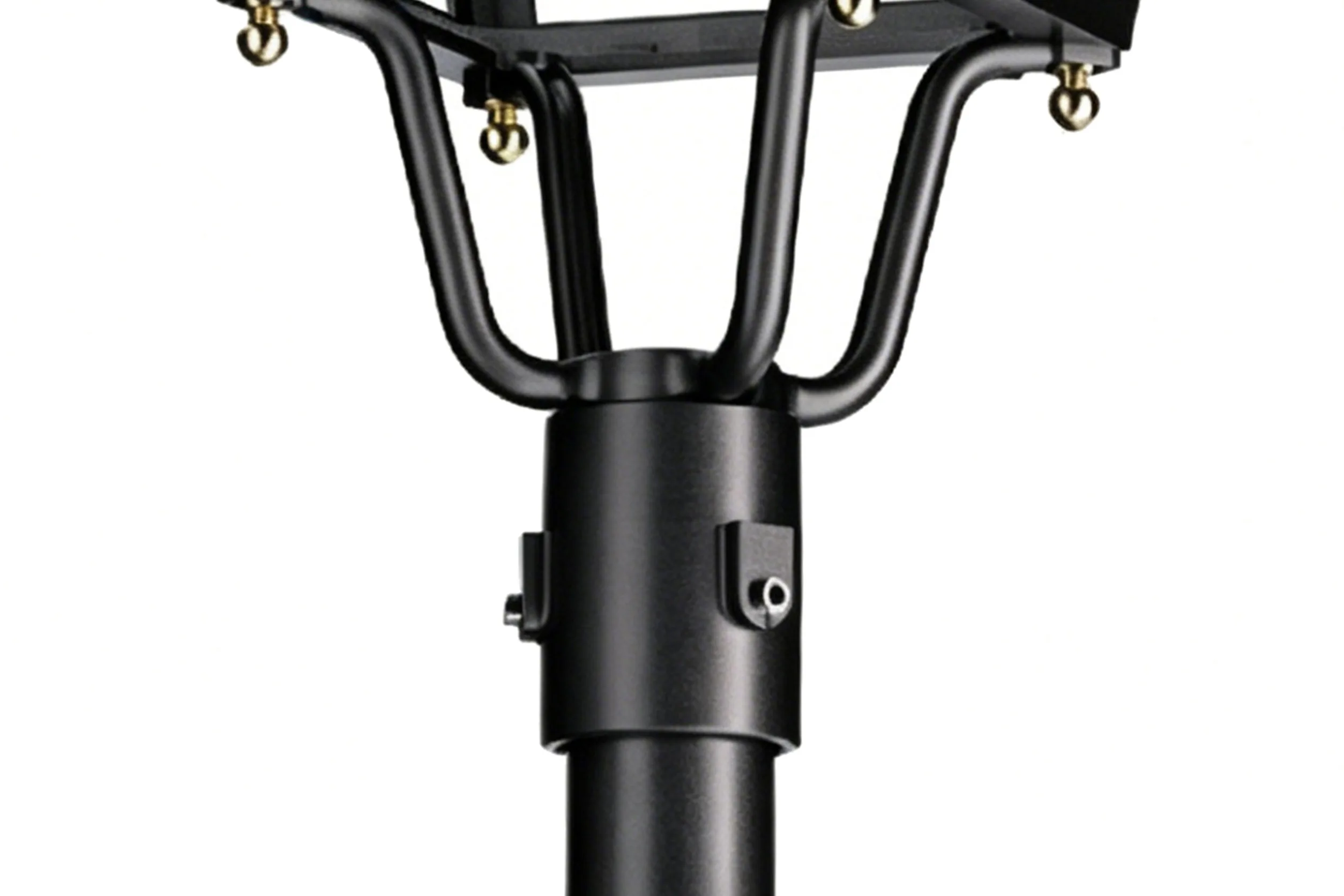

- Post-top mounting adaptor compatible with φ60 / 76 mm poles
Anti-Glare Design with Wide Coverage
Optimized optical design reduces glare while providing wide and uniform illumination, improving visual comfort in large areas.
Adjustable Color Temperature Options
The color temperature can be flexibly adjusted to suit different lighting requirements, with a tunable range from 2700K to 6500K. Easily switch between warm and cool light to match various outdoor environments and application scenarios.

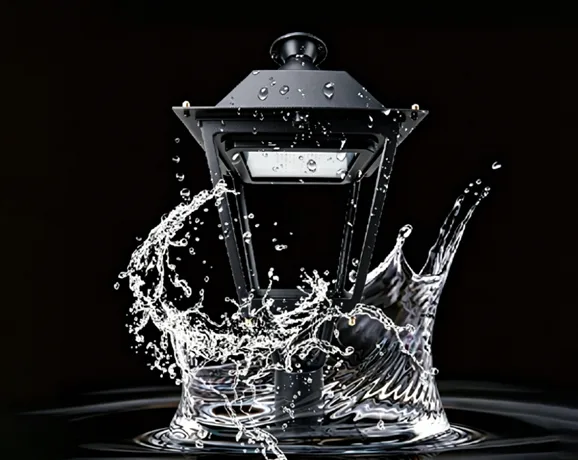

IP66 Weatherproof Protection
Engineered with a fully sealed structure, the luminaire meets IP66 standards, ensuring complete protection against dust ingress and powerful water jets. Designed for reliable outdoor performance, it maintains stable operation in harsh environments such as heavy rain, humidity, and dusty conditions.
Technical Specifications
| Parameter | INL-DSL05 |
| Power | 20-100 W |
| LED Chip | LED Module |
| Luminous Efficiency | 120 lm/W |
| Chip Brand | LUMILEDS / CREE / SAN’AN |
| Driver | PHILIPS / INVENTRONICS / SOSEN |
| Power Factor | >0.95 |
| Input Voltage | 90-305V |
| SPD | 10KV / 20KV |
| Insulation Class | Class I/II |
| CCT | 3000-6500K |
| CRI | >70 |
| Optical Lens | Type I / II / III / IV / V |
| Working Temperature | -35°C to +50°C |
| Lifetime | >50,000 Hours |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Body Material | Die-casting Aluminum |
| Installation Spigot | 76 / 60 / 27 mm |
Interior Structure
See what’s inside the LED Park light INL-DSL05.
01
02
03
04
05
06
IP67 Super Bright LED Module
Featuring advanced 5050LED chips with Average lumens up to 120lm/w, this lighting solution delivers extreme brightness and reliable performance. Designed with high-temperature resistance and low thermal resistance, it ensures a longer LED lifespan. The thick aluminum heat sink, combined with a fast heat dissipation module, guarantees optimal performance and durability, while the easy-maintenance design simplifies upkeep.

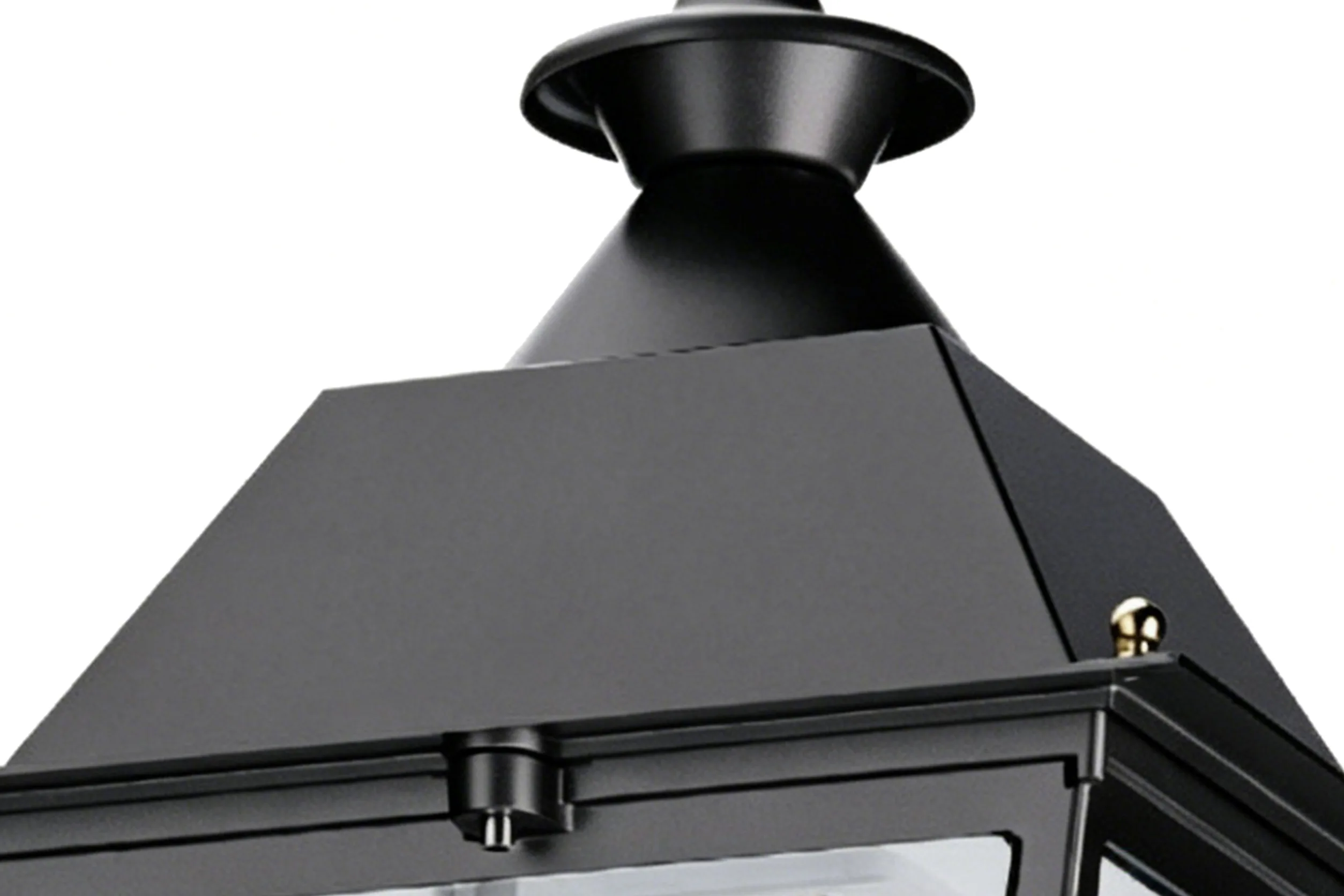

Aluminum Alloy Lamp fixture
The lamp head is constructed from high-quality aluminum alloy, offering excellent heat dissipation to ensure stable LED performance and longer lifespan. Its corrosion-resistant and weatherproof properties make it ideal for harsh outdoor environments.
LED Driver
The LED driver delivers precise current regulation, ensuring LEDs operate at optimal brightness and efficiency. It enhances reliability and extends the lifespan of LEDs by protecting them from voltage fluctuations and electrical surges. Many LED drivers are equipped with dimming capabilities, providing flexible lighting options, energy savings, and customizable brightness levels to suit various applications.

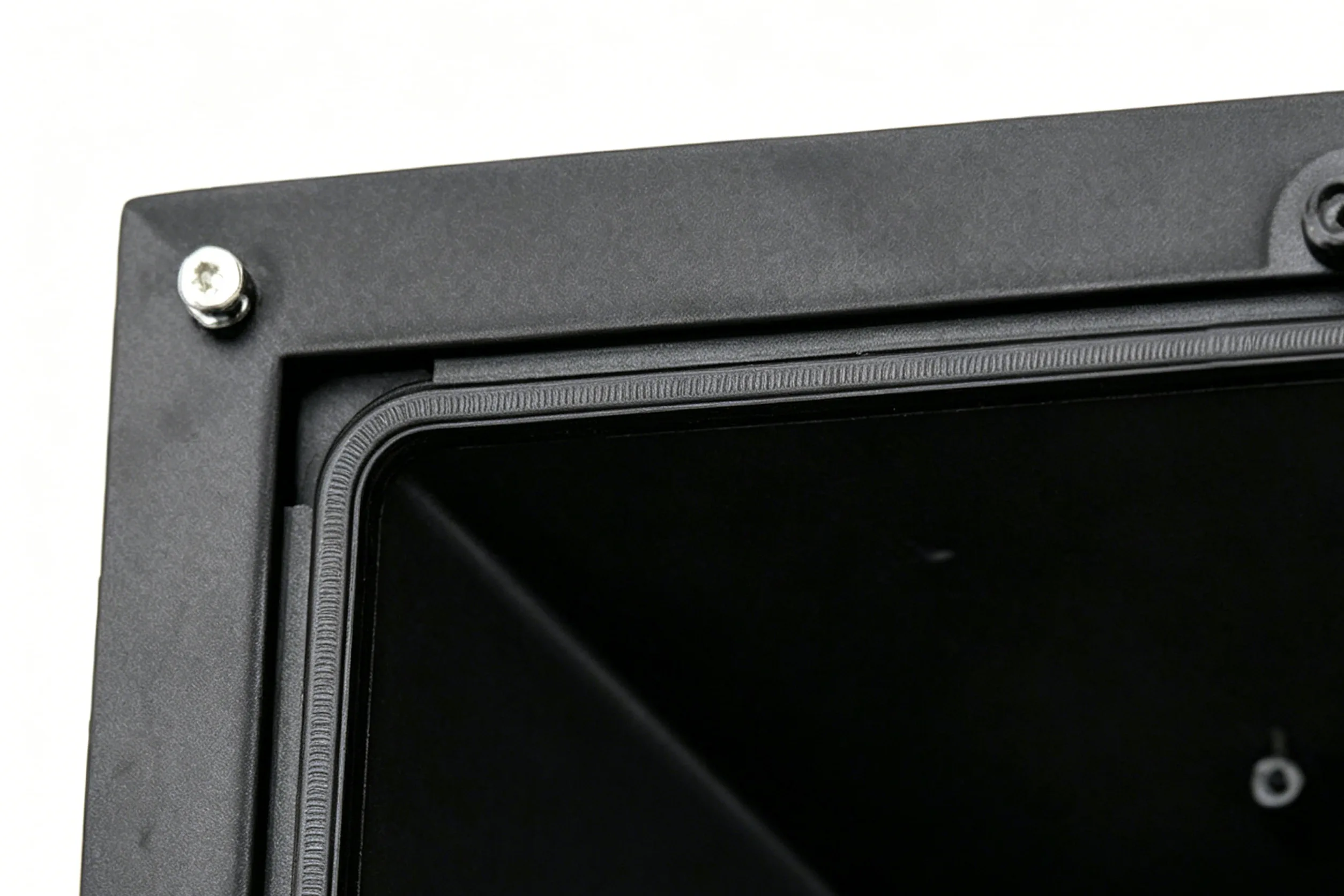

Waterproof Ring
Ensures IP66-rated protection for the entire fixture, effectively preventing water and dust ingress while maintaining reliable outdoor performance.
Tempered Glass
A high-strength tempered glass cover is positioned beneath the LED module to provide enhanced protection against impact, dust, and moisture. With high light transmittance, it ensures maximum luminous efficiency while maintaining long-term durability and stable performance in outdoor environments.
Aluminum Lamp Holder
The lamp holder is constructed from high-quality aluminum, offering excellent structural strength and corrosion resistance for long-term outdoor use. Its robust design ensures secure installation and stable support, while also contributing to effective heat dissipation for improved overall performance and lifespan.
Light Distribution Curve
Optical with PC lenses with high visual comfort and uniform lighting distribution, multiple optical distribution options.

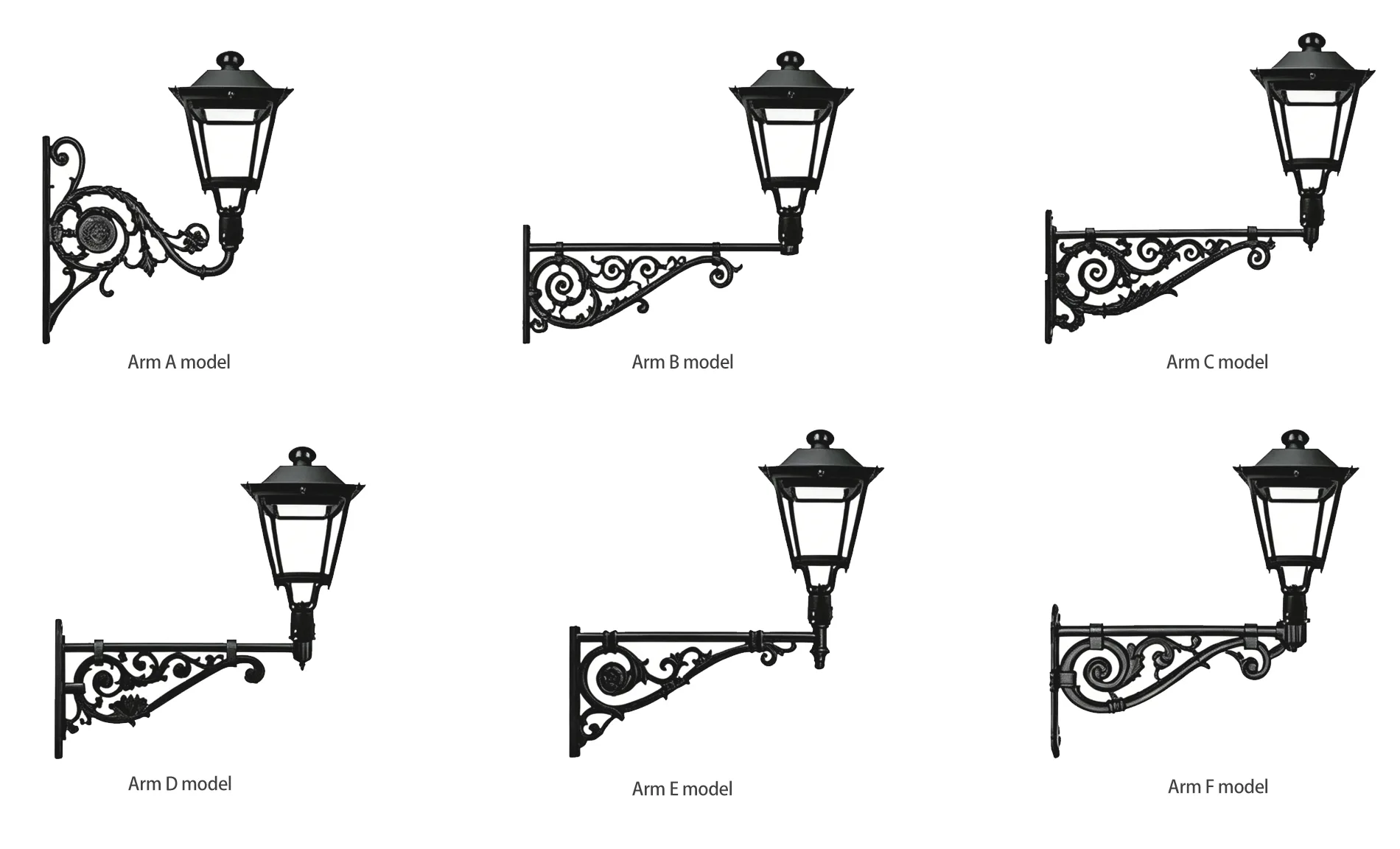

Aeeessories Dispaly
Multiple arm designs available, perfectly compatible with this LED Park light.
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, Inlux Solar’s IOT Smart Monitoring System enables intelligent management of our INL-DSL05 LED park light by PC, PAD and Mobile.

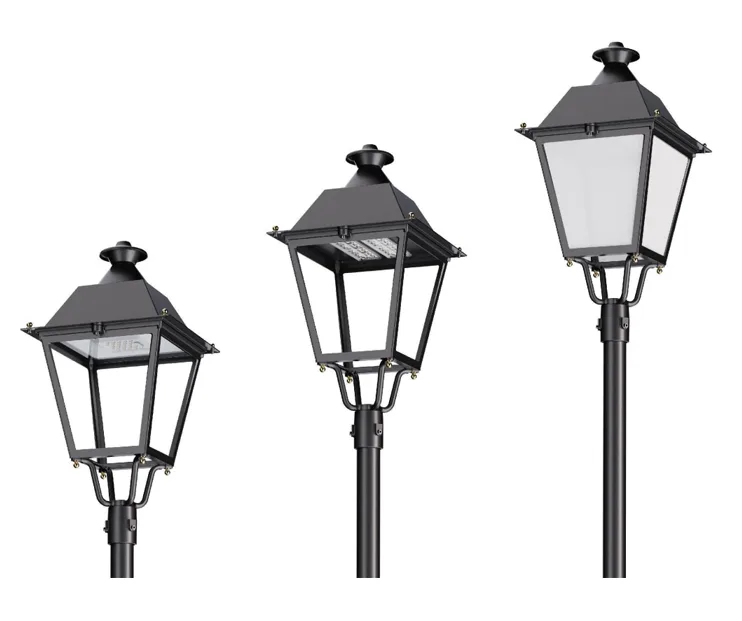

Choose the DSL05 Form and Mounting
The gallery shows a lantern-style body, different glazing appearances and both post-top and side-arm arrangements. Identify the exact form, mounting hardware and finish in the order. Share the site layout and lighting target, and ask whether the proposed color-temperature option is factory-selected or field-adjustable. Request the selected optical file and the agreed driver, control and spare-parts scope.
