Split Type Solar Street Light – MARS Gel Battery
Split Type Solar Street Light MARS features adjustable solar panels and lighting modules for maximum efficiency. The split system combines ultra-bright 5050 LEDs, deep-cycle gel battery, intelligent solar controller, and high-efficiency panels. Optional upgrades include self-cleaning solar panels, motion sensors, CCTV, and smart monitoring.
Applications：
Certified Quality for Global Projects
Description
For a MARS split-type project RFQ, share the site layout, target lighting level, pole height, battery installation plan, nightly operating hours, and autonomy requirement. Compare the MARS configuration with other split-type solar street light systems before confirming a project configuration.
Features
The Split Type Solar Street Light MARS Gel Battery series is a Split-Type solar street light by adopting the Gel battery as the storage battery, which can be buried underground or hanging onto the pole. It is an integration of first-class ultra-bright 5050 LED lighting modules, deep cycled gel battery, an intelligent solar controller, and a high-efficiency solar panel. The motion sensor and smart wireless system are optional
Extreme Bright 5050 LED Provides 40% Higher Brightness
MARS Series adopts first-class Extreme Bright 5050 LEDs with 260lm/w efficiency, providing 40% higher brightness than normal solar lights which use 3030 LEDs and 2835 LEDs by its much bigger LED chip size.
15% higher uniformity and 30% larger coverage area
Specially designed light distribution and bigger beam angle enlarge illumination areas and improve lighting uniformity, suitable for rural roads, streets, highways, and residential areas.
Smart Solar Controller
The Smart Solar Controller offers high efficiency with a smart power-saving mode that optimizes energy use. It operates with constant current and an IP68 rating, ensuring reliable performance even in harsh environmental conditions. This advanced design significantly reduces the light failure rate, providing consistent brightness over time. Additionally, the controller includes multiple protection features that effectively safeguard the battery, enhancing its longevity and ensuring the system’s overall durability and safety.
Waterproof battery box
Choose between a steel battery box that hangs onto the light pole or an ABS plastic battery box buried underground, depending on your installation scenario. Both options are waterproof, corrosion-resistant, and have a lifespan exceeding 10 years.
Free maintenance Gel Battery
Free Maintenance Gel Battery — maintenance-free design with deep-cycle capability, low internal resistance, and lead-tin-calcium alloy grids for extended service life and reliable performance.
Operable Under Harsh Environment
IP66 for the whole MARS system, which makes it adaptable for rainy areas. High-temperature resistant LiFePO4 battery with low current design significantly reduces internal heat when the system works. Among other things, the smart temperature adjustment function of the solar controller enables the system to operate normally under temperatures as high as 65°C.
LED Lamp Options
For different application scenarios, we provide the following lamps as the light source of the MARS series split type solar street light.
Technical Specifications
| LED Lamp | LED Power | 20-150W | Solar Controller | Capacity | 10A – 40A |
| Luminous Efficiency | > 180 lm/W | Suggested Height | 3 – 15 meters | ||
| Luminous Flux | 3600 – 27000 lumens | Section Shape | Conical / Octagonal | ||
| Color Temperature | 3000K – 6000K | Material & Finishing | galvanized steel / aluminum with powder coated | ||
| Lighting Distribution | Type II, Type III | Working Temperature | -20 – 65℃ | ||
| Gel Battery | Battery Type | GEL battery | Light Pole | Protection Levels | IP66 / IK09 |
| Rated Capacity | customizable | Wind Resistance | >120km/h | ||
| Battery Location | Buried underground / hanging onto the pole | Life Span | LED lamp: > 20 years battery: > 10 years solar controller: > 20 years solar panel: > 25 years Light Pole: > 30 years |
||
| Battery Box | IP66, ABS plastic | ||||
| Solar Panel | Silicon Type | Mono-crystalline | System | ||
| Power | customizable | ||||
| Horizontal Angle | 360° adjustable |
Interior Structure
See what’s inside the MARS Split-Type Solar Street Light.
01
02
03
04
05
03
04
05
06
Super Bright LED Lamp
Featuring advanced 5050 LED chips with an impressive efficiency of up to 220lm/w, this lighting solution delivers extreme brightness and reliable performance. Designed with high-temperature resistance and low thermal resistance, it ensures a longer LED lifespan. The thick aluminum heat sink, combined with a fast heat dissipation module, guarantees optimal performance and durability, while the easy-maintenance design simplifies upkeep.
Strong Lighting Pole
The strong lighting pole is constructed from Grade A hot-dip galvanized steel, ensuring exceptional durability and anti-corrosion performance. Made from a single piece of steel sheet, it features a seamless design with a powder coating for enhanced rust resistance. Withstanding wind speeds of over 120 km/h, this pole is built for stability in extreme weather conditions. Its robust construction guarantees a lifespan of over 25 years, making it an ideal choice for long-term outdoor applications.
Smart Solar Controller
The Smart Solar Controller offers high efficiency with a smart power-saving mode that optimizes energy use. It operates with constant current and an IP68 rating, ensuring reliable performance even in harsh environmental conditions. This advanced design significantly reduces the light failure rate, providing consistent brightness over time. Additionally, the controller includes multiple protection features that effectively safeguard the battery, enhancing its longevity and ensuring the system’s overall durability and safety.
Waterproof Battery Box
The waterproof battery box is constructed from high-quality ABS engineering plastic or galvanized steel, ensuring durability and strength. With an IP65 to IP67 waterproof rating, it provides excellent protection against water and dust, making it suitable for various outdoor environments. Designed for long-term use, the box offers a lifespan of over 10 years, ensuring reliable performance and enhanced safety for the housed batteries.
Free Maintenance Gel Battery
The free-maintenance LiFePO₄ battery is designed for hassle-free operation, eliminating the need for regular upkeep. It features deep-cycle capabilities and low internal resistance, ensuring efficient energy storage and discharge. Constructed with lead-tin-calcium alloy grids, the battery delivers an extended service life, making it a reliable and durable choice for long-term applications.
Solar Panel
The solar panel features A-class quality with a high charging efficiency of 21%. This ensures optimal energy conversion, maximizing power generation even under varying sunlight conditions. Its premium design guarantees reliability and long-term performance, making it a highly efficient and durable solution for solar energy applications.
Optional Features & Add-ons
01
Motion Sensor
The motion sensor automatically reduces brightness by 30% when inactivity is detected, saving energy. Upon detection of presence, brightness returns to 100%, ensuring optimal visibility while minimizing distractions. This feature strikes a balance between power efficiency and user comfort.
02
Adjustable Solar Panel Bracket
The adjustable bracket optimizes panel positioning for maximum sunlight capture. It allows users to adjust the tilt angle for optimal solar energy collection, regardless of geographic location or seasonal changes, ensuring high performance even in harsh weather conditions.
03
Anti-theft Components
Anti-theft screws and spikes are designed to secure solar panels against theft. The unique tamper-resistant design makes removal nearly impossible without specialized tools, while anti-climbing spikes prevent unauthorized access, ensuring durability and security in exposed environments.
04
Anti-bird Spike
Anti-bird spikes offer a humane and effective solution to prevent birds from perching on solar panels, rooftops, and fences. Made from durable stainless steel or plastic, these sharp, angled prongs discourage birds without harming them. Easy to install, these spikes provide a low-maintenance way to protect solar panels from bird-related damage, ensuring optimal performance.
05
Camera
The system integrates a solar-powered CCTV camera, offering a sustainable and eco-friendly surveillance solution. These cameras operate independently of traditional power sources, ensuring continuous monitoring without external electricity. With waterproof housing and motion detection features, they enhance security for solar panels while reducing energy costs.
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, Inlux Solar’s IOT Smart Monitoring System enables intelligent management of our Split Type Solar Street Light MARS Gel Battery by PC, PAD and Mobile.
Compatible Pole Designs
Installation Methods

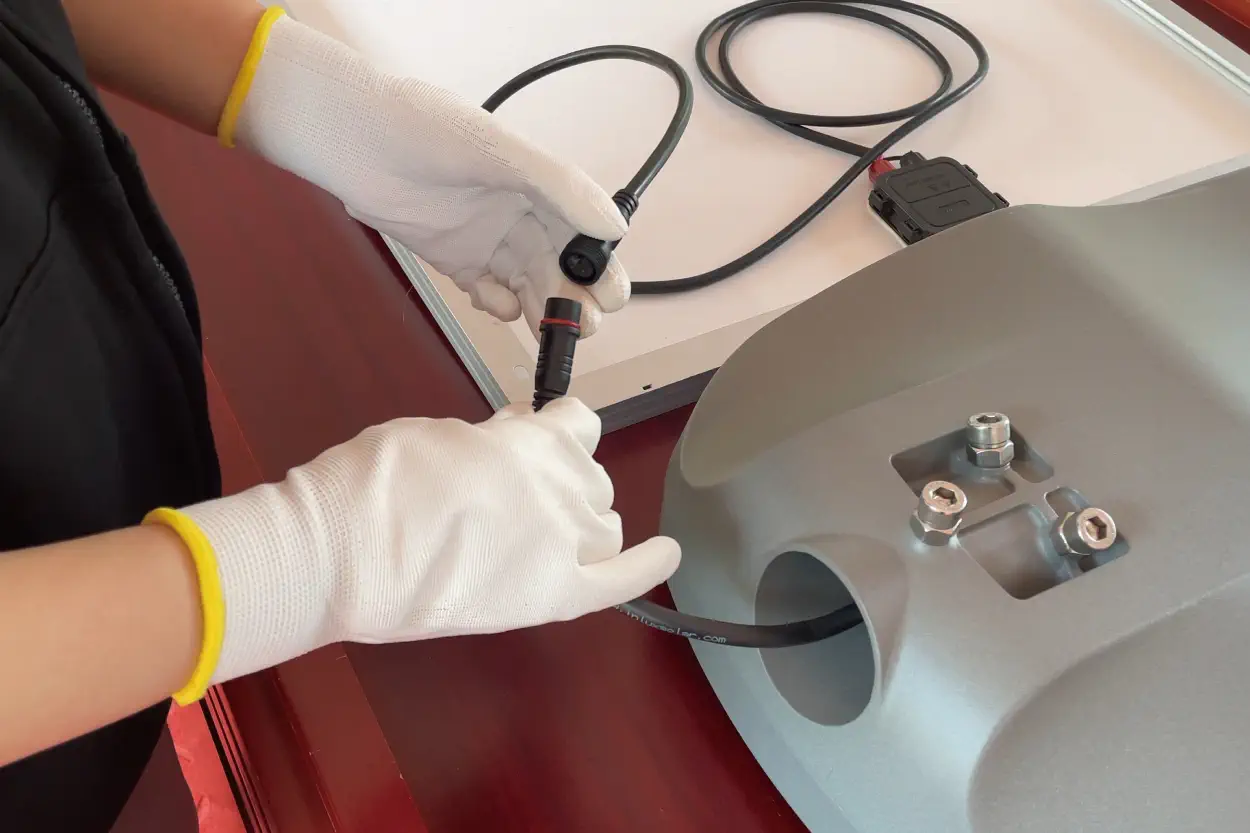

1.Strip the cable and connect the light to the battery

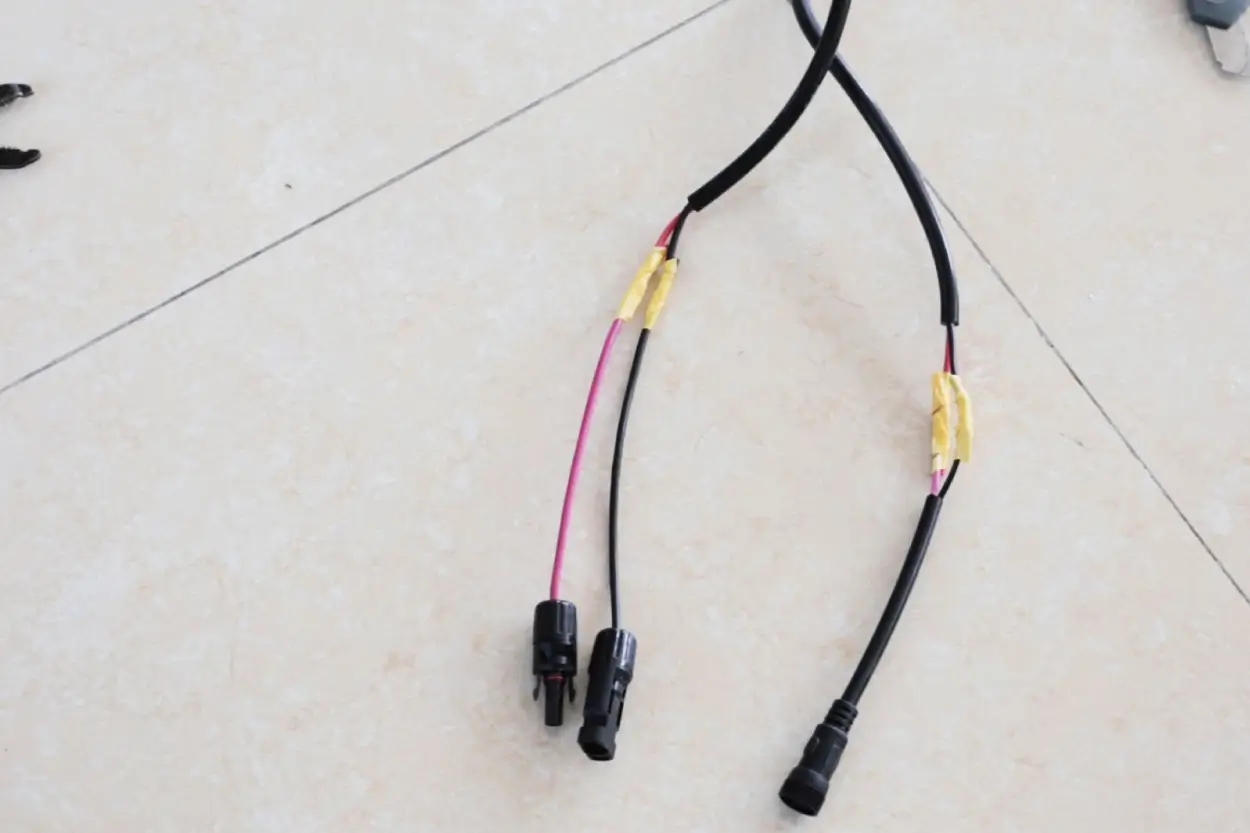

2.Strip the black cable and connect the plug

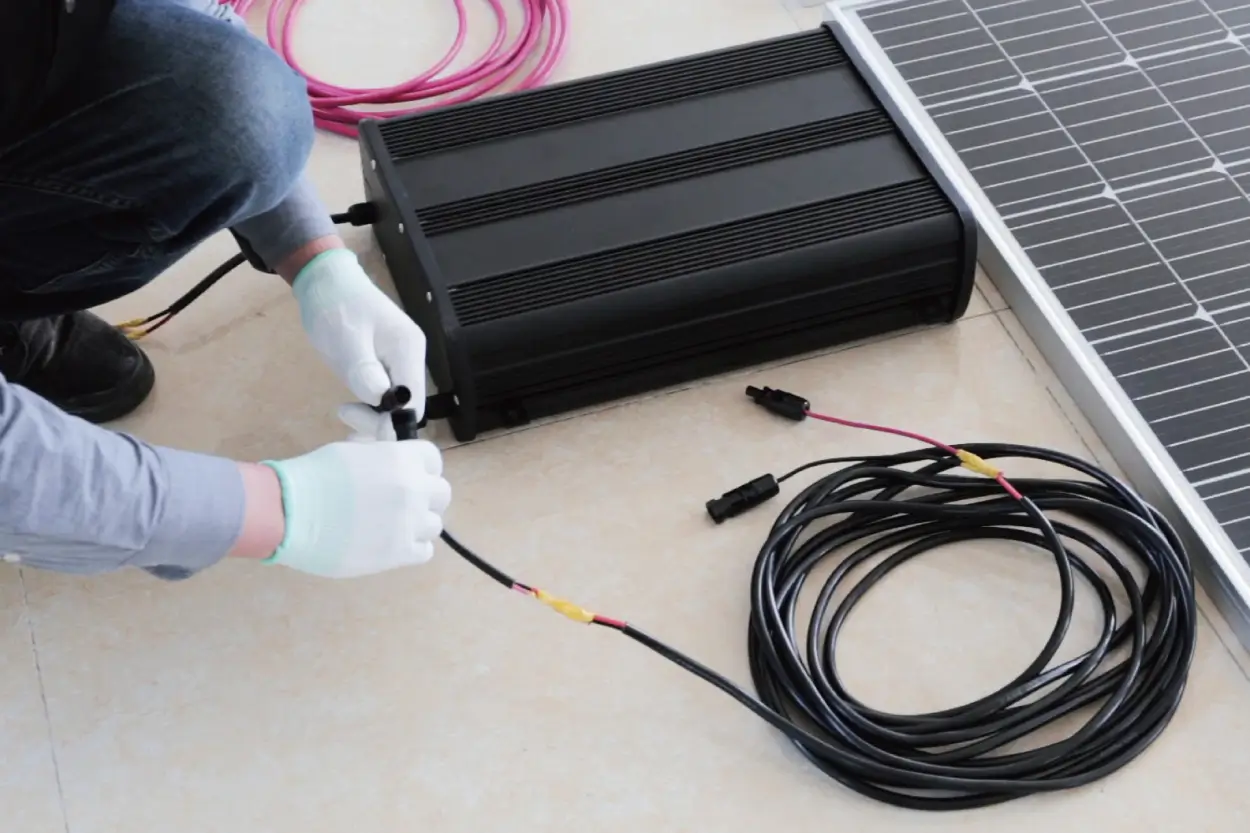

3.Black cable to connect battery

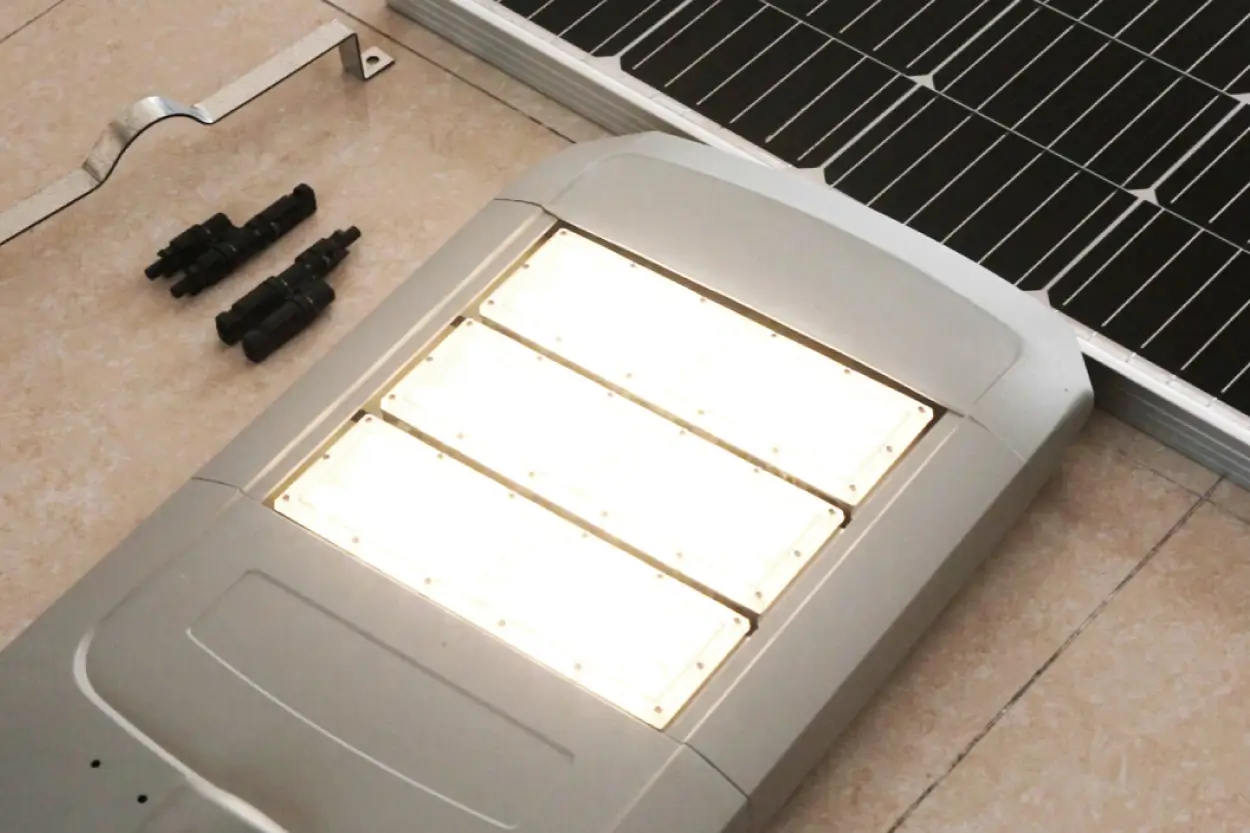

4.The lamp turns on after seconds

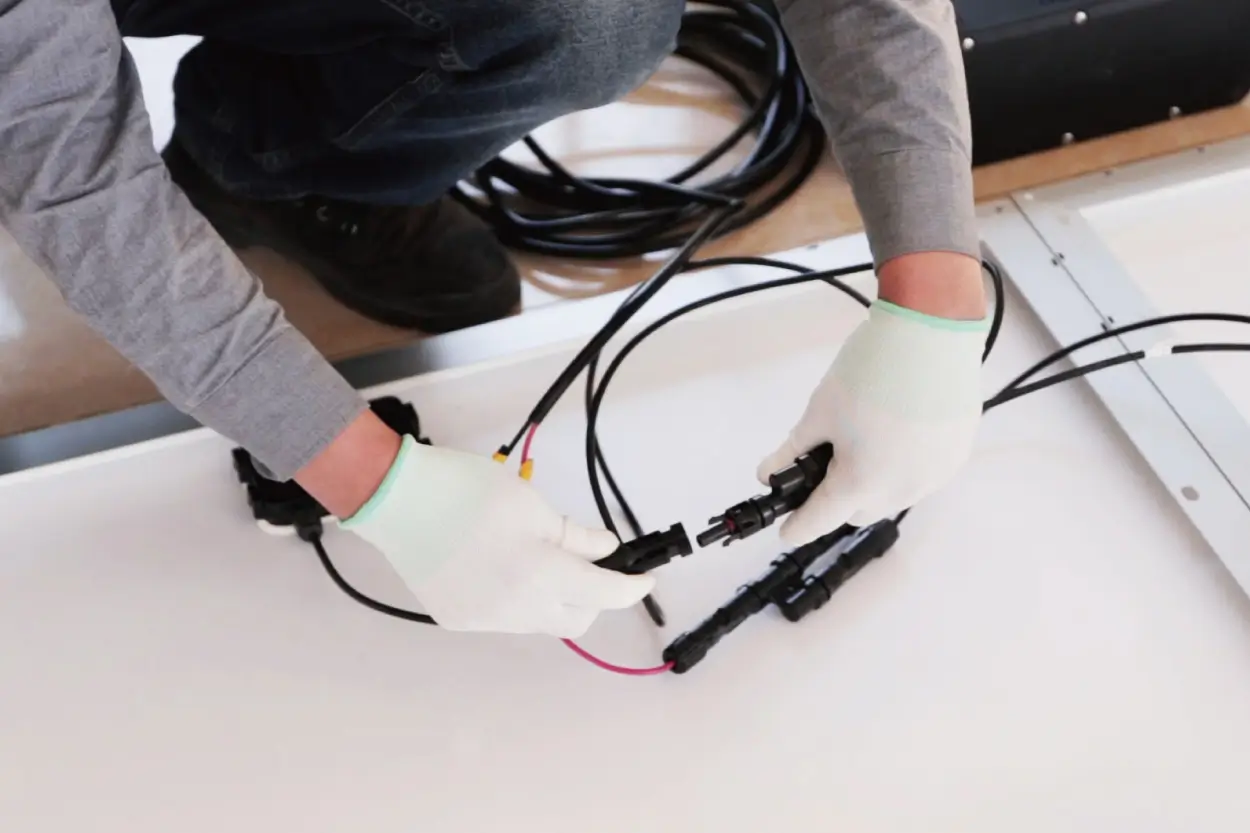

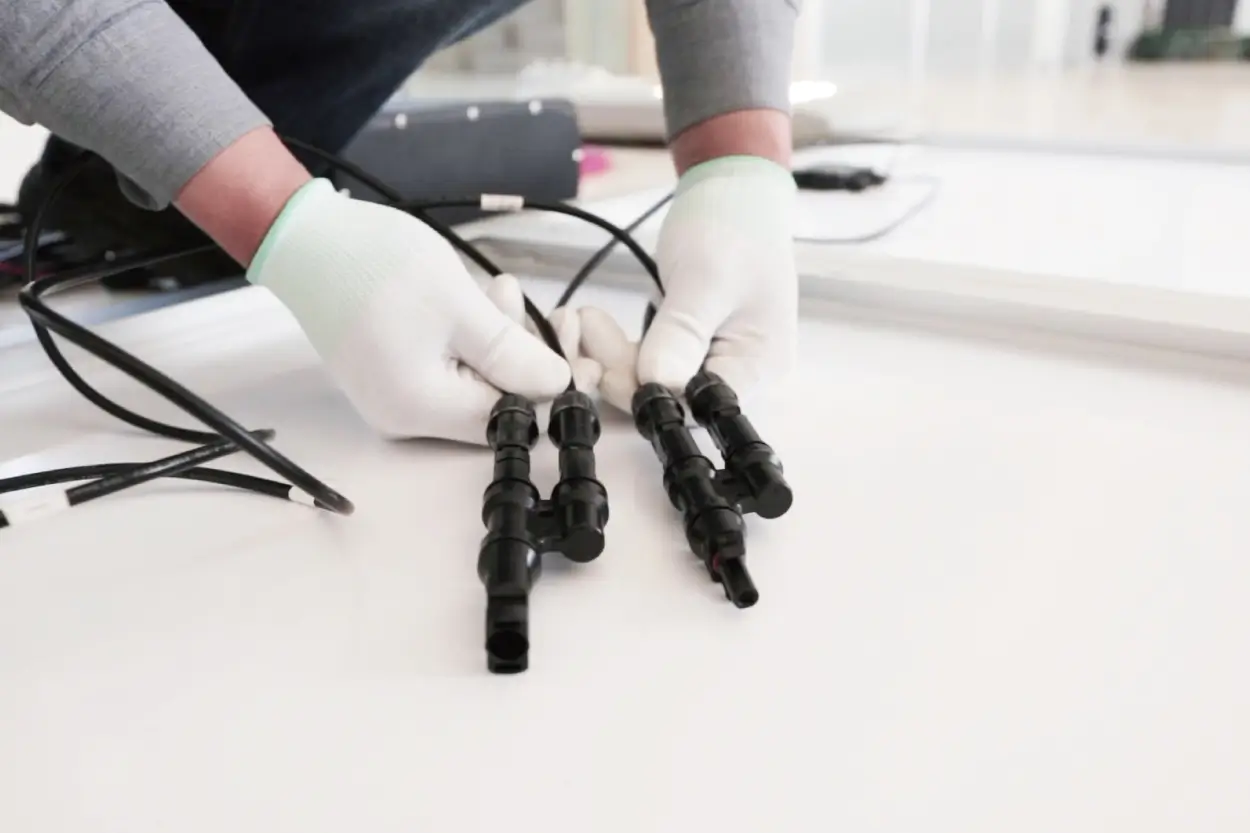

5.Connect the two solar panels together
6.Other end of the black cable is connected to the solar panel
