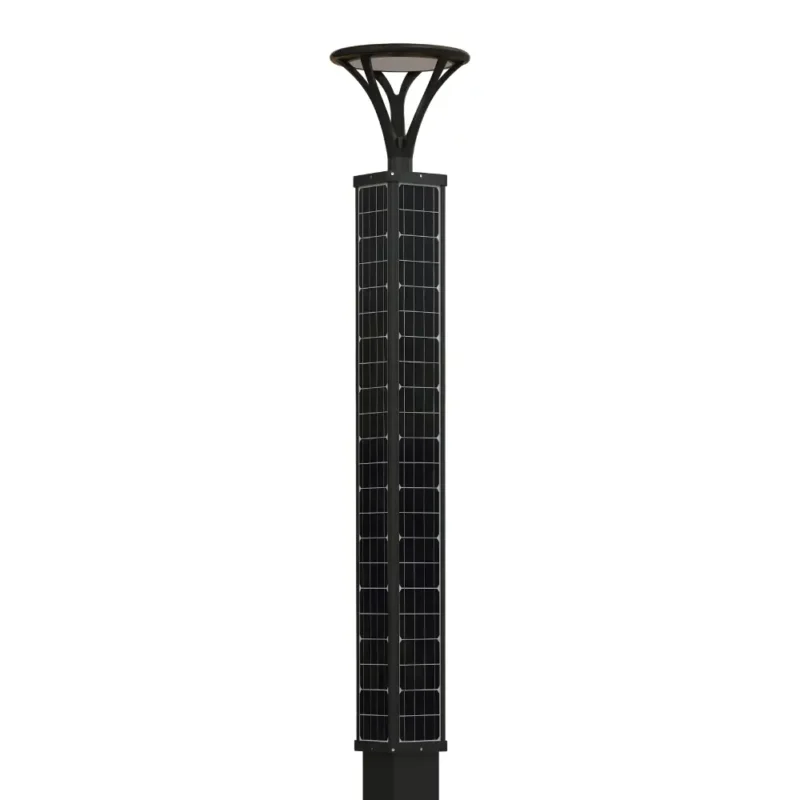

INL-SPL03 Solar Pole Street Light
INL-SPL03 Solar Pole Street Light combines a decorative LED fixture with vertical mono-crystalline solar panels, delivering a sleek, modern look that doubles as a landscape feature. Options include 30–150W LEDs (>180 lm/W, 5,400–27,000 lm), LiFePO4 power inside the luminaire, Type II/III optics, IP66/IK09 protection, and 6–12 m pole heights—ready for streets, parks, and community areas.
Description
Features
The INL-SPL03 Solar Pole Street Light elevates public spaces by pairing a decorative lamp head with vertically mounted solar panels that present a clean, contemporary profile. Widely used on prominent streets, in parks, residential communities, and commercial districts, SPL03 offers 30–150W high-efficiency LEDs (>180 lm/W, 5,400–27,000 lumens), long-life LiFePO4 storage inside the fixture, Type II/III distributions, and IP66/IK09 durability—so it looks refined by day and lights reliably at night.
For a streetscape project, compare the decorative head and pole arrangement in our Solar Pole model comparison. The solar pole lighting guide explains the wider design choices. Send an SPL03 project enquiry with the layout, appearance requirements, shading conditions and lighting target.
How This Product Benefits Your Project

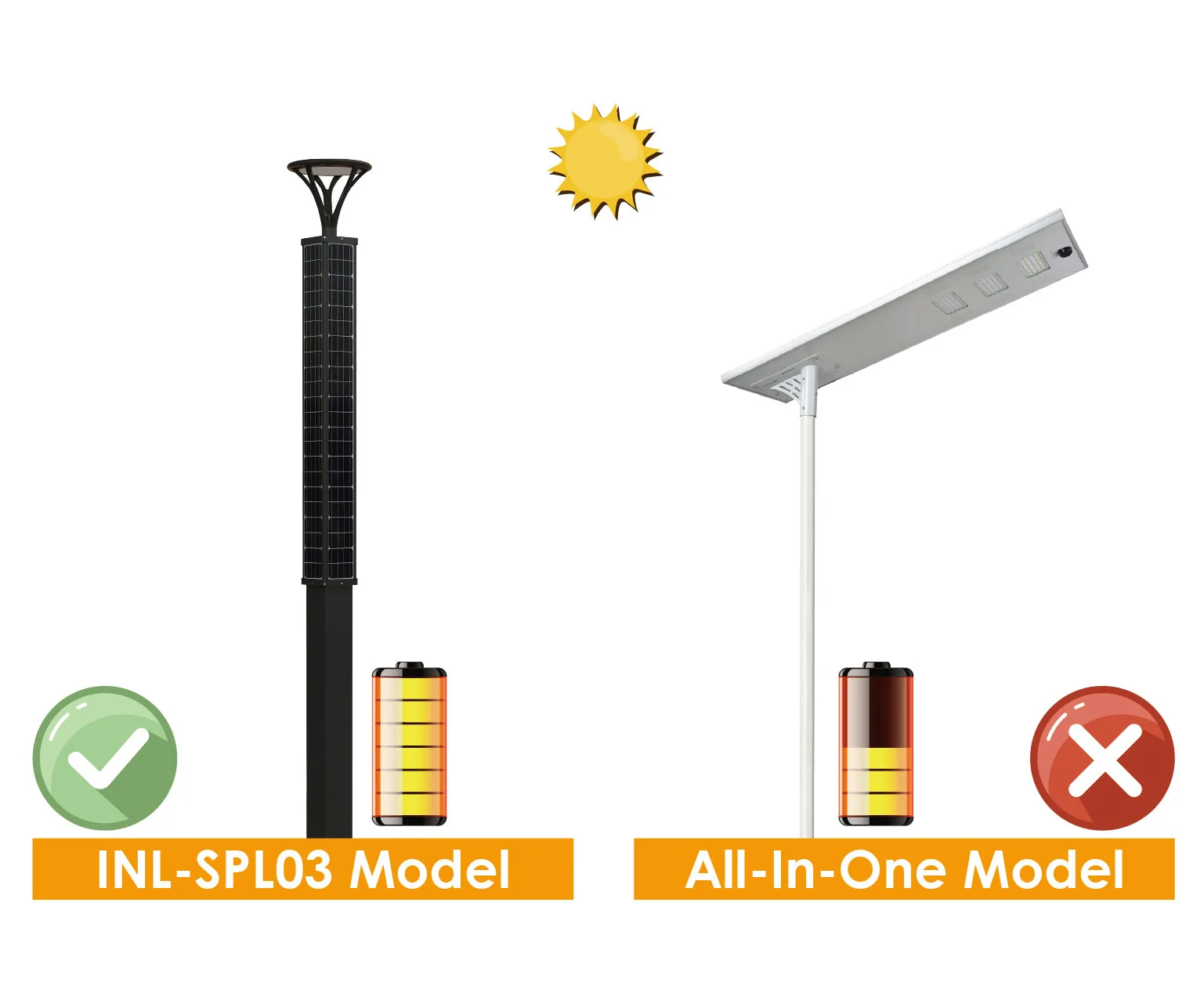

Versatile Vertical Solar Panels
Our solar panels, fixed on octagonal or square frames to keep 50% facing sunlight, are vertically pole-mounted. This setup cuts wind resistance (ideal for windy regions), reduces dust/snow buildup (lowering cleaning needs), and replaces top-mounted panels with a modern integrated look.
Extreme Bright 5050 LED Provides 40% Higher Brightness
INL-SPL03 Series adopts first-class Extreme Bright 5050 LEDs with 260lm/w efficiency, providing 40% higher brightness than normal solar lights which use 3030 LEDs and 2835 LEDs by its much bigger LED chip size.

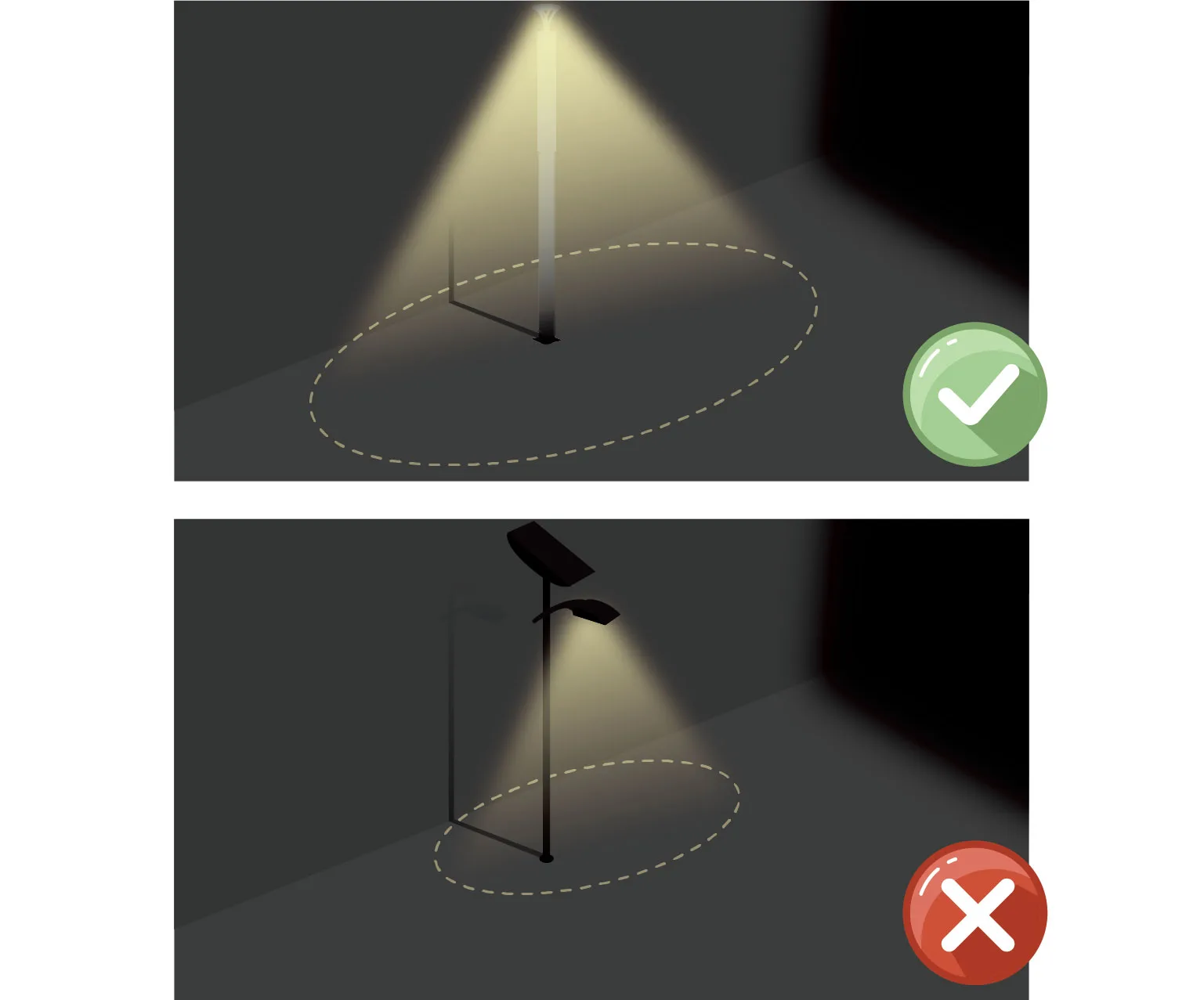

15% higher uniformity and 30% larger coverage area
Specially designed light distribution and bigger beam angle enlarge illumination areas and improve lighting uniformity, suitable for rural roads, streets, highways, and residential areas.
10+ Years Lifespan Lithium Battery
By adopting unique pouch-type lithium battery cells, the LiFePO4 battery has been specially engineered to deliver a 4000-cycle life under deep DOD with excellent stable performance. Along with multi-protection applied by the BMS unit and solar controller contributes to maintaining the battery’s perfect operation under various extreme climates.
Operable Under Harsh Environment
IP66 for the whole JAGUAR system, which makes it adaptable for rainy areas. High-temperature resistant LiFePO4 battery with low current design significantly reduces internal heat when the system works. Among other things, the smart temperature adjustment function of the solar controller enables the system to operate normally under temperatures as high as 65°C.
Plug & Play Fast Installation
All components are connected via waterproof quick-connect connectors, making maintenance and replacement very convenient.
Technical Specifications
| LED Lamp | LED Power | 30-150W | Solar Panel | Silicon Type | Mono-Crystalline |
| Luminous Efficiency | > 180 lm/W | Power | 100W-720W | ||
| Luminous Flux | 5400 – 27000 lumens | Light Pole | Horizontal Angle | 360° Adjustable | |
| Color Temperature | 3000K-6000K | Suggested Height | 6-12 Meters | ||
| Lighting Distribution | Type II, Type III | Material & Finishing | Galvanized Steel / Aluminum with Powder Coating | ||
| Material | Die-Casting Aluminum | System | Working Temperature | -20℃~65℃ | |
| Lamp Adaptor | 60 mm Diameter | Protection Levels | IP66 / IK09 | ||
| Product/Package Size | 710x325x145 mm / 770x360x200 mm | Wind Resistance | 120 km/h | ||
| Lithium Battery | Battery Type | Pouch-Type Lithium Iron Phosphate (LiFePO4) | Life Span | LED Lamp: >20 Years | |
| Rated Capacity | Maximum 75 AH / 25.6 V (1920 Wh) | Battery: >10 Years | |||
| BMS Unit | Provide Multiple Protections for Battery | Solar Controller: >20 Years | |||
| Battery Location | Built inside the pole | Solar Panel: >25 Years | |||
| Solar Controller | Capacity | 10A – 40A | Light Pole: >30 Years |
Interior Structure
See what’s inside the INL-SPL03 Solar Pole Street Light.
01
02
03
04
05
06

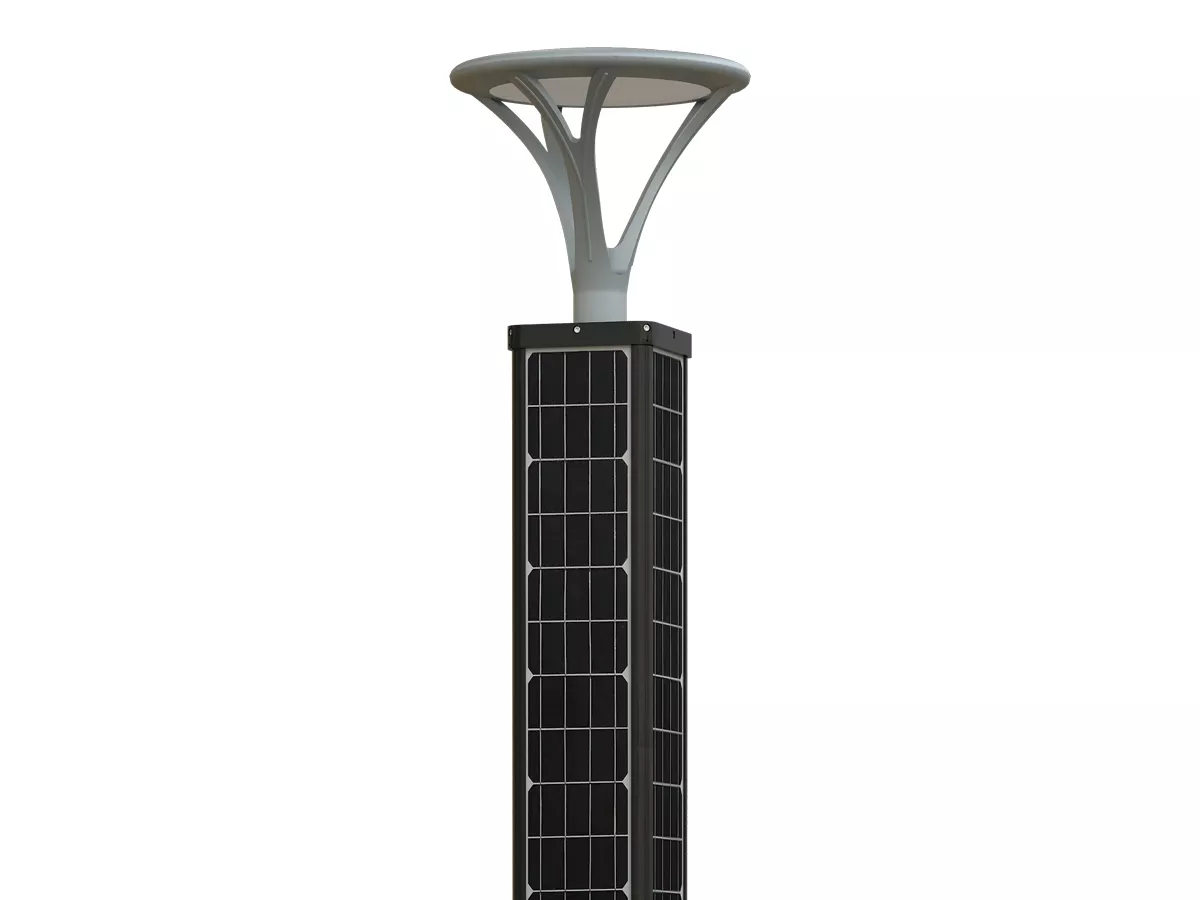

Decorative LED Lamp
Featuring advanced 5050 LED chips with an impressive efficiency of up to 220lm/w, this lighting solution delivers extreme brightness and reliable performance. Designed with high-temperature resistance and low thermal resistance, it ensures a longer LED lifespan. The thick aluminum heat sink, combined with a fast heat dissipation module, guarantees optimal performance and durability, while the easy-maintenance design simplifies upkeep.
Smart Solar Controller
The fixture is equipped with triangle strong-designed screws that provide a secure and reliable installation. These specially designed screws prevent the fixture from rotating once mounted, ensuring it remains fixed in place. The triangular shape enhances the grip, offering better torque resistance and stability, even in environments with vibrations or movement. This feature guarantees the long-term safety and proper alignment of the fixture, preventing any accidental shifts or misalignment.
LiFePO4 Lithium Battery
The fixture is equipped with a LiFePO4 lithium battery, known for its impressive lifespan of over 10 years. This battery offers excellent high-temperature resistance and exceptional safety performance, ensuring reliable power delivery and enhanced durability. With its long service life, it reduces the need for frequent replacements and provides peace of mind, making it an ideal choice for both residential and commercial applications.
Vertical Solar Panel
Vertical solar panels are designed to make optimal use of limited space, especially on lamp post surfaces, by seamlessly integrating into the lamp post structure. This innovative design prevents dust accumulation, thereby significantly reducing maintenance costs. In addition to their functionality, vertical solar panels enhance the aesthetic appeal of the lighting setup, providing a sleek and modern appearance while ensuring efficient energy generation.
Strong Lighting Pole
The strong lighting pole is constructed from Grade A hot-dip galvanized steel, ensuring exceptional durability and anti-corrosion performance. Made from a single piece of steel sheet, it features a seamless design with a powder coating for enhanced rust resistance. Withstanding wind speeds of over 120 km/h, this pole is built for stability in extreme weather conditions. Its robust construction guarantees a lifespan of over 25 years, making it an ideal choice for long-term outdoor applications.
IP66 Aluminum Battery Box
The IP66 aluminum battery box is designed to house the lithium battery securely, offering superior protection against dust and water ingress. Its robust and durable construction ensures reliable performance in various environments. The design allows for easy maintenance and battery replacement, making it a practical and efficient solution for long-term use.
Optional Features & Add-ons
01
Motion Sensor
The motion sensor automatically reduces brightness by 30% when inactivity is detected, saving energy. Upon detection of presence, brightness returns to 100%, ensuring optimal visibility while minimizing distractions. This feature strikes a balance between power efficiency and user comfort.
02
Camera
The system integrates a solar-powered CCTV camera, offering a sustainable and eco-friendly surveillance solution. These cameras operate independently of traditional power sources, ensuring continuous monitoring without external electricity. With waterproof housing and motion detection features, they enhance security for solar panels while reducing energy costs.
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, Inlux Solar’s IOT Smart Monitoring System enables intelligent management of our INL-SPL03 Solar Pole Street Light by PC, PAD and Mobile.
