Applications：

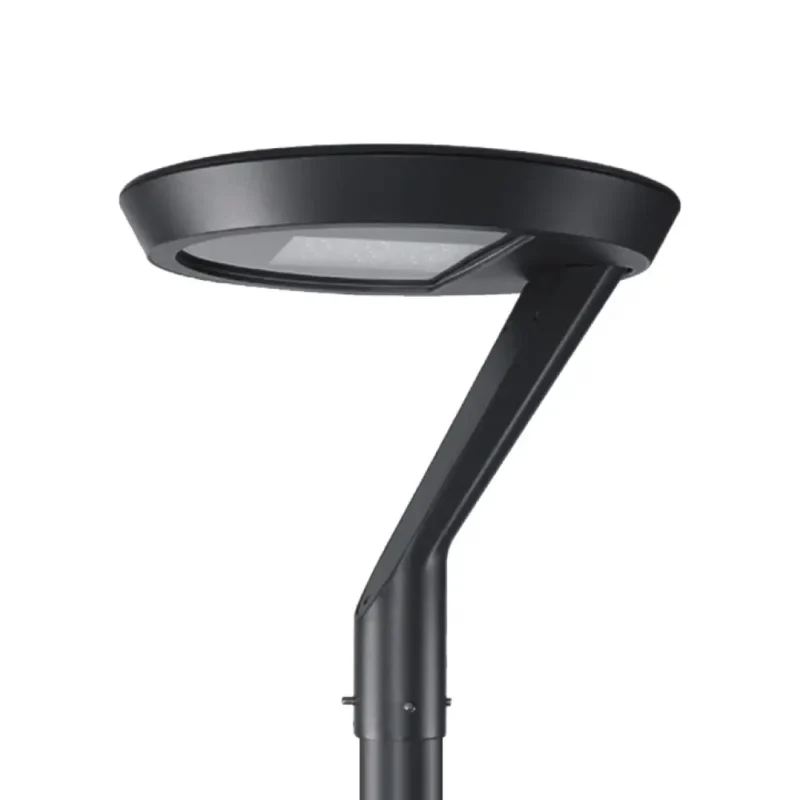

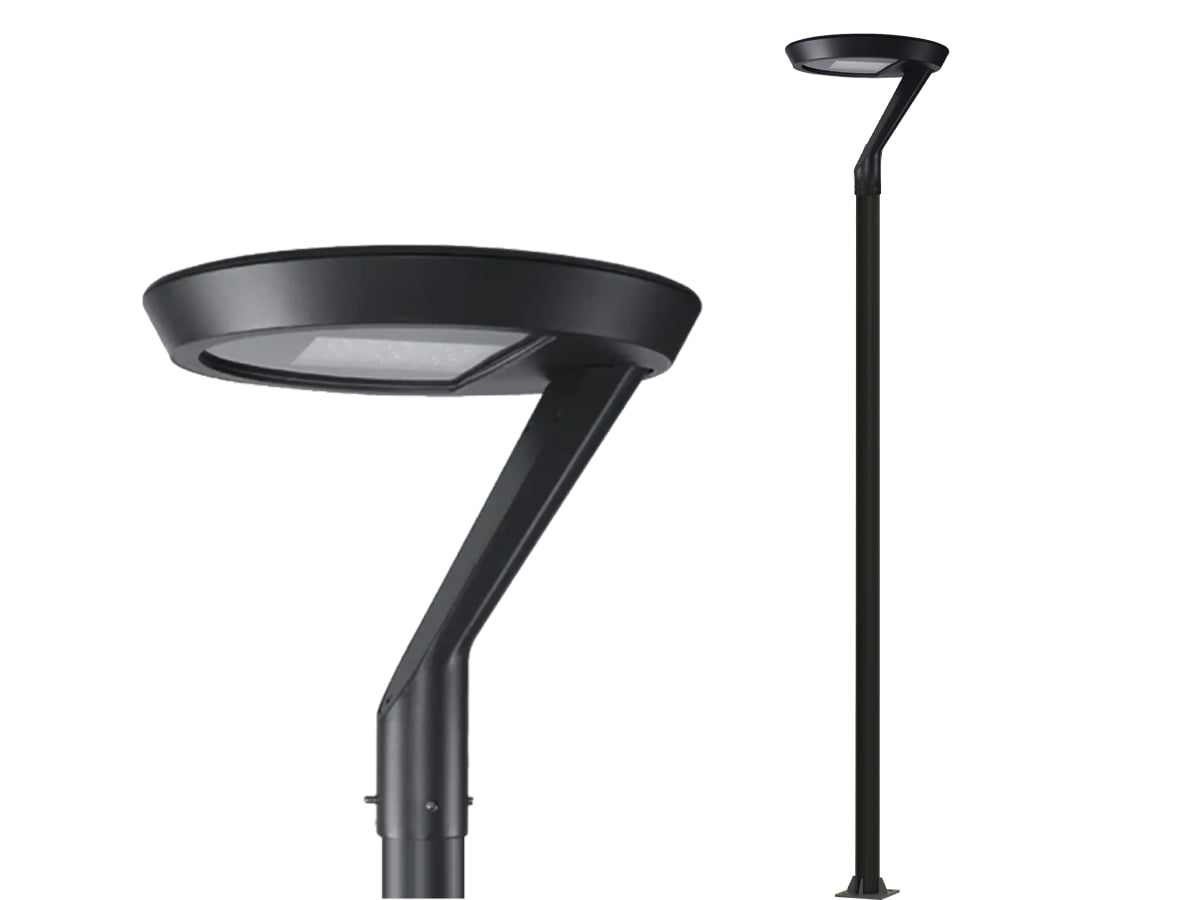

INL-DSL04 Decorative Street Light
The INL-DSL04 Decorative Street Light brings a modern post-top silhouette with a detachable LED module and a larger 76 mm spigot interface. Configure up to 80W using SMD 3030/5050 LEDs at 3000–6500K. A die-cast aluminum housing and PC + tempered-glass optics provide IP65/IK08 durability and −40°C to 50°C operation—ideal for parks, promenades, and residential streets.
Description
Features
Built for cohesive streetscapes, the INL-DSL04 Decorative Street Light pairs a clean post-top design with serviceable construction. The detachable module streamlines maintenance, while SMD 3030/5050 LEDs and 3000–6500K CCT options tune ambience and visibility. The die-cast aluminum body and PC + tempered-glass lens achieve IP65/IK08 protection and −40°C to 50°C operation. With up to 80 watts of output and a 76 mm spigot, DSL04 mates with larger decorative poles used in parks, boulevards, and residential communities.
INL-DSL04 Decorative Street Light Technical Specifications
| Max. Power | 80W |
| Power Supply | MEANWELL / PHILIPS / MOSO / INVENTRONICS |
| Working Voltage | 90 – 305V AC, 50/60Hz |
| CCT | 3000K – 6500K |
| CRI | >70 (>80,>90 optional) |
| LED Chip | SMD 3030 / SMD 5050 |
| Luminous Efficiency | >110lm/w (SMD 3030) / >160lm/w (SMD 5050) |
| Housing Material | Die-casting Aluminum |
| Lens Material | PC + Tempered glass |
| Product Dimension (mm) | Φ502*470 |
| Lamp Holder Diameter (mm) | 76 |
| IP/IK Rate | IP65 / IK08 |
| Working Temperature | -40°C~50°C, 20%~90% RH |
| Life Span | >50,000 Hours |

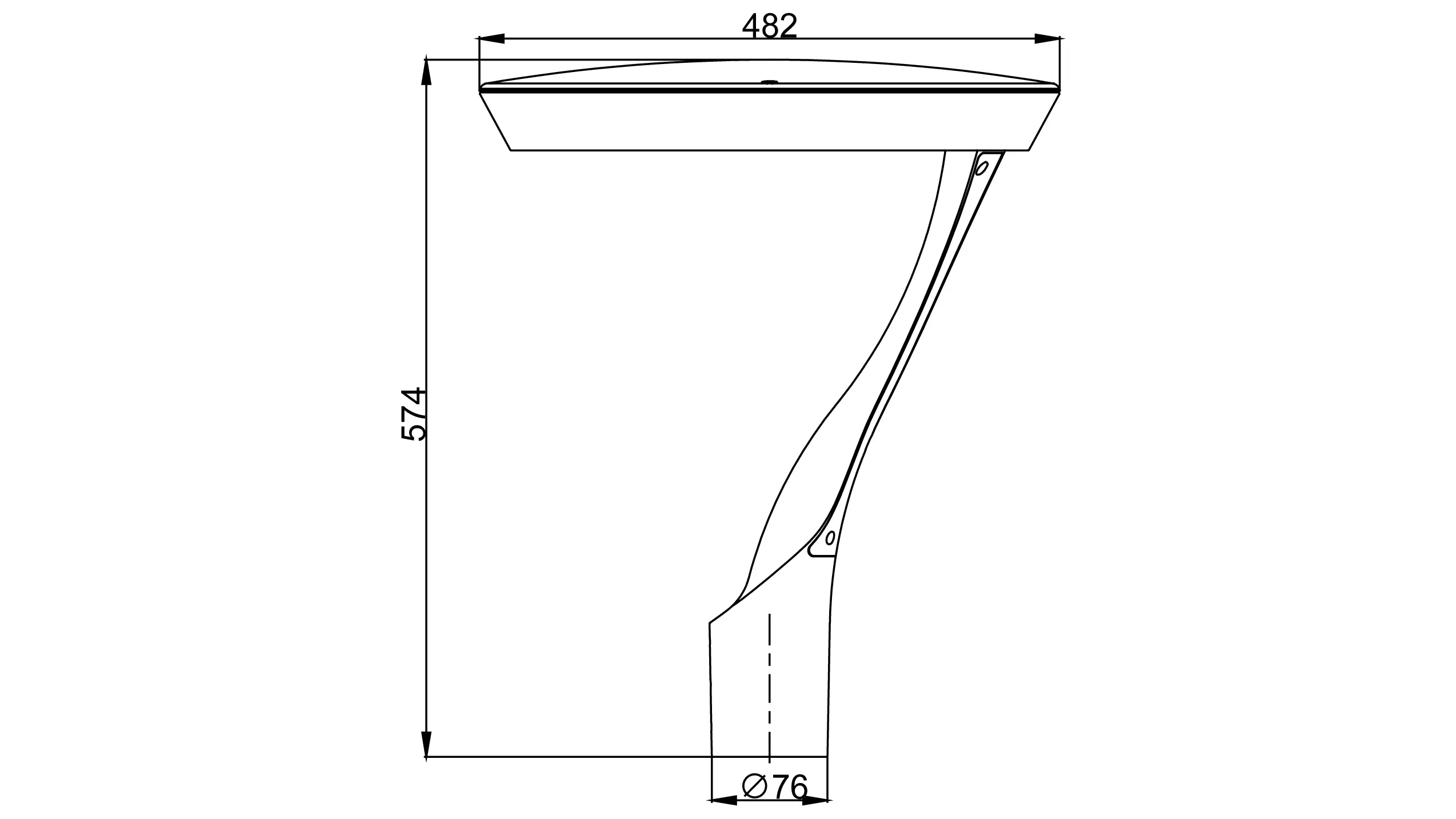

Dimensions
Confirm the DSL04 Mounting Package
The broad, low-profile DSL04 head needs a coordinated pole-top detail. Send the pole drawing, site layout and finish reference, then request the quoted mounting arrangement and lighting file. Confirm the driver and control options against the project brief. State whether the supply includes the luminaire only, an adapter or a complete pole assembly, with service access shown in the submittal.
Explore the decorative LED family or send the project brief for a quotation.
