INL-FLD22 LED Flood Light

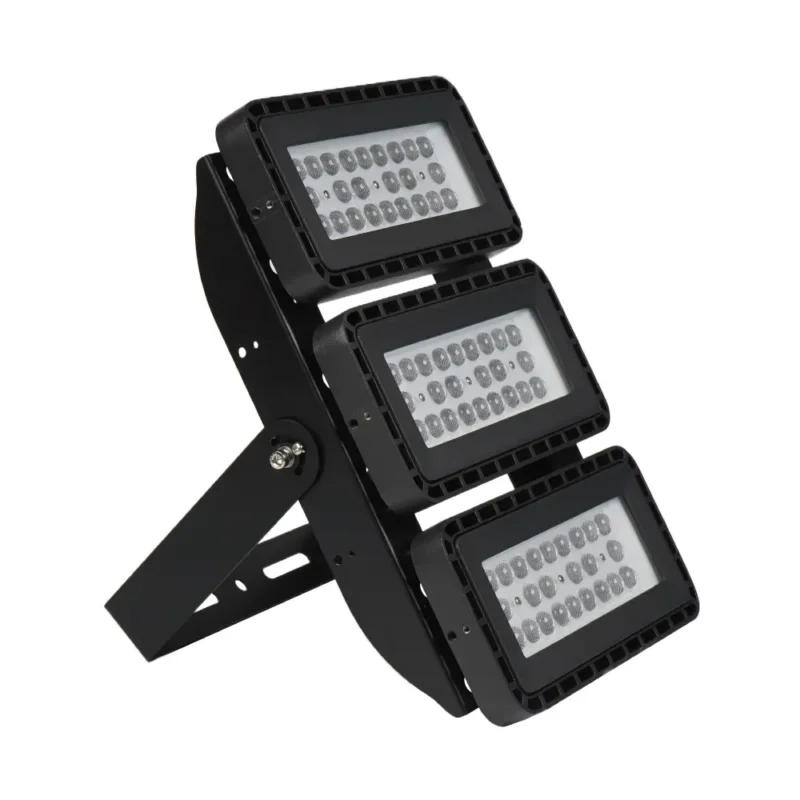

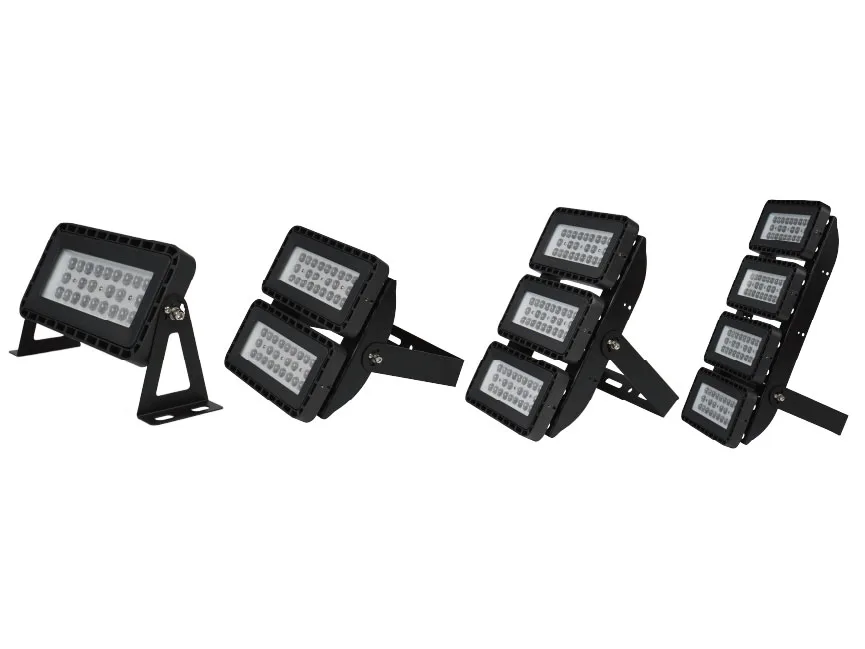

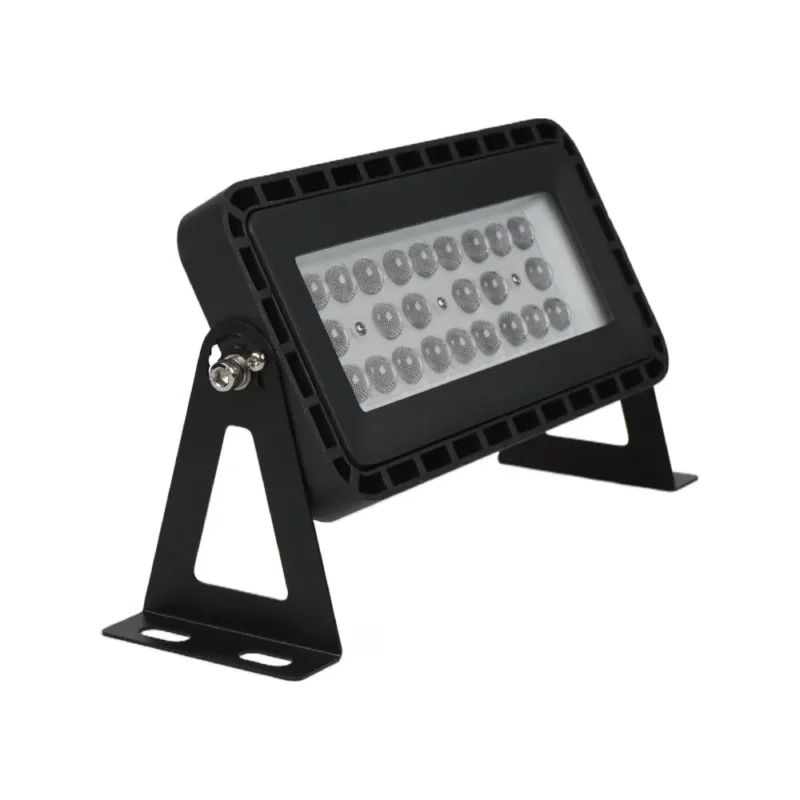

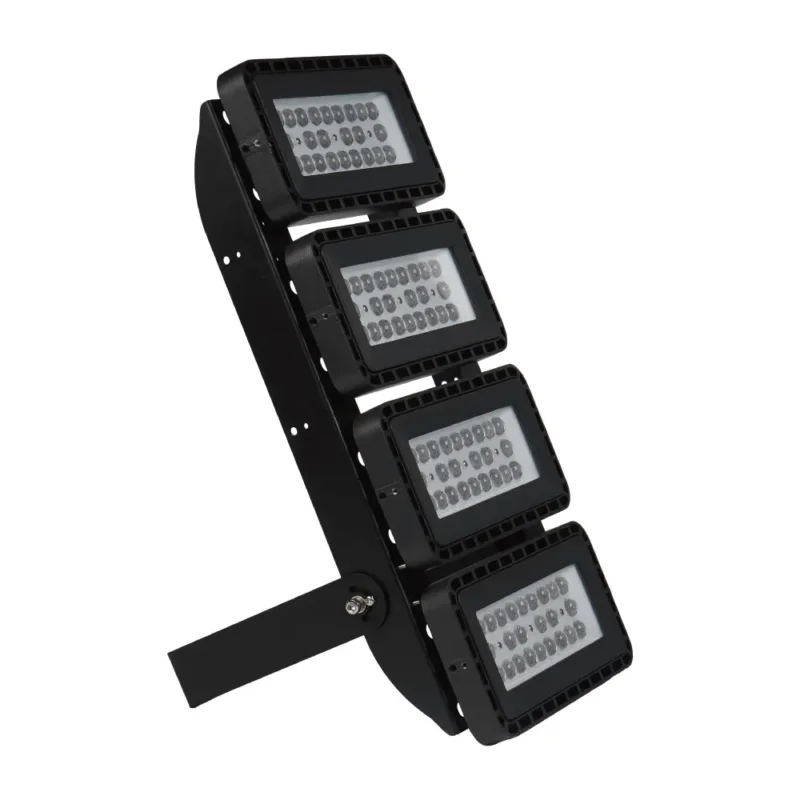

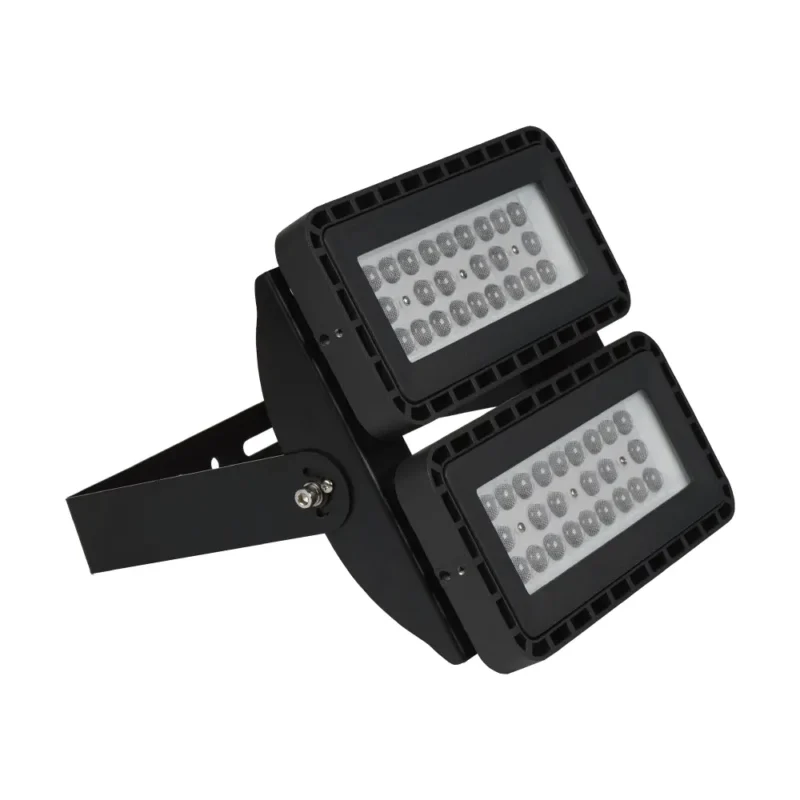

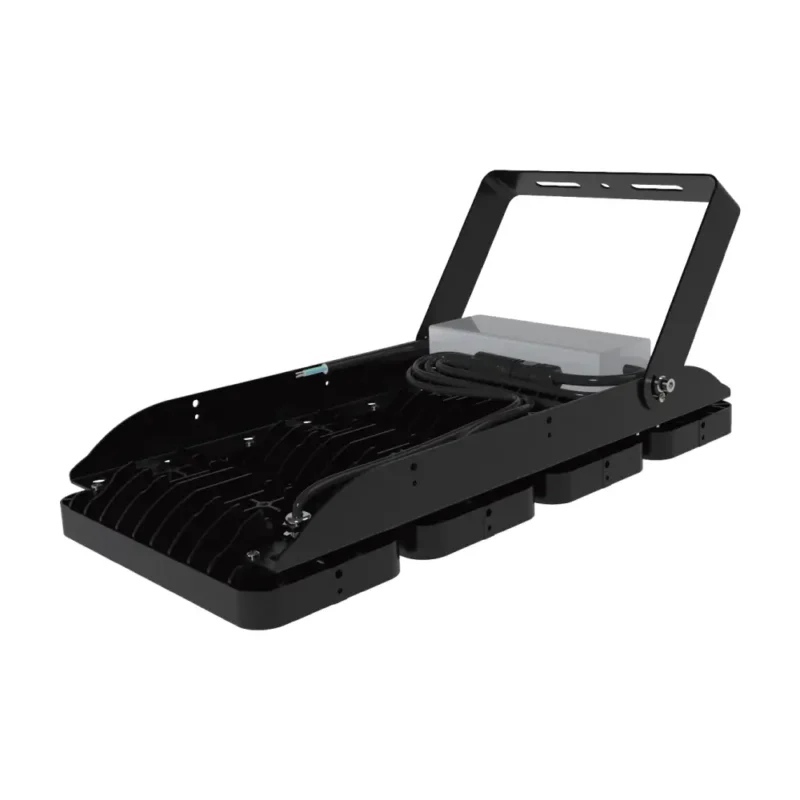

INL-FLD22 LED Flood Light brings modular flexibility to outdoor lighting. Each module delivers up to 120W, and modules can be linked to build the output your site requires. Pair that with professional beam distributions for clean coverage and an adjustable mounting bracket for fast on-site aiming. The linkable architecture also supports local production/assembly, helping streamline logistics and maintenance over the product life.
Description
Features
The INL-FLD22 LED Flood Light is engineered for projects that need scalable output and precise control. Its linkable modular design lets you configure one or more modules—each rated up to 120W—to match throw distance and mounting height, while professional beam distributions improve uniformity and cut waste light. An adjustable mounting bracket simplifies on-site alignment and future retargeting. The modular approach also facilitates local production and service, reducing downtime over the system’s lifetime. Use FLD22 where flexibility, aiming accuracy, and serviceability matter most.
How This INL-FLD22 Compact LED Flood Light Benefits Your Project
Extreme Bright 5050 LED Provides 40% Higher Brightness
INL-FLD22 Series adopts first-class Extreme Bright 5050 LEDs with 260lm/w efficiency, providing 40% higher brightness than normal solar lights which use 3030 LEDs and 2835 LEDs by its much bigger LED chip size.
Thermal Management
The structure is optimized with advanced Finite Element Analysis (FEA) technology, ensuring high performance and durability. It improves heat dissipation, extends lifespan, and maintains cost-efficiency. Using FEA, the design minimizes waste and enhances reliability for long-term applications in challenging environments.
Operable Under Harsh Environment
IP66 for the whole INL-FLD22 system, which makes it adaptable for rainy areas. High-temperature resistant LiFePO4 battery with low current design significantly reduces internal heat when the system works. Among other things, the smart temperature adjustment function of the solar controller enables the system to operate normally under temperatures as high as 65°C.
INL-FLD22 Technical Specifications
| Model | FLD22-120W | FLD22-240W | FLD22-360W | FLD22-480W |
| Power | 120W | 240W | 360W | 480W |
| Power Supply | MEANWELL / PHILIPS / MOSO / INVENTRONICS | |||
| Working Voltage | 90 – 305V AC, 50/60Hz | |||
| Beam Angle | 30°,45°,60°,90°,120° | |||
| CCT | 3000K – 6500K | |||
| CRI | >70 (>80,>90 optional) | |||
| LED Chip | SMD 3030 / SMD 5050 | |||
| Luminous Efficiency | >110lm/w (SMD 3030) / >160lm/w (SMD 5050) | |||
| Luminous Flux | 13200lm (SMD 3030) | 26400lm (SMD 3030) | 39600lm (SMD 3030) | 52800lm (SMD 3030) |
| 19200lm (SMD 5050) | 38400lm (SMD 5050) | 57600lm (SMD 5050) | 76800lm (SMD 5050) | |
| Housing Material | Die-casting Aluminum | |||
| Lens Material | PC + tempered glass | |||
| Product Dimension (mm) | 311*211*89 | 311*278*89 | 311*424*103 | 603*278*103 |
| N.W.(KG) | 1.8 | 3.7 | 5.3 | 7.3 |
| IP/IK Rate | IP66 / IK08 | |||
| Working Temperature | -40°C~50°C, 20%~90% RH | |||
| Life Span | >50,000 Hours | |||
Lighting Distribution
For an FLD22 proposal, send the area layout, mounting height, lighting target and available power supply. Identify the proposed module arrangement and mounting interface in the quotation; the gallery’s different assemblies are not a single fixed supply package. Request the photometric file for the selected configuration and review aiming, coverage, glare and service access. Compare the LED flood-light range or submit the FLD22 project brief.
40℃
60℃
90℃
120℃
Dimensions
FLD22-120W
FLD22-240W
FLD22-360W
FLD22-480W
