High-Power All In One Solar Street Light (80W-120W) – SIRIUS Series
The SIRIUS Series (INL-AIO9) represents the pinnacle of integrated solar lighting technology. Unlike traditional models, SIRIUS overcomes the limitations of standard All-in-One lights by introducing adjustable LED modules, bifacial solar generation, and high-temperature resistant LiFePO4 technology. Designed for high-end municipal and highway projects, it delivers up to 120W of power and 22,800 lumens, ensuring reliable performance even in the harshest climates
Applications：
Certified Quality for Global Projects
Description
Core Technologies of SIRIUS Integrated Solar Light
As a leading High Power All In One Solar Street Light, the SIRIUS All-In-One Solar Street Light revolutionizes outdoor lighting with patented adjustable mechanics and higher energy density. It is engineered to cover all application scenarios from municipal highways to rural roads.
Independent PV & Lighting Orientation
Featuring an original dual-axis adjustable structure for both the LED module and the PV panel, this innovative solution decouples the solar panel orientation from the lighting angle. During installation, the solar panel can be independently adjusted to face true South or North to maximize charging efficiency, while the LED light source can be precisely angled to provide optimal illumination on the road.
Ultra-Bright 7070 LED Modules
Powered by first-class 7070 LED Lighting Modules, the system delivers higher lumen output and better heat dissipation than standard 3030/5050 chips. Paired with our specialized optical lens, it ensures uniform light distribution without dark spots.
10-Year LiFePO4 Battery & IoT Ready
Built with a durable LiFePO4 Lithium Battery (2000+ Cycles) and an intelligent solar controller, Sirius guarantees reliable operation for over a decade. The system is also IoT-Ready, supporting optional accessories such as:
- Solar Panel Self-Cleaning System (Dust-proof)
- CCTV Camera (Security monitoring)
- Motion Sensor (Energy saving)
Looking for the right model? See our detailed selection guide and tender-ready spec table here: Quick All In One Solar Street Light Model Comparison.
Choose the Right All-In-One Solar Street Light SIRIUS Model for Your Project
Compare the High Power All In One Solar Street Light SIRIUS-A, SIRIUS-B and SIRIUS-D configurations shown below. Start with the required light distribution: a single roadway or a two-way layout. Then check which LED adjustments your pole position requires. Confirm the selected version with an IES/LDT layout rather than choosing by wattage alone.
| Model Name | SIRIUS-A | SIRIUS-B | SIRIUS-D |
| Lighting Source | Single Side | Single Side | Dual Side |
| Lighting Source horizontal adjustable | ✗ | ✓ | ✓ |
| Lighting Source Vertical adjustable | ✓ | ✓ | ✓ |
| Application scenarios | Regions within ±10° latitude | All regions | All regions requiring two-way lighting |
Technical Specifications
| Model Number | INL-AIO9 | |||||
| Luminous Flux & Power | 9500 lm (80W) | 11780 lm (90W) | 16150 lm (100W) | 19000 lm (110W) | 22800 lm (120W) | 28500 lm (150W) |
| Color Temperature | 3000K – 6500K | |||||
| Lighting Distribution | Type II | |||||
| Solar Panel | 130W / 18V | 160W / 36V | 220W / 36V | 280W / 36V | 360W / 36V | 400W / 36V |
| LiFePO4 Lithium Battery | 40AH / 12.8V | 30AH / 25.6V | 40AH / 25.6V | 40AH / 25.6V | 50AH / 25.6V | 70AH / 25.6V |
| Solar Controller | 10A – 20A, MPPT Type | |||||
| Motion Sensor | Optional | |||||
| Working Mode | Up to 15 hours per night (Automatic Time Control Mode / Motion Sensor Control Mode) | |||||
| Rainy Days Backup | Up to 7 days | |||||
| Suggested Mounting Height | 7-9 Meters | 8-10 Meters | 9-11 Meters | 10-12 Meters | 11-12 Meters | 12-15 Meters |
| Lamp Fixture Material | Extruded aluminum, anti-corrosion | |||||
| Working Temperature | -20 – 65°C | |||||
| Protection Levels | IP66 / IK09 | |||||
| Wind Resistance | >120km/h | |||||
| Life Span | >10 years | |||||
Revolutionize All-In-One Solar Street Light
Compared with traditional designs, the SIRIUS series has redefined the all-in-one solar street light by introducing multiple brand-new features.
40% More Solar Power Generation
By adopting a design that allows the solar panel to face due south (in the Northern Hemisphere) or due north (in the Southern Hemisphere), a transparent solar panel, and an MPPT controller, the SIRIUS series can generate 40% more solar power annually (compared with traditional all-in-one solar lights), ensuring reliable operation even in winter in high-latitude regions.

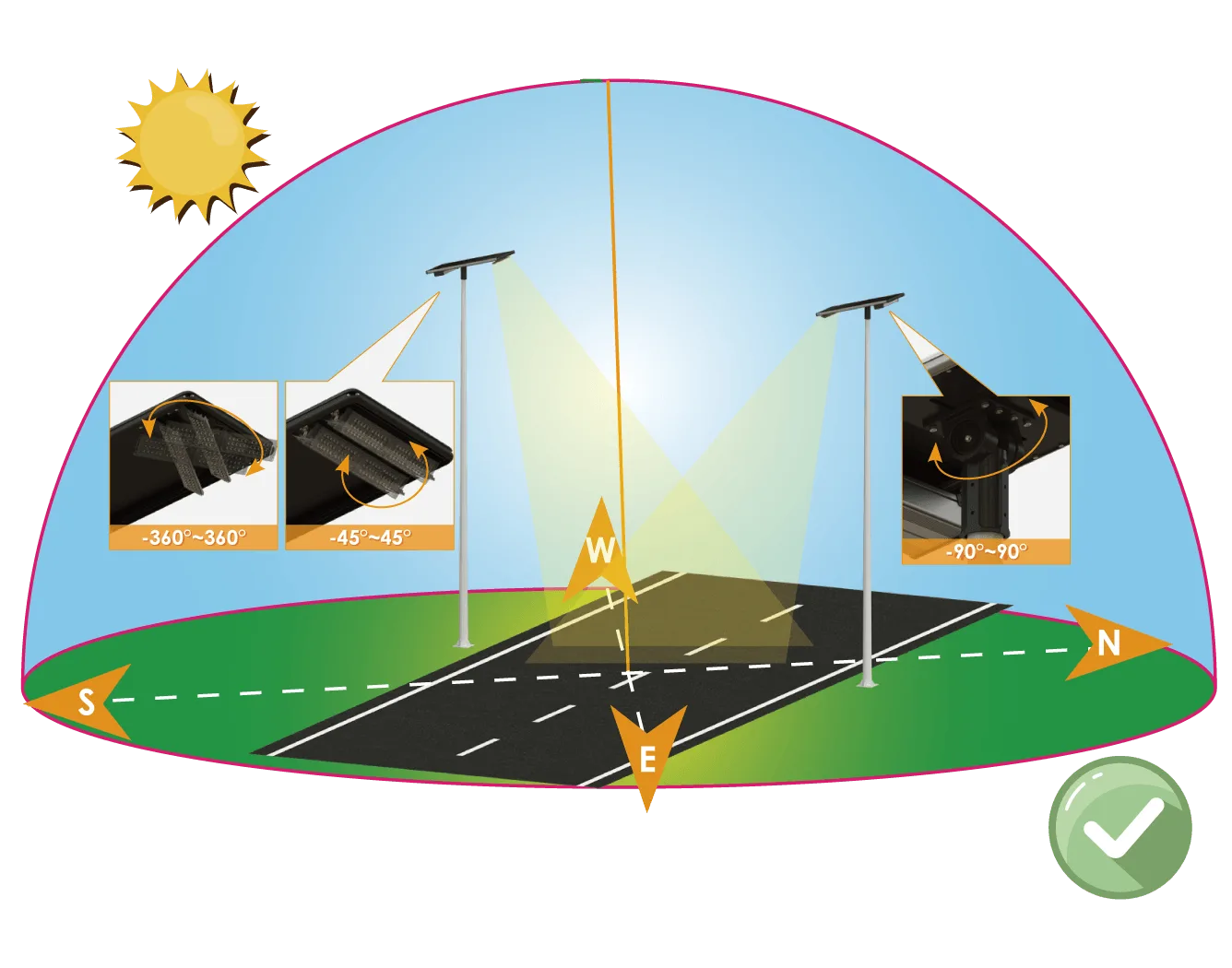

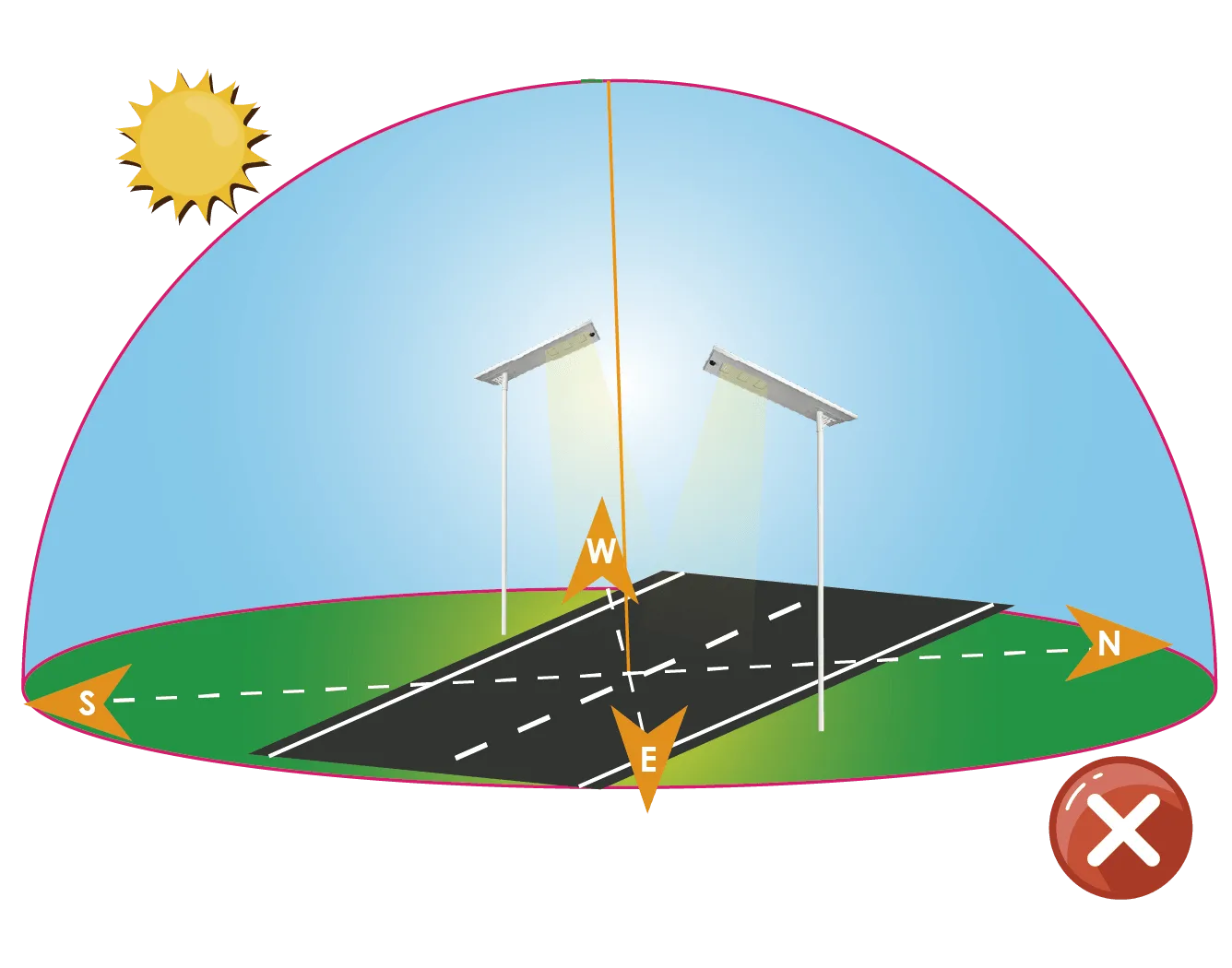

Lighting the Way with a Due South-Facing Solar Panel
The lighting source and lamp holder of the SIRIUS series can be adjusted vertically and horizontally, illuminating the road precisely while revolutionarily allowing the solar panel to face due south (in the Northern Hemisphere) or due north (in the Southern Hemisphere) to maximize sunlight absorption.
LED vertical adjustable
The lamp can be adjusted vertically within a range of -45 to 45 degrees, allowing for precise directional lighting. This flexible design ensures optimal light distribution and accommodates various installation and application needs.
LED horizontal adjustable
The lamp can be adjusted horizontally within a range of -360 to 360 degrees, providing full rotational flexibility. This design allows for precise light positioning and adaptability to meet diverse lighting requirements.
Adjustable Lamp Holder
This Adjustable Lamp Holder supports ±45° vertical adjustment, allowing the solar panel to be precisely tuned to the optimal angle—whether adapting to seasonal changes in sunlight direction or regional latitude differences—to maximize sunlight absorption efficiency and enhance the overall energy generation performance of the solar system.
7070 Super Bright LED Chips
The SIRIUS series uses premium 7070 LED chips instead of 3030 or 5050 chips, offering higher brightness, better performance in high temperatures, and a longer lifespan.

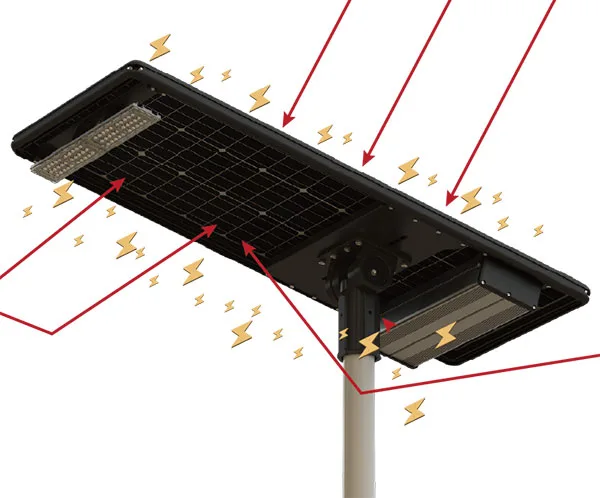

Transparent Solar Panel
Transparent solar panel captures sunlight on both sides, improving charging efficiency by 5%.
Breathable IP66 Battery Box
A one-way ventilation valve can let hot air escape and allow cool air to enter, improving heat dissipation and keeping out rainwater and dust.

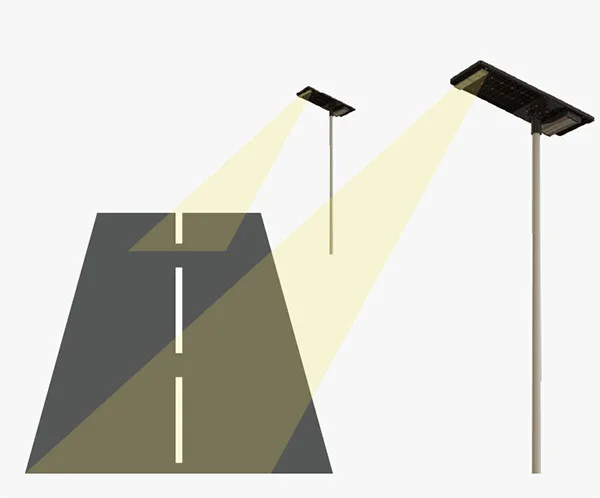

Cover Wider Road
The lighting source angle is adjustable to illuminate a wider area along the road.

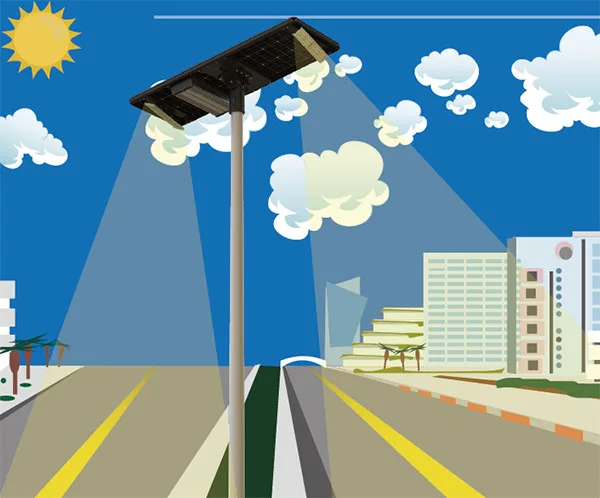

Innovative Two-way Street Lighting Solution
The SIRIUS-D series features an innovative dual-light-source design.
10kV Thunder Protection with SPD Device
By incorporating an additional SPD module, SIRIUS can endure surges up to 10kV, significantly enhancing the system’s lightning protection.

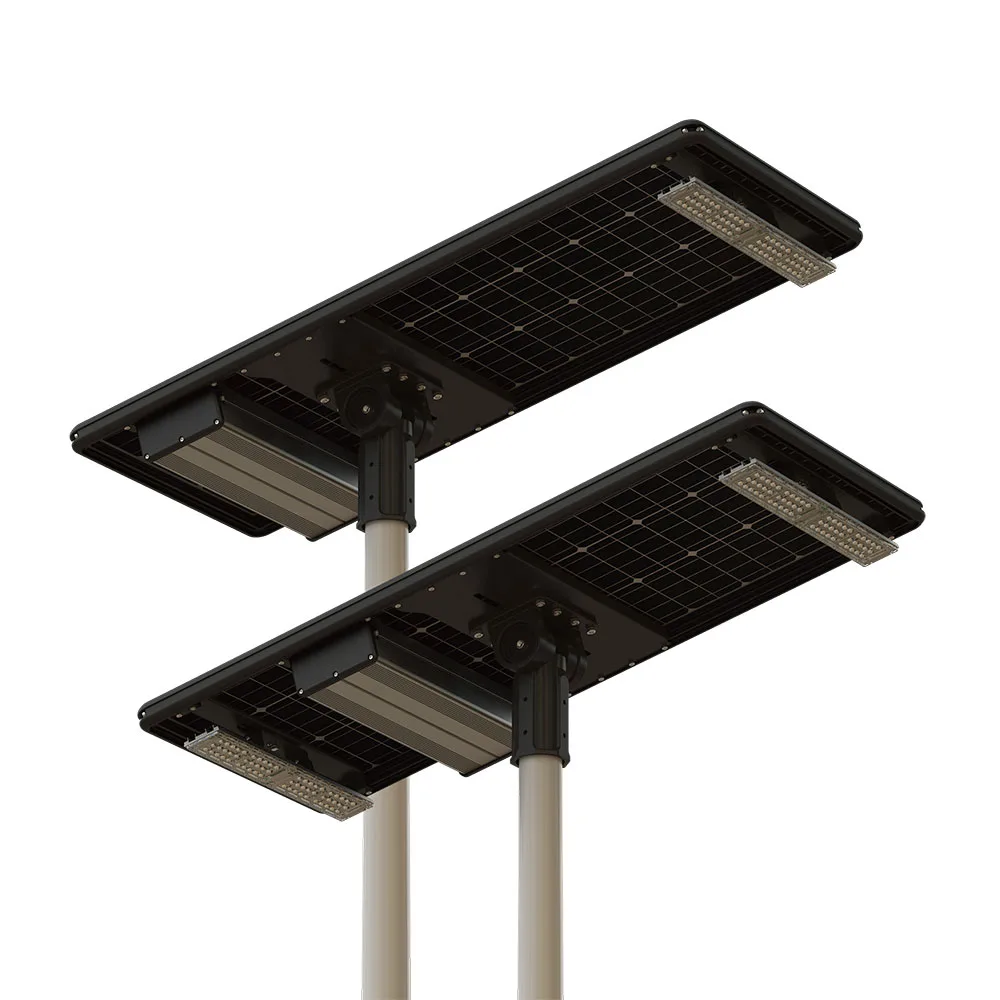

Interior Structure
See what’s inside the All-In-One Solar Street Light SIRIUS AIO9.
01
02
01
02
03
03
04
04
06
06
05
05

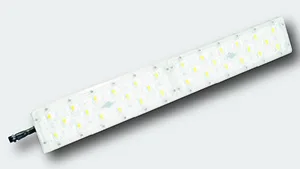

IP67 Super Bright LED Module
This component features 32 pcs Top-Brand 7070 LED Chips, with LED Chip Luminous Efficiency >260 lm/W, Finished Lamp Luminous Efficiency >190 lm/W, and a lifetime of >100,000 hours; it is equipped with a High Transmittance & Strength LED Lens made of Superior Polycarbonate Material (boasting High Impact Strength, Outstanding Flame Resistance, and High Light Transmittance), which can withstand a temperature range of -100°C to 129°C, and is paired with a Thick Aluminum Heat Sink for Fast Heat Dissipation.
Adjustable LED bracket & lamp holder
This Adjustable Lamp Holder offers flexible positioning: the lamp holder itself supports ±45° vertical adjustment, enabling the solar panel to be tuned to the optimal angle for maximum sunlight absorption; meanwhile, the LED module mounting bracket is adjustable by ±45° vertically and ±360° horizontally, allowing precise adjustment of the light source’s direction to achieve targeted road illumination.
Transparent High Efficiency Solar Panel
This Transparent High Efficiency Solar Panel features a dual-sided light-capturing design (enabled by its transparent structure) that allows it to absorb sunlight from both front and back surfaces, maximizing energy harvest in various lighting conditions; as a monocrystalline solar panel, it also achieves a conversion efficiency of over 19%, delivering reliable power generation performance—plus, it comes with a 25-year life warranty, ensuring long-term stability and value for users.
Smart MPPT Solar Controller
This device comes with multi-protection features and advanced MPPT technology, paired with a smart lighting mode that enables 365-day non-stop operation; it also supports intelligent temperature adjustment to adapt to different environmental heat conditions, and has an IP67 waterproof rating for stable performance in wet or dusty environments—plus a lifespan of over 10 years. For enhanced functionality, optional accessories are available: an IoT smart monitoring system (which allows remote tracking and management of the device’s status) and a motion sensor (that triggers brightness adjustments when human activity is detected), making it suitable for a wider range of usage scenarios.
LiFePO4 Lithium Battery
This product is equipped with a LiFePO4 Lithium Battery Cell (specifically a pouch-type cell, recognized as one of the safest LiFePO4 battery cell options) and a dedicated BMS (Battery Management System) Unit—this BMS Unit delivers multiple protective functions for the LiFePO4 lithium battery, effectively safeguarding its performance and longevity. Together, this setup enables the product to achieve a lifespan of more than 10 years, while also ensuring reliable high-temperature resistance and excellent safety performance even in demanding operating environments.
IP66 Waterproof Aluminum Battery Box
This IP66 Waterproof Aluminum Battery Box combines durable aluminum construction with anti-corrosion properties, making it resistant to rust and damage even in humid or harsh outdoor environments; it is also integrated with a built-in heat sink, which effectively dissipates accumulated heat to maintain stable operating temperatures for the internal battery, further enhancing the overall reliability and lifespan of the battery system.
Optional Features & Add-ons
01
Motion Sensor
The motion sensor automatically reduces brightness by 30% when inactivity is detected, saving energy. Upon detection of presence, brightness returns to 100%, ensuring optimal visibility while minimizing distractions. This feature strikes a balance between power efficiency and user comfort.
02
Anti-theft Components
Anti-theft screws and spikes are designed to secure solar panels against theft. The unique tamper-resistant design makes removal nearly impossible without specialized tools, while anti-climbing spikes prevent unauthorized access, ensuring durability and security in exposed environments.
03
Anti-bird Spike
Anti-bird spikes offer a humane and effective solution to prevent birds from perching on solar panels, rooftops, and fences. Made from durable stainless steel or plastic, these sharp, angled prongs discourage birds without harming them. Easy to install, these spikes provide a low-maintenance way to protect solar panels from bird-related damage, ensuring optimal performance.
04
Camera
The system integrates a solar-powered CCTV camera, offering a sustainable and eco-friendly surveillance solution. These cameras operate independently of traditional power sources, ensuring continuous monitoring without external electricity. With waterproof housing and motion detection features, they enhance security for solar panels while reducing energy costs.
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, Inlux Solar’s IOT Smart Monitoring System enables intelligent management of our All-In-One Solar Street Light by PC, PAD and Mobile.
Compatible Pole Designs
Our All-In-One solar street light SIRIUS series can be customized with various pole shapes and materials. Check out some of our pole designs, and feel free to share your ideas with us if you have additional customization needs.
Installation Methods

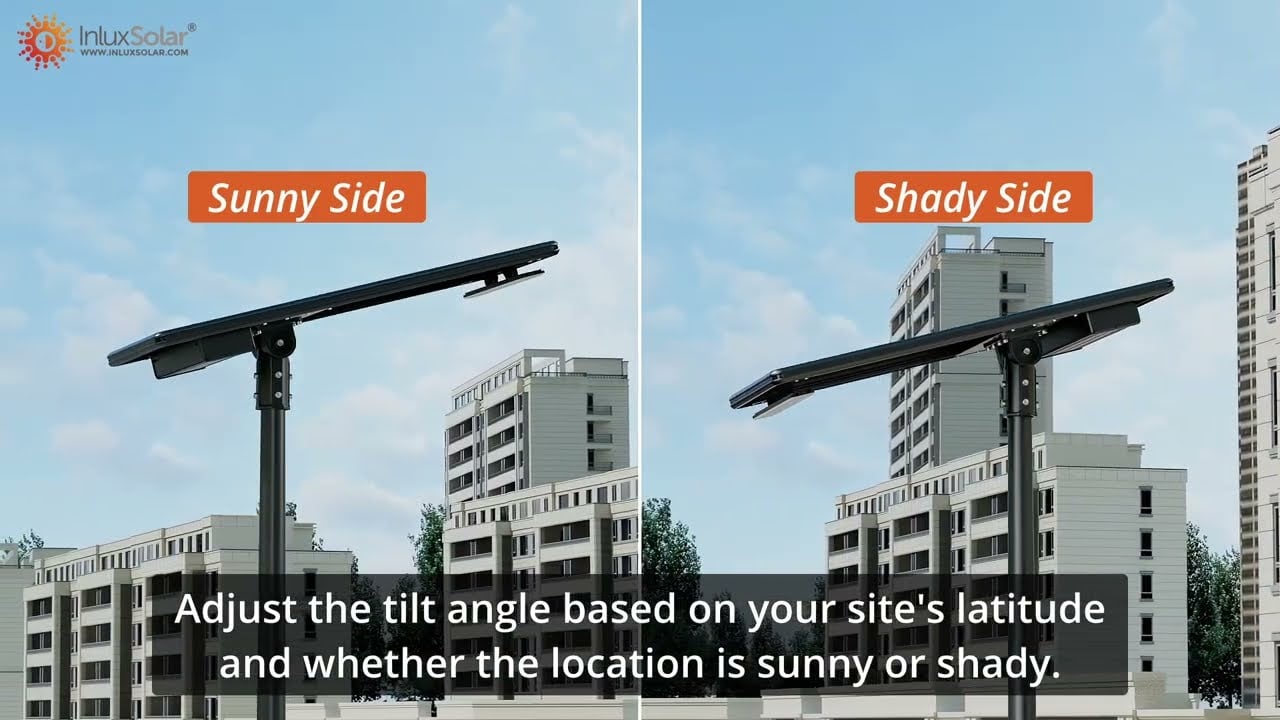

Installation instructions video

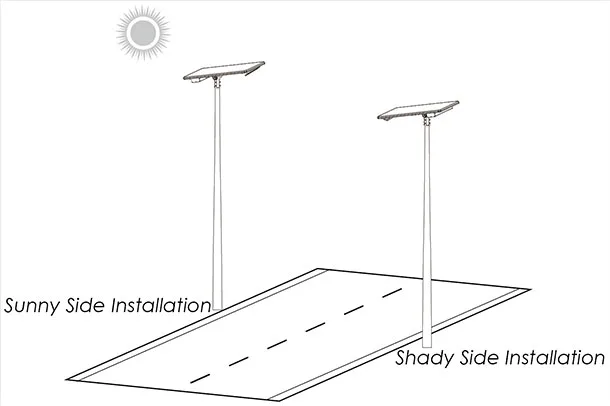

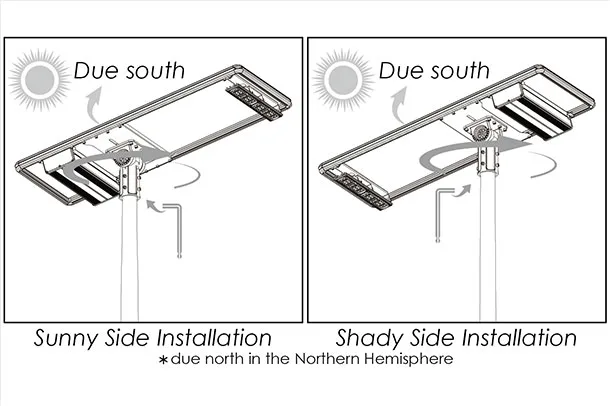

1.Adjust the lamp holder’s tilt angle for sunlight exposure.

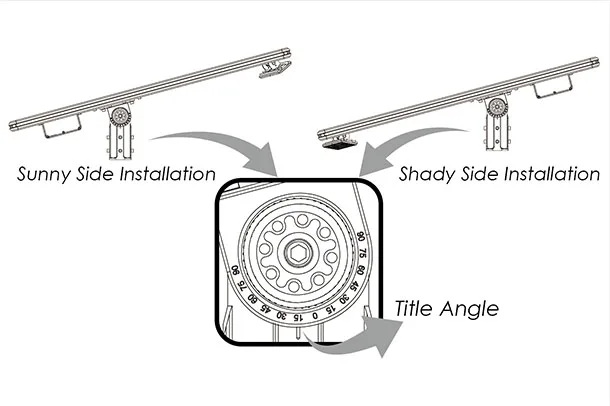

2.Adjust the tilt angle for sunny or shady side installation
as needed.
3. Mount the solar lamp securely. Orient the panel for the site: generally south in the Northern Hemisphere or north in the Southern Hemisphere, then set the tilt according to the approved installation plan.

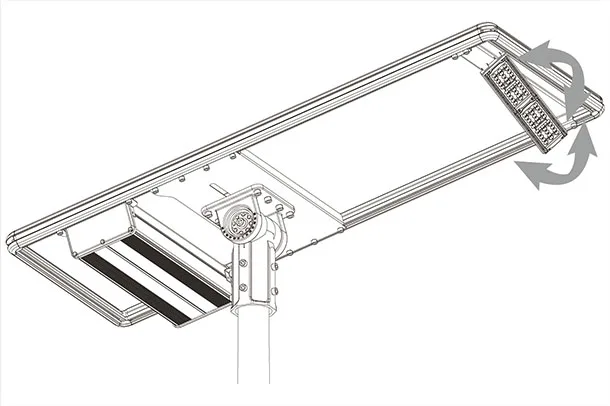

4.Adjust the lighting module’s horizontal and vertical
angles to a proper position to illuminate the road.

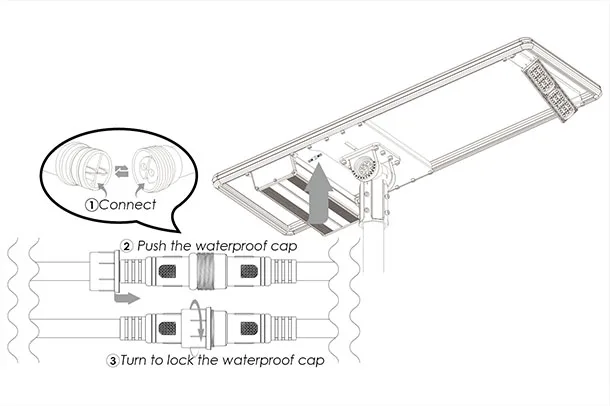

5.Connect the battery socket to the solar lamp’s to start
the system; it will run daily on the preset automatic mode.
