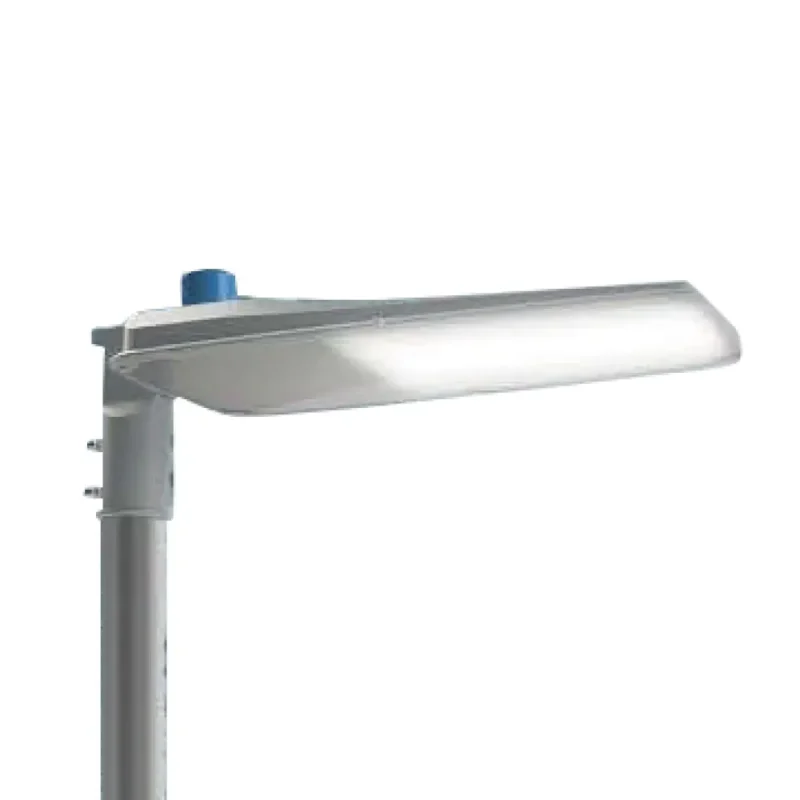

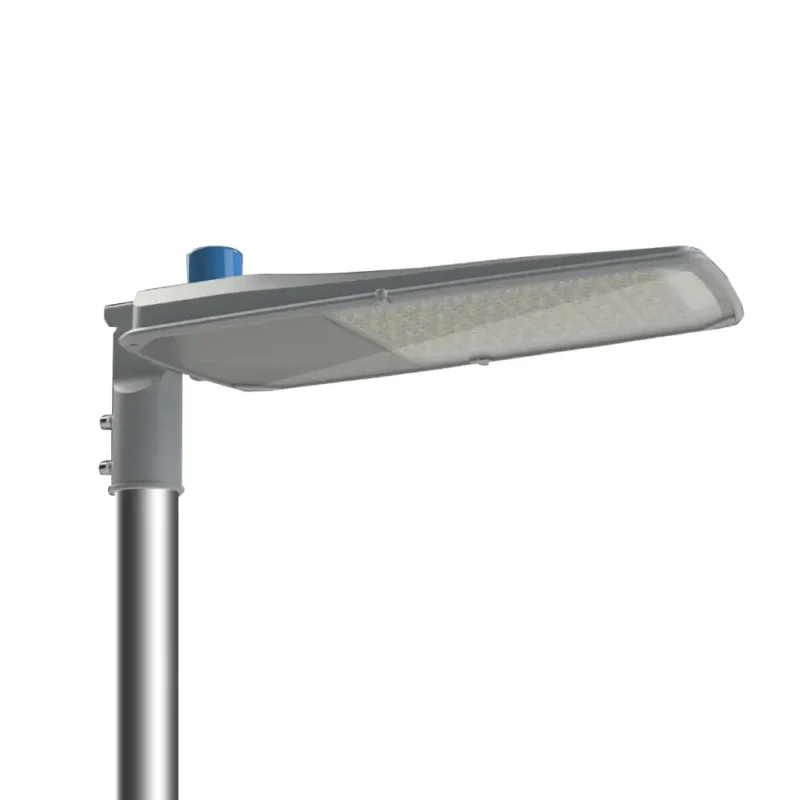

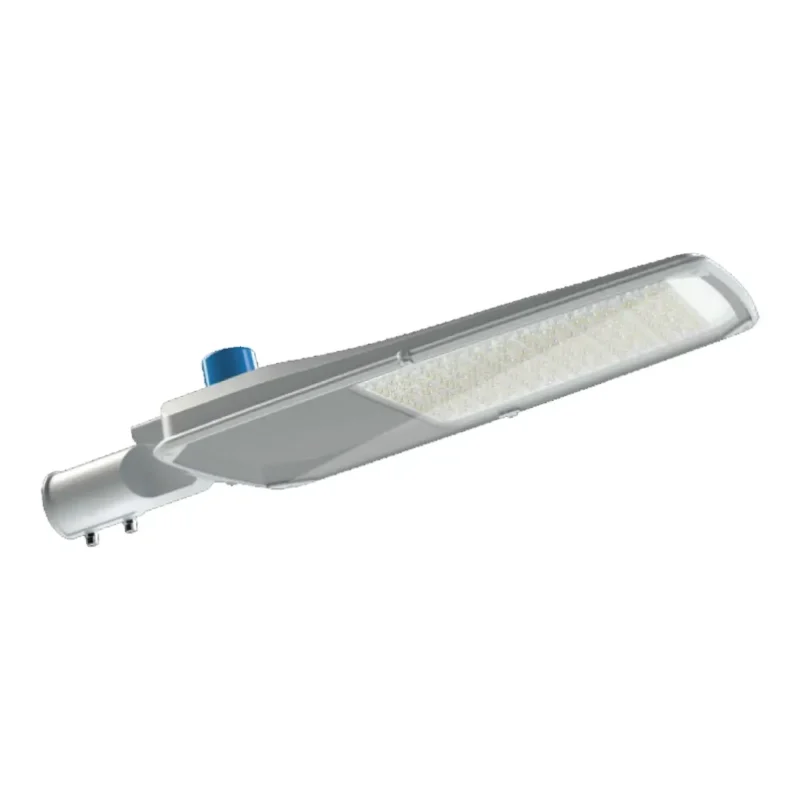

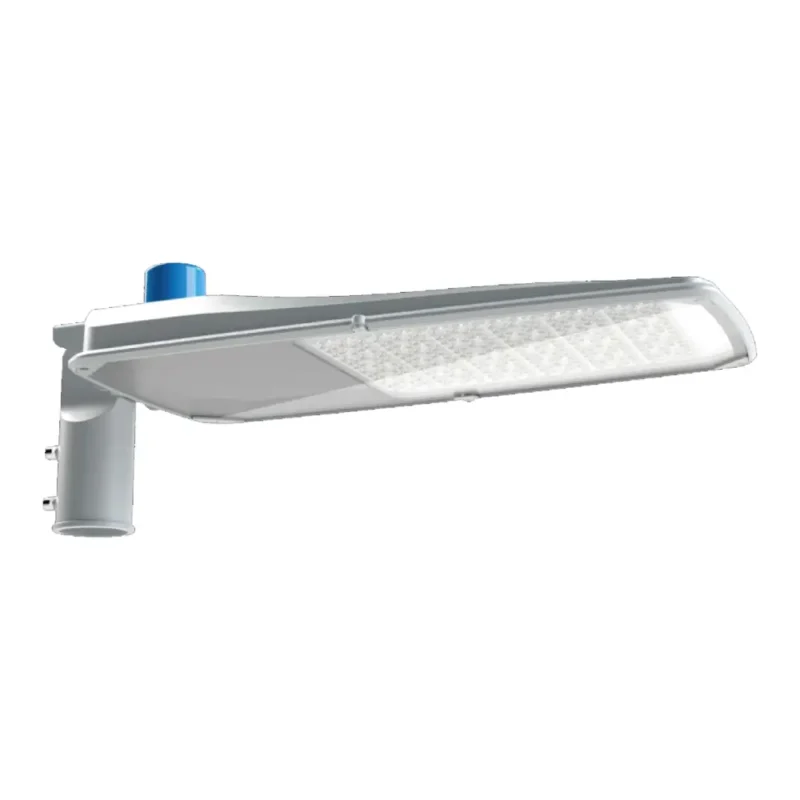

INL-LED22 LED Street Light
INL-LED22 LED Street Light is a practical, project-ready roadway fixture with 60–200W output and optical choices of 60×120°, 70×140°, 80×150°. It pairs SMD 3030/5050 LEDs with branded drivers (MEAN WELL/PHILIPS/MOSO/INVENTRONICS), delivering up to 160 lm/W in a die-cast aluminum housing rated IP65/IK08 for -40–50°C environments—ideal for streets, intersections, roundabouts, and parking areas.
Description
Features
The INL-LED22 LED Street Light delivers dependable roadway illumination with 60–200W power classes and three beam patterns—60×120°, 70×140°, 80×150°—to match highways, city streets, intersections, and parking lots. High-efficiency SMD 3030/5050 packages and MEAN WELL / PHILIPS / MOSO / INVENTRONICS drivers ensure stable output, while the die-cast aluminum body, PC + tempered-glass optics, IP65/IK08 protection, and -40–50°C operating range support long life—>50,000 hours. Optional SPD, photocell, power-off protection connector, and IoT monitoring (LoRa/Zigbee/4G) expand control and maintenance capabilities.
How This INL-LED22 LED Street Light Benefits Your Project
LED Package and Luminaire Performance
INL-LED22 uses LED packages within a complete roadway luminaire. Compare the quoted luminaire output, electrical input and model-specific photometric report; LED-package efficacy alone does not establish the performance of the finished fixture.
Thermal Management
The structure is optimized with advanced Finite Element Analysis (FEA) technology, ensuring high performance and durability. It improves heat dissipation, extends lifespan, and maintains cost-efficiency. Using FEA, the design minimizes waste and enhances reliability for long-term applications in challenging environments.
Streamline Shape Wind-proof Design
The Streamline Shape Wind-proof Design minimizes wind resistance, ensuring stability in harsh weather. Its aerodynamic structure reduces drag, preventing damage from gusts while maintaining integrity. This precise design enhances durability and safety, ideal for outdoor lighting poles requiring long-term wind resilience.
Minimal design
The ultra-thin, minimal design enhances heat dissipation for efficient performance in high temperatures. Its sleek shell prevents dust buildup, reducing maintenance. With a self-cleaning function, it ensures longevity and reliability, ideal for modern applications needing efficiency and low upkeep.
Two installation methods
The adjustable lamp holder enables easy horizontal and vertical mounting for various installation scenarios.
Operable Under Harsh Environment
For INL-LED22, environmental suitability depends on the quoted AC luminaire and driver configuration. Check exposure to water, dust, ambient heat and corrosion against the applicable product documentation. Review service access and the selected protection accessories as well as the housing. A solar controller or battery temperature claim is not evidence for the operating limits of this mains-powered luminaire.
INL-LED22 Technical Specifications
| Model | LED22-60W | LED22-100W | LED22-150W | LED22-200W |
| Power | 60W | 100W | 150W | 200W |
| Power Supply | MEANWELL / PHILIPS / MOSO / INVENTRONICS | |||
| Working Voltage | 90 – 305V AC, 50/60Hz | |||
| Beam Angle | 60*120°,70*140°,80*150° | |||
| CCT | 3000K – 6500K | |||
| CRI | >70 (>80,>90 optional) | |||
| LED Chip | SMD 3030 / SMD 5050 | |||
| Luminous Efficiency | >110lm/w (SMD 3030) / >160lm/w (SMD 5050) | |||
| Luminous Flux | 6600lm (SMD 3030) | 11000lm (SMD 3030) | 16500lm (SMD 3030) | 22000lm (SMD 3030) |
| 9600lm (SMD 5050) | 16000lm (SMD 5050) | 24000lm (SMD 5050) | 32000lm (SMD 5050) | |
| Housing Material | Die-casting Aluminum | |||
| Lens Material | PC + Tempered glass | |||
| Product Dimension (mm) | 513*180*85 | 613*206*85 | 633*279*85 | 776*309*89 |
| IP/IK Rate | IP65 / IK08 | |||
| Working Temperature | -40°C~50°C, 20%~90% RH | |||
| Life Span | >50,000 Hours | |||
Lighting Distribution
Use the IES/LDT file for the quoted INL-LED22 version in a road or site layout. Provide road width, pole positions, mounting height, spacing and the required lighting class; include pedestrian areas and boundary constraints where relevant. Evaluate maintained lighting levels, uniformity and glare for the selected optic and output package. Keep the file identifier and fixture configuration matched in the submittal.
60×120 deg
70×140 deg
80×150 deg
Optional Features & Add-ons
01
SPD（Surge Protective Device）
An SPD (Surge Protective Device) safeguards electronic equipment from voltage spikes caused by lightning or power surges. It uses components like varistors or gas discharge tubes to divert excess energy to the ground, maintaining safe voltage levels. Essential for protecting sensitive devices in homes, offices, and industrial settings, it enhances durability and prevents costly damage, ensuring reliable operation in diverse environments.
02
Photocell
A photocell, also known as a photoresistor or light-dependent resistor (LDR), is a sensor that detects light intensity and converts it into an electrical signal. It operates by changing resistance based on light exposure, making it ideal for automatic lighting control in outdoor settings like streetlights. Simple, cost-effective, and reliable, it adjusts illumination based on ambient light levels, enhancing energy efficiency and convenience.
03
Power Off Protection Connector
A Power Off Protection Connector ensures electrical safety by automatically disconnecting power during faults or outages, preventing damage to devices. It protects circuits from overvoltage, short circuits, or sudden shutdowns, enhancing system reliability. Ideal for solar street lights, it maintains functionality in unstable power conditions, extending equipment lifespan.
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, Inlux Solar’s IOT Smart Monitoring System enables intelligent management of our INL-LED22 LED Street Light by PC, PAD and Mobile.
Dimensions
LED22-60W
LED22-100W
LED22-150W
LED22-200W
Installation Methods
Our INL-LED22 LED Street Light offer multiple installation options. Whether on roads, walls, fences, or other locations, we provide stable and reliable mounting solutions tailored to your needs.

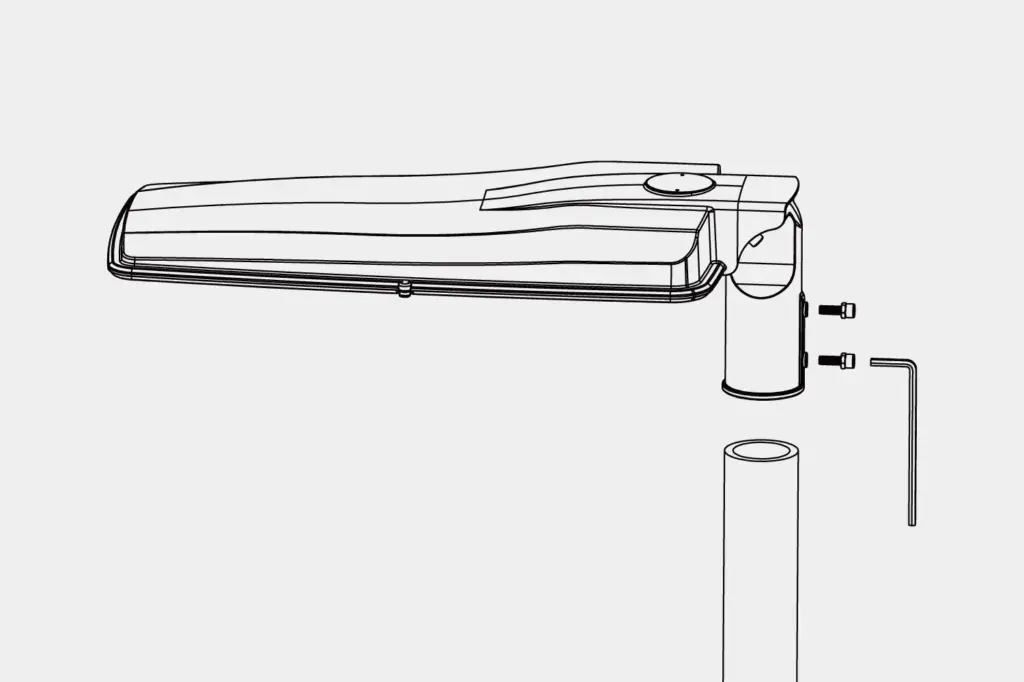

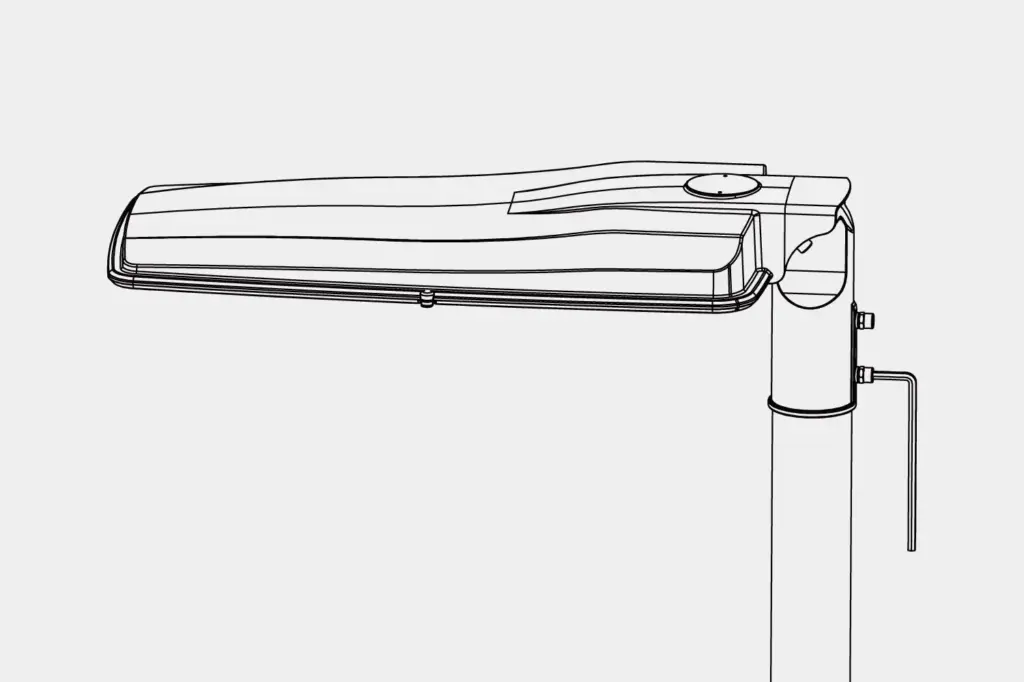

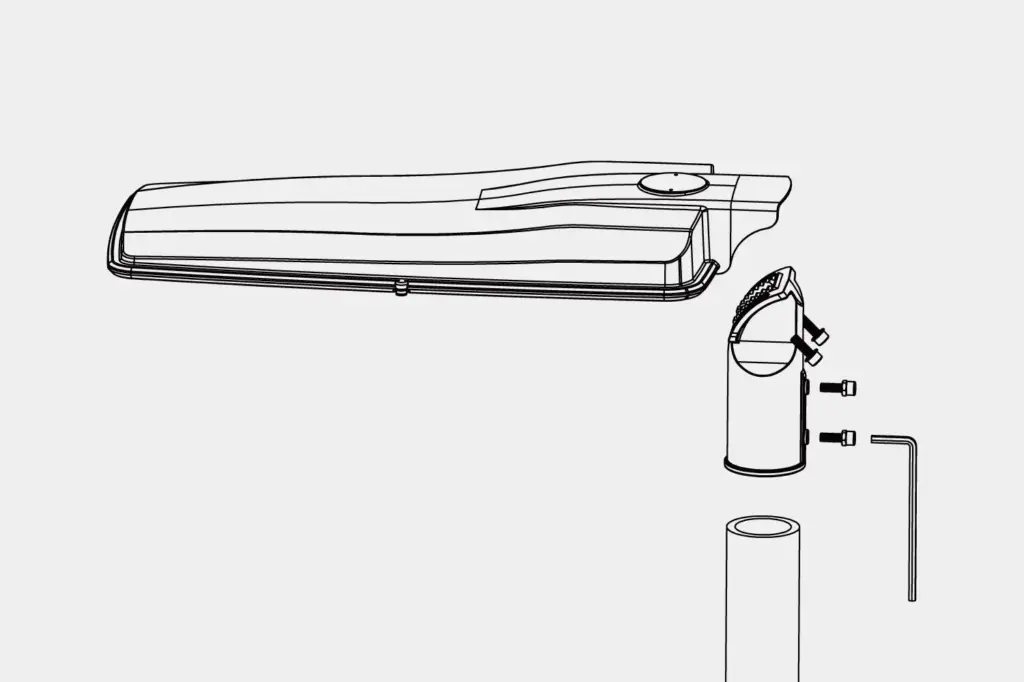

Vertical Installation
1. Secure the lamp housing with the fixture head
2.Secure the fixture with the pole
3.Tighten the fixing screws

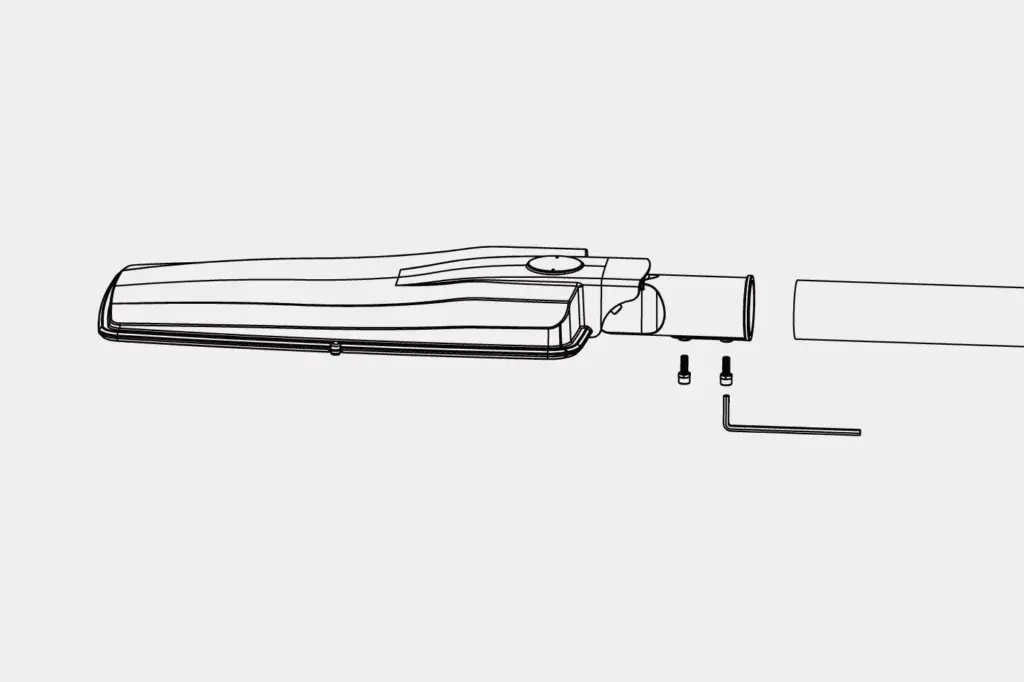

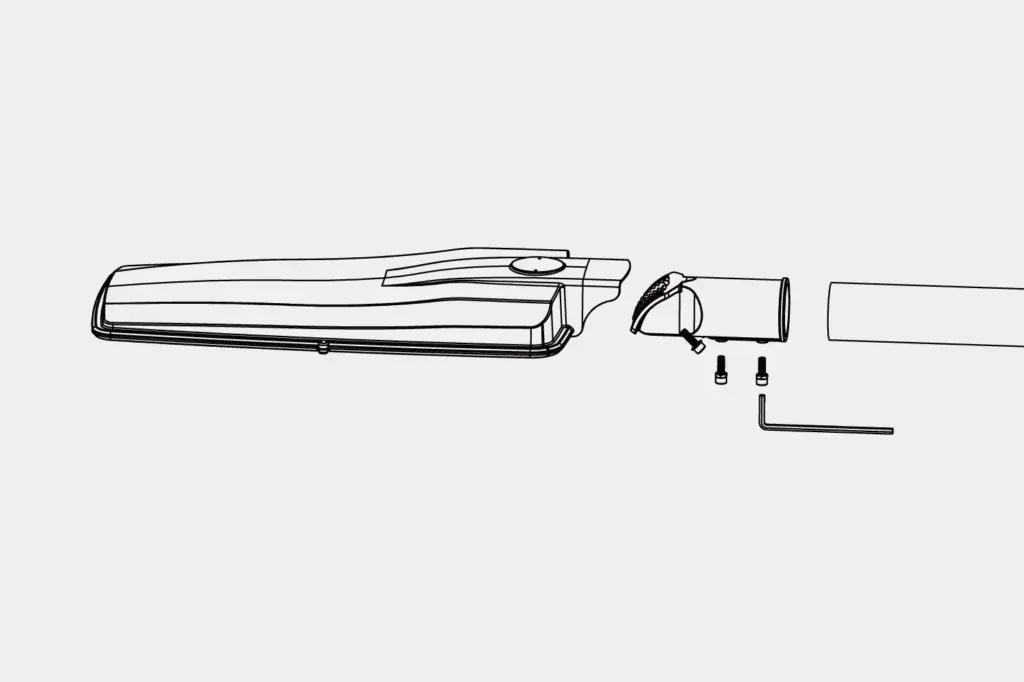

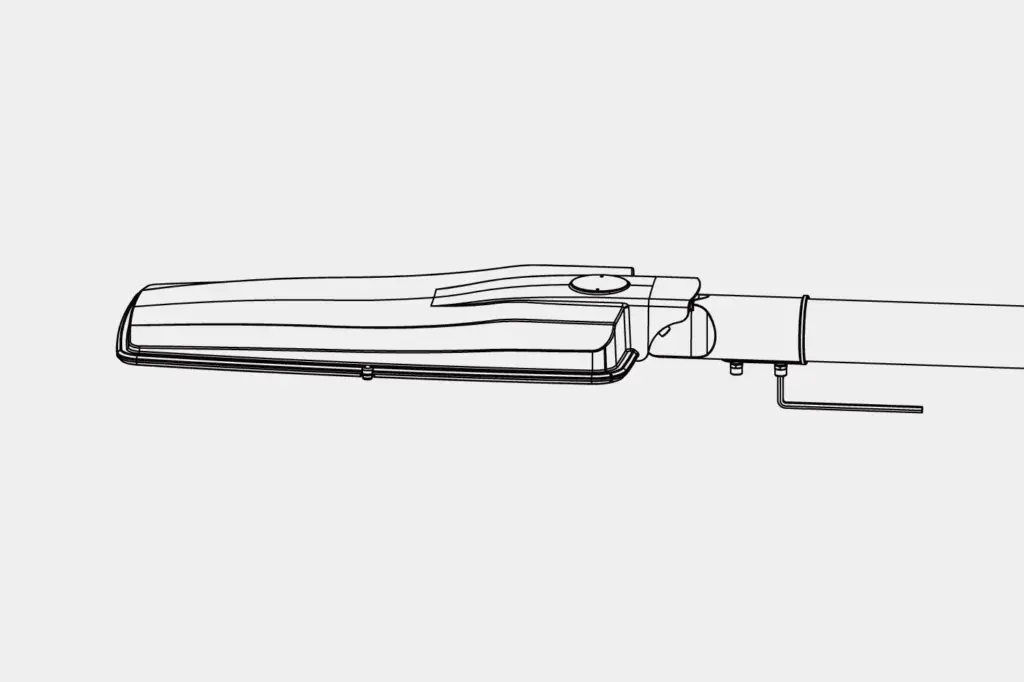

Horizontal Installation
1. Secure the lamp housing with the fixture head
2. Secure the fixture with the pole support arm
3. Tighten the fixing screws
Plan Your INL-LED22 Street Lighting Order
If the project uses photocells or networked controls, identify the required interface and operating schedule in the RFQ. The gallery shows a top-mounted accessory on the illustrated configuration; confirm whether that accessory and its connection are included in the quotation. Send the road layout, pole-arm dimensions, supply voltage and lighting target so fixture, control and installation requirements are reviewed together.
