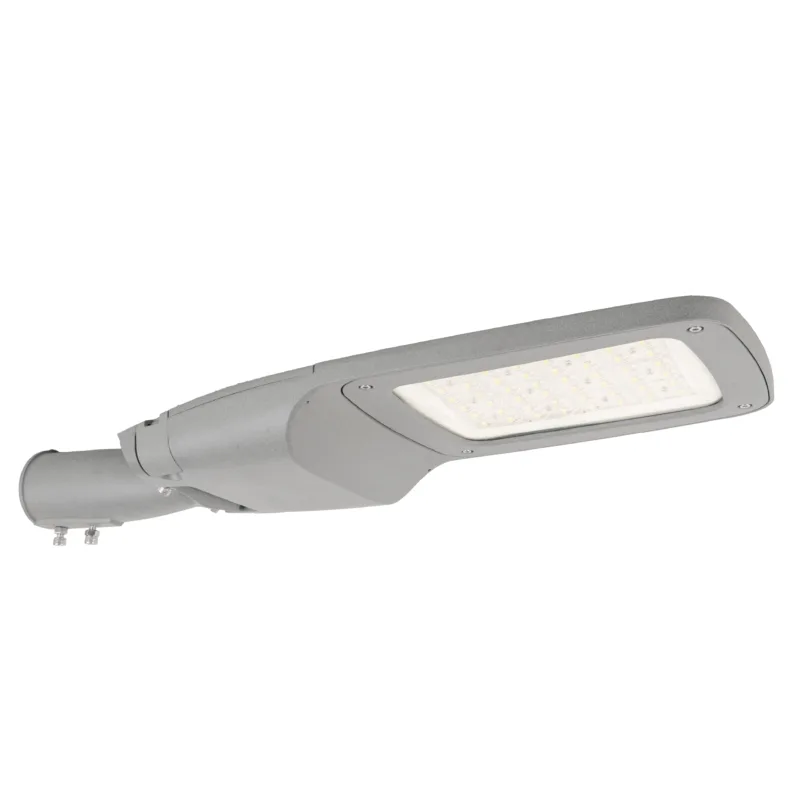

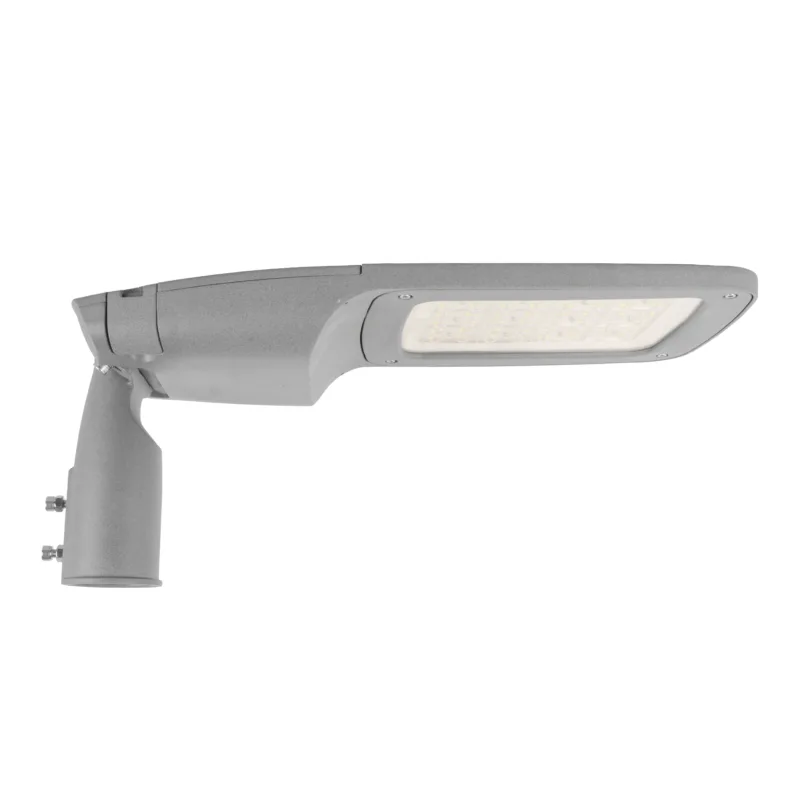

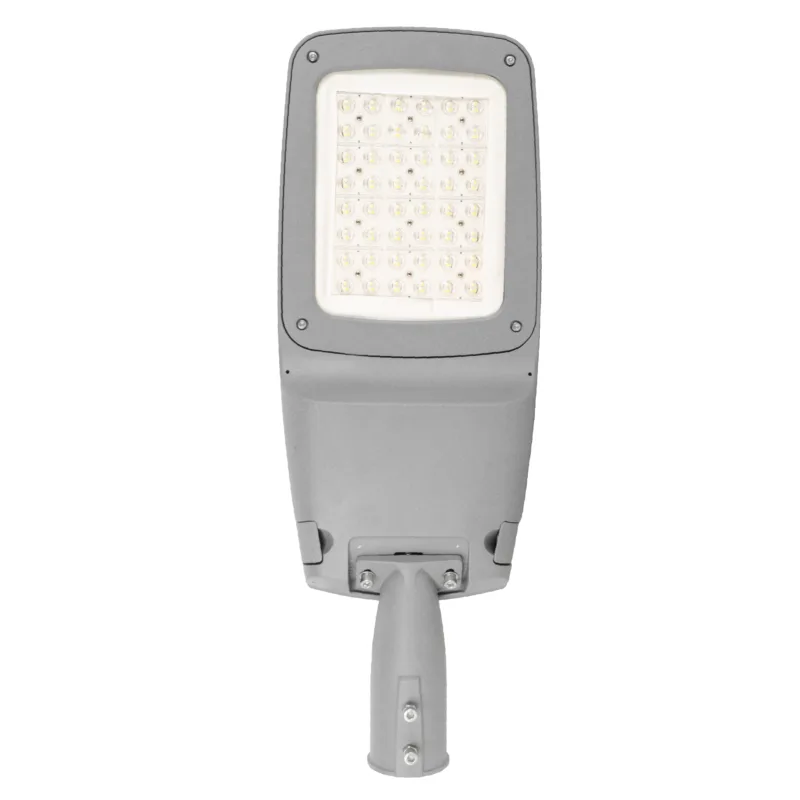

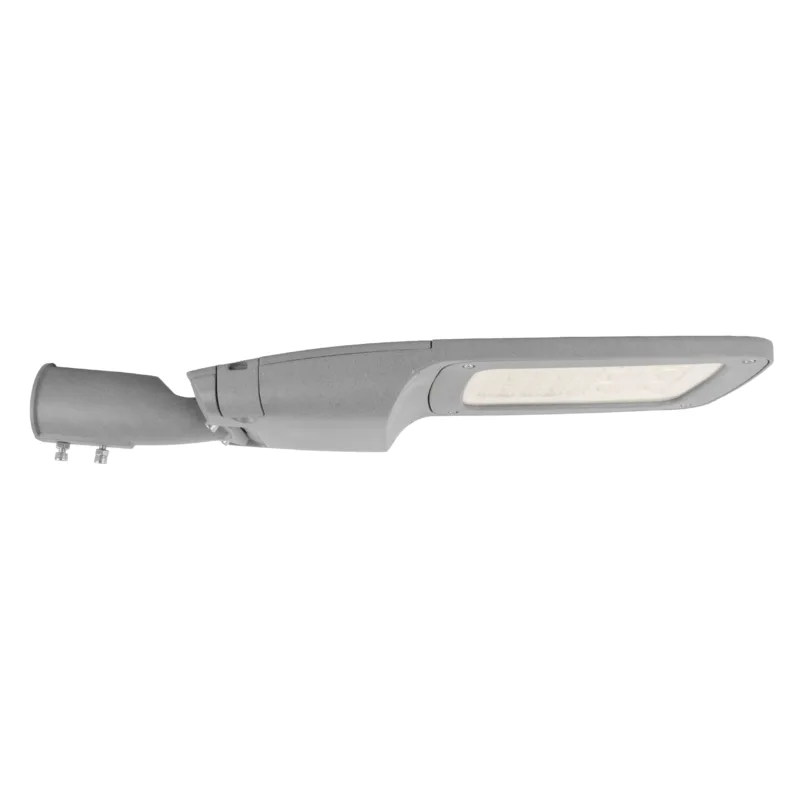

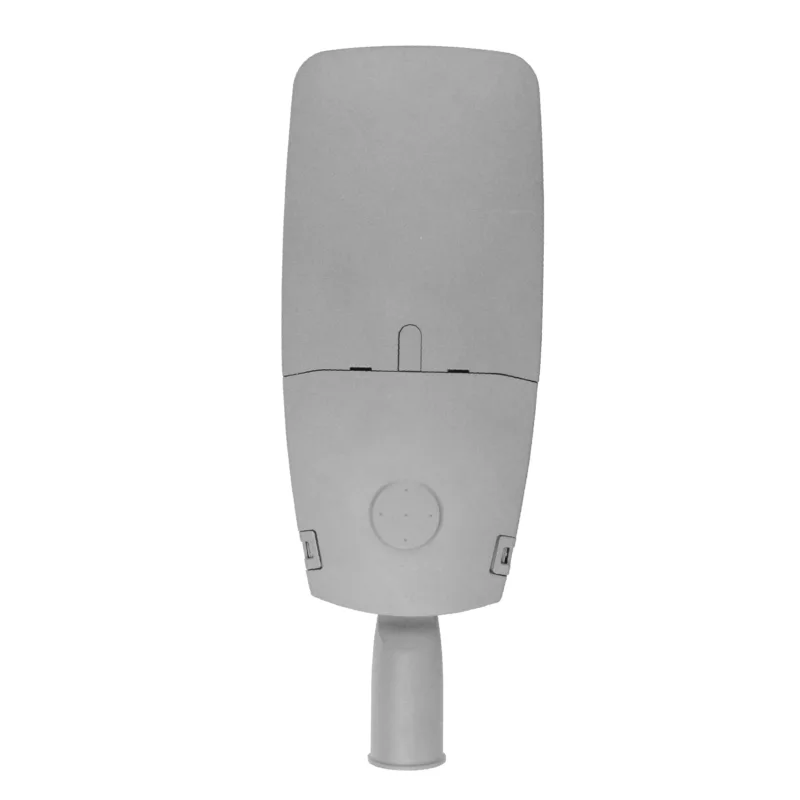

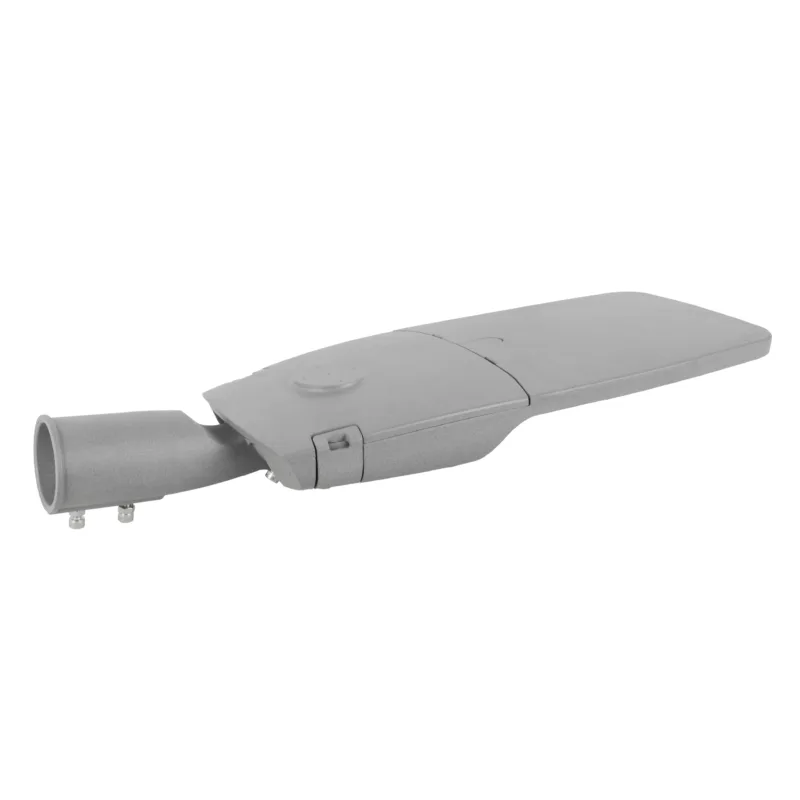

INL-LED24 LED Street Light
INL-LED24 LED Street Light is a project-ready roadway fixture with 50–200W options and three beam patterns—60×120°, 70×140°, 80×150°—for highways, city streets, intersections, and parking lots. Using SMD 5050 LEDs with branded drivers (MEAN WELL/PHILIPS/MOSO/INVENTRONICS), it delivers up to 160 lm/W in a die-cast aluminum body rated IP65/IK08 and -40–50°C, balancing efficiency, durability, and value.
Applications：
Certified Quality for Global Projects
Description
Features
The INL-LED24 LED Street Light delivers dependable illumination for everyday road projects. Power classes from 50 to 200 watts pair with 60×120°, 70×140°, and 80×150° optics to achieve uniform coverage on highways, urban streets, intersections, and parking areas. High-efficiency SMD 5050 packages and MEAN WELL / PHILIPS / MOSO / INVENTRONICS drivers provide up to 160 lm/W, while the die-cast aluminum housing, PC + tempered-glass lens, IP65/IK08 protection, and -40–50°C operating range support long service life and stable performance. Optional SPD, photocell, and power-off protection simplify maintenance and control.
How This INL-LED 24 LED Street Light Benefits Your Project
High-Efficiency 5050 LEDs, Up to 160 lm/W
INL-LED24 pairs SMD 5050 LED packages with PC + tempered-glass optics to reach up to 160 lm/W luminaire efficacy—balancing efficiency, output, and value for mainstream road projects.
Thermal Management
An FEA-informed die-cast aluminum body improves heat transfer, helping maintain output and extend service life in continuous-use applications.
Flexible Optics for Real-World Roads
Select 60×120°, 70×140°, or 80×150° beam patterns to achieve uniform coverage on highways, urban streets, intersections, and parking areas while minimizing glare and spill.
Low-Maintenance Construction
A robust housing with IP65 / IK08 protection and PC + tempered-glass lens resists water, dust, and impacts—simplifying routine cleaning and upkeep over time.

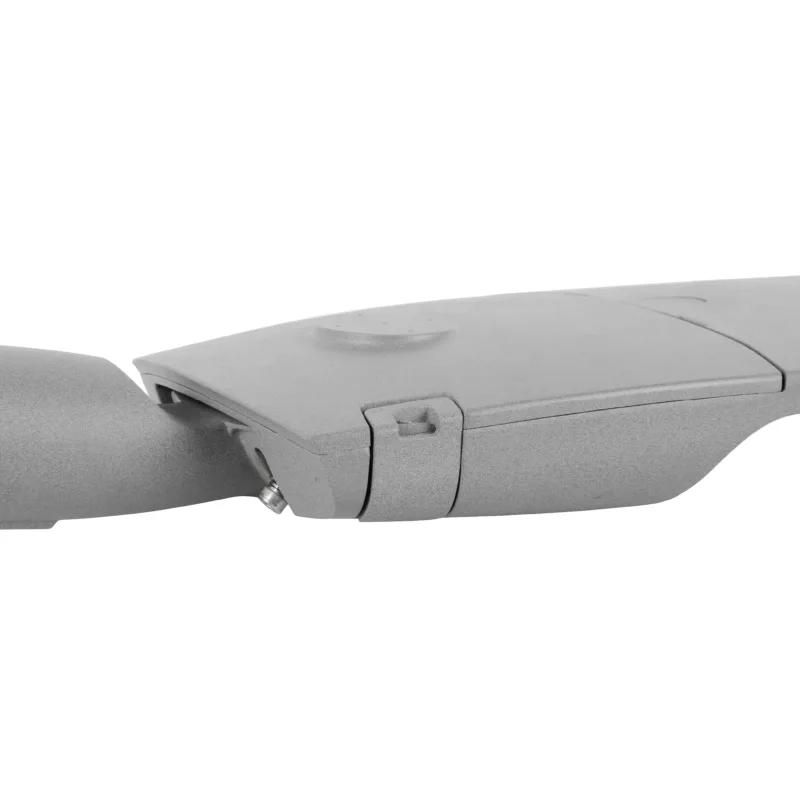

Two Mounting Methods (Side-Entry / Upright)
The adjustable lamp holder enables easy horizontal and vertical mounting for various installation scenarios.
Built for Real-World Conditions
Rated for -40°C to 50°C operation with IP65 / IK08 protection, INL-LED24 is engineered to perform across a wide range of climates and sites.
INL-LED24 Technical Specifications
| Model | LED24-50W | LED24-100W | LED24-150W | LED24-200W |
| Power | 50W | 100W | 150W | 200W |
| Power Supply | MEANWELL / PHILIPS / MOSO / INVENTRONICS | |||
| Working Voltage | 90 – 305V AC, 50/60Hz | |||
| Beam Angle | 60*120°,70*140°,80*150° | |||
| CCT | 3000K – 6500K | |||
| CRI | >70 (>80,>90 optional) | |||
| LED Chip | SMD 3030 / SMD 5050 | |||
| Luminous Efficiency | >110lm/w (SMD 3030) / >160lm/w (SMD 5050) | |||
| Luminous Flux | 5500lm (SMD 3030) | 11000lm (SMD 3030) | 16500lm (SMD 3030) | 22000lm (SMD 3030) |
| 9000lm (SMD 5050) | 16000lm (SMD 5050) | 24000lm (SMD 5050) | 32000lm (SMD 5050) | |
| Housing Material | Die-casting Aluminum | |||
| Lens Material | PC + Tempered glass | |||
| Product Dimension (mm) | 630*229*100 | 664*258*100 | 714*259*100 | 783*317*103 |
| IP/IK Rate | IP65 / IK08 | |||
| Working Temperature | -40°C~50°C, 20%~90% RH | |||
| Life Span | >50,000 Hours | |||
Lighting Distribution
Use the IES/LDT file for the quoted INL-LED24 version in a road or site layout. Provide road width, pole positions, mounting height, spacing and the required lighting class; include pedestrian areas and boundary constraints where relevant. Evaluate maintained lighting levels, uniformity and glare for the selected optic and output package. Keep the file identifier and fixture configuration matched in the submittal.
TII-S
TII-M
TIII-S
TIII-M
Optional Features & Add-ons
01
SPD（Surge Protective Device）
An SPD (Surge Protective Device) safeguards electronic equipment from voltage spikes caused by lightning or power surges. It uses components like varistors or gas discharge tubes to divert excess energy to the ground, maintaining safe voltage levels. Essential for protecting sensitive devices in homes, offices, and industrial settings, it enhances durability and prevents costly damage, ensuring reliable operation in diverse environments.
02
Photocell
A photocell, also known as a photoresistor or light-dependent resistor (LDR), is a sensor that detects light intensity and converts it into an electrical signal. It operates by changing resistance based on light exposure, making it ideal for automatic lighting control in outdoor settings like streetlights. Simple, cost-effective, and reliable, it adjusts illumination based on ambient light levels, enhancing energy efficiency and convenience.
03
Power Off Protection Connector
A Power Off Protection Connector ensures electrical safety by automatically disconnecting power during faults or outages, preventing damage to devices. It protects circuits from overvoltage, short circuits, or sudden shutdowns, enhancing system reliability. Ideal for solar street lights, it maintains functionality in unstable power conditions, extending equipment lifespan.
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, Inlux Solar’s IOT Smart Monitoring System enables intelligent management of ourINL-LED24 LED Street Light by PC, PAD and Mobile.
Dimensions
LED24-50W
LED24-100W
LED24-150W
LED24-200W
Installation Methods
Our LED Street Light offer multiple installation options. Whether on roads, walls, fences, or other locations, we provide stable and reliable mounting solutions tailored to your needs.
Vertical Installation
1. Secure the lamp housing with the fixture head
2.Secure the fixture with the pole
3.Tighten the fixing screws
Horizontal Installation
1. Secure the lamp housing with the fixture head
2. Secure the fixture with the pole support arm
3. Tighten the fixing screws
Plan Your INL-LED24 Street Lighting Order
Check the arm interface and adjustment arrangement against your existing poles before placing a replacement order. Send the road width, pole positions, mounting height, supply voltage and lighting target. Specify which protection and control accessories are required, and ask for an itemised quotation and model-specific photometric file so mounting compatibility and road coverage can be reviewed together.
Compare LED street light models or request an INL-LED24 project quote.
