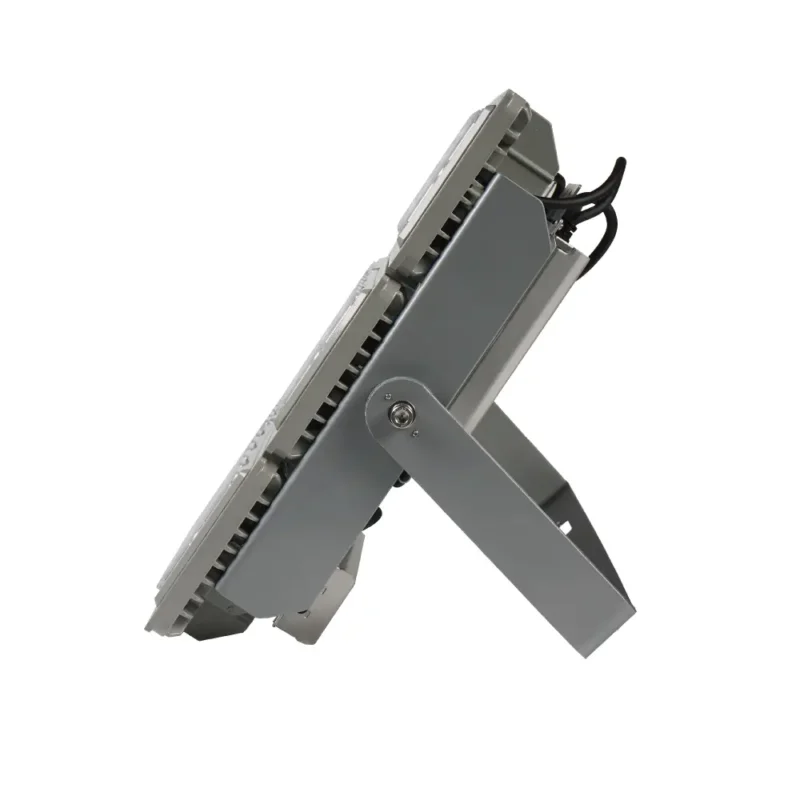

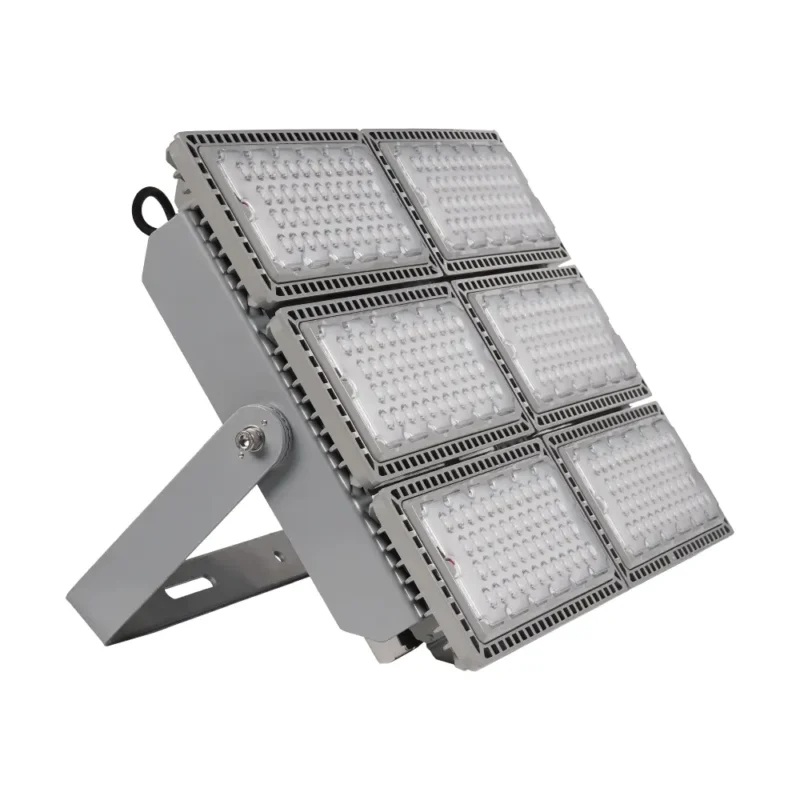

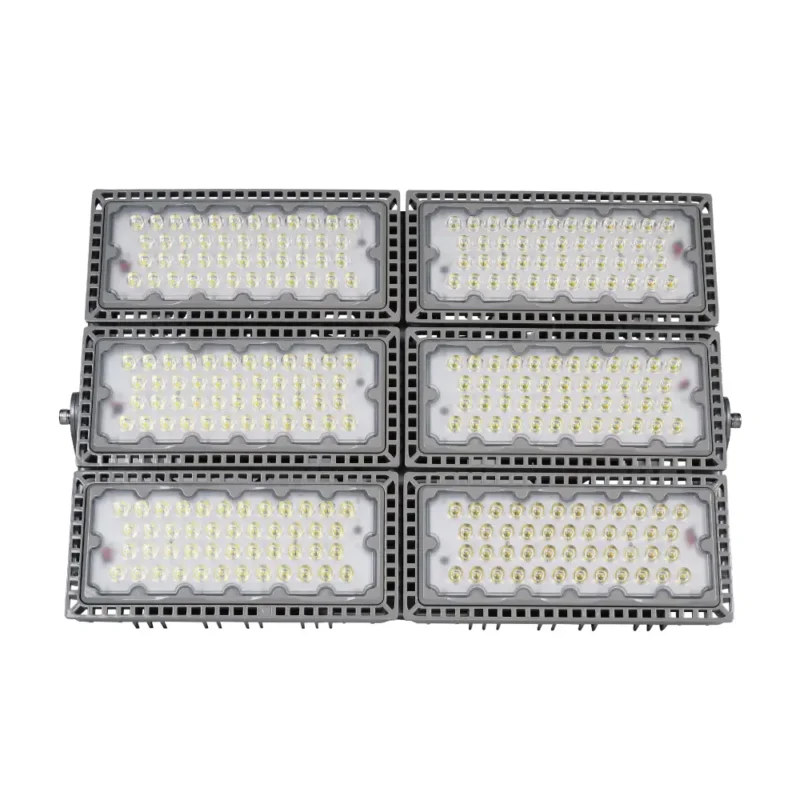

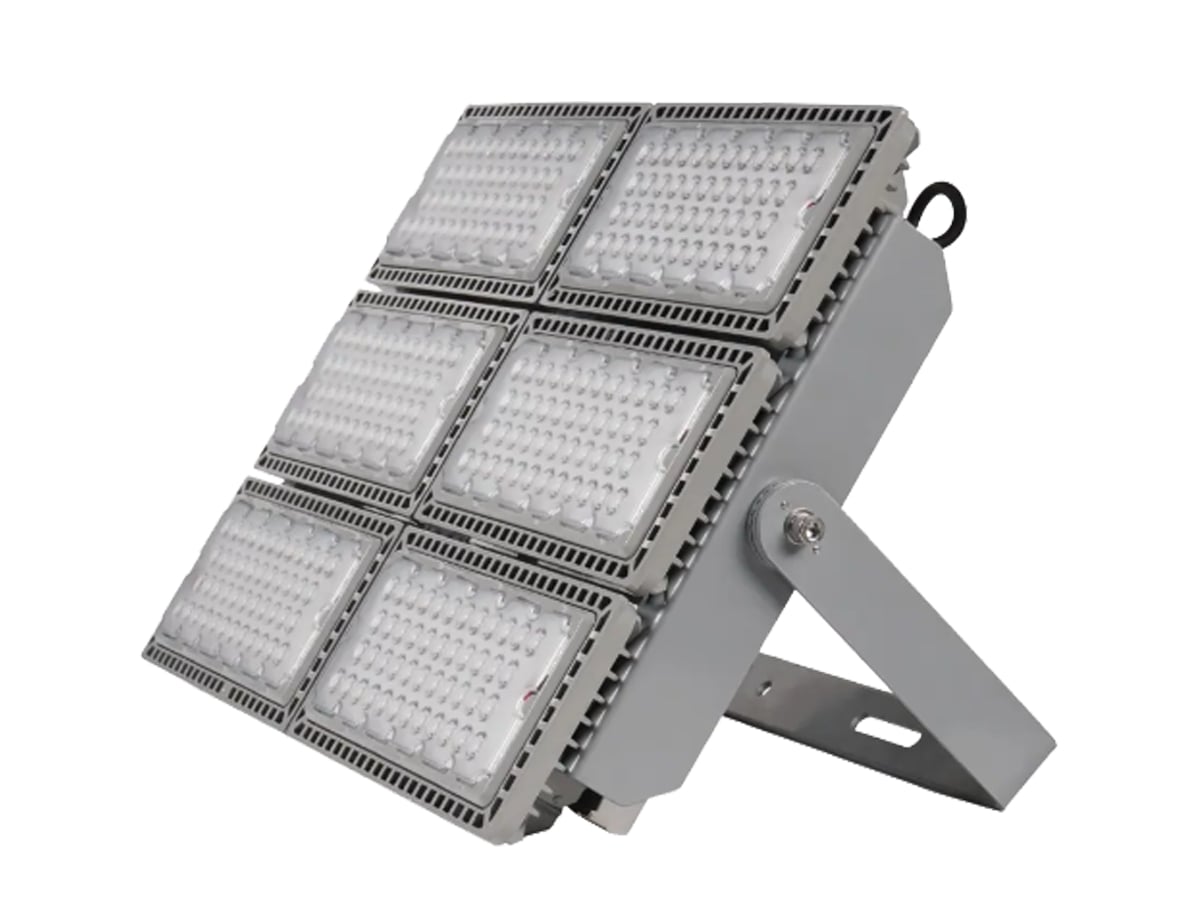

INL-FLD23 LED Flood Light
INL-FLD23 LED Flood Light brings scalable output and precise aiming to outdoor projects. Its modular, linkable design delivers up to 120 W per module with 8°/20°/40°/60°/90°/100° beam options, an adjustable mounting bracket, and a durable die-cast aluminum body. Pair SMD 3030/5050 LEDs with branded drivers to reach high efficacy, backed by IP66/IK09 protection and a −40–50 °C operating range.
Description
Features

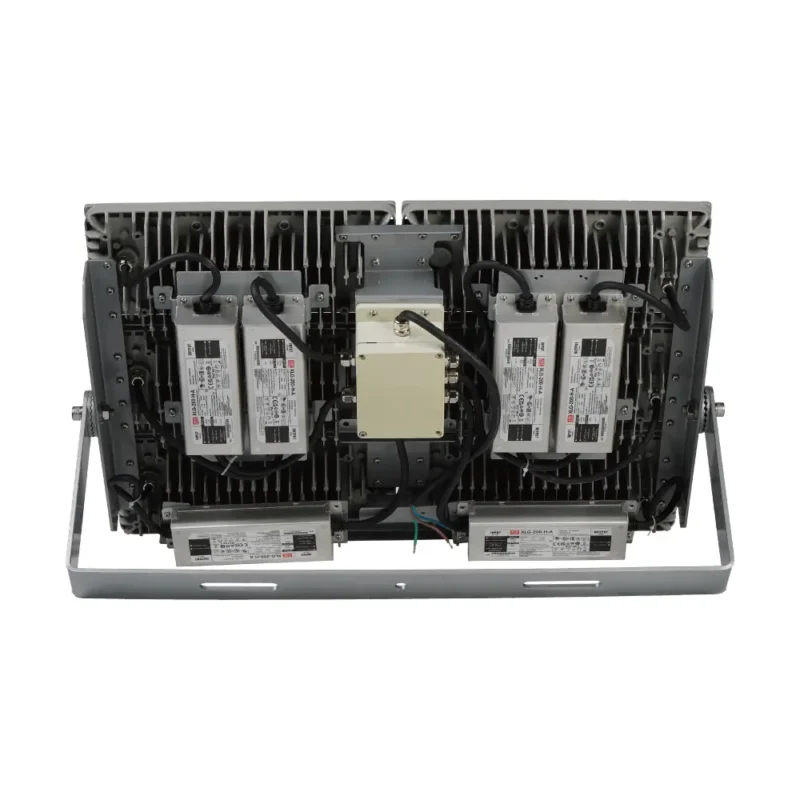

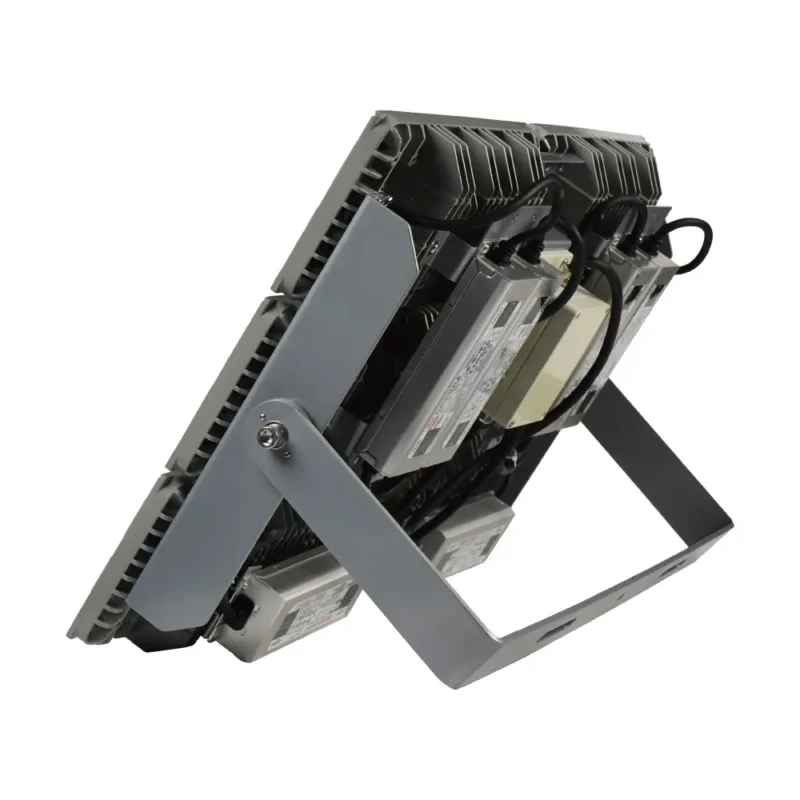

The INL-FLD23 LED Flood Light is engineered for sites that need both output and flexibility. Configure one or more linkable modules—each rated up to 120 W—to match throw distance and mounting height, then select 8° to 100° beam distributions for clean, uniform coverage. An adjustable mounting bracket simplifies on-site alignment, while die-cast aluminum construction, PC optics, IP66/IK09 durability, and a −40 to 50 °C operating range ensure dependable service. Choose SMD 3030/5050 LED packages with MEAN WELL/PHILIPS/MOSO/INVENTRONICS drivers to meet project efficiency targets.
How This INL-FLD23 Compact LED Flood Light Benefits Your Project
Extreme Bright 5050 LED Provides 40% Higher Brightness
INL-FLD23 Series adopts first-class Extreme Bright 5050 LEDs with 260lm/w efficiency, providing 40% higher brightness than normal solar lights which use 3030 LEDs and 2835 LEDs by its much bigger LED chip size.
Thermal Management
The structure is optimized with advanced Finite Element Analysis (FEA) technology, ensuring high performance and durability. It improves heat dissipation, extends lifespan, and maintains cost-efficiency. Using FEA, the design minimizes waste and enhances reliability for long-term applications in challenging environments.
Operable Under Harsh Environment
IP66 for the whole INL-FLD23 system, which makes it adaptable for rainy areas. High-temperature resistant LiFePO4 battery with low current design significantly reduces internal heat when the system works. Among other things, the smart temperature adjustment function of the solar controller enables the system to operate normally under temperatures as high as 65°C.
INL-FLD23 Technical Specifications
| Model | FLD23-200W | FLD23-400W | FLD23-600W | FLD23-800W | FLD23-1200W |
| Power | 200W | 400W | 600W | 800W | 1200W |
| Power Supply | MEANWELL / PHILIPS / MOSO / INVENTRONICS | ||||
| Working Voltage | 90 – 305V AC, 50/60Hz | ||||
| Beam Angle | 8°,20°,40°,60°,90°,100° | ||||
| CCT | 3000K – 6500K | ||||
| CRI | >70 (>80,>90 optional) | ||||
| LED Chip | SMD 3030 / SMD 5050 | ||||
| Luminous Efficiency | >125lm/w (SMD 3030) / >175lm/w (SMD 5050) | ||||
| Luminous Flux | 25000lm (SMD 3030) | 50000lm (SMD 3030) | 750000lm (SMD 3030) | 100000lm (SMD 3030) | 1073500lm (SMD 3030) |
| 35000lm (SMD 5050) | 70000lm (SMD 5050) | 105000lm (SMD 5050) | 107350lm (SMD 5050) | 2100000lm (SMD 5050) | |
| Housing Material | Die-casting Aluminum | ||||
| Lens Material | PC | ||||
| Product Dimension (mm) | 365*210*121 | 367*375*133 | 535*375*133 | 701*367*138 | 702*535*138 |
| N.W.(KG) | 3.1 | 6.7 | 9.8 | 12.5 | 17.7 |
| IP/IK Rate | IP66 / IK09 | ||||
| Working Temperature | -40°C~50°C, 20%~90% RH | ||||
| Life Span | >50,000 Hours | ||||
Lighting Distribution
For an FLD23 lighting review, send the target area, required throw distance, mounting positions and heights, lighting criteria and power supply. Confirm the quoted module, optic, driver and bracket arrangement before comparing output claims. Request the configuration-specific photometric file and review aiming, uniformity, glare and light outside the target area. Use the LED flood-light model comparison or request an FLD23 proposal with your site plan.
40℃
60℃
90℃
120℃
