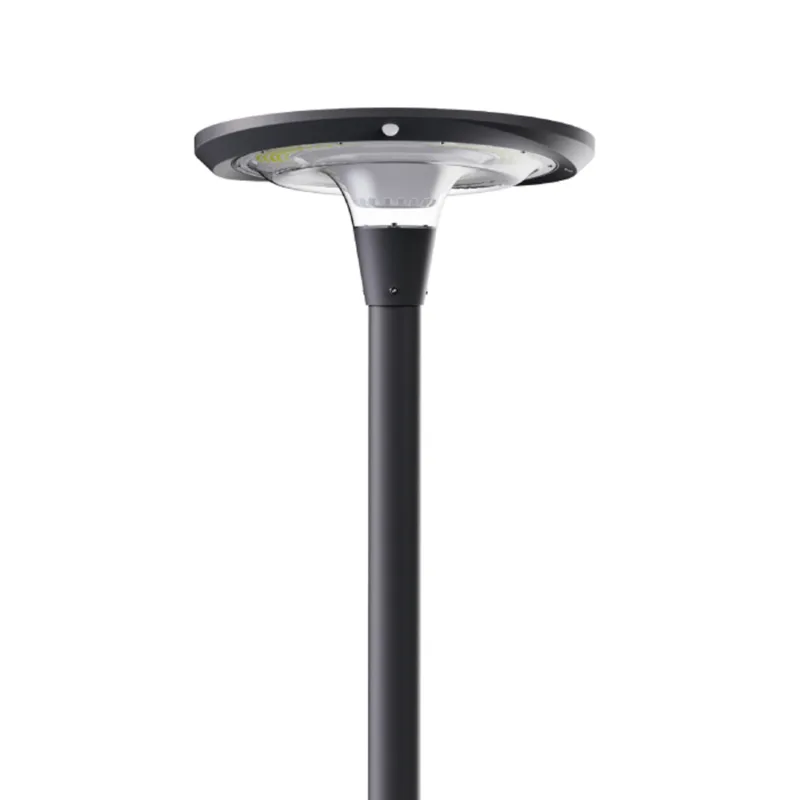

Solar Garden Light EOS
EOS solar garden light combines architectural aesthetics with reliable off-grid lighting performance. Its disc-inspired structure delivers uniform, soft illumination while minimizing light pollution and blue-light disturbance to wildlife. Designed for urban landscapes and residential environments, EOS provides safe, efficient, and low-maintenance solar lighting. Decorative solar garden light with wildlife-friendly optics and intelligent control for parks, pathways, and residential environments. Ultra-low glare (<1% UwLR), LiFePO4 battery and MPPT controller ensure efficient, eco-safe illumination.
Planning a multi-fixture park, pathway or community project? Use our commercial solar garden lights selection guide to define the task, photometry, critical-period energy and RFQ inputs before choosing the EOS configuration.
Description

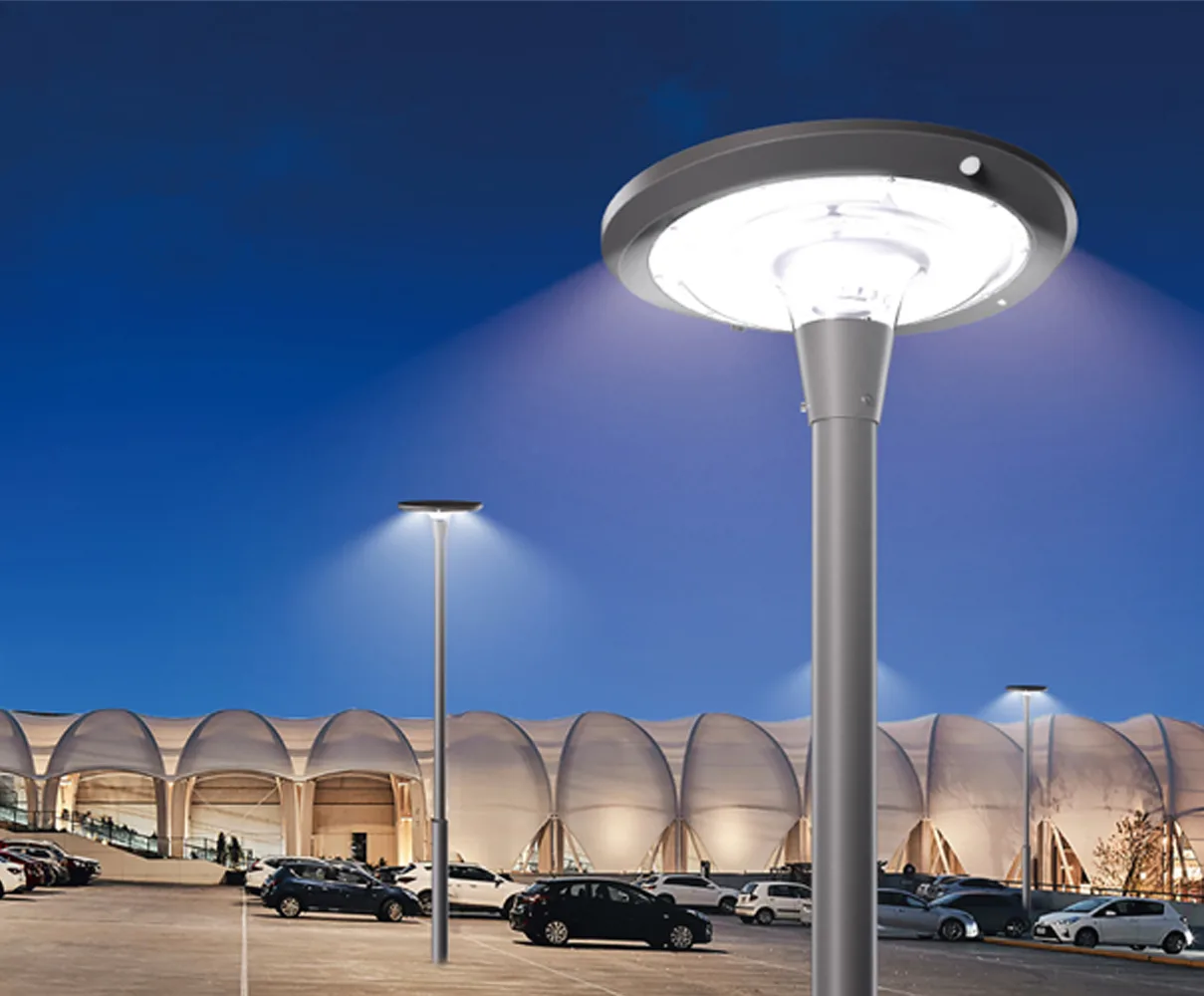

Features

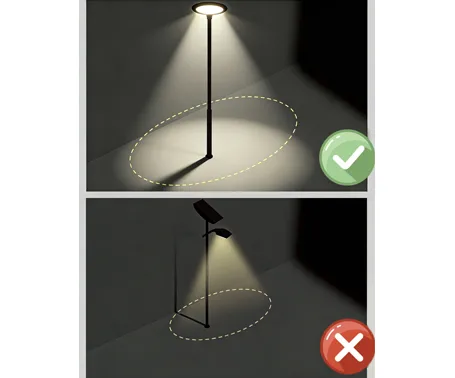

Wildlife-Friendly Optical Design
- Ultra-low upward light ratio (<1%) reduces light pollution
- 360° uniform illumination without glare
- Dual-color CCT for visual comfort
High-Efficiency Solar Energy System
- 40W monocrystalline solar panel (>22.5% efficiency)
- Long-life LiFePO4 battery (6000 cycles @80% DOD)
- MPPT controller with >97% charging efficiency
Intelligent Lighting Control
- Automatic dusk-to-dawn operation
- PIR motion detection for energy saving
- Remote control & Bluetooth APP control
- Grouping and parameter adjustment supported
Durable Outdoor Structure
- 5° inclined solar panel for higher charging efficiency and self- cleaning
- Die-cast aluminum housing with tempered glass
- IP65 waterproof and IK08 impact resistance

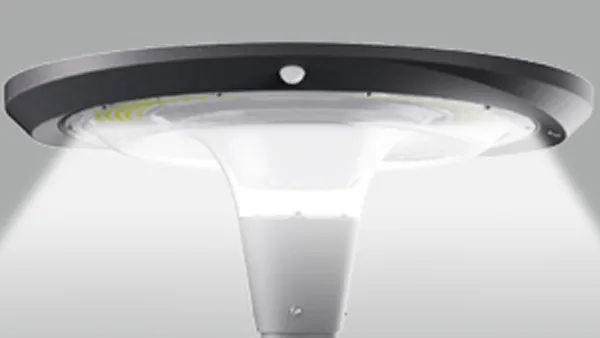

Decorative LED Lamp
Independent solar panel design makes high-power panels possible, and 15% higher charging efficiency can be realized by adjusting direction of solar panel. Therefore, high-power LED lamps are able to operate at high brightness all night.
High efficiency LED
Using high-efficiency LEDs with a luminous efficacy of up to 170 lm/W, the system delivers bright and energy-efficient illumination. The sealed optical lens is made of UV-resistant PC material, offering excellent anti-aging performance and strong impact resistance for long-term outdoor use. With a unique optical cut-off design, the luminaire effectively reduces light pollution and minimizes environmental impact.
15% higher uniformity and 30% larger coverage area
Specially designed light distribution and bigger beam angle enlarge illumination areas and improve lighting uniformity, suitable for rural roads, streets, highways, and residential areas.

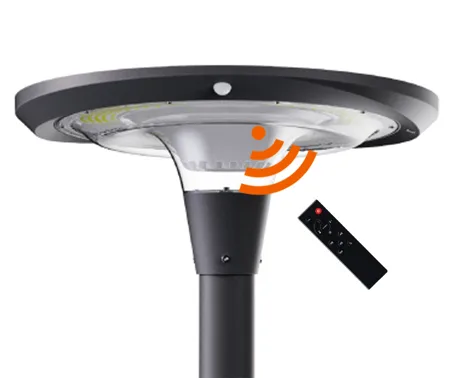

Remote Control
Wireless remote control enables battery protection management, status monitoring, charging history review, parameter adjustment, and runtime diagnostics for reliable long-term operation.

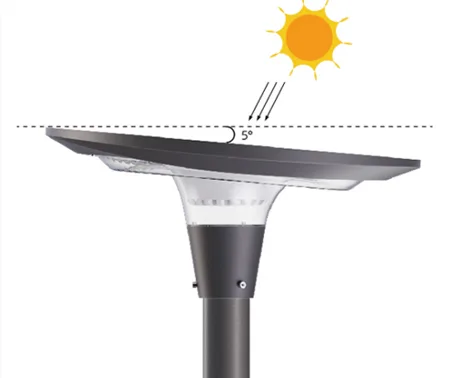

Slope Design
The 5 degree slope design not only makes the appearance beautiful and unique;Inclined Sunrise can obtain higher charging efficiency, which is at least 15% higher than the level;At the same time, the slope design of the solar panel is not easy to accumulate dust, which can be washed away by rain,It not only has higher power generation but also is easier to maintain.
Operable Under Harsh Environment
IP66 for the whole ATHENA system, which makes it adaptable for rainy areas. High-temperature resistant LiFePO4 battery with low current design significantly reduces internal heat when the system works. Among other things, the smart temperature adjustment function of the solar controller enables the system to operate normally under temperatures as high as 65°C.
Technical Specifications
| LED Lamp | Model | EOS | Solar Panel | Panel Power | 40W |
| Max Luminous Flux | 2,800 lm | Cell Type | Monocrystalline Silicon | ||
| Peak LED Power | 18 W | Conversion Efficiency | >22.5% | ||
| LED Type | SMD3030 | Lithium Battery | Battery Type | LiFePO4 | |
| CRI | >80 | Battery Capacity | 3.2V / 48Ah | ||
| CCT Options | 3000K+4000K / 3000K+6000K | Battery Cycle Life | 6000 cycles | ||
| LED Lifetime | >100,000 hours | Autonomy | 2 – 3 days (up to 5 days with motion mode) | ||
| Light Pole | Pole Compatibility | Φ76 mm | System | Operating Temperature | -15° C ~ +70° C |
| Solar Controller | Controller Type | MPPT | Fixture Dimension | Φ576 × H240 mm | |
| Motion Sensor | PIR | Housing Material | Die-cast aluminum + tempered glass | ||
| Remote Control | 2.4G + Bluetooth APP | Protection Level | IP65 / IK08 | ||
| Warranty | 5 years |
Interior Structure
See What’s Inside The Solar Garden Light EOS.
01
02
03
04
05
06

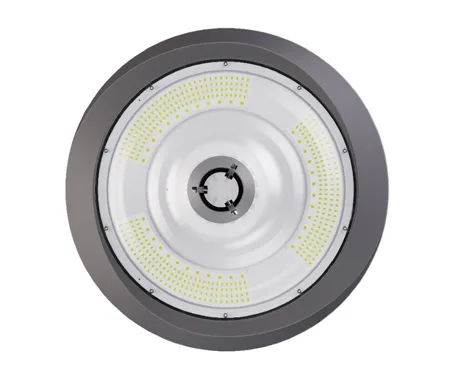

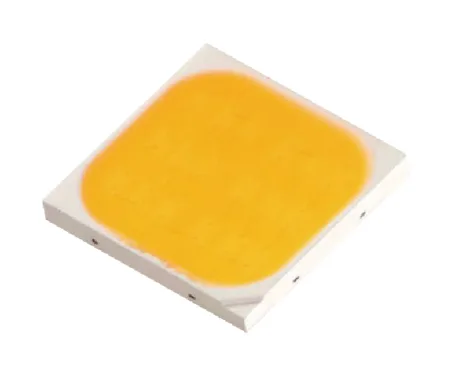

Decorative LED Lamp
Featuring advanced 3030 LED chips with an impressive efficiency of up to 170lm/w, this lighting solution delivers extreme brightness and reliable performance. Designed with high-temperature resistance and low thermal resistance, it ensures a longer LED lifespan. The thick aluminum heat sink, combined with a fast heat dissipation module, guarantees optimal performance and durability, while the easy-maintenance design simplifies upkeep.

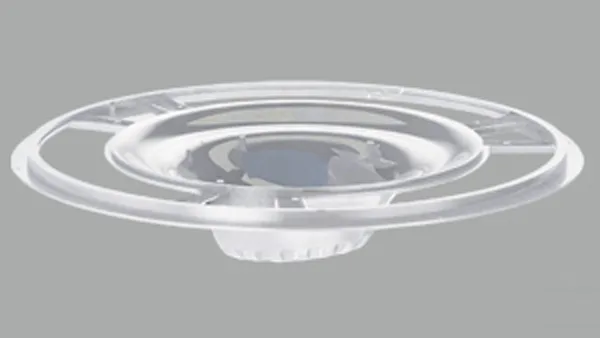

High-Transmittance PC Cover
The custom-designed ultra-white, high-transparency PC cover meets aesthetic requirements for decorative lighting while ensuring excellent light efficiency and effective anti-glare performance. It delivers clear, uniform illumination, enhancing both the beauty and functionality of the lamp.

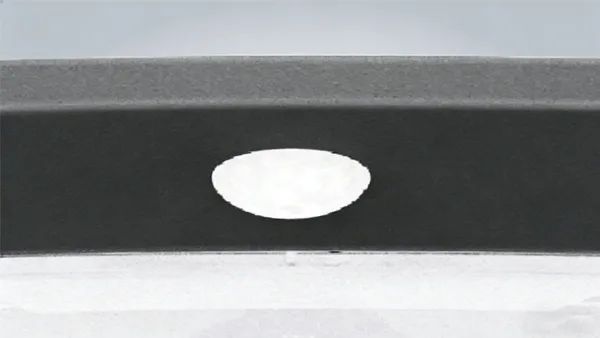

Motion-Activated Sensor
When someone enters the sensing range, the specialized sensor detects changes in the human body’s infrared spectrum and automatically switches on the light. The light remains on continuously as long as movement is detected within the range. After people leave, the light will automatically dim or turn off following a short delay, ensuring energy efficiency and user-friendly operation.
Smart Solar Controller
he Smart Solar Controller offers high efficiency with a smart power-saving mode that optimizes energy use. It operates with constant current and an IP68 rating, ensuring reliable performance even in harsh environmental conditions. This advanced design significantly reduces the light failure rate, providing consistent brightness over time. Additionally, the controller includes multiple protection features that effectively safeguard the battery, enhancing its longevity and ensuring the system’s overall durability and safety.
LiFePO4 Lithium Battery
By adopting unique pouch-type lithium battery cells, the LiFePO4 battery has been specially engineered to deliver a 4000-cycle life under deep DOD with excellent stable performance. Along with multi-protection applied by the BMS unit and solar controller contributes to maintaining the battery’s perfect operation under various extreme climates.
Solar Panel
The enhanced strong lamp holder is designed for maximum durability and performance, ensuring resistance to strong impacts and mechanical stress, providing robust reliability in challenging environments.
Optional Features & Add-ons
01
Motion Sensor
The motion sensor automatically reduces brightness by 30% when inactivity is detected, saving energy. Upon detection of presence, brightness returns to 100%, ensuring optimal visibility while minimizing distractions. This feature strikes a balance between power efficiency and user comfort.
02
Anti-theft Components
Anti-theft screws and spikes are designed to secure solar panels against theft. The unique tamper-resistant design makes removal nearly impossible without specialized tools, while anti-climbing spikes prevent unauthorized access, ensuring durability and security in exposed environments.
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, Inlux Solar’s IOT Smart Monitoring System enables intelligent management of our EOS solar garden light by PC, PAD and Mobile.

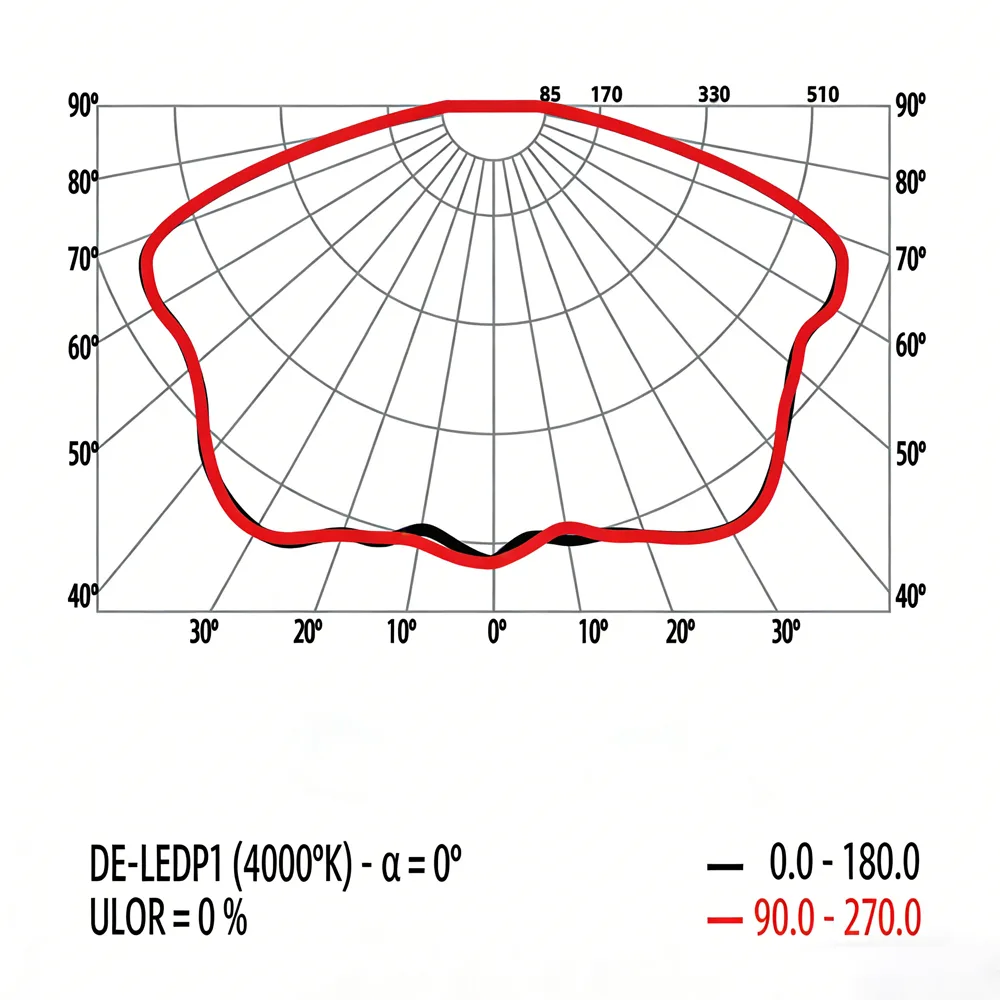

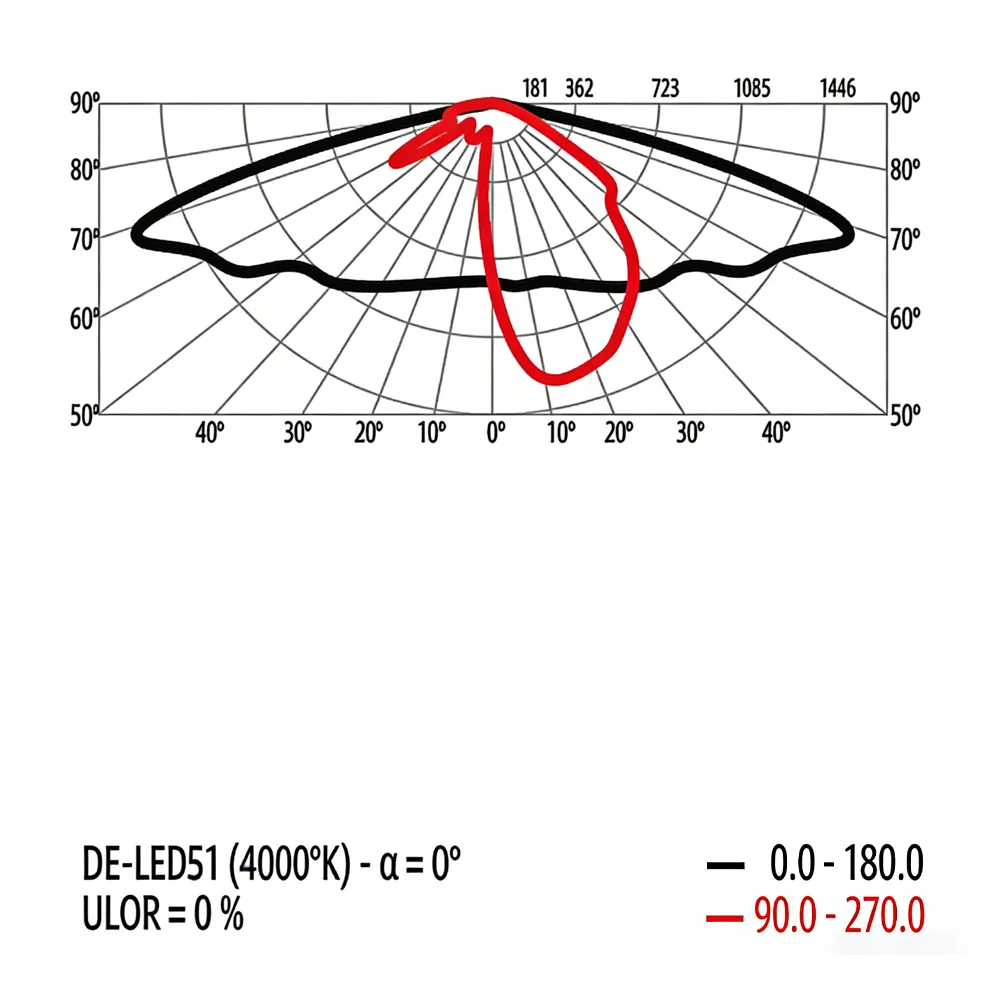

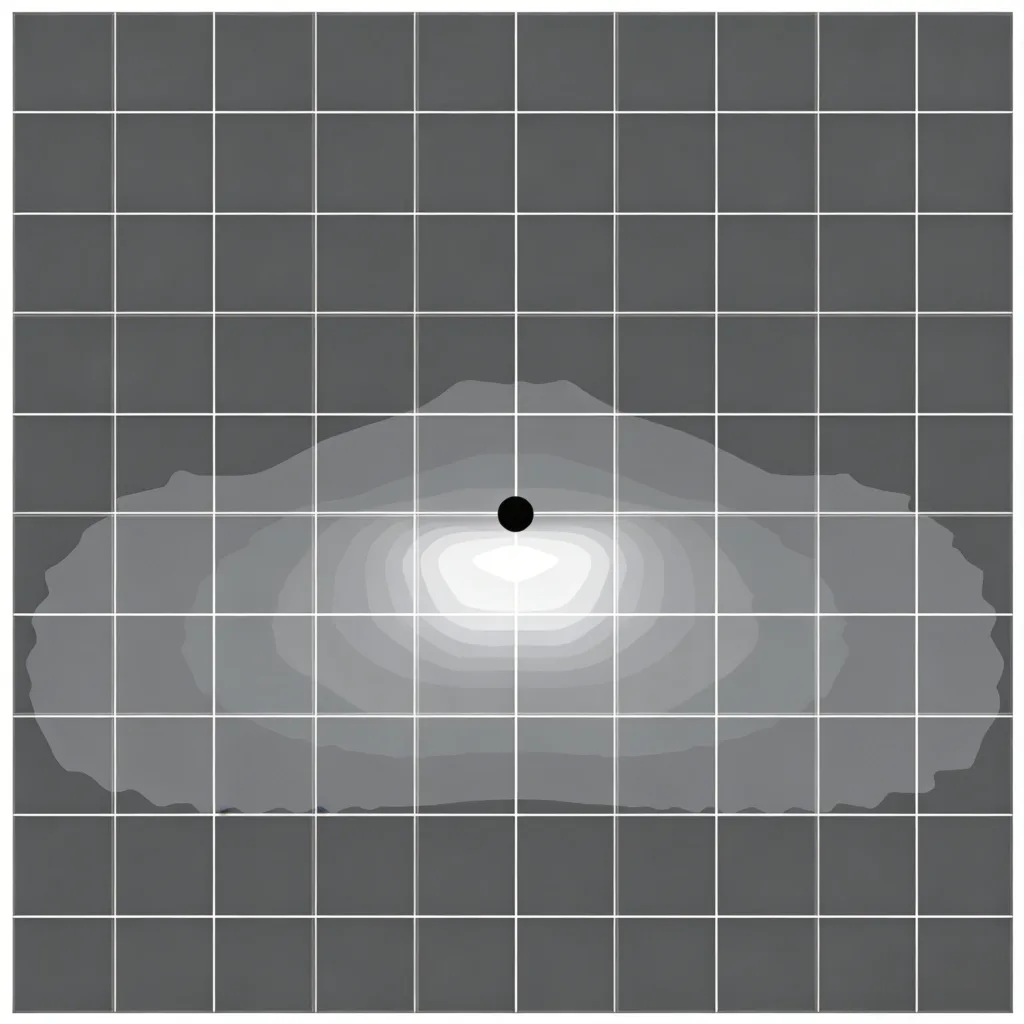

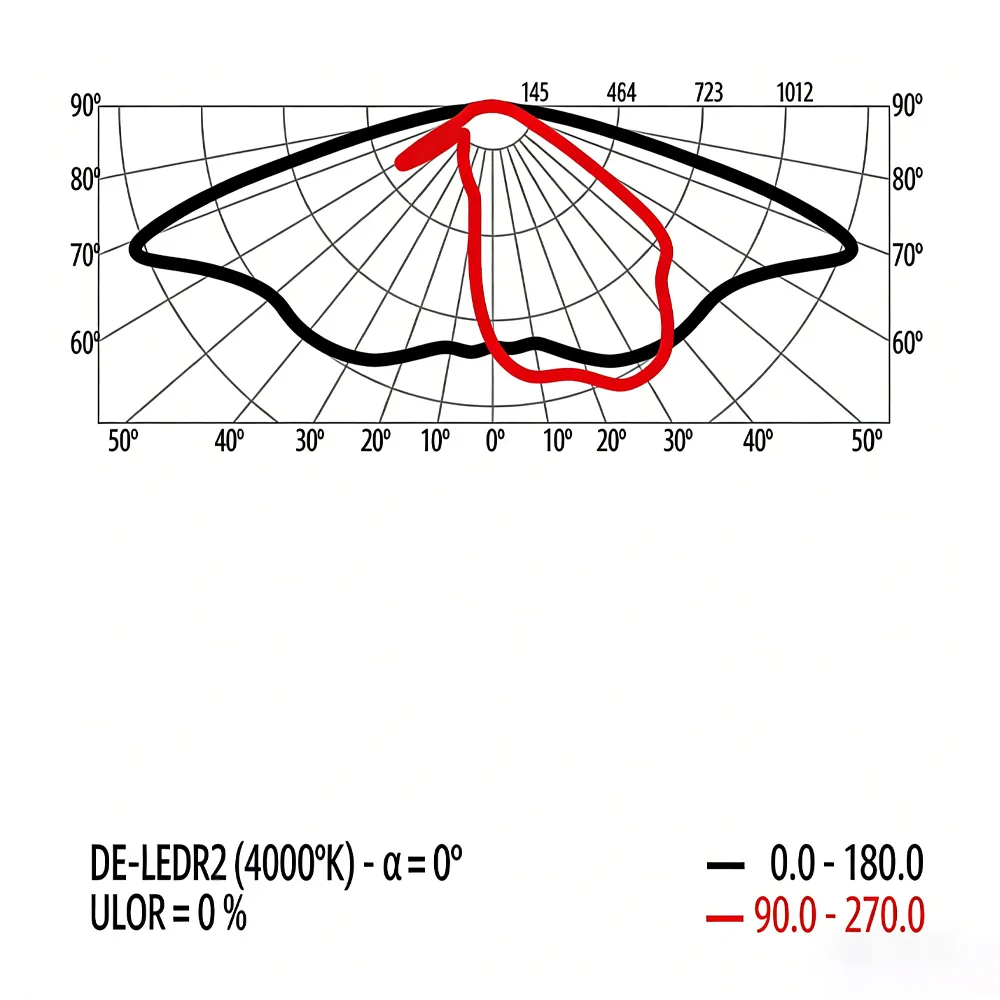

Light Distribution Curve

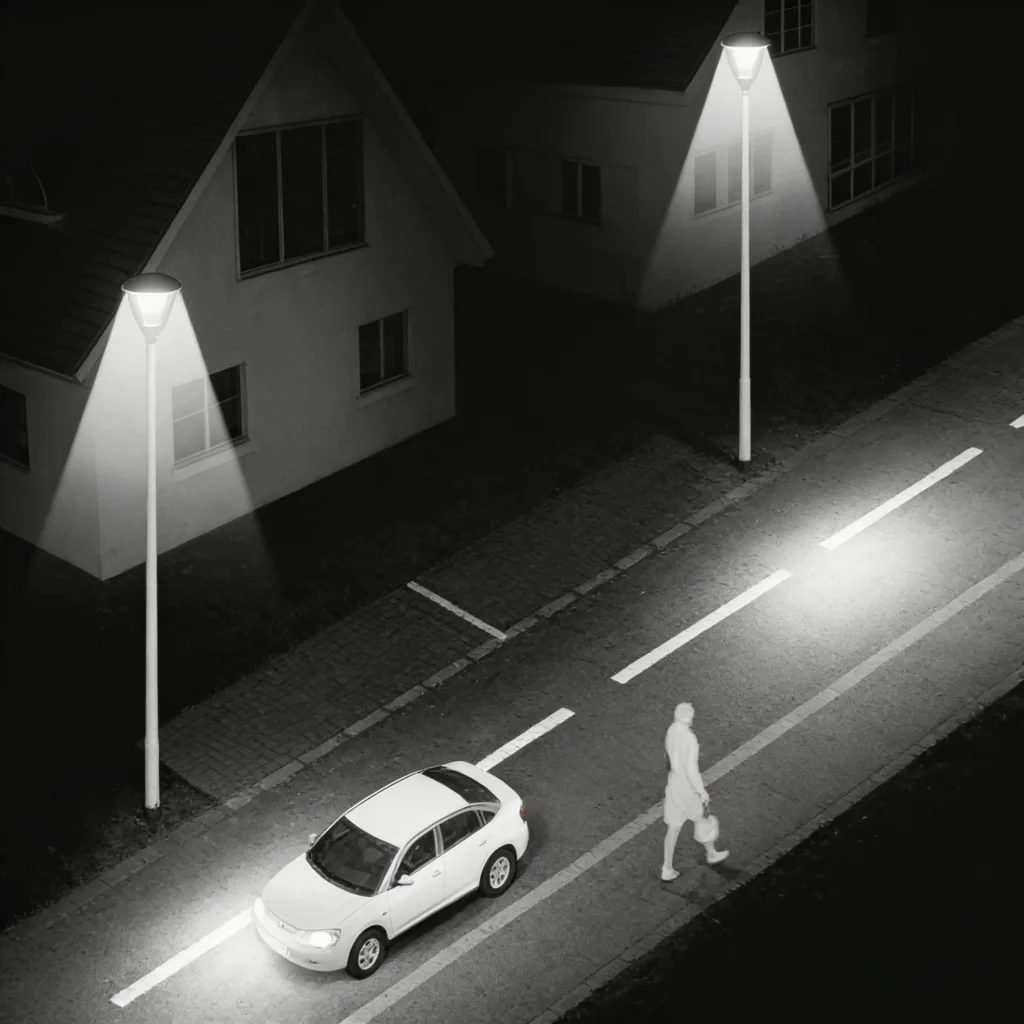

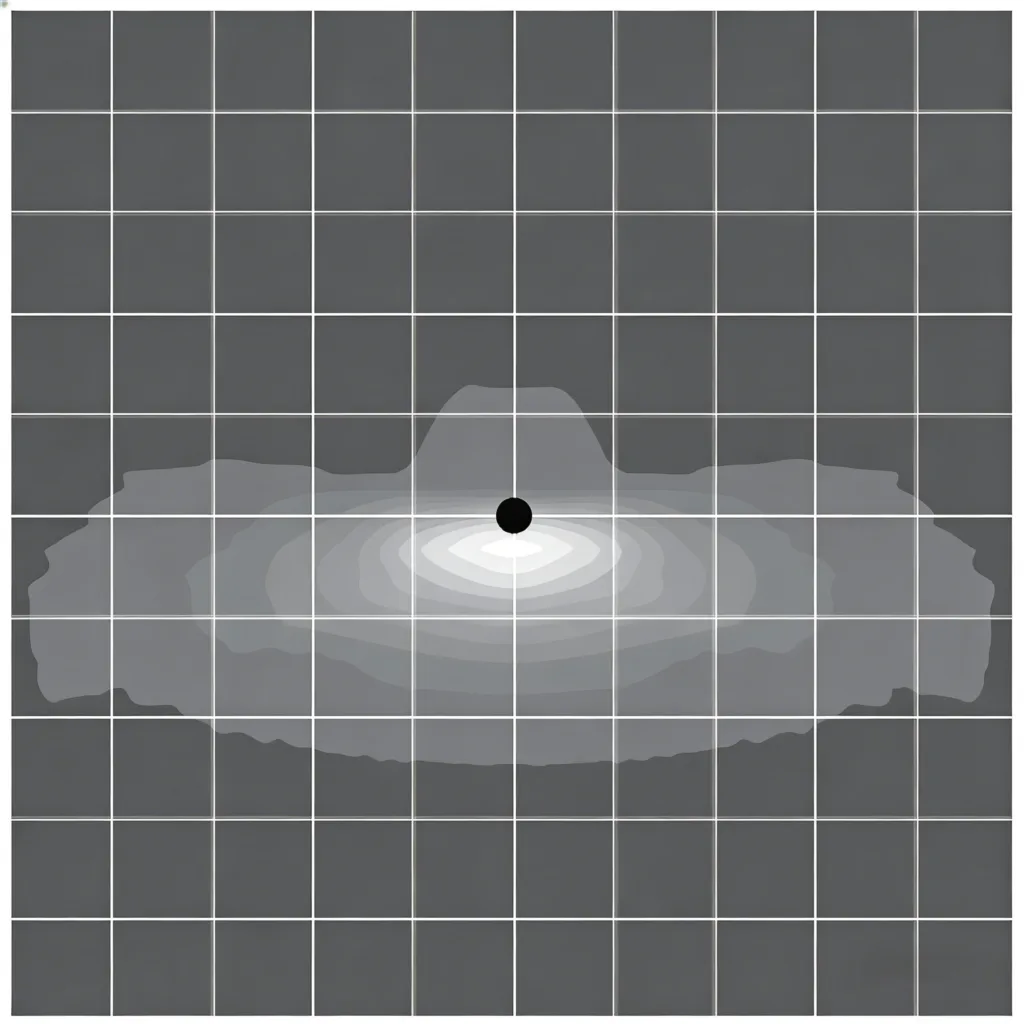

The lamps are installed in the asymmetric lighting of low height residential areas.
Note:This optic is not dedicated to this application only. It can also be used for other configurations.
Lighting of bicycle lanes or narrow roads. Circulation track and narrow road.
Note:This optic is not dedicated to this application only. It can also be used for other configurations.

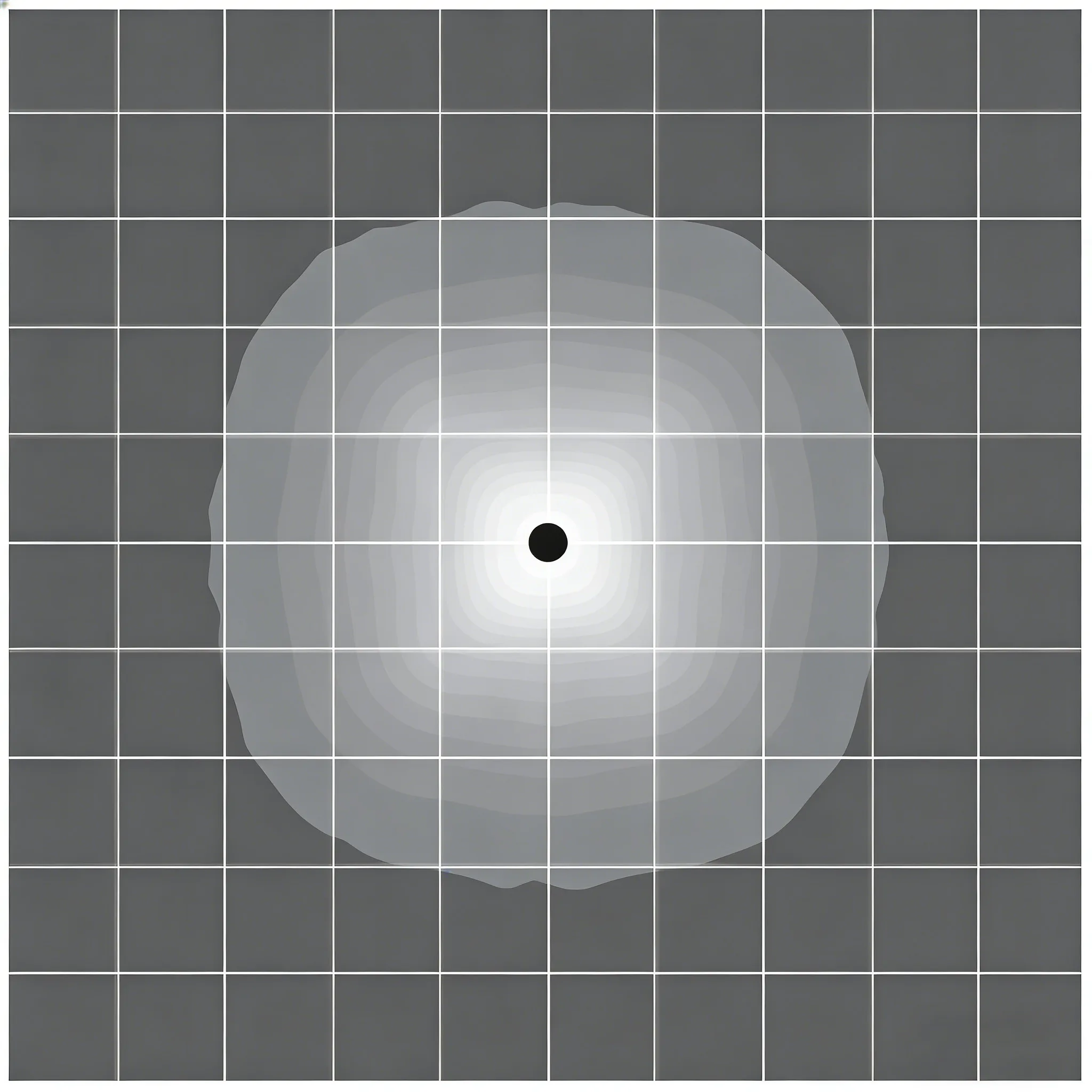

Symetric light distribution.
Note:This optic is not dedicated to this application only. It can also be used for other configurations.
