Solar Mast Light

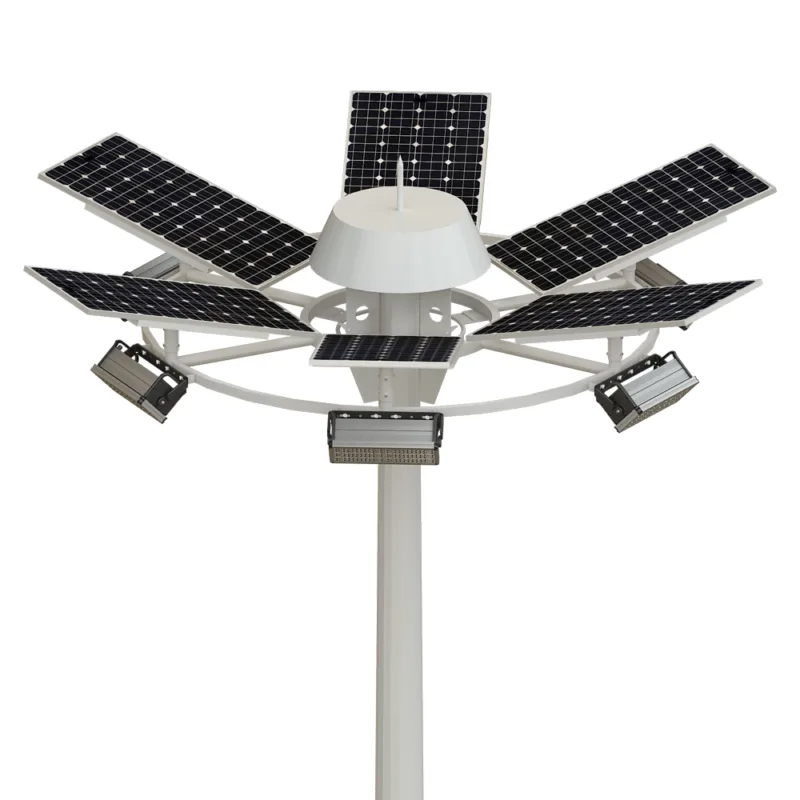

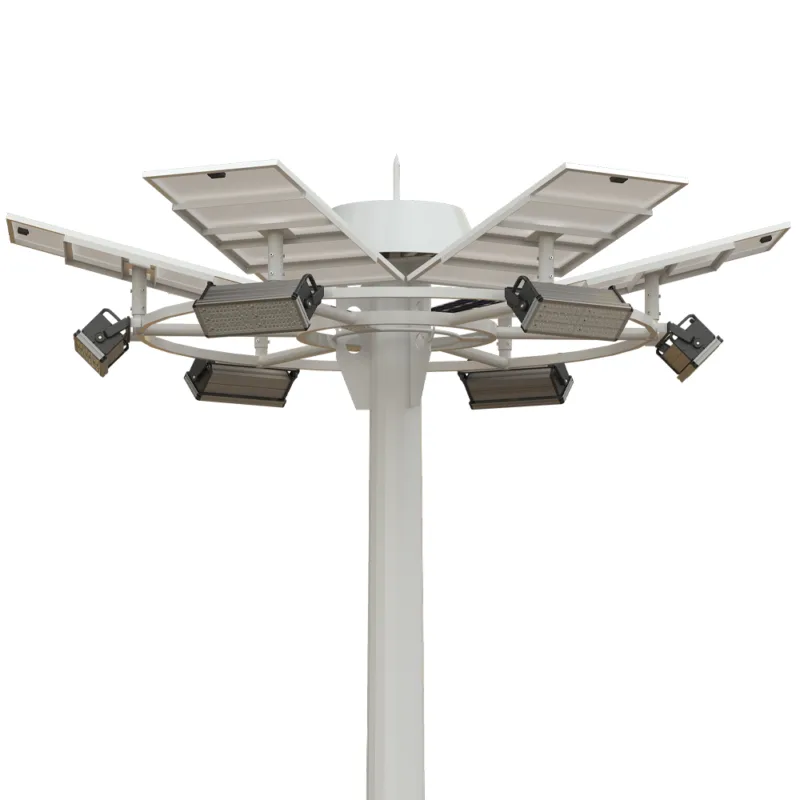

Solar Mast Light delivers large-area lighting from 15–30 m structures with multi-fixture headframes. Options include 100–400W per lamp at >185 lm/W (SMD 7070), IP65–IP66/IK09 protection, and an optional raising & lowering system for safer ground-level maintenance.
Applications：
Certified Quality for Global Projects
Description
Where This Product Fits (Tender-Ready)
- System type: Solar High Mast Light
- Bundles: Buyer’s Guide (Bundles)
- Templates: Spec Definitions · RFQ/BOQ Kit
Most relevant guides:
Features

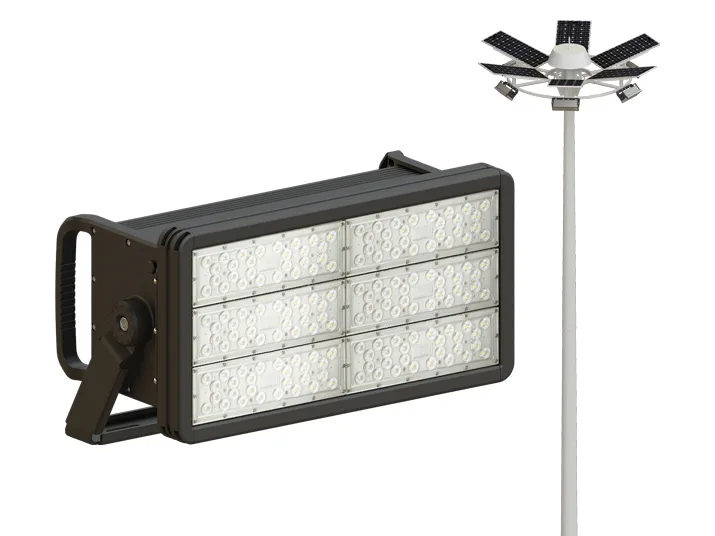

The Solar Mast Light is a stand-alone, off-grid high mast lighting solution, purpose-built for large-scale sites. A ring of 100-400W TORCH series solar LED flood lights mounted around a 15–30 m polygonal mast pole provides high-lumen illumination for highways, airports, ports, and large plazas, with an optional raising & lowering system, it pairs reliable performance with safer ground-level servicing. The TORCH Series features an advanced semi-integrated design with high-power 7070 super-bright LED modules, a built-in LiFePO4 lithium battery, and a solar controller, making installation easier and enhancing anti-theft protection.
Read the power range per lamp, not per mast. The 100–400W range in this product’s specification applies to an individual TORCH solar LED flood light. A complete mast configuration also needs the number of luminaires, selected beam angles and aiming layout, solar-panel capacity, battery capacity, and operating profile. The panel and battery capacities are listed as customizable; they are not fixed by the lamp wattage. Evaluate the complete configuration using matching photometric files and the intended operating schedule.
Solar Mast Light Technical Specifications
| Solar LED Flood Light | LED Power | 100-400W |
| Lithium Battery Capacity | Customziable | |
| Luminous Efficiency | >185lm/w (SMD 7070) | |
| Color Temperature | 3000K – 6500K | |
| Beam Angle | 30°,60°,90°,120° | |
| Power Supply | Solar Power | |
| Housing Material | Die-casting Aluminum | |
| Lens Material | PC / PC + tempered glass | |
| Solar Panel | Capacity | Customziable |
| Mast Pole | Pole Height | 15-30 Meters |
| Section Shape | Polygonal | |
| Joint of Mast Poles | Insert Mode, Inner Flange Mode, Face To Face Joint Mode | |
| Material & Finishing | galvanized steel with powder coated (OPTIONAL) | |
| Raising & Lowering System | OPTIONAL | |
| Climbing Ladder | OPTIONAL | |
| Working Mode | Working Time | From dusk to dawn (customizable) |
| Autonomy Days Backup | 365 day non-stop operation (customizable) | |
| System | Working Temperature | -20 – 65℃ |
| Protection Levels | IP65 – IP66 / IK09 | |
| Wind Resistance | >120km/h | |
| Life Span | LED lamp: > 20years | |
| battery: > 10years | ||
| solar controller:> 20years | ||
| solar panel: > 25years | ||
| Mast Pole: > 30years | ||
| Warranty | 3 / 5 years |

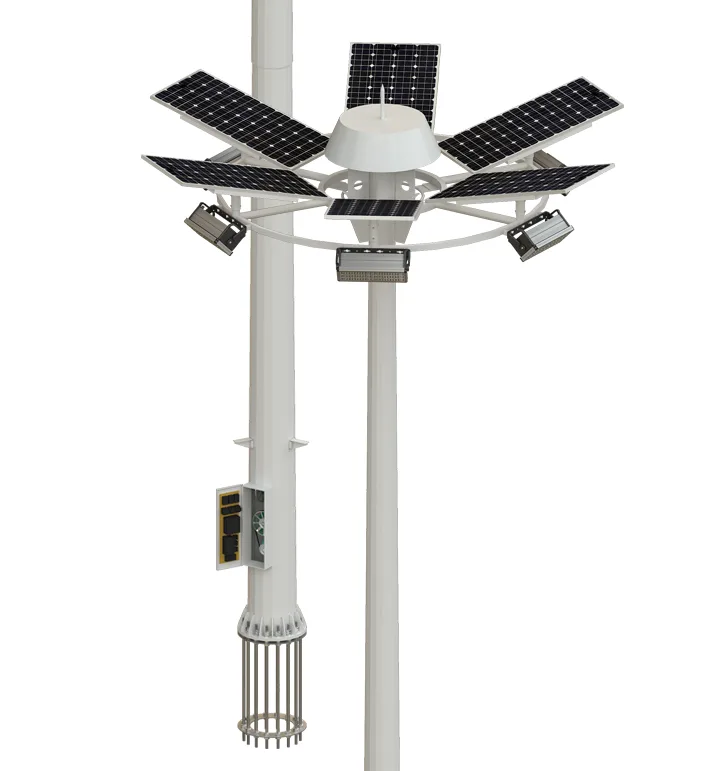

Interior Structure
See what’s inside the Solar Mast Light.
01
02
03
04
05
06

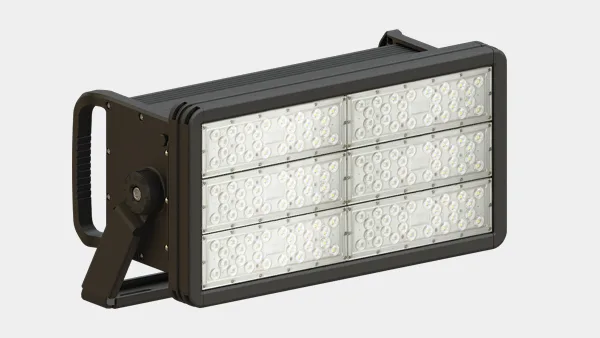

LED Flood Light
Engineered for mast-top applications. Typical system efficacy 140–170 lm/W with precise beam options (15°, 30°, 60×90° asymmetric). CRI ≥70/80, CCT 3000–6000 K. Driver with 0–10 V/PWM dimming, 10 kV SPD, IP66, IK08–IK10. Optional glare shields and bird-spike kit. Designed for continuous dusk-to-dawn duty with low THD and stable output.
Solar Panel
Mono-PERC modules sized for latitude and target autonomy. Module power 200–600 Wp each, tempered glass 3.2 mm, aluminum frame, bypass diodes. Certified to IEC 61215 / IEC 61730. Mechanical load ≥5400 Pa (snow), ≥2400 Pa (wind). Tilt angles optimized per site to reduce soiling and maximize winter yield.
Polygonal Mast Pole
High-strength polygonal (octagonal/12-side) steel pole for 8–30 m mounting heights. Material Q235/Q345 or equivalent, base-plate design per wind zone up to 45 m/s. Hot-dip galvanized to ISO 1461, avg. 70–85 μm, optional polyester powder coat RAL colors. Door hatch with stainless hardware and tamper-proof lock. Cable entry with grommets and earthing studs.
Electrical Control Panel
IP66 cabinet hosting MPPT solar controller (≥98% tracking efficiency), DC protection (MCB/fuse), and surge protection. Optional remote monitoring (RS-485/Modbus, 4G/NB-IoT/LoRa) for alarms, SOC, and dimming profiles. Clean wiring with ferrules and labels for faster maintenance. Conformal-coated PCBs for high-humidity regions.
LiFePO4 Lithium Battery
This product is equipped with a LiFePO4 Lithium Battery Cell (specifically a pouch-type cell, recognized as one of the safest LiFePO4 battery cell options) and a dedicated BMS (Battery Management System) Unit—this BMS Unit delivers multiple protective functions for the LiFePO4 lithium battery, effectively safeguarding its performance and longevity. Together, this setup enables the product to achieve a lifespan of more than 10 years, while also ensuring reliable high-temperature resistance and excellent safety performance even in demanding operating environments.

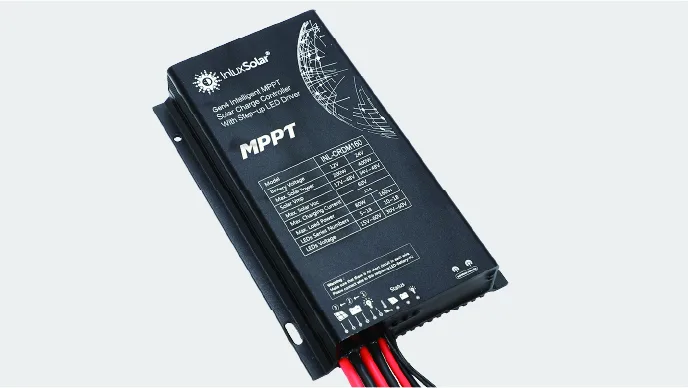

Smart MPPT Solar Controller
This device comes with multi-protection features and advanced MPPT technology, paired with a smart lighting mode that enables 365-day non-stop operation; it also supports intelligent temperature adjustment to adapt to different environmental heat conditions, and has an IP67 waterproof rating for stable performance in wet or dusty environments—plus a lifespan of over 10 years. For enhanced functionality, optional accessories are available: an IoT smart monitoring system (which allows remote tracking and management of the device’s status) and a motion sensor (that triggers brightness adjustments when human activity is detected), making it suitable for a wider range of usage scenarios.
Optional Features & Add-ons
01
Lightning arrester
This is a protective device used in electrical and communication systems to prevent damage from lightning strikes and power surges. It functions by offering a low-resistance path that directs the high-voltage current safely to the ground, thus shielding the system’s components from harm. Typically installed near vulnerable equipment, such as in outdoor lighting systems or electrical substations, it ensures the longevity and reliability of the infrastructure.
02
LED Aviation light
This is a specialized safety device installed on tall structures like masts, towers, or buildings to enhance visibility for aircraft and prevent collisions. It emits a bright, steady, or flashing light, typically in red or white, ensuring it can be seen from a distance in various weather conditions. Using energy-efficient LED technology, it offers long-lasting performance with minimal power consumption, making it ideal for continuous operation. It is often weatherproof and durable, designed to withstand harsh environmental conditions while maintaining reliable functionality.
03
Camera
The system integrates a solar-powered CCTV camera, offering a sustainable and eco-friendly surveillance solution. These cameras operate independently of traditional power sources, ensuring continuous monitoring without external electricity. With waterproof housing and motion detection features, they enhance security for solar panels while reducing energy costs.
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, Inlux Solar’s IOT Smart Monitoring System enables intelligent management of our Solar Mast Light by PC, PAD and Mobile.
