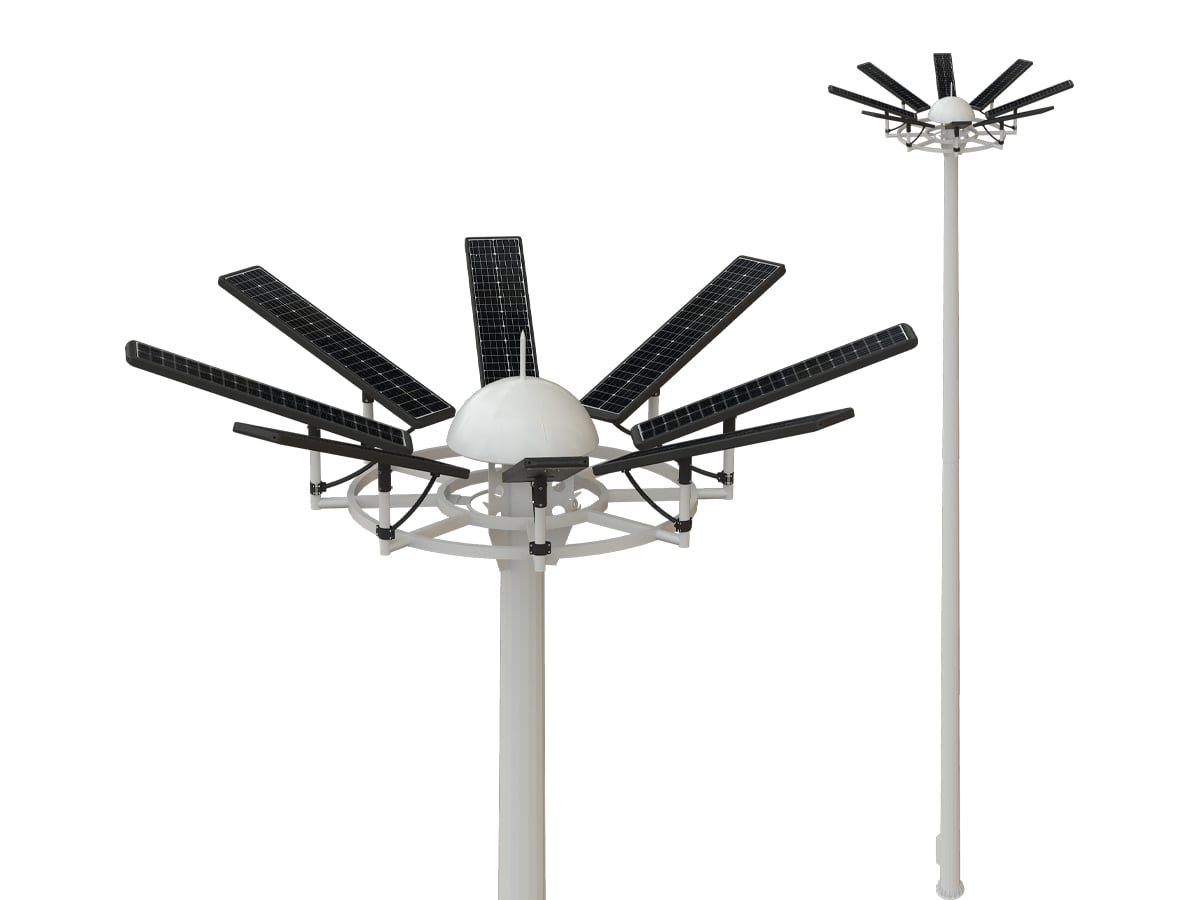

Integrated Solar Mast Light
Integrated Solar Mast Light combines an integrated solar-luminaire arrangement with mast mounting for off-grid public-area projects. Request the configuration drawing, model-specific datasheet and a site lighting review before procurement.
Description
Where This Product Fits (Tender-Ready)
- System type: Solar High Mast Light
- Bundles: Buyer’s Guide (Bundles)
- Templates: Quality & Evidence · Spec Definitions
Most relevant guides:
Features
The Integrated Solar Mast Light uses an integrated solar-luminaire arrangement on a mast. Compare the mounting layout, service access and site lighting target before selecting the configuration. Request the model-specific datasheet and layout review rather than treating a headline power range as total mast output.
Integrated Solar Mast Light Technical Specifications
| All-In-One Solar Light | LED Power per Lamp | 100-160W |
| Solar Panel Capacity | Customziable | |
| Lithium Battery Capacity | Customziable | |
| Lamp Qty | Customziable | |
| Luminous Efficiency | >175lm/w (SMD 5050) | |
| Color Temperature | 3000K – 6500K | |
| Beam Angle | 30°,60°,90°,120° | |
| Housing Material | Die-casting Aluminum | |
| Lens Material | PC + tempered glass | |
| Mast Pole | Pole Height | 15-30 Meters |
| Section Shape | Polygonal | |
| Joint of Mast Poles | Insert Mode, Inner Flange Mode, Face To Face Joint Mode | |
| Material & Finishing | galvanized steel with powder coated (OPTIONAL) | |
| Raising & Lowering System | OPTIONAL | |
| Climbing Ladder | OPTIONAL | |
| Working Time | From dusk to dawn (customizable) | |
| Autonomy Days Backup | 365day non-stop operation (customizable) | |
| Accessories | Foundation Kits, Lighting Rod and Rain Cover | |
| System | Working Temperature | -20 – 65℃ |
| Protection Levels | IP65 – IP66 / IK09 | |
| Wind Resistance | >120km/h | |
| Life Span | All-In-One Solar Light: > 10years | |
| Mast Pole: > 30years | ||
| Warranty | 3 / 5 years | |
Interior Structure
See what’s inside the Integrated Solar Mast Light.
01
02
03
04
05
06

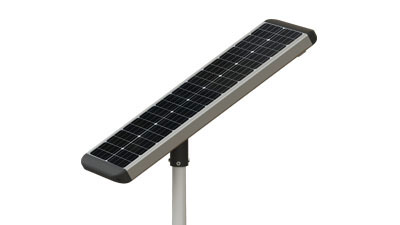

All-in-one Solar Light
This is a compact, self-contained lighting system powered by solar energy, designed for outdoor applications such as streets, pathways, or remote areas. It integrates solar panels, a rechargeable battery, and LED lights into a single unit, eliminating the need for external wiring or power sources. The system automatically charges during the day and illuminates at night, providing reliable, energy-efficient lighting. It is typically weatherproof and durable, making it suitable for various environmental conditions while offering low maintenance and long-term cost savings.

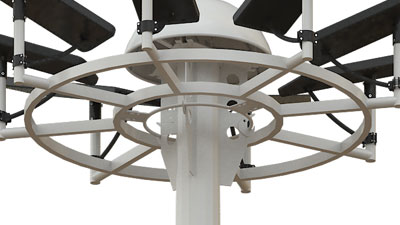

Solar Lamp Carriage
This is a robust mounting structure used to support outdoor lighting fixtures, such as streetlights or floodlights, ensuring they are securely attached to poles or walls. It is generally crafted from corrosion-resistant materials like aluminum or stainless steel to endure harsh weather conditions while maintaining stability. The design facilitates easy installation and allows for adjusting the angle of the light to optimize coverage, also simplifying maintenance and replacement tasks. It is widely used in urban lighting, parking lots, and industrial areas for effective illumination support.
Polygonal Mast Pole
This is a tall, multi-sided vertical structure used to support outdoor lighting fixtures, flags, or signage, commonly found in urban streets, highways, or large public spaces. It is typically constructed from sturdy materials like galvanized steel or aluminum to resist corrosion and endure harsh weather conditions, ensuring long-term durability. The polygonal shape provides enhanced structural strength while offering a sleek, modern appearance. Available in various heights, it can be customized to meet specific lighting or visibility needs, with a base designed for secure ground installation.
Electrical Control Panel
This is a central device for managing outdoor lighting systems, handling power distribution, switching operations, and brightness adjustments. It incorporates circuit protection components like breakers and fuses to prevent overloads or short circuits, ensuring safe operation. The enclosure is typically waterproof and dustproof, designed for outdoor use and capable of withstanding rain and wind. With organized internal wiring, it supports remote monitoring and smart control features, making it ideal for lighting management in urban areas, industrial parks, and large public spaces.
Solar Power Unit
This is a mechanical device used on tall structures like masts or poles to adjust the height of lighting fixtures or other equipment. It allows the fixtures to be lowered to ground level for maintenance or replacement, enhancing safety by minimizing the need for workers to climb. Typically operated manually or with a motorized system, it ensures smooth and controlled movement. Made from durable materials, it withstands outdoor conditions and is commonly used in applications like highway lighting, stadiums, and large public areas for efficient upkeep.
Foundation Kits
This is a set of ground base components designed for installing outdoor lighting equipment. It typically includes anchors, bolts, concrete pads, and other hardware to ensure that light poles or masts are securely fixed to the ground, making it suitable for a variety of terrains and soil conditions.
Optional Features & Add-ons
01
Lightning arrester
This is a protective device used in electrical and communication systems to prevent damage from lightning strikes and power surges. It functions by offering a low-resistance path that directs the high-voltage current safely to the ground, thus shielding the system’s components from harm. Typically installed near vulnerable equipment, such as in outdoor lighting systems or electrical substations, it ensures the longevity and reliability of the infrastructure.
02
LED Aviation light
This is a specialized safety device installed on tall structures like masts, towers, or buildings to enhance visibility for aircraft and prevent collisions. It emits a bright, steady, or flashing light, typically in red or white, ensuring it can be seen from a distance in various weather conditions. Using energy-efficient LED technology, it offers long-lasting performance with minimal power consumption, making it ideal for continuous operation. It is often weatherproof and durable, designed to withstand harsh environmental conditions while maintaining reliable functionality.
03
Camera
The system integrates a solar-powered CCTV camera, offering a sustainable and eco-friendly surveillance solution. These cameras operate independently of traditional power sources, ensuring continuous monitoring without external electricity. With waterproof housing and motion detection features, they enhance security for solar panels while reducing energy costs.
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, Inlux Solar’s IOT Smart Monitoring System enables intelligent management of our Integrated Solar Mast Light by PC, PAD and Mobile.
