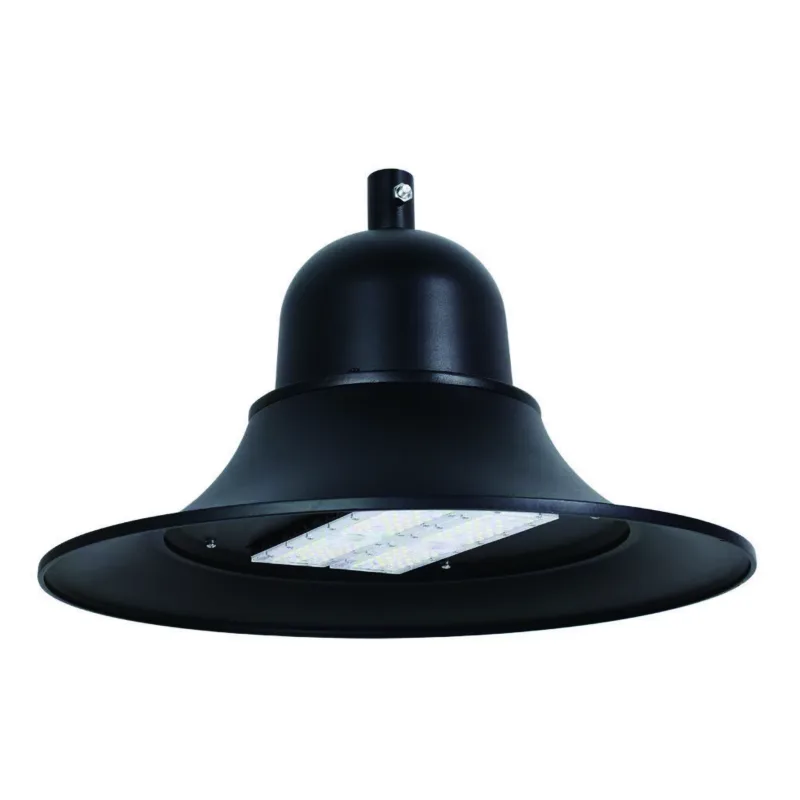

INL-DSL01 Decorative Street Light
INL-DSL01 Decorative Street Light pairs a classical post-top form with a detachable LED module for easy maintenance. The fixture supports up to 80W with SMD 3030/5050 packages, 3000–6500K CCT, and >110 / up to ~160 lm/W efficacy, in a die-cast aluminum body with PC + tempered-glass optics. Rated IP65/IK09 with an operating range of −40°C to 50°C and a 40 mm spigot, it’s designed for parks, business districts, and residential streets.
Description
Features
The INL-DSL01 Decorative Street Light brings decorative styling and serviceability to public-area lighting. Its post-top form elevates streetscapes, while a detachable LED module simplifies upkeep. Configure up to 80 watts with SMD 3030/5050 LEDs and 3000–6500 K color options to match ambience and visibility. A die-cast aluminum housing, PC + tempered-glass optics, IP65/IK09 protection, and a −40°C to 50°C operating window support year-round reliability. The 40 mm spigot fits decorative lamp posts across parks, business districts, and residential communities for cohesive, project-grade results.
INL-DSL01 Decorative Street Light Technical Specifications
| Max. Power | 80W |
| Power Supply | MEANWELL / PHILIPS / MOSO / INVENTRONICS |
| Working Voltage | 90 – 305V AC, 50/60Hz |
| CCT | 3000K – 6500K |
| CRI | >70 (>80,>90 optional) |
| LED Chip | SMD 3030 / SMD 5050 |
| Luminous Efficiency | >110lm/w (SMD 3030) / >160lm/w (SMD 3030) |
| Housing Material | Die-casting Aluminum |
| Lens Material | PC + Tempered glass |
| Product Dimension (mm) | Φ560*450 |
| Lamp Holder Diameter (mm) | 40 |
| IP/IK Rate | IP65 / IK09 |
| Working Temperature | -40°C~50°C, 20%~90% RH |
| Life Span | >50,000 Hours |

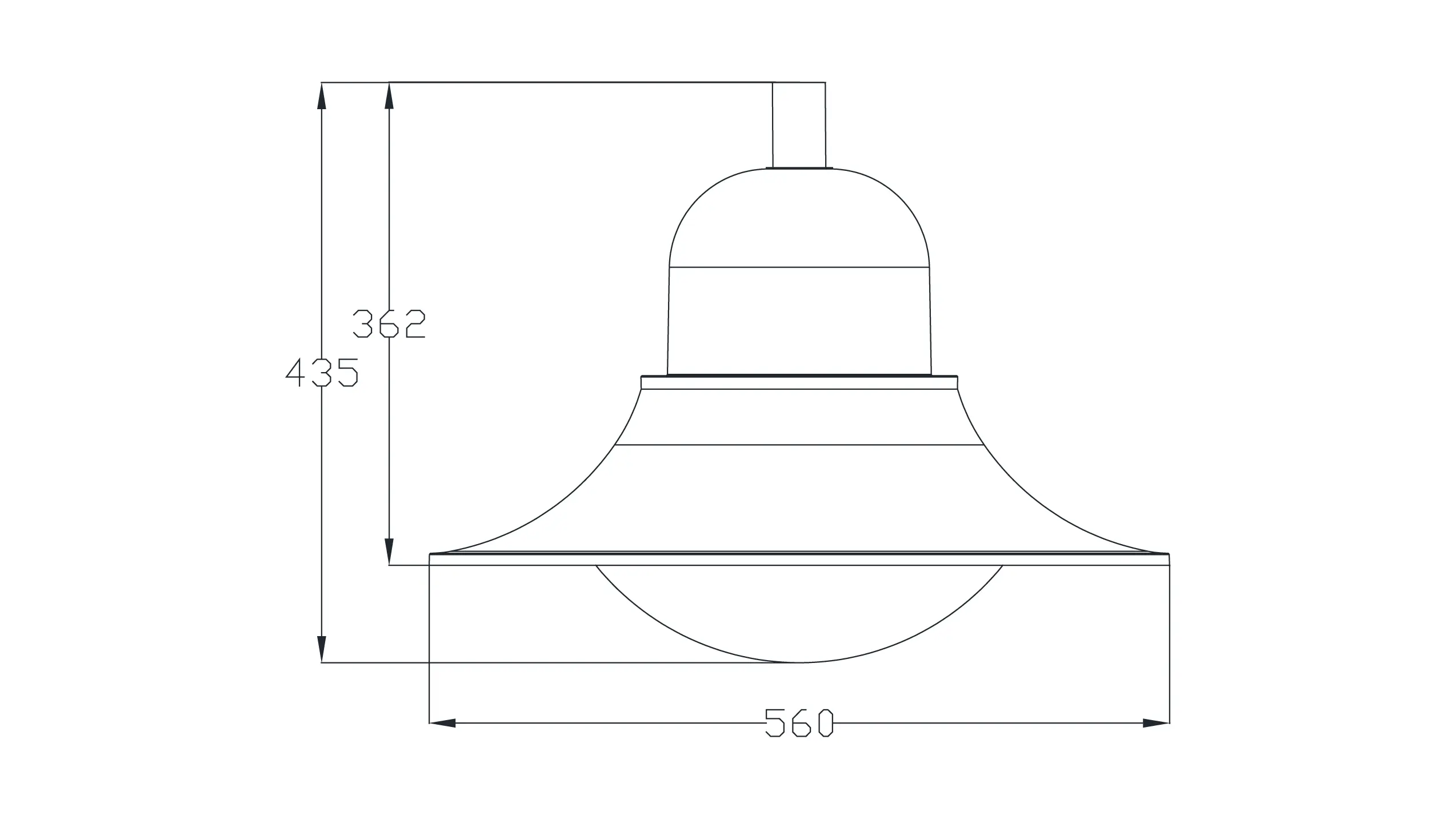

Dimensions
Specify the DSL01 Post-Top Assembly

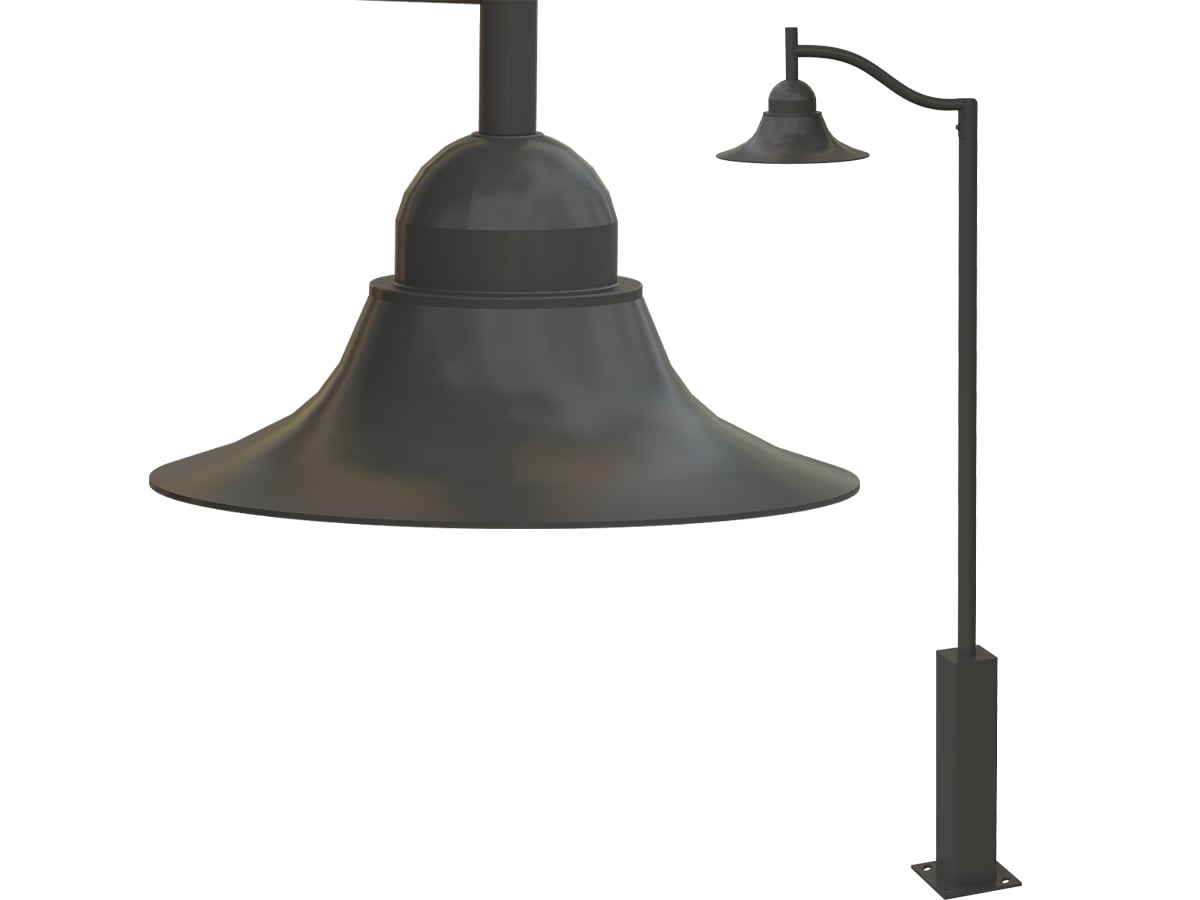

The bell-shaped head gives DSL01 a distinct streetscape profile. For a coordinated order, send the existing pole-top detail or proposed pole drawing, layout and finish reference. Identify the lighting target and control requirement, then ask for the selected luminaire’s mounting drawing, photometric file and service-parts scope. Confirm whether the quote covers the fitting alone or the pole assembly as well.
Compare decorative LED models or send the project brief for a quotation.
