All-In-Two Solar Street Light JAGUAR Series
JAGUAR is a high-performance all-in-two solar street light designed for highways, municipal roads, intersections, parking lots, industrial zones, and other outdoor projects that require stronger output, wider lighting coverage, and more flexible solar panel positioning.
The separated PV panel design improves charging flexibility, while the integrated lamp head combines the LED module, LiFePO4 battery, and intelligent controller into a compact, project-friendly structure.
Applications：
Certified Quality for Global Projects
Description
Quick Specs & Key Advantages
JAGUAR is built for projects that need stronger roadway performance, better charging flexibility, and higher system reliability than compact integrated solutions typically provide. Compare its application fit with the other all-in-two solar street light series before choosing a configuration.
Power Range
30W–150W configurations for highways, municipal roads, intersections, parking lots, industrial areas, and other higher-demand outdoor projects.
High-Efficiency Output
Designed for stronger illumination performance and wider lighting coverage in roadway and area-lighting applications.
LiFePO4 Battery System
Supports dependable outdoor operation and helps reduce lifecycle maintenance risk in long-term public and commercial projects.
Separated PV Panel Design
Allows more flexible solar panel orientation and tilt adjustment, helping improve charging performance under more demanding installation conditions.
Roadway-Focused Configuration
Suitable for wider roads, higher mounting applications, and projects where output level, distribution, and coverage matter more than nominal wattage alone.
Project-Ready Engineering Support
IES/LDT files, technical datasheets, and project-based recommendations are available for qualified municipal, EPC, and commercial projects.
All-In-Two Solar Street Light JAGUAR Technical Specifications
| Model Number | JAGUAR INL-AIT5 | |
| LED Lamp | LED Power | 30-150W |
| Luminous Efficiency | >180 lm/W | |
| Luminous Flux | 5,400-27,000 lumens | |
| Color Temperature | 3,000K-6,000K | |
| Lighting Distribution | Type II, Type III | |
| Material | Die-cast Aluminum | |
| Lamp Adaptor | 60mm diameter | |
| Product/Package Size | 710×325×145mm / 770×360×200mm | |
| Lithium Battery | Battery Type | Pouch-Type Lithium Iron Phosphate (LiFePO4) |
| Rated Capacity | Maximum 1920Wh | |
| BMS Unit | Provides multiple protections for battery | |
| Battery Location | Built inside the lamp fixture | |
| Solar Controller | Solar Controller Capacity | 10A-30A |
| Solar Panel | Silicon Type | Mono-crystalline |
| Power | 100W-720W | |
| Horizontal Angle | 360° adjustable | |
| Light Pole | Suggested Height | 6-12 meters |
| Section Shape | Conical / Octagonal | |
| Material & Finishing | Galvanized steel / aluminum with powder coating | |
| System | Working Temperature | -20°C-65°C |
| Protection Levels | IP66 / IK09 | |
| Wind Resistance | >120 km/h | |
| Life Span | LED Lamp: >20 years / Battery: >10 years / Solar Controller: >20 years / Solar Panel: >25 years / Light Pole: >30 years | |
| Warranty | 3 / 5 years |
Interior Structure
JAGUAR uses a separated solar panel and an integrated lamp head that combines the LED module, LiFePO4 battery, and intelligent controller. This structure improves solar charging flexibility while keeping the main fixture compact and project-friendly.
01
02
03
04
05
06
IP67 Extreme Bright LED Modules
Featuring advanced 5050 LED chips with an impressive efficiency of up to 220lm/W, this lighting solution delivers extreme brightness and reliable performance. Designed with high-temperature resistance and low thermal resistance, it ensures a longer LED lifespan. The thick aluminum heat sink, combined with a fast heat dissipation module, guarantees optimal performance and durability, while the easy-maintenance design simplifies upkeep.

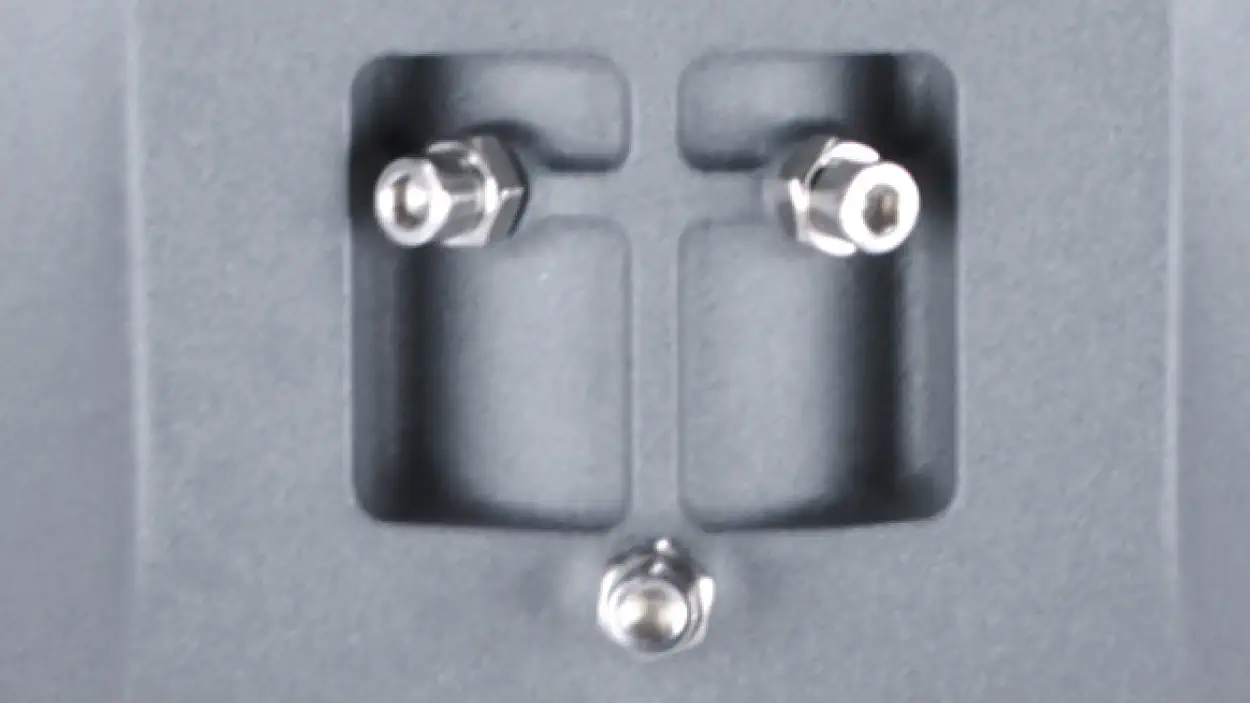

Triangle Strong Designed Screws
The fixture is equipped with triangular high-strength screws that provide a secure and reliable installation. These specially designed screws prevent the fixture from rotating once mounted, ensuring it remains fixed in place. The triangular shape enhances the grip, offering better torque resistance and stability, even in environments with vibrations or movement. This feature guarantees the long-term safety and proper alignment of the fixture, preventing any accidental shifts or misalignment.
Smart Solar Controller
The Smart Solar Controller offers high efficiency with a smart power-saving mode that optimizes energy use. It operates with constant current and an IP67 rating, ensuring reliable performance even in harsh environmental conditions. This advanced design significantly reduces the light failure rate, providing consistent brightness over time. Additionally, the controller includes multiple protection features that effectively safeguard the battery, enhancing its longevity and ensuring the system’s overall durability and safety.

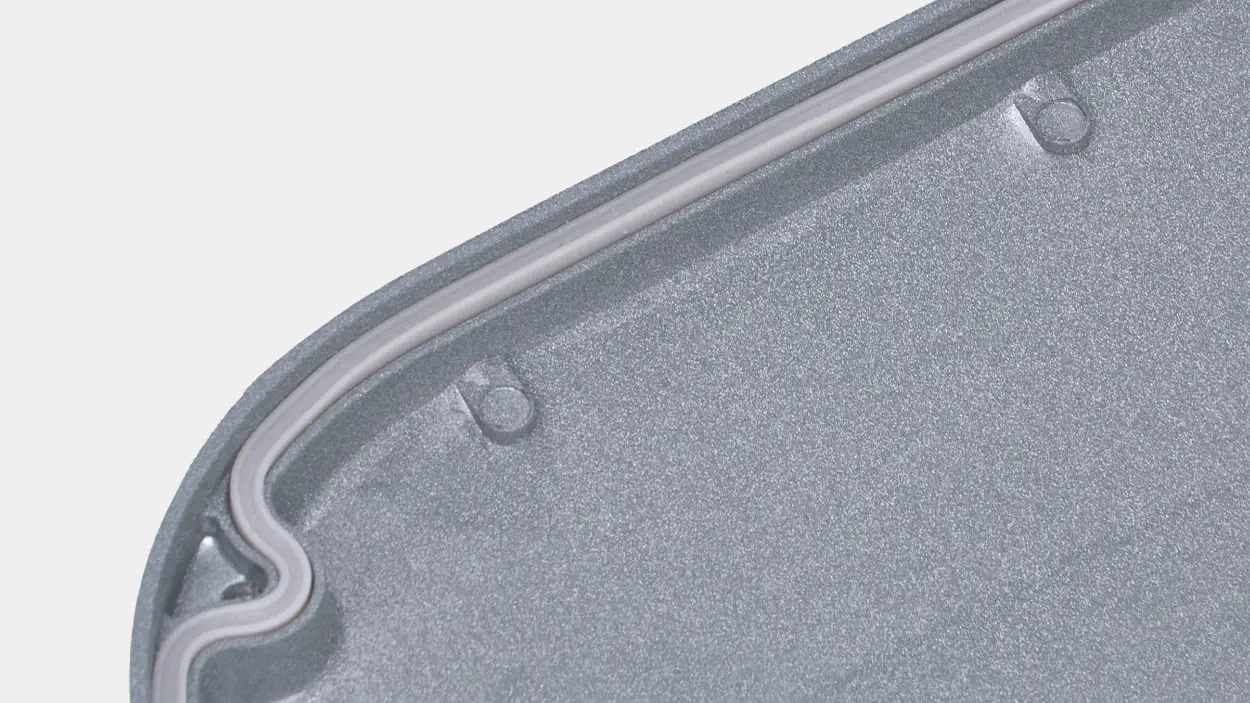

Waterproof Ring
Ensures IP66-rated protection for the entire fixture, effectively preventing water and dust ingress while maintaining reliable outdoor performance.
LiFePO4 Lithium Battery
The fixture is equipped with a LiFePO4 lithium battery, known for its impressive lifespan of over 10 years. This battery offers excellent high-temperature resistance and exceptional safety performance, ensuring reliable power delivery and enhanced durability. With its long service life, it reduces the need for frequent replacements and provides peace of mind, making it an ideal choice for both residential and commercial applications.
Enhanced Strong Lamp Holder
The enhanced strong lamp holder is designed for maximum durability and performance, ensuring resistance to strong impacts and mechanical stress, providing robust reliability in challenging environments.
Optional Features & Add-ons
JAGUAR can be configured with optional accessories according to project security, control, and monitoring requirements.
01
Motion Sensor
The motion sensor automatically reduces brightness by 30% when inactivity is detected, saving energy. Upon detection of presence, brightness returns to 100%, ensuring optimal visibility while minimizing distractions. This feature strikes a balance between power efficiency and user comfort.
02
Adjustable Solar Panel Bracket
The adjustable bracket optimizes panel positioning for maximum sunlight capture. It allows users to adjust the tilt angle for optimal solar energy collection, regardless of geographic location or seasonal changes, ensuring high performance even in harsh weather conditions.
03
Anti-theft Components
Anti-theft screws and spikes are designed to secure solar panels against theft. The unique tamper-resistant design makes removal nearly impossible without specialized tools, while anti-climbing spikes prevent unauthorized access, ensuring durability and security in exposed environments.
04
Anti-bird Spike
Anti-bird spikes offer a humane and effective solution to prevent birds from perching on solar panels, rooftops, and fences. Made from durable stainless steel or plastic, these sharp, angled prongs discourage birds without harming them. Easy to install, these spikes provide a low-maintenance way to protect solar panels from bird-related damage, ensuring optimal performance.
05
Camera
The system integrates a solar-powered CCTV camera, offering a sustainable and eco-friendly surveillance solution. These cameras operate independently of traditional power sources, ensuring continuous monitoring without external electricity. With waterproof housing and motion detection features, they enhance security for solar panels while reducing energy costs.
Recommended Applications
JAGUAR is commonly selected for projects that need stronger output, wider coverage, and more flexible solar panel positioning than compact integrated systems typically provide.
Highway Lighting
Suitable for selected highway and trunk-road projects where roadway coverage, panel orientation flexibility, and project-based photometric support are important.
Road & Street Lighting
Used for municipal roads, intersections, and public street lighting projects that require stronger output and dependable off-grid performance.
Parking Lot Lighting
Applicable to parking and open-area lighting projects where larger illuminated areas and stable overnight operation are priorities.
Refugee Camp Lighting
Well suited for off-grid humanitarian and fast-deployment projects where reliable autonomy and flexible system layout are critical.
Fast Installation
JAGUAR is designed for practical field deployment with a straightforward installation workflow. The all-in-two structure gives installers more flexibility in solar panel positioning while keeping the main fixture compact and efficient to mount.
1. JAGUAR (AIT5) Foundation Installation
Excavate the pit and pour smooth concrete. Position the JAGUAR (AIT5) foundation kit in the center, level all four corners, and cover the top bolts with tape.
2. Fix Solar Panel on the solar panel mounting bracket
Mount the solar panel onto the bracket and install it on top of the pole, making sure the solar panel’s direction is correct.
3. Connect the Solar Panel to the Lamp
Properly plug the solar panel connector into the lamp, ensuring a secure connection. The system will power on and start operating.

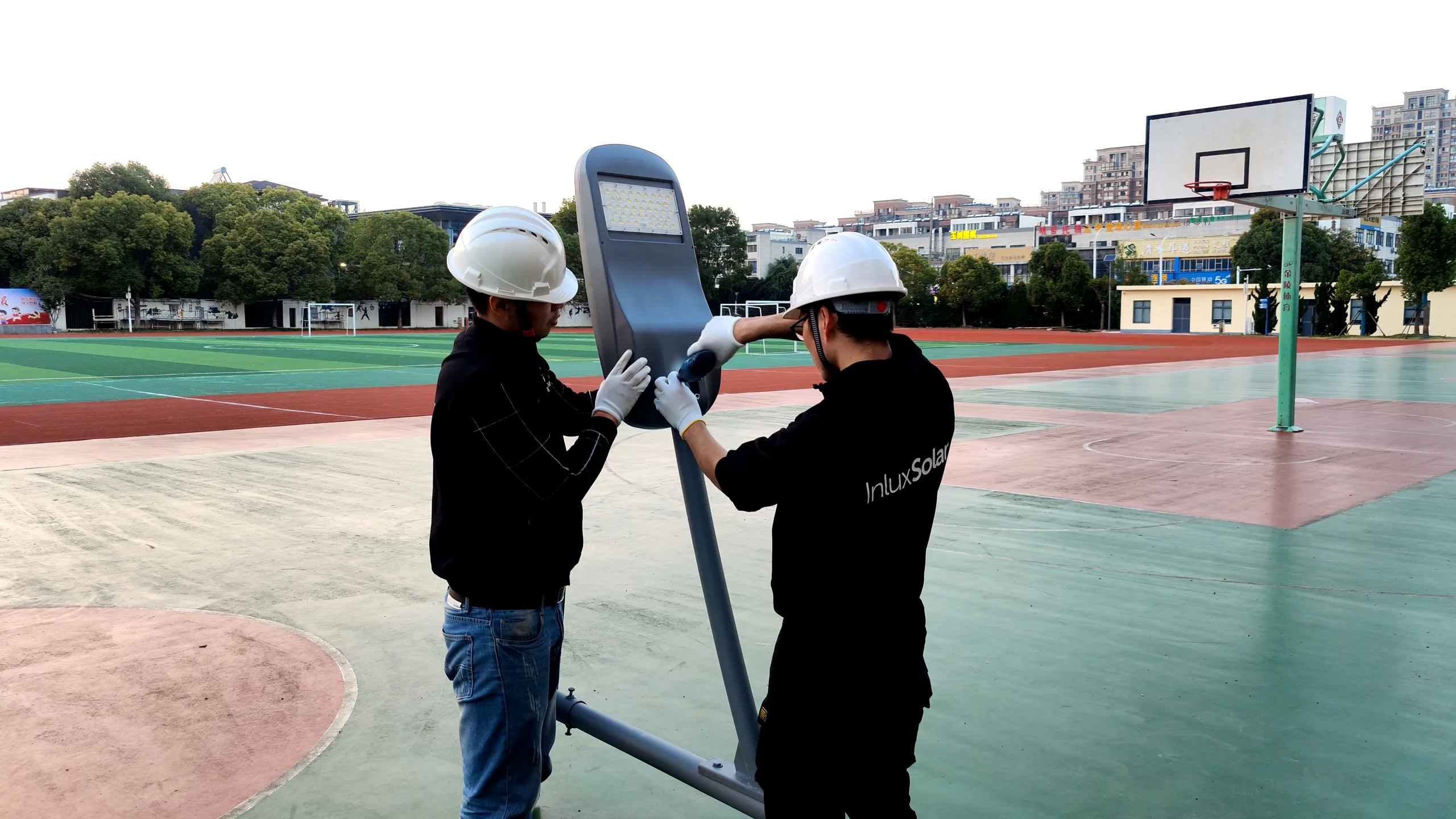

4. Install and Secure the Pole
Mount the lamp on the pole arm, remove the tape, and secure the pole to the foundation kit using two nuts and washers on each bolt.
5. Automatic Operation
The solar street lights will automatically operate according to the pre-set program, with no manual operation required.
Engineering Support for EPC & Municipal Projects
Inlux Solar supports project buyers with technical files and engineering communication that help move from model evaluation to tender review and installation planning.
Technical Datasheets
Configuration-based datasheets are available to support internal review, contractor comparison, and project documentation.
IES/LDT Photometric Files
Photometric files can be provided for lighting simulation, spacing checks, and roadway distribution review.
DIALux-Based Layout Support
Road width, pole height, spacing, and target lux can be used to support project-based layout recommendations.
RFQ-Ready Documentation
Support is available for tender and project review, including technical files, specification communication, and engineering coordination during product selection.
Application-Based Recommendation
JAGUAR can be matched to highways, municipal roads, intersections, parking lots, industrial areas, and other outdoor projects based on actual requirements.
Request IES/LDT + Layout Proposal | Get Fast RFQ Support
Engineering Proof for Tenders
For municipal and commercial projects, product claims should be supported by verifiable engineering materials. Inlux Solar can support project evaluation with technical files and configuration-based documentation for review.
Photometric Support
IES/LDT files can be provided to support lighting simulation, spacing checks, and distribution review during project evaluation.
Project-Based Layout Inputs
Road width, pole height, spacing, and target lux can be used to recommend suitable JAGUAR configurations for your application.
Environmental & Protection References
Relevant technical references such as battery type, controller type, IP rating, and impact protection can be supplied according to the selected configuration.
Configuration-Specific Documentation
Datasheets and technical communication can be prepared to help contractors, consultants, and project teams review the right product option before RFQ submission.
Proven in Real Projects
The JAGUAR all-in-two solar street light is identified in the published project records below. These references let a project buyer check the model family, delivery scale and application against a real installation instead of relying on a general portfolio photograph.
| Project reference | Published JAGUAR identification | Recorded supply | Original case |
|---|---|---|---|

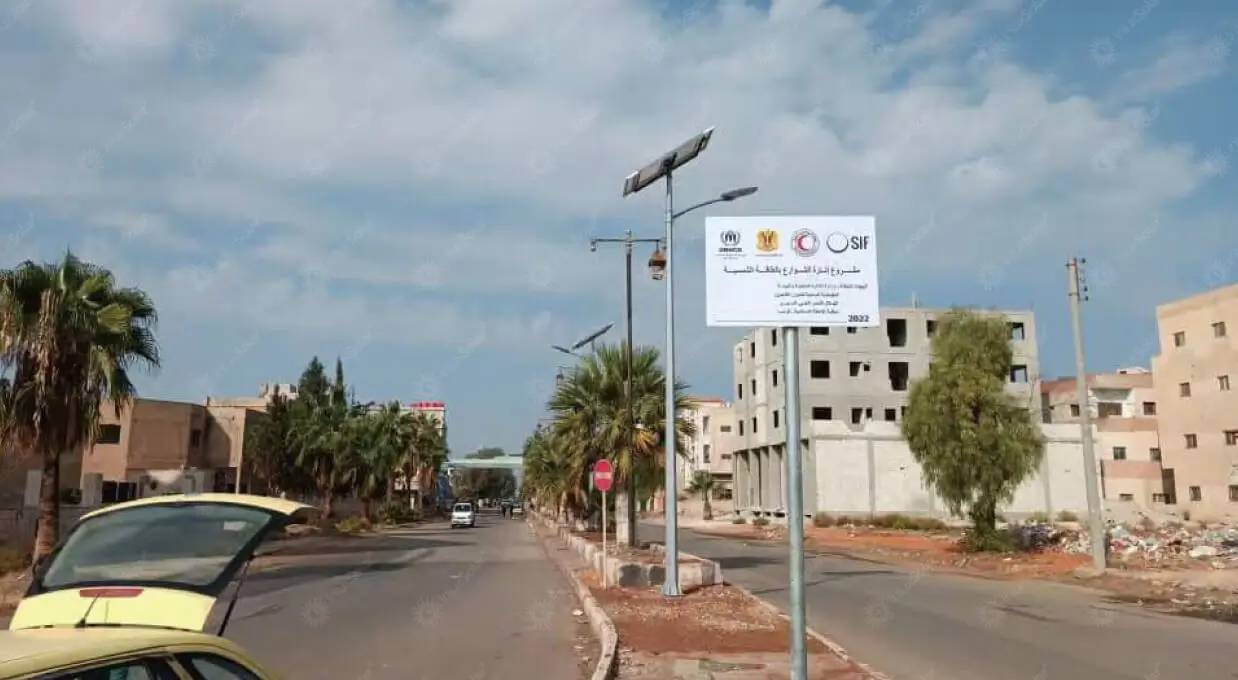

| Six cities in Syria — UNHCR | JAGUAR All-in-Two for roads and streets | 10,735 sets | Syria project record and gallery |

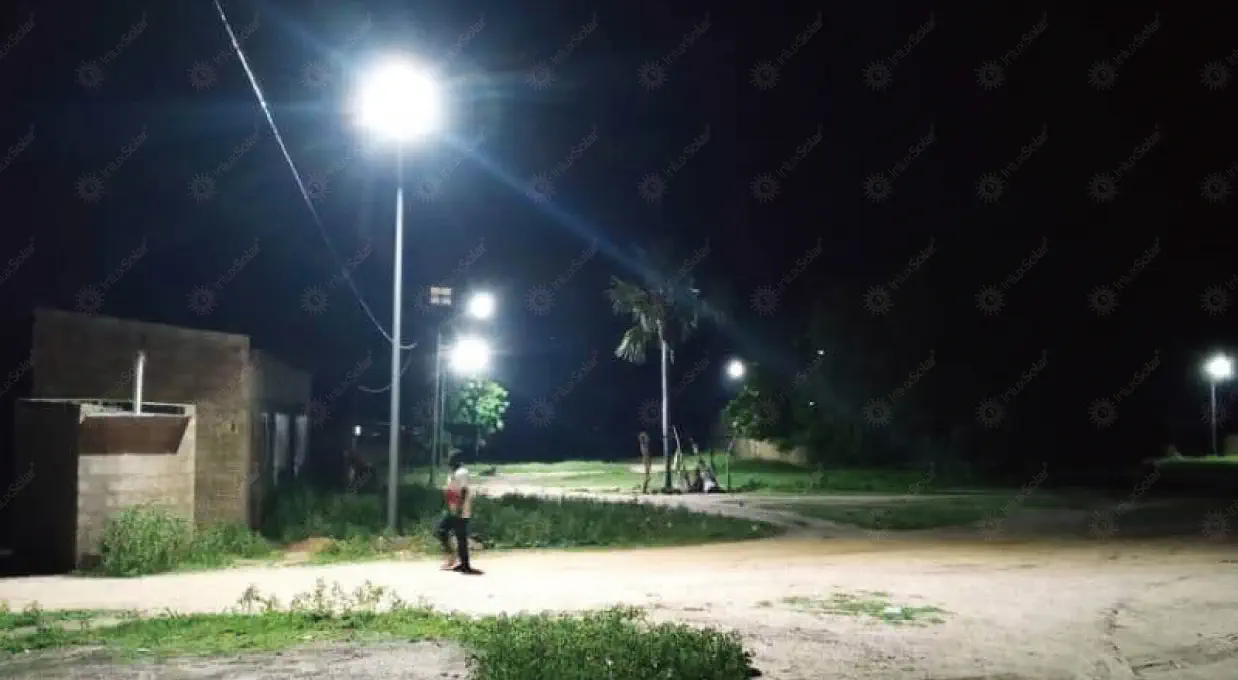

| Sahel region, Burkina Faso — World Bank project | JAGUAR with IoT (All-in-Two) | 1,095 sets | Burkina Faso project record and gallery |
| Bamako, Mali — municipal roads | JAGUAR / INL-AIT5 in the published project | 3,162 solar street lights | Bamako project record and video |
Use Syria as a humanitarian delivery reference, Burkina Faso as a documented IoT project reference, and Bamako as a municipal-road reference. The recorded quantities establish project scope; they do not certify the output, autonomy, monitoring options or service life of a new order. Match those requirements to the dated JAGUAR configuration in your quotation. The existing carousel below remains a broader project portfolio; check the named model in each record before treating another photograph as JAGUAR evidence.
Frequently Asked Questions
What is the JAGUAR all-in-two solar street light used for?
JAGUAR is designed for roadway and area-lighting projects that require stronger output, wider coverage, and more flexible solar panel positioning than compact integrated systems typically provide.
When should I choose JAGUAR instead of an all-in-one model?
JAGUAR is usually a better choice when the project needs larger power configurations, wider road coverage, stronger charging flexibility, or better adaptation to more demanding installation conditions.
Is JAGUAR suitable for highway and municipal road lighting?
Yes. JAGUAR is suitable for selected highway, trunk-road, municipal road, and intersection projects when the configuration, spacing, pole height, and lighting target are matched to project requirements.
Can Inlux Solar provide IES files and DIALux support for JAGUAR?
Yes. Inlux Solar can support qualified projects with IES/LDT files, technical datasheets, and layout-related engineering assistance.
Can JAGUAR work in hot or rainy regions?
Yes, when the system is sized correctly for local solar conditions, operating hours, and autonomy targets. Project location and seasonal weather conditions should be reviewed before final configuration.
What information should I send for a fast recommendation?
Please send your project location, road width, pole height, spacing, target lux or brightness requirement, operating hours, and quantity. This helps the engineering team recommend the right JAGUAR configuration.
Need Help Choosing the Right JAGUAR Configuration?
Send us your road width, pole height, spacing, target lux, project location, operating hours, and quantity. Our team can recommend the most suitable JAGUAR setup and support your project with datasheets, IES/LDT files, and RFQ-ready documentation.
