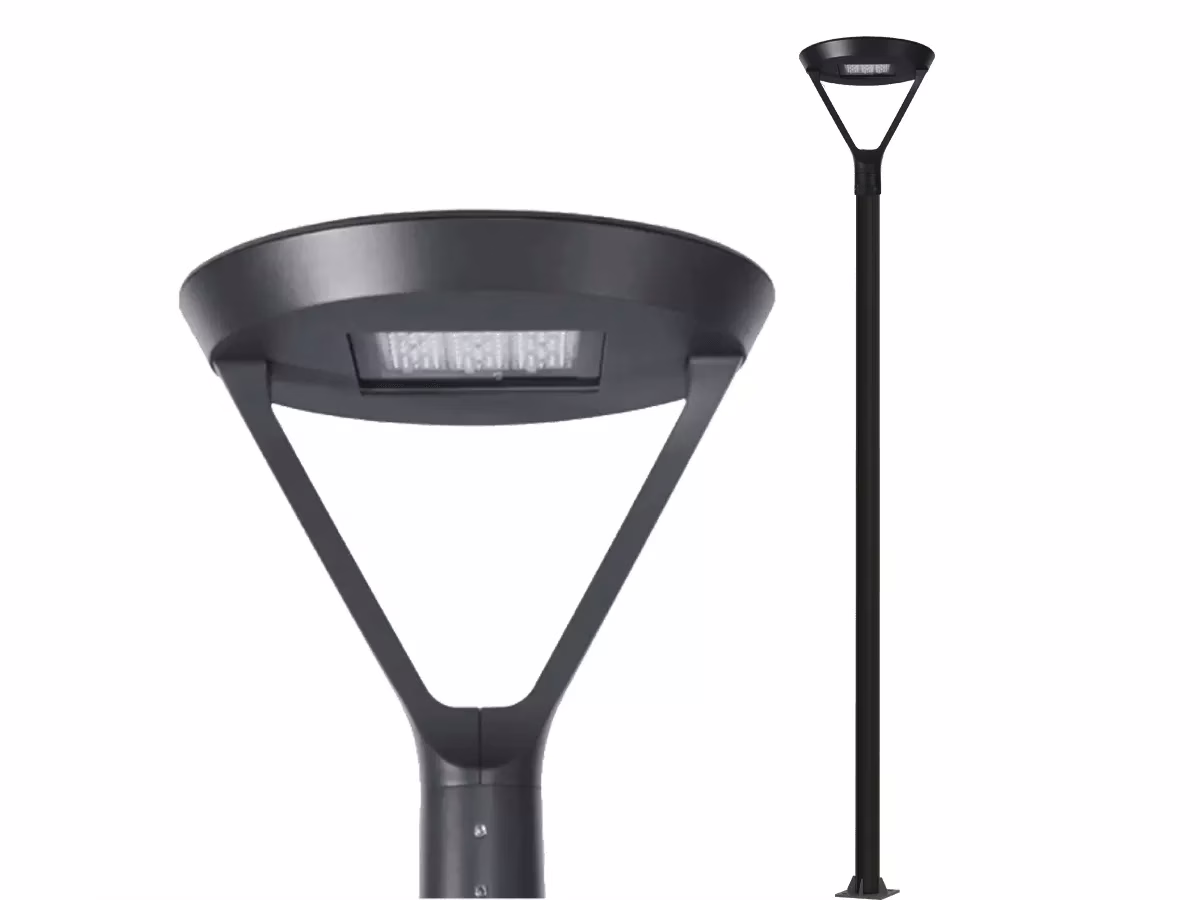

INL-DSL03 Decorative Street Light
The INL-DSL03 Decorative Street Light elevates public spaces with a refined post-top design and a detachable LED module for quick service. Specify up to 80W using SMD 3030/5050 LEDs, choose 3000–6500K CCT, and mount on a 60 mm spigot. A die-cast aluminum body and PC + tempered-glass optics achieve IP65/IK08 durability and −40°C to 50°C operation—suited to parks, boulevards, and residential streets.
Description
Features
The INL-DSL03 Decorative Street Light blends decorative styling with project-ready performance. Its detachable light module speeds maintenance, while SMD 3030/5050 packages and 3000–6500K color choices adapt to different visual requirements. Built with die-cast aluminum and PC + tempered-glass optics, the luminaire is rated IP65/IK08 and operates from −40°C to 50°C. With up to 80 watts of output and a 60 mm spigot, DSL03 integrates easily with standard decorative poles across parks, business districts, and community streetscapes.

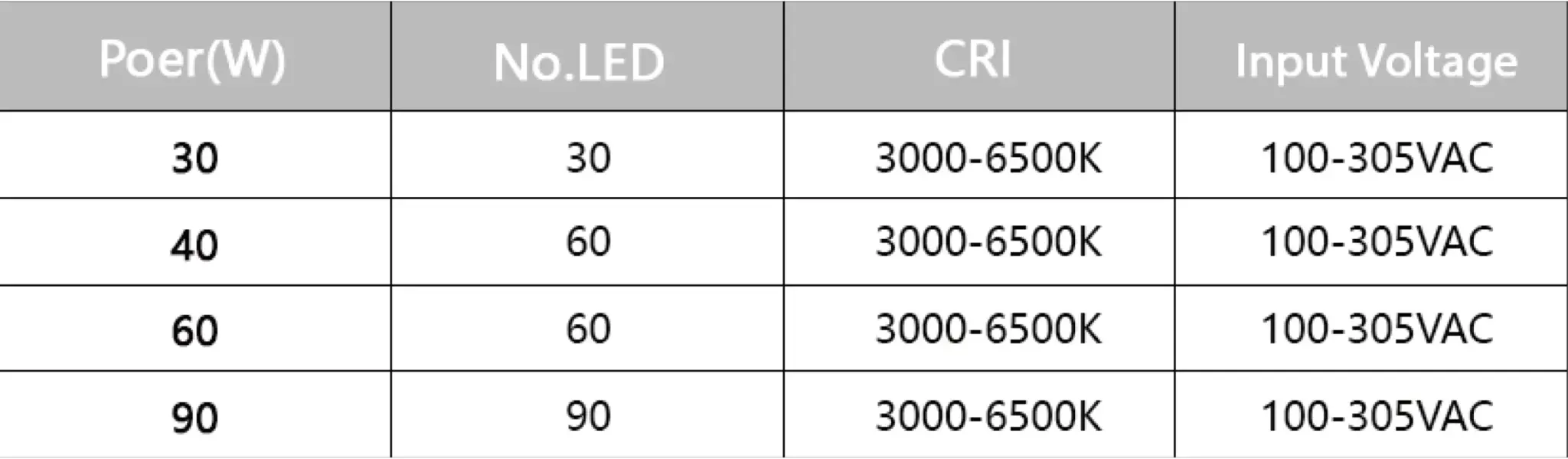

INL-DSL03 Decorative Street Light Technical Specifications
| Max. Power | 80W |
| Power Supply | MEANWELL / PHILIPS / MOSO / INVENTRONICS |
| Working Voltage | 90 – 305V AC, 50/60Hz |
| CCT | 3000K – 6500K |
| CRI | >70 (>80,>90 optional) |
| LED Chip | SMD 3030 / SMD 5050 |
| Luminous Efficiency | >110lm/w (SMD 3030) / >160lm/w (SMD 5050) |
| Housing Material | Die-casting Aluminum |
| Lens Material | PC + Tempered glass |
| Product Dimension (mm) | Φ481*379 |
| Lamp Holder Diameter (mm) | 60 |
| IP/IK Rate | IP65 / IK08 |
| Working Temperature | -40°C~50°C, 20%~90% RH |
| Life Span | >50,000 Hours |

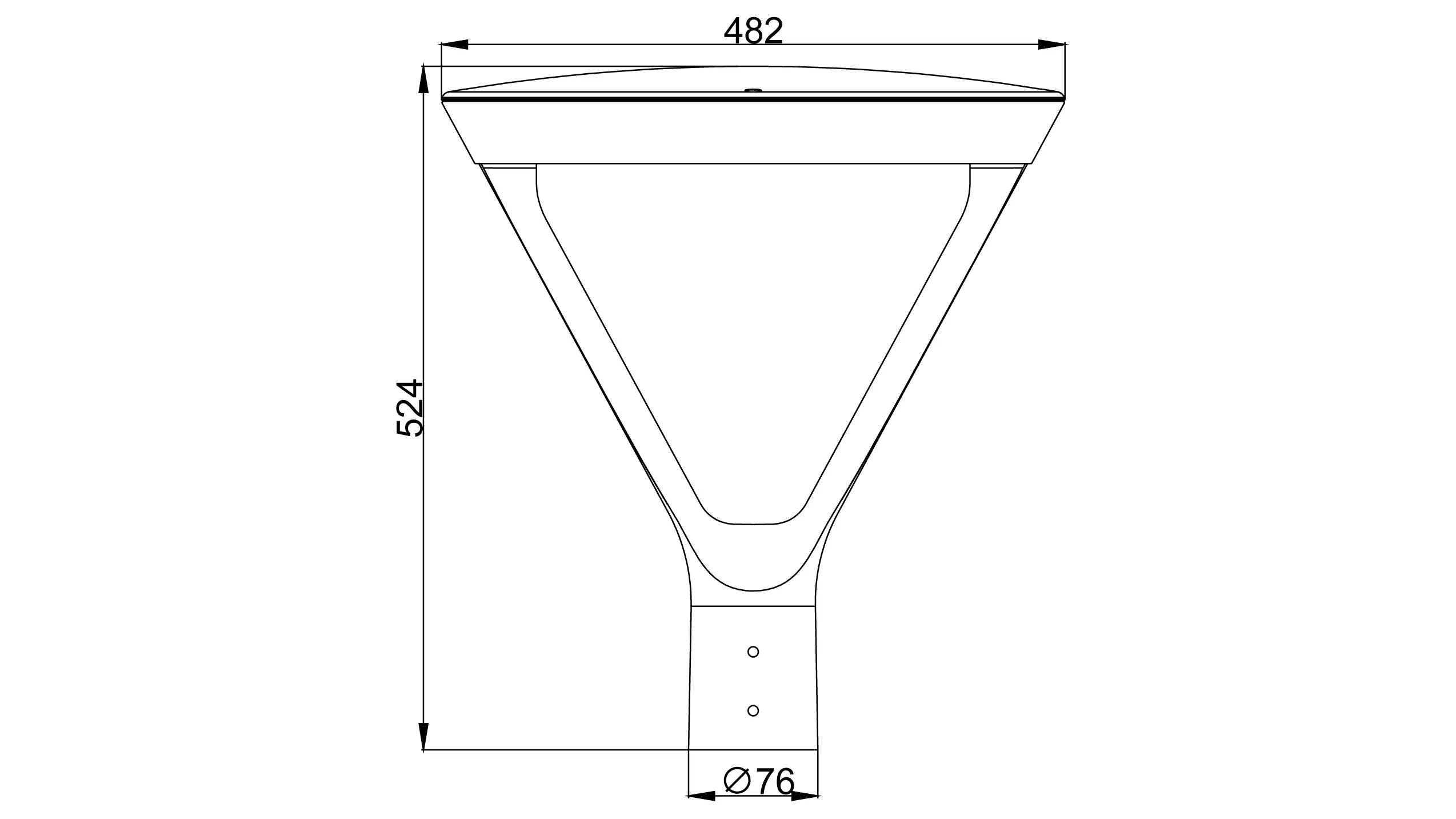

Dimensions
Match DSL03 to the Actual Path Layout
Use the path width, pole positions and nearby façades or planting as the starting point for the DSL03 proposal. Identify the preferred finish and light appearance, then request the selected optic’s photometric file and a mounting-interface drawing. Agree the control and maintenance requirements before ordering, including which adapters and spare components are supplied.
Compare the decorative luminaire options or send the project brief for a quotation.
