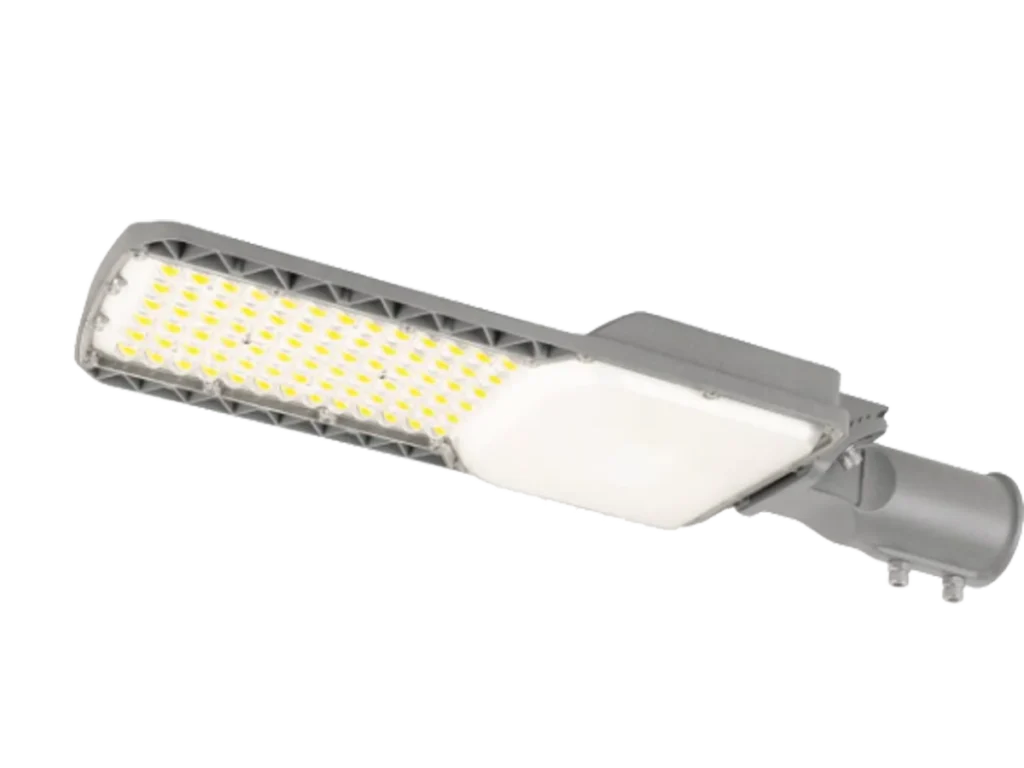

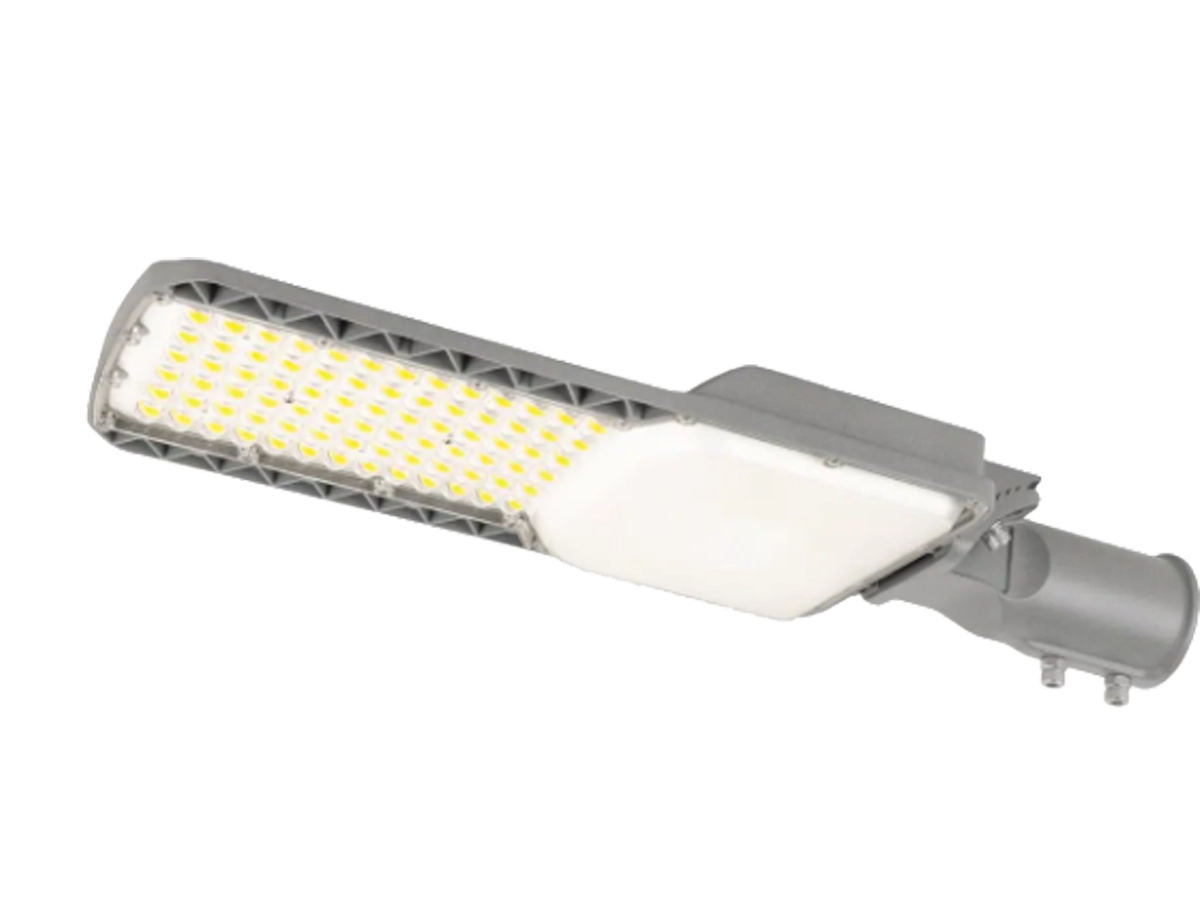

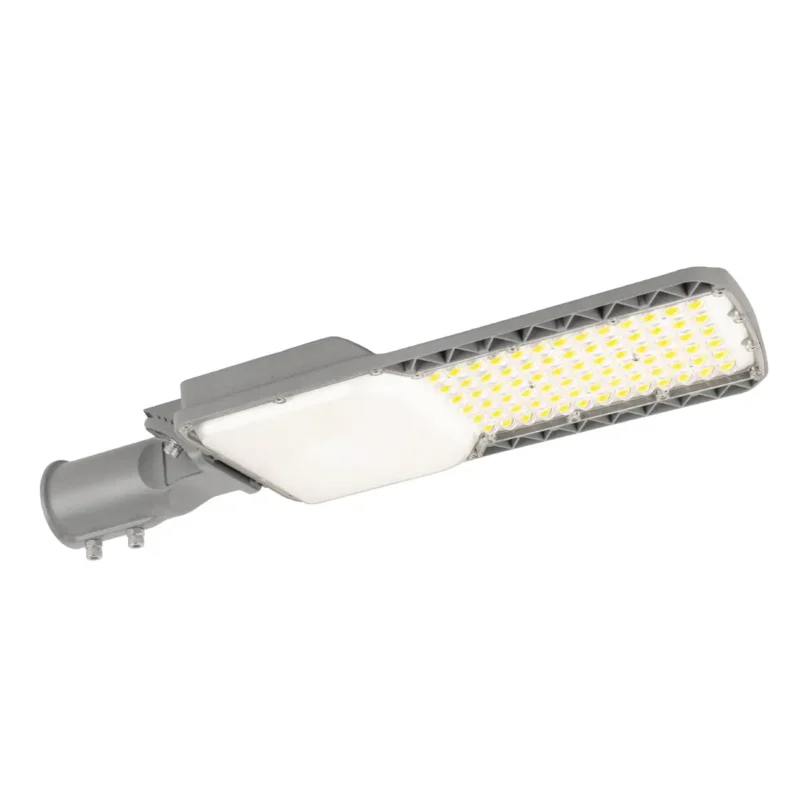

INL-LED23 LED Street Light
INL-LED23 LED Street Light is a project-ready roadway fixture with 50–240W power classes and a 70×140° beam to cover highways, city streets, intersections, and parking lots. It pairs SMD 5050 LEDs with branded drivers (MEAN WELL/PHILIPS/MOSO/INVENTRONICS) for up to 190 lm/W in a die-cast aluminum body rated IP66/IK09 and -40–50°C—delivering dependable performance and value for large rollouts.
Description
Features
The INL-LED23 LED Street Light is engineered for everyday road projects that demand reliable output and clear value. A single 70×140° optical distribution simplifies design while providing uniform coverage for highways, urban streets, intersections, and parking lots. High-efficiency SMD 5050 LEDs and MEAN WELL / PHILIPS / MOSO / INVENTRONICS drivers deliver up to 190 lm/W, housed in a die-cast aluminum body with IP66/IK09 protection and an -40–50°C operating range. Power options from 50 to 240 watts let you right-size each site without complicating maintenance or spare parts.
How This INL-LED23 LED Street Light Benefits Your Project
LED Package and Luminaire Performance
INL-LED23 uses LED packages within a complete roadway luminaire. Compare the quoted luminaire output, electrical input and model-specific photometric report; LED-package efficacy alone does not establish the performance of the finished fixture.
Thermal Management
The structure is optimized with advanced Finite Element Analysis (FEA) technology, ensuring high performance and durability. It improves heat dissipation, extends lifespan, and maintains cost-efficiency. Using FEA, the design minimizes waste and enhances reliability for long-term applications in challenging environments.
Patented Lighting Distribution provides higher uniformity and 30% larger coverage area
Specially designed light distribution and bigger beam angle enlarge illumination areas and improve lighting uniformity, suitable for rural roads, streets, highways, and residential areas.
Integrated gland design
The integrated gland design seamlessly combines functionality and durability, ensuring a secure, weatherproof seal for electrical components. This innovative approach simplifies installation, reduces maintenance, and enhances reliability, making it ideal for outdoor lighting systems exposed to harsh conditions, while maintaining a sleek, compact appearance.
Two installation methods
The adjustable lamp holder enables easy horizontal and vertical mounting for various installation scenarios.
Operable Under Harsh Environment
INL-LED23 is an AC-powered roadway luminaire. Review the housing, driver and connection arrangement against the installation environment, with the relevant ingress, impact and thermal test documentation for the quoted version. Keep the complete luminaire’s ambient operating rating separate from LED-package limits; solar-controller and lithium-battery features do not establish the environmental performance of this AC fixture.
INL-LED23 Technical Specifications
| Model | LED23-50W | LED23-80W | LED23-120W | LED23-180W | LED23-240W |
| Power | 50W | 80W | 120W | 180W | 240W |
| Power Supply | MEANWELL / PHILIPS / MOSO / INVENTRONICS | ||||
| Working Voltage | 90 – 305V AC, 50/60Hz | ||||
| Beam Angle | 70*140° | ||||
| CCT | 3000K – 6500K | ||||
| CRI | >70 (>80,>90 optional) | ||||
| LED Chip | SMD 5050 | ||||
| Luminous Efficiency | >190lm/w | ||||
| Luminous Flux | 5700lm | 15200lm | 22800lm | 34200lm | 45600lm |
| Housing Material | Die-casting Aluminum | ||||
| Lens Material | PC | ||||
| Product Dimension (mm) | 392*160*67 | 485*188*67 | 565*220*67 | 660*240*67 | 760*276*67 |
| IP/IK Rate | IP66 / IK09 | ||||
| Working Temperature | -40°C~50°C, 20%~90% RH | ||||
| Life Span | >50,000 Hours | ||||
Lighting Distribution
Use the IES/LDT file for the quoted INL-LED23 version in a road or site layout. Provide road width, pole positions, mounting height, spacing and the required lighting class; include pedestrian areas and boundary constraints where relevant. Evaluate maintained lighting levels, uniformity and glare for the selected optic and output package. Keep the file identifier and fixture configuration matched in the submittal.
60×120 deg
70×140 deg
80×150 deg
Optional Features & Add-ons
01

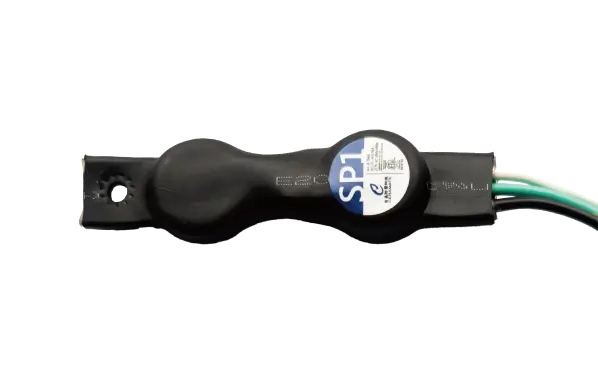

SPD（Surge Protective Device）
An SPD (Surge Protective Device) safeguards electronic equipment from voltage spikes caused by lightning or power surges. It uses components like varistors or gas discharge tubes to divert excess energy to the ground, maintaining safe voltage levels. Essential for protecting sensitive devices in homes, offices, and industrial settings, it enhances durability and prevents costly damage, ensuring reliable operation in diverse environments.
02
Photocell
A photocell, also known as a photoresistor or light-dependent resistor (LDR), is a sensor that detects light intensity and converts it into an electrical signal. It operates by changing resistance based on light exposure, making it ideal for automatic lighting control in outdoor settings like streetlights. Simple, cost-effective, and reliable, it adjusts illumination based on ambient light levels, enhancing energy efficiency and convenience.
03
Power Off Protection Connector
A Power Off Protection Connector ensures electrical safety by automatically disconnecting power during faults or outages, preventing damage to devices. It protects circuits from overvoltage, short circuits, or sudden shutdowns, enhancing system reliability. Ideal for solar street lights, it maintains functionality in unstable power conditions, extending equipment lifespan.
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, Inlux Solar’s IOT Smart Monitoring System enables intelligent management of ourINL-LED23 LED Street Light by PC, PAD and Mobile.
Dimensions
LED23-50W
LED23-80W
LED23-120W
LED23-180W
LED23-240W
Installation Methods
Our LED Street Light offer multiple installation options. Whether on roads, walls, fences, or other locations, we provide stable and reliable mounting solutions tailored to your needs.

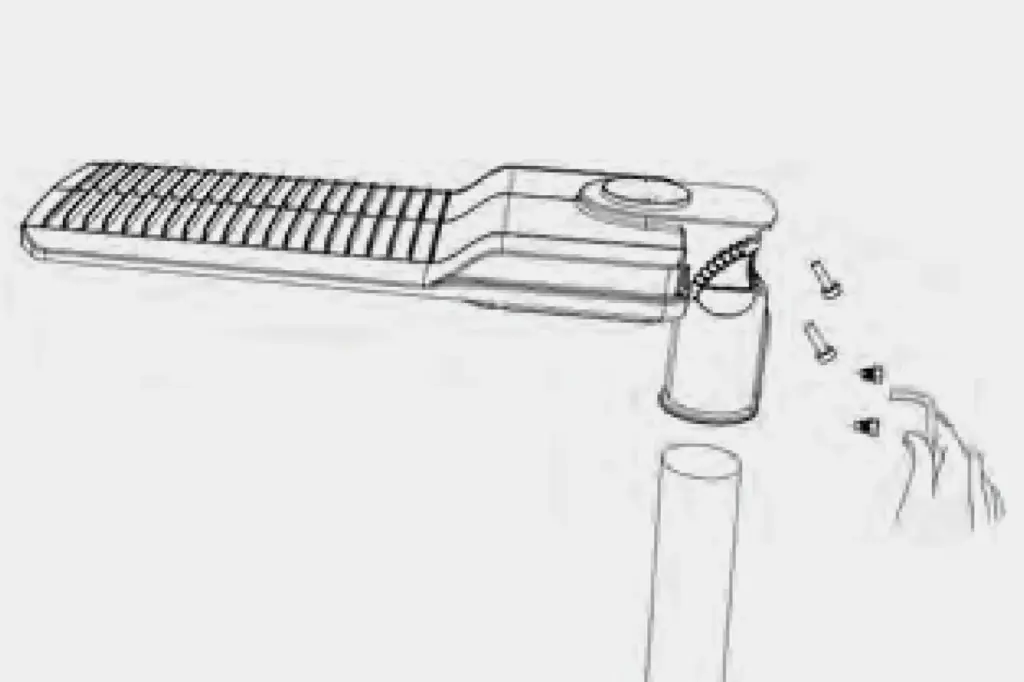

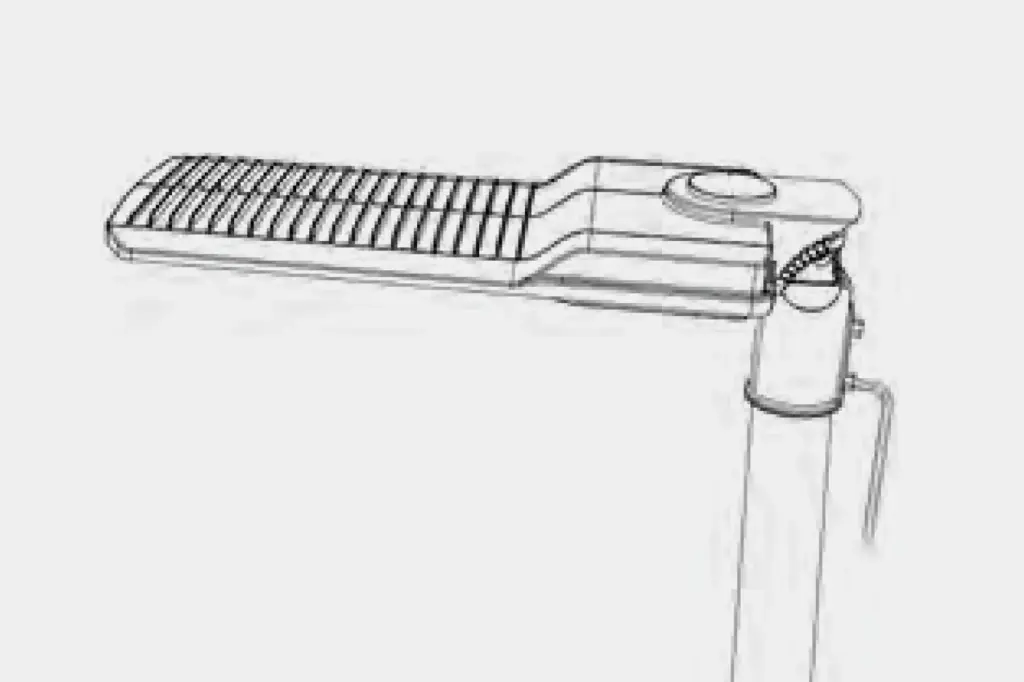

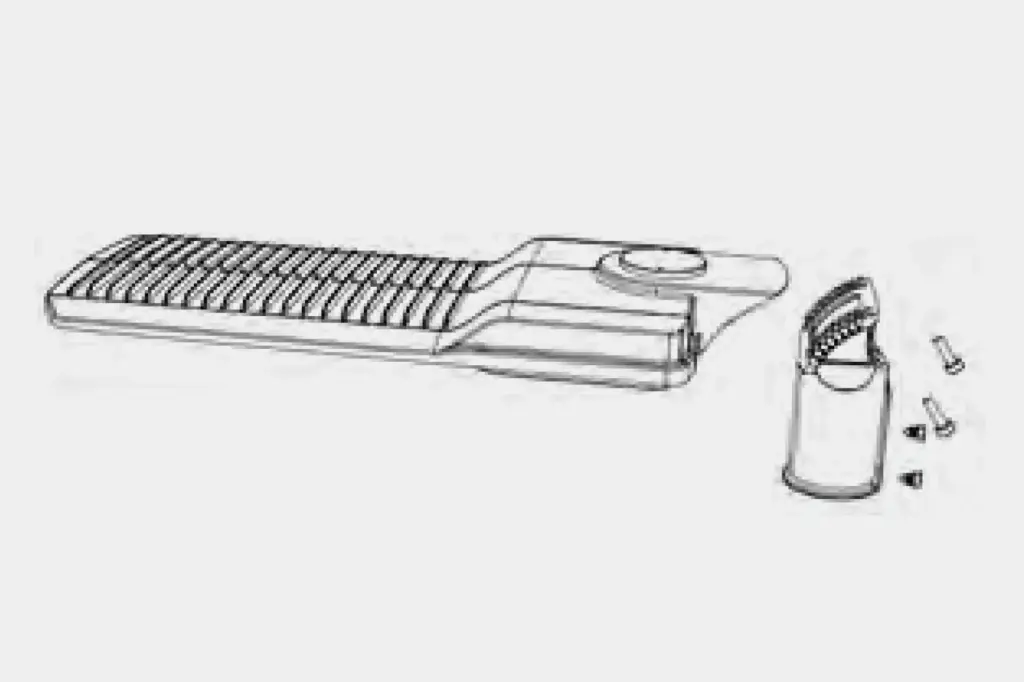

Vertical Installation
1. Secure the lamp housing with the fixture head
2.Secure the fixture with the pole
3.Tighten the fixing screws

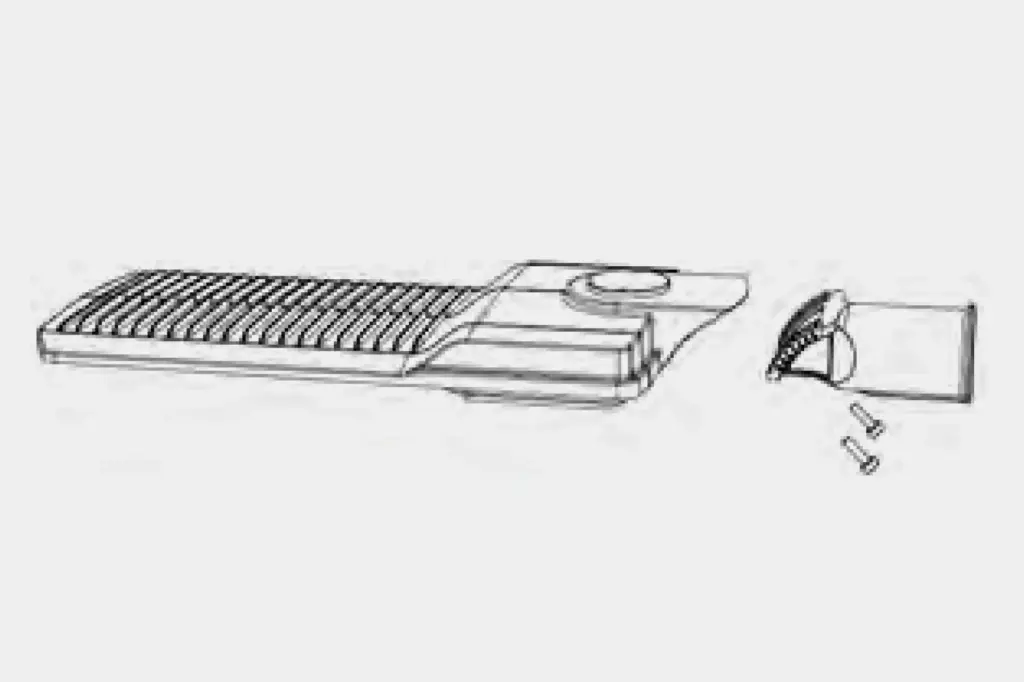

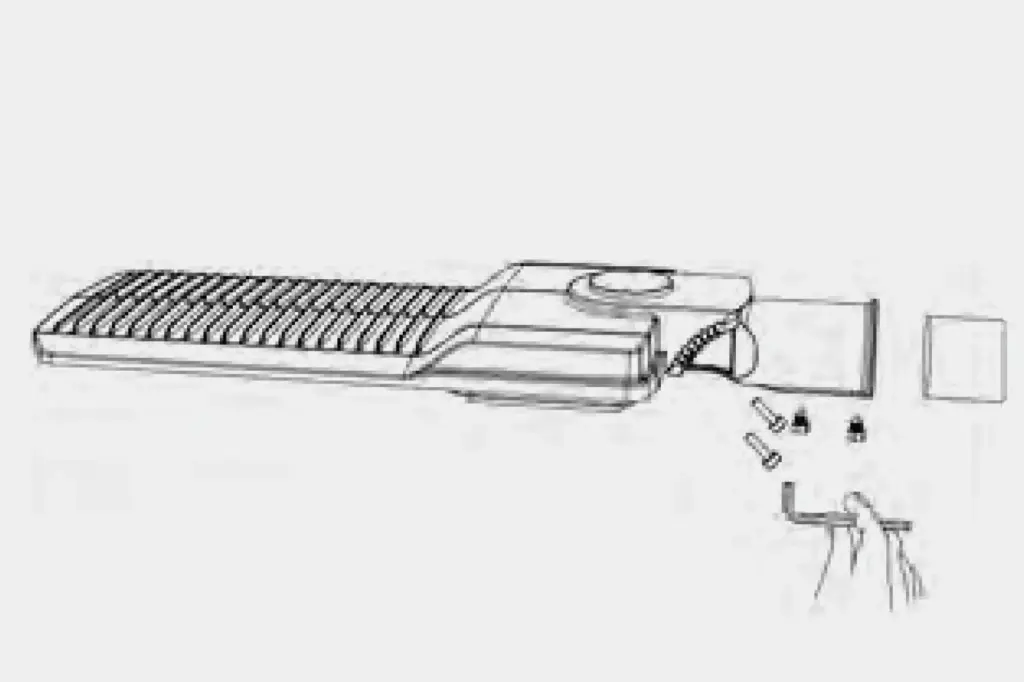

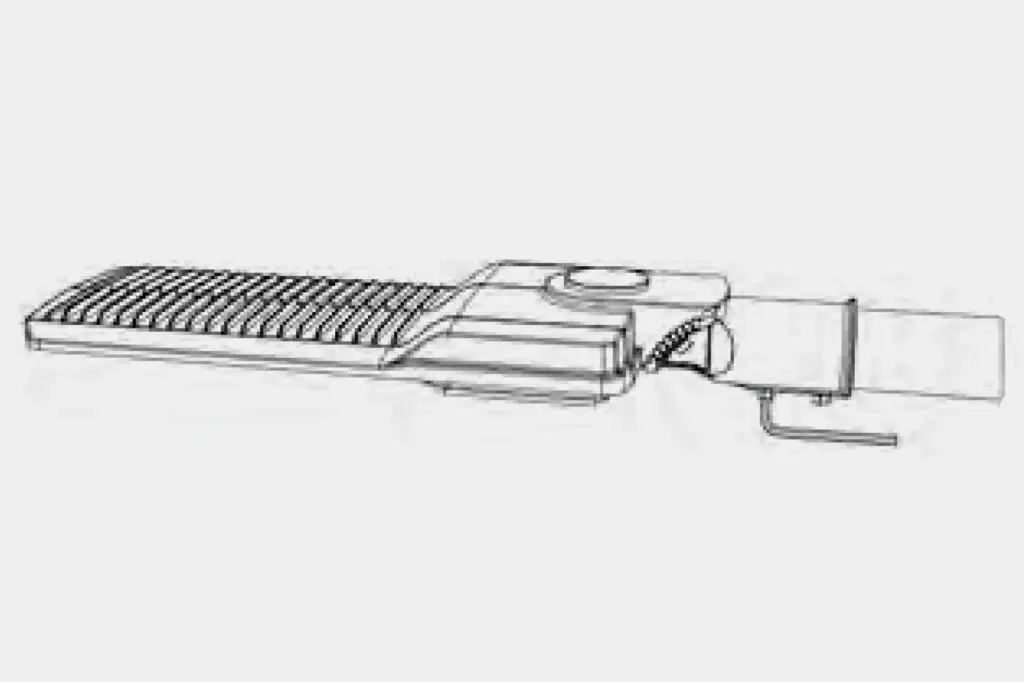

Horizontal Installation
1. Secure the lamp housing with the fixture head
2. Secure the fixture with the pole support arm
3. Tighten the fixing screws
Plan Your INL-LED23 Street Lighting Order
For a new road or wider-area layout, start with the pole positions and required lighting performance rather than selecting the highest wattage. Send the road geometry, mounting height, supply voltage and operating schedule. Request the photometric file for the exact luminaire and optic being quoted, together with mounting details and a parts list for the proposed configuration.
