All-In-Two Solar Street Light BISON Series
The All-In-Two Solar Street Light BISON (INL-AIT7) Series is a compact All-In-Two solar street light designed for small to medium LED output needs. It features ultra-bright 5050 LEDs, a long-life LiFePO4 battery, intelligent solar controller, and high-efficiency panel—all housed in a robust, bison-inspired round fixture. Optional motion sensor, CCTV, and smart monitoring available.
Applications：
Certified Quality for Global Projects
Description
Features
The All-In-Two Solar Street Light BISON series is an All-In-Two solar street light for small-medium LED output applications. The system integrates first-class ultra-bright 5050 LED lighting modules, a 10-year durable LiFePO4 lithium battery, an intelligent solar controller, and a high-efficiency solar panel.
The lamp fixture is powerful, looking like an “American bison.” It has a robust appearance and is a collection of advanced technology and technological aesthetics. Additionally, the system can be equipped with optional accessories, including a motion sensor, CCTV camera, and intelligent monitoring system.
Independent Solar Panel Design Provides Higher Solar Power
Independent solar panel design makes high-power panels possible, and 15% higher charging efficiency can be realized by adjusting direction of solar panel. Therefore, high-power LED lamps are able to operate at high brightness all night.
Extreme Bright 5050 LED Provides 40% Higher Brightness
BISON Series adopts first-class Extreme Bright 5050 LEDs with 260lm/w efficiency, providing 40% higher brightness than normal solar lights which use 3030 LEDs and 2835 LEDs by its much bigger LED chip size.
15% higher uniformity and 30% larger coverage area
Specially designed light distribution and bigger beam angle enlarge illumination areas and improve lighting uniformity, suitable for rural roads, streets, highways, and residential areas.
10+ Years Lifespan Lithium Battery
By adopting unique pouch-type lithium battery cells, the LiFePO4 battery has been specially engineered to deliver a 4000-cycle life under deep DOD with excellent stable performance. Along with multi-protection applied by the BMS unit and solar controller contributes to maintaining the battery’s perfect operation under various extreme climates.
Operable Under Harsh Environment
IP66 for the whole BISON system, which makes it adaptable for rainy areas. High-temperature resistant LiFePO4 battery with low current design significantly reduces internal heat when the system works. Among other things, the smart temperature adjustment function of the solar controller enables the system to operate normally under temperatures as high as 65°C.
Plug & Play Fast Installation
LED lighting source, solar controller, and battery are all integrated inside the lamp fixture, once we plug the cable of the lamp fixture inside the solar panel cable, the system will start immediately
For a BISON project RFQ, include the site location, number of lighting points, installation height, nightly operating schedule, target lighting level, and any budget or tender constraints. Use the all-in-two solar street light series page to compare BISON with the other models before requesting a configuration.
Technical Specifications
| Model Number | BISON INL-AIT7 | |
| LED Lamp | LED Power | 10-60W |
| Luminous Efficiency | >175 lm/W | |
| Luminous Flux | 1,750–10,500 lumens | |
| Color Temperature | 3000K–6000K | |
| Lighting Distribution | Type II, Type III | |
| Material | Die-cast Aluminum | |
| Lamp Adaptor | 60mm diameter | |
| Product/Package Size | 525×195×80mm / 645×325×120mm | |
| Lithium Battery | Battery Type | Pouch-Type Lithium Iron Phosphate (LiFePO4) |
| Rated Capacity | Maximum 410Wh | |
| BMS Unit | Provides multiple protections for battery | |
| Battery Location | Built inside the lamp fixture | |
| Solar Controller | Solar Controller Capacity | 10A–15A |
| Solar Panel | Silicon Type | Monocrystalline |
| Power | 100W–280W | |
| Horizontal Angle | 360° adjustable | |
| Light Pole | Suggested Height | 3–7 meters |
| Section Shape | Conical / Octagonal | |
| Material & Finishing | Galvanized steel / aluminum with powder coating | |
| System | Working Temperature | -20–65℃ |
| Protection Levels | IP66 / IK09 | |
| Wind Resistance | >120 km/h | |
| Life Span | LED lamp: >20 years / Battery: >10 years / Solar controller: >20 years / Solar panel: >25 years / Light pole: >30 years | |
| Warranty | 3 / 5 years | |
Interior Structure
See what’s inside the All-In-Two Solar Street Light BISON.
01
02
03
04
05
06
IP66 Super Bright LED Lighting Source
Featuring advanced 5050 LED chips with an impressive efficiency of up to 220lm/w, this lighting solution delivers extreme brightness and reliable performance. Designed with high-temperature resistance and low thermal resistance, it ensures a longer LED lifespan. The thick aluminum heat sink, combined with a fast heat dissipation module, guarantees optimal performance and durability, while the easy-maintenance design simplifies upkeep.
Premium Quality Sturdy Screws
The fixture is secured with premium quality sturdy screws, specifically designed to prevent rotation after installation. These high-strength screws provide exceptional stability, ensuring the fixture remains firmly in place even in environments subject to vibrations or movement. Their durable design enhances the fixture’s reliability and long-term performance, making them an essential feature for secure and precise mounting.
Smart Solar Controller
The Smart Solar Controller offers high efficiency with a smart power-saving mode that optimizes energy use. It operates with constant current and an IP68 rating, ensuring reliable performance even in harsh environmental conditions. This advanced design significantly reduces the light failure rate, providing consistent brightness over time. Additionally, the controller includes multiple protection features that effectively safeguard the battery, enhancing its longevity and ensuring the system’s overall durability and safety.
Heat Aluminum Heat Sink
The back of the lamp housing features an efficient aluminum heat sink design, ensuring optimal heat dissipation. Made from high-quality aluminum, it helps maintain the light’s performance and longevity by preventing overheating, especially in demanding environments.
LiFePO4 Lithium Battery
The fixture is equipped with a LiFePO4 lithium battery, known for its impressive lifespan of over 10 years. This battery offers excellent high-temperature resistance and exceptional safety performance, ensuring reliable power delivery and enhanced durability. With its long service life, it reduces the need for frequent replacements and provides peace of mind, making it an ideal choice for both residential and commercial applications.
Enhanced Strong Lamp Holder
The enhanced strong lamp holder is designed for maximum durability and performance, ensuring resistance to strong impacts and mechanical stress, providing robust reliability in challenging environments.
Optional Features & Add-ons
01
Motion Sensor
The motion sensor automatically reduces brightness by 30% when inactivity is detected, saving energy. Upon detection of presence, brightness returns to 100%, ensuring optimal visibility while minimizing distractions. This feature strikes a balance between power efficiency and user comfort.
02
Adjustable Solar Panel Bracket
The adjustable bracket optimizes panel positioning for maximum sunlight capture. It allows users to adjust the tilt angle for optimal solar energy collection, regardless of geographic location or seasonal changes, ensuring high performance even in harsh weather conditions.
03
Anti-theft Components
Anti-theft screws and spikes are designed to secure solar panels against theft. The unique tamper-resistant design makes removal nearly impossible without specialized tools, while anti-climbing spikes prevent unauthorized access, ensuring durability and security in exposed environments.
04
Anti-bird Spike
Anti-bird spikes offer a humane and effective solution to prevent birds from perching on solar panels, rooftops, and fences. Made from durable stainless steel or plastic, these sharp, angled prongs discourage birds without harming them. Easy to install, these spikes provide a low-maintenance way to protect solar panels from bird-related damage, ensuring optimal performance.
05
Camera
The system integrates a solar-powered CCTV camera, offering a sustainable and eco-friendly surveillance solution. These cameras operate independently of traditional power sources, ensuring continuous monitoring without external electricity. With waterproof housing and motion detection features, they enhance security for solar panels while reducing energy costs.
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, Inlux Solar’s IOT Smart Monitoring System enables intelligent management of our BISON Series All-In-Two solar street lights by PC, PAD and Mobile.
Compatible Pole Designs
Our All-In-Two Solar Street Light BISON can be customized with various pole shapes and materials. Check out some of our pole designs, and feel free to share your ideas with us if you have additional customization needs.
BISON (AIT7) Installation Methods

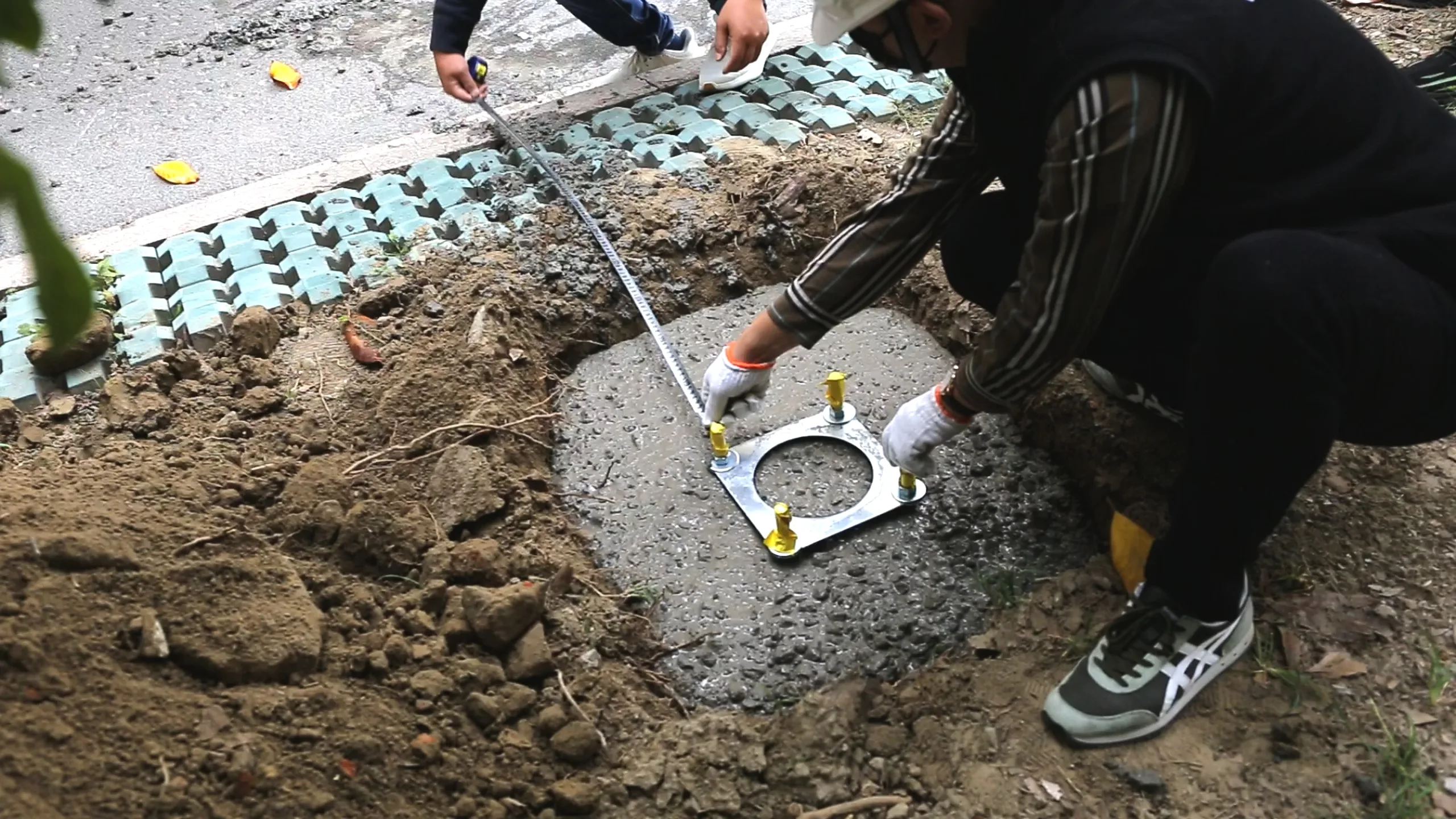

1. BISON (AIT7) Foundation Installation
Excavate the pit and pour smooth concrete. Position the BISON (AIT7) foundation kit in the center, level all four corners, and cover the top bolts with tape.

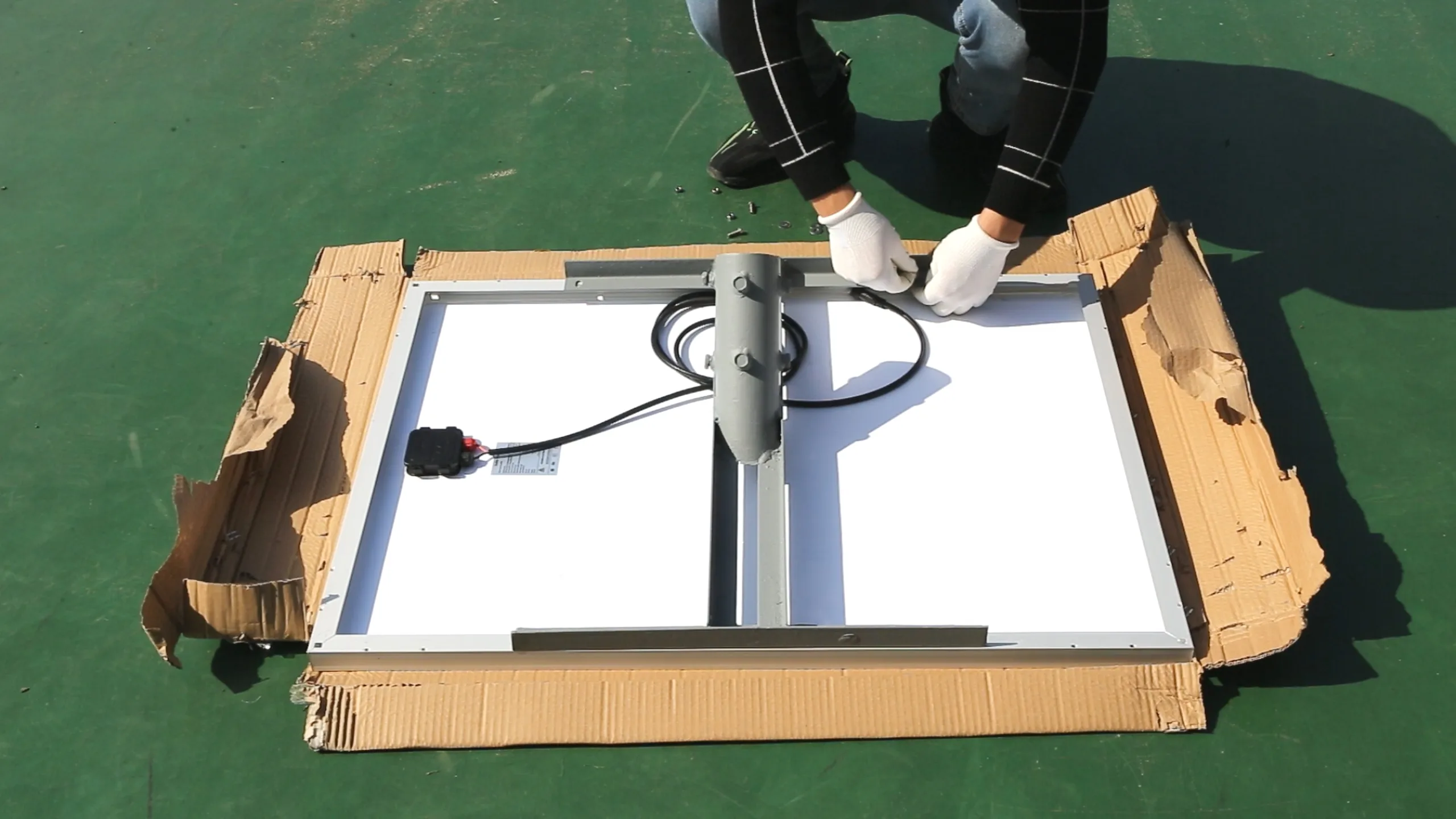

2. Fix Solar Panel on the solar panel mounting bracket
Mount the solar panel onto the bracket and install it on top of the pole, making sure the solar panel’s direction is correct.

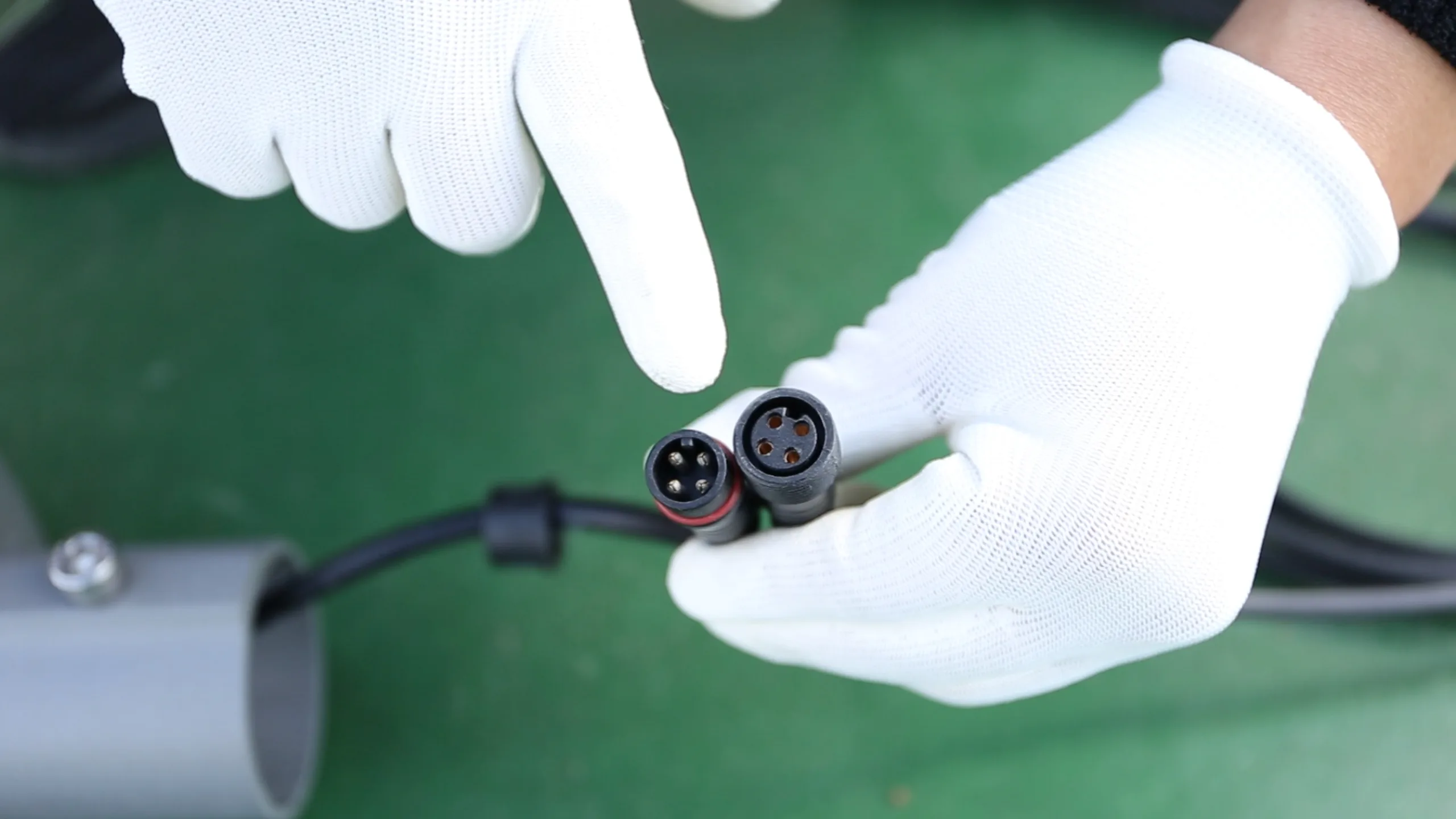

3. Connect the Solar Panel to the Lamp
Properly plug the solar panel connector into the lamp, ensuring a secure connection. The system will power on and start operating.

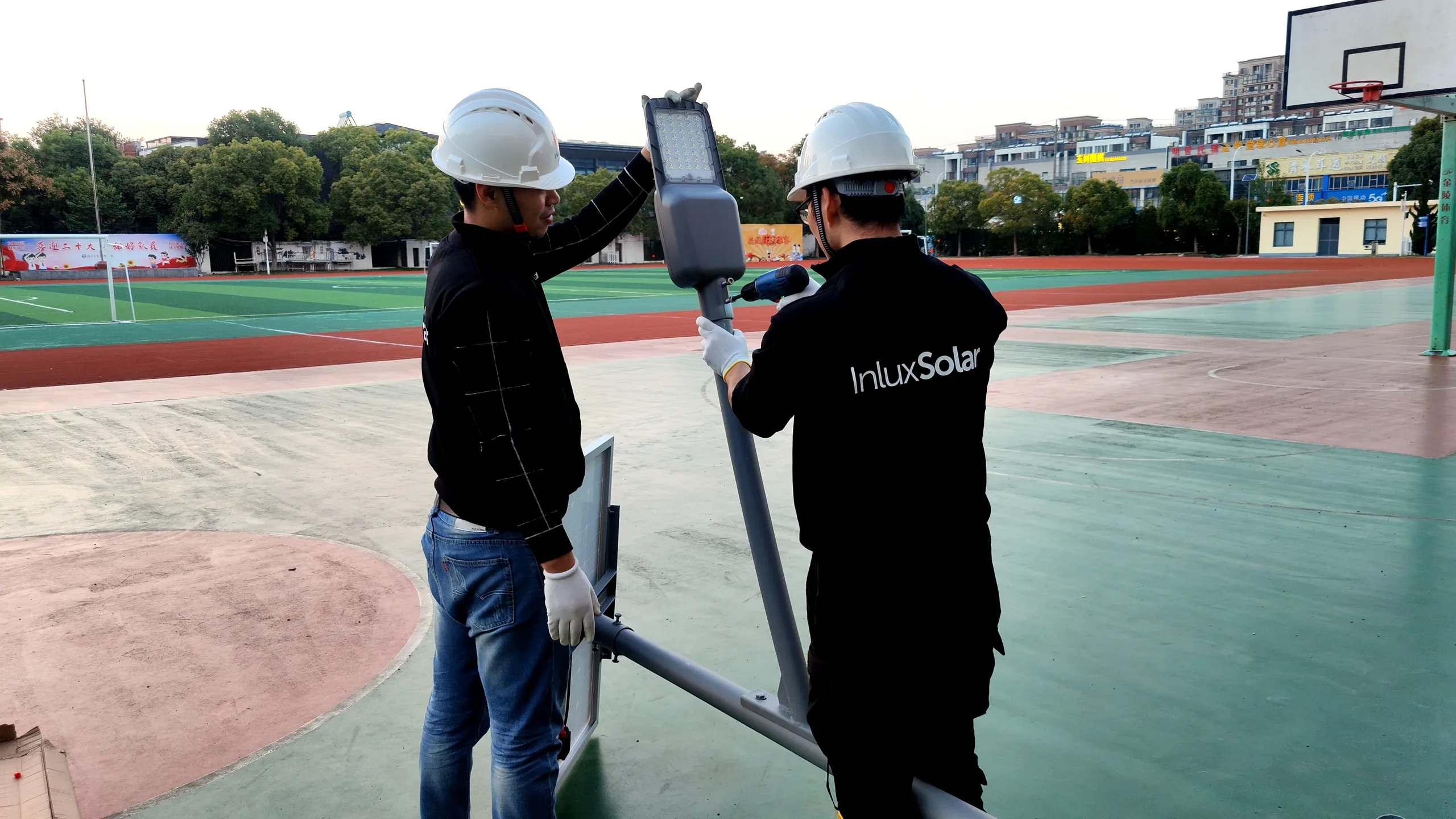

4. Install and Secure the Pole
Mount the lamp on the pole arm, remove the tape, and secure the pole to the foundation kit using two nuts and washers on each bolt.

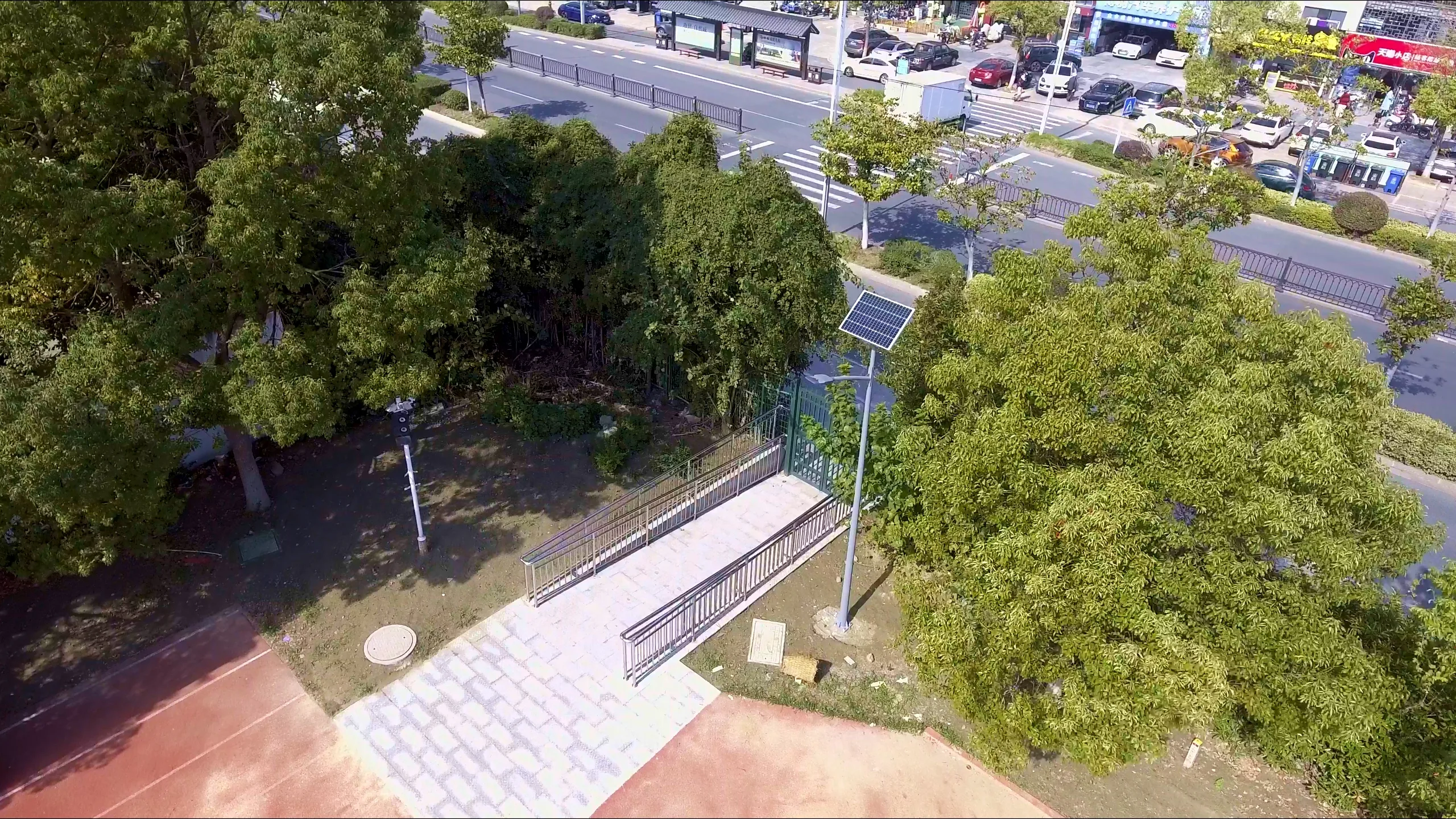

5. Automatic Operation
The solar street lights will automatically operate according to the pre-set program, with no manual operation required.
