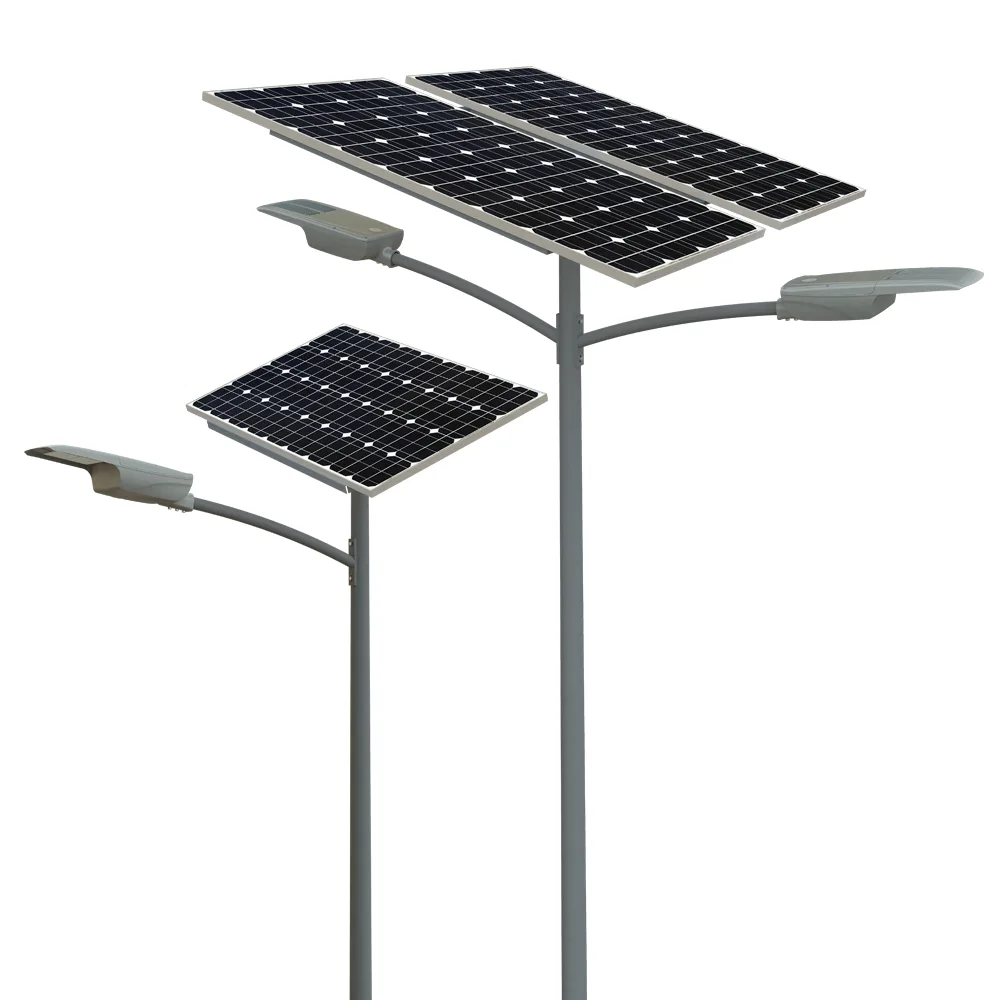

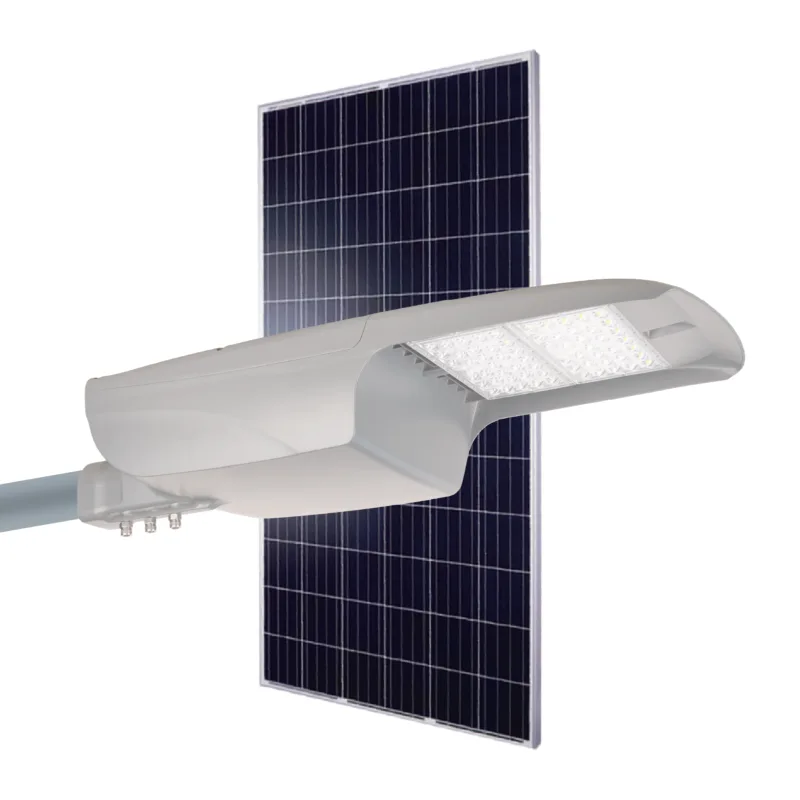

Dragon All-In-Two Solar Street Light
DRAGON is a heavy-duty all-in-two solar street light designed for highways, primary roads, industrial parks, large outdoor areas, and infrastructure projects that require higher power output, longer backup time, and reliable lighting performance in demanding environments.
Its enlarged internal battery compartment supports up to 120Ah/25.6V LiFePO4 battery packs, providing extended energy storage for longer autonomy. The separated PV panel design improves solar charging flexibility, while the integrated lamp head combines high-efficiency 7070 LED modules, battery system, and intelligent controller into a durable and scalable lighting solution.
Applications：
Certified Quality for Global Projects
Description
Features
High-Power LED Performance
Dual 32-in-1 7070 LED modules deliver up to 200W output and up to 260 lm/W efficiency for large-area illumination.
Large Battery Capacity
Supports up to 120Ah/25.6V LiFePO4 battery packs for extended autonomy and reliable night operation.
Flexible Solar Charging
Separated PV panel design allows optimized solar positioning for improved energy generation.
Smart Control Integration
IoT modules for intelligent monitoring and management.
Reliable Outdoor Design
Durable housing structure ensures stable performance in demanding outdoor environments.

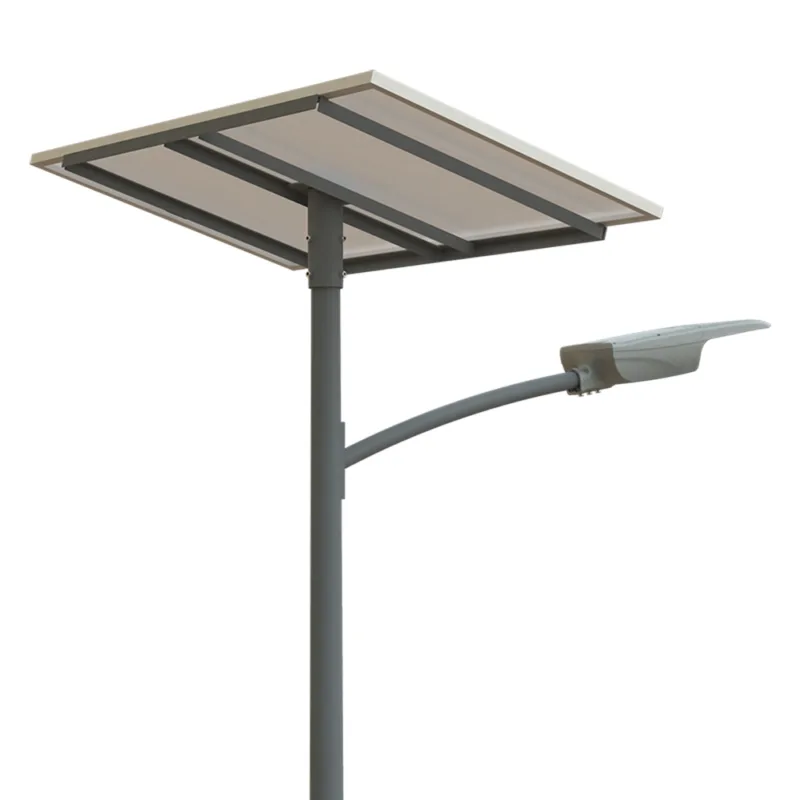

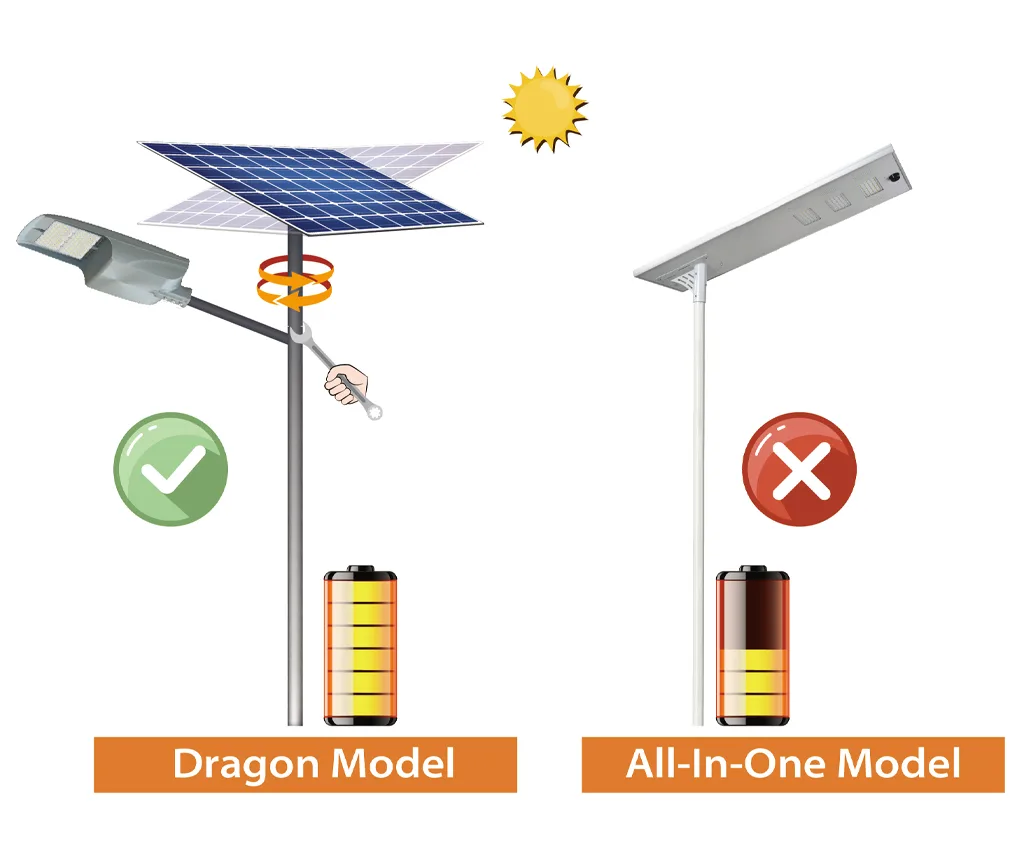

Independent Solar Panel Design Provides Higher Solar Power
Independent solar panel design makes high-power panels possible, and 15% higher charging efficiency can be realized by adjusting direction of solar panel. Therefore, high-power LED lamps are able to operate at high brightness all night.
7070 Super Bright LED Chips
The Dragon series uses premium 7070 LED chips instead of 3030 or 5050 chips, offering higher brightness, better performance in high temperatures, and a longer lifespan.
15% higher uniformity and 30% larger coverage area
Specially designed light distribution and bigger beam angle enlarge illumination areas and improve lighting uniformity, suitable for rural roads, streets, highways, and residential areas.
10+ Years Lifespan Lithium Battery
The fixture is equipped with a LiFePO4 lithium battery, known for its impressive lifespan of over 10 years. This battery offers excellent high-temperature resistance and exceptional safety performance, ensuring reliable power delivery and enhanced durability. With its long service life, it reduces the need for frequent replacements and provides peace of mind, making it an ideal choice for both residential and commercial applications.
Operable Under Harsh Environment
IP66 for the whole Dragon system, which makes it adaptable for rainy areas. High-temperature resistant LiFePO4 battery with low current design significantly reduces internal heat when the system works. Among other things, the smart temperature adjustment function of the solar controller enables the system to operate normally under temperatures as high as 65°C.

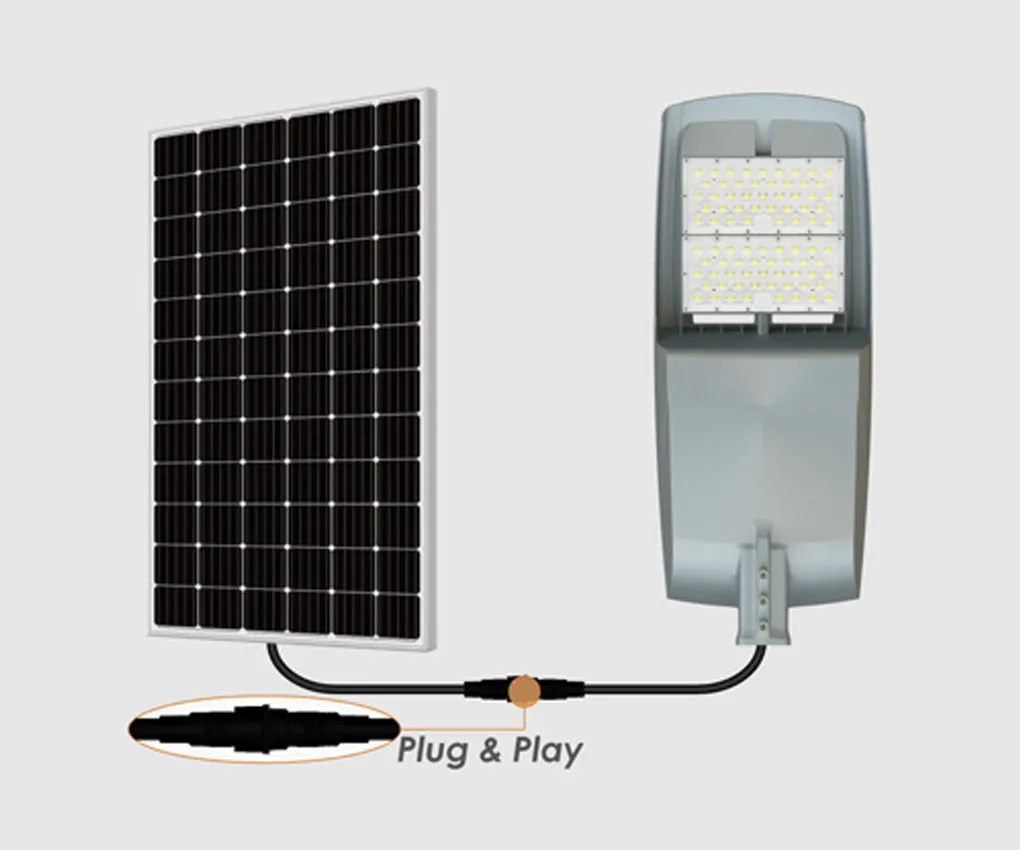

Plug & Play Fast Installation
LED lighting source, solar controller, and battery are all integrated inside the lamp fixture, once we plug the cable of the lamp fixture inside the solar panel cable, the system will start immediately
All-In-Two Solar Street Light Dragon Specifications
| Model Number | Dragon | |
| LED Lamp | LED Power | 50-200W |
| Luminous Efficiency | >180 lm/W | |
| Luminous Flux | 5,400-27,000 lumens | |
| Color Temperature | 3,000K-6,000K | |
| Lighting Distribution | Type II, Type III | |
| Material | Die-cast Aluminum | |
| Lamp Adaptor | 60mm diameter | |
| Product/Package Size | 858×340×165mm / 920×375×220mm | |
| Lithium Battery | Battery Type | Pouch-Type Lithium Iron Phosphate (LiFePO4) |
| Rated Capacity | Maximum 3072Wh | |
| BMS Unit | Provides multiple protections for battery | |
| Battery Location | Built inside the lamp fixture | |
| Solar Controller | Solar Controller Capacity | 10A-30A |
| Solar Panel | Silicon Type | Mono-crystalline |
| Power | 100W-900W | |
| Horizontal Angle | 360° adjustable | |
| Light Pole | Suggested Height | 6-12 meters |
| Section Shape | Conical / Octagonal | |
| Material & Finishing | Galvanized steel / aluminum with powder coating | |
| System | Working Temperature | -20°C-65°C |
| Protection Levels | IP66 / IK09 | |
| Wind Resistance | >120 km/h | |
| Life Span | LED Lamp: >20 years / Battery: >10 years / Solar Controller: >20 years / Solar Panel: >25 years / Light Pole: >30 years | |
| Warranty | 3 / 5 years | |

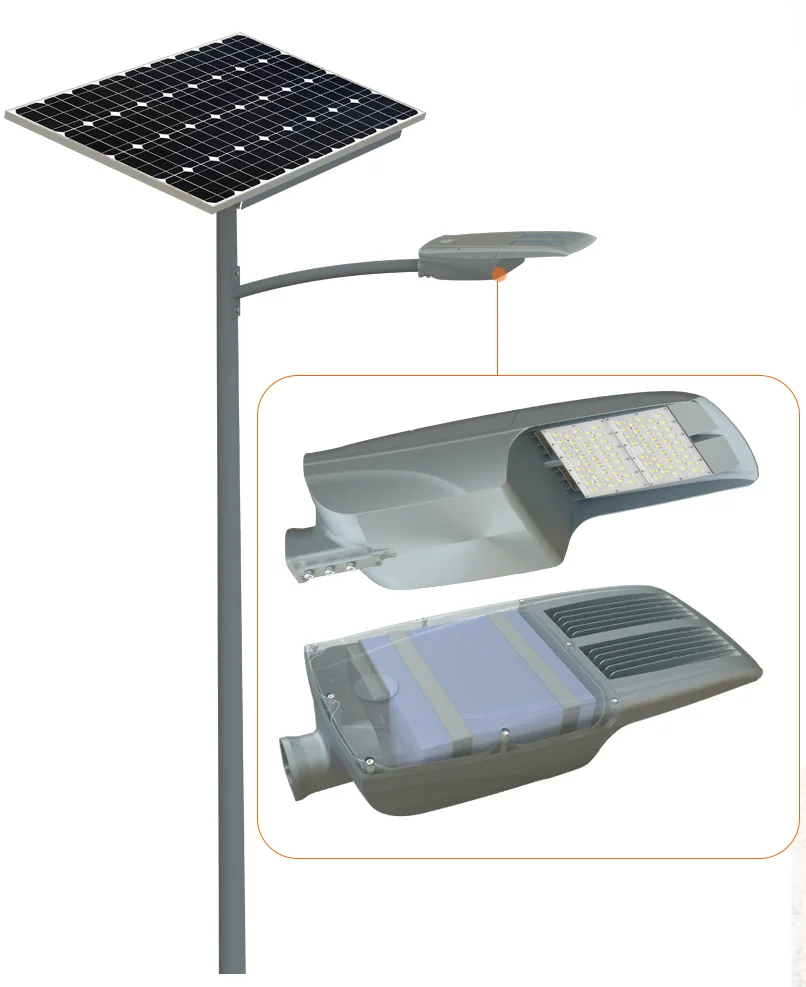

Interior Structure
01
02
03
04
05
06

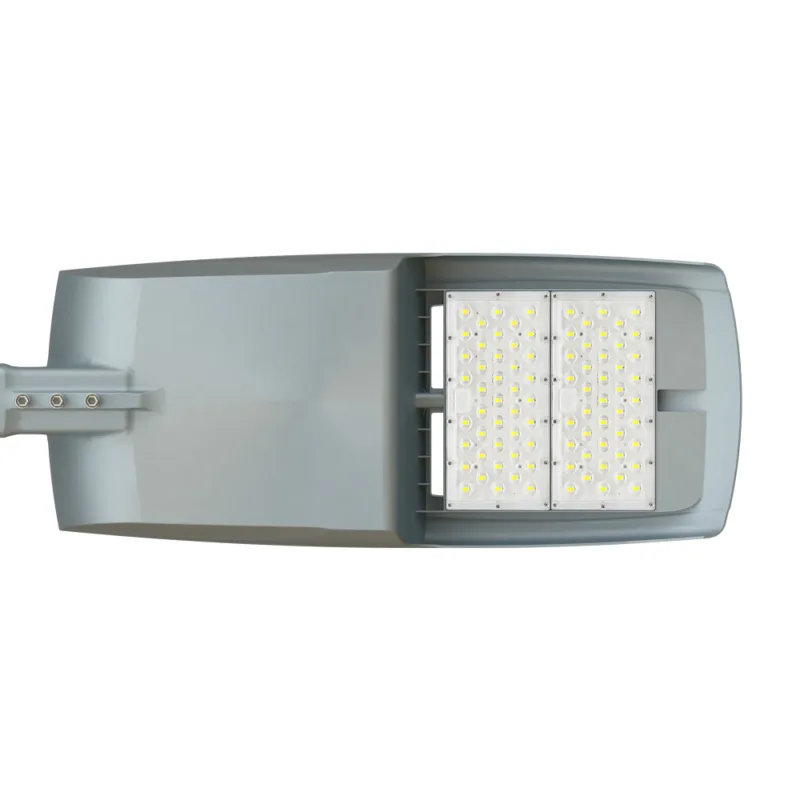

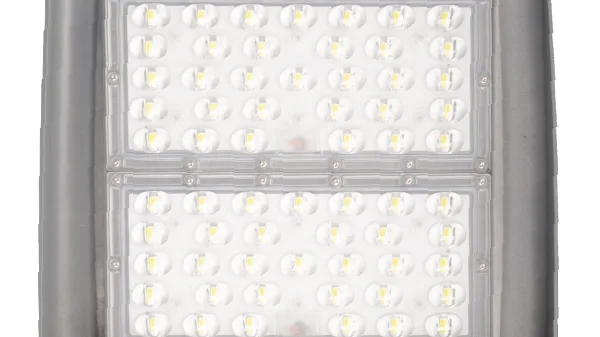

IP66 Super Bright LED Lighting Source
Featuring advanced 7070 LED chips with an impressive efficiency of up to 260lm/w, this lighting solution delivers extreme brightness and reliable performance. Designed with high-temperature resistance and low thermal resistance, it ensures a longer LED lifespan. The thick aluminum heat sink, combined with a fast heat dissipation module, guarantees optimal performance and durability, while the easy-maintenance design simplifies upkeep.

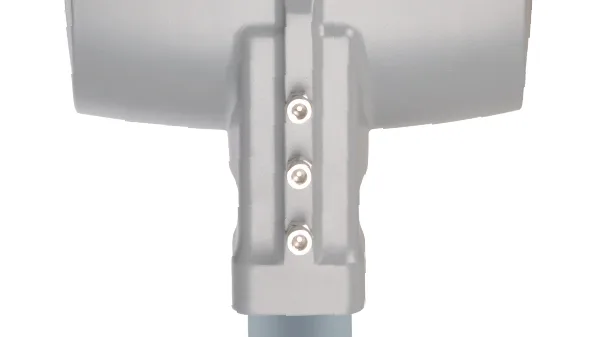

Strong Designed Screws
The fixture is secured with premium quality sturdy screws, specifically designed to prevent rotation after installation. These high-strength screws provide exceptional stability, ensuring the fixture remains firmly in place even in environments subject to vibrations or movement. Their durable design enhances the fixture’s reliability and long-term performance, making them an essential feature for secure and precise mounting.
Smart Solar Controller
The Smart Solar Controller offers high efficiency with a smart power-saving mode that optimizes energy use. It operates with constant current and an IP68 rating, ensuring reliable performance even in harsh environmental conditions. This advanced design significantly reduces the light failure rate, providing consistent brightness over time. Additionally, the controller includes multiple protection features that effectively safeguard the battery, enhancing its longevity and ensuring the system’s overall durability and safety.

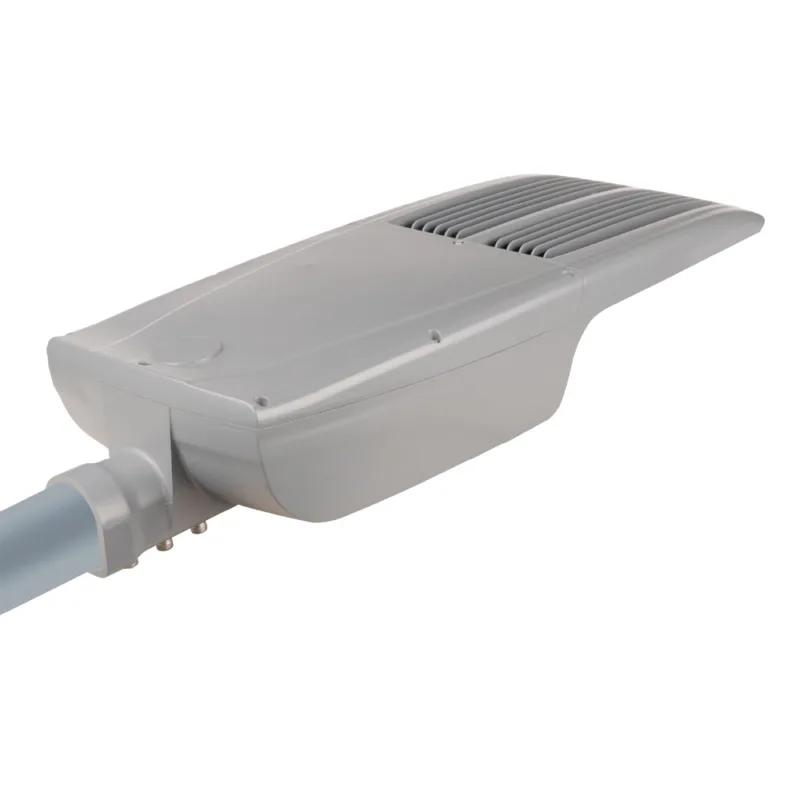

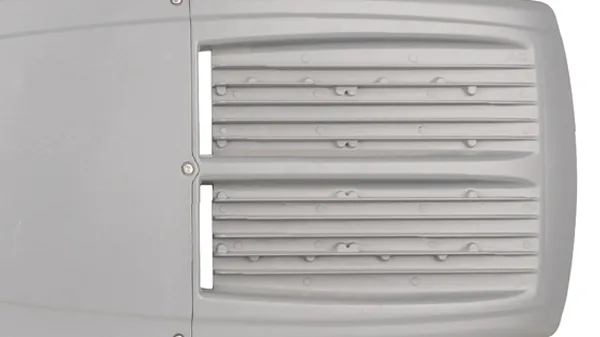

Heat Aluminum Heat Sink
The back of the lamp housing features an efficient aluminum heat sink design, ensuring optimal heat dissipation. Made from high-quality aluminum, it helps maintain the light’s performance and longevity by preventing overheating, especially in demanding environments.

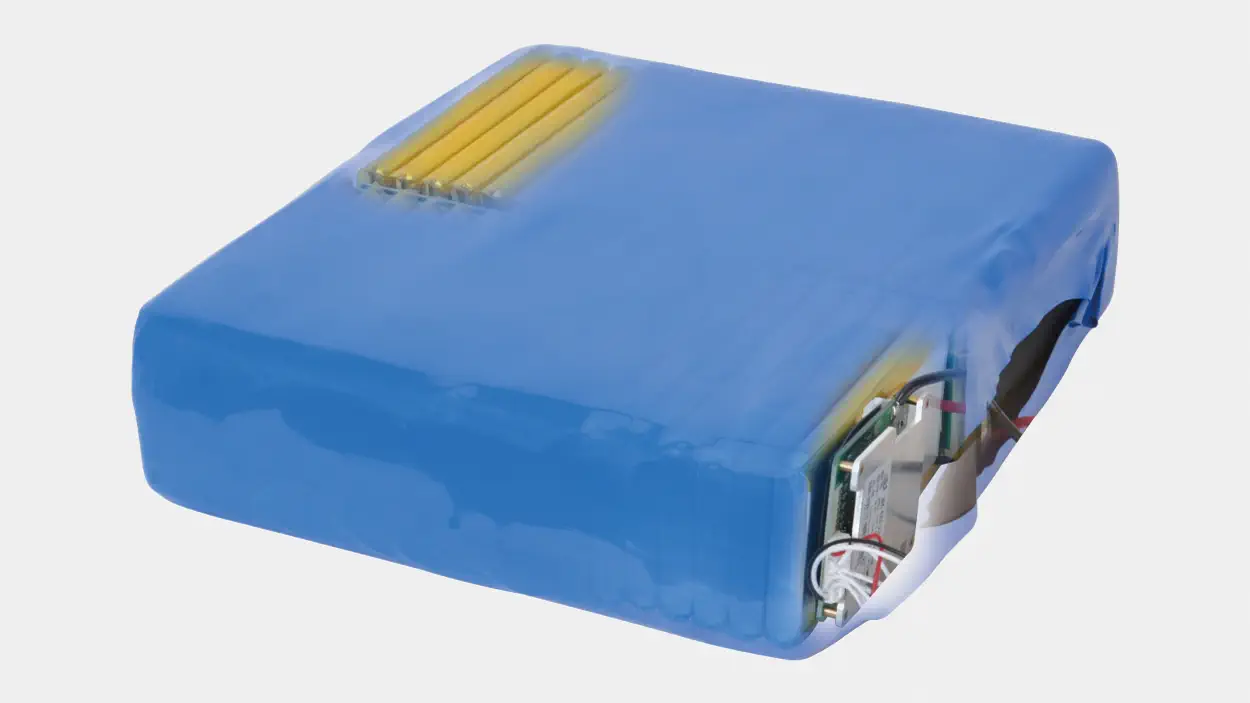

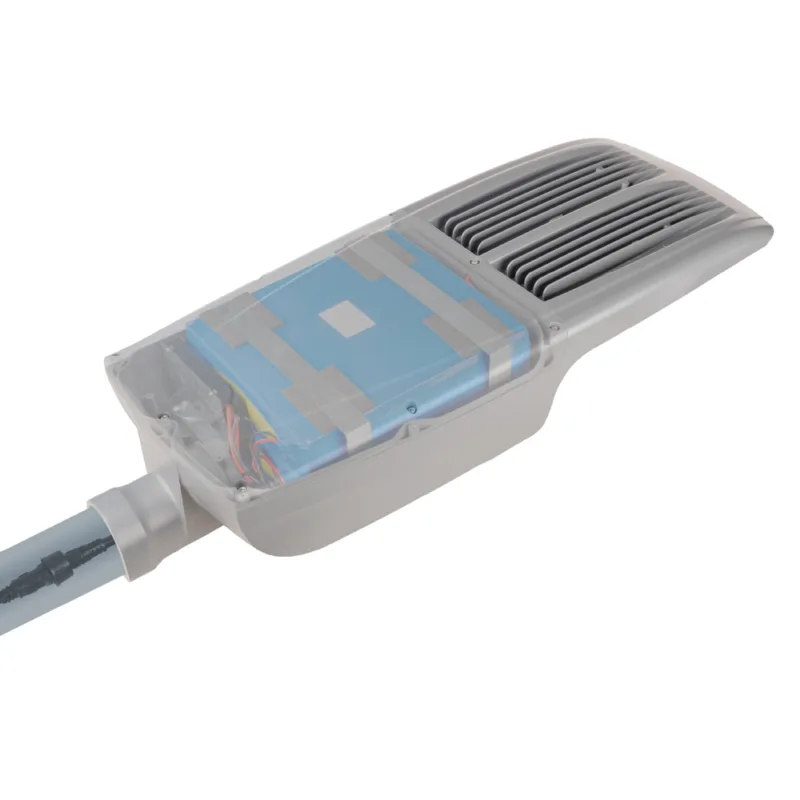

LiFePO4 Lithium Battery
The Smart Solar Controller offers high efficiency with a smart power-saving mode that optimizes energy use. It operates with constant current and an IP68 rating, ensuring reliable performance even in harsh environmental conditions. This advanced design significantly reduces the light failure rate, providing consistent brightness over time. Additionally, the controller includes multiple protection features that effectively safeguard the battery, enhancing its longevity and ensuring the system’s overall durability and safety.

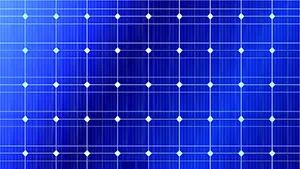

Transparent High Efficiency Solar Panel
This Transparent High Efficiency Solar Panel features a dual-sided light-capturing design (enabled by its transparent structure) that allows it to absorb sunlight from both front and back surfaces, maximizing energy harvest in various lighting conditions; as a monocrystalline solar panel, it also achieves a conversion efficiency of over 19%, delivering reliable power generation performance—plus, it comes with a 25-year life warranty, ensuring long-term stability and value for users.
Optional Features & Add-ons
01
Motion Sensor
The motion sensor automatically reduces brightness by 30% when inactivity is detected, saving energy. Upon detection of presence, brightness returns to 100%, ensuring optimal visibility while minimizing distractions. This feature strikes a balance between power efficiency and user comfort.
02
Adjustable Solar Panel Bracket
The adjustable bracket optimizes panel positioning for maximum sunlight capture. It allows users to adjust the tilt angle for optimal solar energy collection, regardless of geographic location or seasonal changes, ensuring high performance even in harsh weather conditions.
03
Anti-theft Components
Anti-theft screws and spikes are designed to secure solar panels against theft. The unique tamper-resistant design makes removal nearly impossible without specialized tools, while anti-climbing spikes prevent unauthorized access, ensuring durability and security in exposed environments.
04
Anti-bird Spike
Anti-bird spikes offer a humane and effective solution to prevent birds from perching on solar panels, rooftops, and fences. Made from durable stainless steel or plastic, these sharp, angled prongs discourage birds without harming them. Easy to install, these spikes provide a low-maintenance way to protect solar panels from bird-related damage, ensuring optimal performance.
05
Camera
The system integrates a solar-powered CCTV camera, offering a sustainable and eco-friendly surveillance solution. These cameras operate independently of traditional power sources, ensuring continuous monitoring without external electricity. With waterproof housing and motion detection features, they enhance security for solar panels while reducing energy costs.
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, Inlux Solar’s IOT Smart Monitoring System enables intelligent management of our All-In-Two Solar Street Light Dragon by PC, PAD and Mobile.
Compatible Pole Designs
Our All-In-Two solar street light Dragon can be customized with various pole shapes and materials. Check out some of our pole designs, and feel free to share your ideas with us if you have additional customization needs.
Specify DRAGON for Your Project
Review the separate solar-panel position and integrated lamp-head arrangement together before ordering. For a DRAGON RFQ, send the road width, pole height, spacing, target lighting level, project location, nightly schedule, autonomy target and quantity. Include any limits on panel mounting, service access or the available pole design so the proposed configuration can be checked against the actual site.
