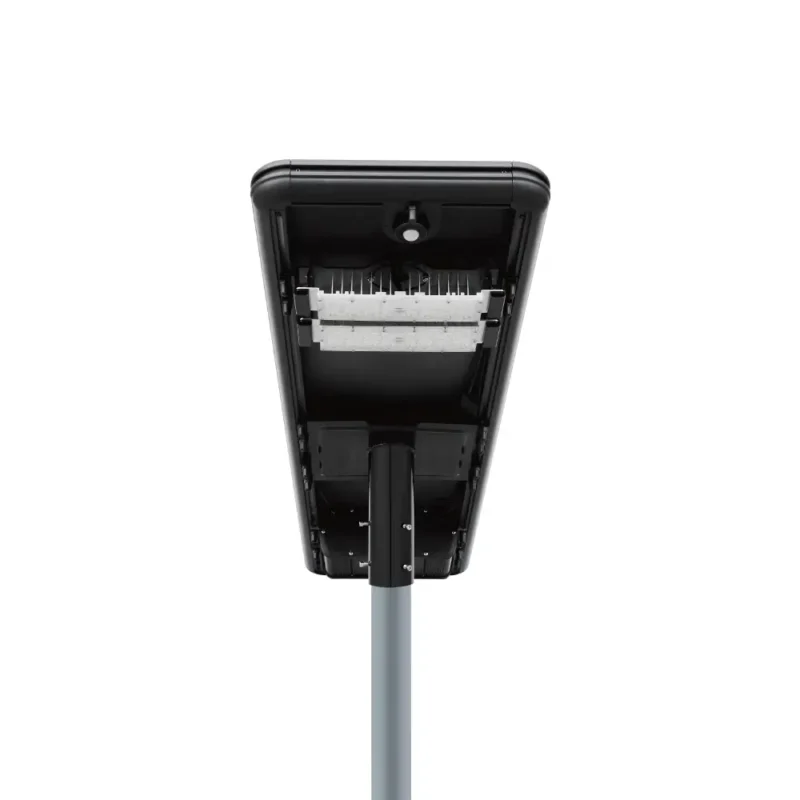

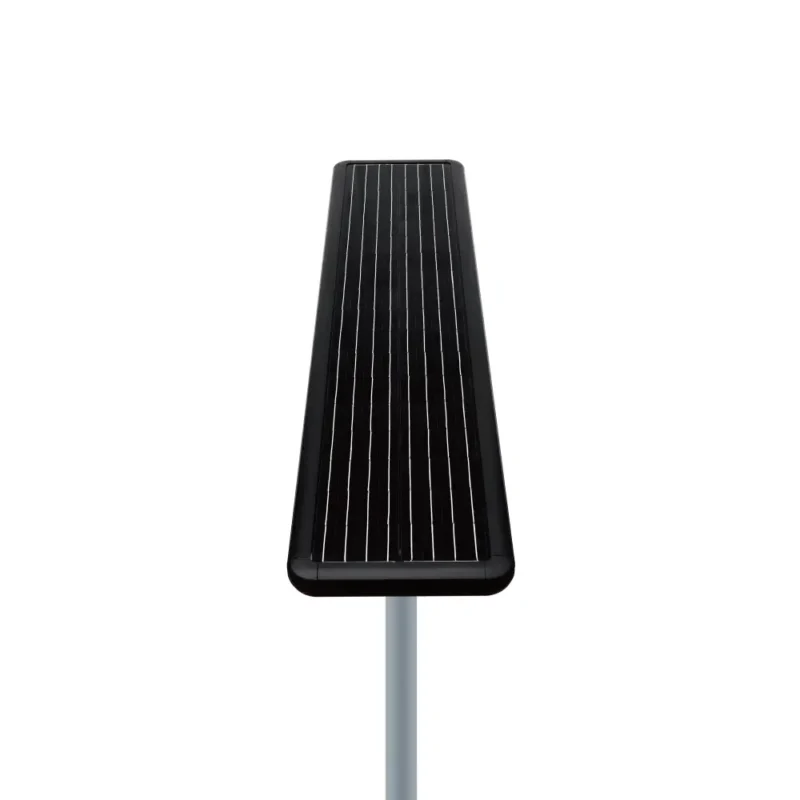

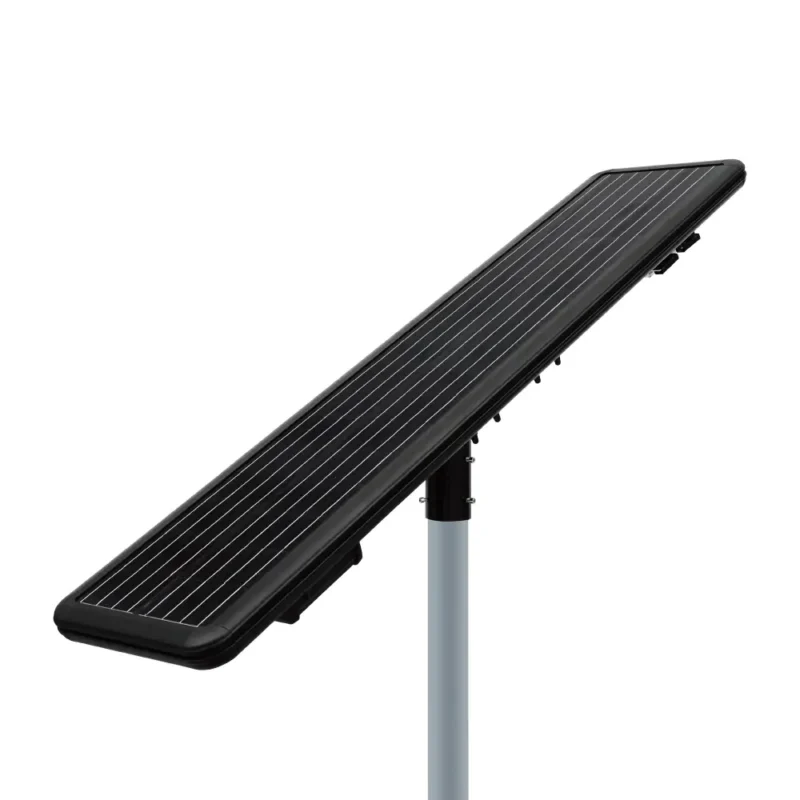

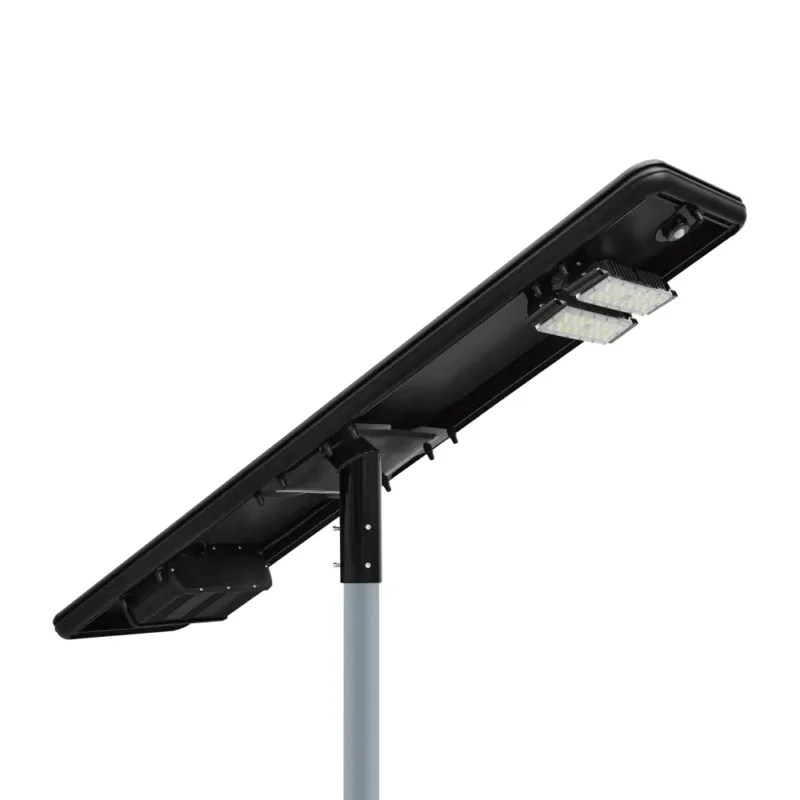

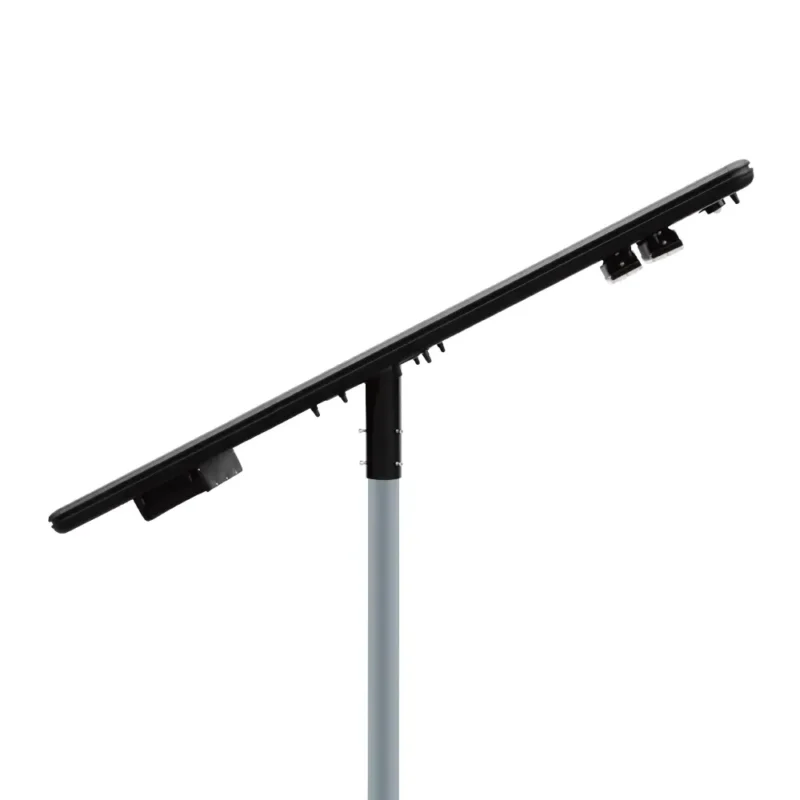

Anti-Theft All-in-One Solar Light (60W-140W) – ALIEN Series
The ALIEN Series is an anti-theft all-in-one solar street light designed for perimeter roads, campuses, public spaces, industrial areas, residential communities, and other security-sensitive outdoor lighting applications. It combines adjustable solar panels and lighting modules, ultra-bright 5050 LEDs, a durable LiFePO4 battery, an intelligent solar controller, and high-efficiency solar charging in one integrated system.
ALIEN is especially suitable for projects that need integrated structure, clean appearance, stronger anti-theft positioning, and flexible lighting adjustment for different site layouts.
- Best for: perimeter roads, campuses, public spaces, industrial zones, residential communities, and security-sensitive roadway projects
- Key advantages: anti-theft integrated structure, adjustable solar panel angle, adjustable lighting direction, optional dual-lighting layout, LiFePO4 battery, optional motion sensor and smart monitoring
- Project support: request datasheets, IES/LDT files, layout guidance, and RFQ support
Applications：
Certified Quality for Global Projects
Description
Features
The Anti-Theft All-in-One Solar Light (60W-140W) ALIEN Series applies advanced solar-light technology and patented design concepts to support a wide range of outdoor lighting scenarios. Its adjustable lighting module and solar panel holder allow the system to improve solar harvesting while directing light more precisely to the roadway or public area.
It integrates ultra-bright 5050 LED lighting modules, a durable LiFePO4 lithium battery, an intelligent solar controller, and a high-efficiency solar panel. The system can also be equipped with optional accessories such as a solar-panel self-cleaning system, motion sensor, CCTV camera, and intelligent monitoring system.
Compare ALIEN with the other all-in-one solar street light series by application and configuration. Use the table to shortlist a series, then confirm the mounting and service-access requirements for the actual site.
Choose the Right All-In-One Solar Street Light ALIEN Model for Your Project

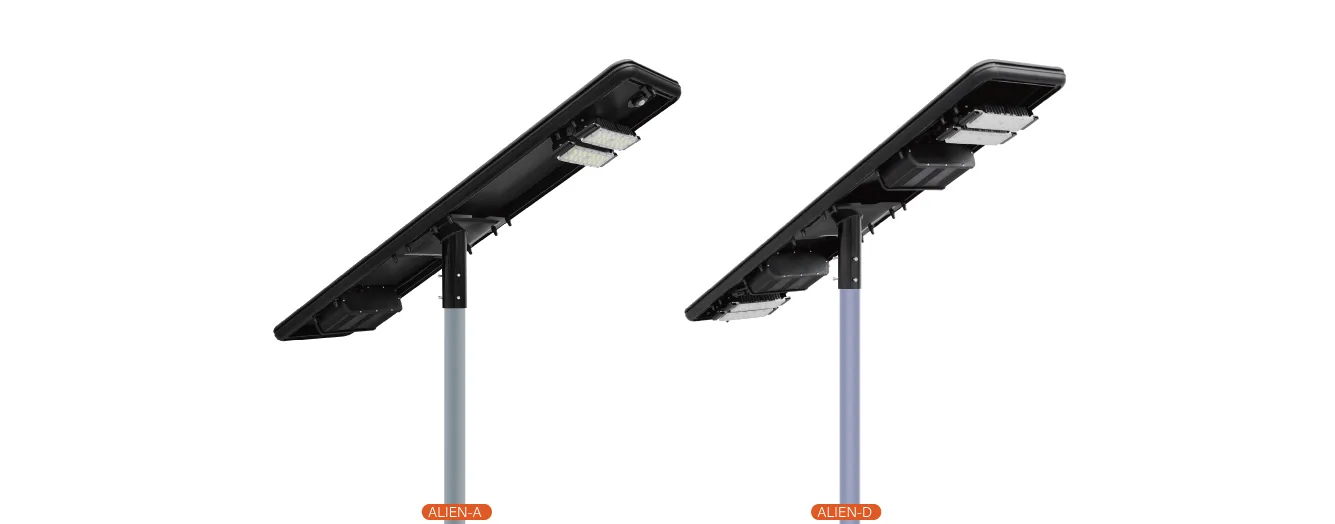

Compare the ALIEN-A and ALIEN-D adjustment options shown below. Before specifying anti-theft features, confirm which security fasteners, mounting details and service-access provisions are included in the quoted configuration. Check the beam layout separately; an integrated housing is not a substitute for a site-specific lighting design.
| Model Name | ALIEN-A | ALIEN-D |
| Lighting Source | Single Side | Single Side |
| Lighting Source horizontal adjustable | × | √ |
| Lighting Source Vertical adjustable | × | √ |
Revolutionize All-In-One Solar Street Light ALIEN
The design of ALIEN series ensures coverage of all application needs, and enables the system to obtain the highest efficiency by adjusting solar panel & lighting source directions. Besides, INL-AIO5-D is the first double-lamp all in one solar street light that has been seen by the world.

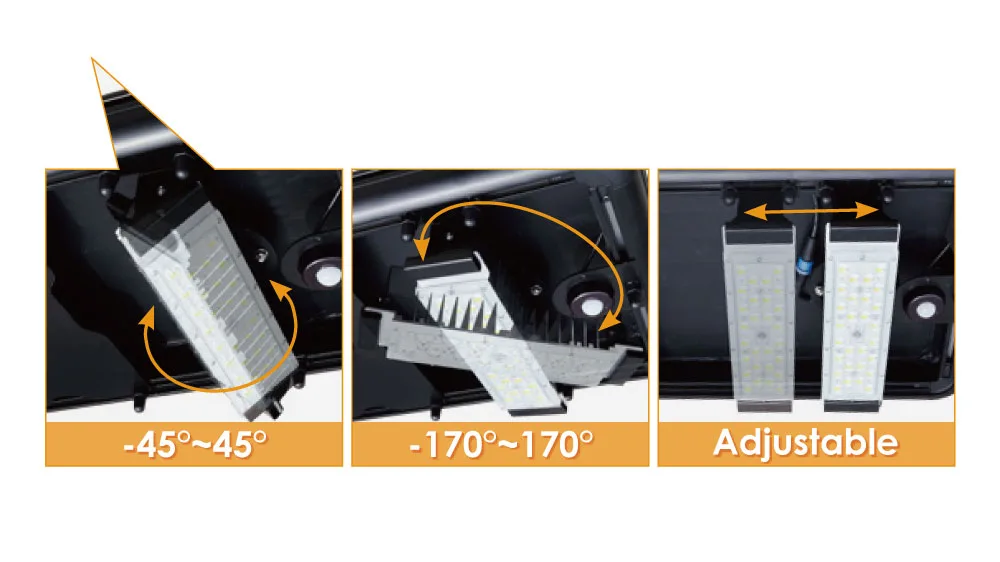

LED vertical adjustable
The lamp can be adjusted vertically within a range of -45 to 45 degrees, allowing for precise directional lighting. This flexible design ensures optimal light distribution and accommodates various installation and application needs.
LED horizontal adjustable
The lamp can be adjusted horizontally within a range of -360 to 360 degrees, providing full rotational flexibility. This design allows for precise light positioning and adaptability to meet diverse lighting requirements.
LED Adjustable Back & Forth
The structure allows forward and backward adjustments, providing greater flexibility to adapt to various installation environments and lighting requirements.
Dual Lighting Design
The dual lighting design provides two separate light sources, offering enhanced versatility and functionality. This design allows for multiple lighting directions or customized brightness levels to suit various environments and applications. It improves overall illumination efficiency and creates a more dynamic and flexible lighting experience.
Technical Specifications
| Lamp Luminous Flux & Power | 3700lm(30W) | 6300lm(60W) | 7200lm(70W) | 9000lm(80W) | 9900lm(90W) | 10800lm(100W) | 12040lm(120W) |
| Color Temperature | 3000K – 6500K | ||||||
| Lighting Distribution | Type II, Type III | ||||||
| Mono-crystalline Solar Panel Capacity | 60W | 90W | 100W | 120W | 140W | 160W | 180W |
| LiFePO4 Lithium Battery Capacity | 256Wh | 512Wh | 512Wh | 640Wh | 640Wh | 768Wh | |
| Solar Controller Capacity | 10A – 20A | ||||||
| Motion Sensor | Optional | ||||||
| Suggested Mounting Height | 5-6Meters | 6-7Meters | 7-8Meters | 8-9Meters | 9Meters | 9-10Meters | 10-12Meters |
| Lamp Fixture Material | extruded aluminum and galvanized steel | ||||||
| Working Temperature | -20 – 65℃ | ||||||
| Protection Levels | IP66 / IK09 | ||||||
| Wind Resistance | >120km/h | ||||||
| Life Span | >10 years | ||||||
Extreme Bright 5050 LED Provides 40% Higher Brightness
ALIEN Series adopts first-class extreme-bright 5050 LEDs with high luminous efficiency, providing noticeably stronger brightness than conventional solar lights that use smaller LED chips.

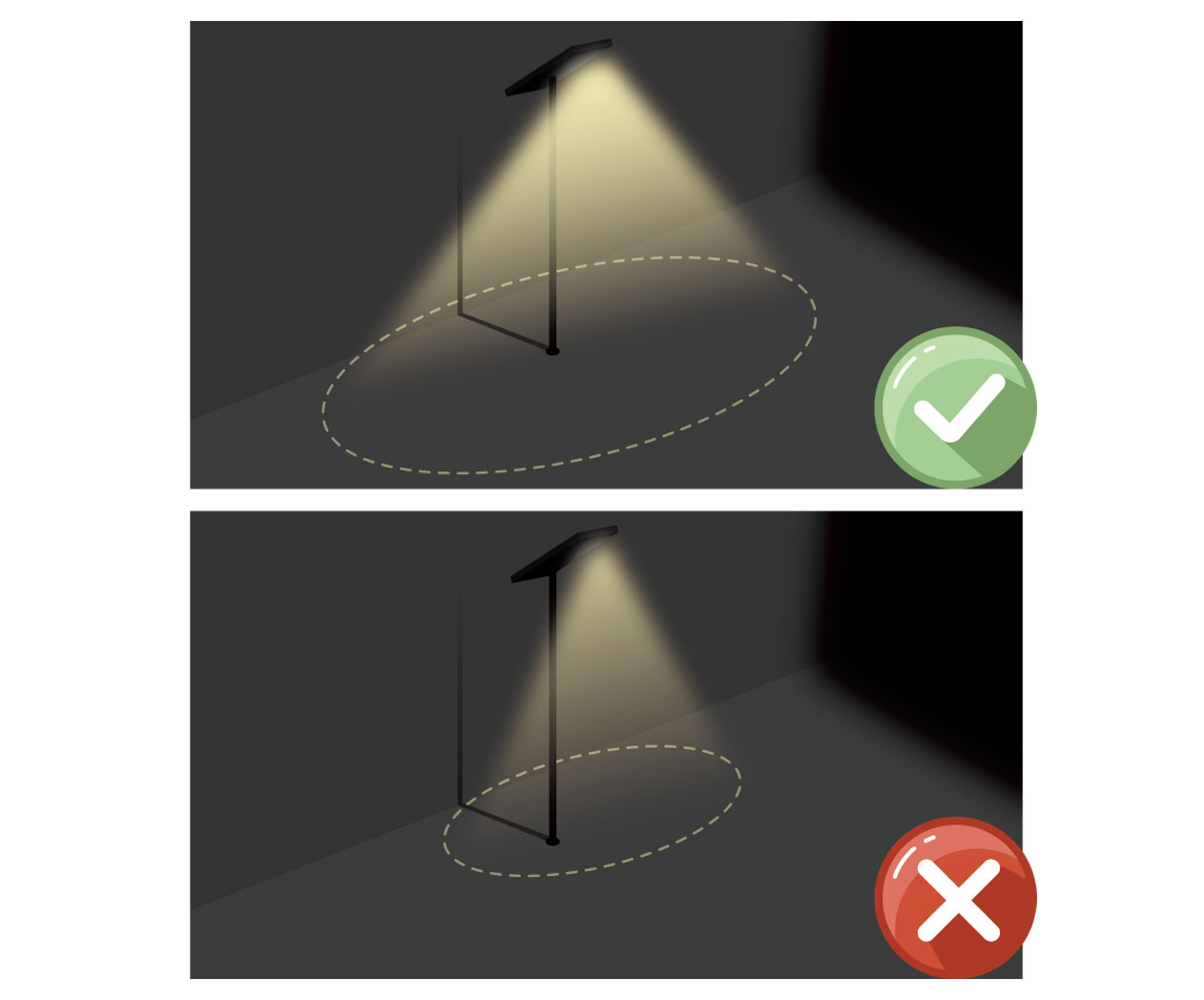

15% higher uniformity and 30% larger coverage area
Its specially designed light distribution and wider beam angle enlarge illumination areas and improve lighting uniformity, making it suitable for streets, highways, perimeter zones, and residential areas.
IP67 LED Modules with Heat Sink
ALIEN Series adopts IP67 LED modules as the lighting source, and the LED module is equipped with a heat sink for fast thermal dissipation. The lighting source can work for long periods in high-humidity and high-temperature environments.
Innovative lighting solution for two-way street
ALIEN adopts an innovative dual-lighting-source design that is especially suitable for two-way street applications and other layouts requiring more flexible coverage.
Detachable Component and Easy Maintenance Design
The module design adopted by the ALIEN series supports convenient maintenance because each component is designed to be detachable. In addition, the adjustable mounting chute helps meet different lighting-source mounting-position requirements.
No Back Plate Design
Better heat dissipation performance
Without a conventional back plate trapping heat beneath the panel, the structure helps reduce operating temperature and protect electronic components.
Insects and dust prevention
In desert or tropical areas, dust and insects can accumulate through thermal-dissipation openings and reduce system cooling efficiency. The design helps minimize that risk.
Without a conventional back plate trapping heat beneath the panel, the structure helps reduce operating temperature and protect electronic components.
Insects and dust prevention
In desert or tropical areas, dust and insects can accumulate through thermal-dissipation openings and reduce system cooling efficiency. The design helps minimize that risk.
10+ Years Lifespan Lithium Battery
By adopting pouch-type lithium battery cells, the LiFePO4 battery is engineered to deliver long cycle life under deep DOD conditions with stable performance. Multi-protection from the BMS unit and solar controller helps maintain reliable operation under demanding climates.
Smart Solar Street Light Controller
High Efficiency & Long Lifespan
This smart solar street light controller maximizes energy use with intelligent power-saving logic and constant-current output. With IP68 waterproof protection, it helps reduce light-failure rates, maintain stable brightness, and provide layered battery protection for longer system life.
This smart solar street light controller maximizes energy use with intelligent power-saving logic and constant-current output. With IP68 waterproof protection, it helps reduce light-failure rates, maintain stable brightness, and provide layered battery protection for longer system life.
Operable Under Harsh Environment
IP66 protection for the whole ALIEN system makes it suitable for rainy areas. A high-temperature-resistant LiFePO4 battery with low-current design helps reduce internal heat during operation, while smart temperature adjustment in the controller supports normal performance in temperatures up to 65°C.

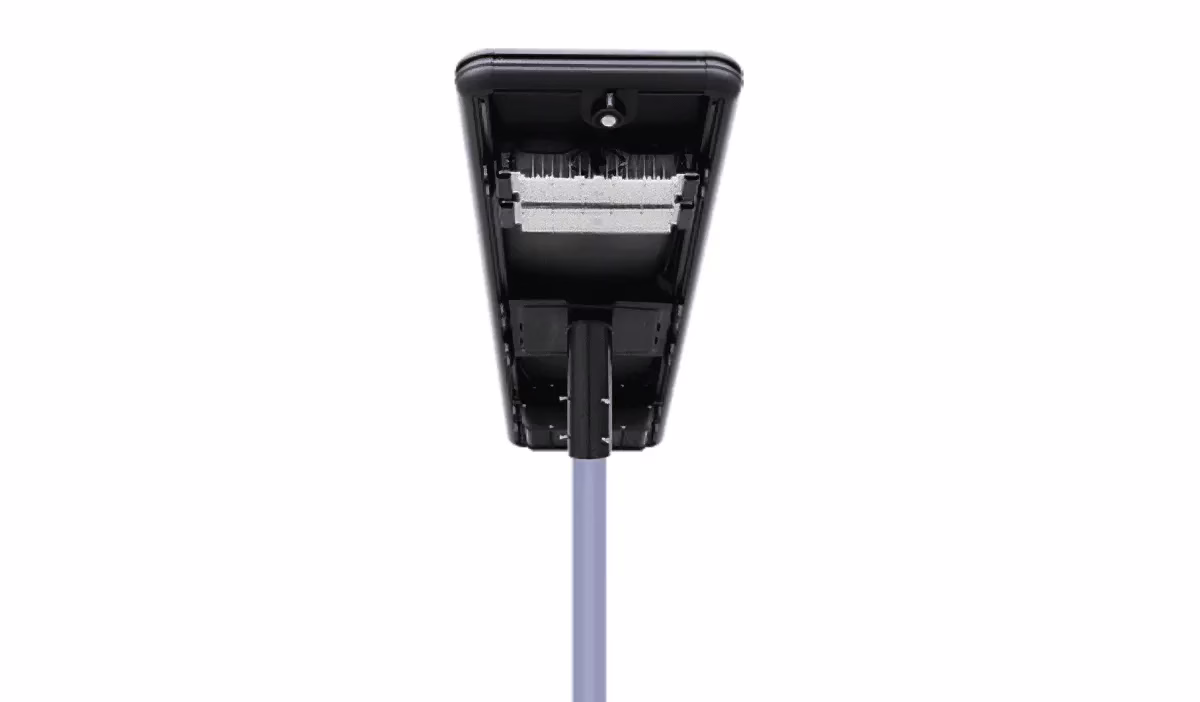

Interior Structure
See what’s inside the All-In-One Solar Street Light ALIEN.
01
02
03
04
05
06
IP67 Extreme Bright LED Modules
Featuring advanced 5050 LED chips with strong luminous efficiency, this lighting solution delivers high brightness and reliable performance. The thick aluminum heat sink and fast heat-dissipation module help support longer LED life and easier maintenance.
Enhanced Lamp holder
The enhanced lamp holder is designed for flexibility and adaptability, with a customizable diameter range that supports integration with different fixtures and installation requirements. Its robust construction helps ensure durability in varied applications.
Smart Solar Controller
The smart solar controller offers high efficiency with a power-saving mode, constant-current operation, and IP68 protection for demanding environments. Multiple protection functions help safeguard the battery and improve overall system durability.
Adjustable LED Bracket
The LED module mounting bracket is adjustable vertically, horizontally, and front-to-back, allowing precise light-source direction tuning for targeted road illumination while also helping align the solar panel for better sunlight absorption.

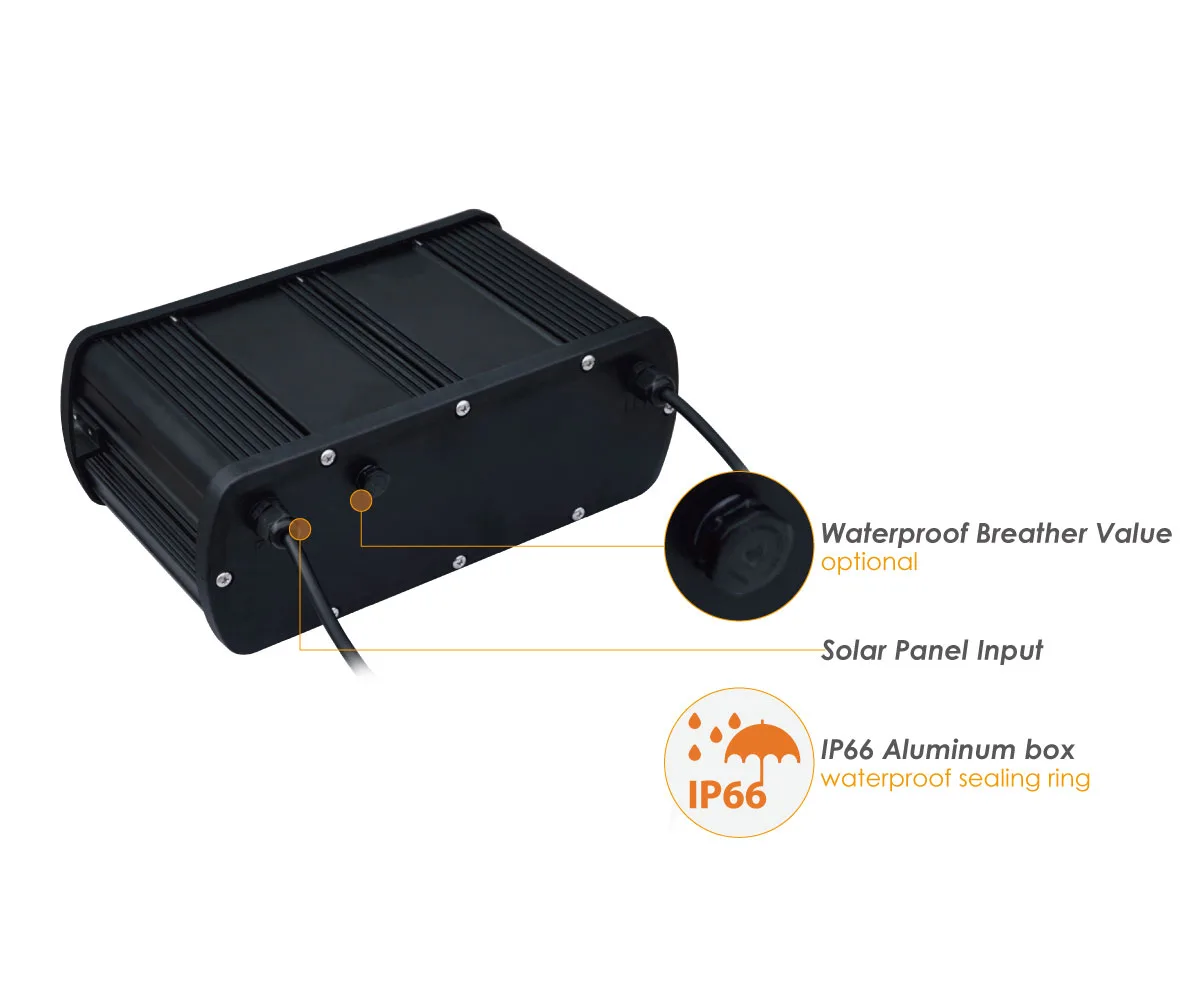

LiFePO4 Lithium Battery
The fixture is equipped with a LiFePO4 lithium battery known for long lifespan, strong high-temperature resistance, and high safety performance, helping reduce replacement frequency and improve long-term reliability.
Solar Panels
The solar panel features A-class quality and high charging efficiency, supporting strong energy conversion and stable long-term outdoor performance.
Optional Features & Add-ons
01
Motion Sensor
The motion sensor automatically reduces brightness by 30% when inactivity is detected, saving energy. Upon detection of presence, brightness returns to 100%, ensuring optimal visibility while minimizing distractions. This feature strikes a balance between power efficiency and user comfort.
02
Anti-theft Components
Anti-theft screws and spikes are designed to secure solar panels against theft. The unique tamper-resistant design makes removal nearly impossible without specialized tools, while anti-climbing spikes prevent unauthorized access, ensuring durability and security in exposed environments.
03
Anti-bird Spike
Anti-bird spikes offer a humane and effective solution to prevent birds from perching on solar panels, rooftops, and fences. Made from durable stainless steel or plastic, these sharp, angled prongs discourage birds without harming them. Easy to install, these spikes provide a low-maintenance way to protect solar panels from bird-related damage, ensuring optimal performance.
04
Camera
The system integrates a solar-powered CCTV camera, offering a sustainable and eco-friendly surveillance solution. These cameras operate independently of traditional power sources, ensuring continuous monitoring without external electricity. With waterproof housing and motion detection features, they enhance security for solar panels while reducing energy costs.
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, Inlux Solar’s IOT Smart Monitoring System enables intelligent management of ourAll-In-One Solar Street Light ALIEN by PC, PAD and Mobile.

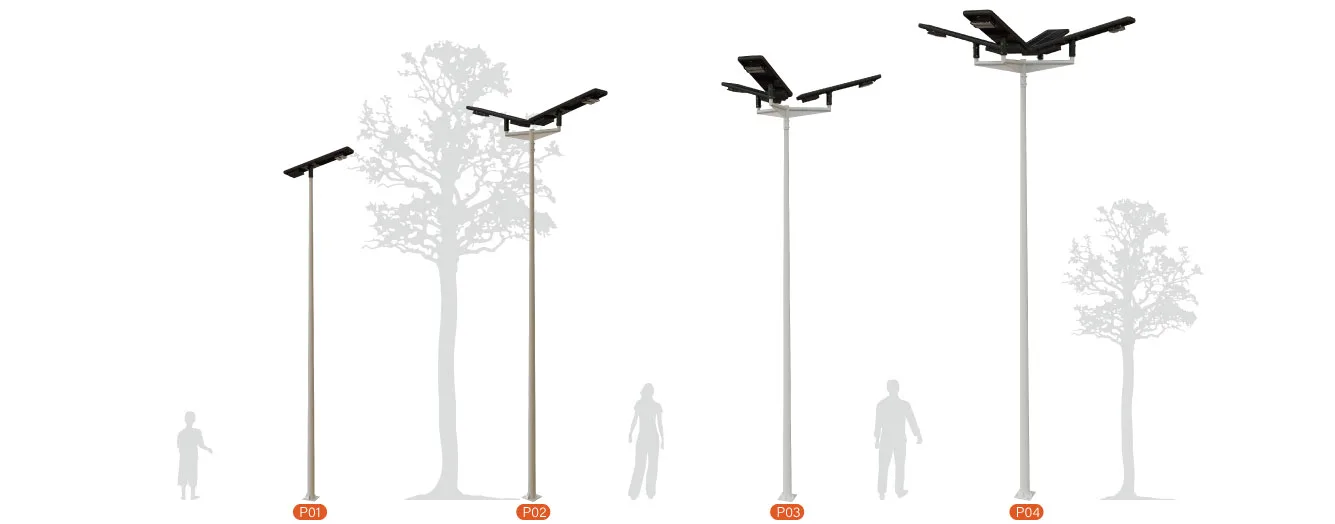

Compatible Pole Designs
Our All-In-One Solar Street Light ALIEN can be customized with various pole shapes and materials. Feel free to share your ideas with us if you have additional customization needs.

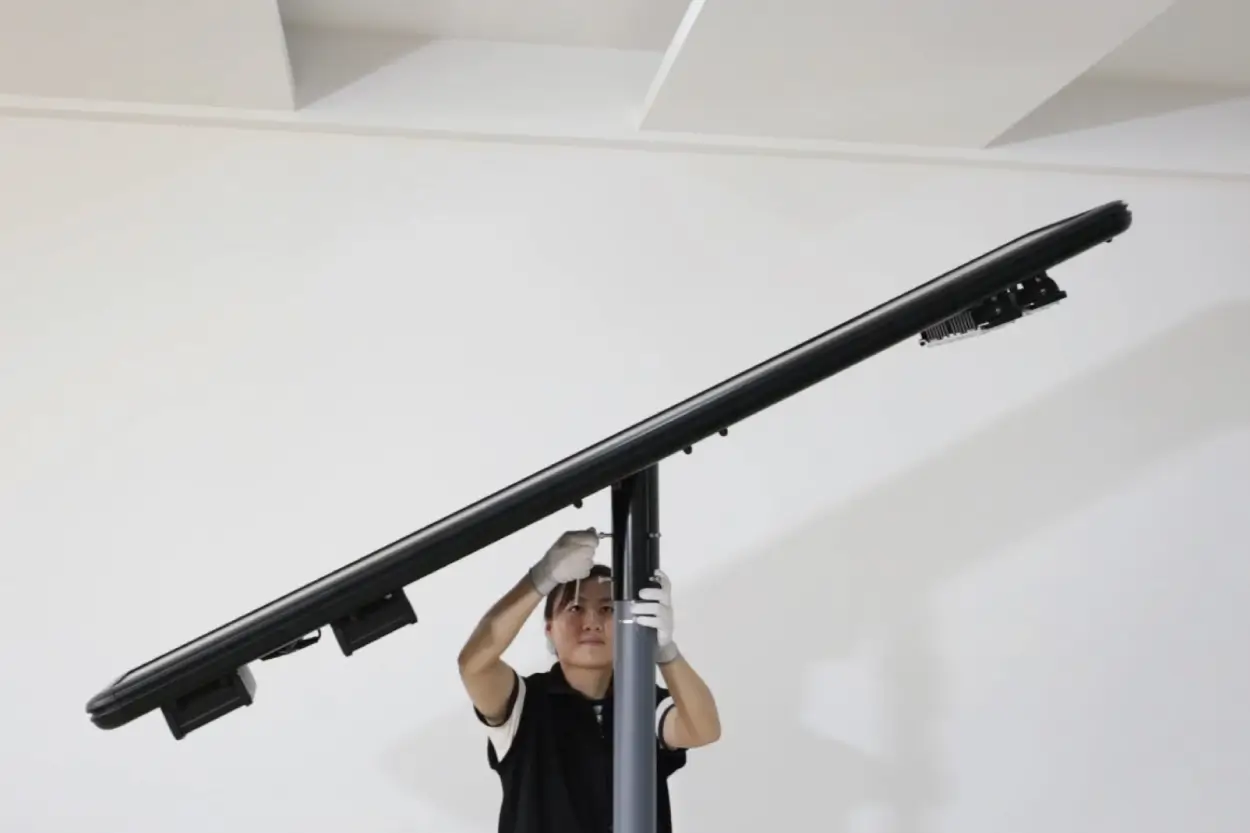

Installation Methods
Installation instructions video

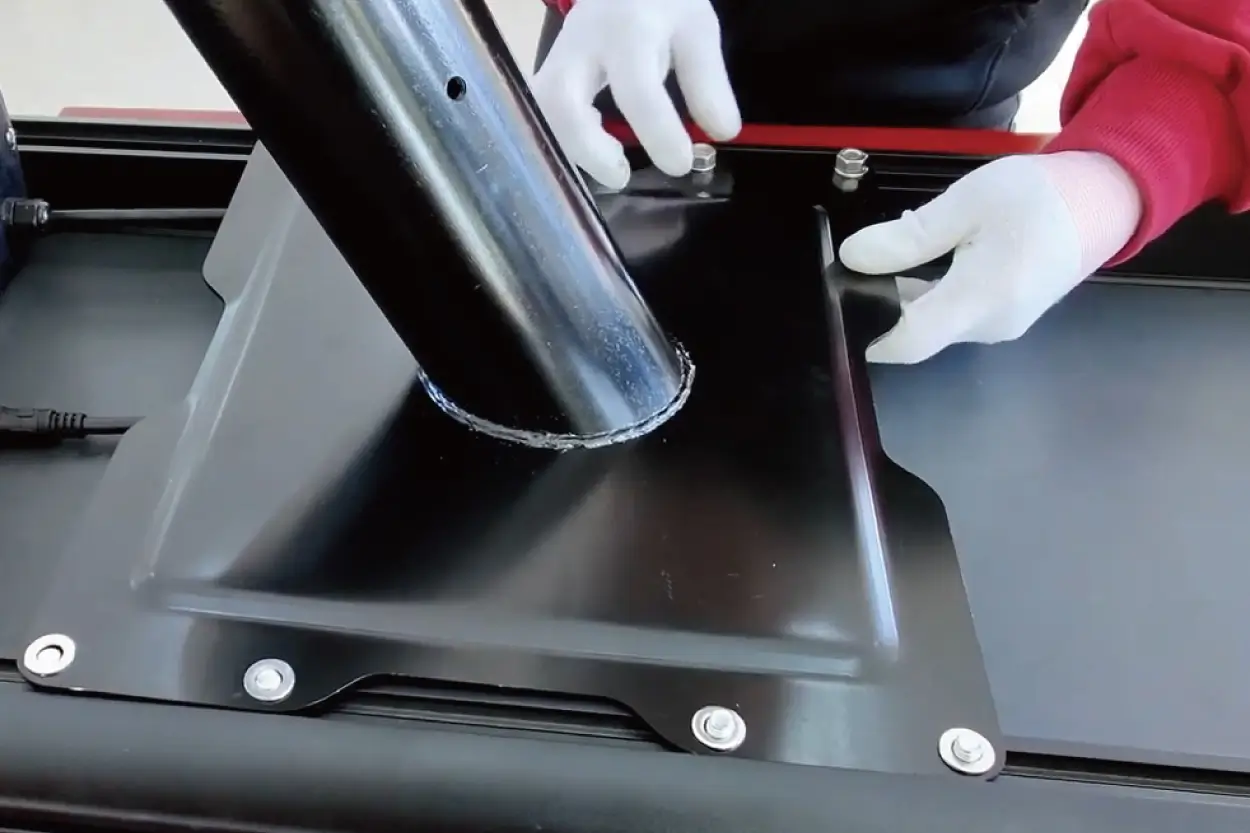

1. Install the base.

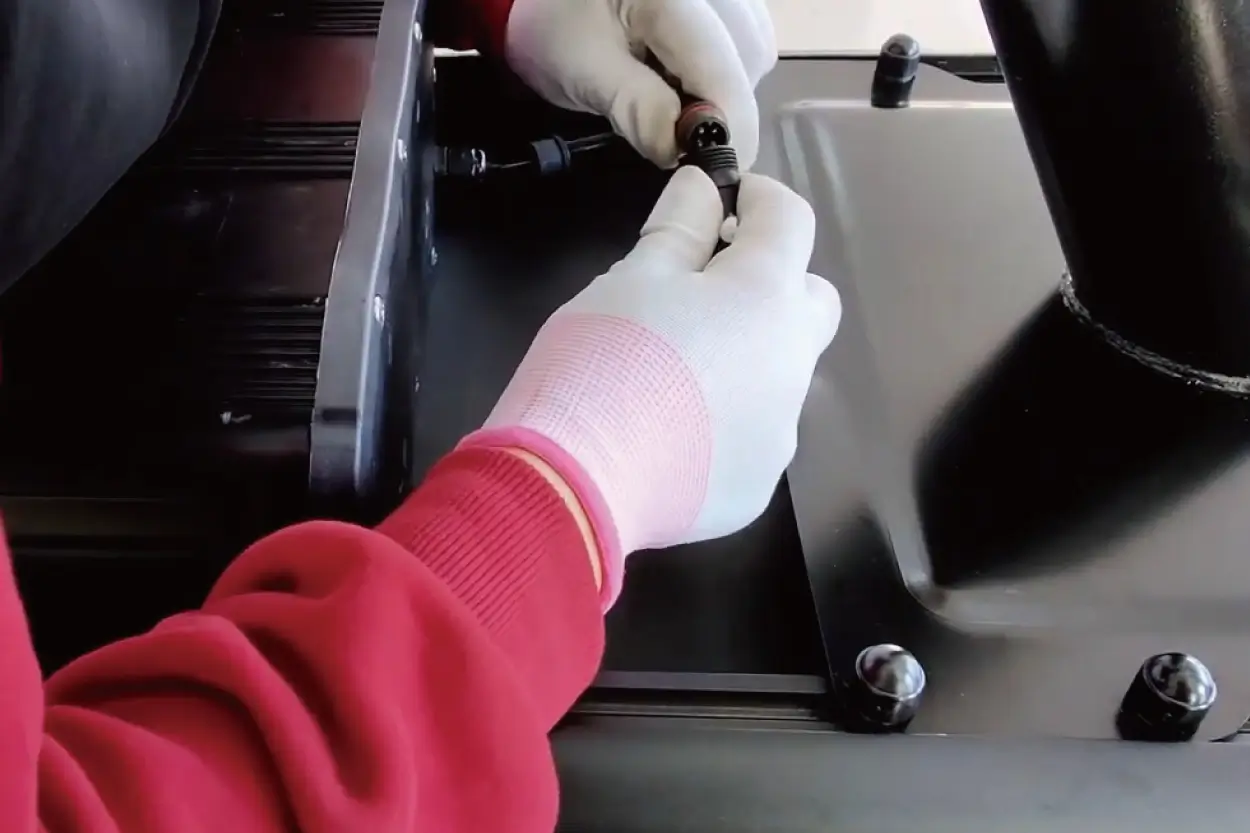

2.Connect ALIEN solar light with the solar panel by the plug & play socket.
3.Adjust the angle of the solar panel.

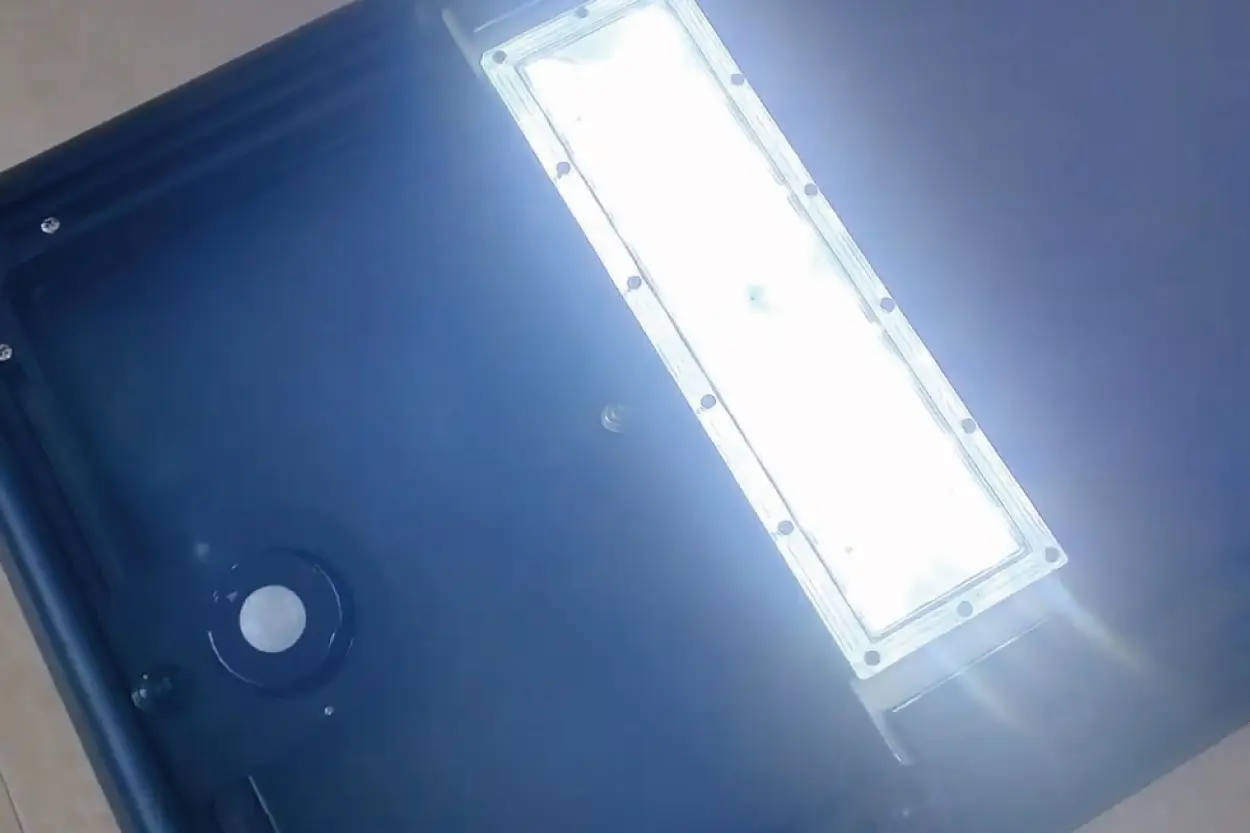

4.ALIEN solar light will work automatically according to the preset program.
Product Videos

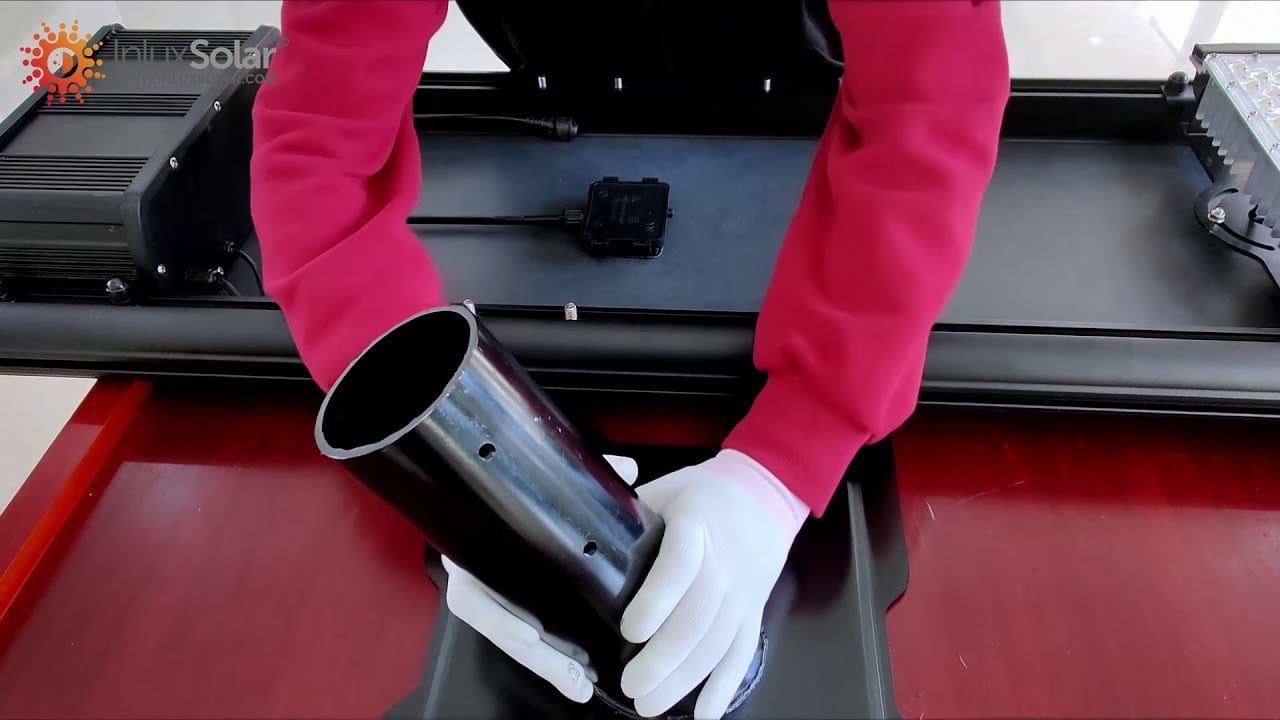

ALIEN Series Installation Video

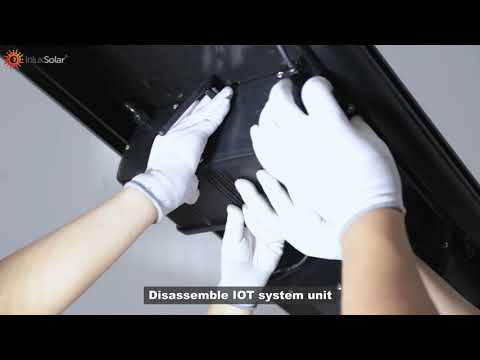

ALIEN INL AIO5 Smart All In One Solar Street Light

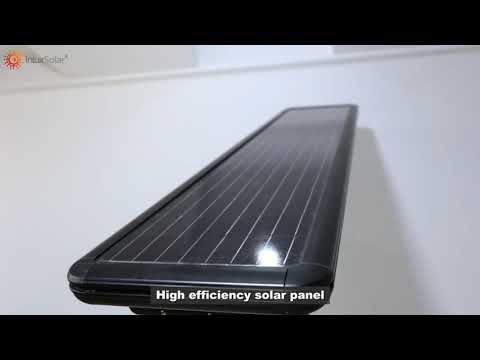

Alien All In One Solar Street Light INL AIO5

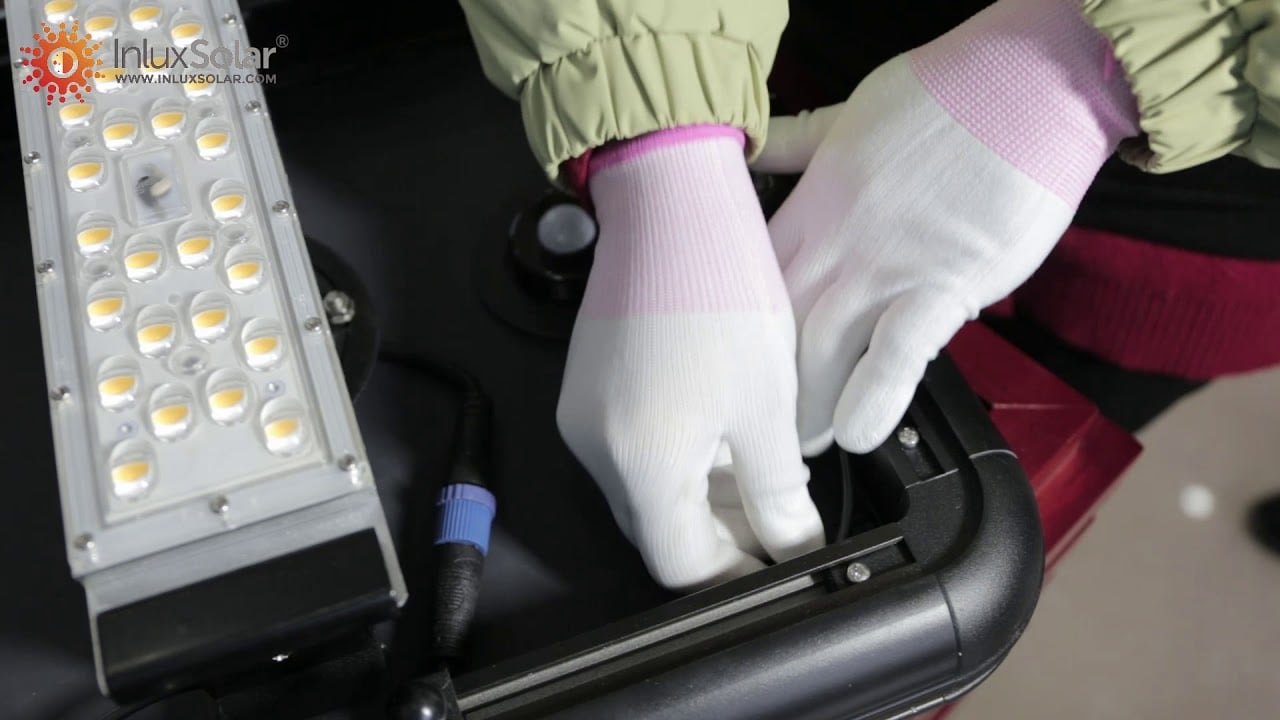

ALIEN Series Replace the motion sensor
