Applications：

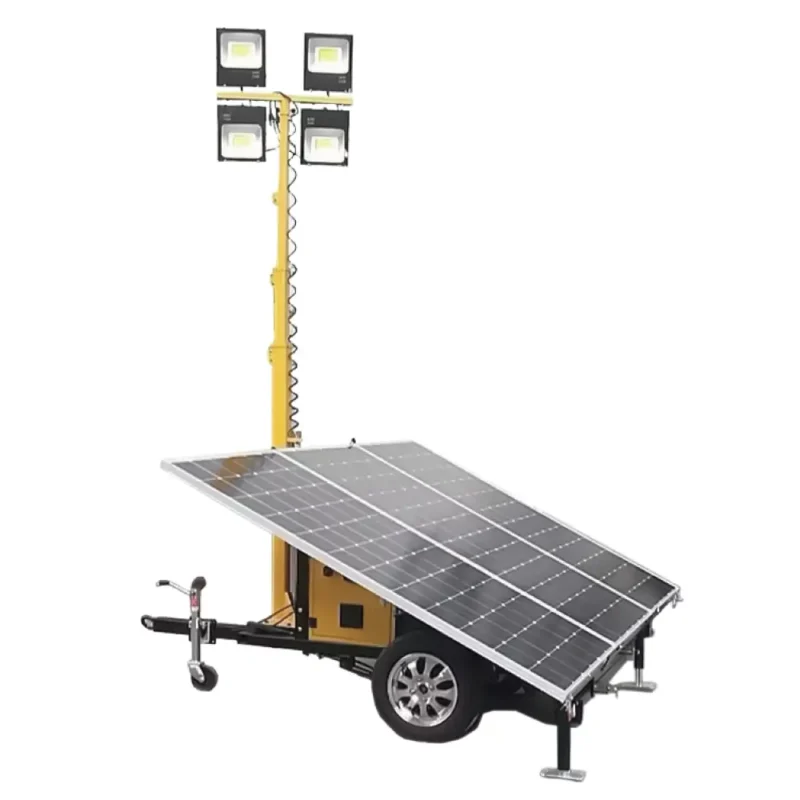

Solar Tower Light
Solar Tower Light is a mobile, telescopic lighting system for temporary or remote sites. It integrates 4×100W LED floodlights, 3×360W solar panels, and a 500Ah/24V battery for ~21 hours of runtime, with a 6 m maximum height and IP65–IP66/IK09 durability.
Description
Where This Product Fits (Tender-Ready)
- System type: Solar High Mast Light (also used for temporary/remote sites)
- Bundles: Buyer’s Guide (Bundles)
- Templates: Project Input Sheet · RFQ/BOQ Kit
Most relevant guides:
Features
The Solar Tower Light is a mobile, telescopic lighting system for temporary and remote work areas. Before ordering, confirm the deployment footprint, transport and stabilisation arrangement, operating schedule and site access. Request a configuration-specific runtime assessment and the instructions for safe setup; the published runtime is not a guarantee for every load or weather condition.
Solar Tower Light Technical Specifications
| LED Flood Lamp | LED Power per Lamp | 100W |
| Lamp Qty | 4 | |
| Luminous Efficiency | >175lm/w (SMD 5050) | |
| Color Temperature | 3000K – 6500K | |
| Beam Angle | 120° | |
| Housing Material | Die-casting Aluminum | |
| Lens Material | PC / PC + tempered glass | |
| Solar Power Supply | Solar Panel Capacity | 360W*3pcs |
| LEAD ACID Battery Capacity | 500AH/24V | |
| Working Time | 21hours (fully charged) | |
| Dimensions | Maxmium Telecopic Height | 6000mm |
| Unfolded | 300*2500*6000mm | |
| folded | 2200*1300*1300mm | |
| System | Working Temperature | -20 – 65℃ |
| Protection Levels | IP65 – IP66 / IK09 | |
| Wind Resistance | >120km/h | |
| Life Span | LED lamp: > 20years | |
| battery: > 5years | ||
| solar controller:> 20years | ||
| solar panel: > 25years | ||
| Warranty | 3 / 5 years |
