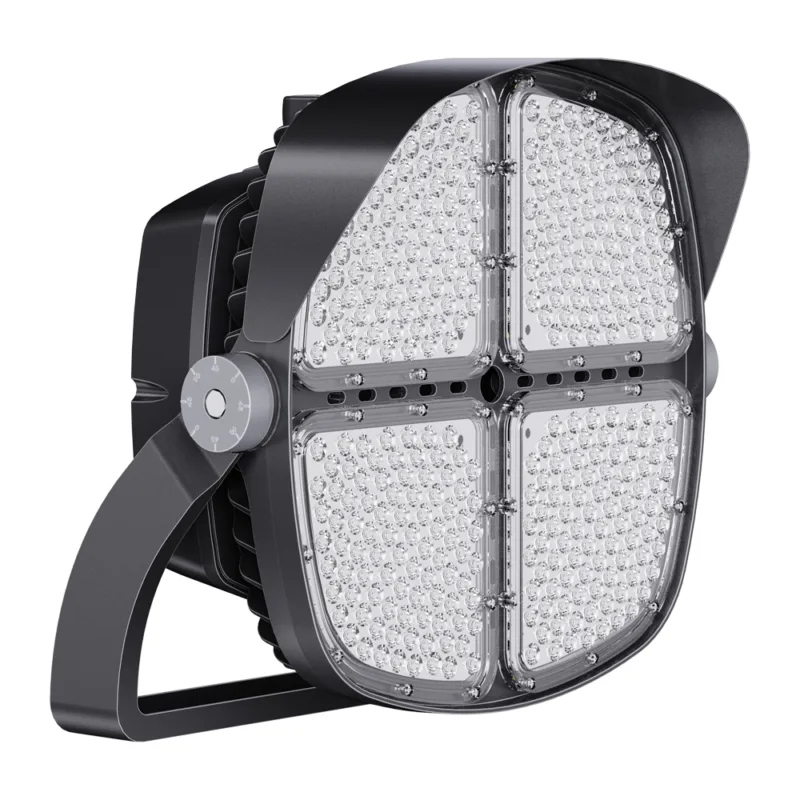

Solar Flood Light – FLD24
The FLD24 Series is a high-performance stadium lighting solution engineered with advanced technology, designed to meet the latest demands of industrial and commercial lighting applications. Whether for new installations or retrofit projects, FLD24 delivers significant energy savings and reduced maintenance costs, making it a cost-effective and sustainable choice. Designed with user comfort and safety in mind, it provides uniform light distribution with minimal glare, ensuring optimal visibility in demanding environments. Combining efficiency, reliability, and superior lighting quality, FLD24 is built to perform.
Description
Key Features of FLD24 Series Stadium Light
High Luminous Efficiency up to 200 lm/W
Provides powerful illumination while reducing energy consumption and operating costs.
Flexible Power Range (600W–1000W)
Designed to meet various project needs, ideal for installation heights from 10m to 30m.
Precision Optical Design (20°/40°/60°)
Ensures uniform light distribution with minimized glare for better visual comfort.
Reliable Outdoor Performance
IP65 protection with 10–20KV surge protection, ensuring stable operation in harsh environments.
High-Quality LED & Stable Driver Options
Equipped with premium SMD chips and flexible driver configurations for consistent performance.

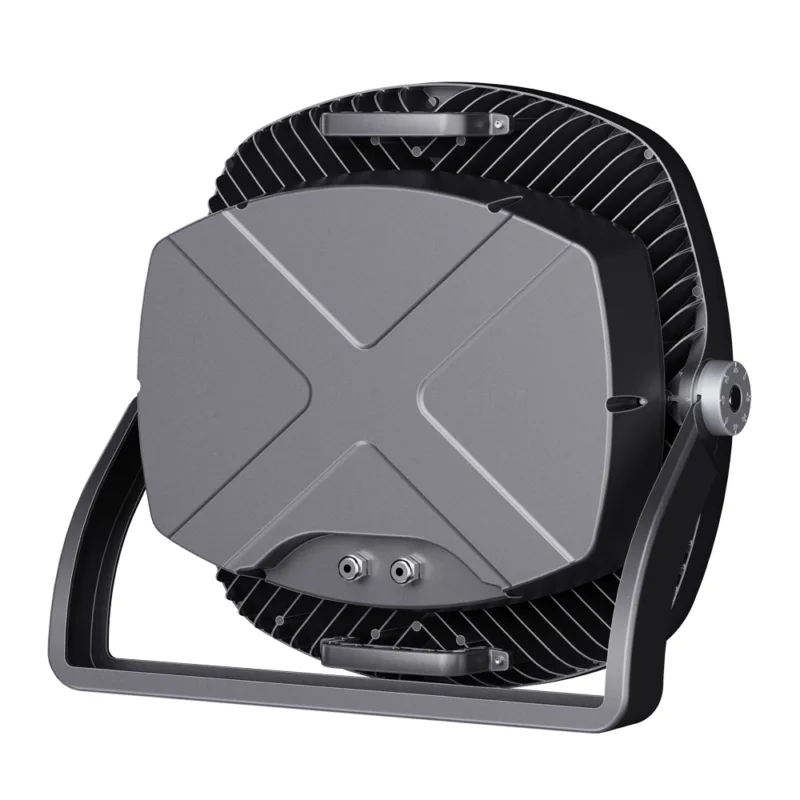

Durable Structure with Efficient Heat Dissipation
Aluminum alloy housing enhances thermal management and extends product lifespan.
High-Transmission Optical Lens
Equipped with a premium PC lens, ensuring high light transmittance and precise light control for maximum lighting efficiency.
High-Performance SMD LEDs (3535 / 5050)
Utilizing high-quality SMD3535 and SMD5050 chips, delivering stable output, high luminous efficiency, and long service life.

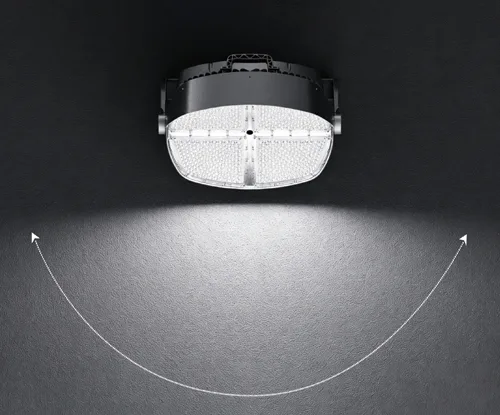

Anti-Glare Design with Wide Coverage
Optimized optical design reduces glare while providing wide and uniform illumination, improving visual comfort in large areas.

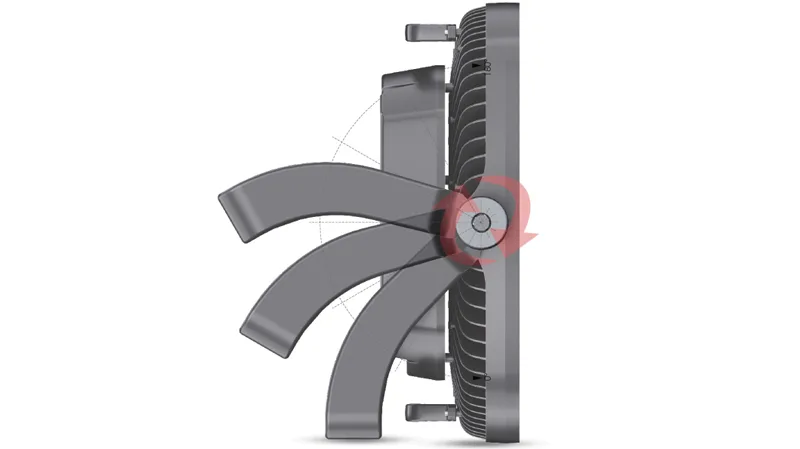

Adjustable Mounting Bracket (Up & Down Rotation)
The luminaire head is equipped with a flexible bracket, allowing vertical angle adjustment to achieve precise lighting direction.

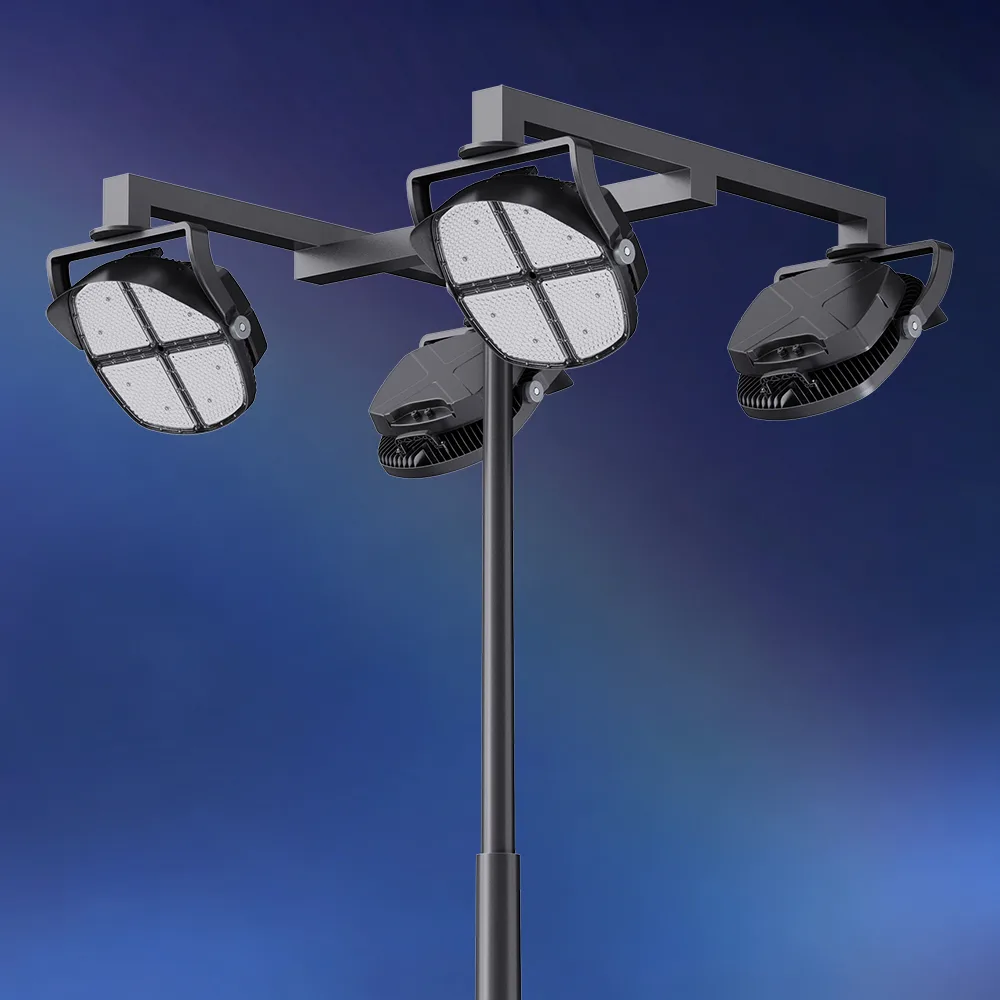

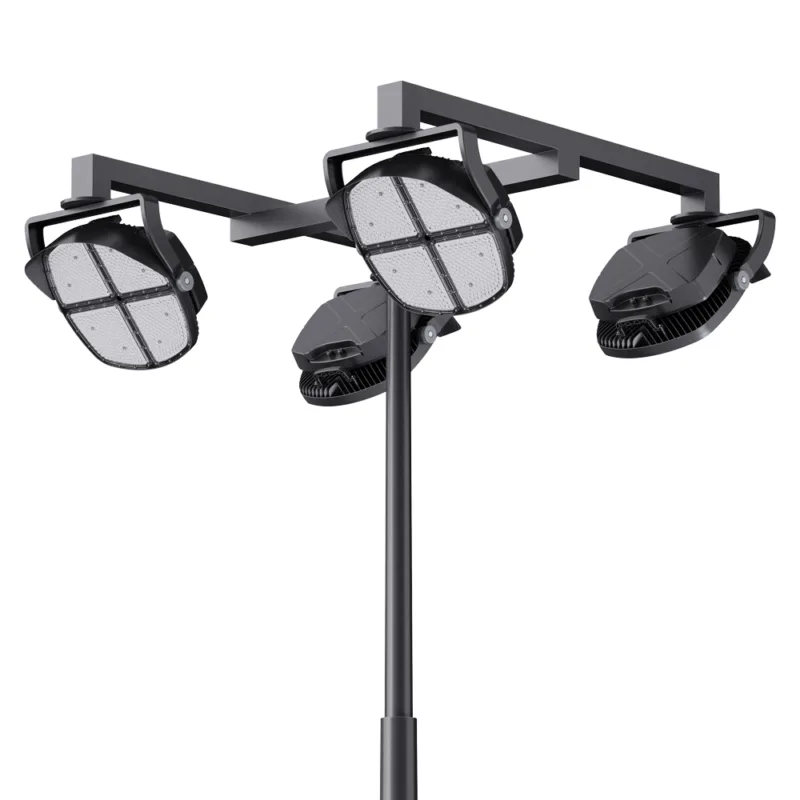

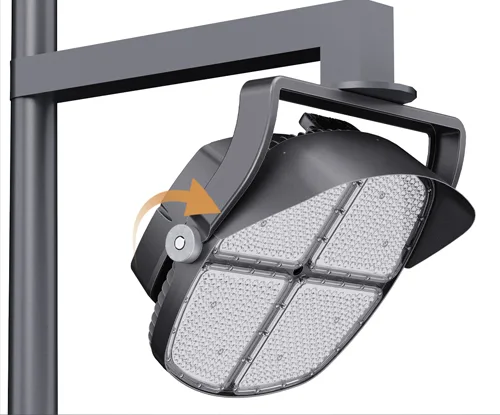

Modular Multi-Head Mounting System
Designed with a horizontal support bracket between pole and fixtures, enabling multiple luminaires installation with adjustable left-right rotation for wider coverage.

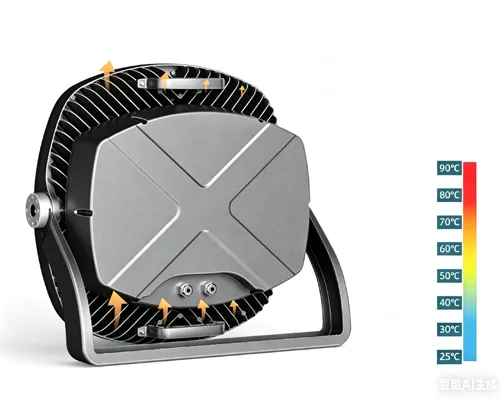

Efficient Heat Dissipation with Aluminum Housing
Constructed with high-quality aluminum alloy, ensuring excellent heat dissipation to maintain stable performance and extend the lifespan of the luminaire.
Technical Specifications
| Model | FLD24-A | FLD24-B | FLD24-C |
| Power | 600W | 800W | 1000W |
| Nominal Voltage | AC100-277V, 50/60HZ | ||
| Driver | Select as needed | ||
| LED Chip LED | SMD3535 / SMD5050 | ||
| CRI | CRI70 / CRI80 | ||
| CCT | 3000K / 4000K / 5000K | ||
| Beam Angle | 20° / 40° / 60° | ||
| Luminous Efficiency | 150-200 lm/W | ||
| Luminous Flux(±10%) | 10735-40000 lm | ||
| IP Rate | IP65 | ||
| Surge Protection | 10KV / 20KV | ||
| Working Environment | -20°C~45°C / 20%~90%RH | ||
| Storage Temperature | -20°C~70°C / 10%~90%RH | ||
| Lamp Body Material | Aluminum alloy profile | ||
| Lens Material | PC Lens | ||
| Installation Height | 10m-30m | ||
| Luminaire Size | 503×461×203mm | 576×564×264mm | 675×620×374mm |
Interior Structure
Review the FLD24 component layout shown below.
01
02
03
04
05
06

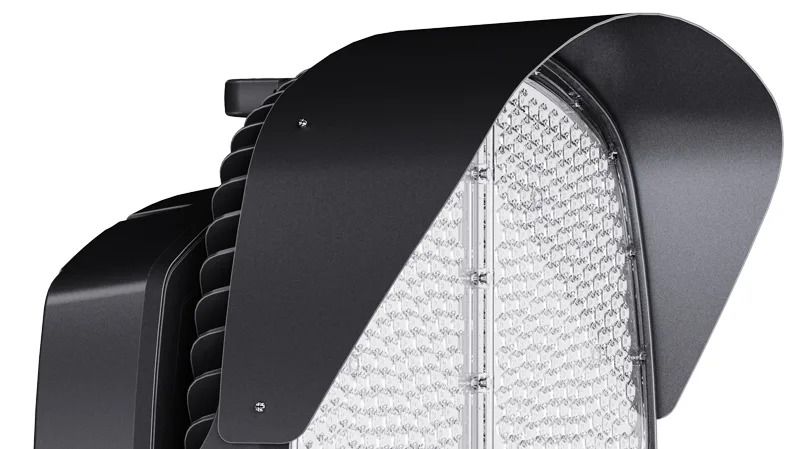

Anti-Glare Design
The luminaire features a built-in anti-glare structure, ensuring that the light source remains hidden from direct view within the visual field. Designed with ergonomic principles, it delivers sufficient illumination while effectively minimizing glare, enhancing visual comfort and safety.

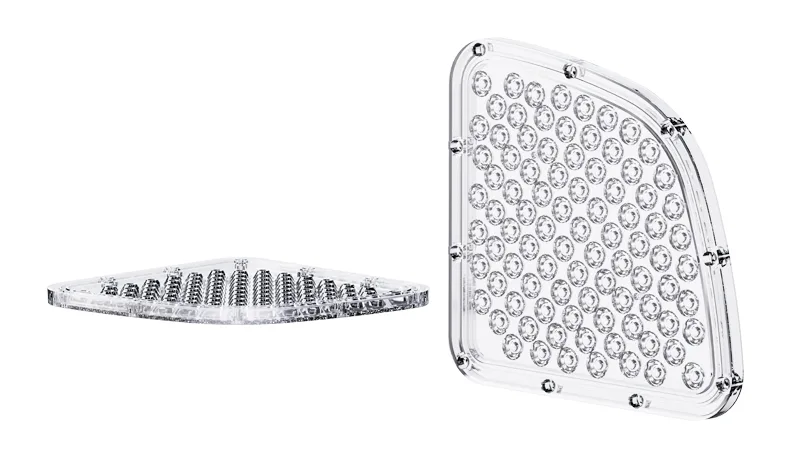

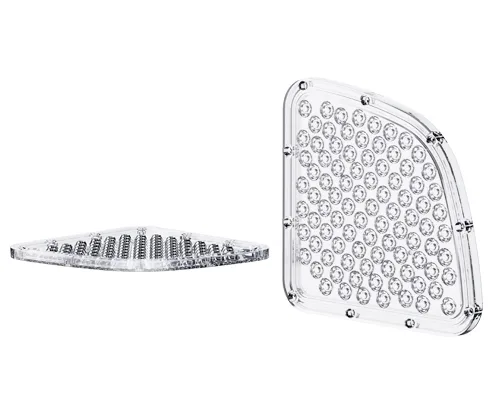

High-Transmission LED Lens
Equipped with a customized high-transparency, ultra-clear PC lens, ensuring excellent light transmittance and improved optical efficiency. The precision-designed lens enhances uniform light distribution while maintaining a clean and modern luminaire appearance.

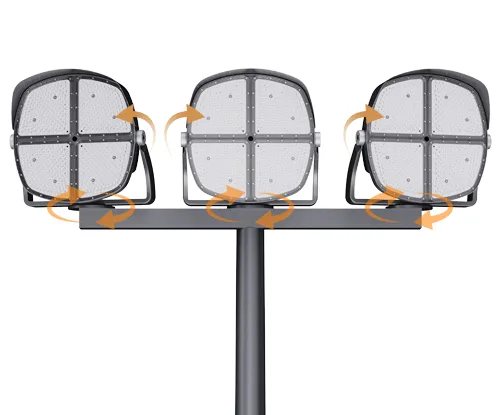

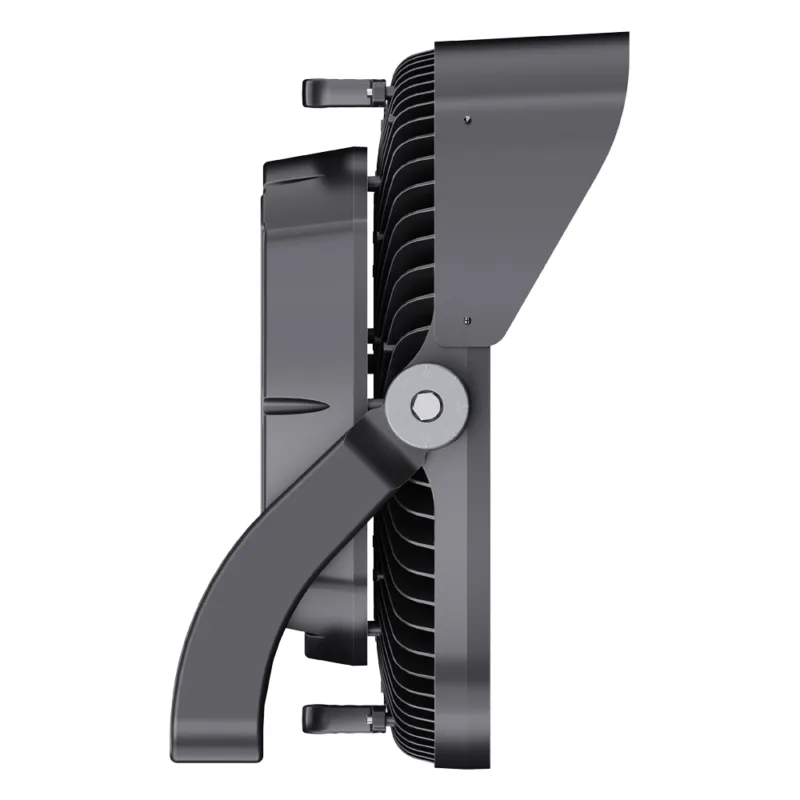

Multi-Angle Adjustable Design
The luminaire features a wide-angle adjustable structure, allowing flexible adjustment between the lamp body and mounting bracket. This enables precise control of the lighting direction, making it adaptable to various installation environments and lighting requirements.
Smart Solar Controller
The Smart Solar Controller offers high efficiency with a smart power-saving mode that optimizes energy use. It operates with constant current and an IP68 rating, ensuring reliable performance even in harsh environmental conditions. This advanced design significantly reduces the light failure rate, providing consistent brightness over time. Additionally, the controller includes multiple protection features that effectively safeguard the battery, enhancing its longevity and ensuring the system’s overall durability and safety.
LiFePO4 Lithium Battery
The Smart Solar Controller offers high efficiency with a smart power-saving mode that optimizes energy use. It operates with constant current and an IP68 rating, ensuring reliable performance even in harsh environmental conditions. This advanced design significantly reduces the light failure rate, providing consistent brightness over time. Additionally, the controller includes multiple protection features that effectively safeguard the battery, enhancing its longevity and ensuring the system’s overall durability and safety.
Solar Panel
The solar panel features A-class quality with a high charging efficiency of 21%. This ensures optimal energy conversion, maximizing power generation even under varying sunlight conditions. Its premium design guarantees reliability and long-term performance, making it a highly efficient and durable solution for solar energy applications.

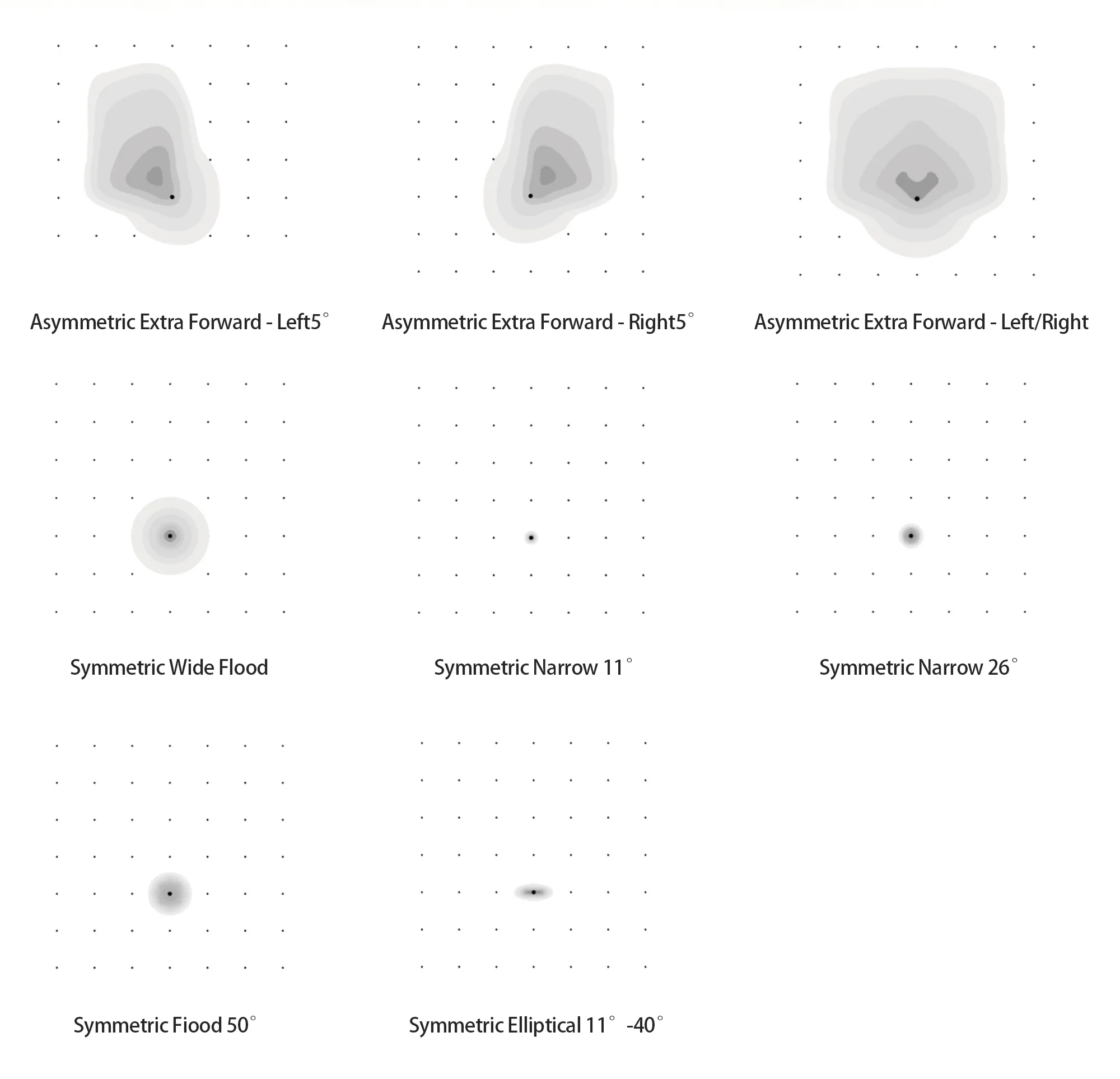

Light Distribution Angle
For an FLD24 lighting review, send the outdoor area dimensions, proposed mounting positions and heights, lighting task and required operating schedule. Request the photometric file for the quoted luminaire and optic, then assess illuminance, uniformity, glare and spill light against the project criteria. Confirm the power supply, controls and installation scope in the configuration schedule.
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, Inlux Solar’s IOT Smart Monitoring System enables intelligent management of our solar flood light FLD24 by PC, PAD and Mobile.

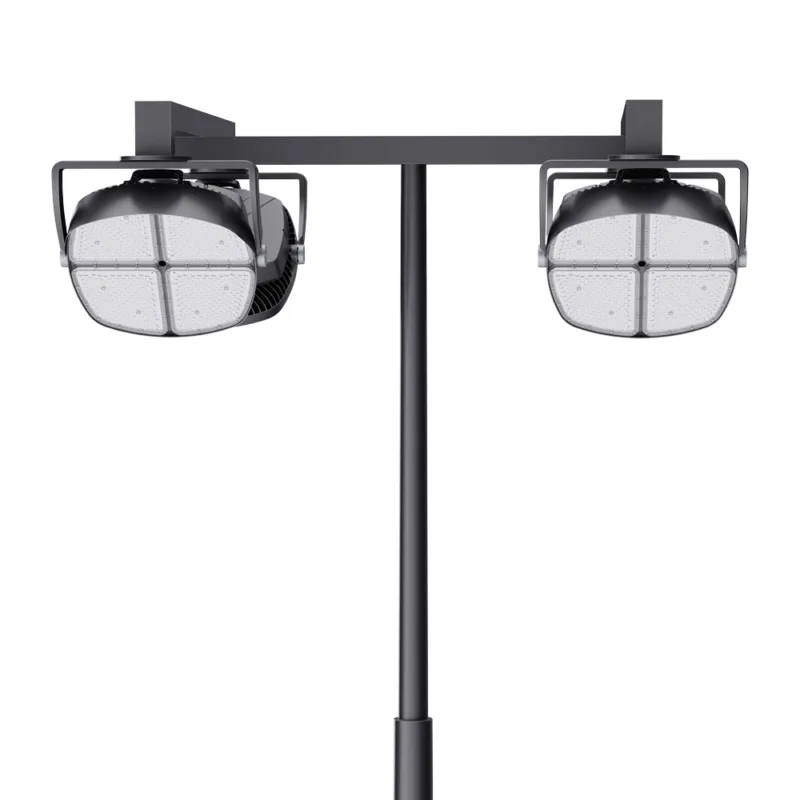

Compatible Pole Designs
Our flood light poles can be customized with various pole shapes and materials. Check out some of our pole designs, and feel free to share your ideas with us if you have additional customization needs.
Define the FLD24 Supply Package
For a comparable quotation, identify the luminaire, optic, mounting arrangement and power supply as separate line items. State whether the project requires a solar generation and storage package, a pole or mounting hardware, and any monitoring equipment. Ask for the exact quoted configuration and interface drawings rather than treating an illustration as the bill of materials.
Review the billboard lighting project inputs or flood light pole requirements, then send the FLD24 project brief.
