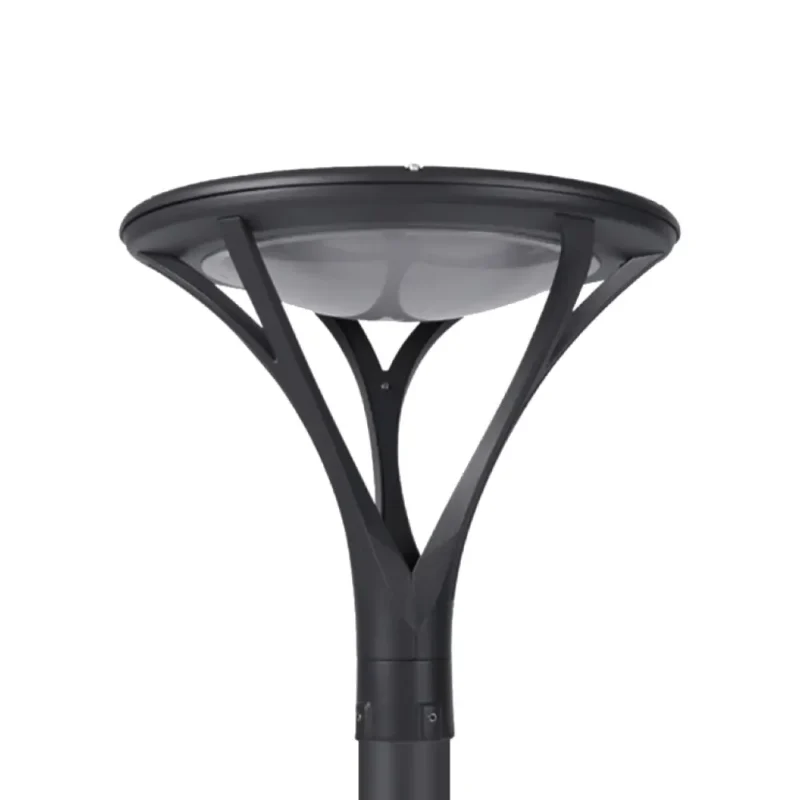

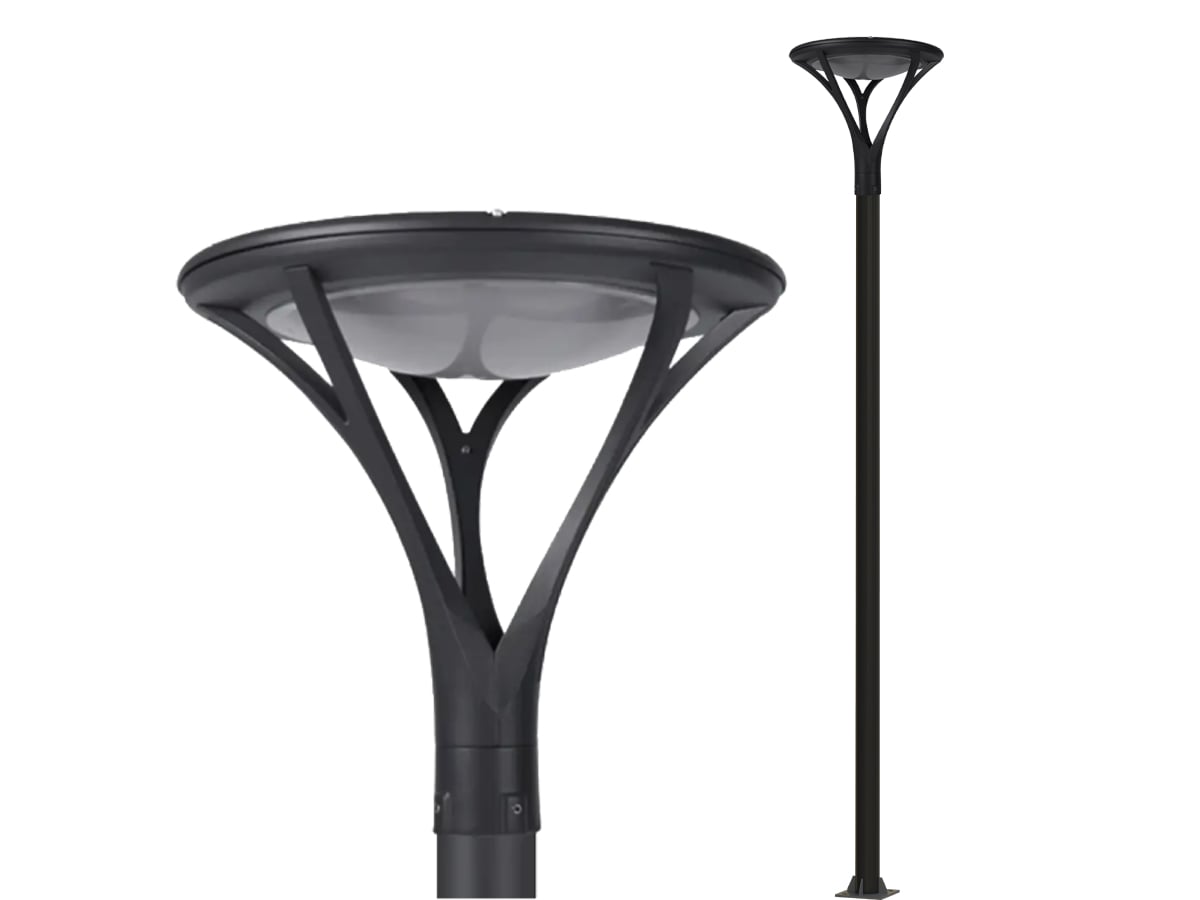

INL-DSL02 Decorative Street Light
The INL-DSL02 Decorative LED Street Light combines a modern post-top form with a detachable LED module for easy maintenance. Configure up to 80W with SMD 3030/5050 packages and 3000–6500K CCT to match ambience and visibility. A die-cast aluminum body with PC + tempered-glass optics is rated IP65/IK08, operating from −40°C to 50°C with a 60 mm spigot—ideal for parks, business districts, and residential streets.
Description
Features
Designed for streetscapes, the INL-DSL02 Decorative Street Light pairs a clean post-top silhouette with serviceable engineering. The detachable light module simplifies upkeep, while SMD 3030/5050 LEDs and 3000–6500K color choices adapt to different urban settings. The luminaire uses a die-cast aluminum housing and PC + tempered-glass lens to achieve IP65/IK08 protection and a −40°C to 50°C operating window. With up to 80 watts of output and a 60 mm spigot, DSL02 fits common decorative lamp posts across parks, boulevards, and residential communities.
INL-DSL02 Decorative Street Light Technical Specifications
| Max. Power | 80W |
| Power Supply | MEANWELL / PHILIPS / MOSO / INVENTRONICS |
| Working Voltage | 90 – 305V AC, 50/60Hz |
| CCT | 3000K – 6500K |
| CRI | >70 (>80,>90 optional) |
| LED Chip | SMD 3030 / SMD 5050 |
| Luminous Efficiency | >110lm/w (SMD 3030) / >160lm/w (SMD 3030) |
| Housing Material | Die-casting Aluminum |
| Lens Material | PC + Tempered glass |
| Product Dimension (mm) | Φ481*379 |
| Lamp Holder Diameter (mm) | 60 |
| IP/IK Rate | IP65 / IK08 |
| Working Temperature | -40°C~50°C, 20%~90% RH |
| Life Span | >50,000 Hours |

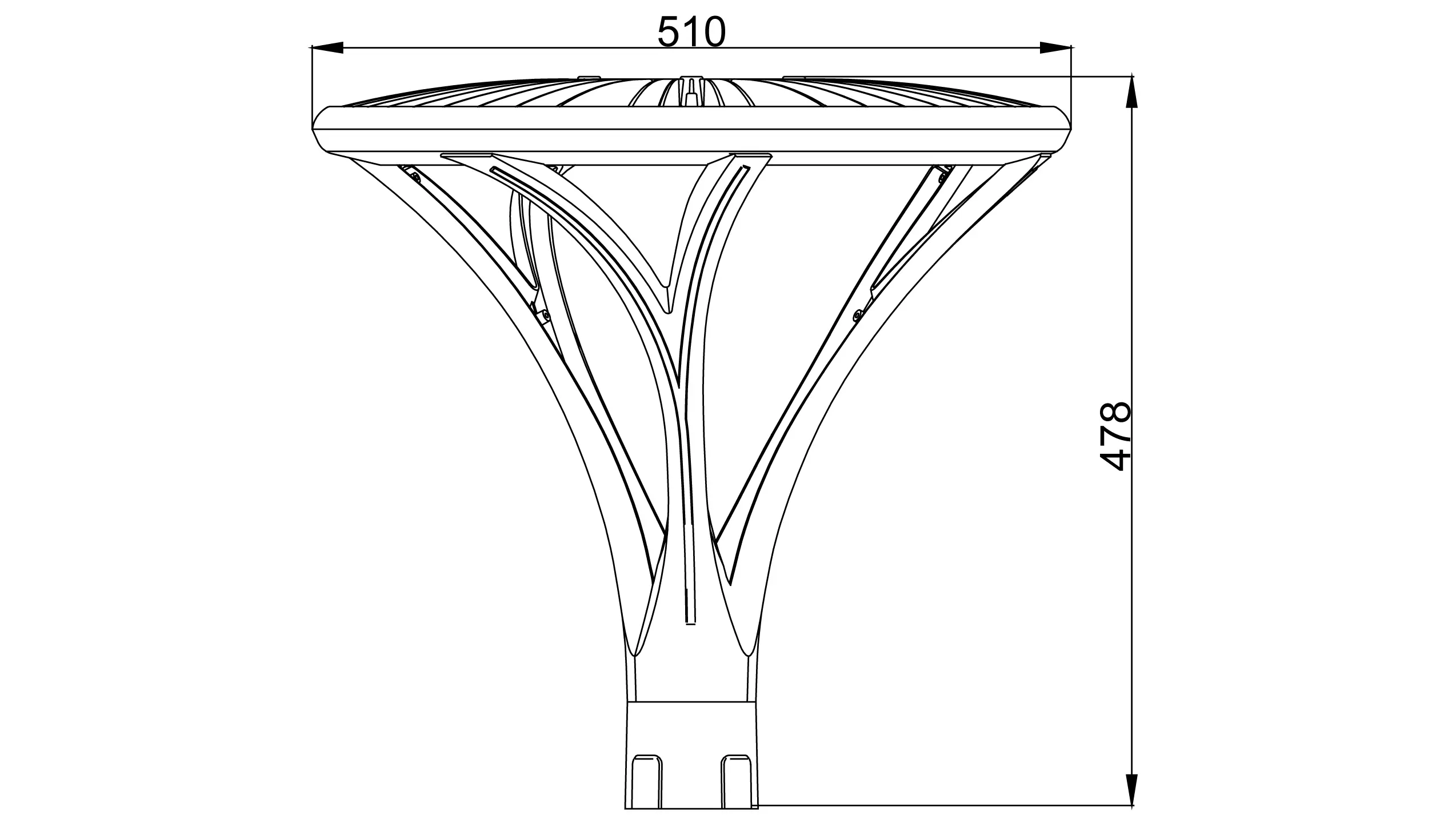

Dimensions
Check the DSL02 Pole Interface
DSL02 uses an open-frame post-top form. Share the pole interface, path or plaza layout and appearance brief before confirming the order. Ask for the quoted optic and driver details, a mounting drawing and the component-access arrangement. Any control accessory, adapter, pole or installation work should appear separately in the quotation so competing offers can be compared on the same basis.
Review the decorative LED range or send the project brief for a quotation.
