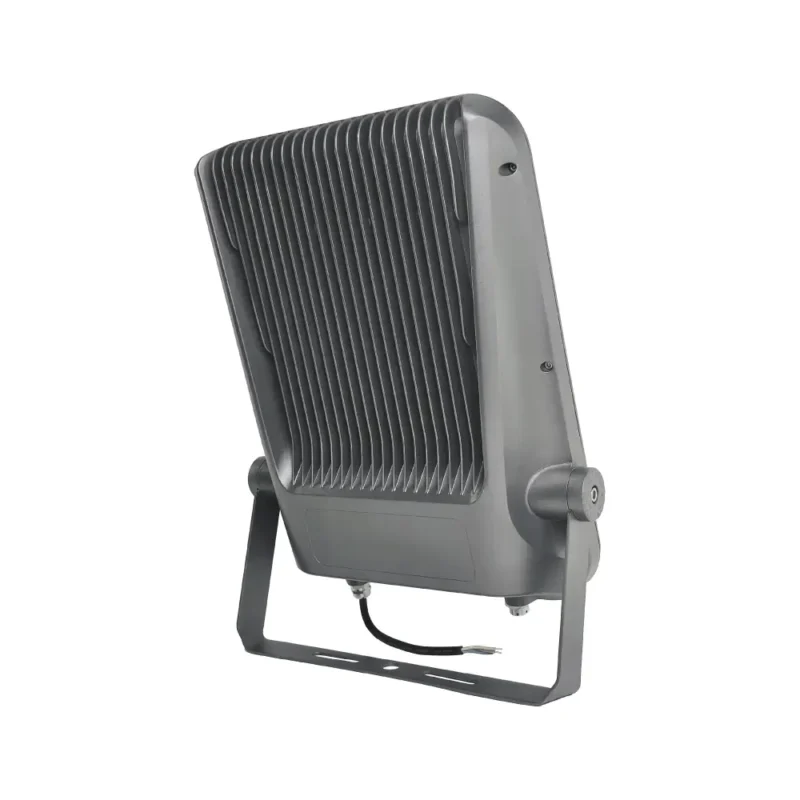

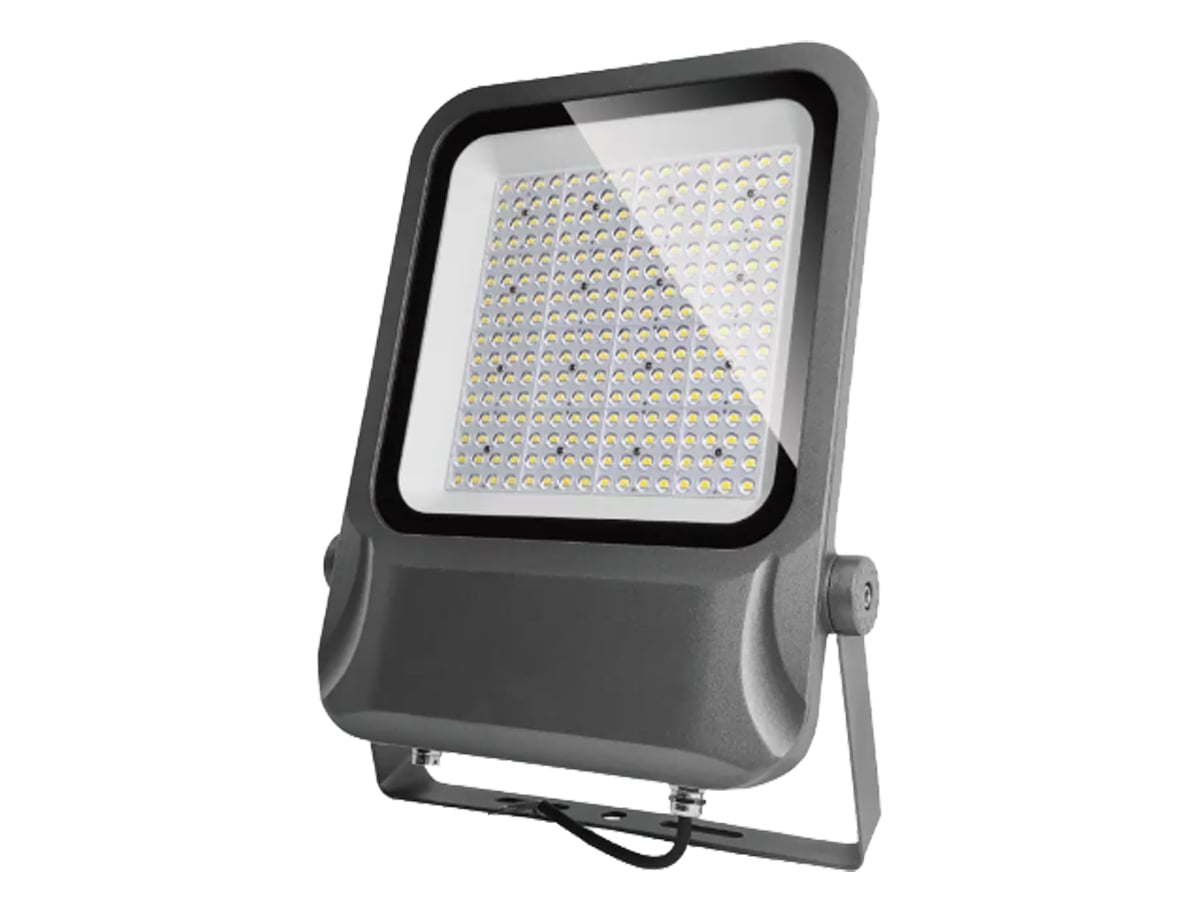

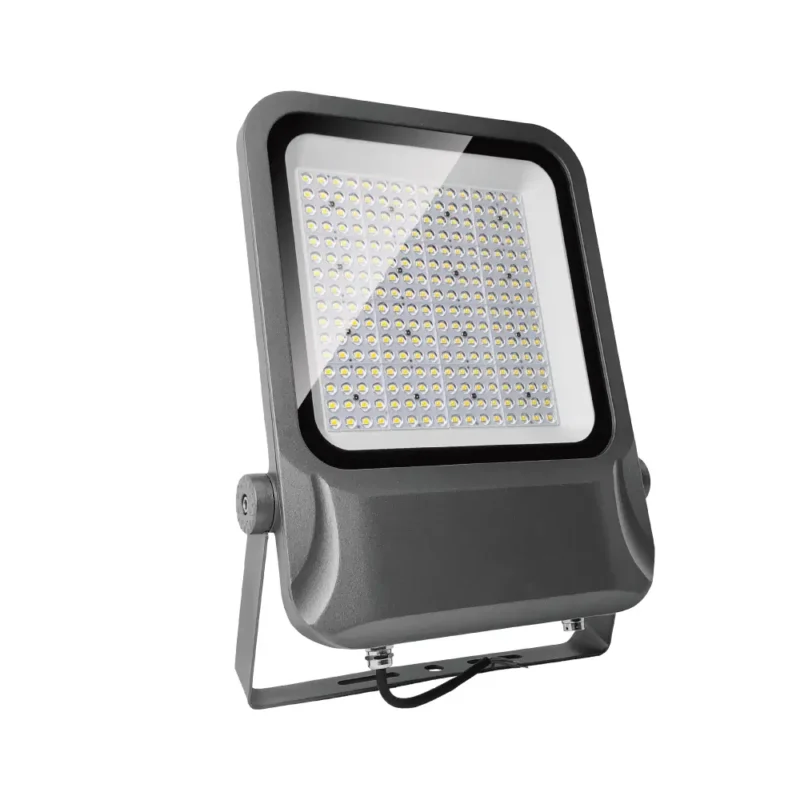

INL-FLD20 LED Flood Light

INL-FLD20 LED Flood Light covers sports, industrial, and open-area projects with 50–200W options and 30°/60°/90°/120° beams. An aerodynamic, die-cast aluminum body improves heat dissipation, while a respirator helps prevent condensation. The bracket features 10° step angle adjustment, and the optics use a PC lens plus smooth, self-cleaning tempered-glass cover. Choose SMD 3030/5050 LEDs for up to 160 lm/W and pair with branded drivers.

Applications：

Commercial District

Certified Quality for Global Projects

View Specifications Request IES/LDT + Layout Proposal Get A Quote Now

Description

Features

The INL-FLD20 LED Flood Light is engineered for reliable outdoor illumination across parking lots, yards, sports courts, and industrial sites. Power classes from 50 to 200 watts combine with 30°/60°/90°/120° distributions to match real-world mounting heights and throw distances. The die-cast housing and aerodynamic profile aid thermal performance, a respirator mitigates condensation, and the mounting bracket allows 10-degree increments for precise aiming. Using SMD 3030/5050 packages and drivers from MEAN WELL / PHILIPS / MOSO / INVENTRONICS, FLD20 achieves up to 160 lm/W with IP66/IK08 durability and an operating range of −40°C to 50°C.

How This INL-FLD20 Compact LED Flood Light Benefits Your Project

Extreme Bright 5050 LED Provides 40% Higher Brightness

INL-FLD20 Series adopts first-class Extreme Bright 5050 LEDs with 260lm/w efficiency, providing 40% higher brightness than normal solar lights which use 3030 LEDs and 2835 LEDs by its much bigger LED chip size.

Thermal Management

An FEA-informed die-cast aluminum body improves heat transfer, helping maintain output and extend service life in continuous-use applications.

Built for Real-World Conditions

Rated for -40°C to 50°C operation with IP65 / IK08 protection, INL-LED24 is engineered to perform across a wide range of climates and sites.

INL-FLD20 Technical Specifications

Model	FLD20-50W	FLD20-100W	FLD20-150W	FLD20-200W
Power	50W	100W	150W	200W
Power Supply	MEANWELL / PHILIPS / MOSO / INVENTRONICS
Working Voltage	90 – 305V AC, 50/60Hz
Beam Angle	30°,60°,90°,120°
CCT	3000K – 6500K
CRI	>70 (>80,>90 optional)
LED Chip	SMD 3030 / SMD 5050
Luminous Efficiency	>110lm/w (SMD 3030) / >160lm/w (SMD 5050)
Luminous Flux	5500lm (SMD 3030)	11000lm (SMD 3030)	16500lm (SMD 3030)	22000lm (SMD 3030)
Luminous Flux	8000lm (SMD 5050)	16000lm (SMD 5050)	24000lm (SMD 5050)	32000lm (SMD 5050)
Housing Material	Die-casting Aluminum
Lens Material	PC + tempered glass
Product Dimension (mm)	21666312	27072370	33282455	47785638
N.W.(KG)	1.6	2.1	4.1	7.3
IP/IK Rate	IP66 / IK08
Working Temperature	-40°C~50°C, 20%~90% RH
Life Span	>50,000 Hours

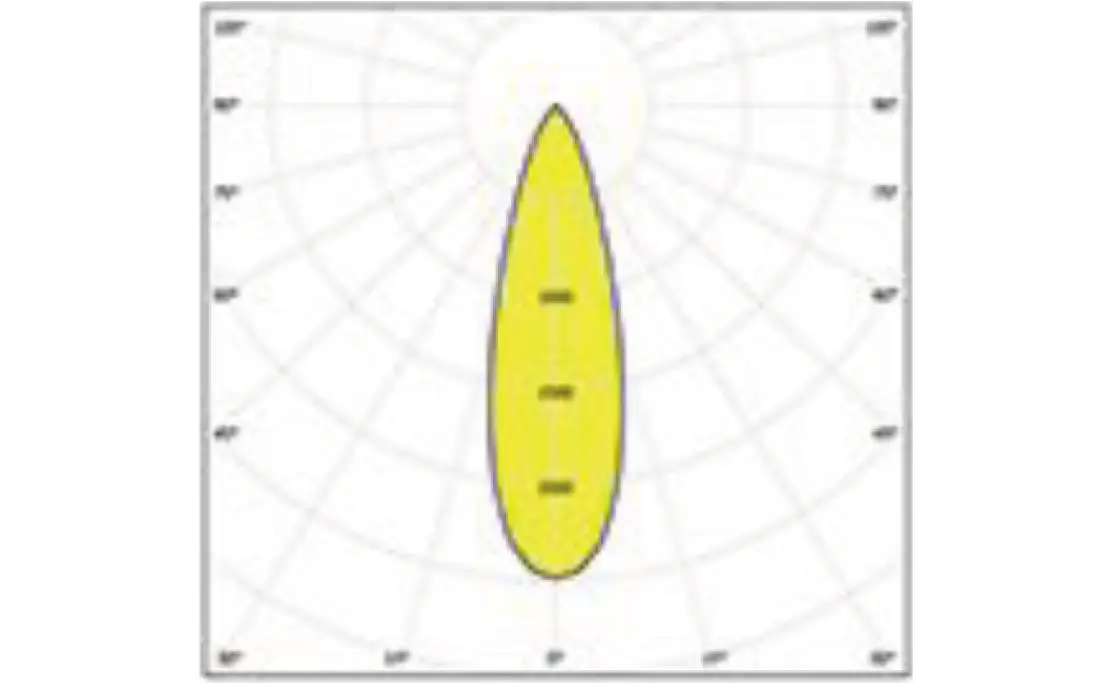

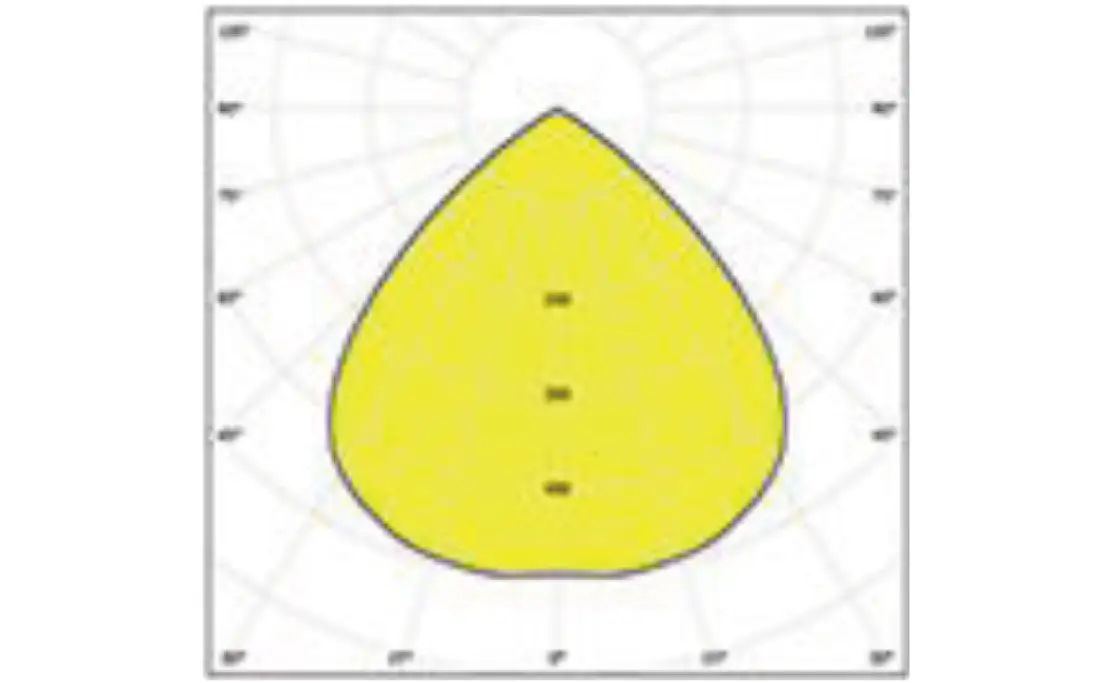

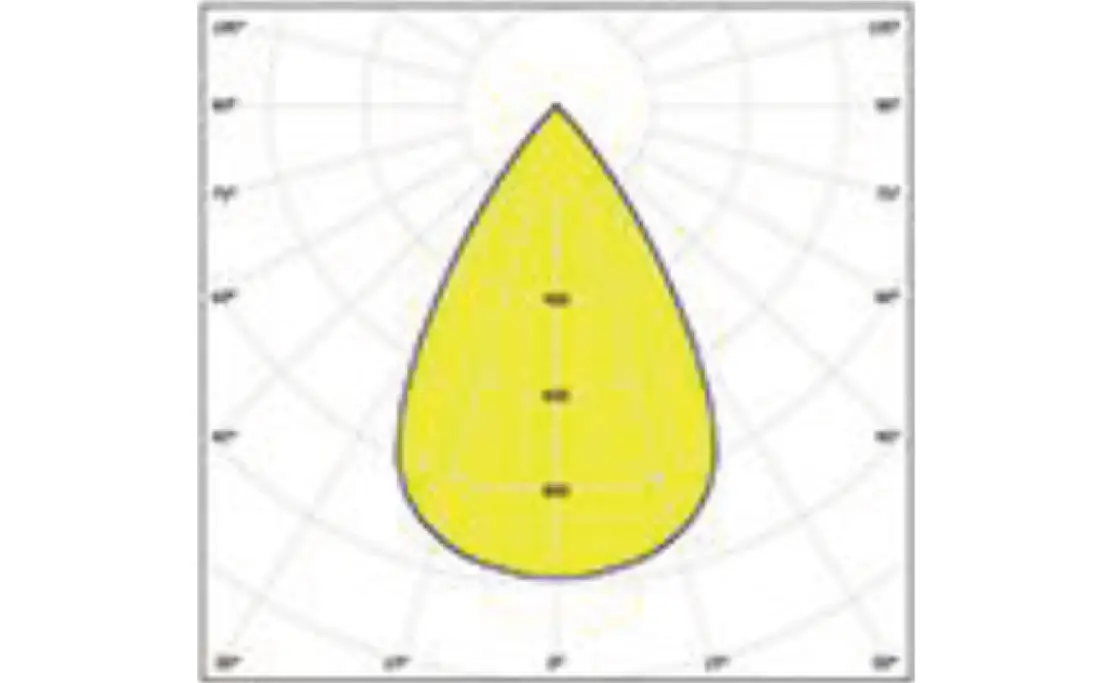

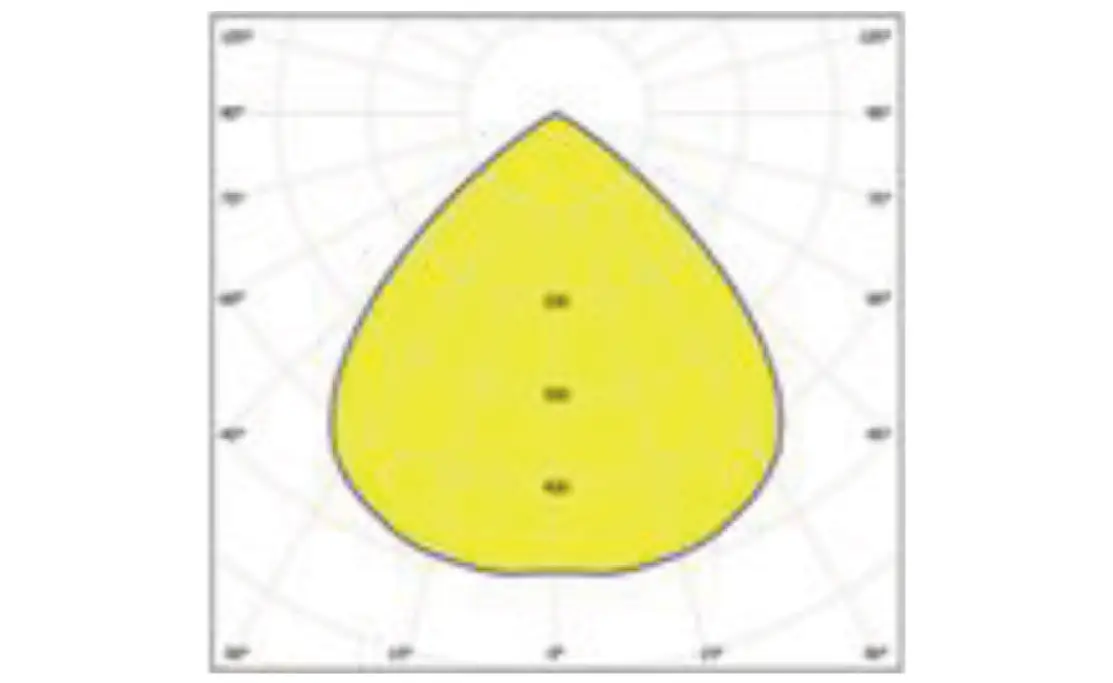

Lighting Distribution

For an FLD20 layout, send the outdoor area dimensions, mounting positions and heights, available power supply, lighting target and operating schedule. Confirm the selected luminaire, optic and bracket interface, then request the matching photometric file to review coverage, uniformity, glare and boundary spill. Compare the commercial LED flood-light models or send your FLD20 layout and quantity for a project-specific proposal.
