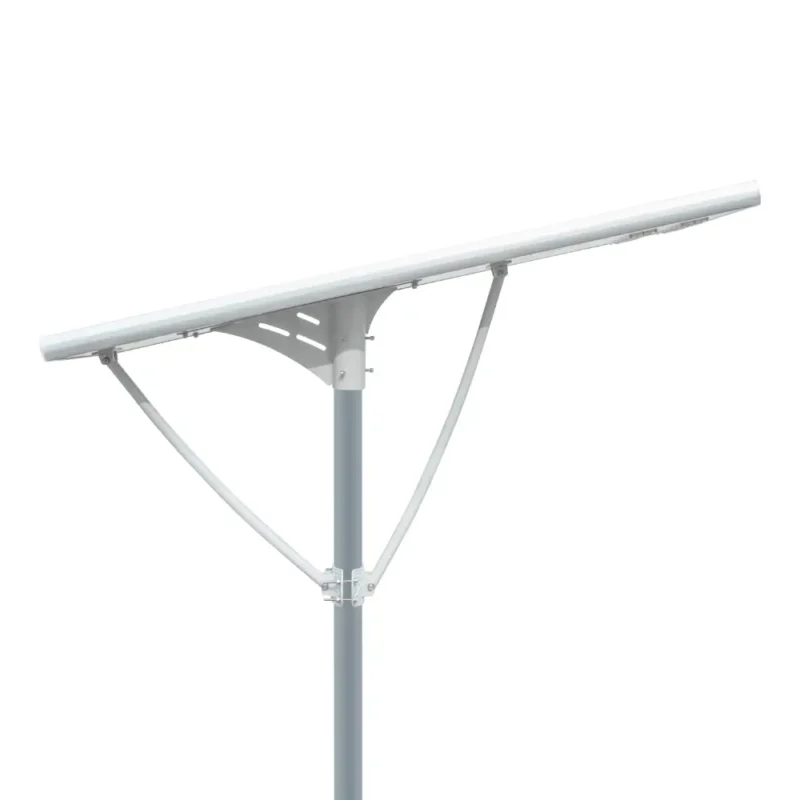

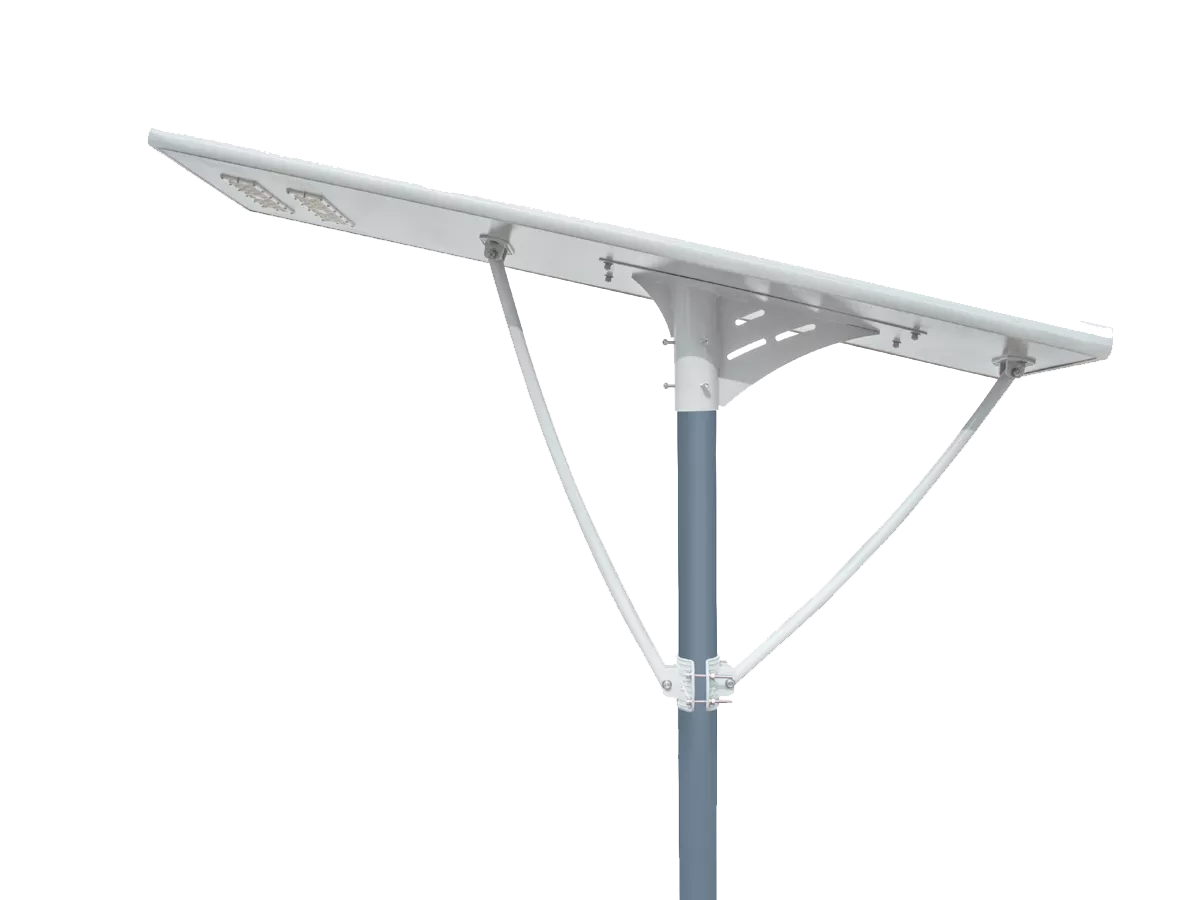

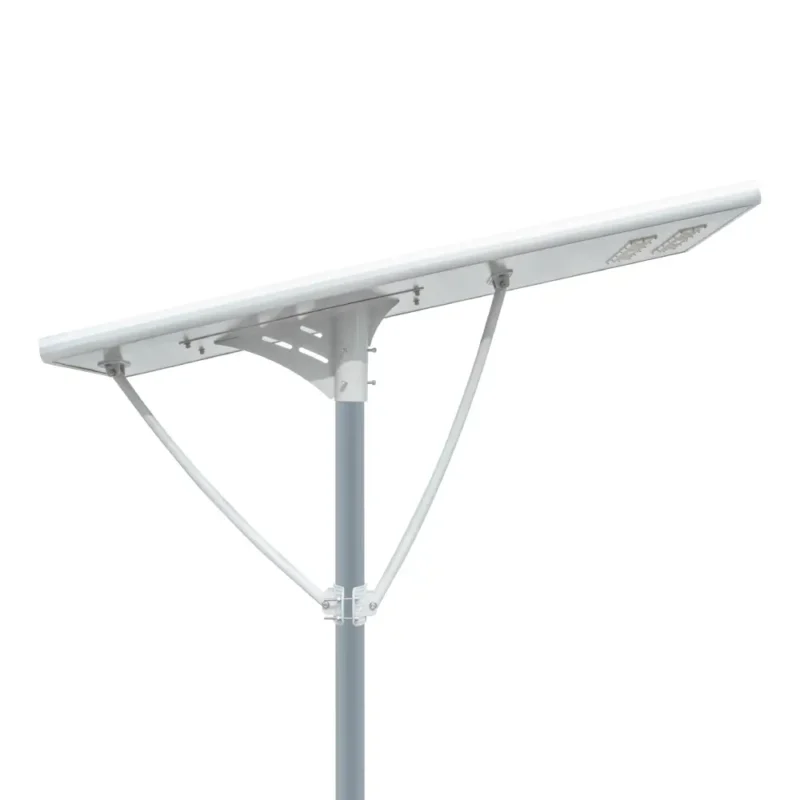

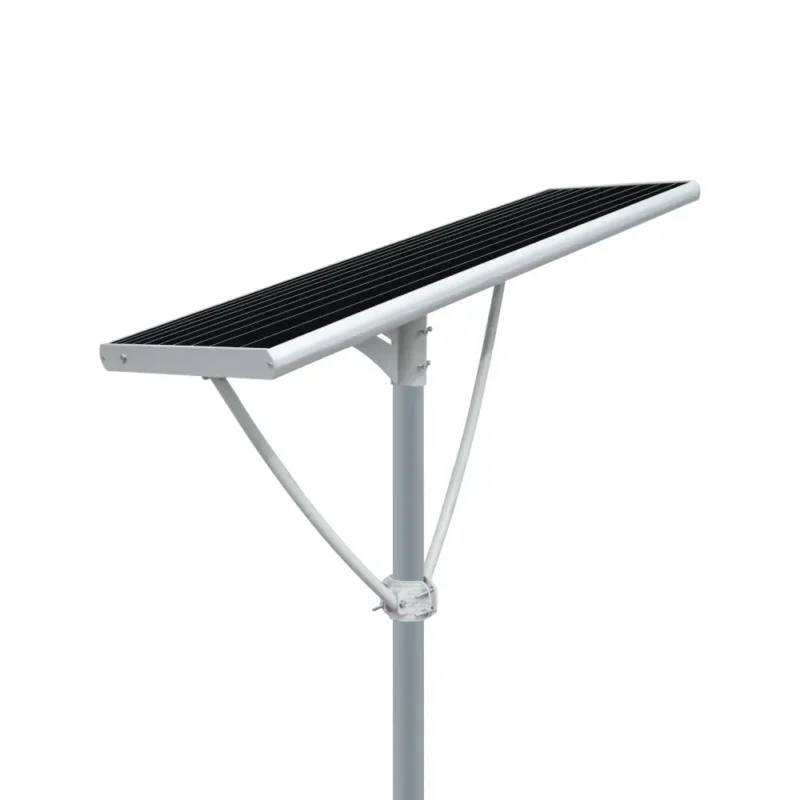

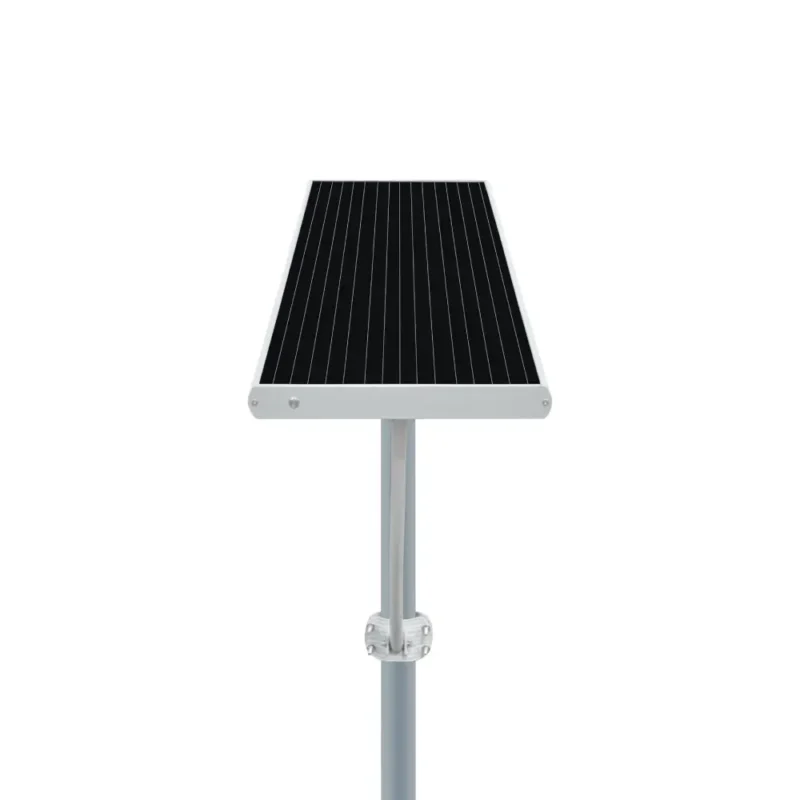

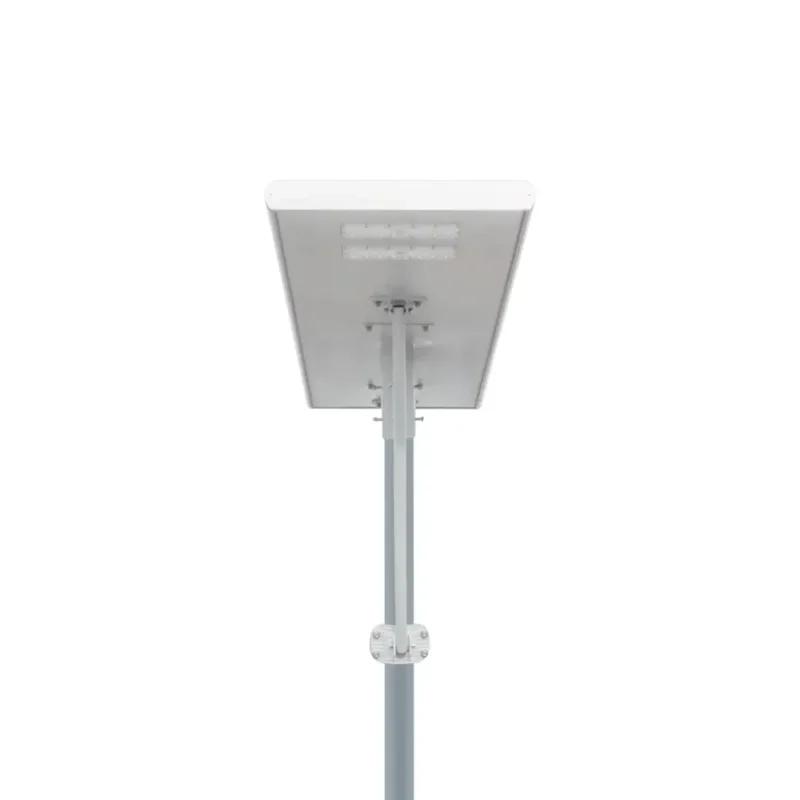

Compact All-in-One Solar Street Light (60W-180W) – POLARIS Series
All-In-One Solar Street Light POLARIS features adjustable solar panels and lighting modules for high operating efficiency in compact integrated form. It combines ultra-bright 5050 LEDs, a durable 10-year LiFePO4 battery, an intelligent solar controller, and high-efficiency solar panels in one compact system. Optional upgrades include self-cleaning solar panels, motion sensors, CCTV, and smart monitoring.
Applications：
Certified Quality for Global Projects
Description
Features
The Compact All-in-One Solar Street Light POLARIS Series applies advanced solar-light technology and innovative integrated design to support a wide range of outdoor lighting scenarios. Its adjustable solar-panel holder helps the system improve charging efficiency by aligning the panel with the sun direction, while the lighting module helps illuminate the roadway more effectively.
It integrates ultra-bright 5050 LED lighting modules, a durable 10-year LiFePO4 lithium battery, an intelligent solar controller, and a high-efficiency solar panel. The system can also be equipped with optional accessories such as a solar-panel self-cleaning system, motion sensor, CCTV camera, and intelligent monitoring system.
Compare POLARIS with the other all-in-one solar street light series before choosing a fixture. Check mounting height, required light distribution and service access—not solar-panel wattage alone. Request the matching lamp, panel and battery configuration for your layout.
Extreme Bright 5050 LED Provides 40% Higher Brightness
POLARIS Series adopts first-class extreme-bright 5050 LEDs with 260lm/w efficiency, providing higher brightness than conventional solar lights that use 3030 LEDs and 2835 LEDs because of its larger LED chip size.

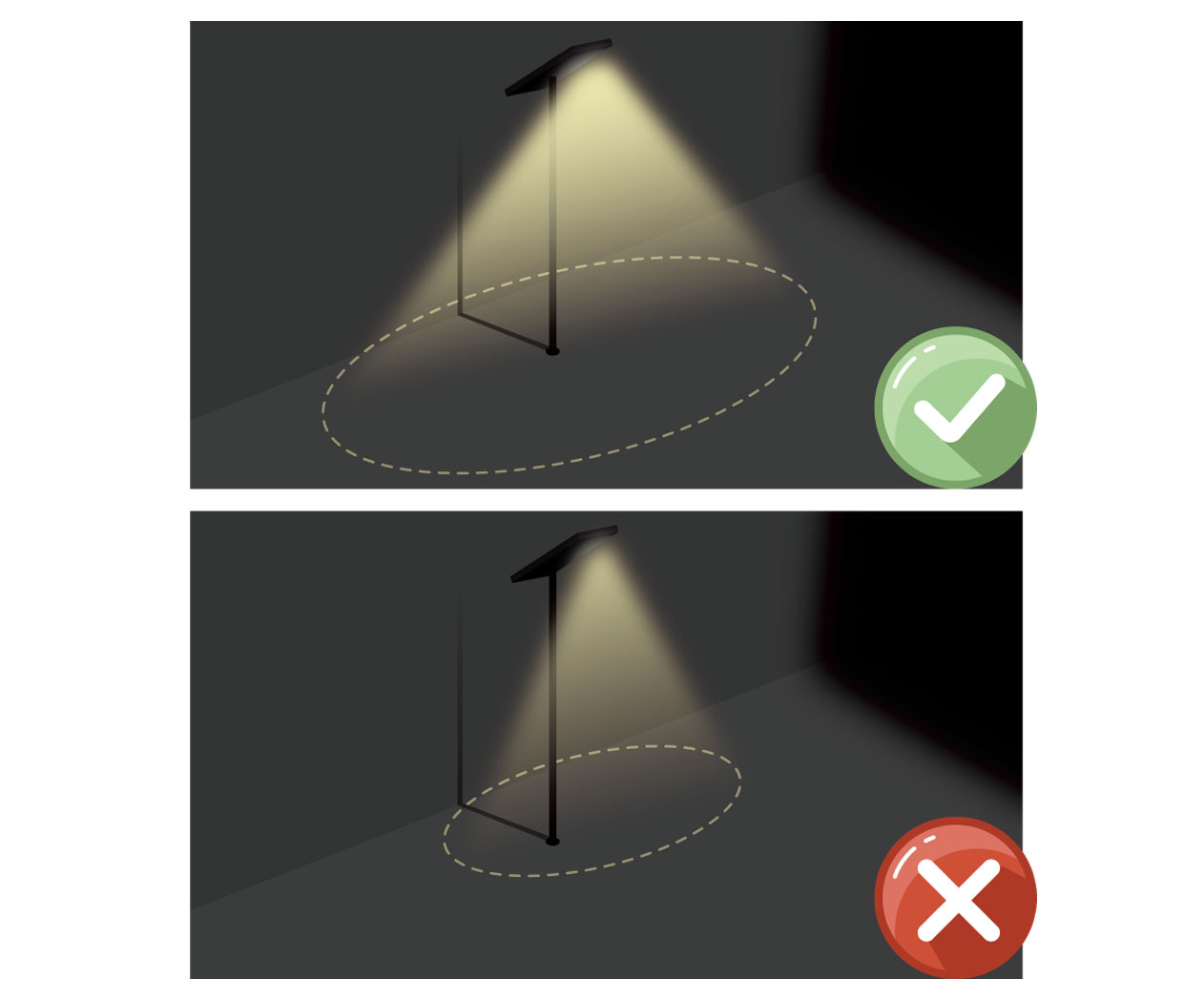

15% higher uniformity and 30% larger coverage area
Specially designed light distribution and a bigger beam angle enlarge illumination areas and improve lighting uniformity, making the system suitable for rural roads, streets, highways, and residential areas.
IP67 LED Modules with Heat Sink
POLARIS Series adopts IP67 LED modules as the lighting source, and the LED module is equipped with a heat sink for fast thermal dissipation. The lighting source can work for long periods in high-humidity and high-temperature environments.
10+ Years Lifespan Lithium Battery
By adopting unique pouch-type lithium battery cells, the LiFePO4 battery has been engineered to deliver a 4000-cycle life under deep DOD with stable performance. Multiple protection functions applied by the BMS unit and solar controller help maintain battery operation under demanding climates.
Operable Under Harsh Environment
IP66 protection for the whole POLARIS system makes it adaptable for rainy areas. The high-temperature-resistant LiFePO4 battery with low-current design helps reduce internal heat during operation. In addition, the smart temperature-adjustment function of the solar controller enables the system to operate normally under temperatures as high as 65°C.

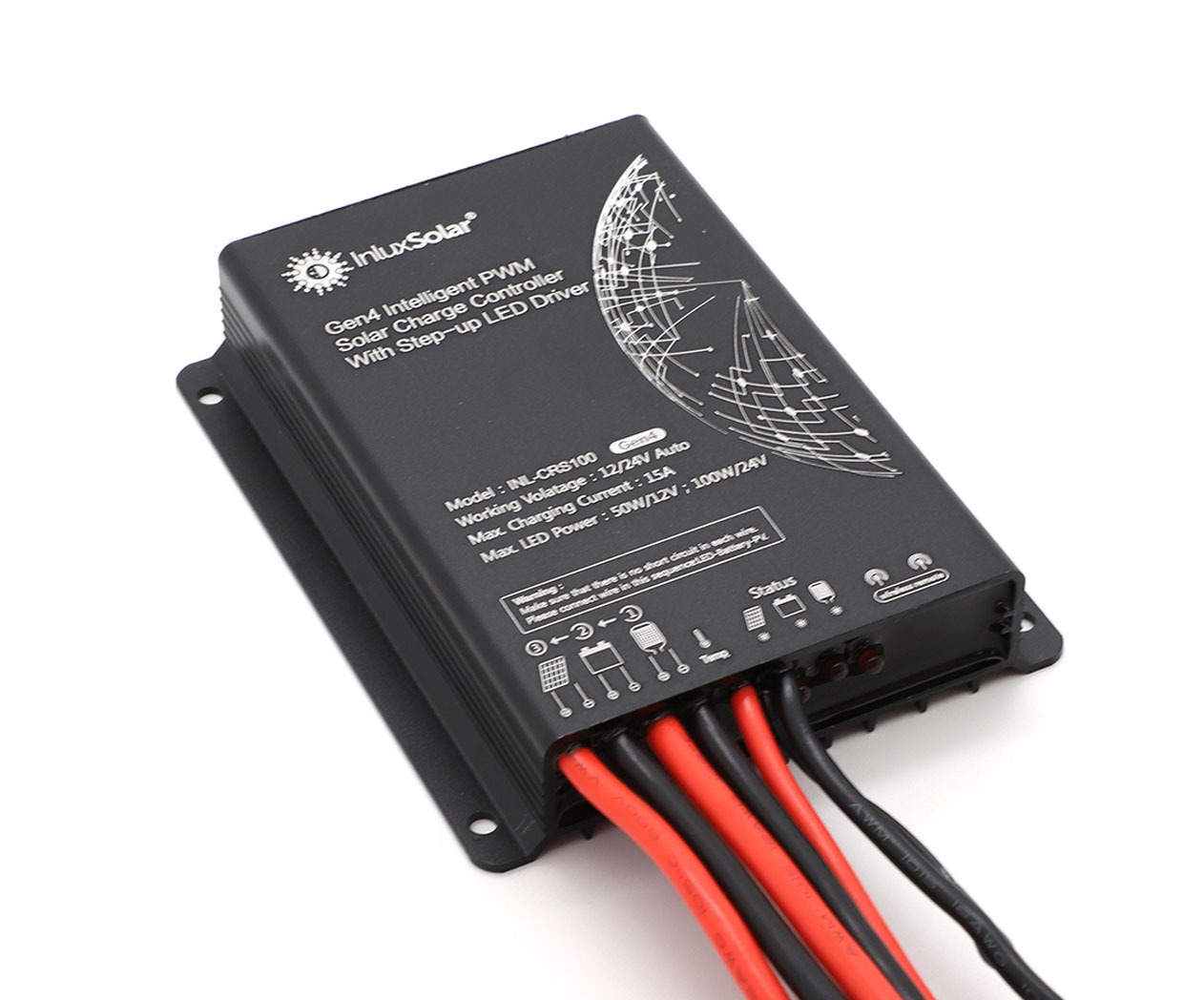

Smart Solar Controller
The Smart Solar Controller offers high efficiency with a smart power-saving mode that optimizes energy use. It operates with constant current and an IP68 rating, ensuring reliable performance even in harsh environmental conditions. This advanced design significantly reduces the light-failure rate and provides more stable brightness over time.
Additionally, the controller includes multiple protection features that help safeguard the battery, enhance its longevity, and improve the system’s overall durability and safety.
Additionally, the controller includes multiple protection features that help safeguard the battery, enhance its longevity, and improve the system’s overall durability and safety.
Technical Specifications
| Lamp Luminous Flux & Power | 3700lm(30W) | 6300lm(60W) | 7200lm(70W) | 9000lm(80W) | 9900lm(90W) | 10800lm(100W) | 12040lm(120W) |
| Color Temperature | 3000K – 6500K | ||||||
| Lighting Distribution | Type II, Type III | ||||||
| Mono-crystalline Solar Panel Capacity | 60W | 90W | 100W | 120W | 140W | 160W | 180W |
| LiFePO4 Lithium Battery Capacity | 256Wh | 384Wh | 512Wh | 512Wh | 640Wh | 640Wh | 768Wh |
| Solar Controller Capacity | 10A – 20A | ||||||
| Motion Sensor | Optional | ||||||
| Working Mode | up to 15 hours per night (Automatic Time Control Mode / Motion Sensor Control Mode) | ||||||
| Rainy Days Backup | up to 7 days | ||||||
| Suggested Mounting Height | 5-6Meters | 6-7Meters | 7-8Meters | 8-9Meters | 9Meters | 9-10Meters | 10-12Meters |
| Lamp Fixture Material | extruded aluminum and galvanized steel | ||||||
| Working Temperature | -20 – 65℃ | ||||||
| Protection Levels | IP66 / IK09 | ||||||
| Wind Resistance | >120km/h | ||||||
| Life Span | > 10 years | ||||||
Interior Structure
See what’s inside the All-In-One Solar Street Light POLARIS Series.
01
02
03
04
05
06
IP67 Extreme Bright LED Modules
Featuring advanced 5050 LED chips with efficiency up to 220lm/w, this lighting solution delivers strong brightness and reliable performance. Designed with high-temperature resistance and low thermal resistance, it helps extend LED lifespan. The thick aluminum heat sink and fast heat-dissipation module support stable performance and easier maintenance.
Enhanced Lamp holder
The enhanced lamp holder is designed for flexibility and adaptability, with a customizable diameter ranging from 76mm to 102mm. This supports easier integration with different fixtures and installation requirements while maintaining durability and reliable performance.
Smart Solar Controller
The Smart Solar Controller offers high efficiency with a power-saving mode that optimizes energy use. It operates with constant current and IP68 protection to support reliable performance in demanding environments. Multiple protection functions help safeguard the battery and improve overall system durability and safety.
High Strength Aluminum Frame
The fixture is equipped with a water- and dust-drain hole, allowing debris and moisture to drain away more easily. This helps improve the IP protection grade, reduce accumulation inside the fixture, and support better heat dissipation for longer service life.
LiFePO4 Lithium Battery
The fixture is equipped with a LiFePO4 lithium battery known for a lifespan of over 10 years, strong high-temperature resistance, and high safety performance. It helps reduce replacement frequency and supports reliable long-term operation.
Solar Panels
The solar panel features A-class quality with charging efficiency up to 21%, supporting strong energy conversion and reliable long-term outdoor performance.
Optional Features & Add-ons
01
Motion Sensor
The motion sensor automatically reduces brightness by 30% when inactivity is detected, saving energy. Upon detection of presence, brightness returns to 100%, ensuring optimal visibility while minimizing distractions. This feature strikes a balance between power efficiency and user comfort.
02
Anti-theft Components
Anti-theft screws and spikes are designed to secure solar panels against theft. The unique tamper-resistant design makes removal nearly impossible without specialized tools, while anti-climbing spikes prevent unauthorized access, ensuring durability and security in exposed environments.
03
Anti-bird Spike
Anti-bird spikes offer a humane and effective solution to prevent birds from perching on solar panels, rooftops, and fences. Made from durable stainless steel or plastic, these sharp, angled prongs discourage birds without harming them. Easy to install, these spikes provide a low-maintenance way to protect solar panels from bird-related damage, ensuring optimal performance.
04
Camera
The system integrates a solar-powered CCTV camera, offering a sustainable and eco-friendly surveillance solution. These cameras operate independently of traditional power sources, ensuring continuous monitoring without external electricity. With waterproof housing and motion detection features, they enhance security for solar panels while reducing energy costs.
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, Inlux Solar’s IOT Smart Monitoring System enables intelligent management of our All-In-One Solar Street Light POLARIS by PC, PAD and Mobile.
Compatible Pole Designs
Our All-In-One Solar Street Light POLARIS can be customized with various pole shapes and materials. Check out some of our pole designs, and feel free to share your ideas with us if you have additional customization needs.
Installation Methods
Installation instructions video

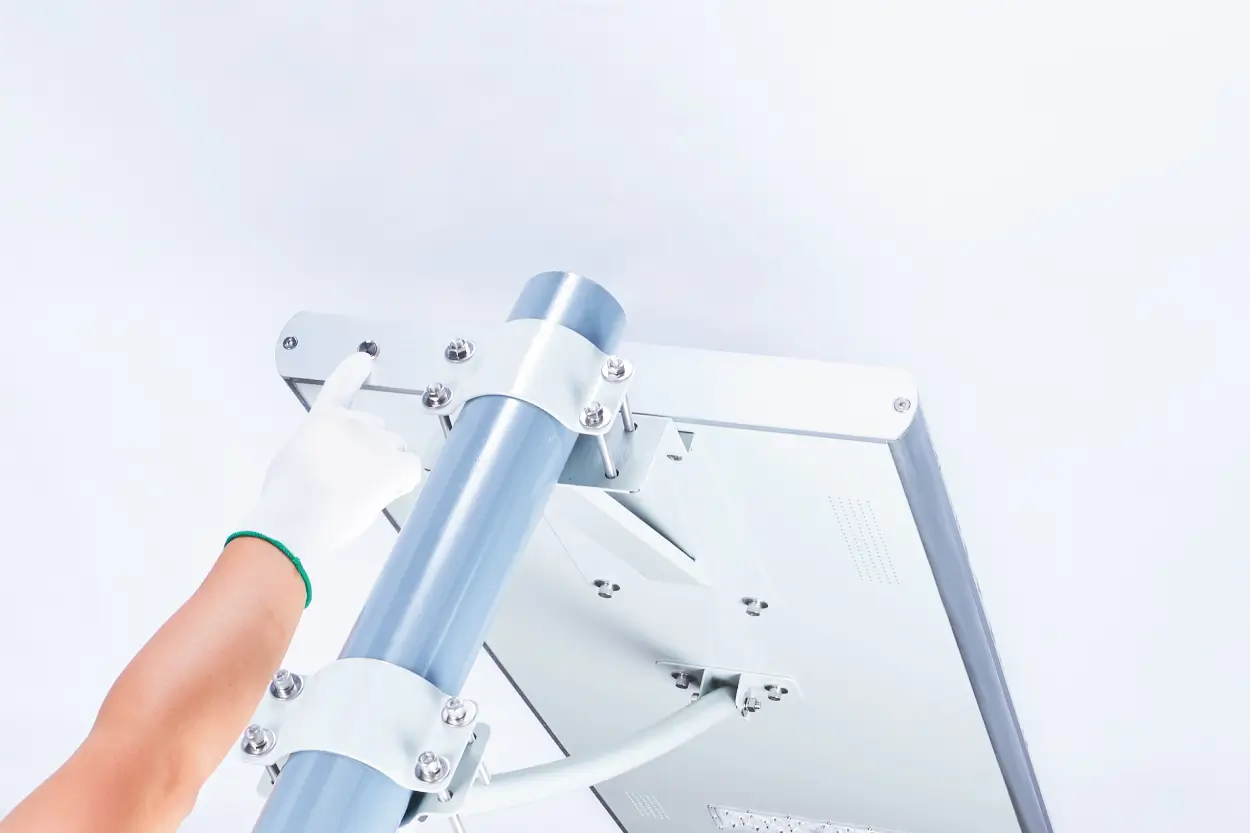

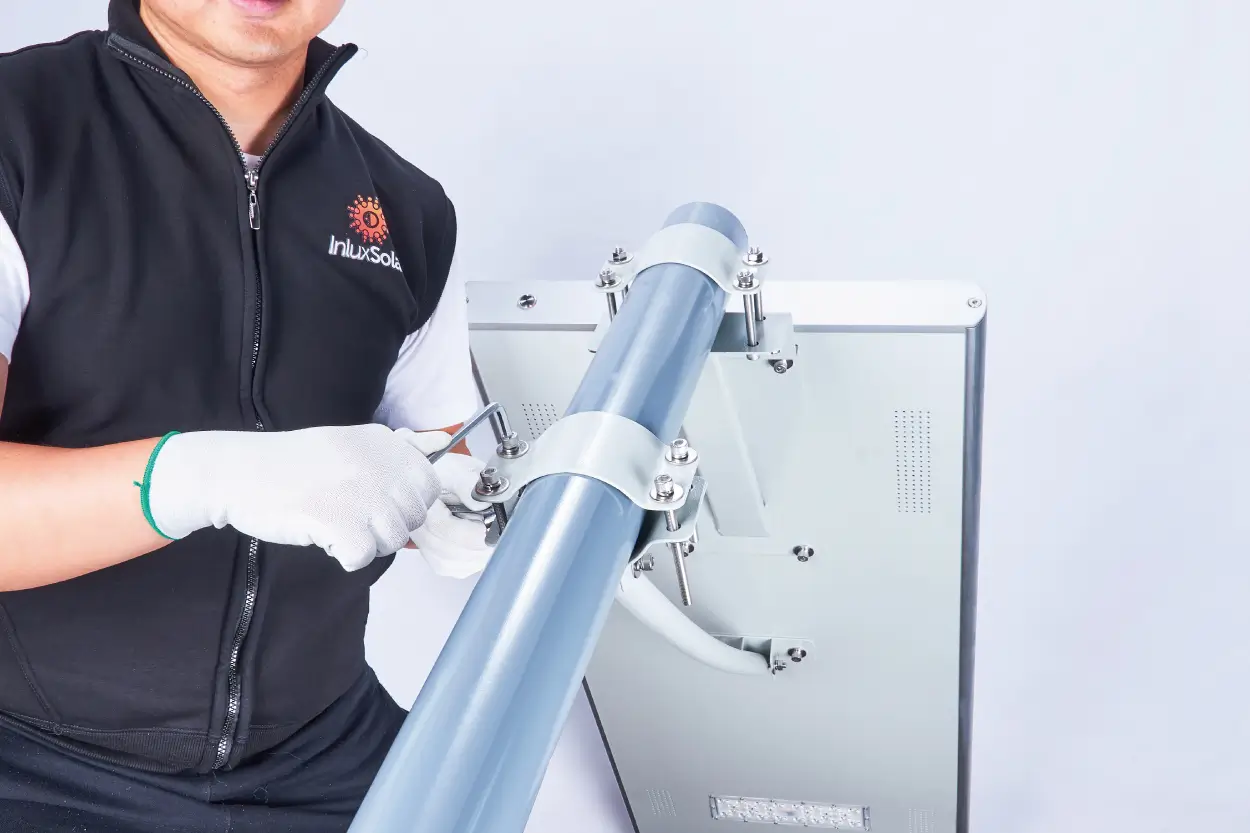

1.mount the solar lamp with the pole
2. Turn on the switch to activate the system, and the solar lamp will operate automatically every day.
Product Videos

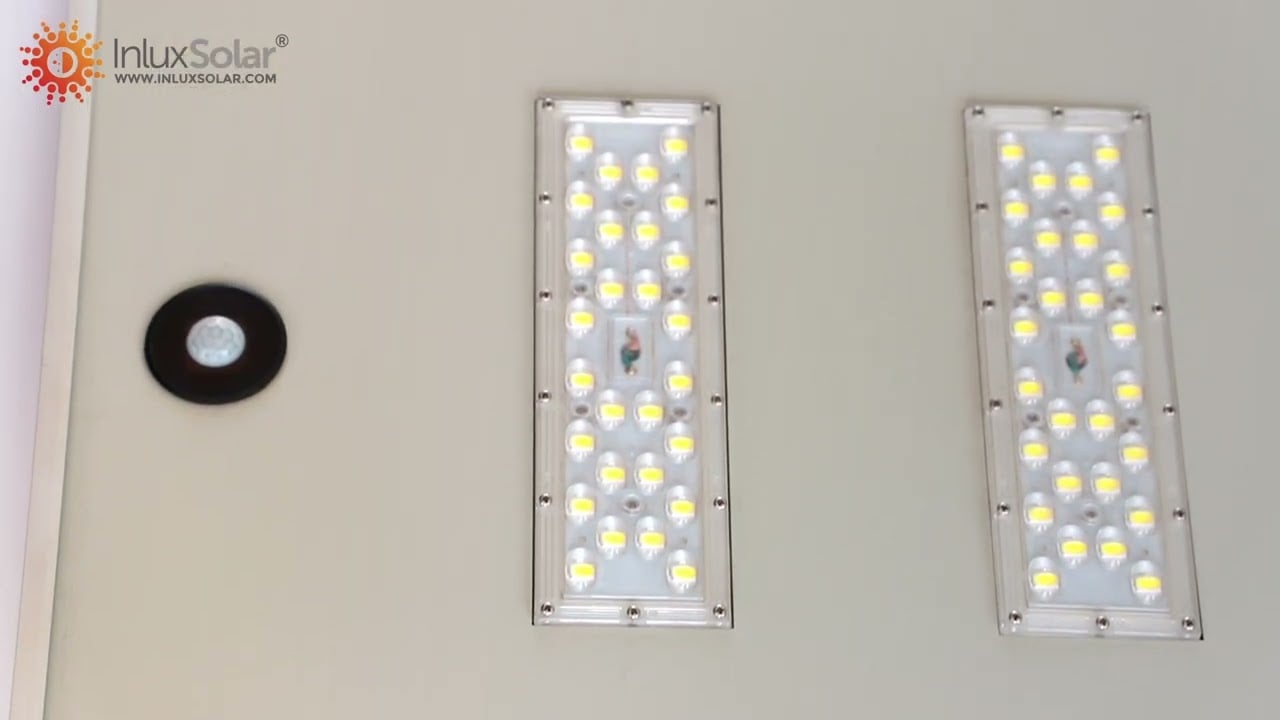

POLARIS_AIO2 product description
POLARIS Series Internal Wiring Connections of Battery Power Unit
POLARIS Series Installation Video
