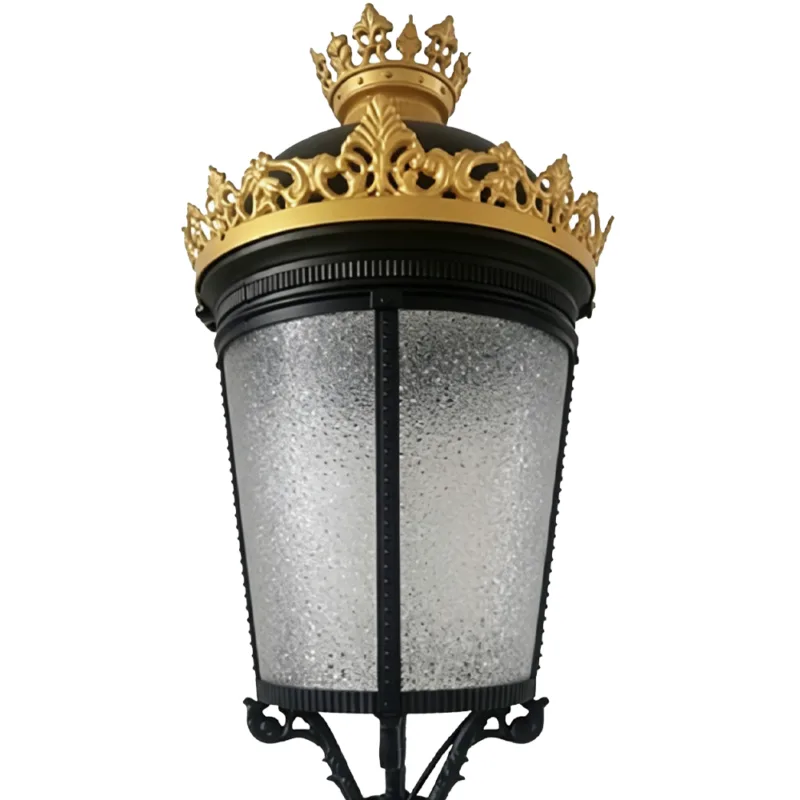

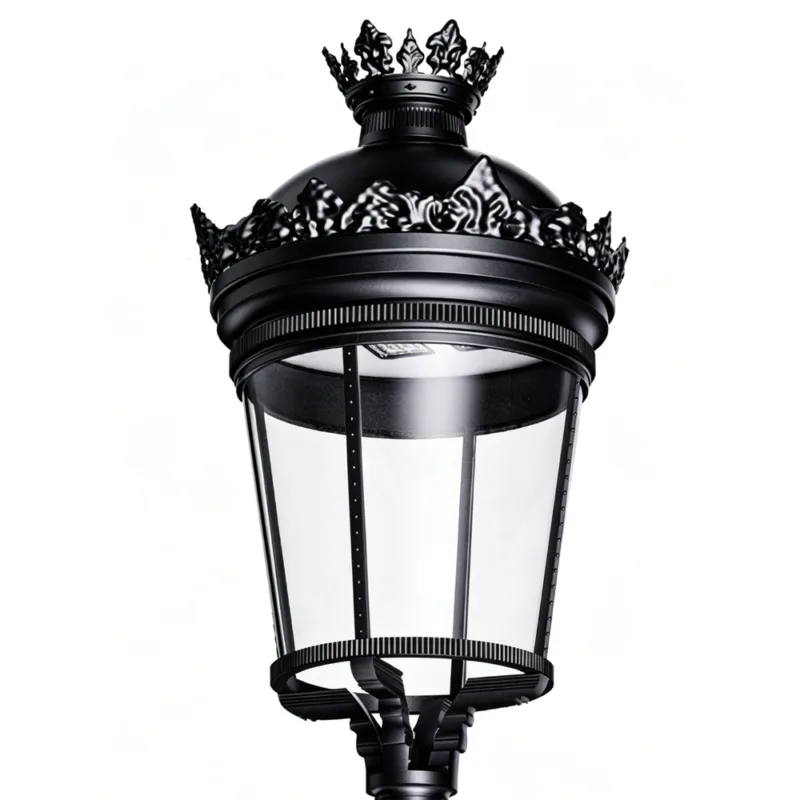

LED Park Light – INL-DSL06
Elegant and efficient outdoor lighting for parks, pathways, and public spaces. High-performance LED modules with die-cast aluminum housing and IP66 protection ensure durability and stable operation. 100LM/W high-efficiency output with optimized optical lens (Type I–V) Flexible installation with rotary shaft design; suitable for parks, gardens, and urban landscapes Reliable components with branded drivers; optional glass diffuser and decorative accessories
Applications：
Certified Quality for Global Projects
Description
Features
- Modern Architectural Design — Clean and stylish appearance, seamlessly integrates into parks, gardens, campuses, and urban landscapes
- Robust Die-Cast Aluminum Housing — High-strength structure with excellent corrosion resistance for long-term outdoor durability
- High-Efficiency LED Performance — Up to 100 lm/W with premium LED chips, ensuring energy savings and over 50,000 hours lifespan
- Advanced Optical System — Multiple lens types (Type I–V) for precise light distribution, improved uniformity, and reduced glare
- Optional Glass Diffuser — Clear glass for higher brightness or frosted glass for softer, more comfortable lighting
- Reliable Branded Driver — Compatible with leading brands, featuring high power factor (>0.95) for stable operation
- User-Friendly Maintenance — Rotary shaft design enables easy installation and quick access for servicing
- High Protection Level — IP66 waterproof and IK08 impact resistance, with built-in 10KV/20KV surge protection
- Wide Operating Range — Stable performance from -35°C to +50°C, suitable for various climates
- Flexible Installation Options — Multiple spigot sizes (76/60/27mm) and optional decorative accessories for different applications
How This Product Benefits Your Project

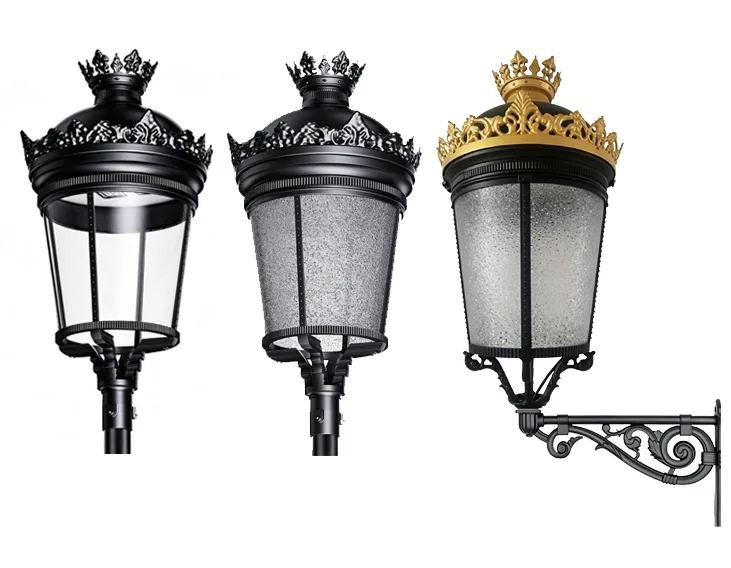

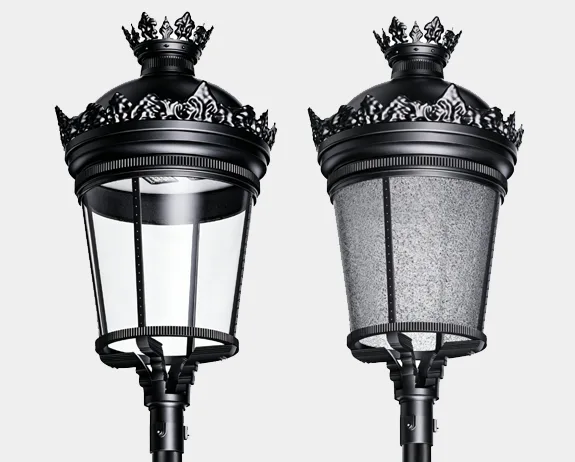

Flexible Glass Diffuser Options
A-Type: Ultra-clear high-transparency glass for maximum light output and uniform distribution

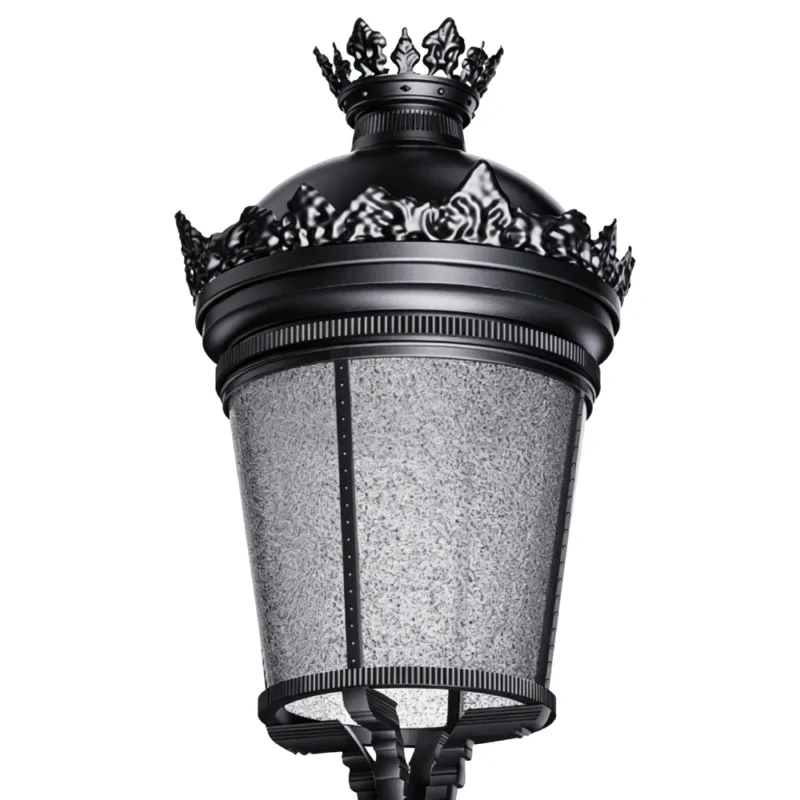

B-Type: Frosted glass for softer lighting and improved visual comfort Customizable based on project requirements.
B-Type: Frosted glass for softer lighting and improved visual comfort Customizable based on project requirements.

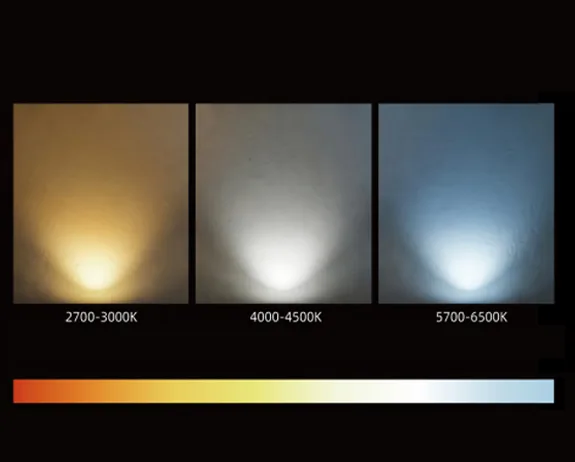

Adjustable Color Temperature Options
The color temperature can be flexibly adjusted to suit different lighting requirements, with a tunable range from 2700K to 6500K. Easily switch between warm and cool light to match various outdoor environments and application scenarios.

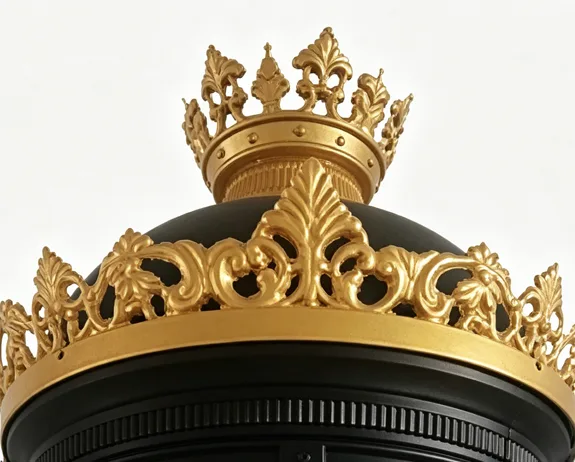

Decorative Accessories
Optional decorative accessories enhance visual appeal and allow seamless integration into diverse outdoor settings.
LED Garden Light Technical Specifications
| Model | INL-DSL06 |
| Power | 20-100W |
| LED Chip | Light source module |
| Average Lumens | 110 lm/W |
| Chip Brand | LUMILEDS / CREE / SAN’AN |
| Driver | MW / Inventronics / Moso / Philips / DONE |
| Power Factor | >0.95 |
| Voltage | 90-305V |
| SPD | 10KV / 20KV |
| Insulation Class | Class I/II |
| CCT | 3000-6500K |
| CRI | >70 |
| Optical Lens | PC lens for Type I / II / III / IV / V |
| Working Temperature | -35°C to +65°C |
| Lifetime | >50,000H |
| IP Class | IP66 |
| IK Class | ≥IK08 |
| Body Material | Die-casting Aluminum Body |
| Installation Spigot | 76 / 60 / 27 mm |

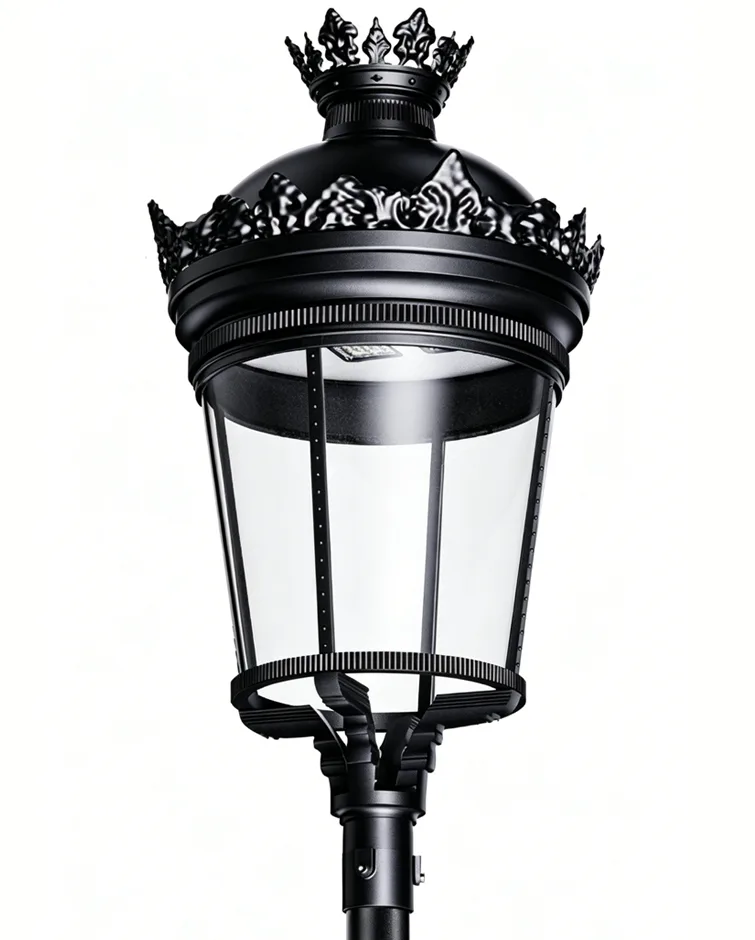

Interior Structure
See what’s inside the INL-DSL06 LED Park Light.
01
02
03
04
05
06
IP67 Super Bright LED Module
Featuring advanced 5050LED chips with Average lumens up to 120lm/w, this lighting solution delivers extreme brightness and reliable performance. Designed with high-temperature resistance and low thermal resistance, it ensures a longer LED lifespan. The thick aluminum heat sink, combined with a fast heat dissipation module, guarantees optimal performance and durability, while the easy-maintenance design simplifies upkeep.

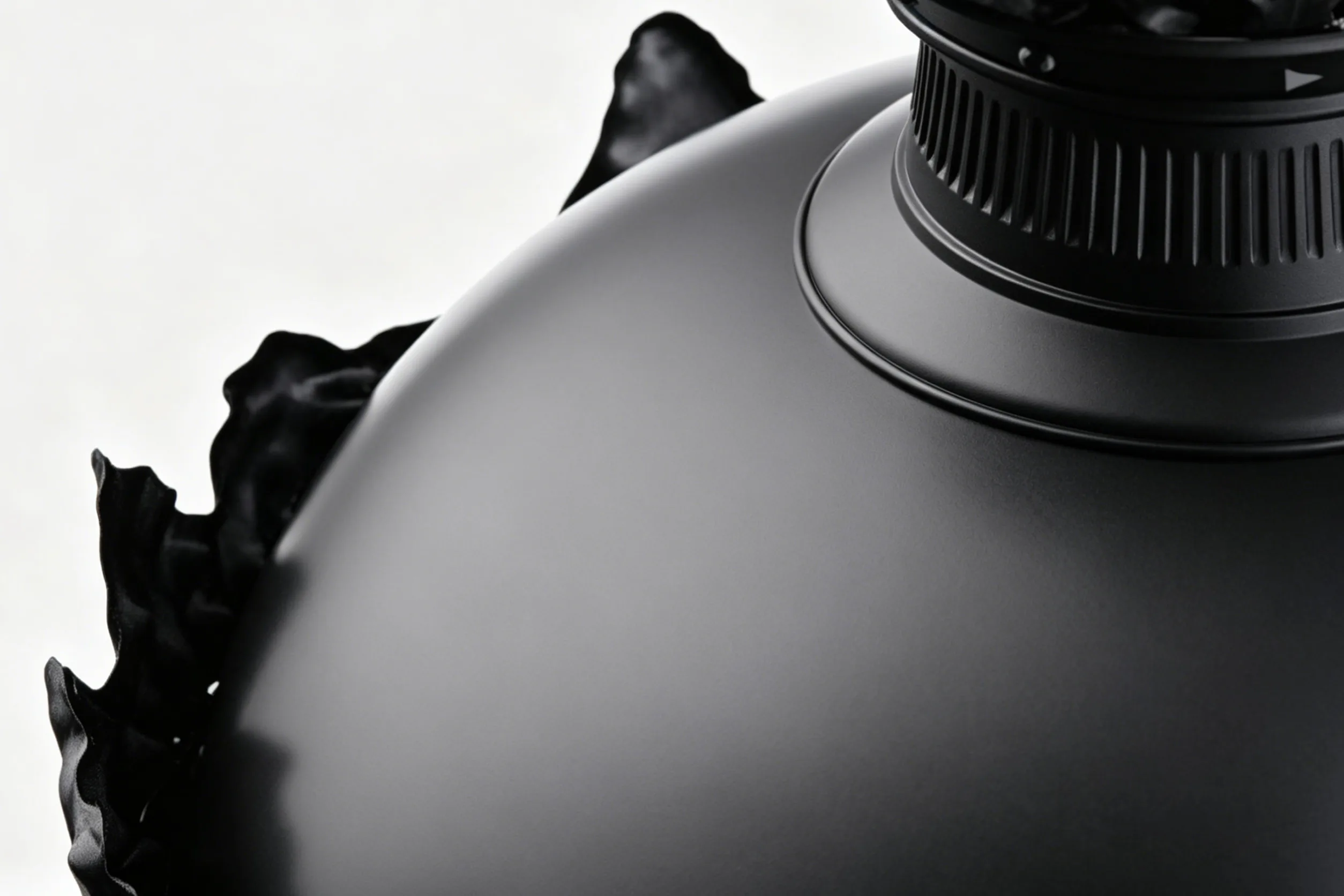

Aluminum Alloy Lamp Fixture
The lamp head is constructed from high-quality aluminum alloy, offering excellent heat dissipation to ensure stable LED performance and longer lifespan. Its corrosion-resistant and weatherproof properties make it ideal for harsh outdoor environments.

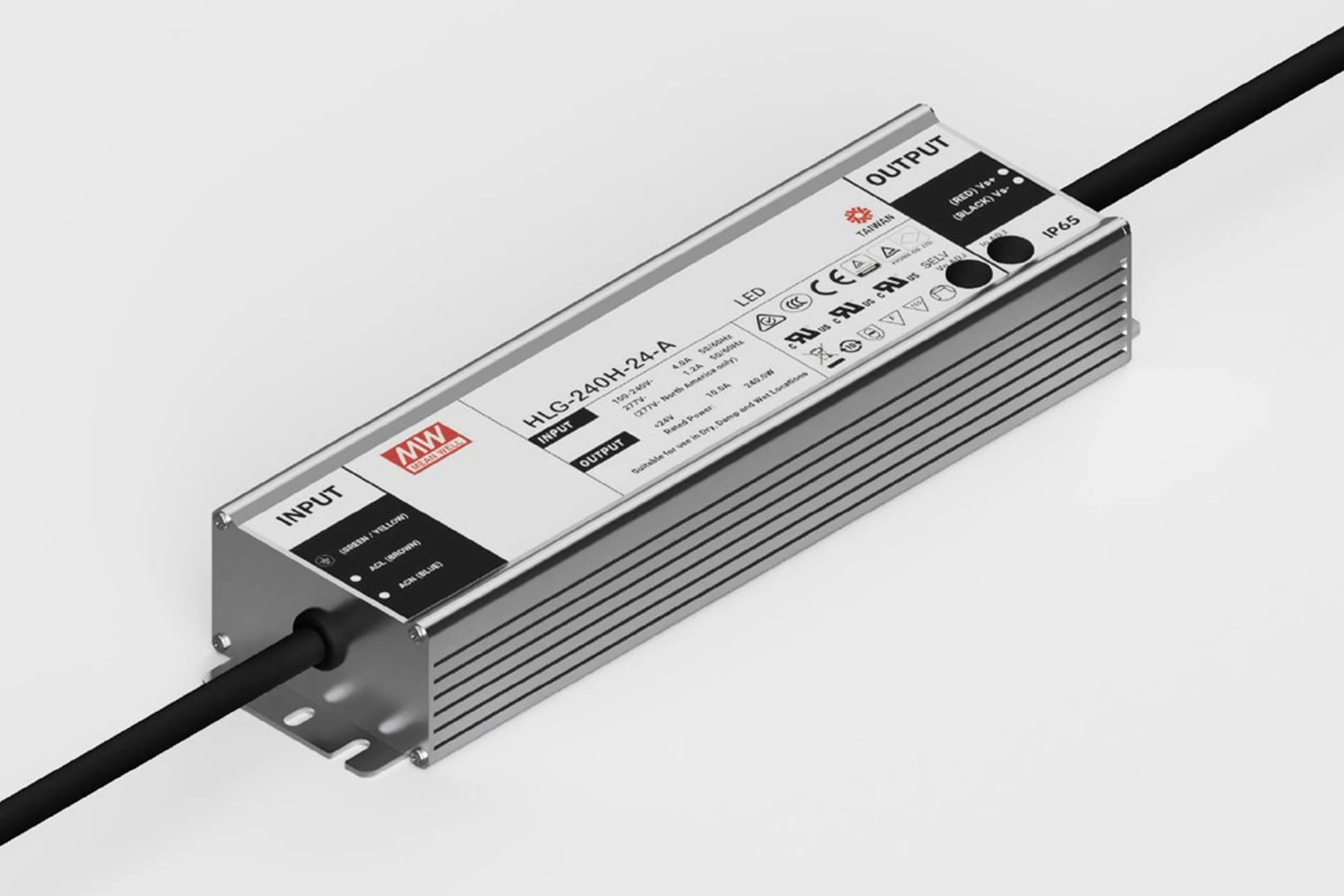

LED Driver
The LED driver delivers precise current regulation, ensuring LEDs operate at optimal brightness and efficiency. It enhances reliability and extends the lifespan of LEDs by protecting them from voltage fluctuations and electrical surges. Many LED drivers are equipped with dimming capabilities, providing flexible lighting options, energy savings, and customizable brightness levels to suit various applications.

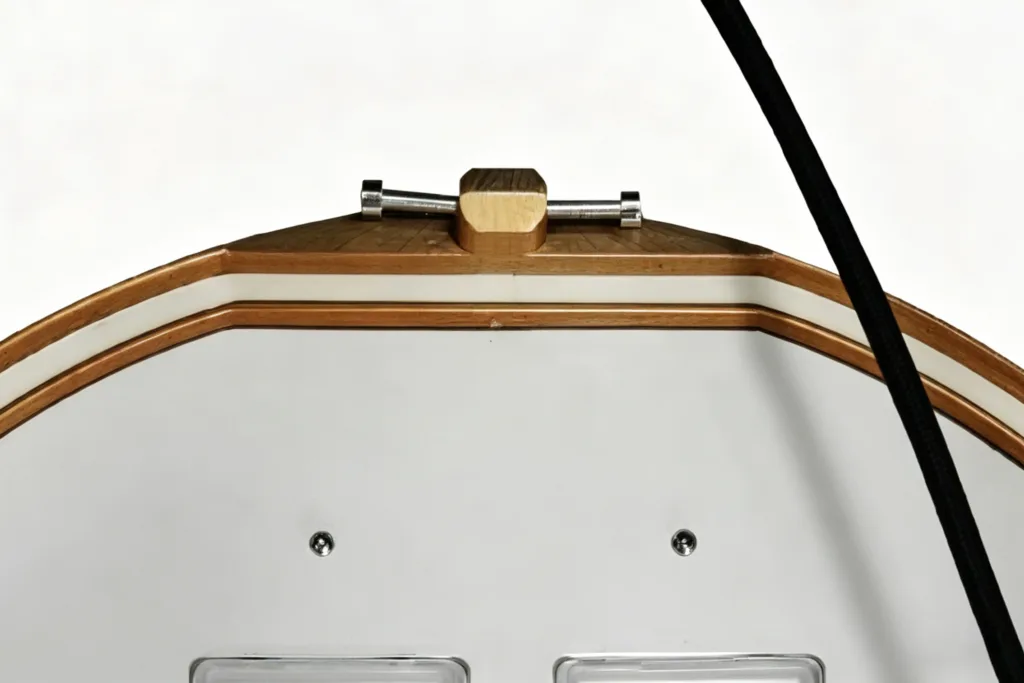

Easy Installation & Maintenance
Rotary shaft design allows convenient opening and quick access to internal components, reducing installation time and maintenance costs.

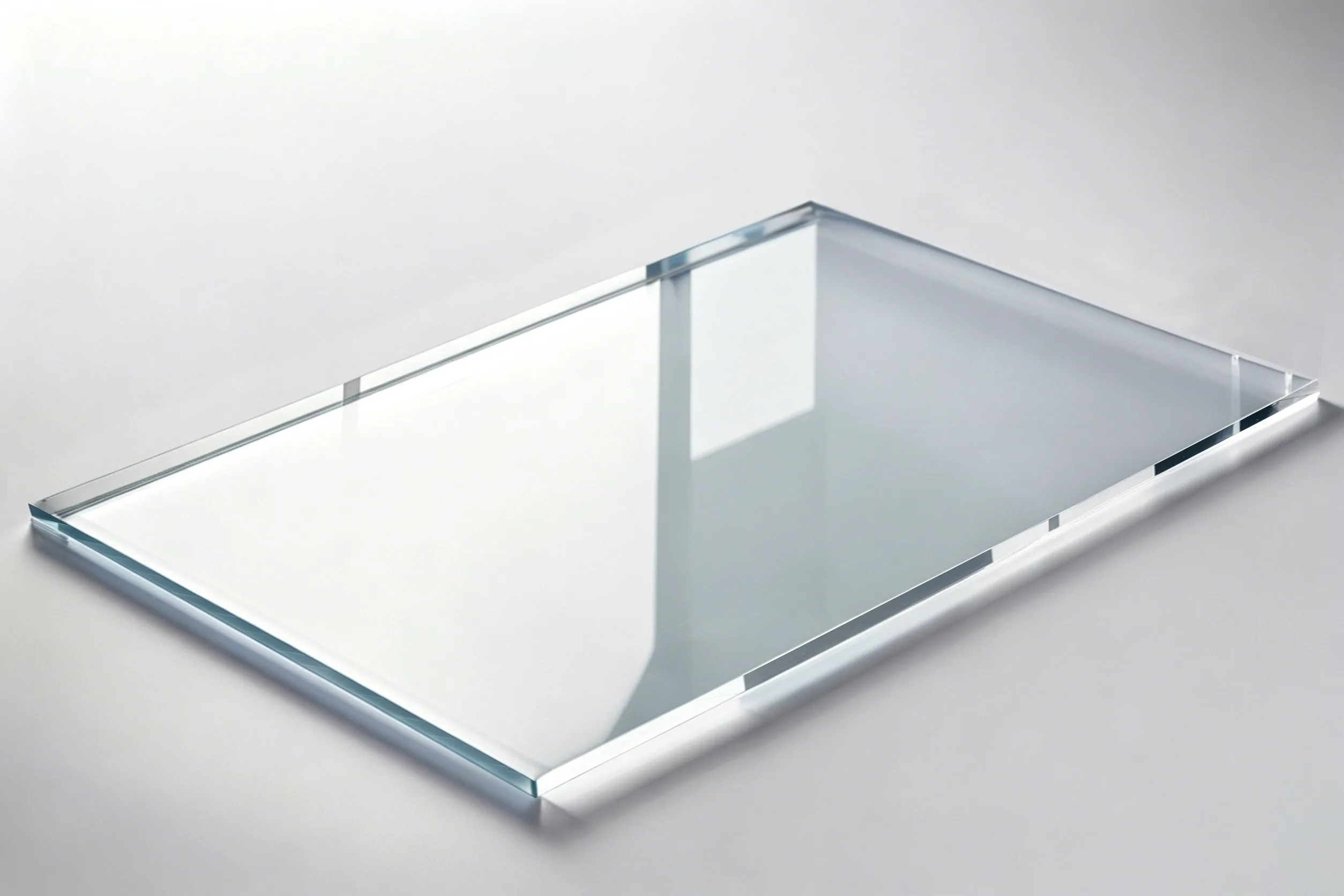

Tempered Glass
A high-strength tempered glass cover is positioned beneath the LED module to provide enhanced protection against impact, dust, and moisture. With high light transmittance, it ensures maximum luminous efficiency while maintaining long-term durability and stable performance in outdoor environments.

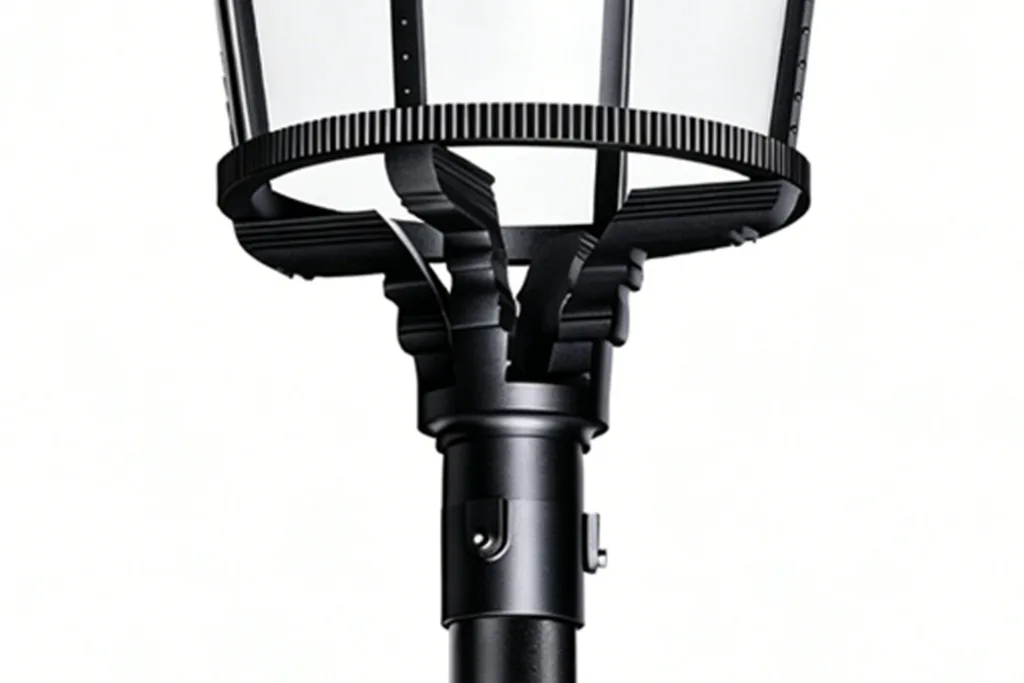

Aluminum Lamp Holder
The lamp holder is constructed from high-quality aluminum, offering excellent structural strength and corrosion resistance for long-term outdoor use. Its robust design ensures secure installation and stable support, while also contributing to effective heat dissipation for improved overall performance and lifespan.

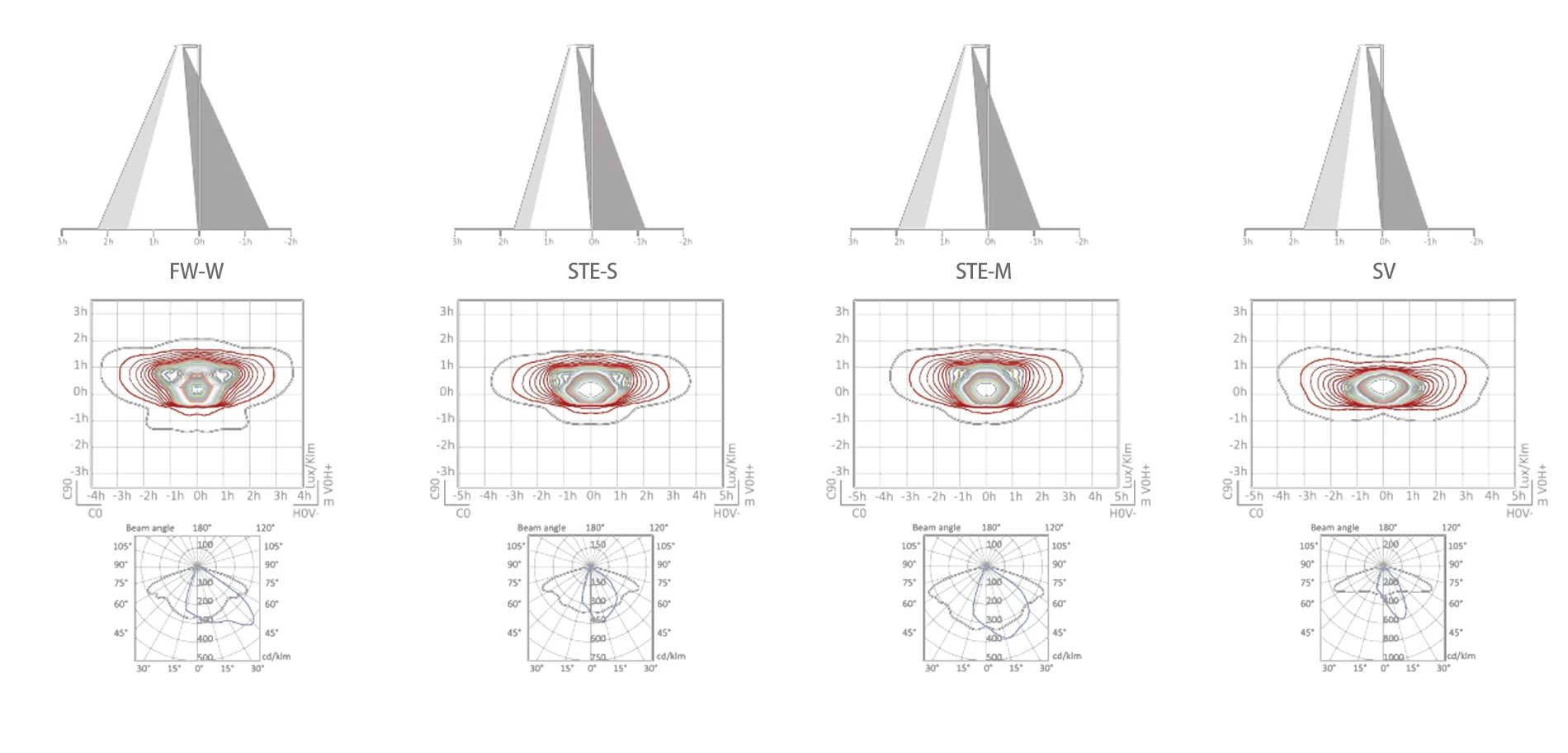

Light Distribution Curve
Optical with PC lenses with high visual comfort and uniform lighting distribution, multiple optical distribution options.

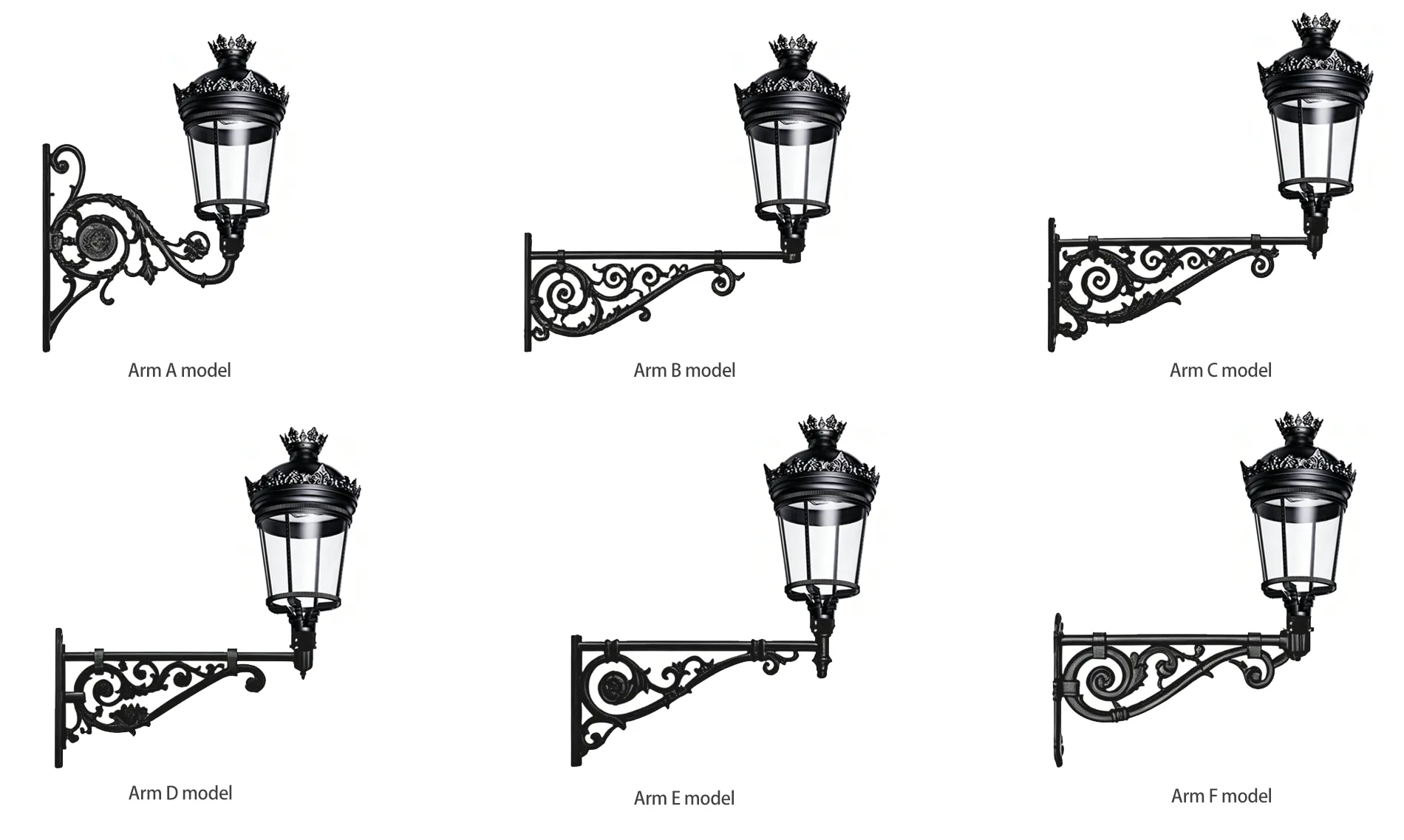

Aeeessories Dispaly
Multiple arm designs available, perfectly compatible with this LED Park light.
IoT Smart Monitoring System
Based on LoRA, Zigbee, 4G technology, Inlux Solar’s IOT Smart Monitoring System enables intelligent management of our INL-DSL06 LED park light by PC, PAD and Mobile.
Select the DSL06 Glass and Finish
The ornamental crown, finish and glass appearance are visible design choices in the DSL06 gallery. Record the preferred combination, mounting interface and pole arrangement in the quotation. Send the path or plaza layout and lighting target so the selected diffuser and optic can be reviewed together. Confirm driver and control choices, component access and replacement glass or other service parts before procurement.
